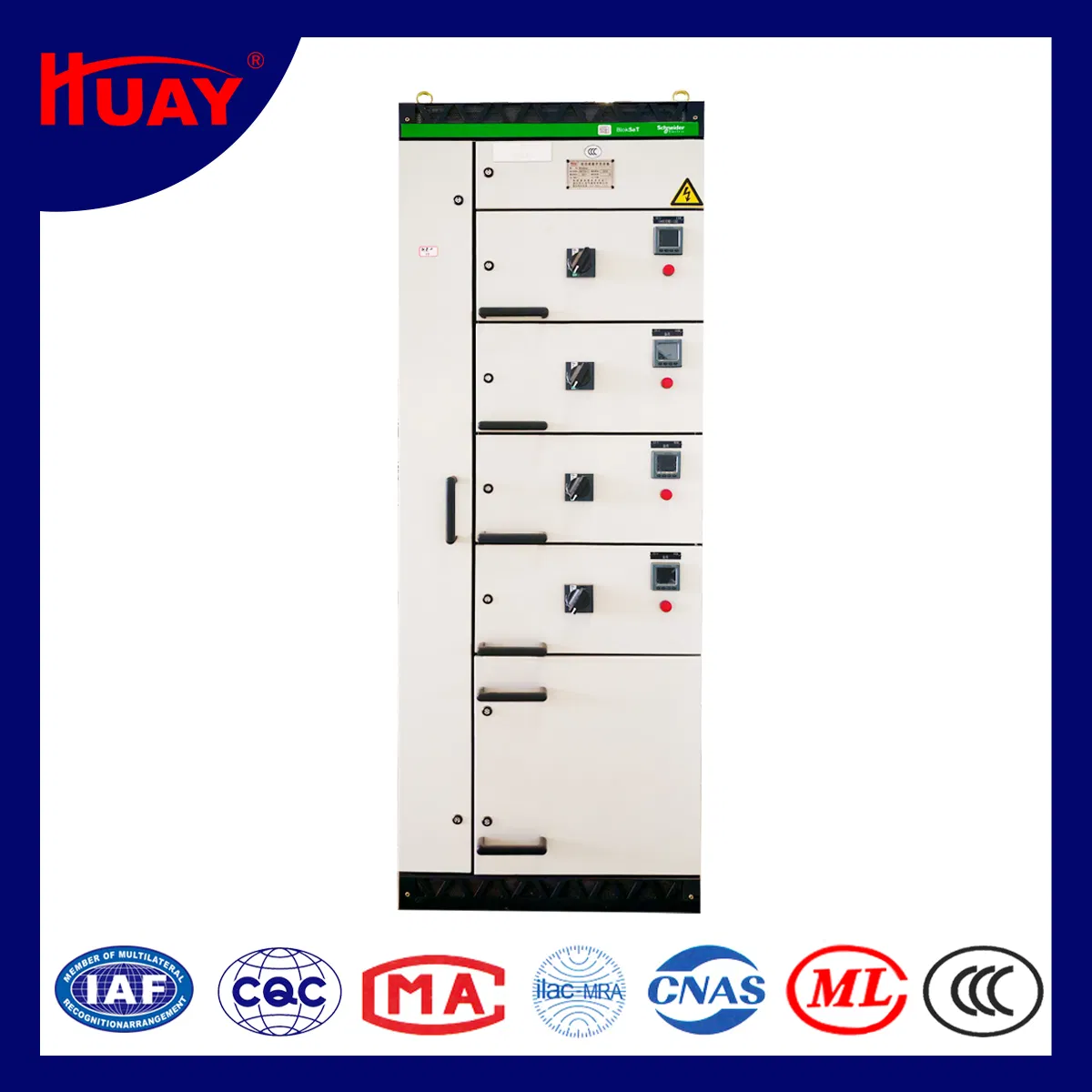

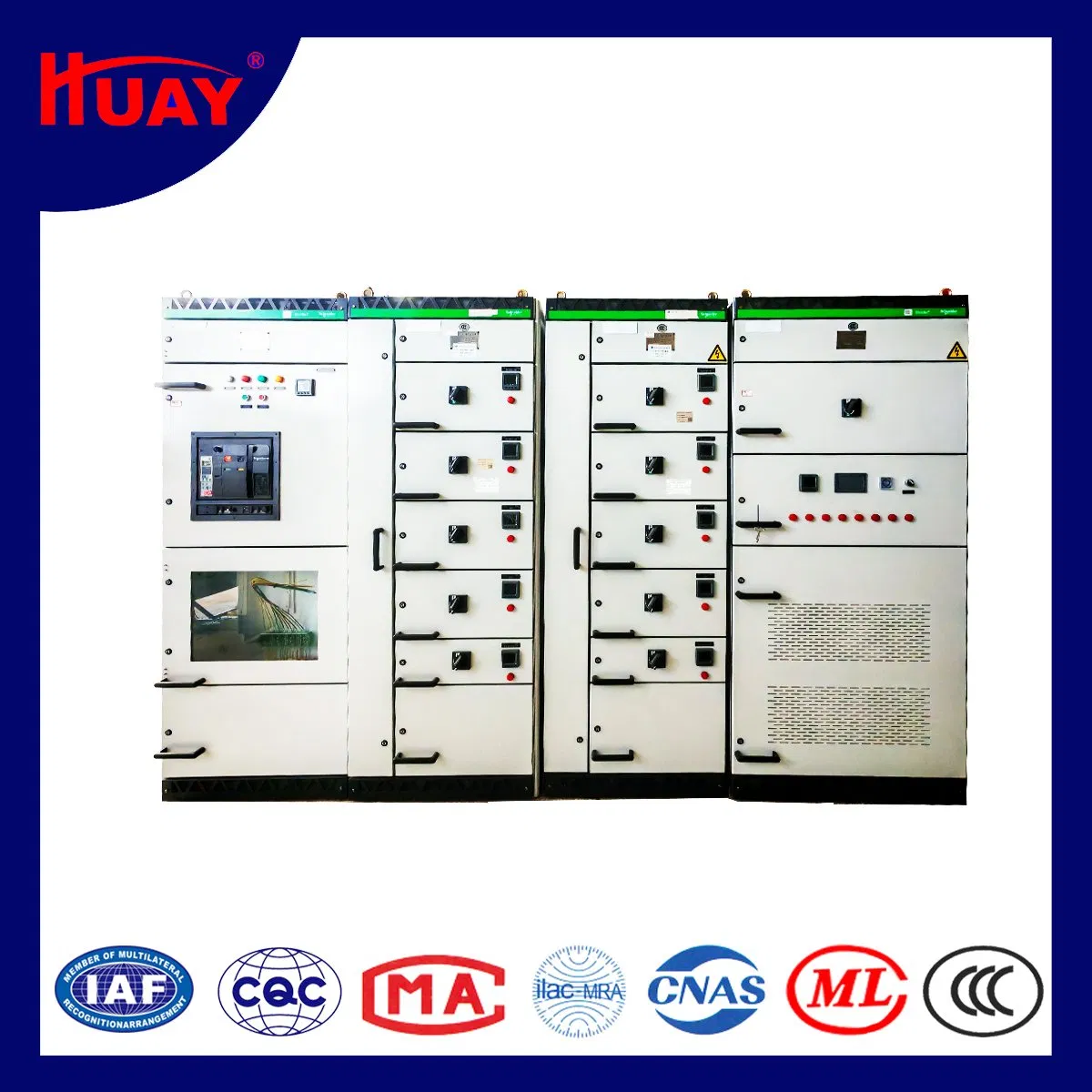

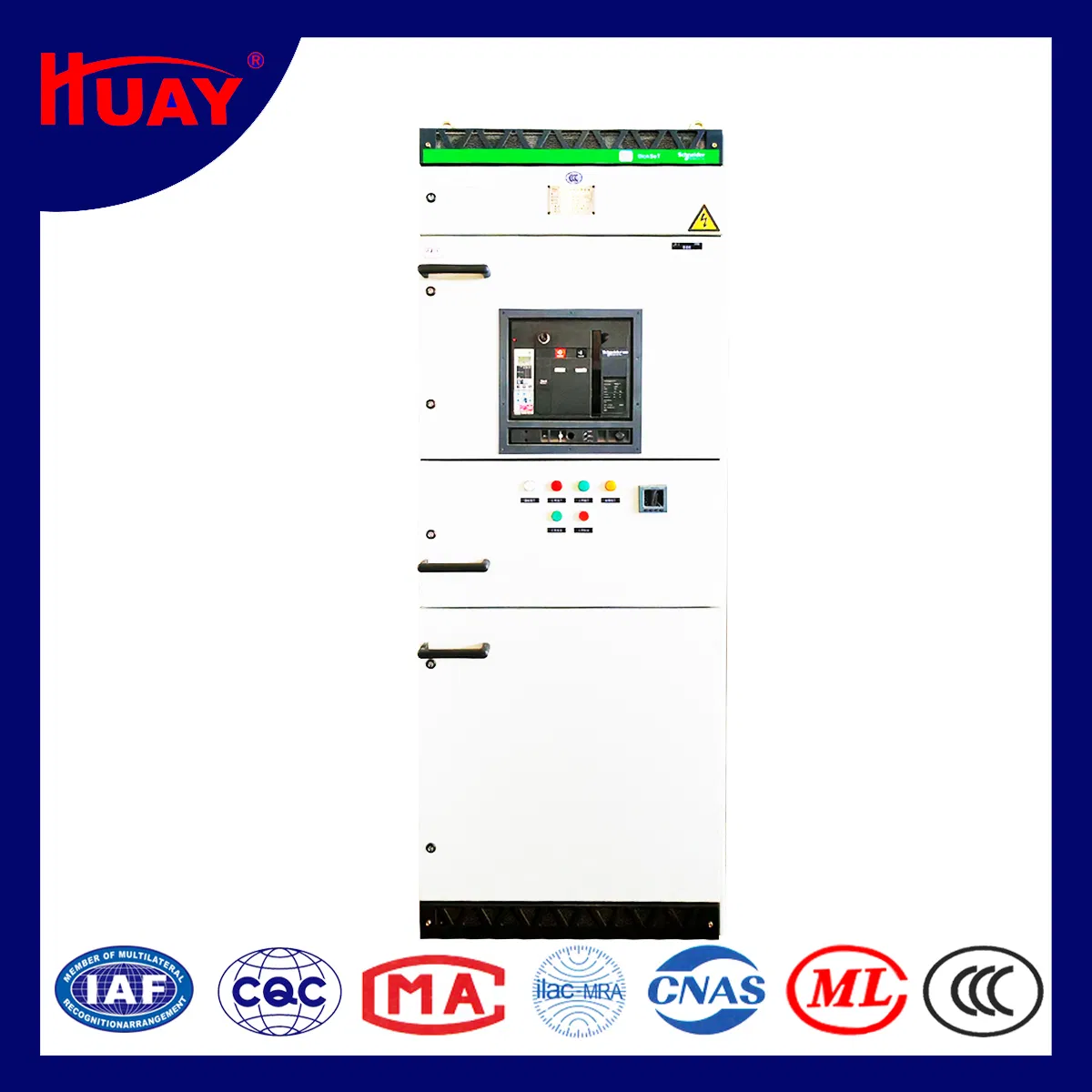

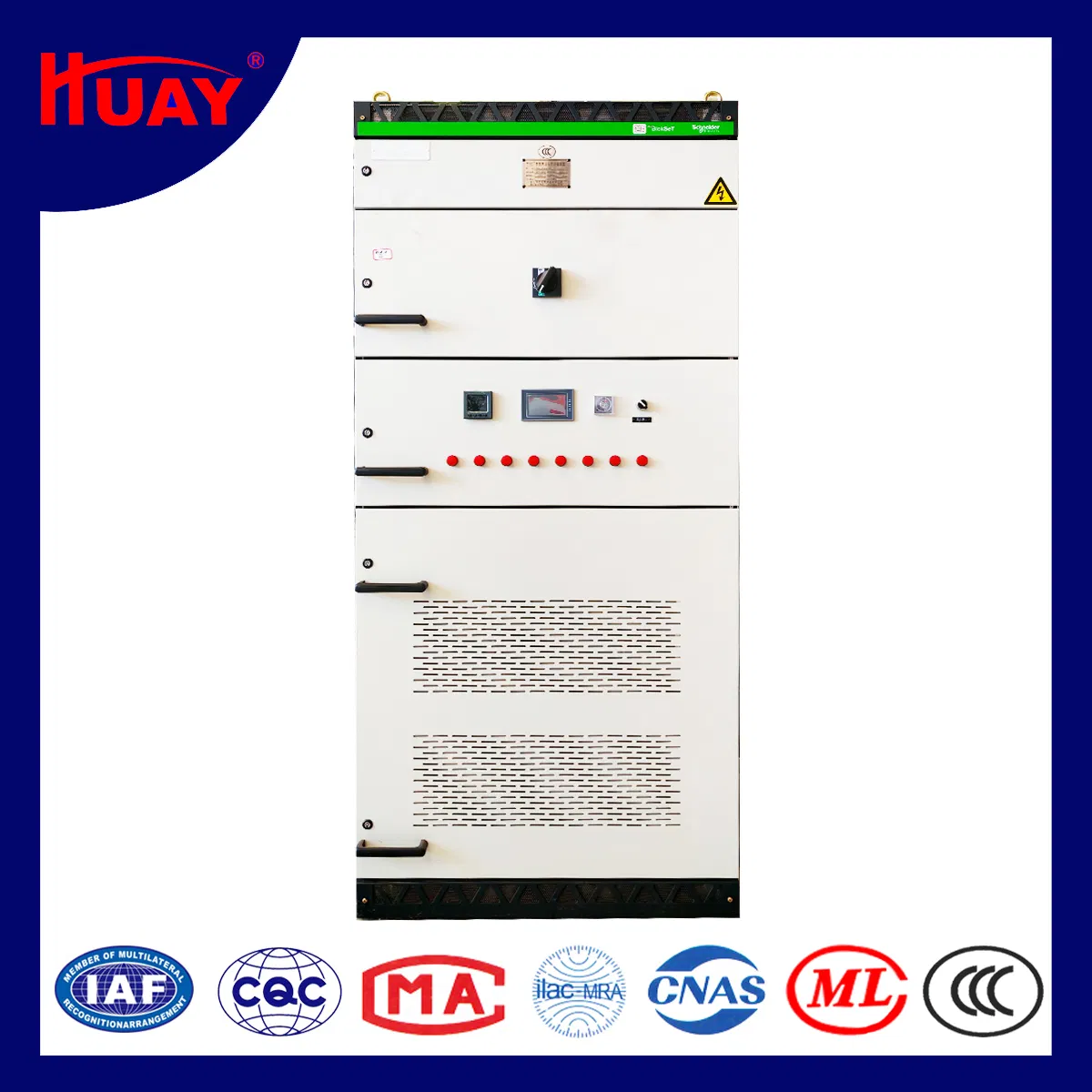

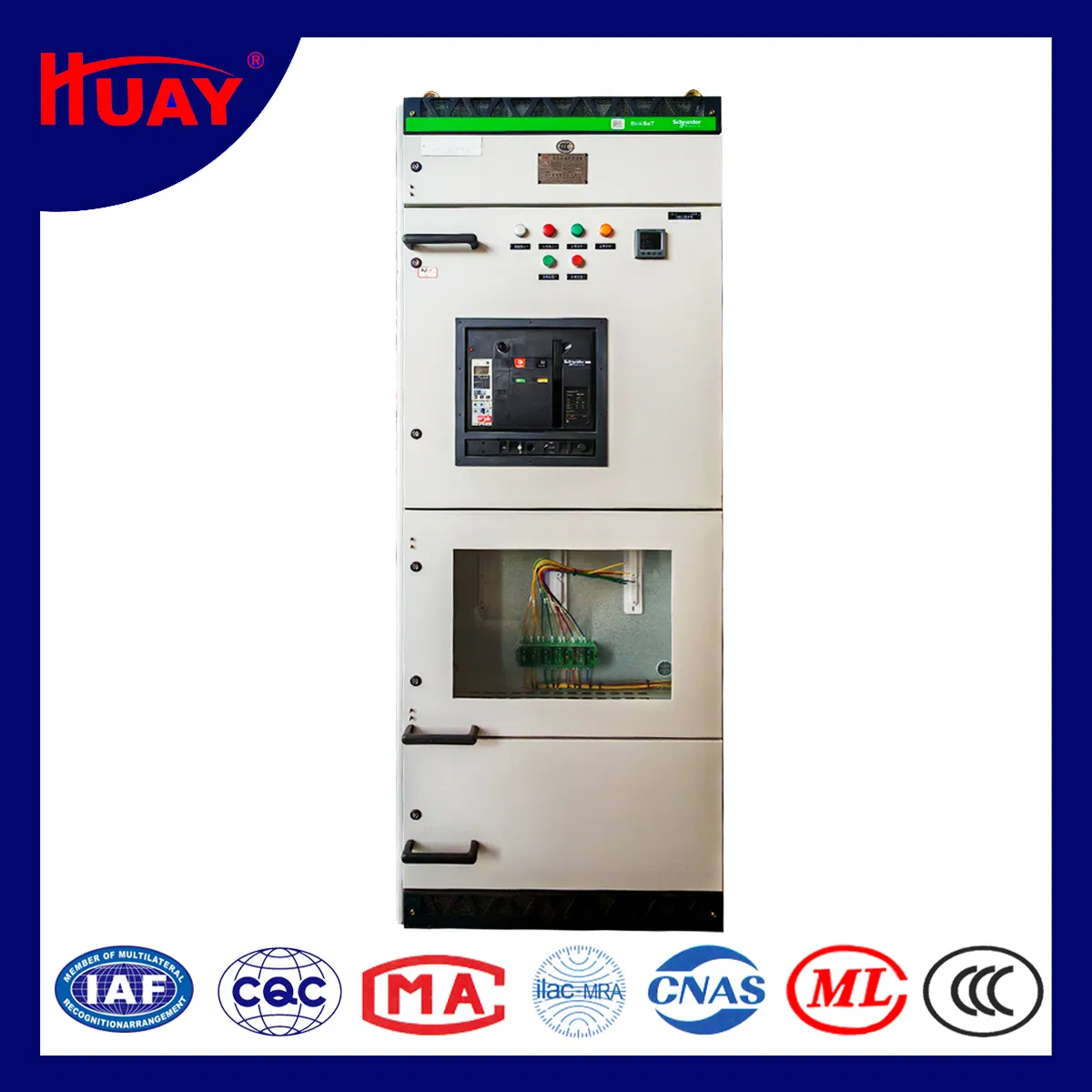

Low Voltage Switchgear Cabinets Blockset Electrical Products Full Series of Intelligent Panel
Low Voltage Switchgear Cabinets Blockset Electrical Products Full Series of Intelligent Panel
Low Voltage Switchgear Cabinets Blockset Electrical Products Full Series of Intelligent Panel
Low Voltage Switchgear Cabinets Blockset Electrical Products Full Series of Intelligent Panel
Low Voltage Switchgear Cabinets Blockset Electrical Products Full Series of Intelligent Panel
1 / 5
Low Voltage Switchgear Cabinets Blockset Electrical Products Full Series of Intelligent Panel
Low Voltage Switchgear Cabinets Blockset Electrical Products Full Series of Intelligent Panel
Low Voltage Switchgear Cabinets Blockset Electrical Products Full Series of Intelligent Panel
Low Voltage Switchgear Cabinets Blockset Electrical Products Full Series of Intelligent Panel
Low Voltage Switchgear Cabinets Blockset Electrical Products Full Series of Intelligent Panel

Low Voltage Switchgear Cabinets Blockset Electrical Products Full Series of Intelligent Panel

Customization: Available
Type: Low Voltage Switchgear Cabinet
Structure: Fixed, Draw-out
Send Inquiry

Product Description

i

Basic Specifications

Model NO.Blockset
CertificationISO9001:2000, CCC
FormAll-packaged Type
Operation VoltageAC690 / AC1000
Size2200mm×800mm×600mm or Customized
Application RangeIndustrial Engineering, High-Rise Buildings
Shell MaterialSteel Plate
Shell Protection GradeIP20/31/42/54
Production Capacity500 Piece/Pieces Per Month
P

Product Description

The Blokset series switchgear (B cabinet) is specially designed for low voltage distribution products. It is suitable for power distribution systems with a frequency of 400Hz or less, a rated working voltage of 690V, a rated insulation voltage of 1000V, and a rated current of 6300A or less. It complies with relevant standards such as IEC60439-1, IEC60529, and IEC60947.

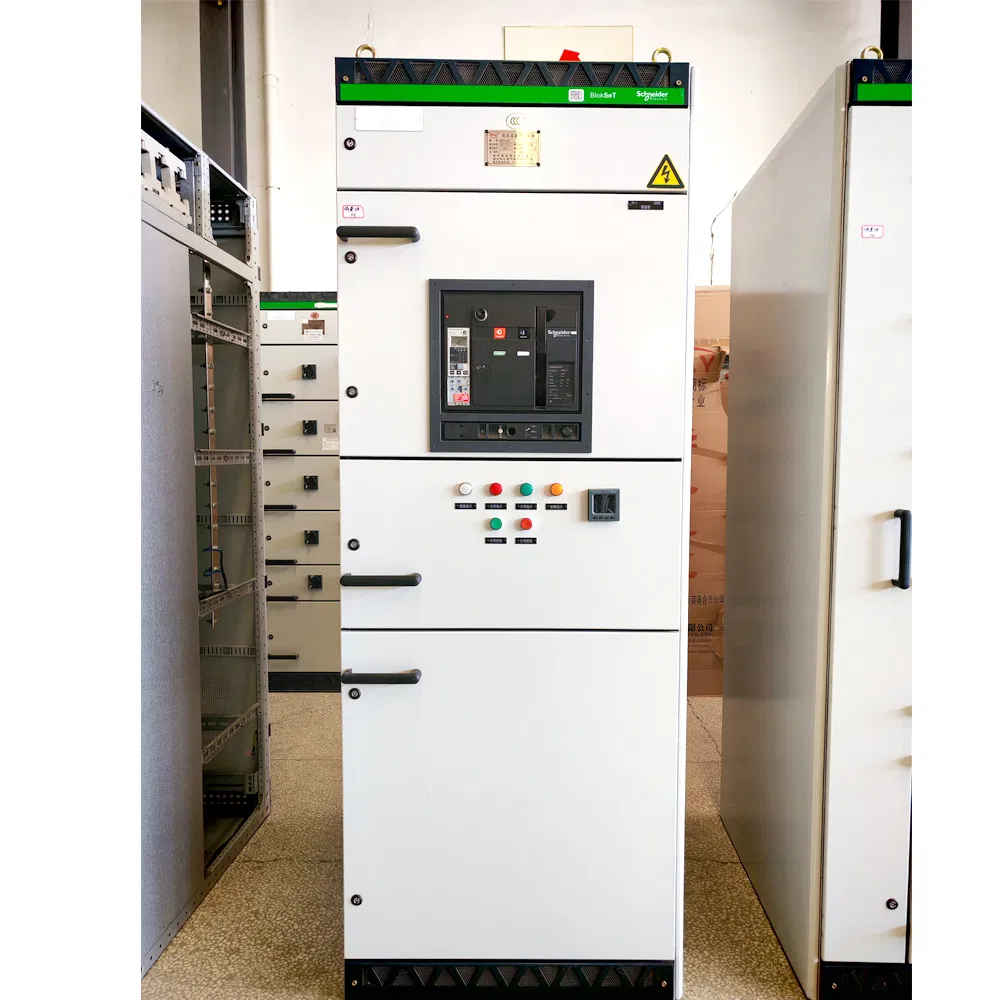

Switchgear 1

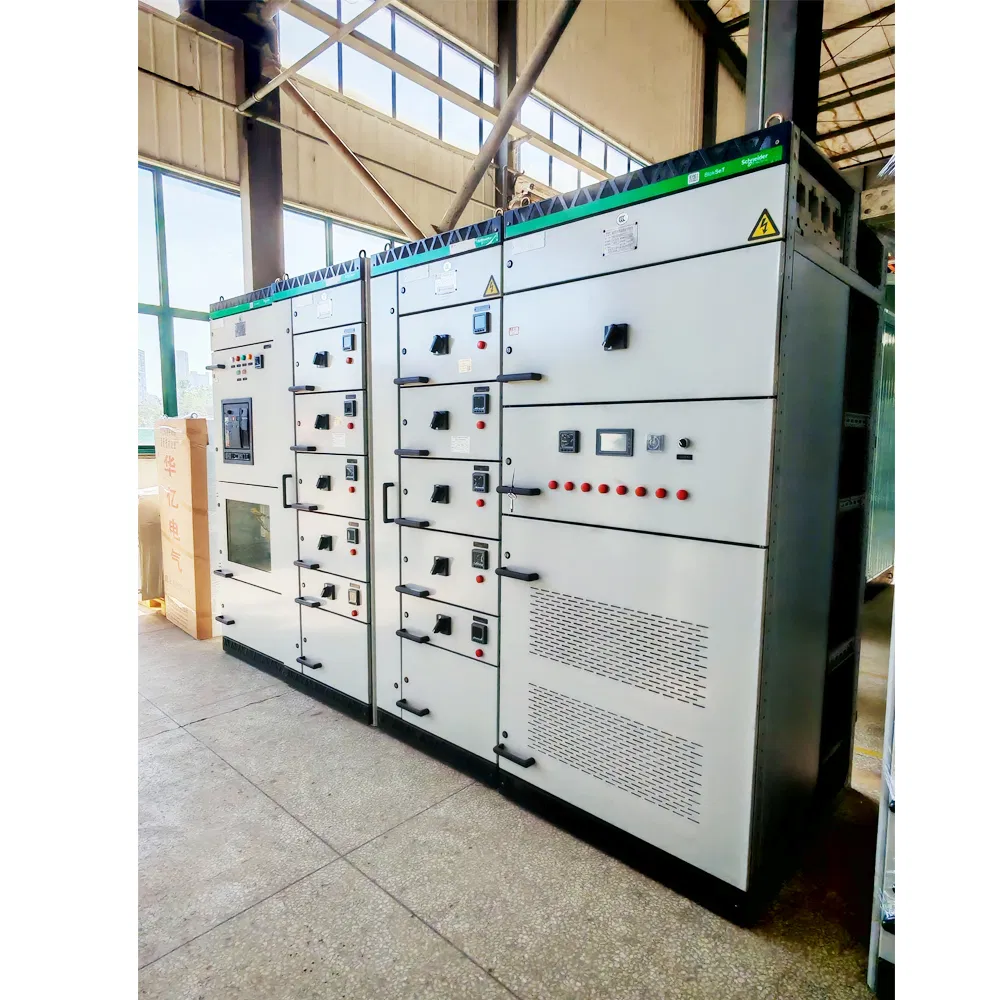

Switchgear 2

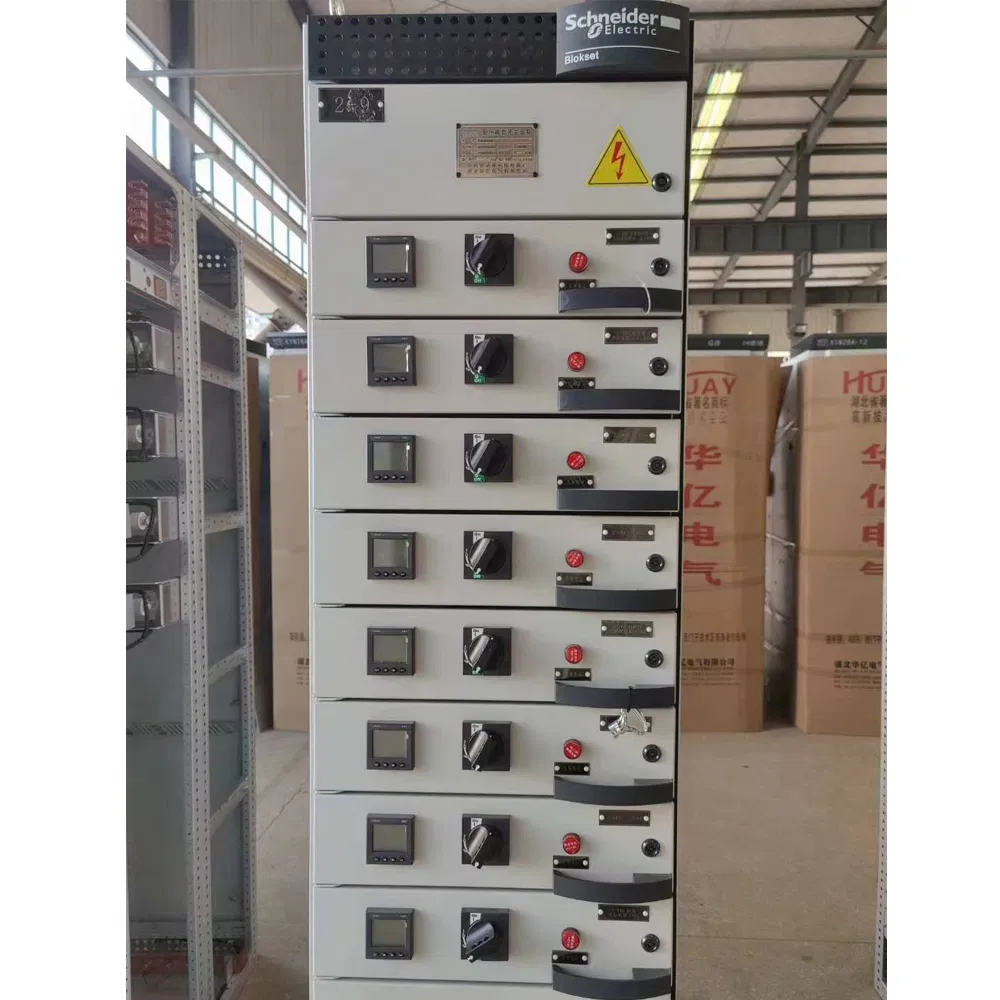

Switchgear 3
A

Application Scope

Industrial: Metallurgy, papermaking, manufacturing and mining.
Construction: Shopping malls and hotels.
Infrastructure: Water treatment facilities, airports and ports.
✔

Key Advantages

  • Simple installation with optimized size and connection.
  • Controlled costs for upgrades or renovations.
  • Modular structure meeting local standards and practices.
  • High reliability for power distribution and motor control.
  • Intelligent integration with advanced protection and communication.
T

Technical Parameters

ItemUnit
Rated Insulation Voltage1000V(AC)
Rated Operating Voltage690V(AC)
Rated Impulse Withstand Voltage12KV
Main Busbar Rated Current6300A
Rated Short-Time Withstand Current100kA
Degree of ProtectionIP20/31/42/54
Unit TypeFixed, Draw-out
G

Visual Overview

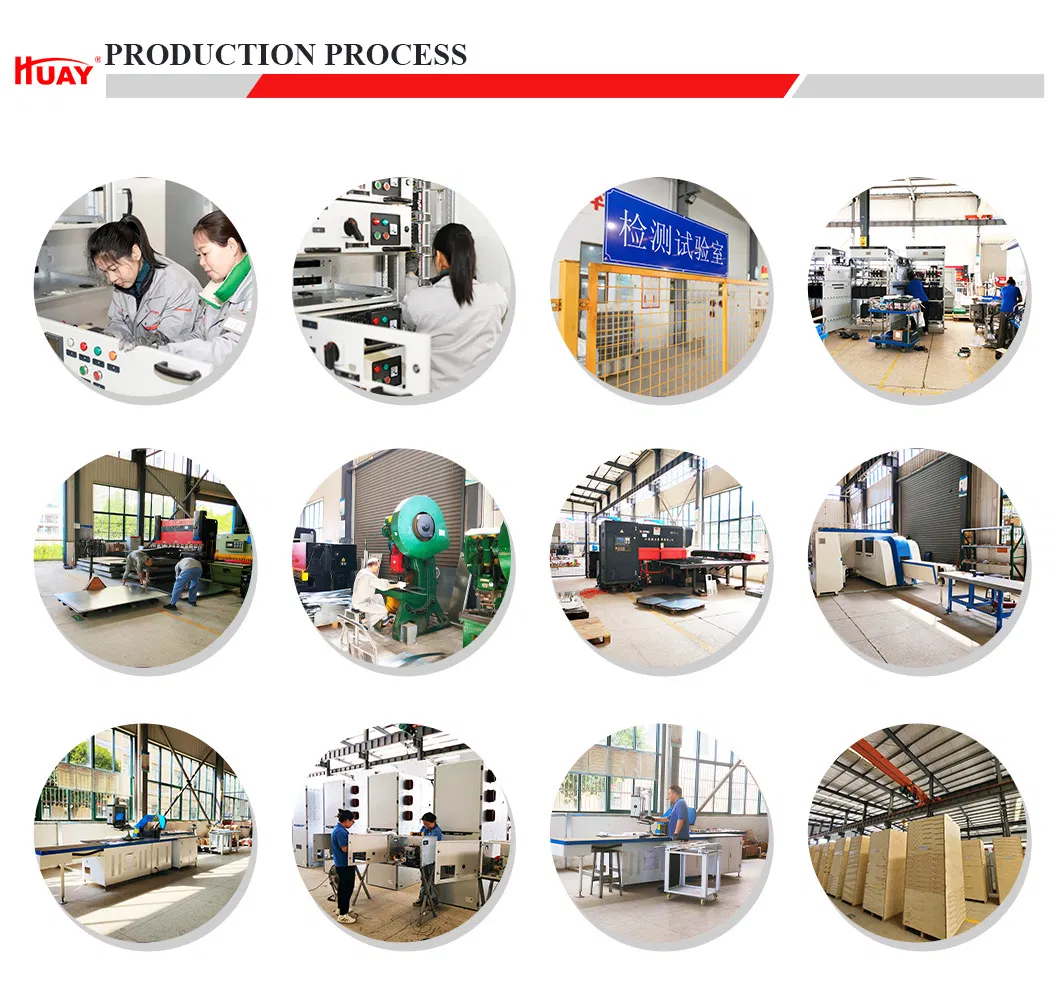

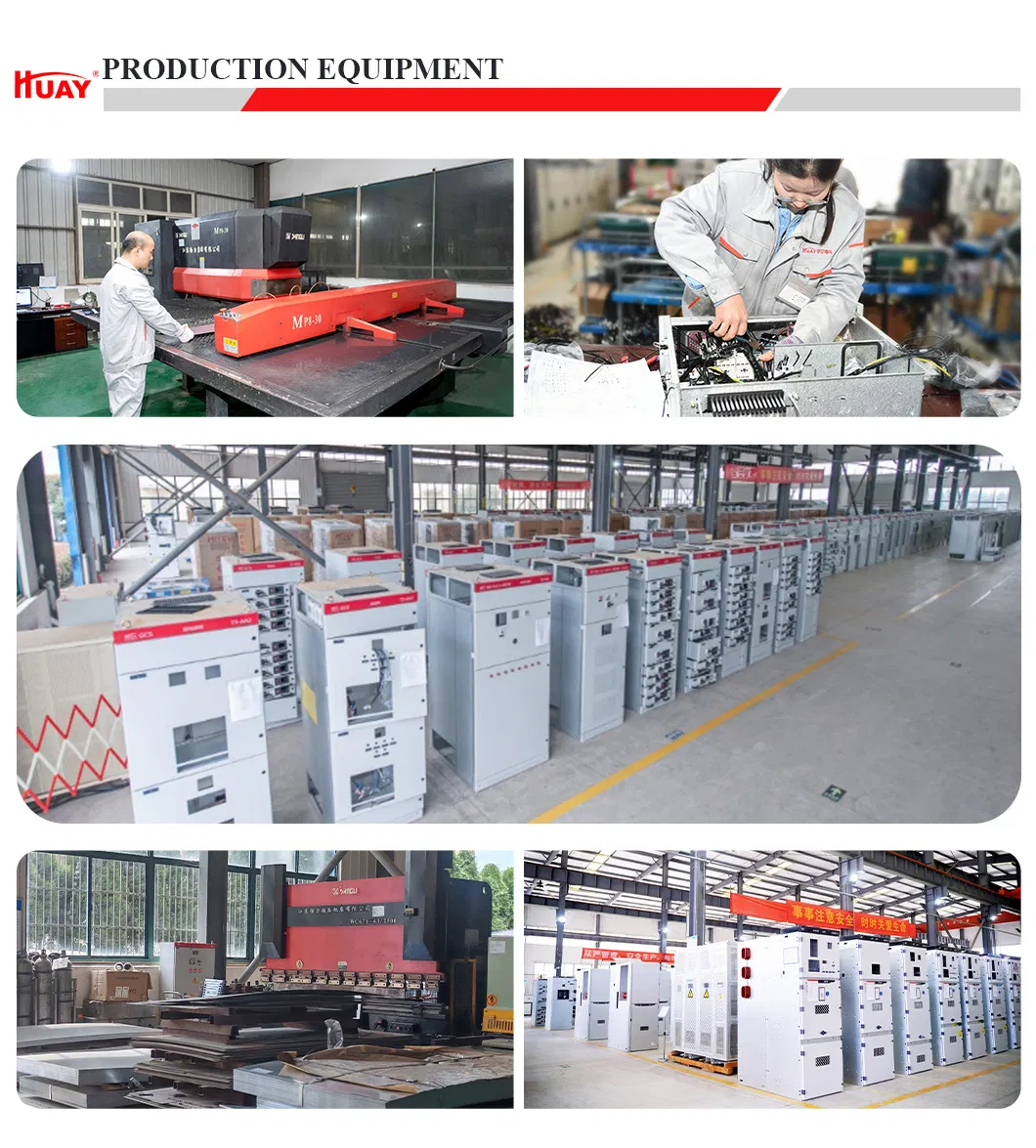

Production
Workshop
Quality Control
Testing
Shipping
?

Frequently Asked Questions

Q1: Are you a manufacturer?
A1: Yes, we are a professional factory specializing in High and Low Voltage switchgear, Substation, transformers, and various electrical equipment.
Q2: How long is the lead time for production?
A2: Generally, it takes about 15 days for samples and approximately 26 days for mass production, depending on the order quantity and items.
Q3: How do you handle quality problems?
A3: Please provide detailed photos of quality issues. Our technical department will analyze and provide a satisfactory solution within 2 days.
Q4: What is the warranty period?
A4: We provide a warranty of 12 months from the date of the bill of lading.
Q5: Do you accept product customization?
A5: Yes, we accept customization. Please provide specific drawings or parameters for evaluation and quotation.
Q6: Do your products meet local customs clearance standards?
A6: Yes, our products are sold worldwide and have passed relevant certifications recognized by local governments. We provide standardized documentation for smooth clearance.
