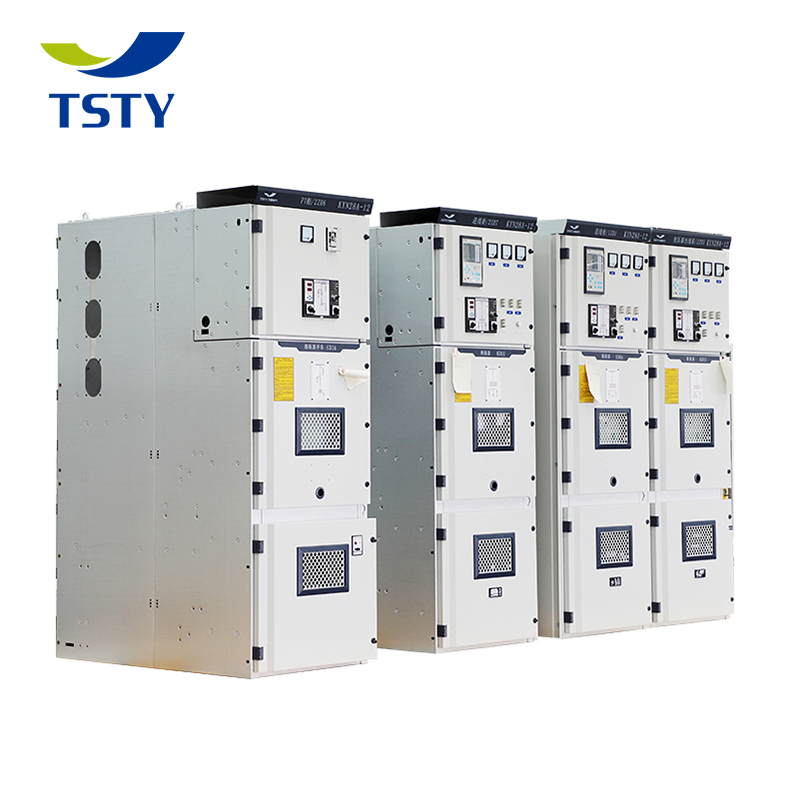

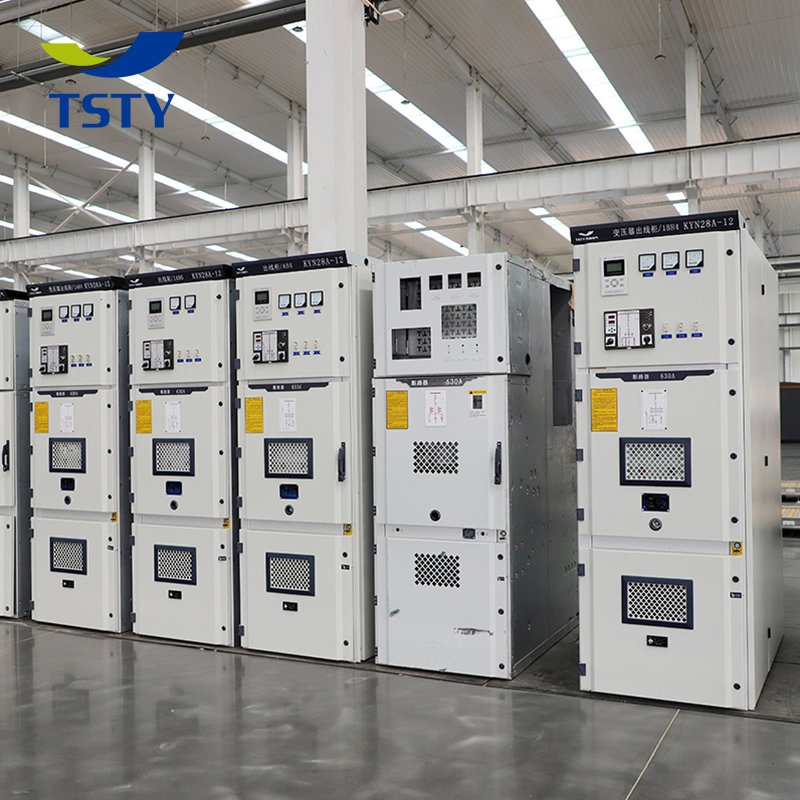

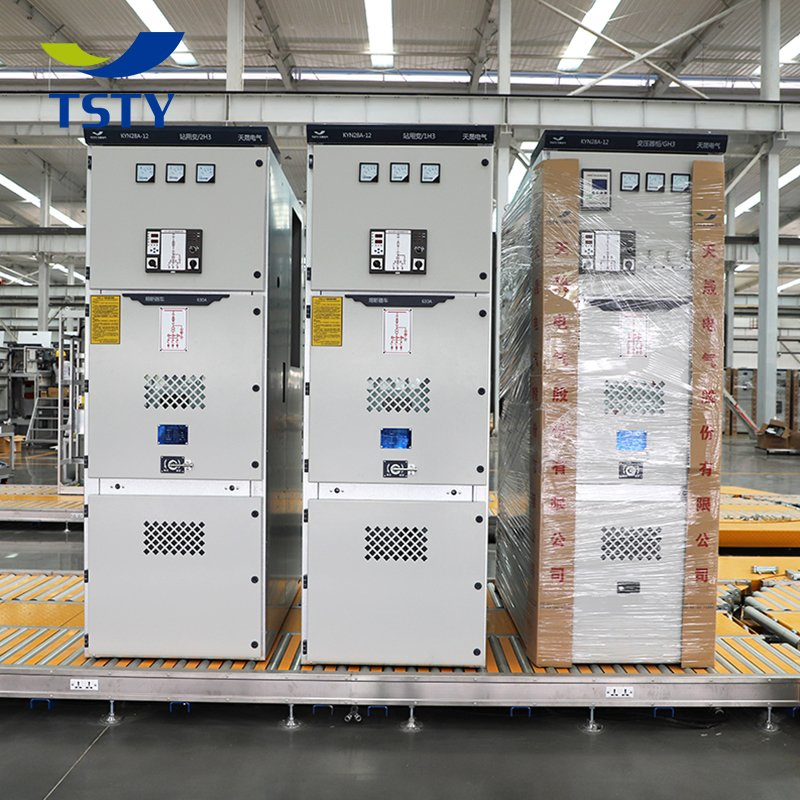

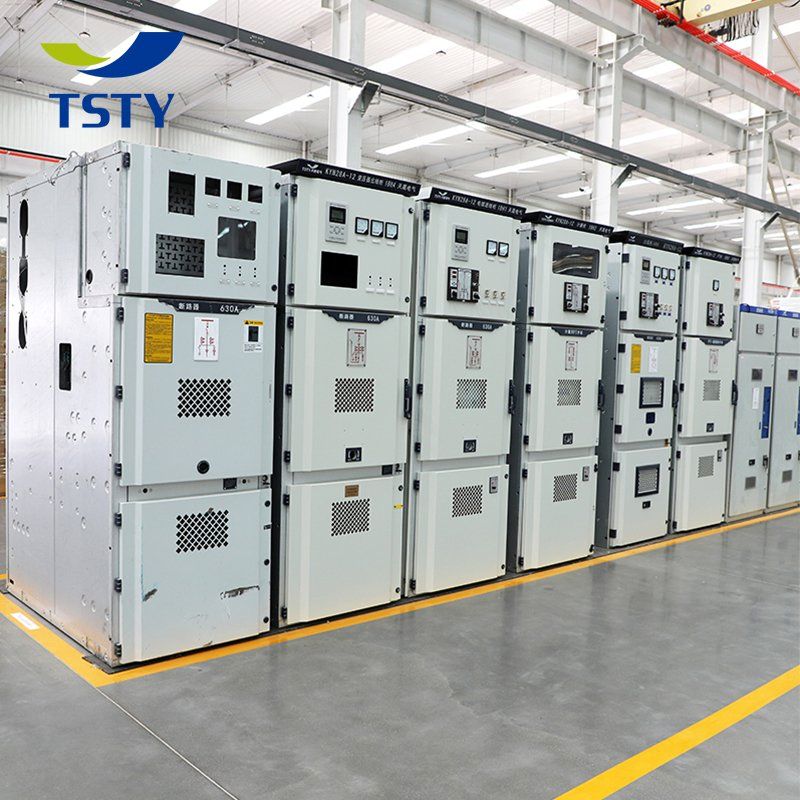

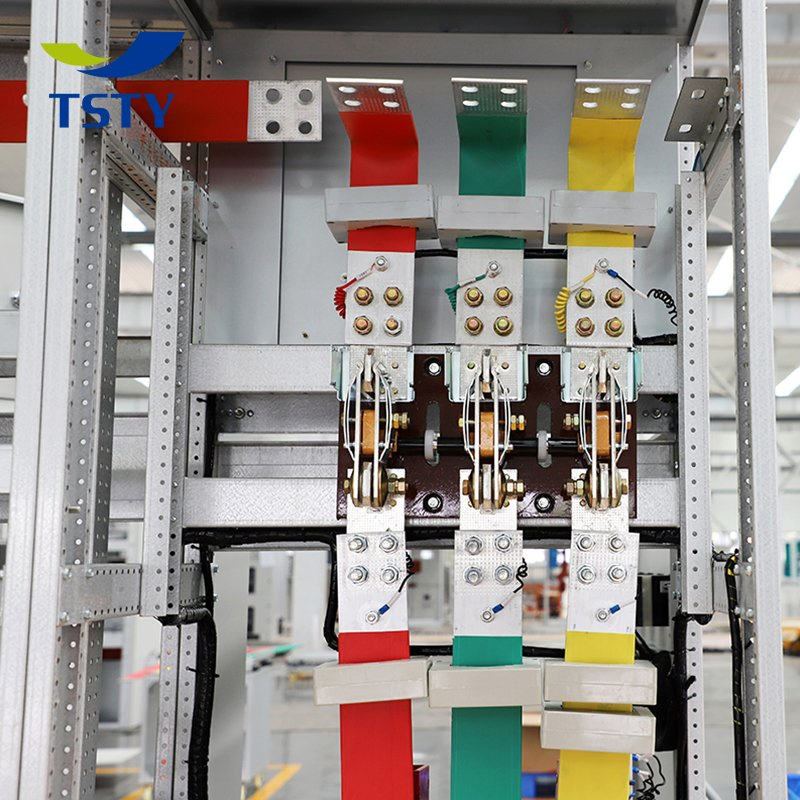

33kv, 12kv, High Voltage Switchgear Intelligent Solid Insulation Cabinet
33kv, 12kv, High Voltage Switchgear Intelligent Solid Insulation Cabinet
33kv, 12kv, High Voltage Switchgear Intelligent Solid Insulation Cabinet
33kv, 12kv, High Voltage Switchgear Intelligent Solid Insulation Cabinet
33kv, 12kv, High Voltage Switchgear Intelligent Solid Insulation Cabinet
1 / 5
33kv, 12kv, High Voltage Switchgear Intelligent Solid Insulation Cabinet
33kv, 12kv, High Voltage Switchgear Intelligent Solid Insulation Cabinet
33kv, 12kv, High Voltage Switchgear Intelligent Solid Insulation Cabinet
33kv, 12kv, High Voltage Switchgear Intelligent Solid Insulation Cabinet
33kv, 12kv, High Voltage Switchgear Intelligent Solid Insulation Cabinet

33kv, 12kv, High Voltage Switchgear Intelligent Solid Insulation Cabinet

Customization: Available
Certification: CCC, ISO9001
Shell Material: Aluminum Alloy
Send Inquiry

Product Description

⚡ Basic Info.
Model NO.
KYN28A-12
Voltage Level
Medium Voltage
Installation
Fixed
Structure
Cabinet
Current
AC
Warranty
1 Years
Frequency
50/60Hz
Protection Level
IP30/IP32/IP40/IP65/IP66
Breaker Type
Fixed/Drawable
HS Code
8535210000
Capacity
1000pieces/Month
📋 Product Parameters
7.2kV - 24kV Technical Specifications
No Item Unit Parameter
1Rated voltagekV7.2kV, 12kV, 17.5kV, 24kV
2Rated frequencyHz50/60
3Rated currentA630 - 4000
4Short-time withstand current(4s)kA20/25/31.5/40
5Protection type-IP4X for housing
36kV - 40.5kV Technical Specifications
No Item Unit Parameter
1Rated voltagekV36kV, 40.5kV
2Rated frequencyHz50/60
3Rated currentA630 - 4000
4Lightning impulse withstand voltagekV170/185
5Short time withstand current(4s)kA40/50/63/100
🔍 Product Description

Product Overview

High Voltage Switchgear Intelligent Solid Insulation Cabinet is designed for modern power systems.

  • System voltage up to 24kV, rated current up to 1250A.
  • Applicable for power receiving and distribution of power plant and substations.
  • Full compliance with IEC 62271-200 standards.

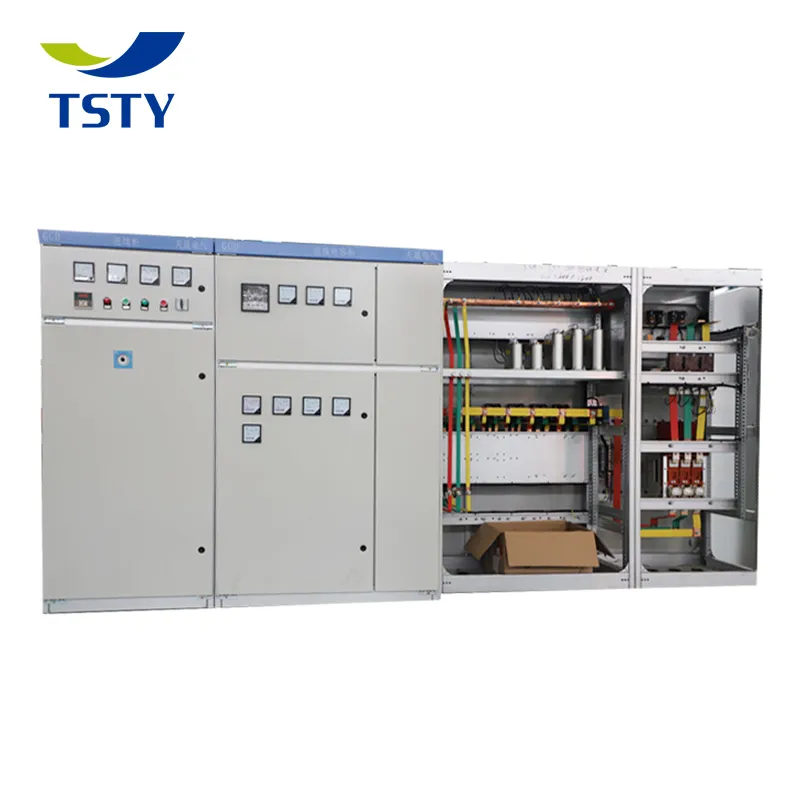

High Voltage Switchgear

⭐ Product Advantages

  • Authoritative product certification: ISO, CE, CCC, etc.
  • Perfect SQA quality management system to ensure high quality products.
  • Quick quotation and professional electrical design services.
  • Short delivery period (10-15 days worldwide).
  • Comprehensive OEM/ODM services available.
🌍 Applicable Environment:

1. Ambient air temperature: -15°C to +40°C
2. Altitude: ≤1000m
3. Relative humidity: Daily ≤95%, Monthly ≤90%
4. Seismic intensity: ≤Ms8
5. Free of fire, explosion, chemical corrosion, or severe vibration.

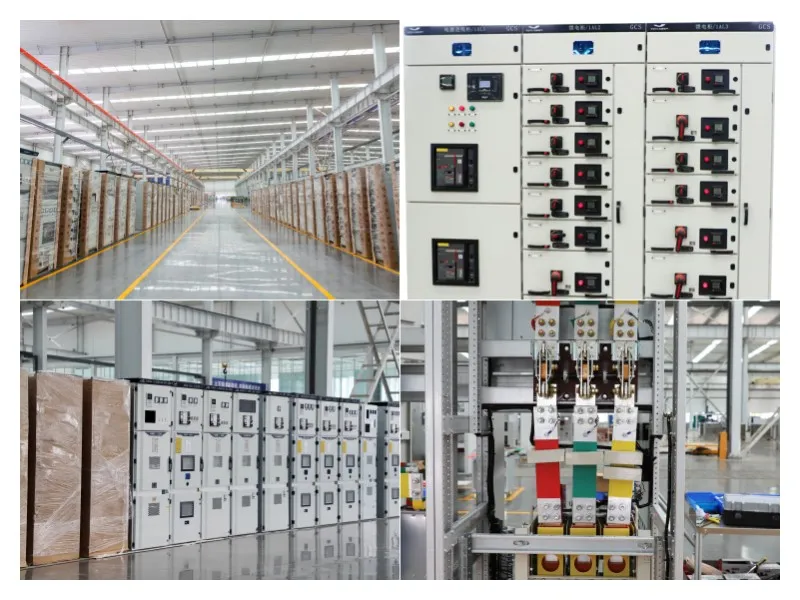

Environment Spec
🛡️ Certifications & Production

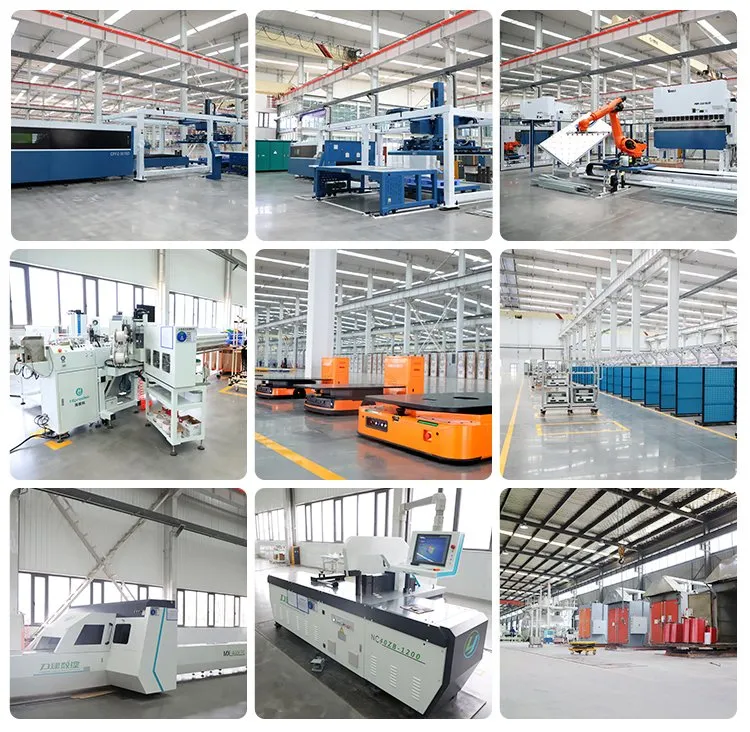

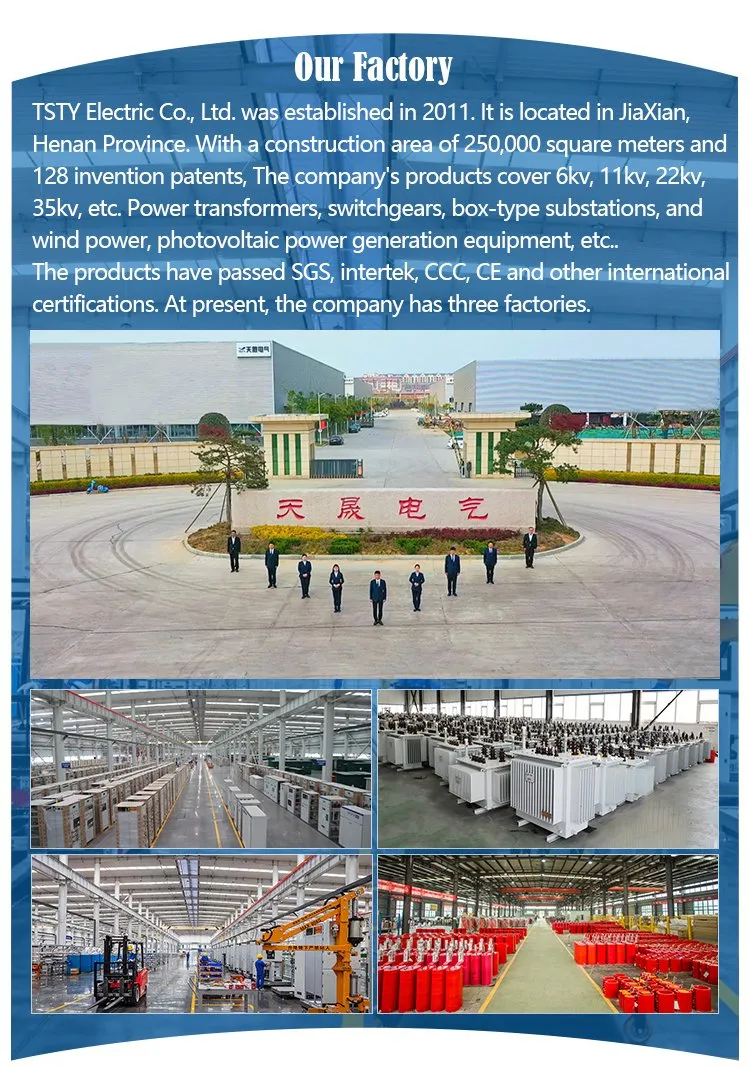

Certification 1 Certification 2 Production Equipment
🤝 Customer Visit & Shipping
Customer Visit Packaging and Shipping
❓ FAQ
What are your major products?
Our core range includes oil-immersed transformers, dry-type transformers, transformer substations, and high/low voltage switchgear.
Can your products be customized?
Yes, considering differences in voltage, frequency, and regional standards, our products can be fully customized according to your specific requirements.
How long is the typical lead time?
The lead time depends on order quantity, but generally, products are ready within 15 days upon receipt of advance payment.
Do you offer a guarantee for the products?
Yes, we offer at least a one-year guarantee for all our transformer and switchgear products.
What is your core advantage?
We bring 15 years of industry experience, advanced production equipment, stable quality control, fast delivery, and professional prompt service.
How is shipping cost calculated?
Shipping prices vary depending on the delivery port and the final dimensions of the wooden packing used for transport.
