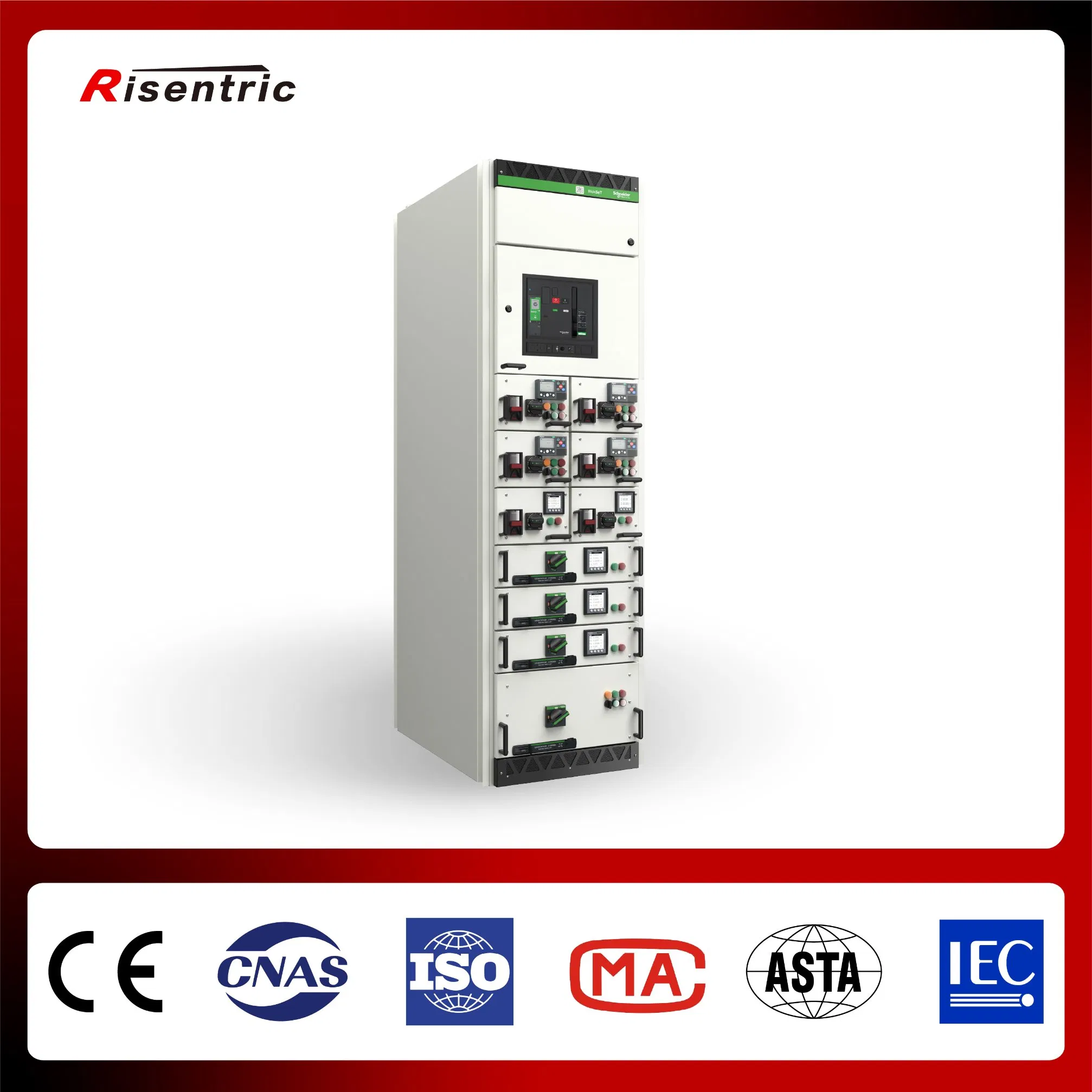

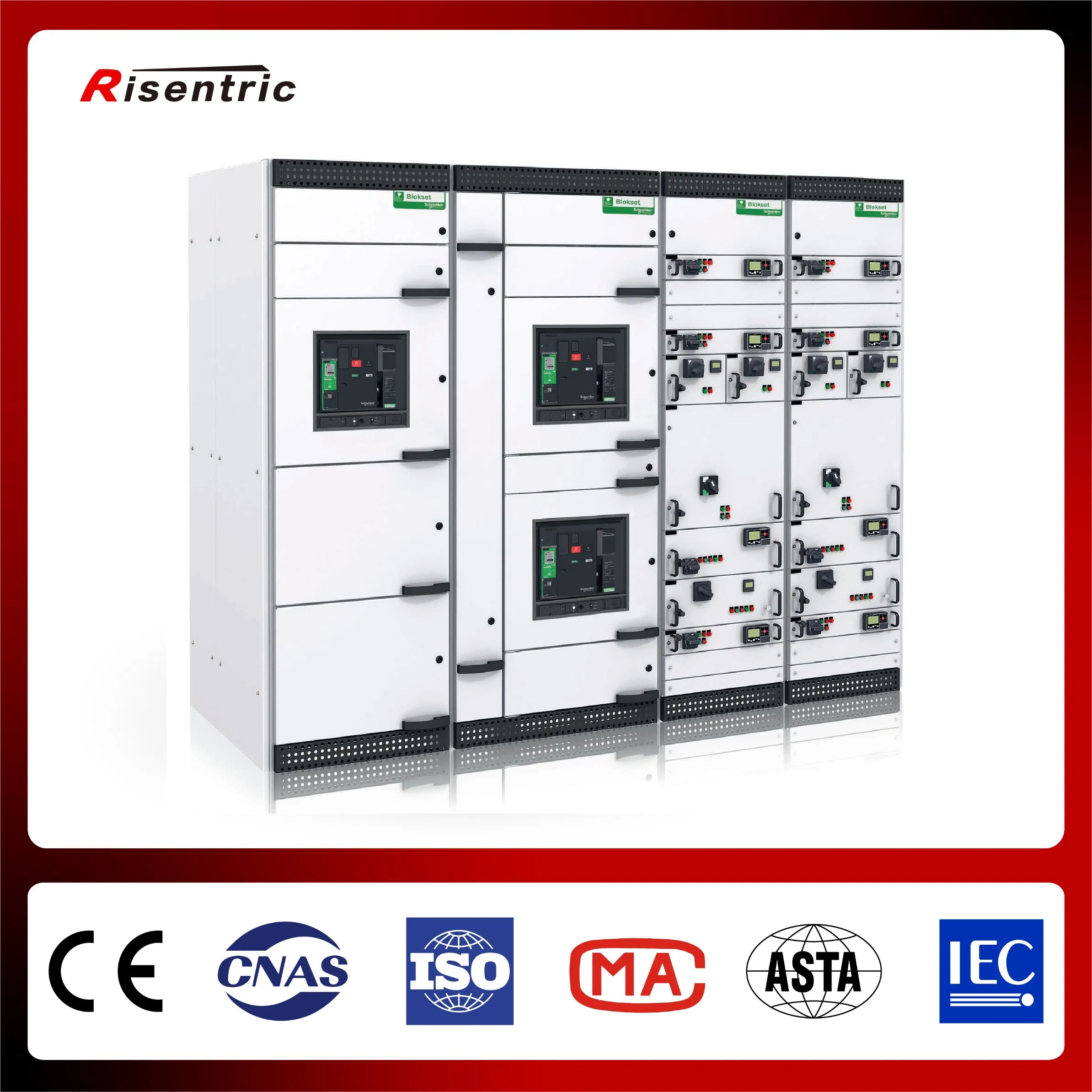

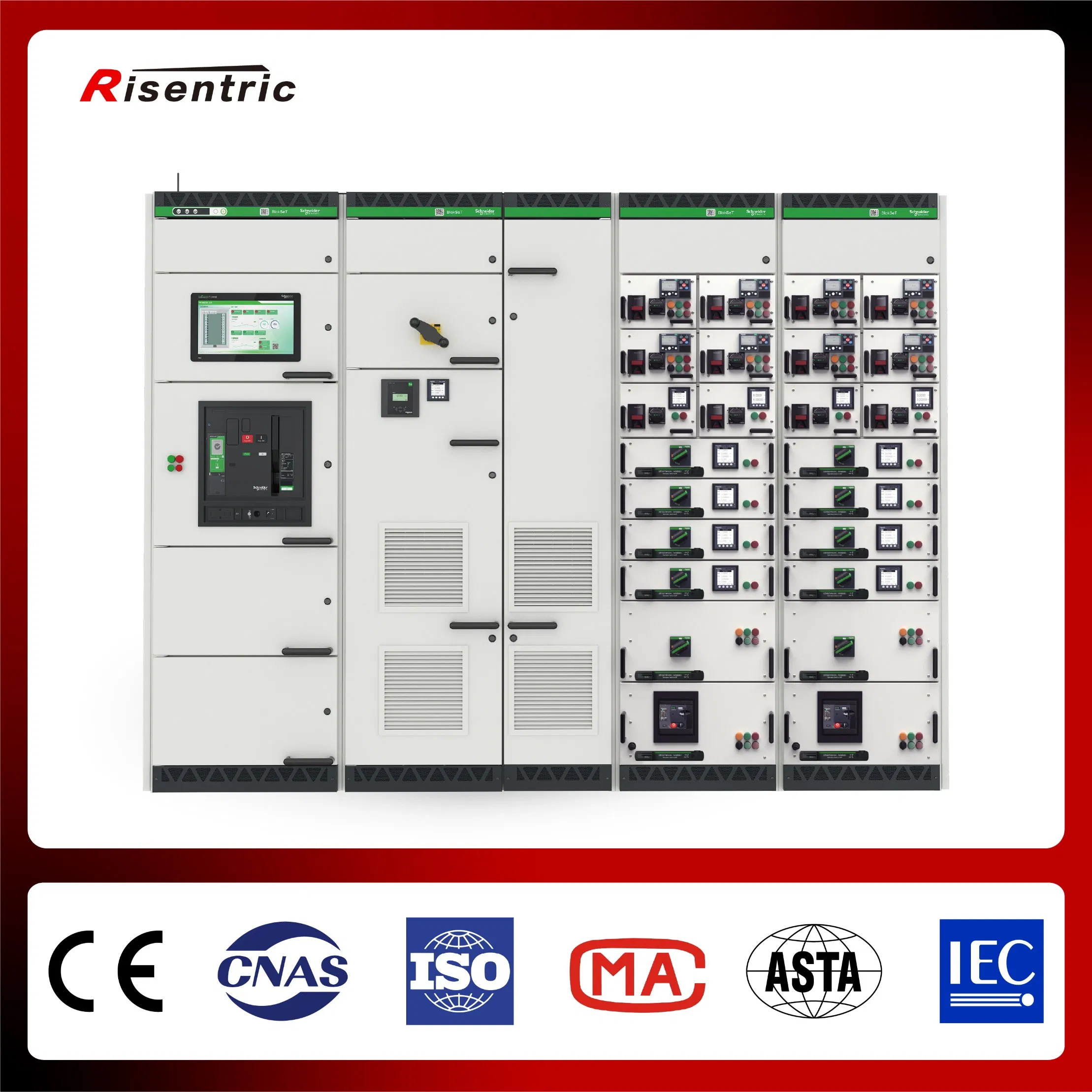

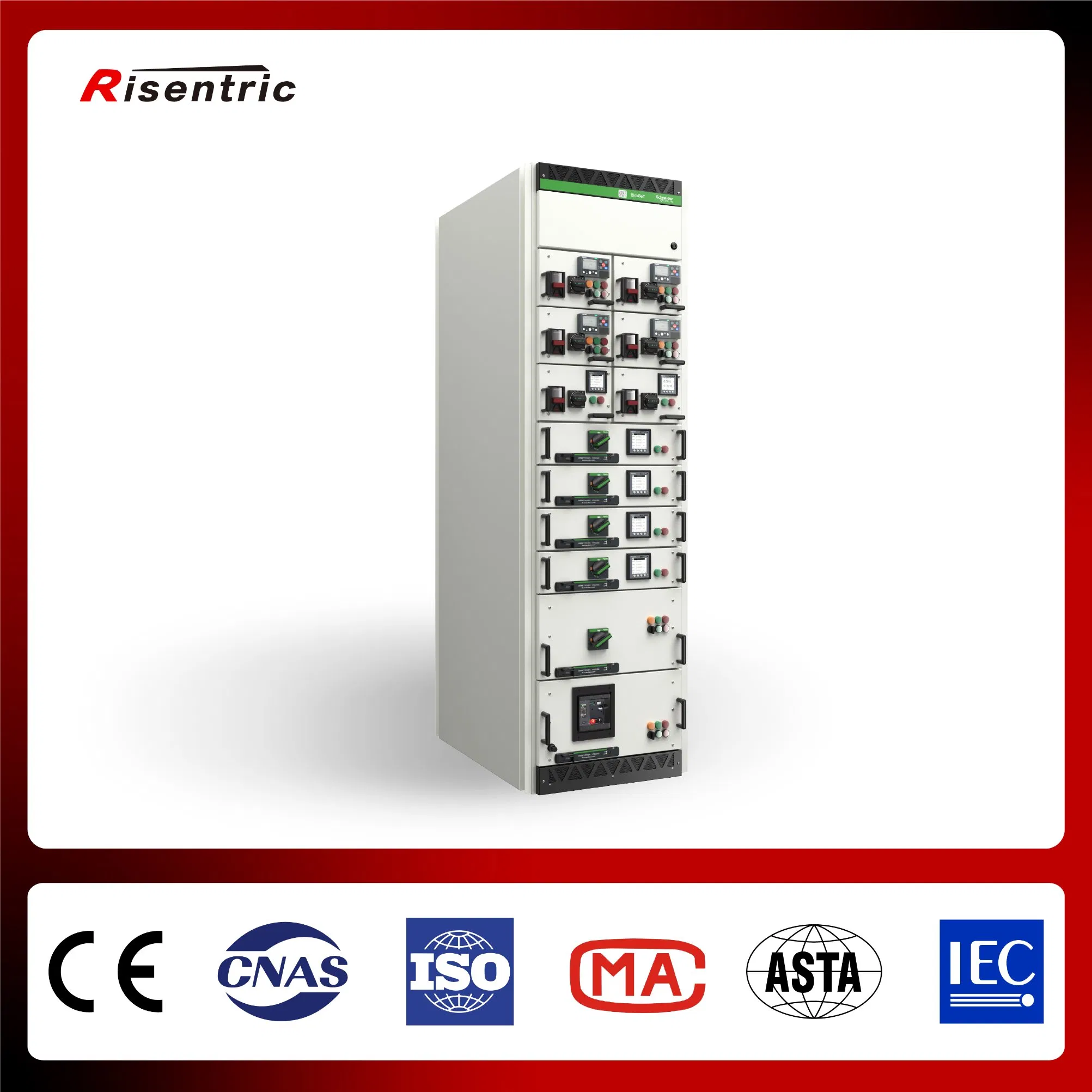

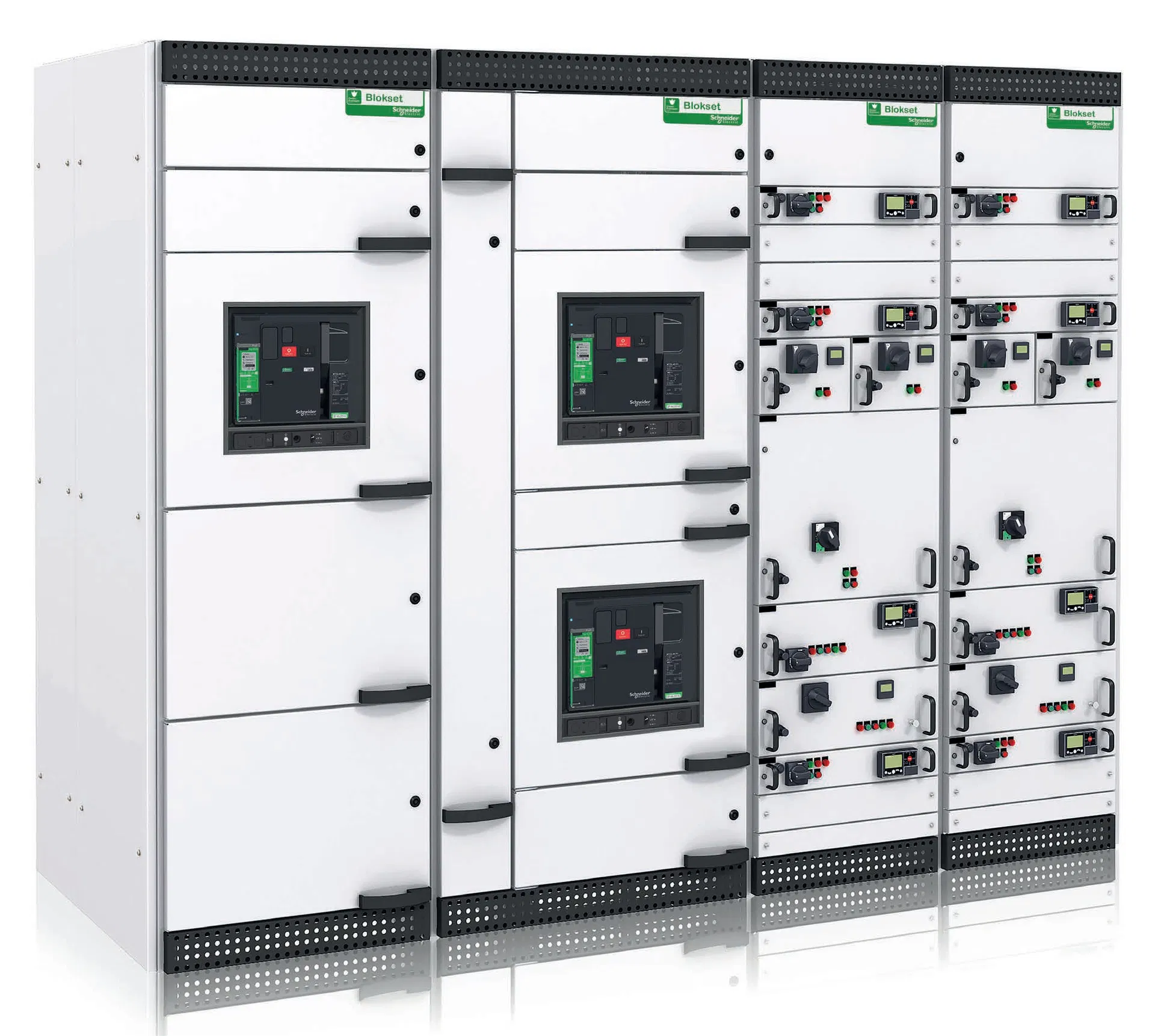

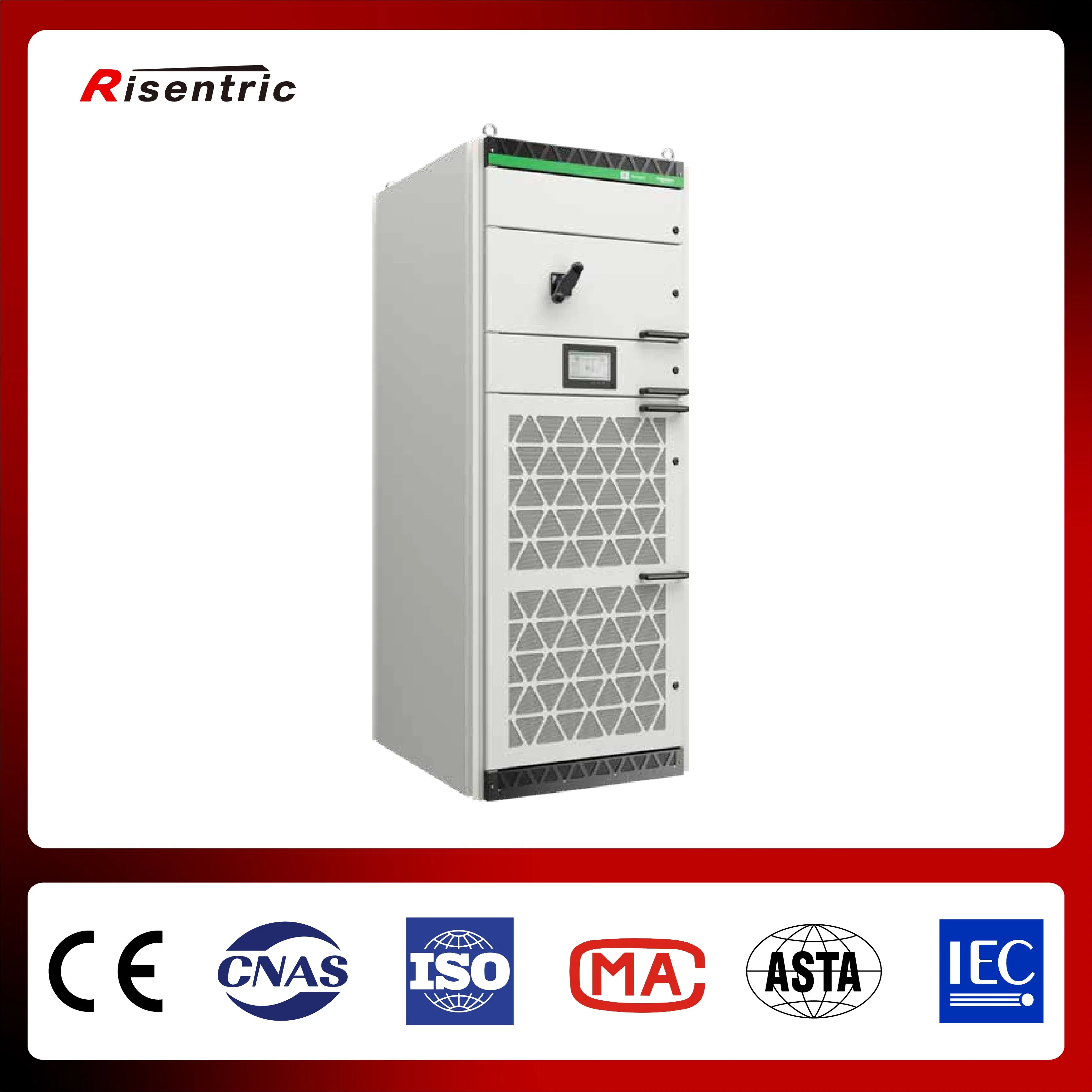

BlokSeT Intelligent Low-Voltage Complete Set Of Equipment
The Blokset series switchgear is specially designed for low voltage distribution systems. It is suitable for power systems with a frequency of 400Hz or less, a rated working voltage of 690V, a rated insulation voltage of 1000V, and a rated current of 6300A or less. It complies with international standards such as IEC60439-1, IEC60529, and IEC60947.
It serves as a power distribution center, motor control center, and power factor compensation terminal for control, conversion, and distribution. It is widely applied in metallurgy, manufacturing, mining, shopping centers, hotels, water treatment, airports, and ports.
| Parameter Item | Technical Specifications |
|---|---|
| Rated insulation voltage (Ui) | 1000V |
| Rated operating voltage (Ue) | 400/690V AC |
| Rated frequency (f) | 50/60 Hz |
| Rated impulse voltage (Uimp) | 12 kV |
| Horizontal busbar rating | Maximum up to 7000A |
| Vertical busbar rating | Maximum up to 3200A |
| Horizontal busbar Icw/1s | 30/50/65/80/100 kA |
| Internal combustion arc protection | 85kA 0.5s(lpc arc), 65kA 0.3s(lp arc) |
| Maximum motor capacity | 250 kW |
| Protection level | IP20~54 |

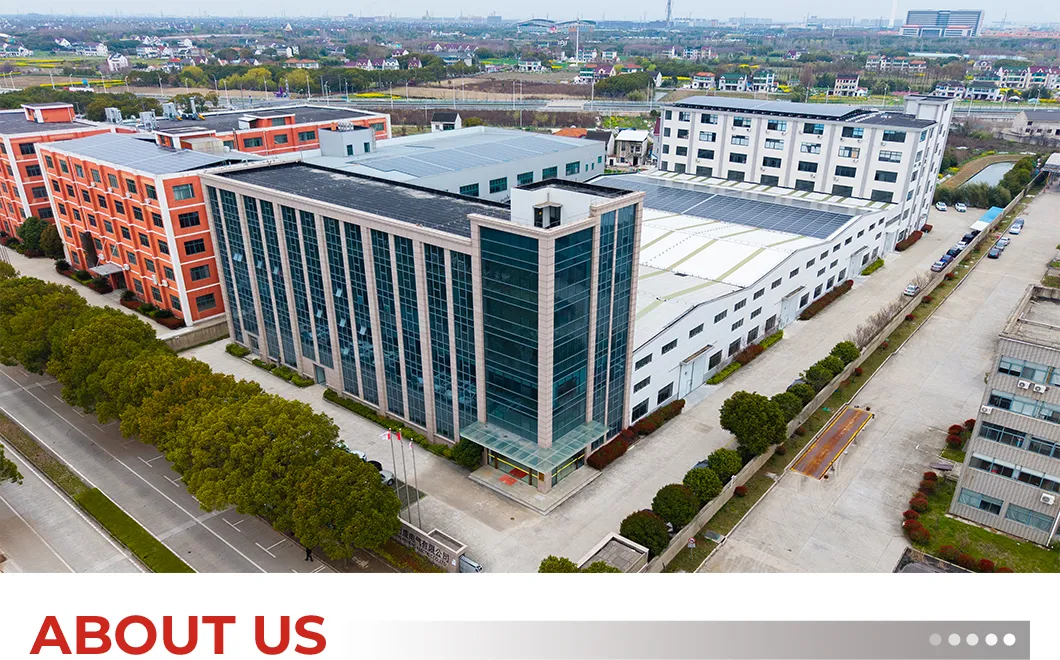

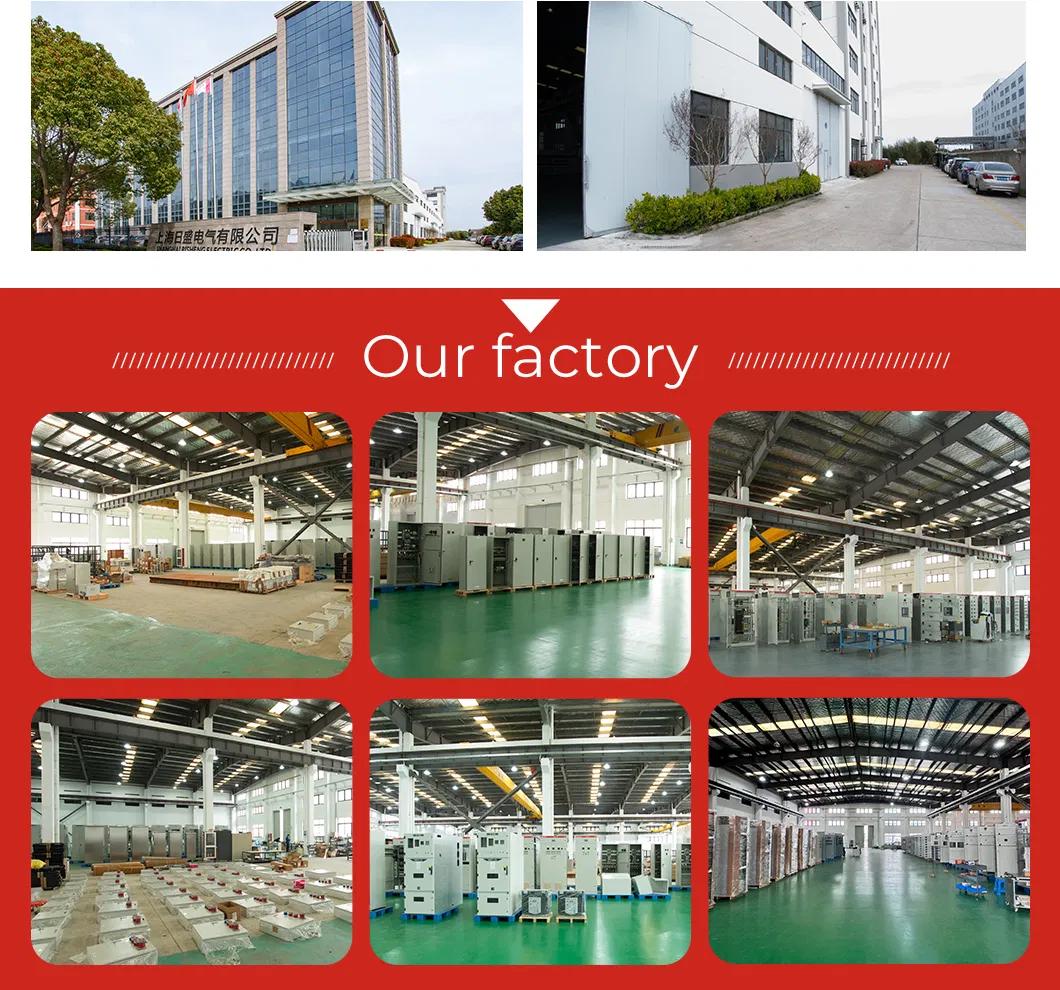

Our facility is equipped with advanced CNC turret punching, bending, and laser cutting machines. All products are manufactured in strict accordance with ISO 9001, ISO 14001, and ISO 45001 management systems, holding CCC, CQC, and CE certifications.
