Product Overview

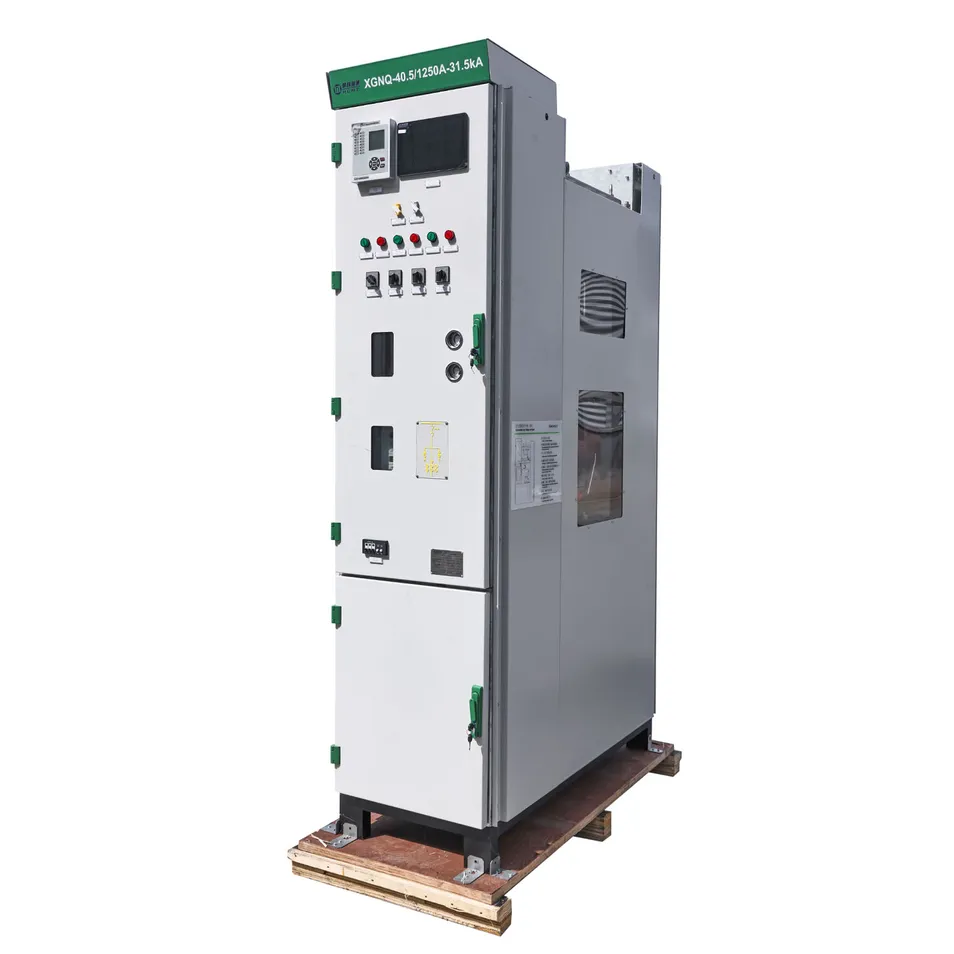

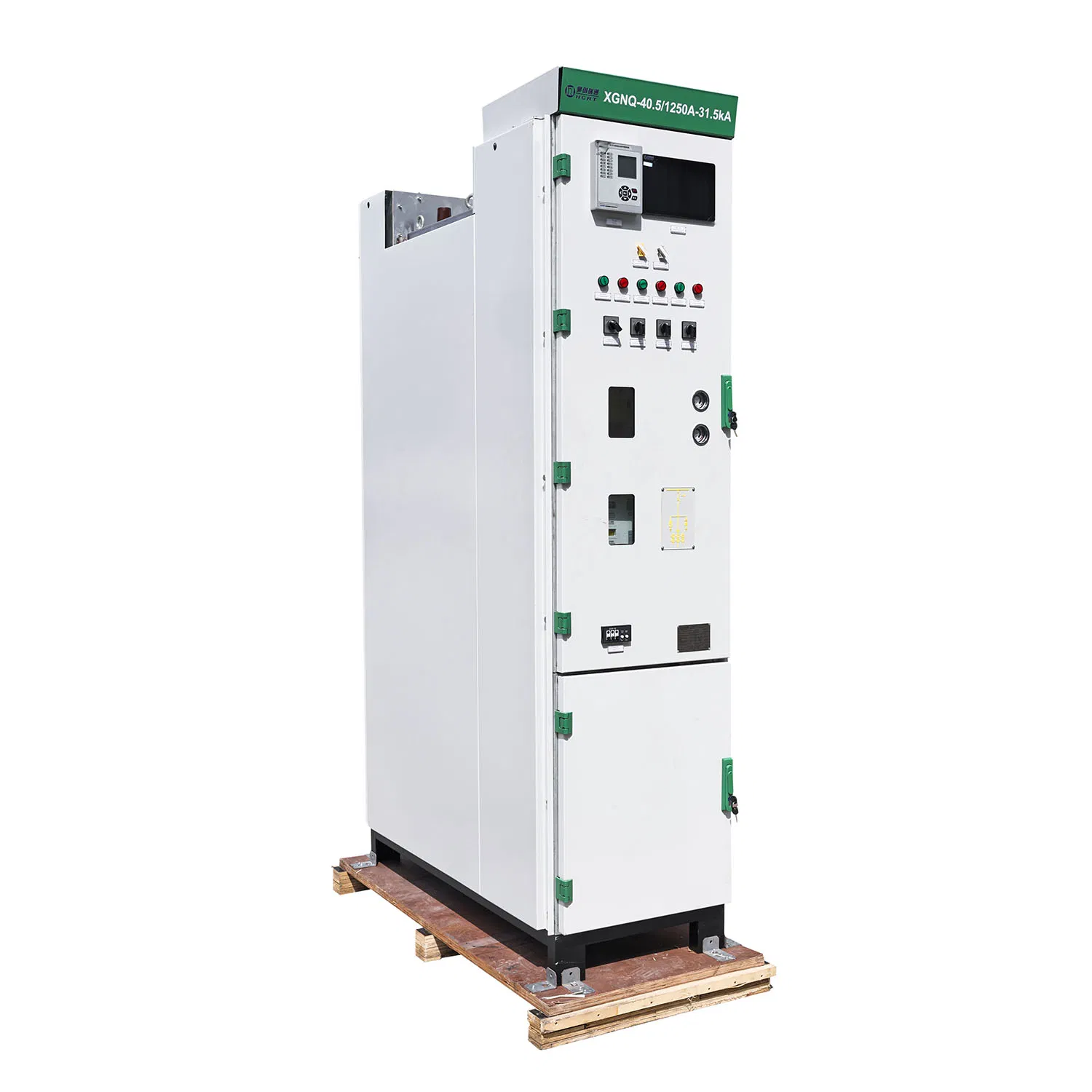

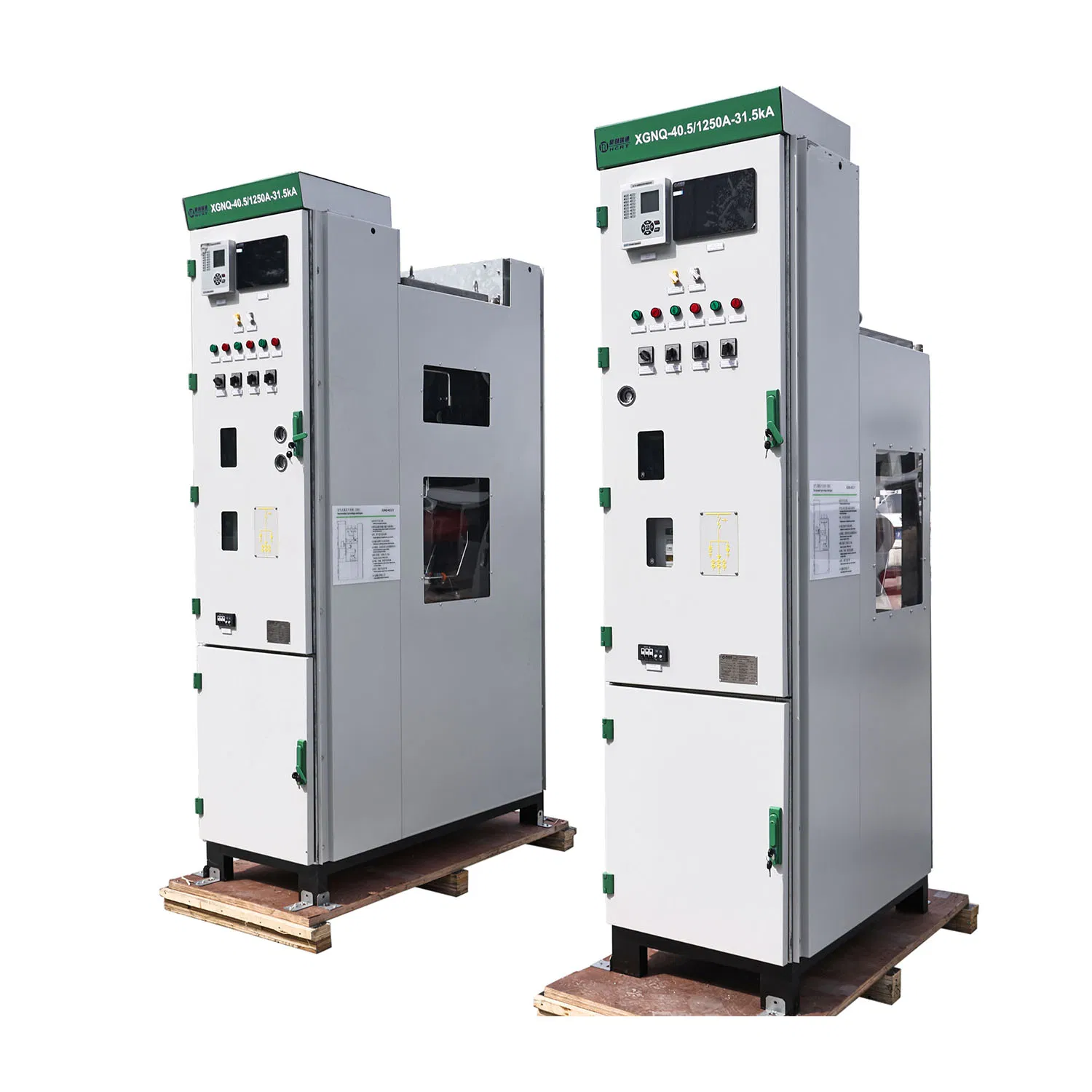

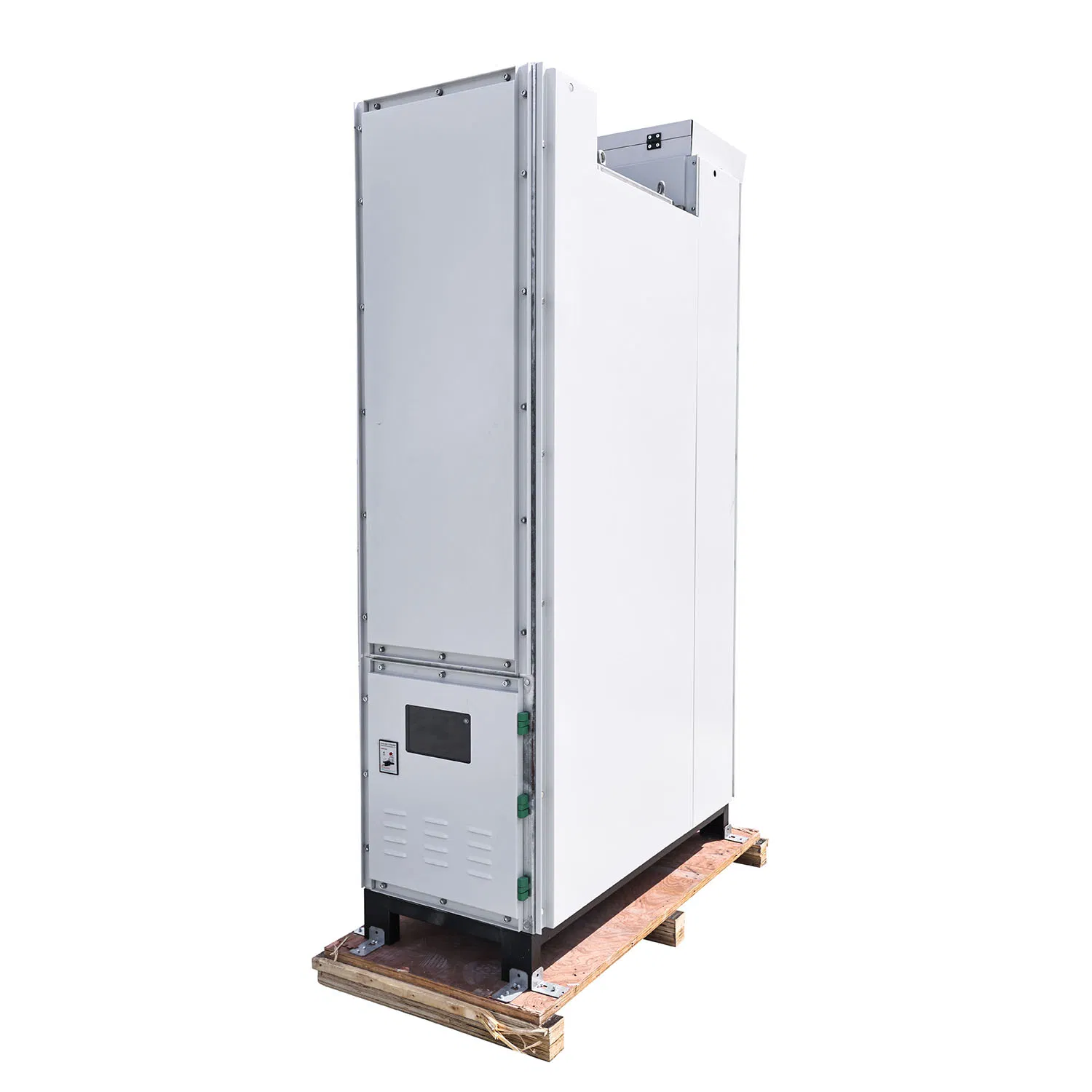

XGNQ-40.5 Gas Insulated Switchgear (GIS)
The XGNQ-40.5 switchgear uses SF6 gas as the insulating medium, with high-voltage live components sealed inside a stainless-steel enclosure. Its fully sealed design resists environmental impacts such as pollution and humidity, ensuring reliable insulation, aging resistance, and corrosion protection.

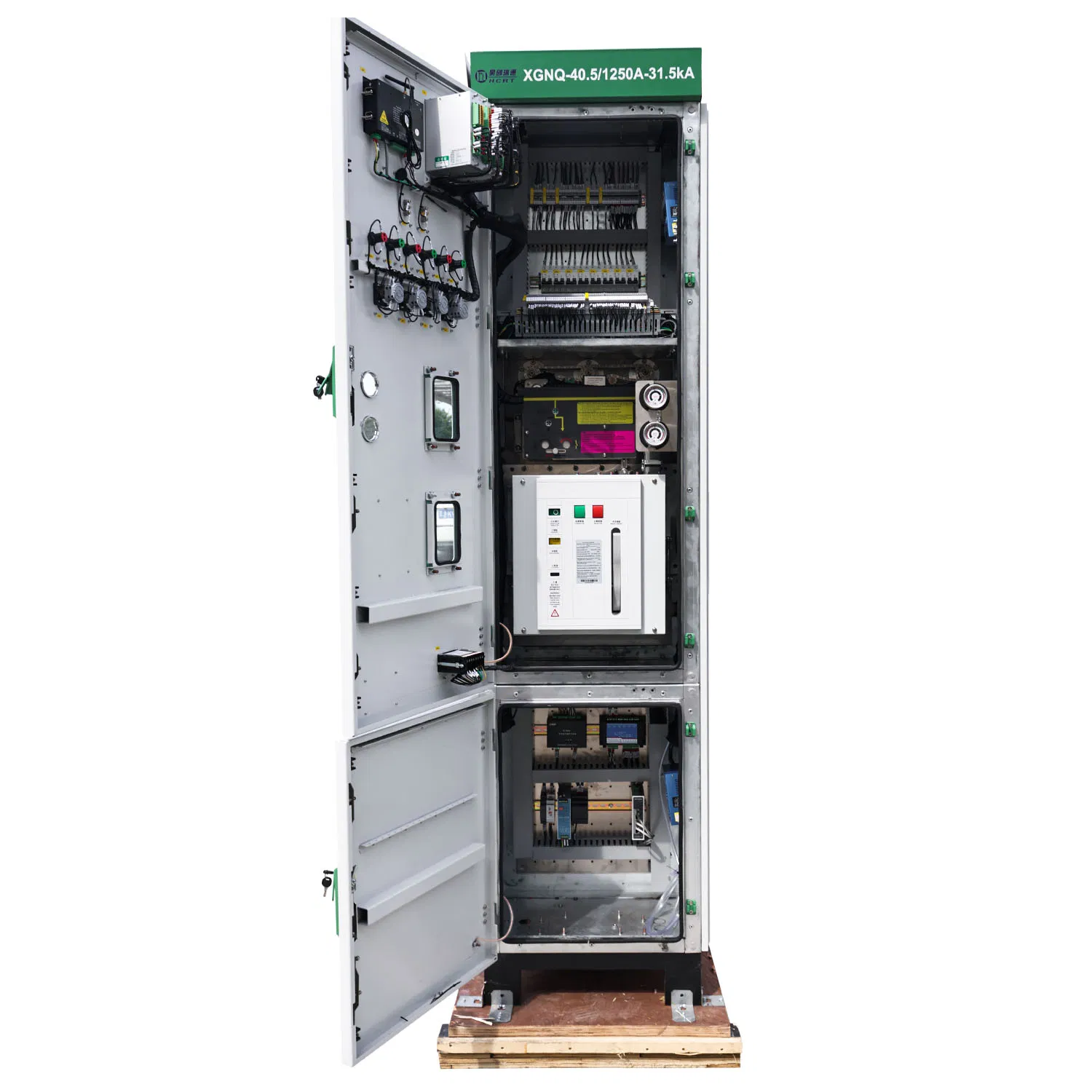

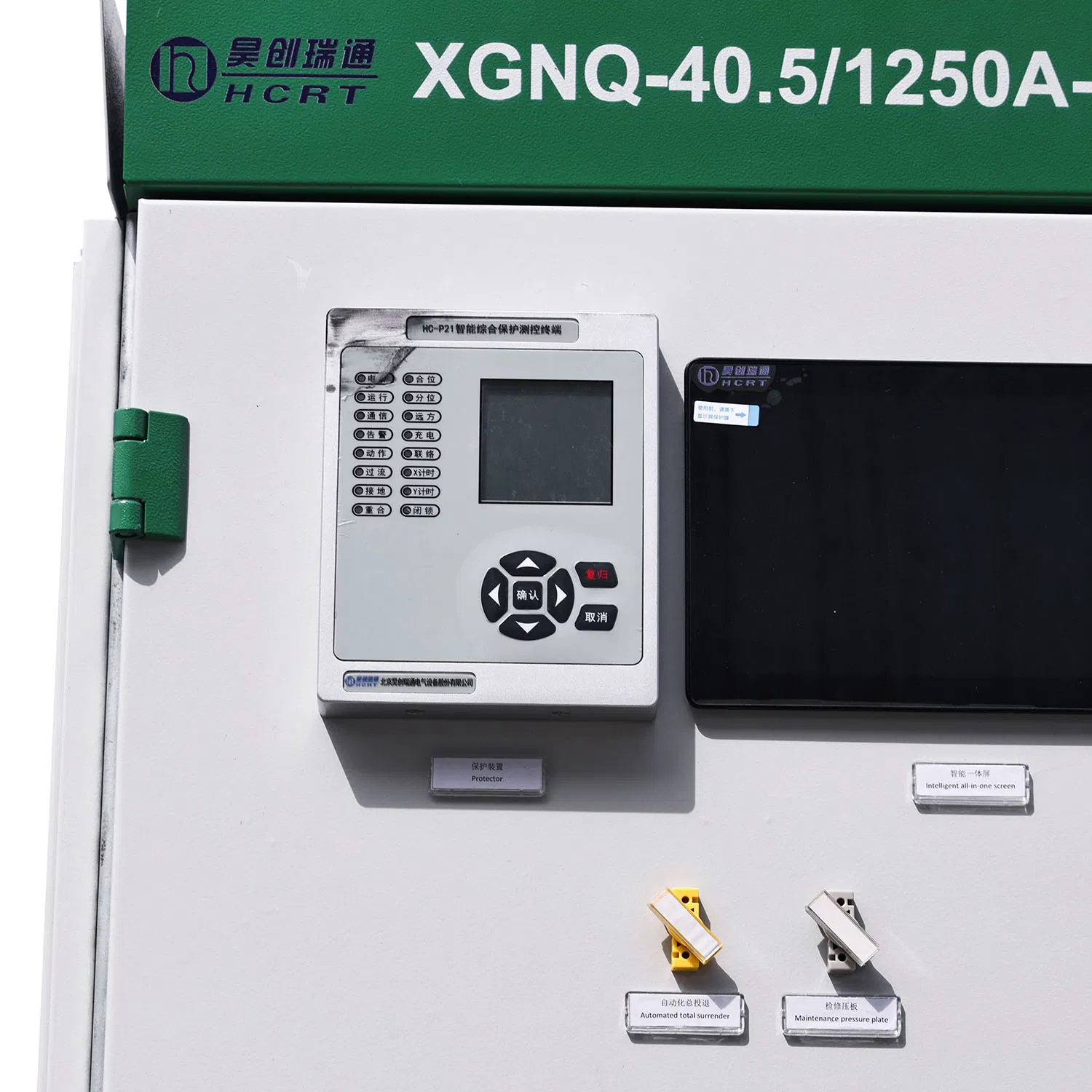

Equipped with an intelligent control and protection system capable of real-time monitoring of component operating status and gas chamber pressure. It precisely controls operations like opening and closing, achieves electrical interlocking, and provides parameter measurement, fault recording, and relay protection functions, replacing traditional secondary control systems and simplifying secondary wiring. Compliant with international and domestic standards such as IEC 60298, it features an optimized layout, excellent sealing, and flexible configuration.
Fully Sealed, Maintenance-Free
Smart Modular Design
Compact Space-Saving Layout
Advanced Parameter Measurement & Fault Recording
Frequently Asked Questions
What is the primary insulation medium used in the XGNQ-40.5?
The XGNQ-40.5 switchgear utilizes SF6 (sulfur hexafluoride) gas as the high-efficiency insulating medium, housed within a hermetically sealed stainless-steel tank.
How does the fully sealed design benefit the switchgear?
The fully sealed design ensures that the high-voltage components are completely isolated from environmental factors like humidity, dust, and chemical pollution, making it virtually maintenance-free and highly durable.
What intelligent features are integrated into this GIS system?
It features real-time monitoring of gas pressure and component status, automated opening/closing control, electrical interlocking, fault recording, and comprehensive relay protection.
Is the XGNQ-40.5 compliant with international safety standards?
Yes, the system is designed and tested in compliance with international standards such as IEC 60298, ensuring high reliability for global power distribution networks.
What is the protection rating of the enclosure?
The switchgear features an IP4X degree of protection for its enclosure, providing a safe and robust housing for the internal high-voltage components.
Can this switchgear be used in compact spaces?
Yes, one of its key features is its compact, space-saving design, which allows for efficient installation in substations where floor space is limited.
