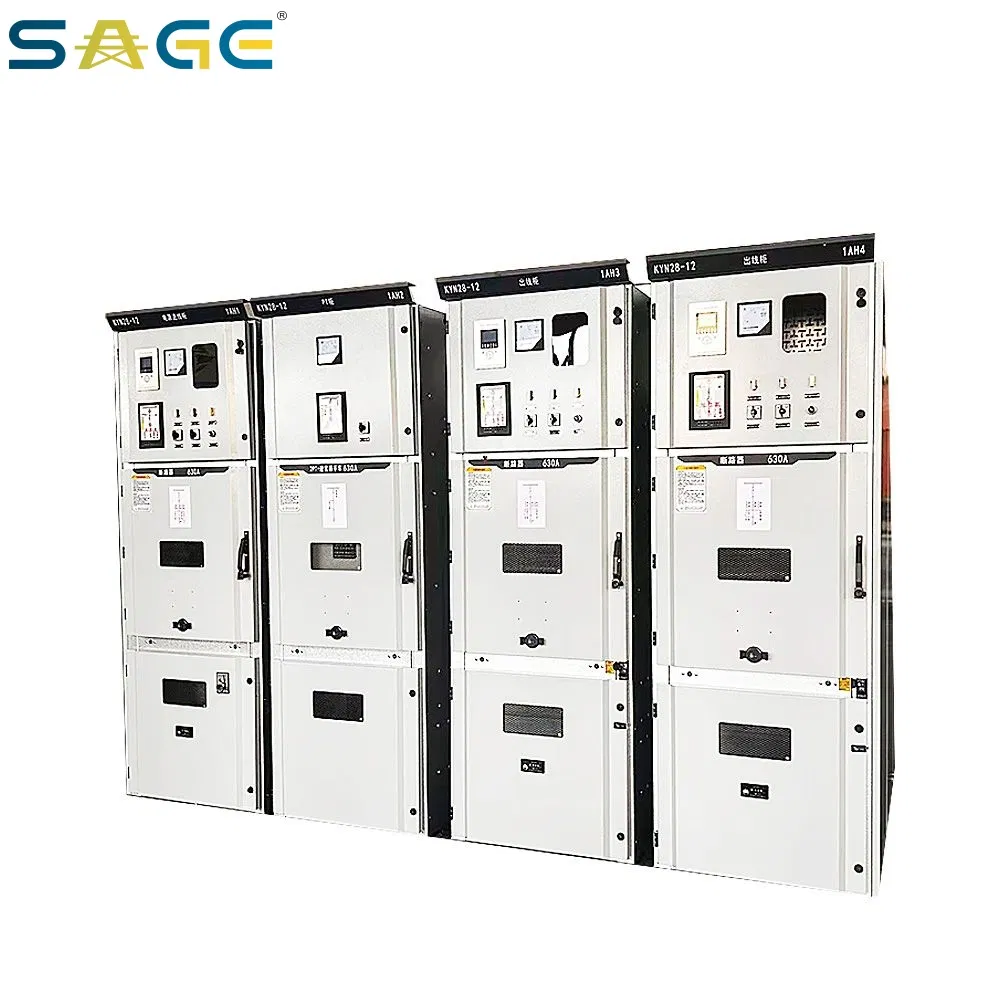

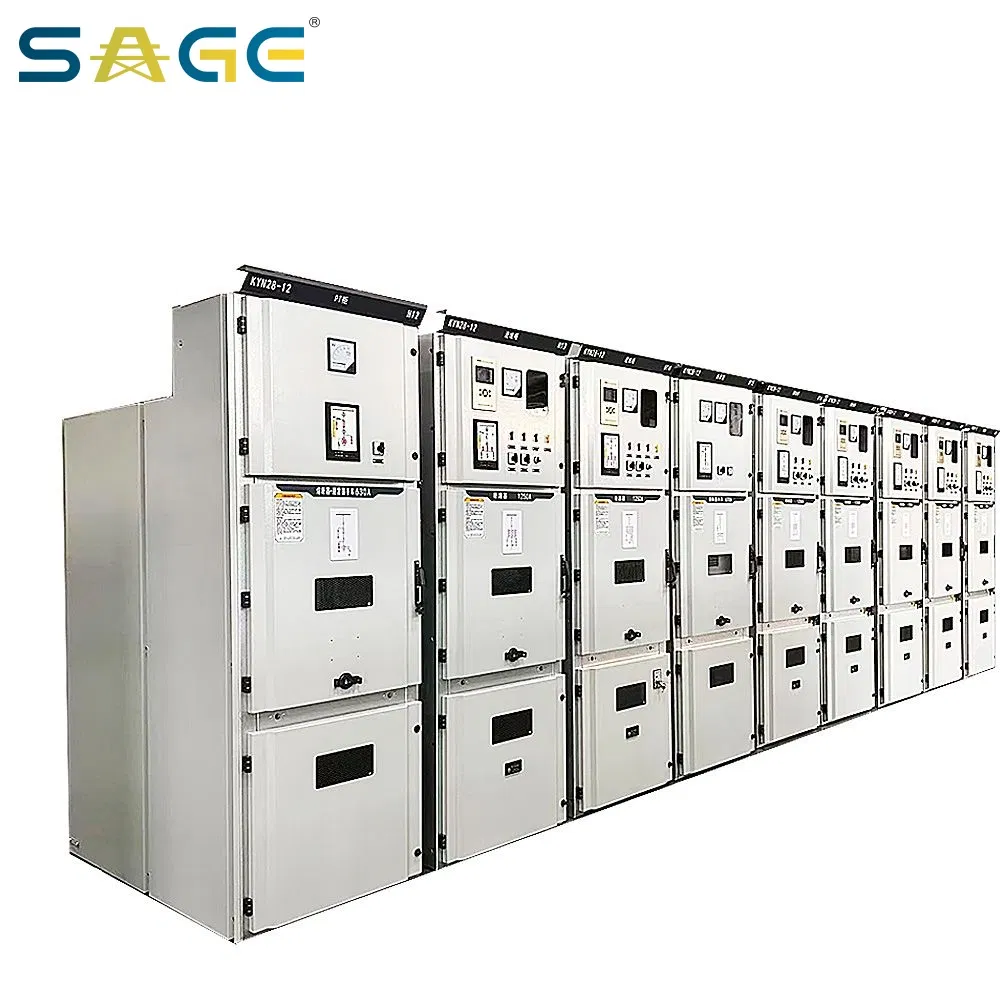

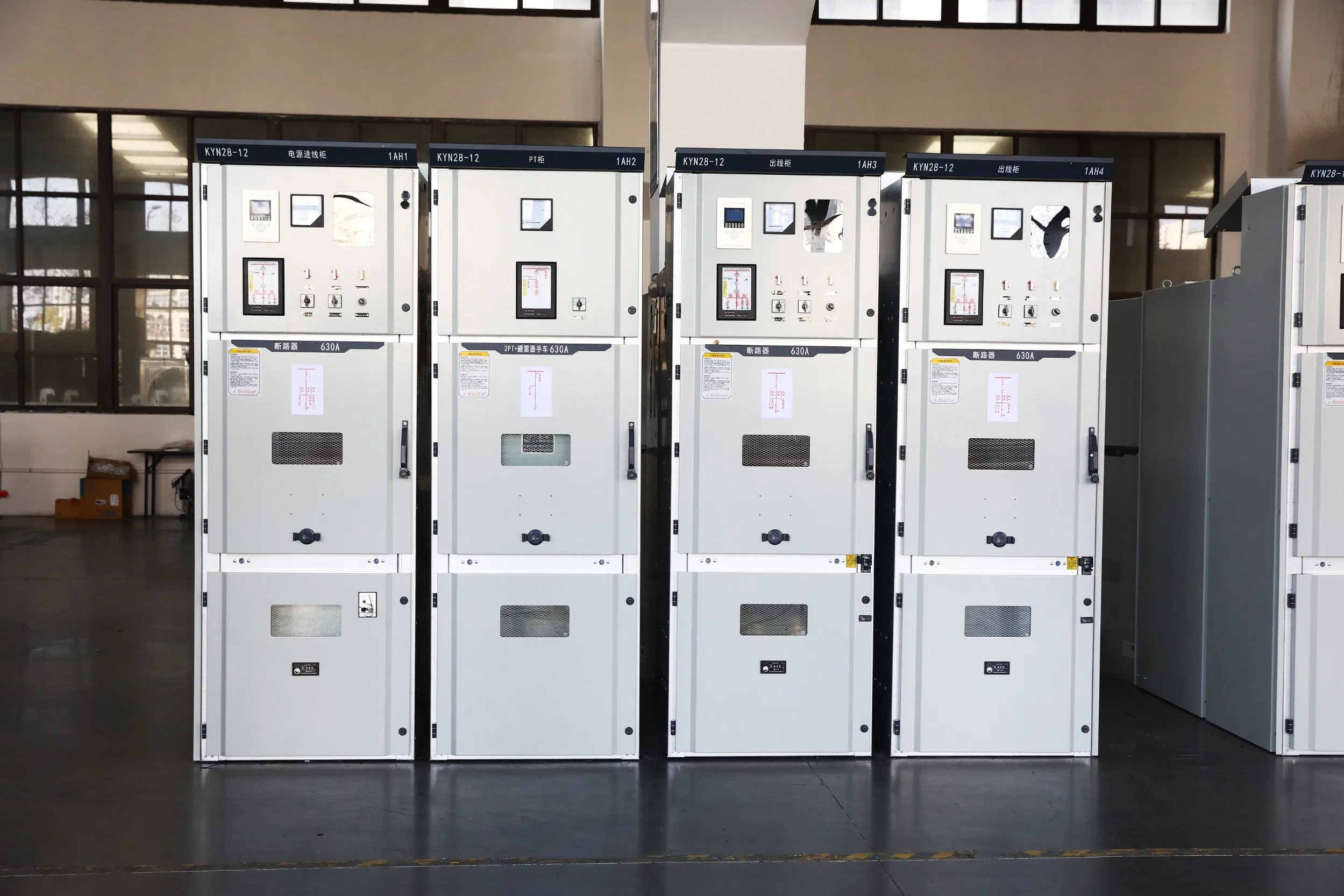

Intelligent Power Switchgear, Mv Withdrawable Panel with Predictive Maintenance Capabilities
Intelligent Power Switchgear, Mv Withdrawable Panel with Predictive Maintenance Capabilities
Intelligent Power Switchgear, Mv Withdrawable Panel with Predictive Maintenance Capabilities
Intelligent Power Switchgear, Mv Withdrawable Panel with Predictive Maintenance Capabilities
Intelligent Power Switchgear, Mv Withdrawable Panel with Predictive Maintenance Capabilities
1 / 5
Intelligent Power Switchgear, Mv Withdrawable Panel with Predictive Maintenance Capabilities
Intelligent Power Switchgear, Mv Withdrawable Panel with Predictive Maintenance Capabilities
Intelligent Power Switchgear, Mv Withdrawable Panel with Predictive Maintenance Capabilities
Intelligent Power Switchgear, Mv Withdrawable Panel with Predictive Maintenance Capabilities
Intelligent Power Switchgear, Mv Withdrawable Panel with Predictive Maintenance Capabilities

Intelligent Power Switchgear, Mv Withdrawable Panel with Predictive Maintenance Capabilities

Customization: Available
Certification: CCC, ISO9001
Shell Material: Stainless Steel
Send Inquiry

Product Description

ⓘ

Basic Information

Voltage Level:
High Voltage
Installation:
Removable
Structure:
Cabinet
Current:
DC
The Rated Voltage:
12kv
Rated Frequency:
50Hz
Rated Current:
1250/630A
Production Capacity:
50 Pieces/Week
HS Code:
8537209000
Package Size:
800.00cm * 1000.00cm * 2200.00cm
⚙

Product Description

Power Switchgear

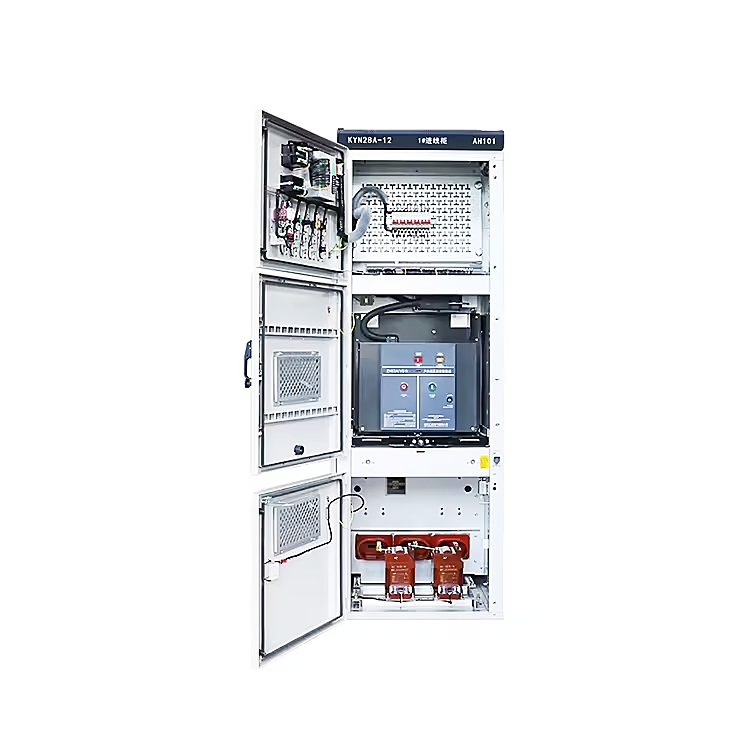

The cable room is mainly used for the connection of cables, so that the single-core or three-core cables can be connected with the simplest unshielded cable heads, and at the same time, the ample space can also accommodate components such as arresters, current transformers, and lower grounding switches. The cabinet door is designed as standard with viewing windows and safety interlocks, and the cable compartment floor is equipped with a sealing cover and a cable clamp of appropriate size with brackets.

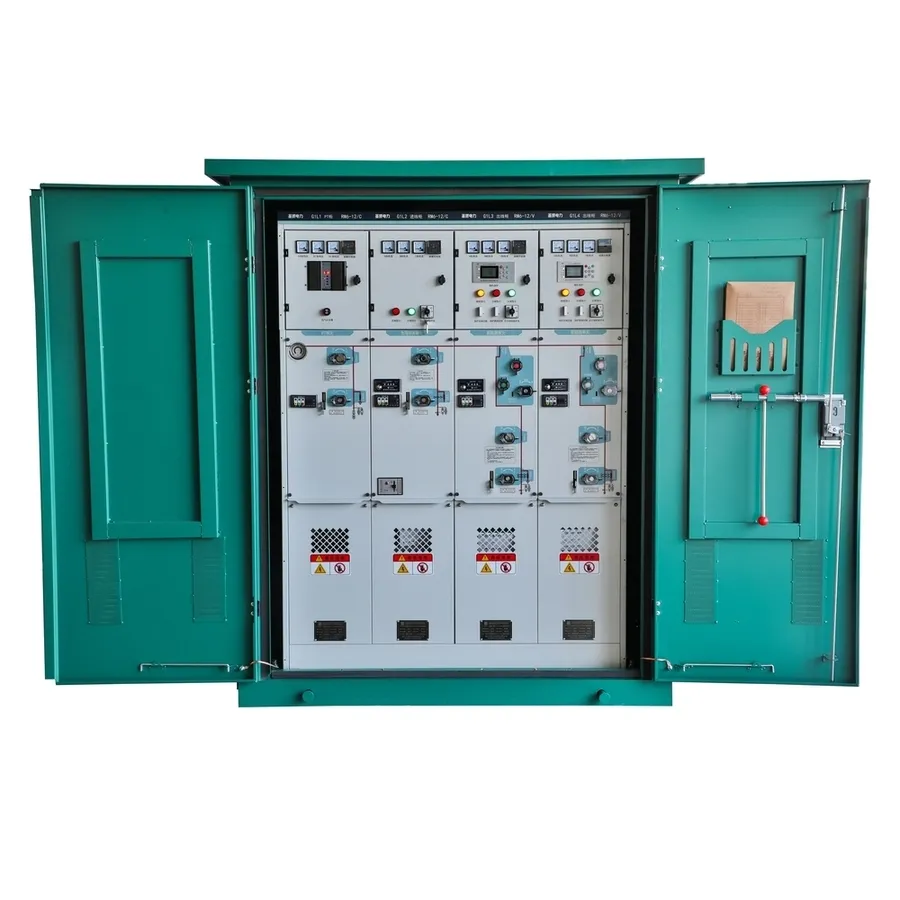

Ring Main Unit Details

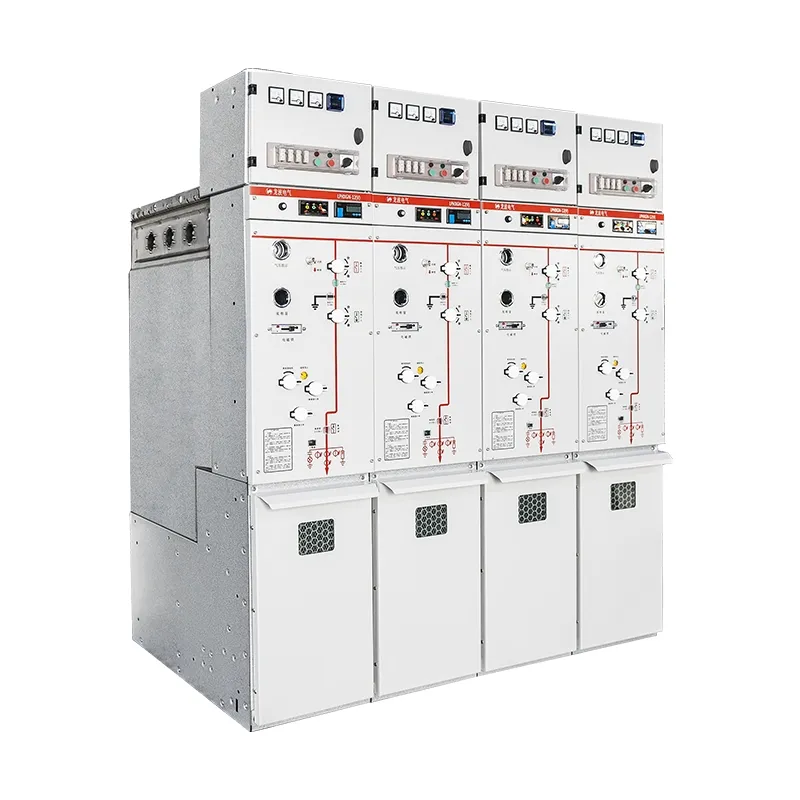

Switchgear Component 1
Switchgear Component 2

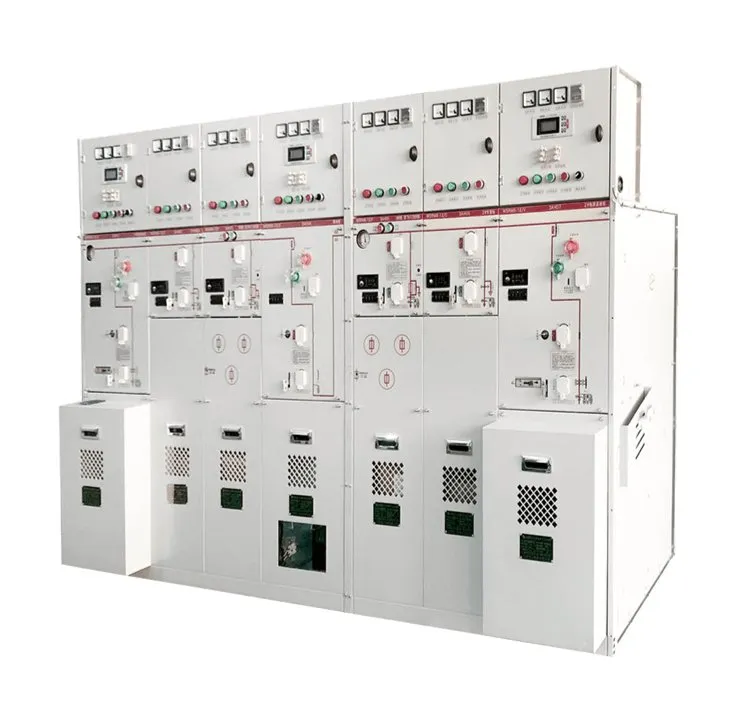

RING MAIN UNIT: Composed of a bus room, load switch (or circuit breaker room), cable room, an operating mechanism, interlocking mechanism, and low-voltage control room. Each compartment is divided by a steel plate to avoid failure affecting the adjacent room. The load switch room is equipped with a shell made of epoxy resin, filled with SF6 gas as an arc extinguishing and insulating medium.
📋

Technical Specifications

Project Units C Module F Module V Module CB Module
Rated VoltageKV12121212
Rated FrequencyHZ50505050
Power Frequency Withstand VoltageKV42/4842/4842/4842/48
Lightning Shock Withstand VoltageKV75/8575/8575/8575/85
Rated CurrentA630Fuse6301250/630
Mechanical LifeTimes5000300050005000
🏢

Facilities & Certifications

Factory Environment
Certification Documents
Client Interaction
📦

Packaging & Shipping

Export Standard Packaging
❓

Frequently Asked Questions

Q1. Are you a trading company or manufacturer?
We are a professional factory with 10 years of experience in the field of High and Low voltage switchgears, substations, transformers, and various electrical equipment.
Q2. Do you offer customized services?
Yes, we offer OEM/ODM services and can print your logo on products. Our technical team provides tailored projects based on your drawings and parameters.
Q3. What is your minimum order quantity (MOQ)?
Our MOQ is 1 piece.
Q4. What is the typical delivery lead time?
It depends on the requirement and quantity, but generally, 5 to 10 working days are available.
Q5. How do you handle quality control issues?
Our technical and quality testing departments analyze detailed photos of any issues and provide a satisfactory solution within 2 days.
Q6. What are your payment terms?
30% T/T in advance and 70% before shipment. West Union and L/C are also acceptable.
