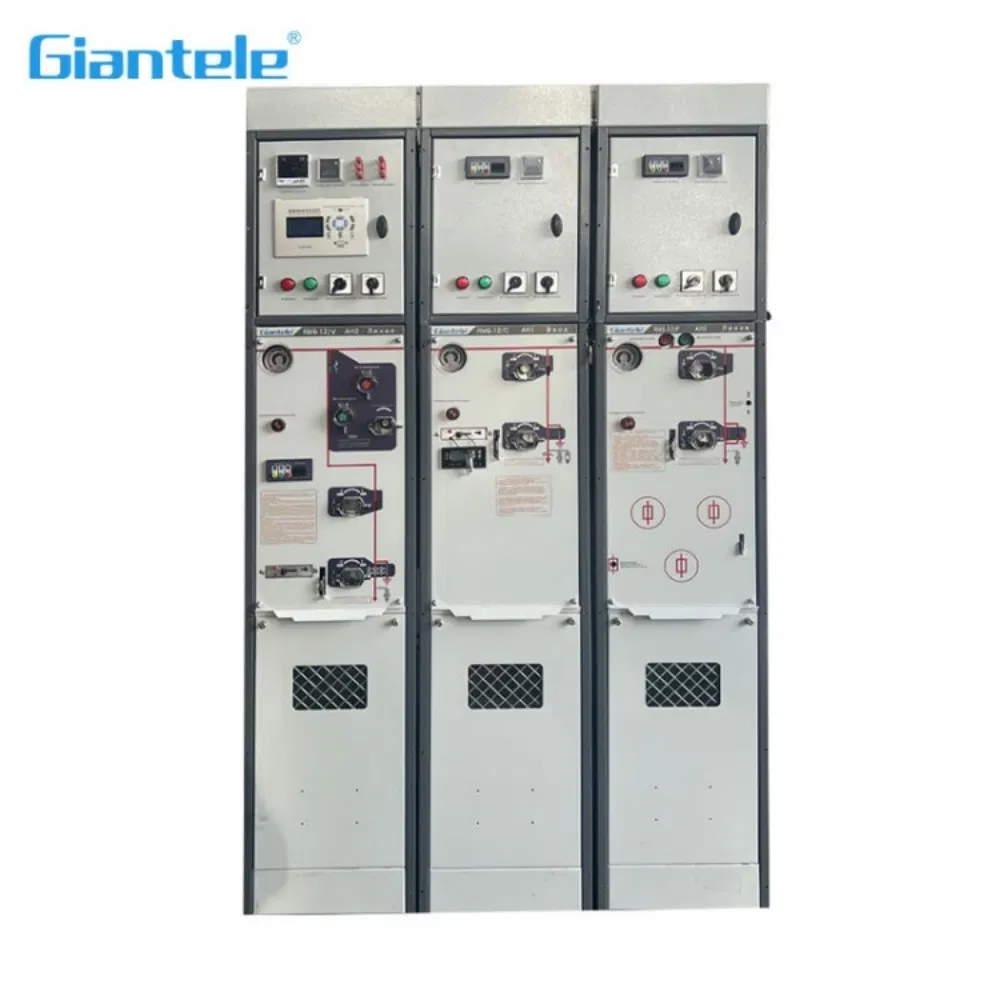

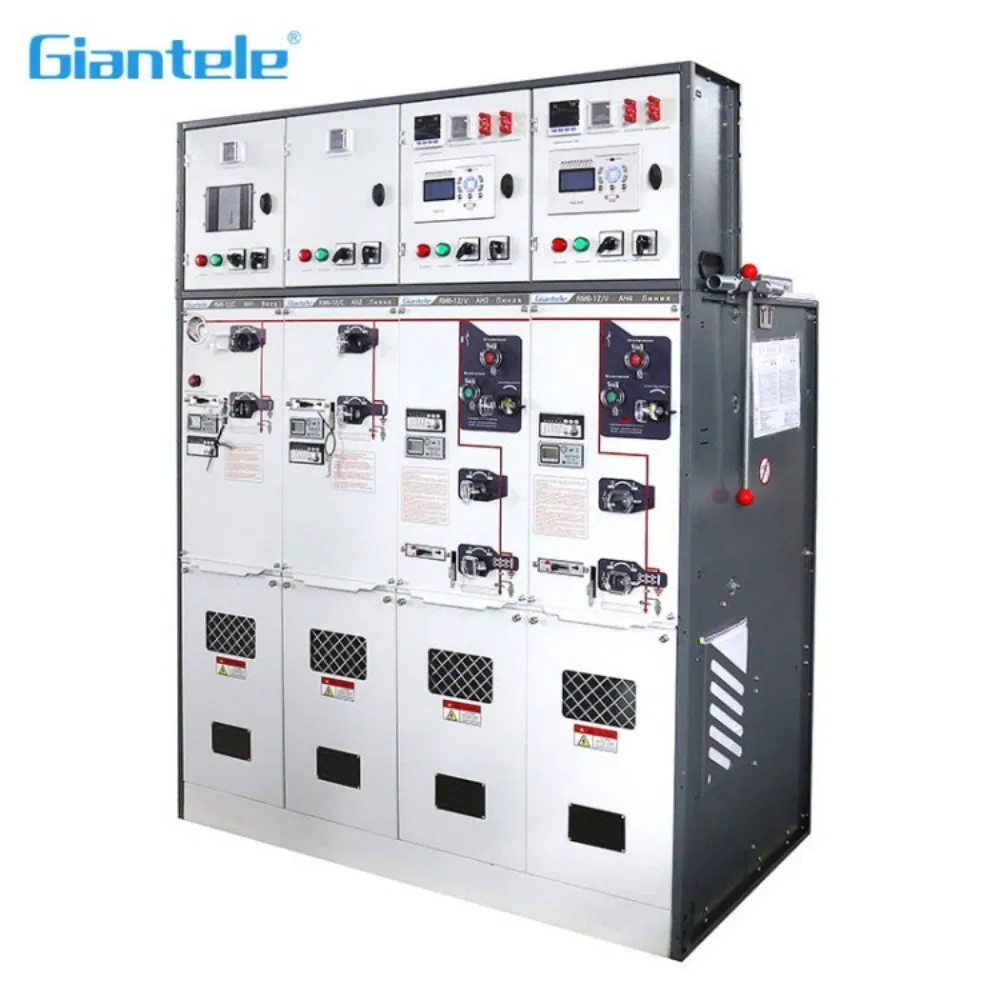

| Model Number | RM6-12 | Rated Voltage | 12kV |
| Rated Current | 630A | Frequency | 50Hz |
| Material | Air chamber stainless steel | Thickness | 3.0mm |
| Dimensions | 375x757x1800 | Color | RAL7035 |
| Protection Degree | IP67 | MOQ | 1 Set |
Annual leakage rate of gas: 0.2%/year
Class of protection: IP67
Air Chamber Material: Stainless steel (3.0mm thickness)
Operating Conditions:
Max Temp: 40℃ | Min Temp: -40℃
Max Relative Humidity: ≤95%
Altitude: ≤2000m
| Parameter Name | C module | F module | V module | CB module |
|---|---|---|---|---|
| Rated voltage (kV) | 12 | 12 | 12 | 12 |
| Rated frequency (Hz) | 50 | 50 | 50 | 50 |
| Power frequency withstand voltage (kV) | 42/48 | 42/48 | 42/48 | 42/48 |
| Impulse withstand voltage (kV) | 75/85 | 75/85 | 75/85 | 75/85 |
| Rated current (A) | 630 | 630 | 1250/630 | 1250/630 |
| Mechanical life (times) | 5000 | 5000 | 5000 | 5000 |
