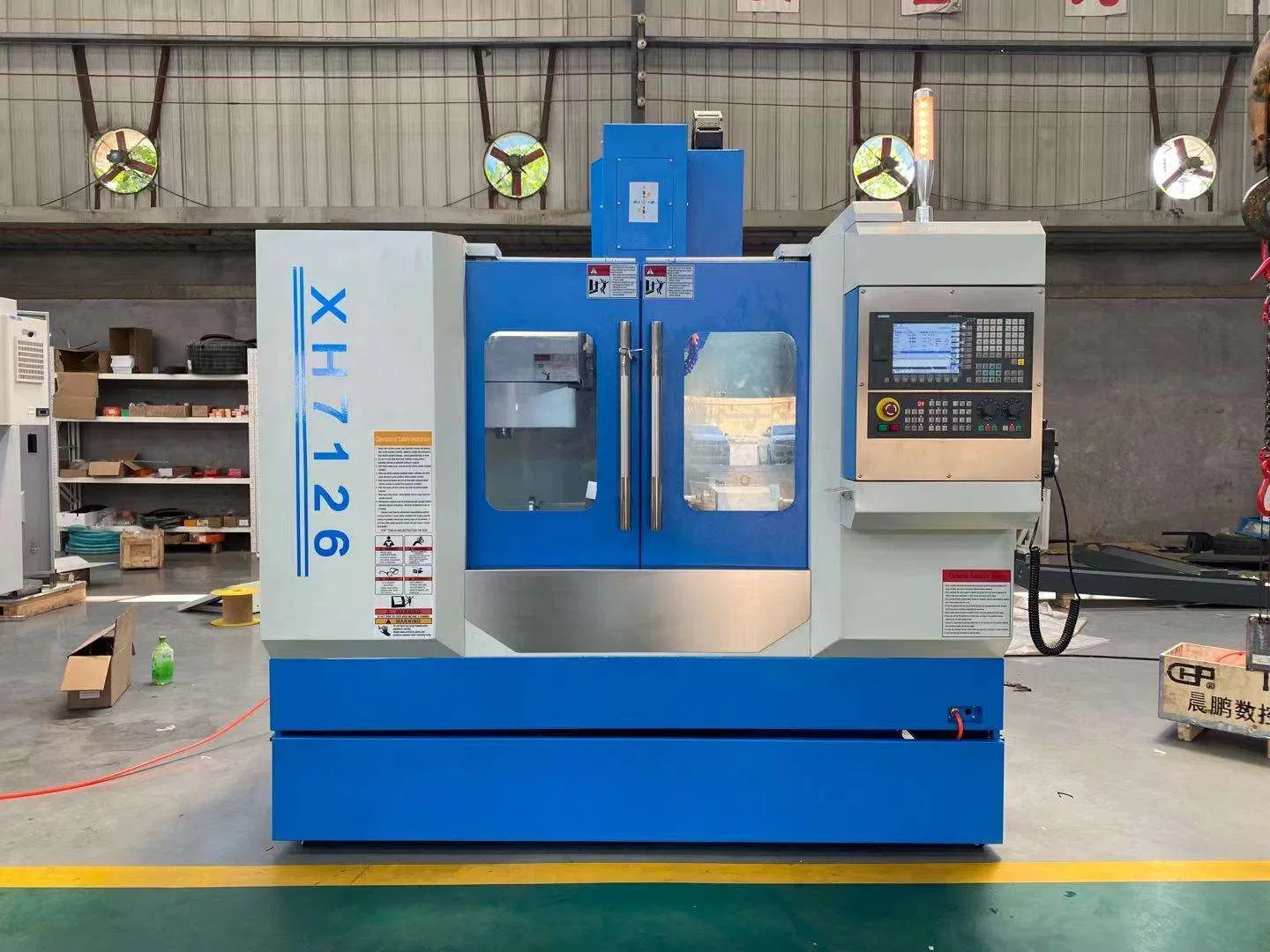

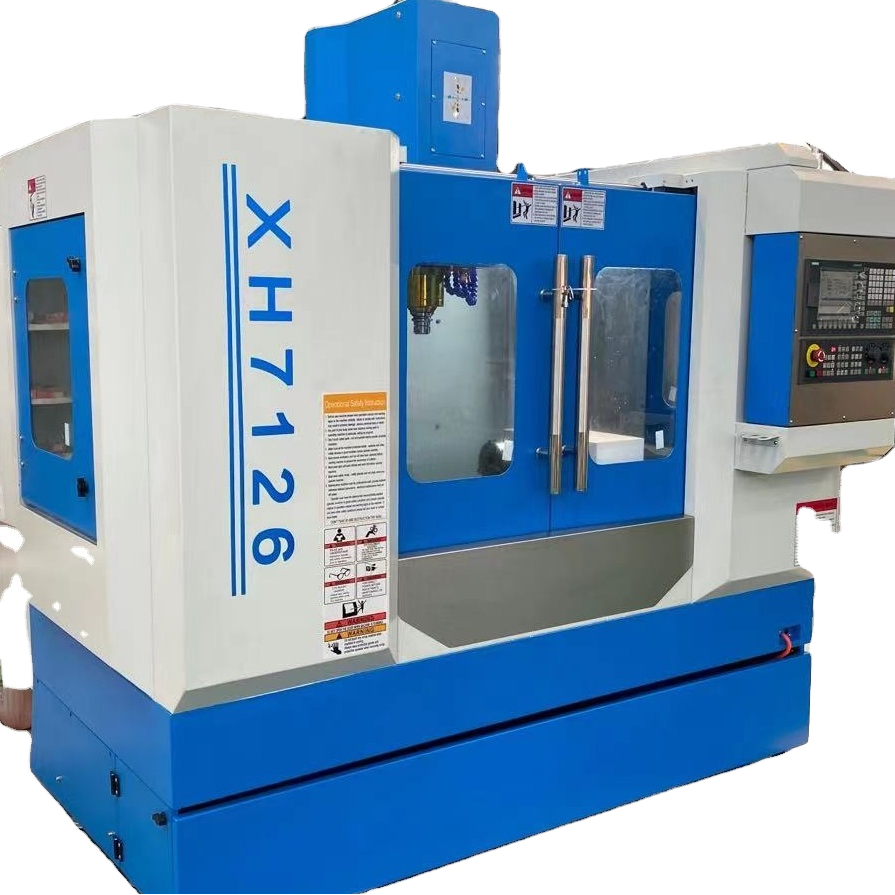

Xh7126 Vertical Machining Centre

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

ℹ️

Basic Information

Model NO.

XH7126

Application

Metal

Process Usage

Metal-Cutting CNC Machine Tools

Movement Method

Contour Control

Control Method

Closed-Loop Control

Numerical Control

CNC/MNC

Processing Precision

0.05~0.06(mm)

Performance

High-End CNC Machine Tools

Certification

Spindle Speed

60-8000r.p.m

Table Size

800X260

Tool Change Time

6 Seconds

Magazine Capacity

12, 24, 16

Travel (X/Y/Z)

450 / 320 / 450 mm

Positioning Accuracy

0.005

Gross Weight

2400kg

📦

Packaging & Delivery

Package Size

210.00cm * 180.00cm * 196.00cm

Lead Time

60 days (1 - 1 Pieces); To be negotiated (> 1 Pieces)

⚙️

Product Description

CNC vertical type 3 axis universal milling machine XH7126

The machine tool feed axis X, Y, Z coordinate control, the spindle servo drive. It is suitable for processing a variety of plates, shells, cams, and molds. It can complete drilling, milling, boring, expansion, and hinging processes in a single setup. It is ideal for small to medium-sized parts production requiring high-precision machining.

Main Structural Features

High rigidity cast iron structure (base, slide, table, column, spindle box) for vibration damping.
Resin sand molding and aging treatment for long-term stability.
Rectangular rails for Y and Z directions to eliminate low-speed crawling and improve life.
High-precision high-strength ball screws for X, Y, Z axes for fast positioning.
Fully enclosed structure design for safety and reliability.
Advanced centralized manual lubrication device.
Ergonomic operating system design.

📊

Technical Specifications

SPECIFICATION	XH7126	XK7126
X axis stroke	450mm	500mm
Y axis stroke	320mm	300mm
Z axis stroke	450mm	400mm
Tool storage capacity	Umbrella type - 12T	--
Spindle nose to table	90-470mm	90-520mm
Table size	800 X 260mm	800 X 260mm
Max load	400kg	400kg
Spindle taper	BT40	BT40
Spindle power	3.7kw	3.7kw
Cutting speed	1-12000mm/min	1-6000mm/min
Positioning accuracy	±0.01/300mm	±0.01/300mm
Gross weight	2400kg	1800kg

🛠️

Machine Configurations

Standard Configuration

KND-1000MI Controller
X/Y/Z axes servo motor & driver
Servo spindle motor & driver
10T Funnel type tool magazine

Optional Configuration

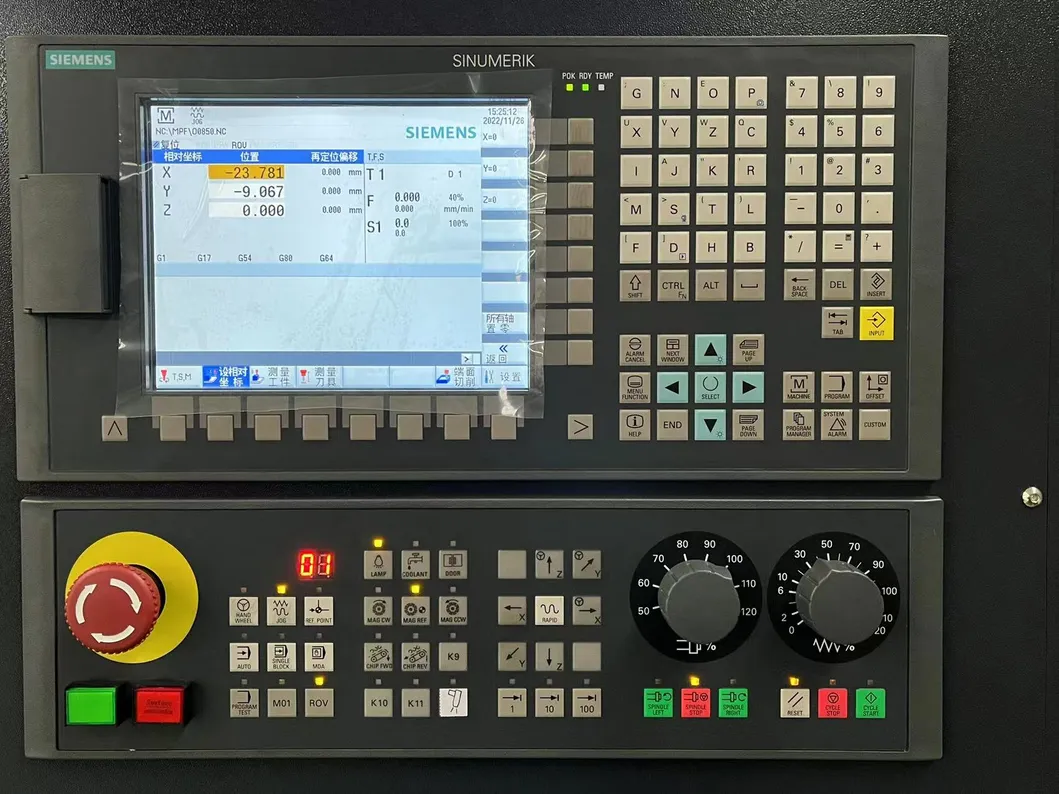

SIEMENS 808D BASIC/828D CNC Controller
16T DISC type tool magazine
CNC Milling (Without tool magazine)
BOX guideway or LINEAR guideway
4th axes (NC Dividing Head)
Full closed cover

🖼️

Product Gallery

❓

Frequently Asked Questions

What are the primary applications for the XH7126?

The XH7126 is designed for metal cutting, specifically for processing various plates, shells, cams, and molds. It excels in drilling, milling, boring, and hinging operations.

What is the positioning accuracy of this machine?

The machine offers a high positioning accuracy of ±0.01/300mm and a repeatability of approximately 0.005mm.

Which CNC control systems can be used?

The standard configuration uses the KND-1000MI system. Optional upgrades include SIEMENS 808D BASIC or 828D CNC controllers.

What is the lead time for a single unit?

The standard lead time for 1 unit is 60 days. For larger quantities, the lead time is subject to negotiation.

Does the machine support automatic tool changes?

Yes, the XH7126 features an umbrella-type tool magazine with a 12T capacity as standard, with options for 16T or 24T magazines. The tool change time is approximately 6 seconds.

What kind of after-sales support is provided?

Support includes training on installation and operation. Technical support is typically available via phone or digital communication channels, and engineers may be available for overseas service.
