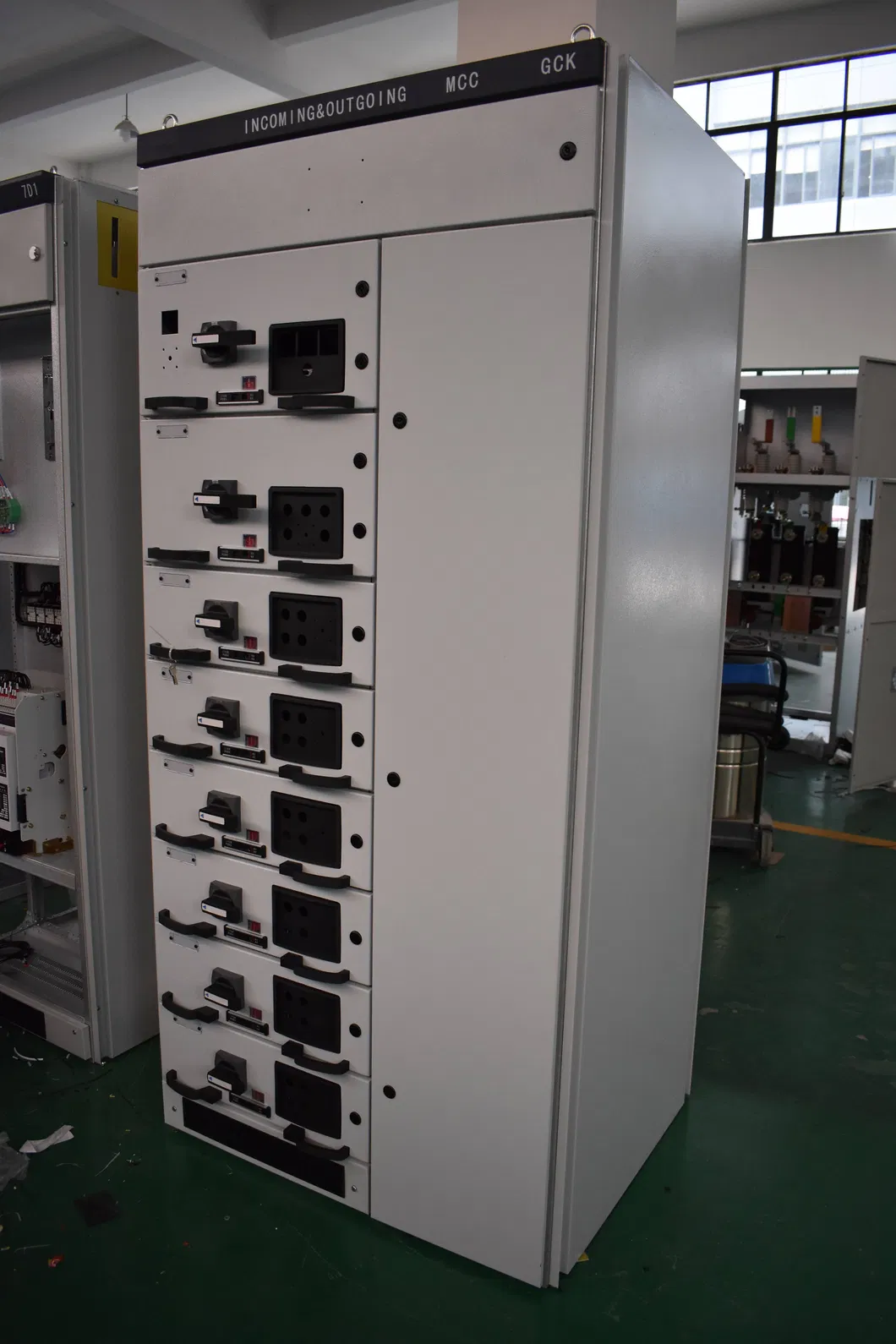

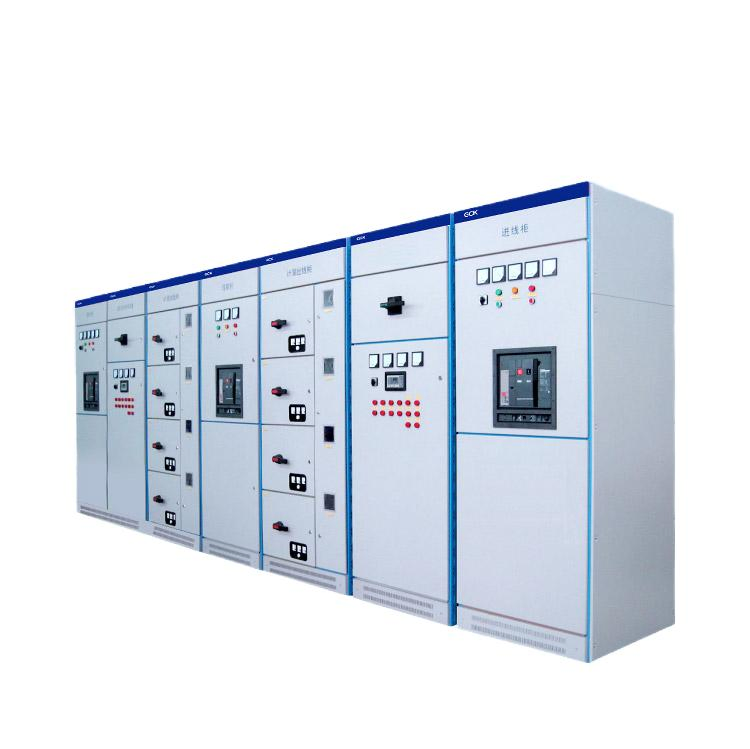

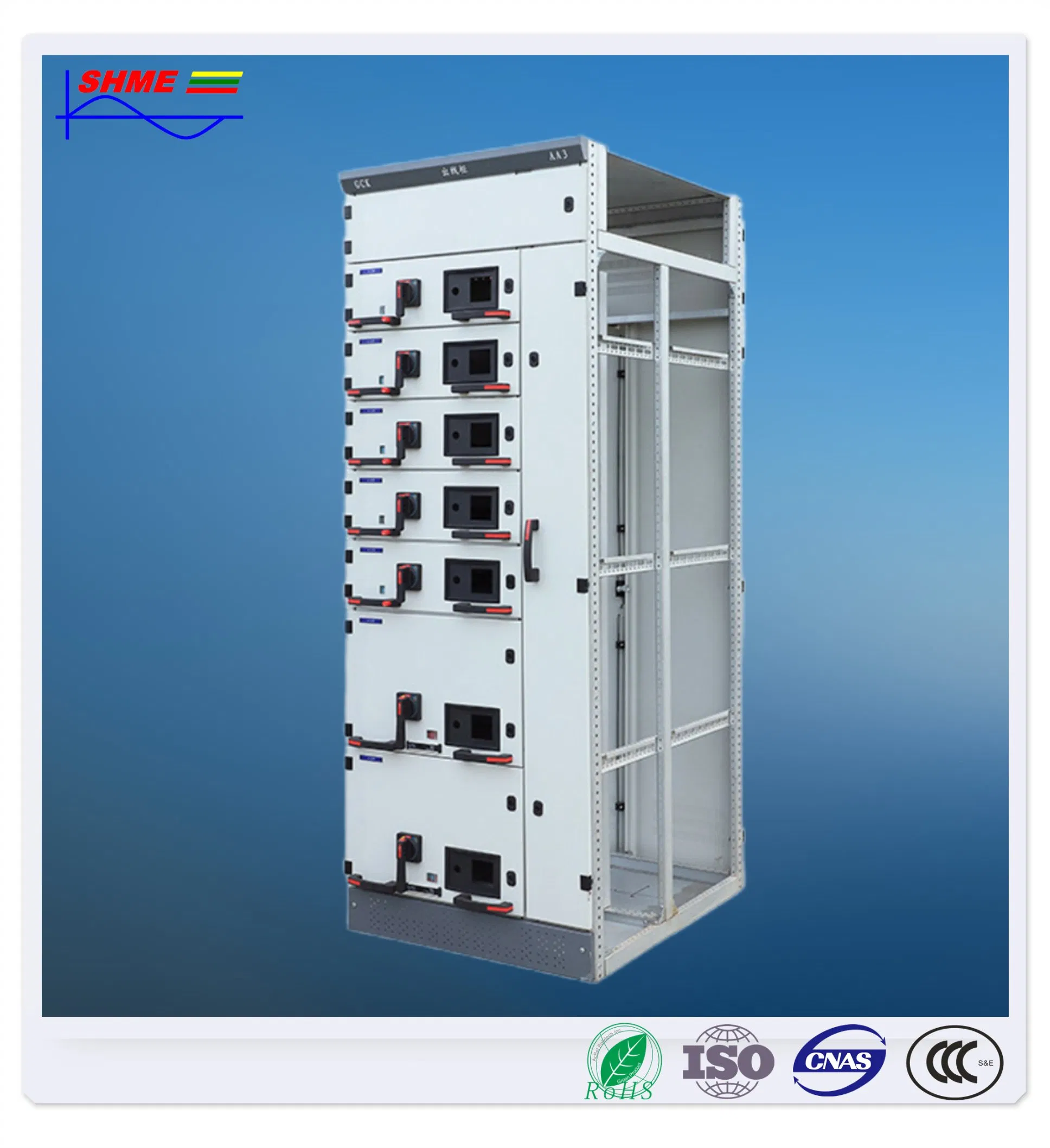

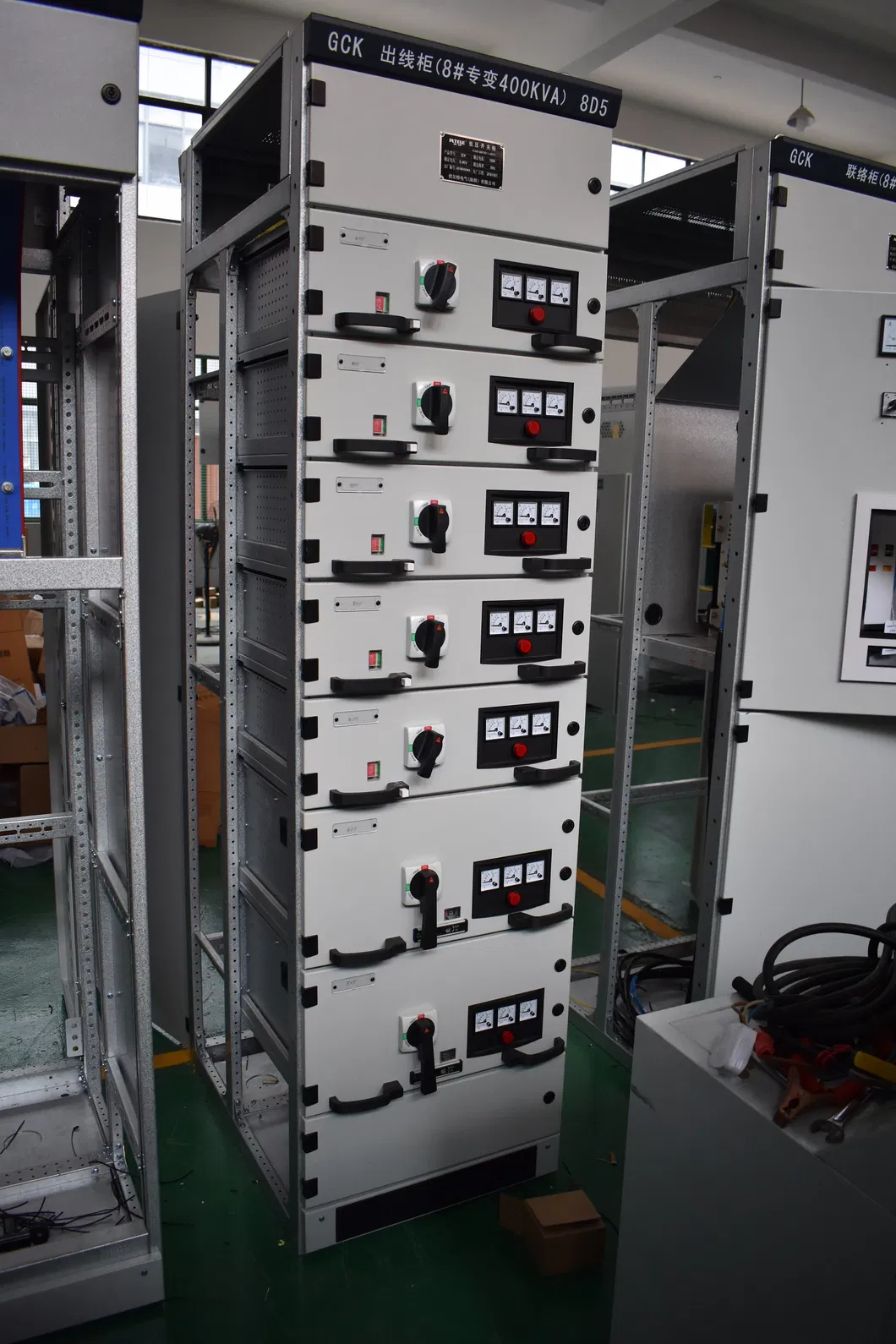

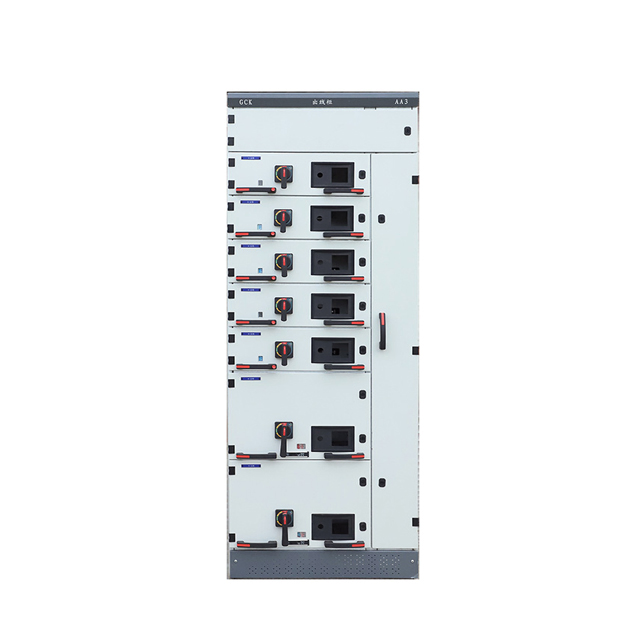

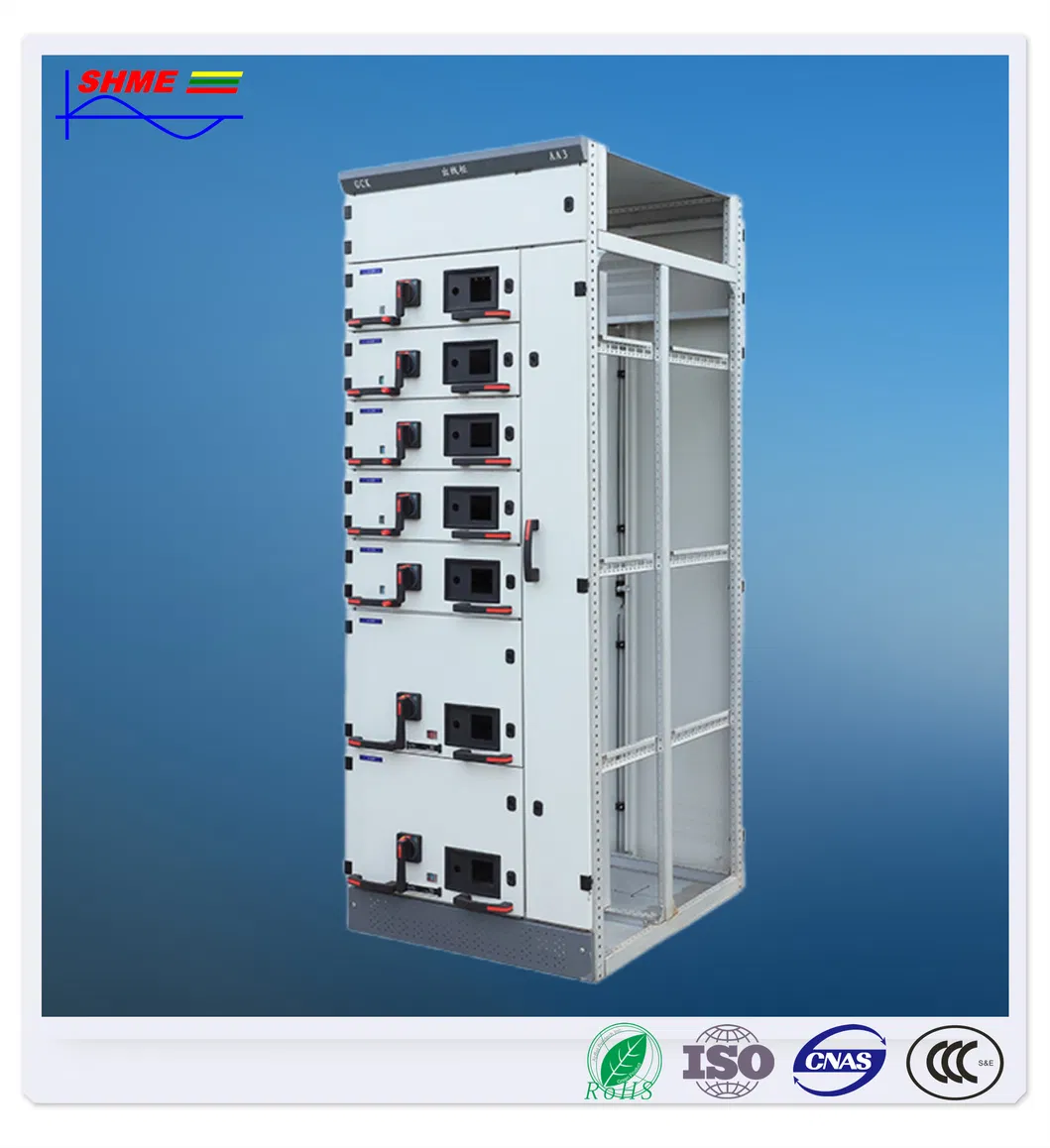

GCK Low-voltage Withdrawable Switchgear

GCK (L) series low-voltage withdrawable power distribution cabinet meets the standards of IEC 60439-1, GB7251.1-2013, GB7251.12-2013 and JB/T9661-1999. The installation and connection of the system are performed according to the standard IEC364.

This series of low-voltage withdrawable switchgear is suitable for power plants, substations, petrochemicals, metallurgical rolling steel, transportation energy, Light industrial textiles and other factories and mines, residential quarters, high-rise buildings and other places, for the exchange, distribution and control of power distribution equipment of 50-60Hz, rated working voltage AC 660V and below.

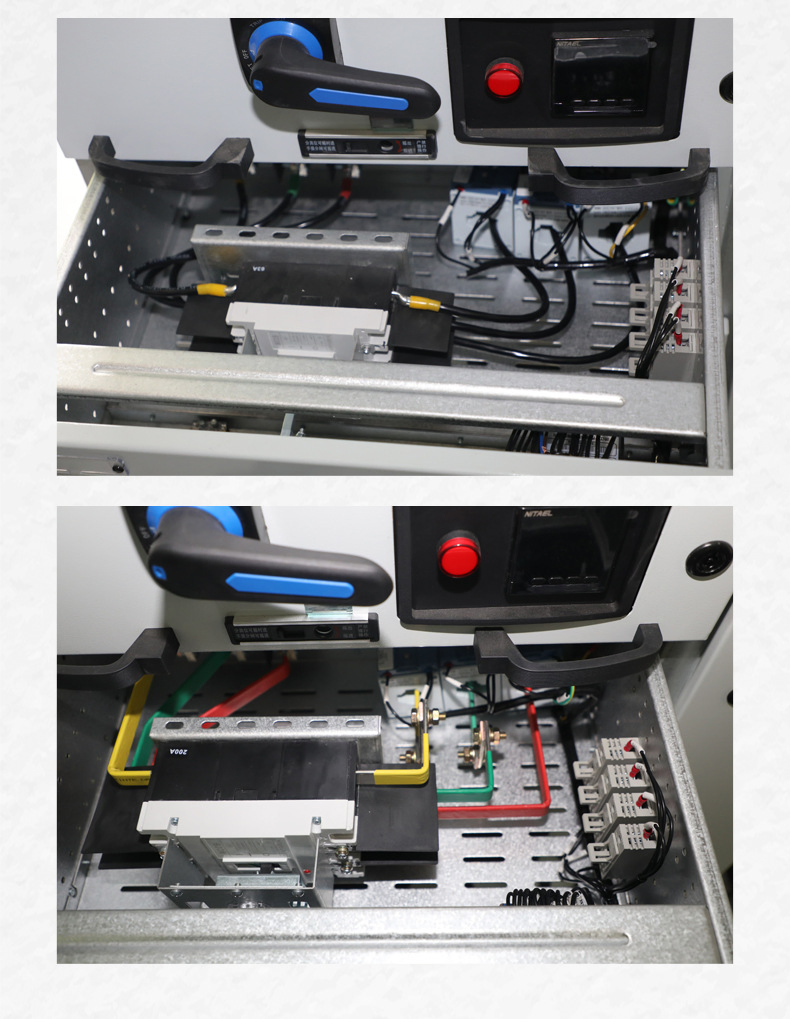

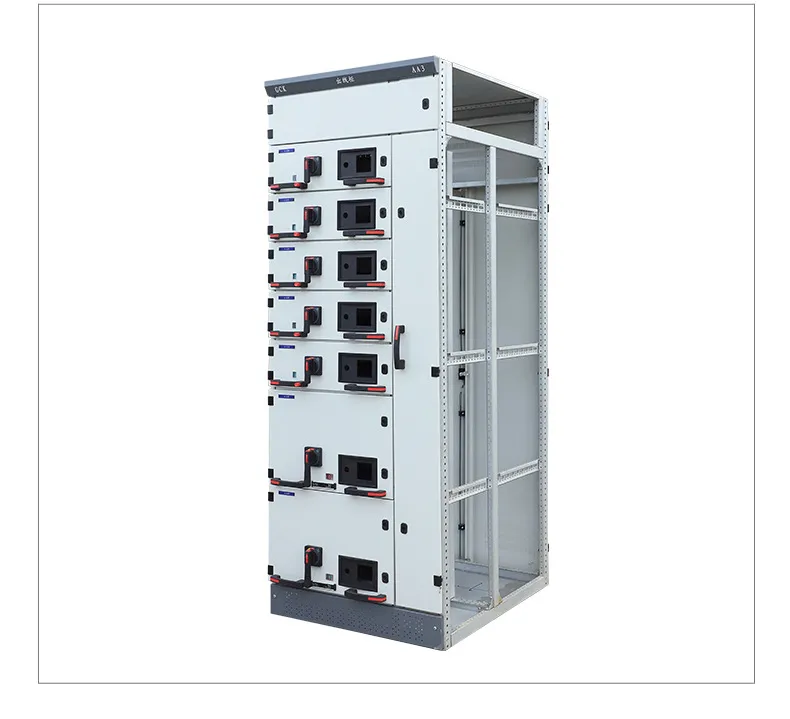

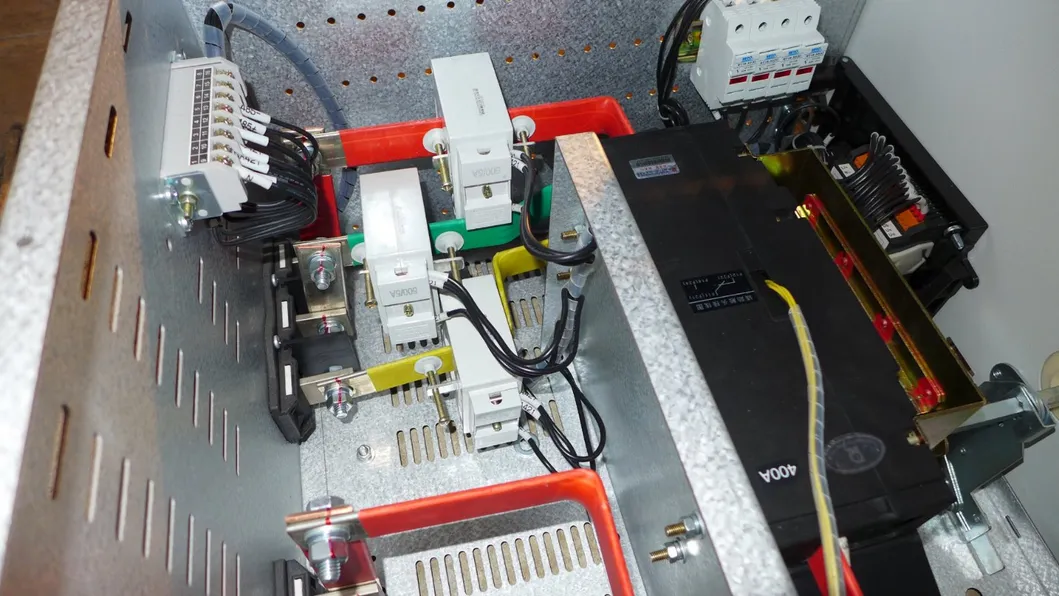

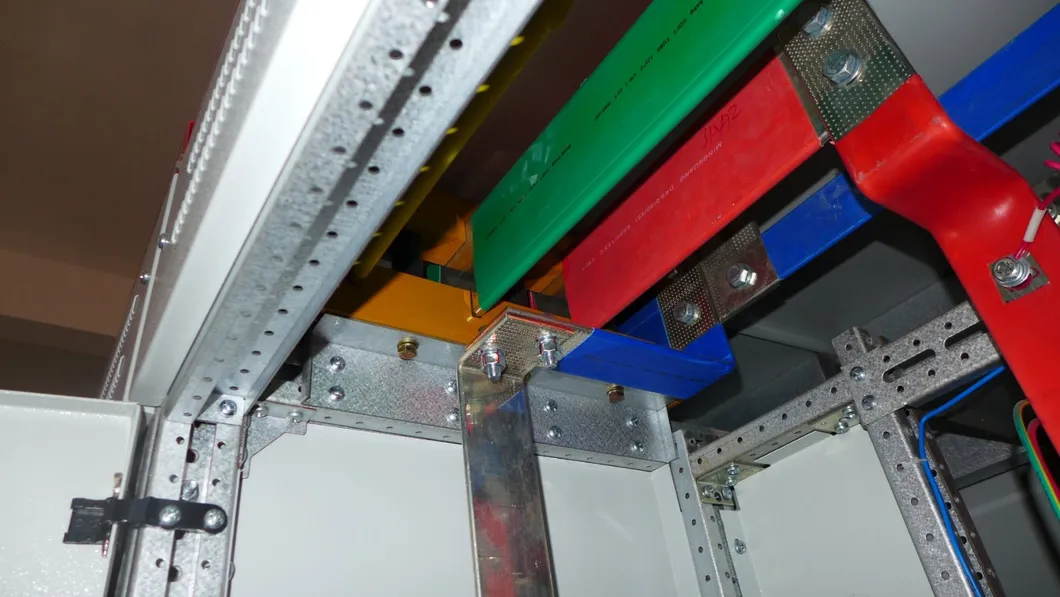

The frame structure of the GCK (L) series low-voltage withdrawable switch cabinet is flexible in assembly, and different standard components can be installed in the cabinet to meet various application requirements. The withdrawable unit adopts the aluminum alloy sliding guide rail and screw propulsion mechanism, which has obvious working positions and is light and reliable to operate.

The ambient air temperature is not higher than +40 ° C, not lower than -5 ° C, and its average temperature is not higher than +35 ° C within 24 h. Atmospheric conditions: The air is clean, the relative humidity is not more than 50% at a maximum temperature of 40 ° C, and a higher relative humidity is allowed at a lower temperature, for example, 90% at 20 ° C. Altitude does not exceed 2000M. The device is suitable for transport and storage at temperatures between -25 ° C and +55 ° C.
