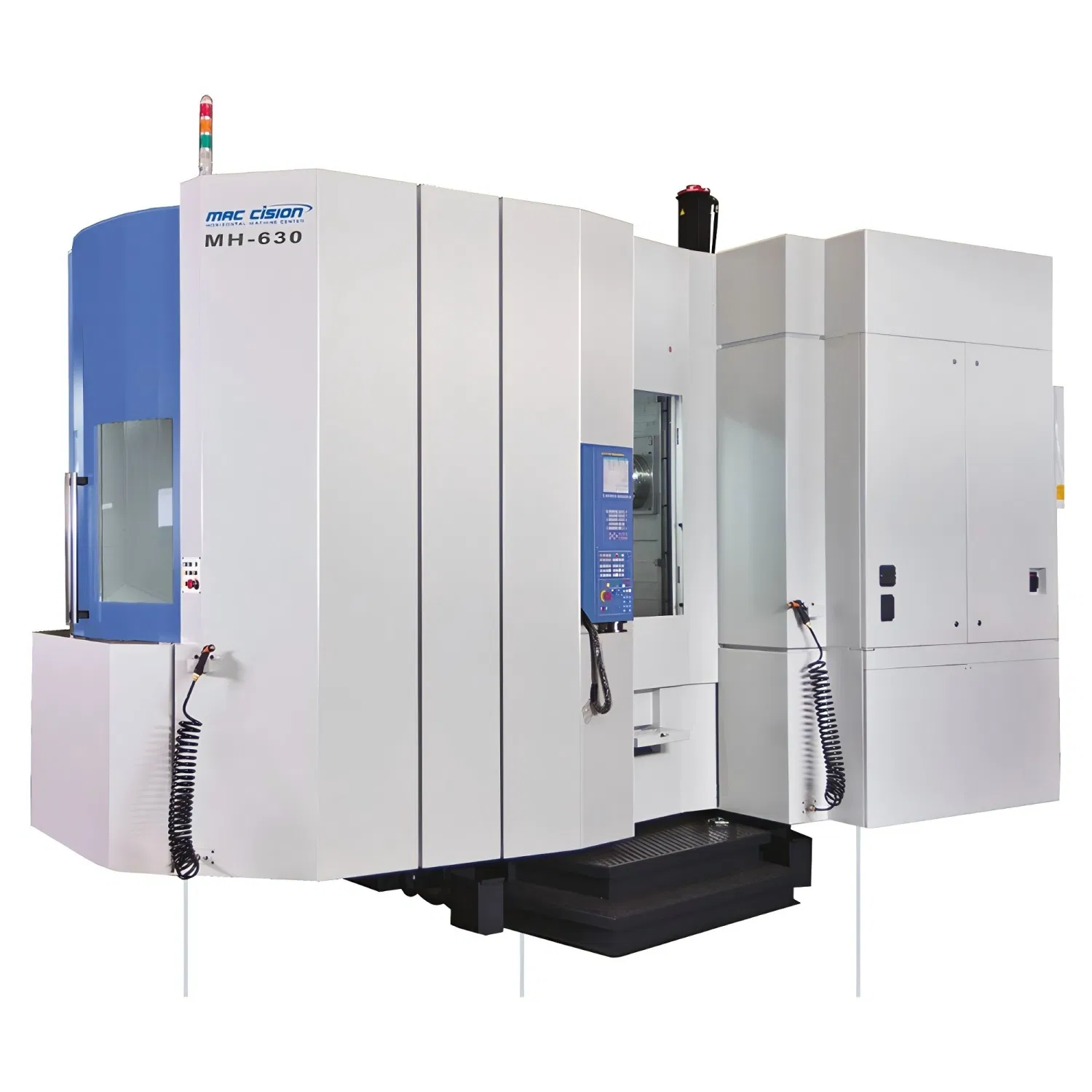

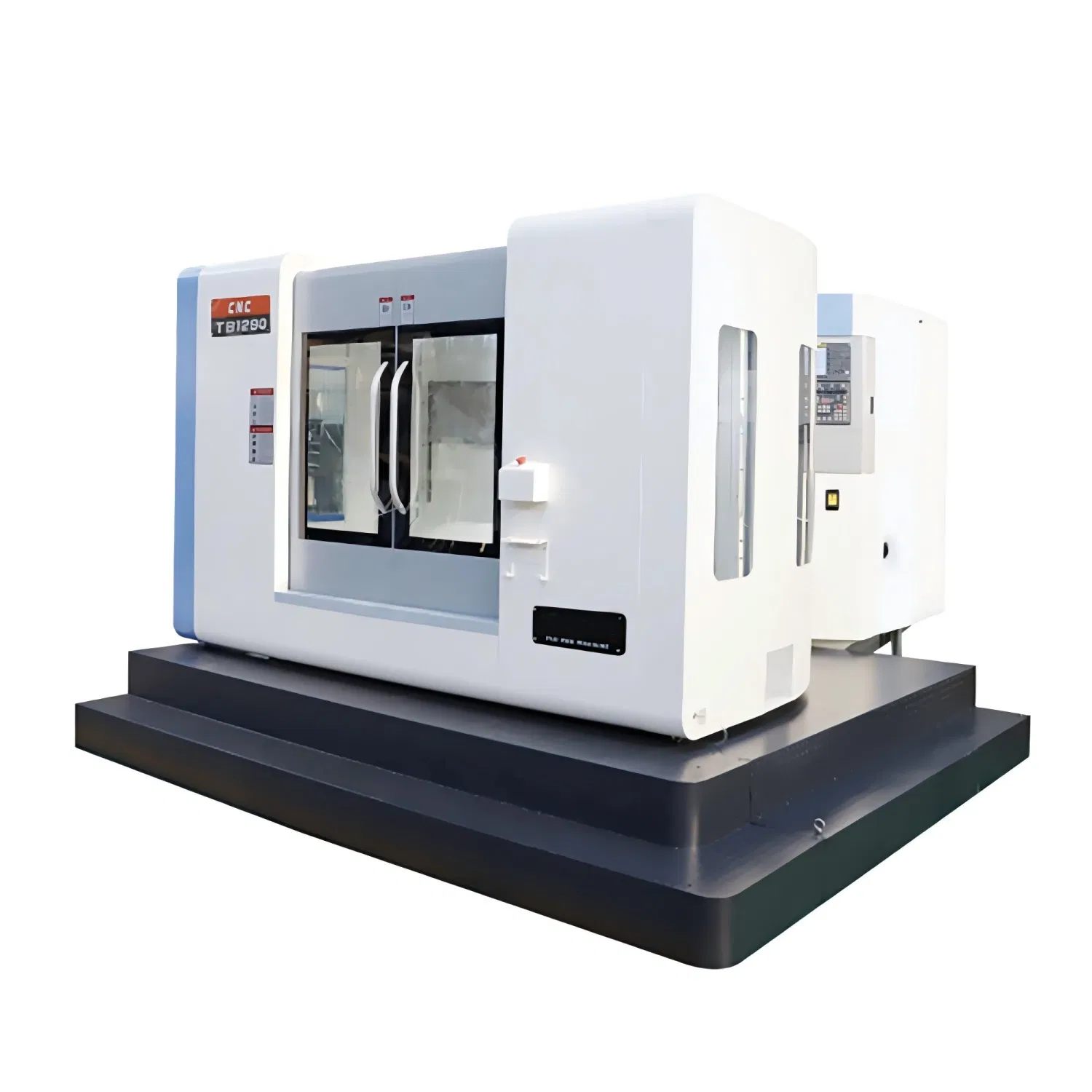

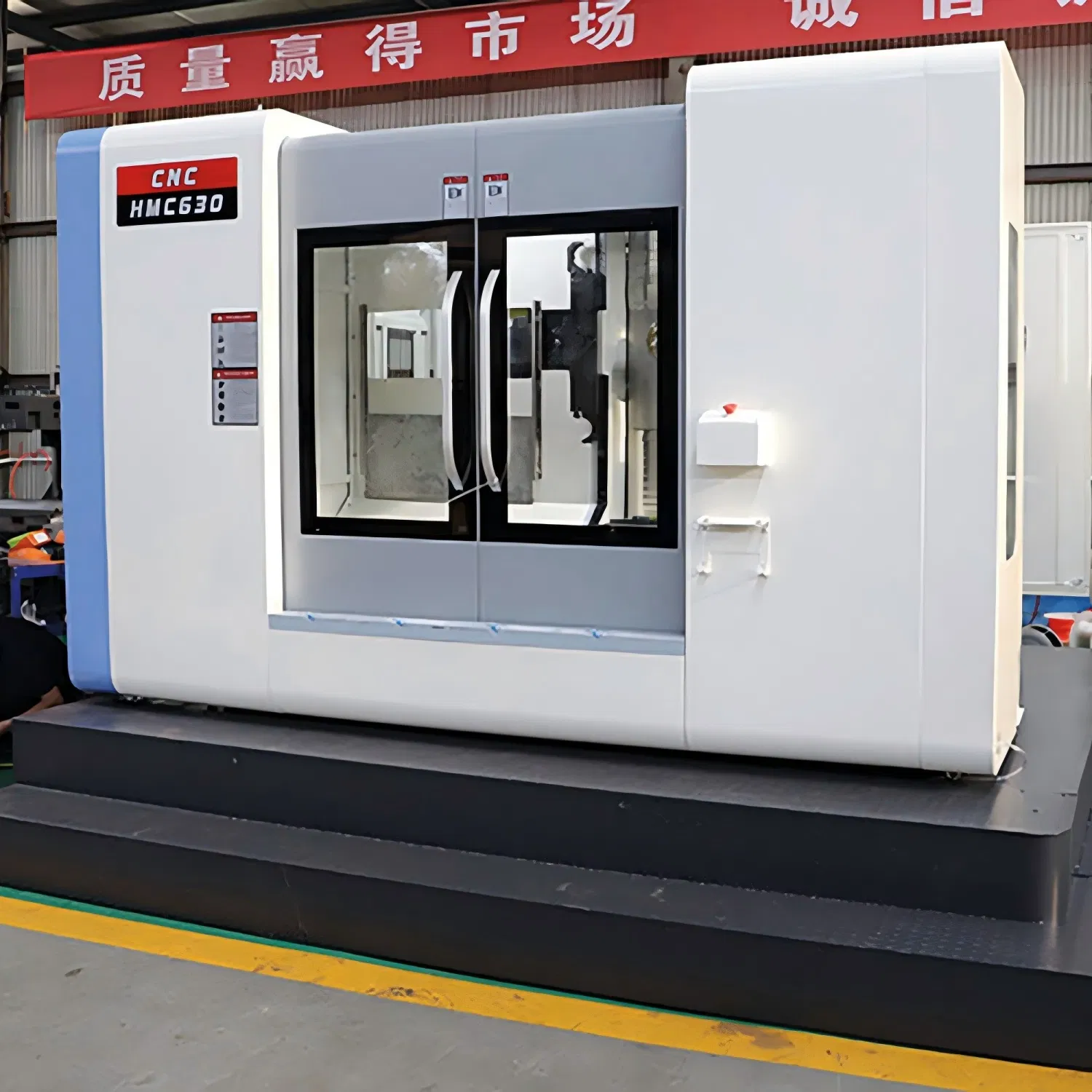

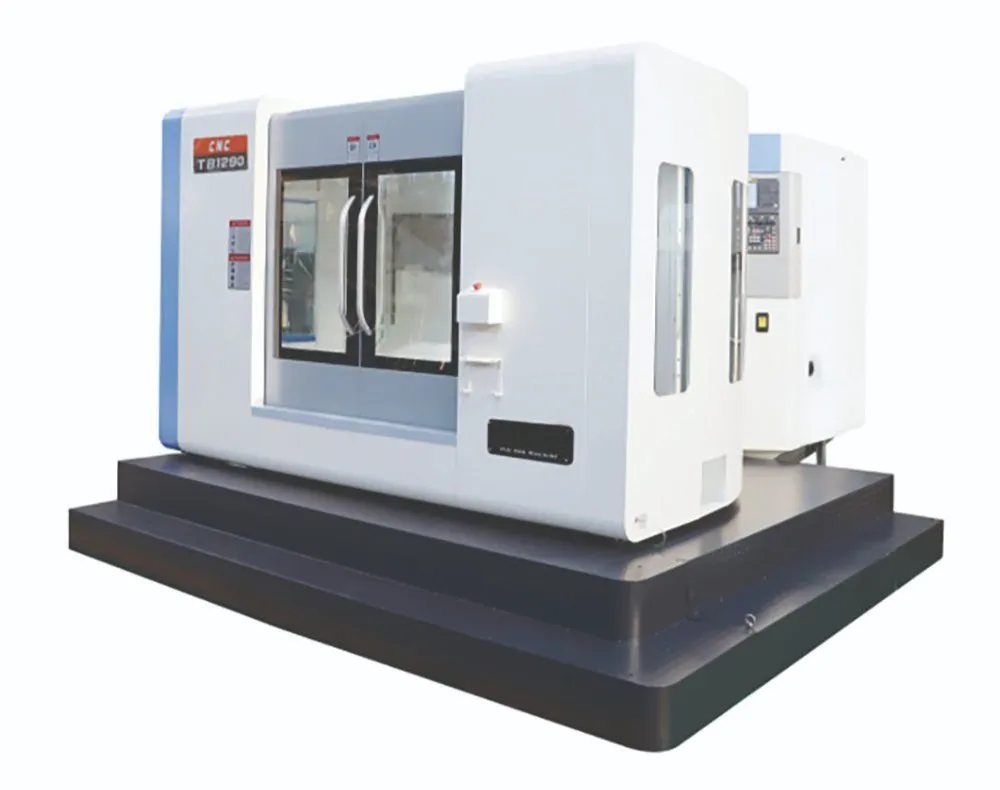

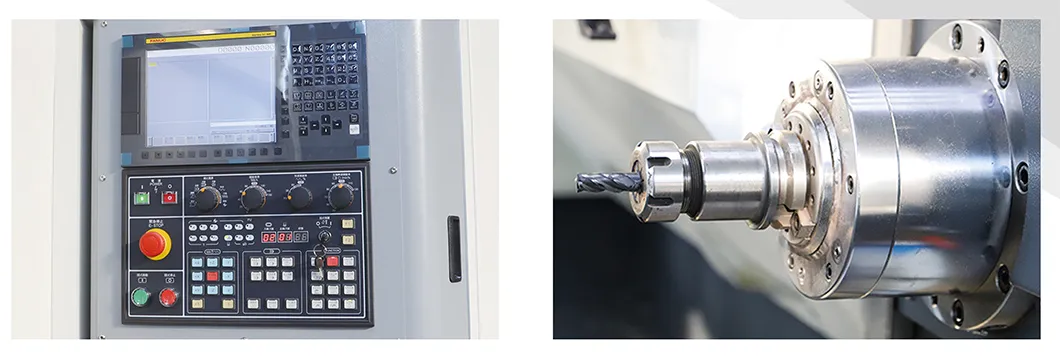

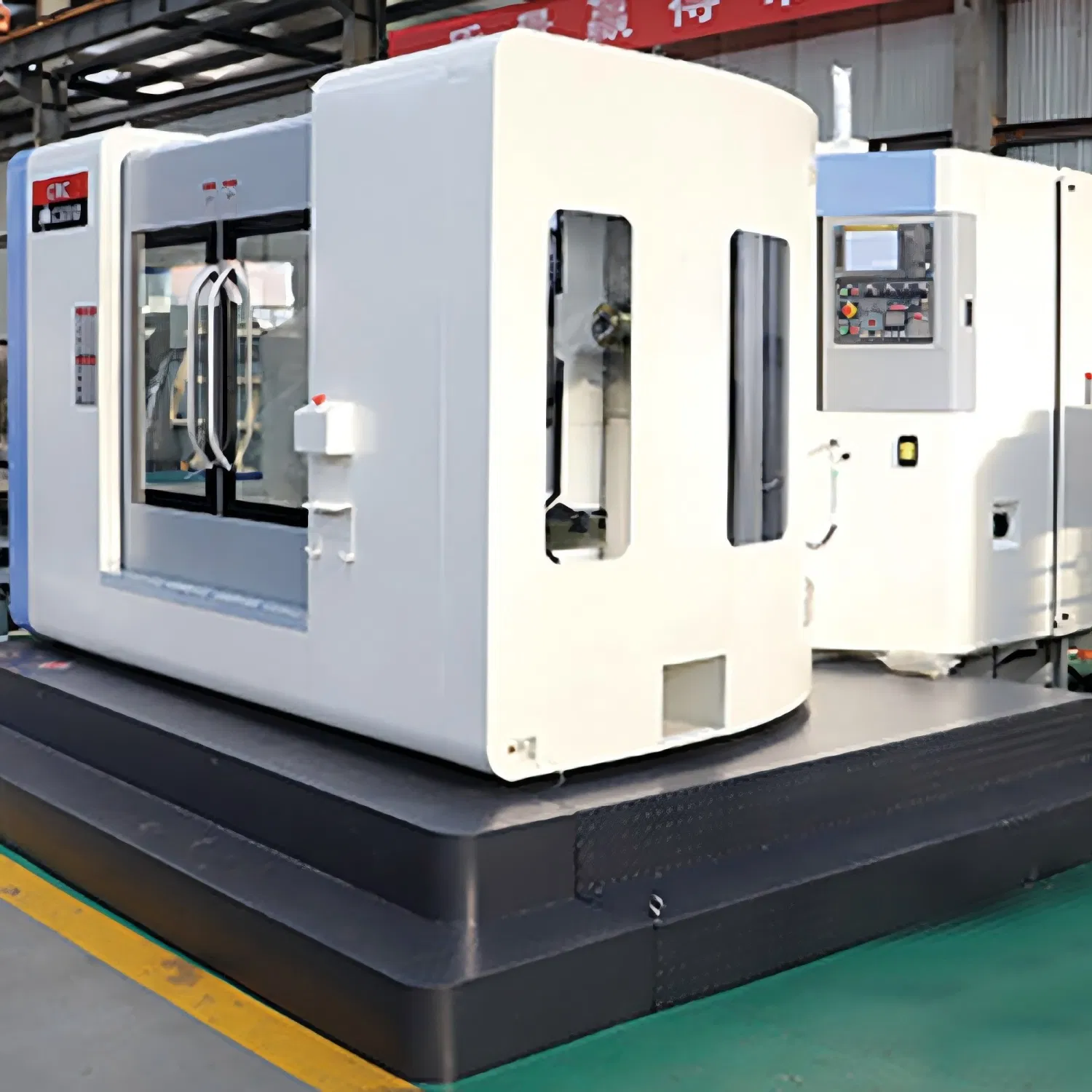

The Horizontal CNC Machining Center represents a leap in manufacturing precision. Featuring a 5-axis milling capability and a robust X-axis travel of up to 1050mm, this equipment is engineered for high-performance industrial applications. Equipped with advanced control systems (compatible with Fanuc, Siemens, Mitsubishi, or GSK), it ensures stable and accurate motor control for complex machining tasks.
| Project Item | Unit | HMC-63GA | HMC-80GA | HMC-500 |
|---|---|---|---|---|
| X-axis travel (Left/Right) | mm | 1050 | 1300 | 1100 |
| Z-axis travel (Front/Rear) | mm | 750 | 900 | 700 |
| Y-axis travel (Up/Down) | mm | 900 | 900 | 600 |
| Worktable Size | mm | 630x630 | 800x800 | 500x500 |
| Max Table Load | kg | 800 | 1000 | 800 |
| Rapid Feed Rate (X/Y/Z) | m/min | 36/20/24 | 36/20/24 | 32/28/32 |
| Spindle Taper | - | BT50 | BT50 | BT40 |
| Max Spindle Speed | r/min | 6000 | 6000 | 8000 |
| Tool Capacity | pcs | 30 | 30 | 24 |
| Positioning Accuracy | mm | 0.008 | 0.008 | 0.008 |
| Repeatability | mm | 0.005 | 0.005 | 0.005 |
| Machine Weight | kg | 18000 | 19000 | 7000 |

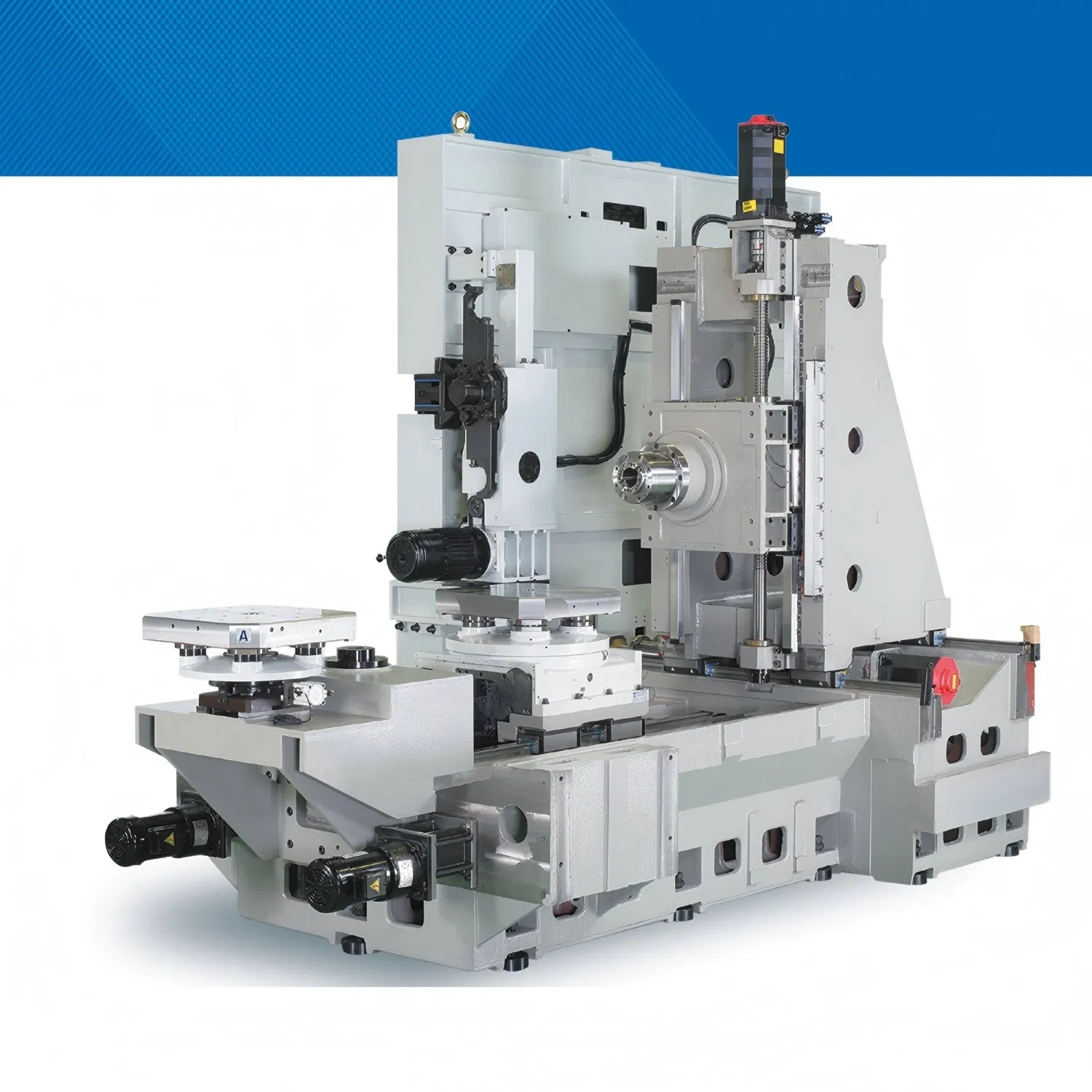

Our machine adopts the popular inverted "T" type layout, providing high structural rigidity. The entire stroke is designed to prevent subversive moments, ensuring absolute stability. The base casing is machined with high-precision five-sided gantry processing, allowing for milling, drilling, and tapping in one setup. This significantly reduces clamping errors and boosts machining accuracy.
