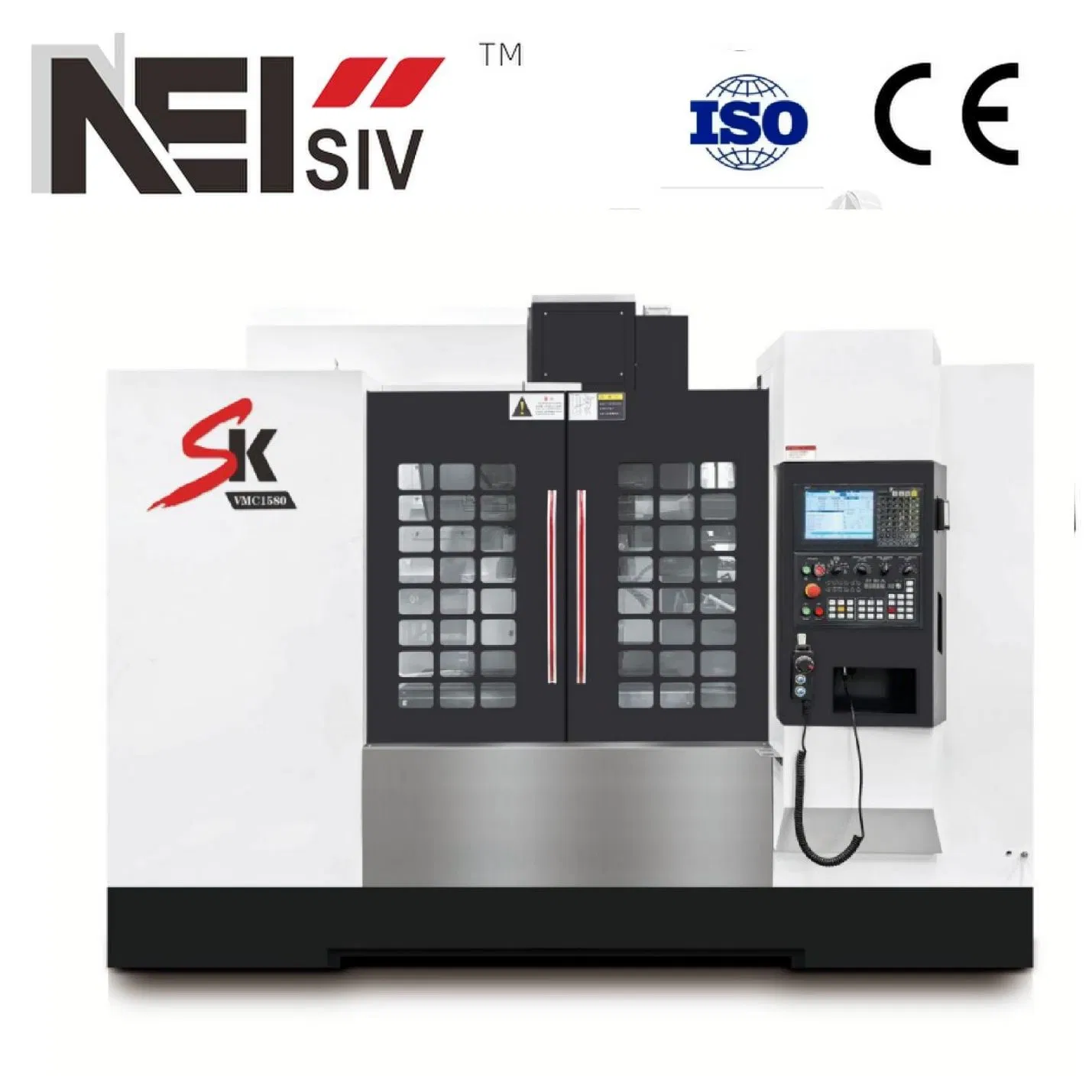

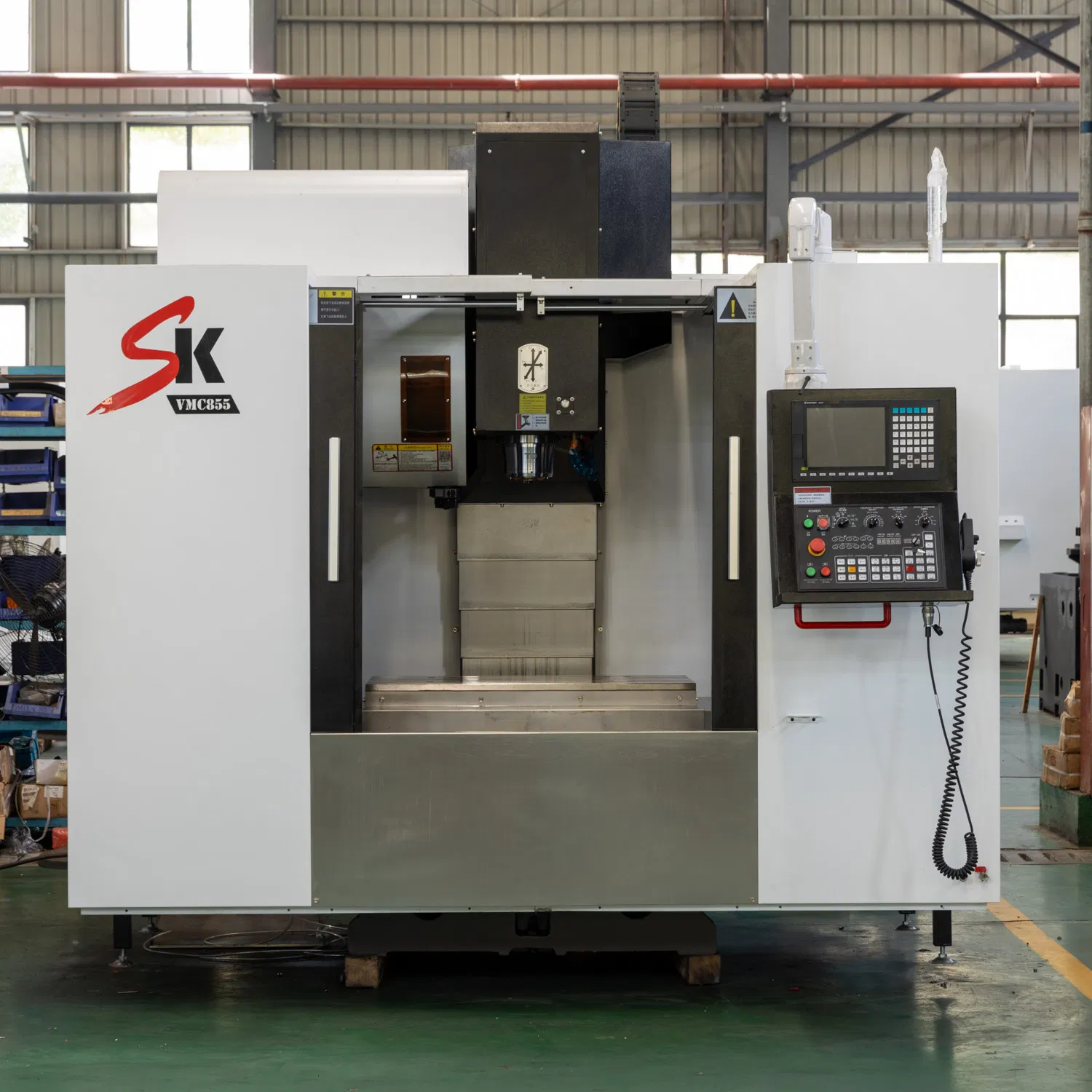

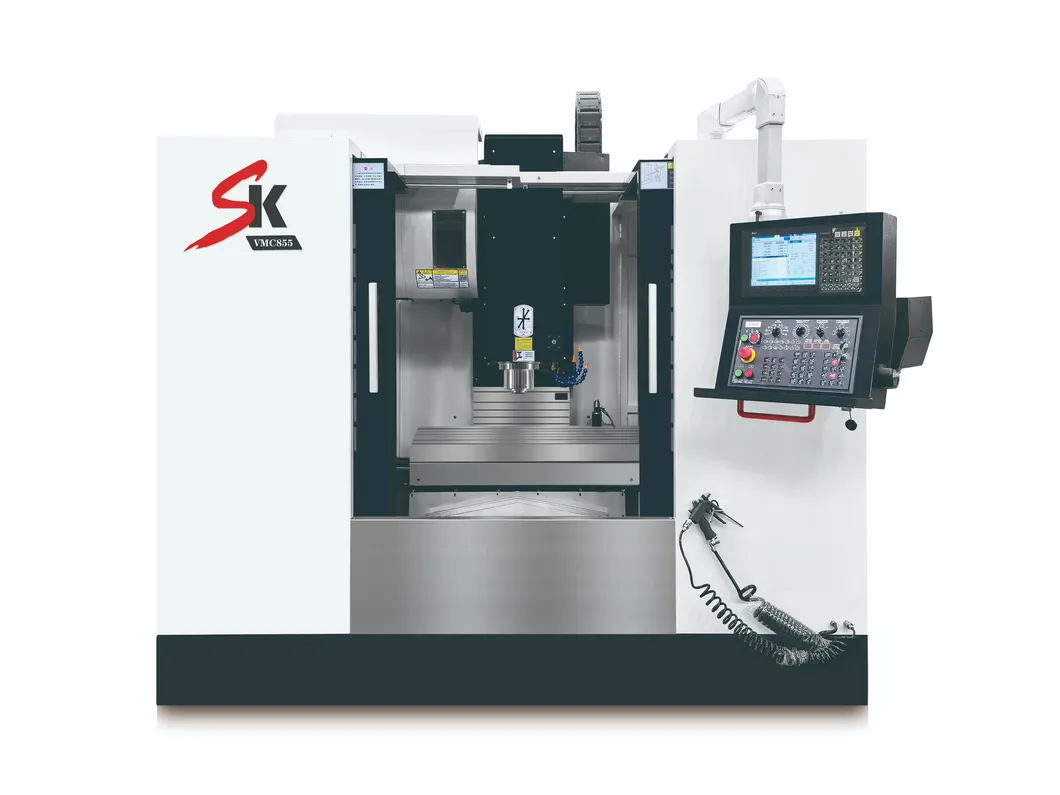

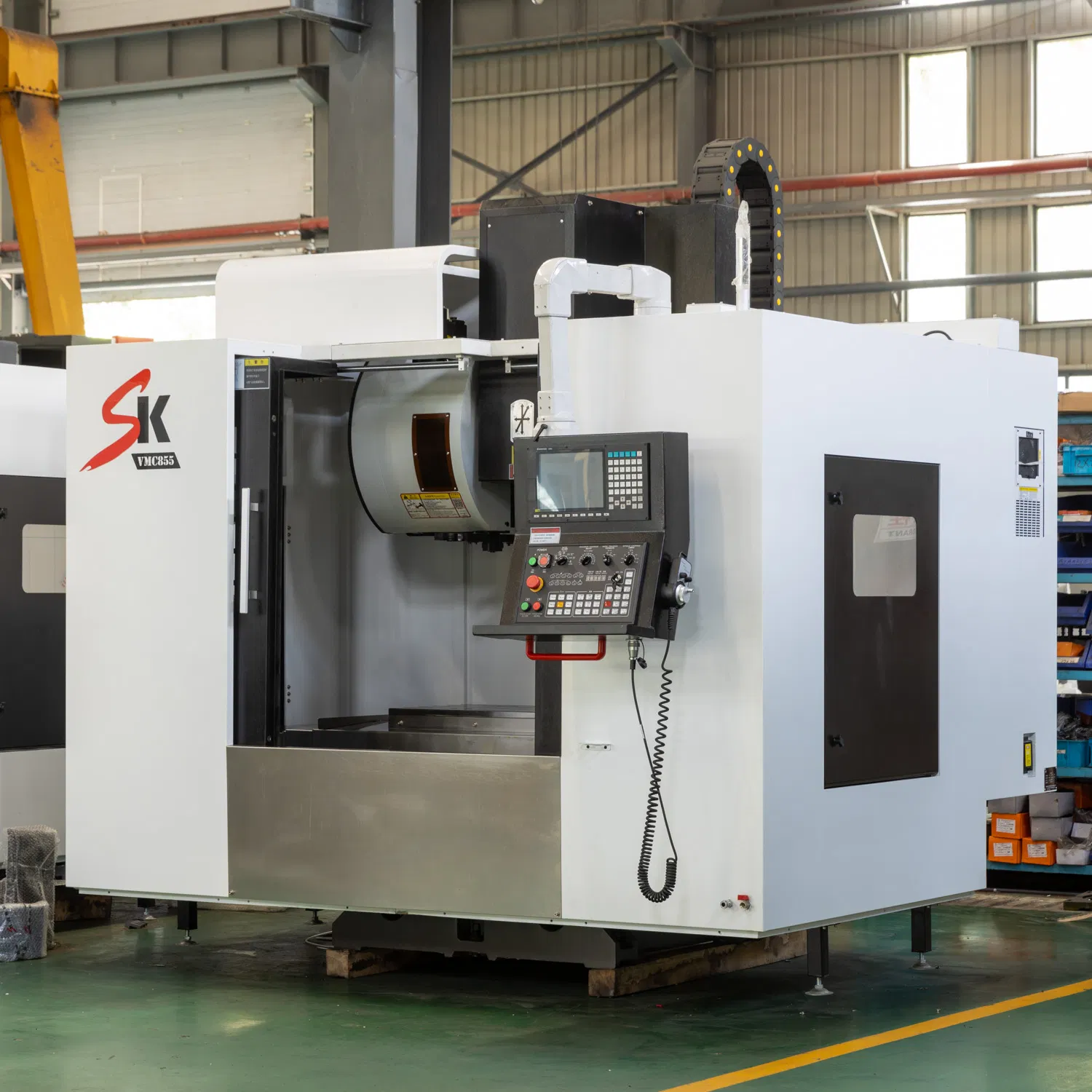

| Model NO. | VMC 850 | Application | Metal Processing |
| Numerical Control | CNC/MNC | Precision | 0.01~0.02(mm) |
| Control System | Fanuc, Simens, GSK, Hnc, Mitsubishi | Tool Capacity | 24 Station ATC |
| Spindle Taper | Bt40/Bt50 | Max Speed | 6000/8000/10000/12000 rpm |
| Certification | GS, CE, RoHS, ISO 9001 | Condition | New |
High-Torque Performance: The main shafts adopt wide-area high-torque spindle motors. Advantages include a wide constant power range, large output torque, low noise, and low failure rate.

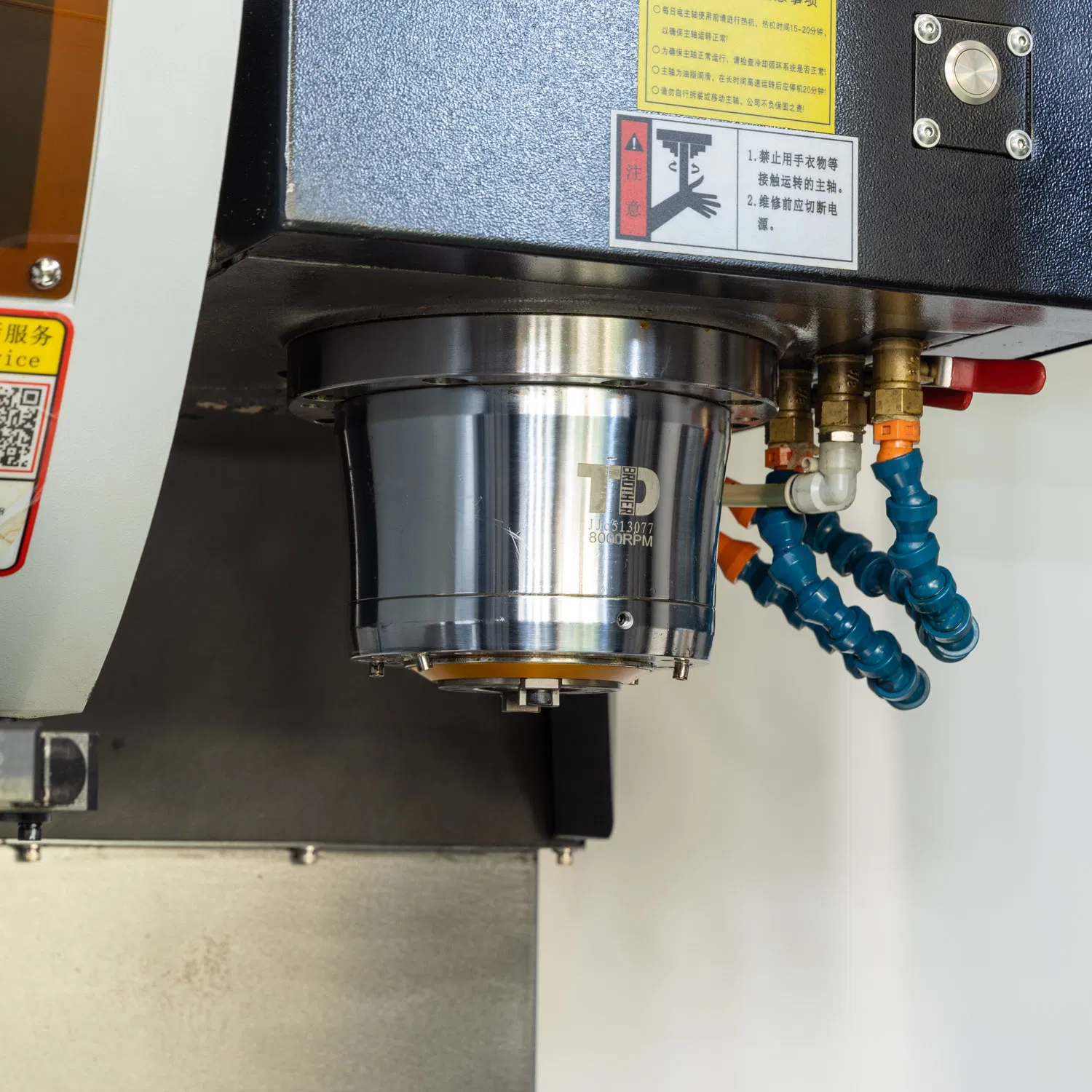

Rigid Structure: Features a high-rigidity integrated spindle unit. Output torque is twice that of ordinary models, making it ideal for heavy-duty cutting.

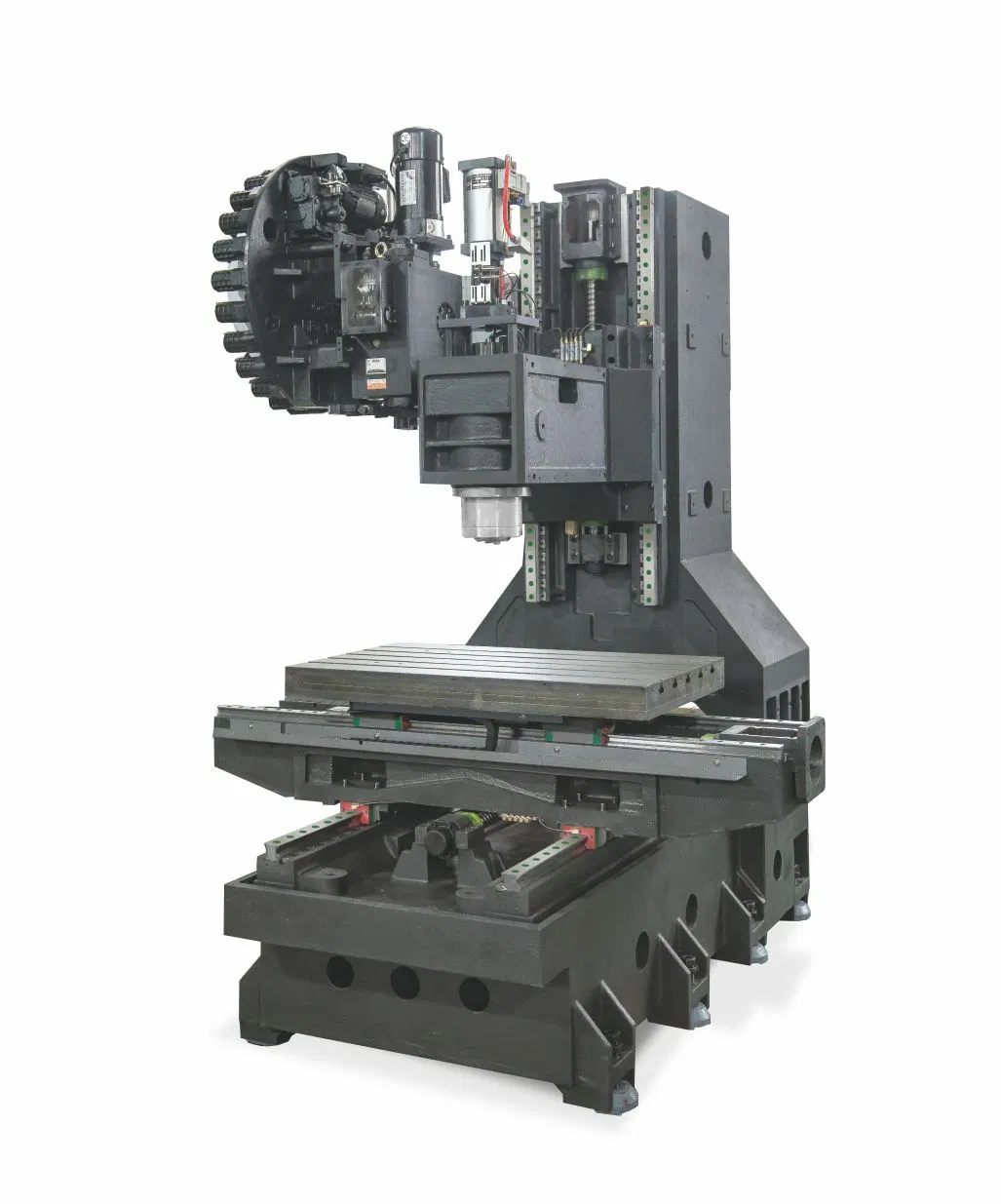

Modular Design: Strong closed box structure with X/Y axis heavy-duty roller linear guideways for superior stability.
The XYZ three-axis adopts heavy-duty roller linear guide rails for excellent dynamic characteristics, large load capacity, and high running precision without low-speed creeping.
Equipped with AC servo motors, high-precision ball screws, and specialized coupling. Pre-tightening treatment eliminates structure clearance.
Z-axis features a high-power servo motor with a brake and anti-fall function. Prevents damage to tools or workpieces during sudden power failure.
Precision Workbench
Ultrasonic quenching and grinding

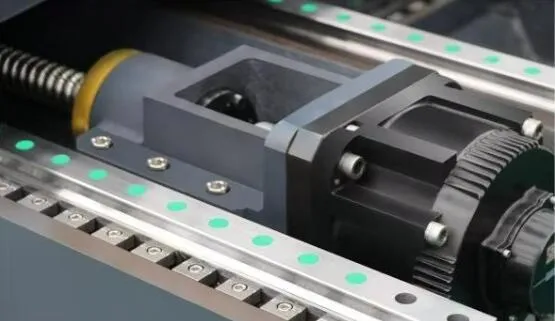

HIWIN/PMI Linear Rail
High load and strong stability
Disc Tool Magazine
Rapid and quiet tool changes

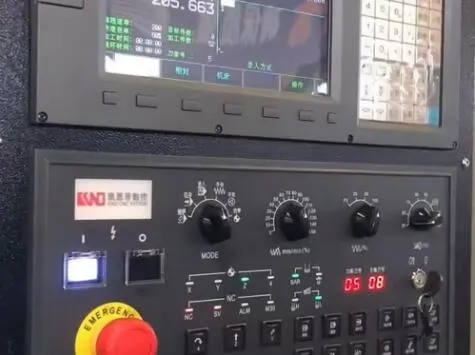

Advanced Systems
Mitsubishi, Fanuc, or Siemens options

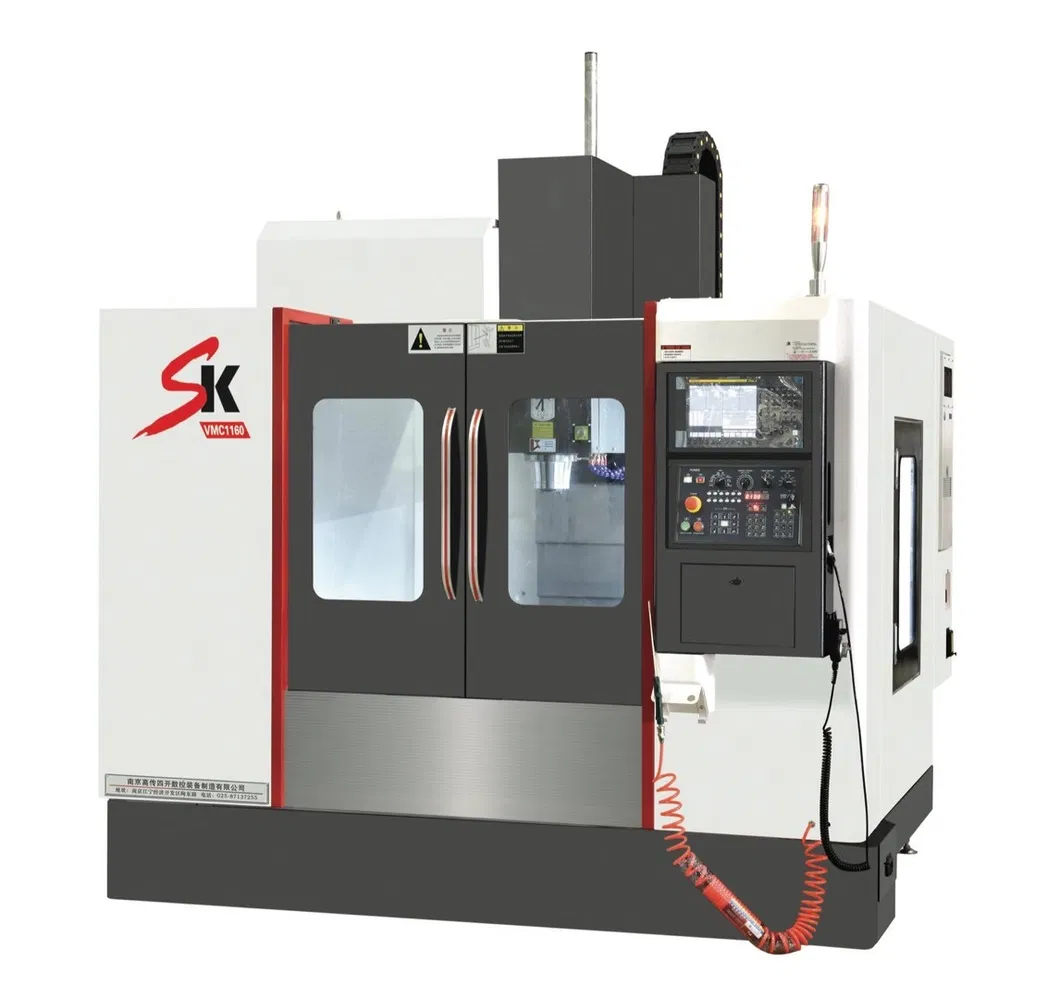

| Specification | Unit | VMC850 | VMC1160 | VMC1370 | VMC1580 |
|---|---|---|---|---|---|
| X/Y/Z Travel | mm | 800/500/500 | 1100/600/600 | 1300/700/700 | 1500/800/700 |
| Workbench Size | mm | 1000x500 | 1200x600 | 1400x700 | 1700x800 |
| Max Load | kg | 500 | 800 | 1100 | 1500 |
| Spindle Speed | rpm | 8000 | 8000 | 8000 | 6000 |
| Tool Change Time | sec | 2.5 | 2.5 | 2.5 | 4 |
| Positioning Accuracy | mm | ±0.006 | ±0.006 | ±0.006 | ±0.006 |
| 1. 24 Disc Tool Magazine | 10. Spindle Output Water |
| 2. HIWIN/PMI Ball Screws | 11. NSK Axis Bearings |
| 3. HIWIN/PMI Liner Guideway | 12. Chip Blowing Air Gun |
| 4. Cooling System | 13. Network/CF Card Function |
| 5. Full Protective Cover | 14. Auto Lubrication System |
| 6. Spindle Blowing Device | 15. Tri-color Warning Light |

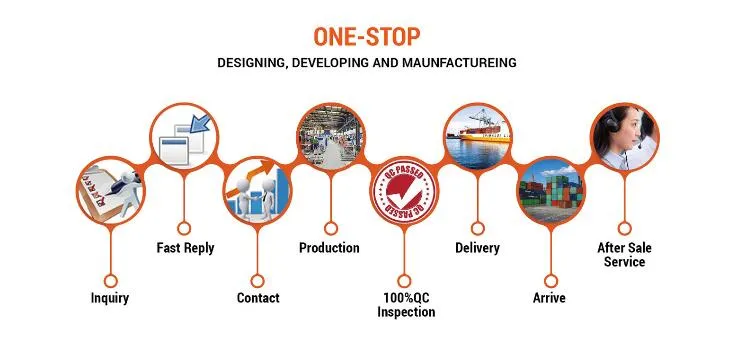

Training & Installation: We provide comprehensive training and on-site installation support to ensure efficient operation.
After-Sales: Starting from the BL date, we offer a one-year comprehensive service guarantee. Technical diagnosis and assistance are provided within 24 hours of feedback.

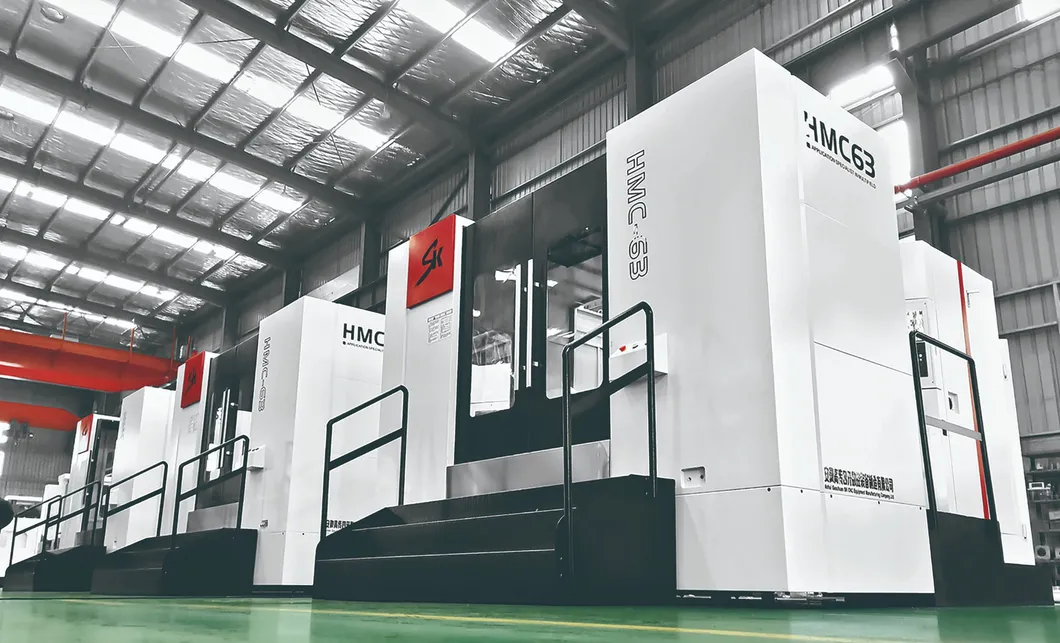

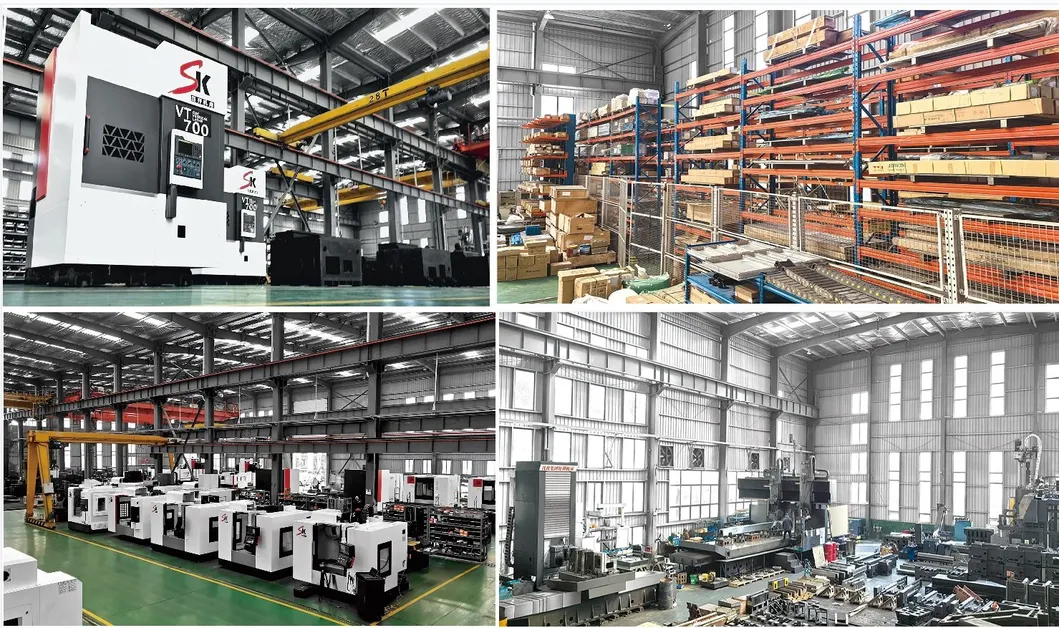

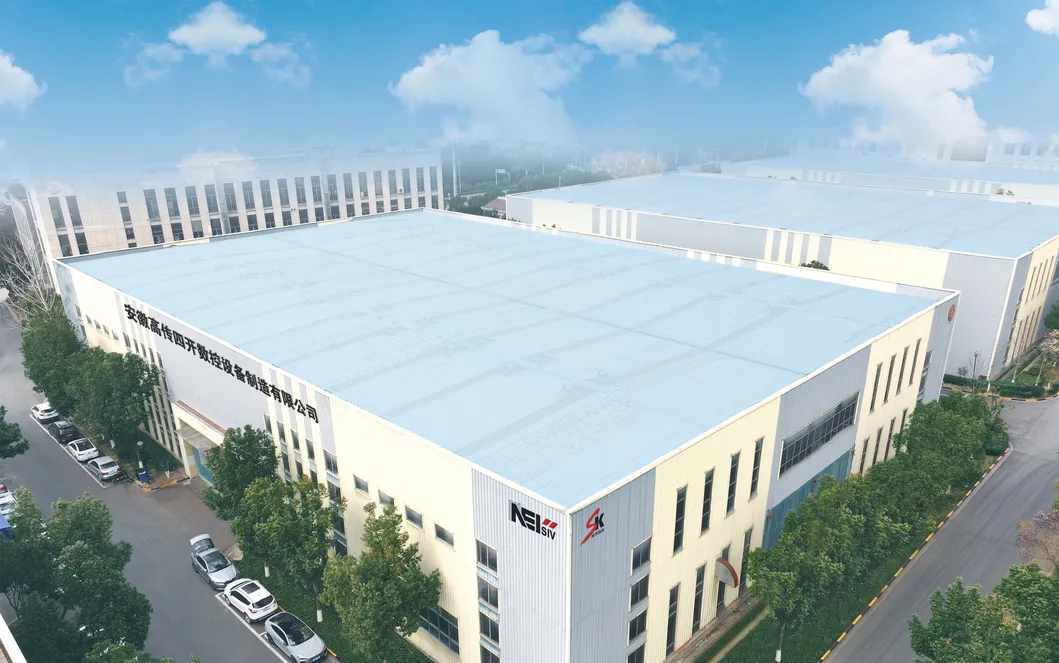

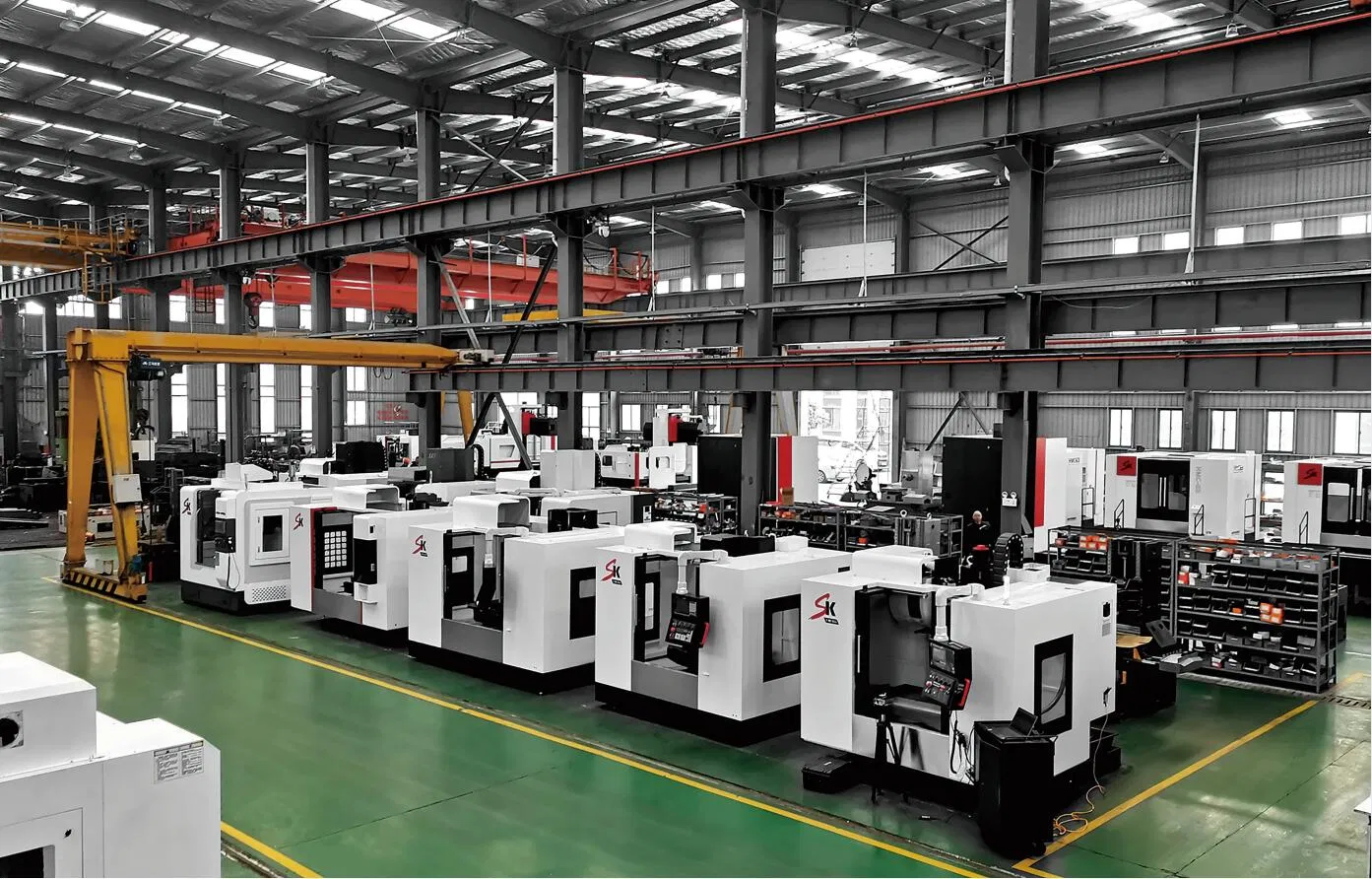

Explore our state-of-the-art manufacturing facility specializing in the innovative design and precision manufacturing of high-end CNC machine tools.
Our commitment to excellence is backed by prestigious certifications, ensuring our CNC centers adhere to global quality and safety standards.
