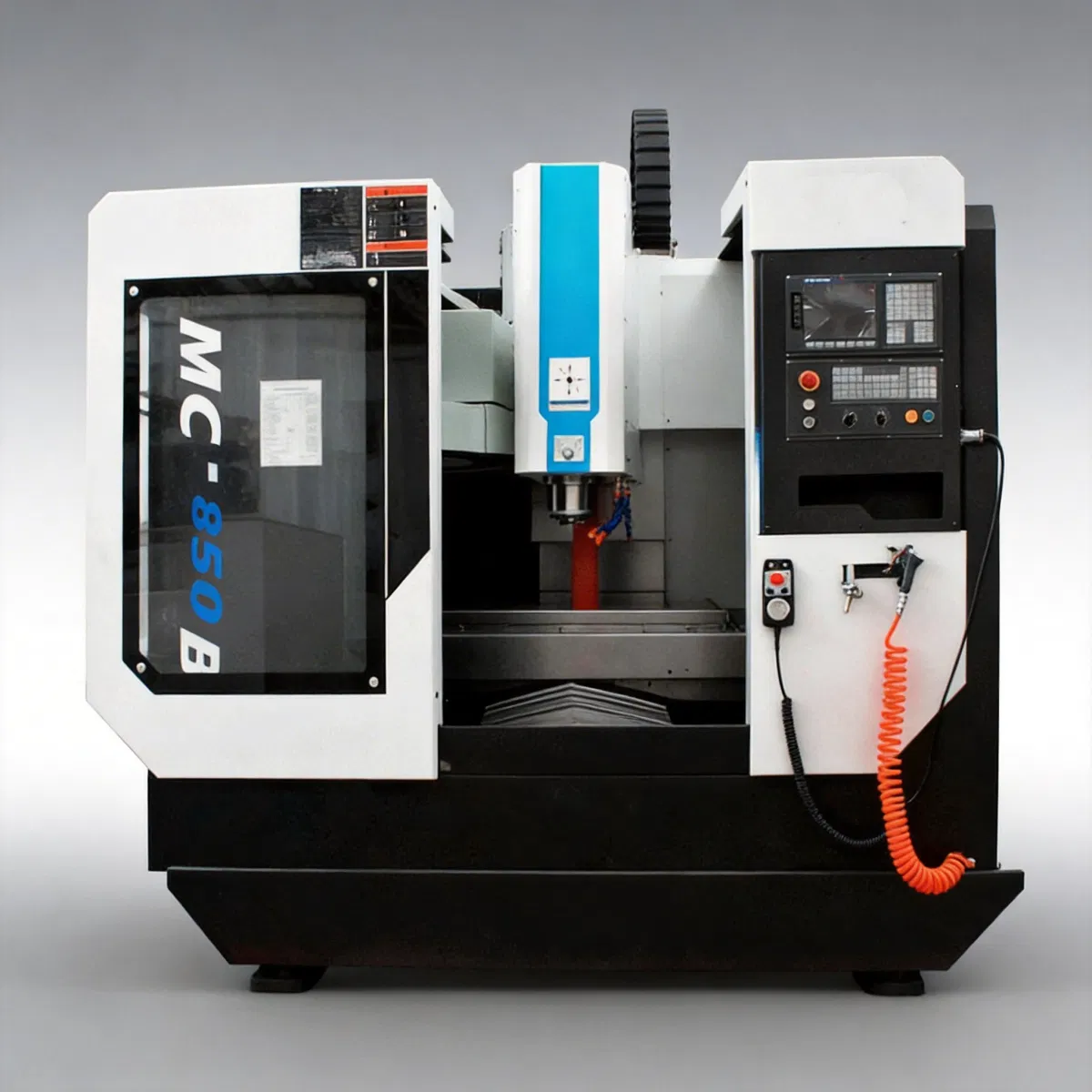

Vmc850b High Speed Vertical Machining Center with Box Guideways

i

Basic Information

Model NO.VMC850

ApplicationGeneral Machinery Processing

Numerical ControlCNC/MNC

Processing Precision0.01~0.02(mm)

Spindle Speed60-8000r.p.m

Table Size1000X850 mm

Control SystemGSK

Spindle TaperBT40

Max. Table Load500kg

Weight4700 kg

CertificationCE

📦

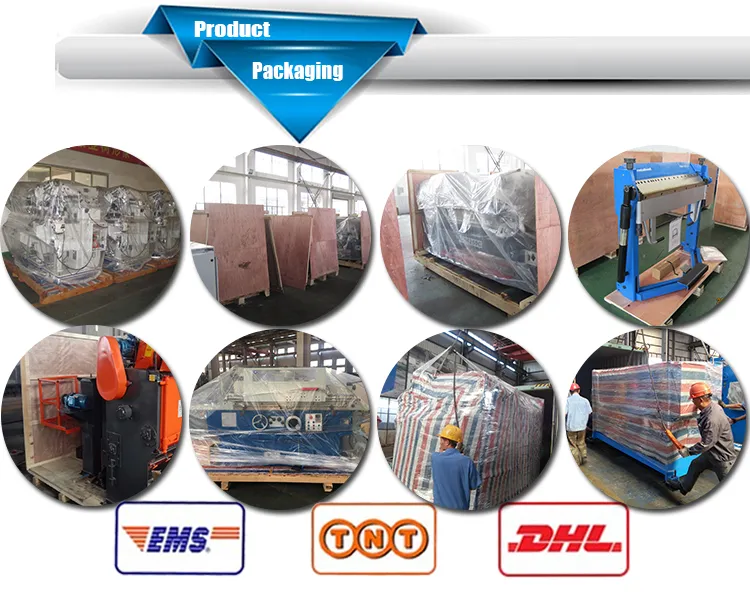

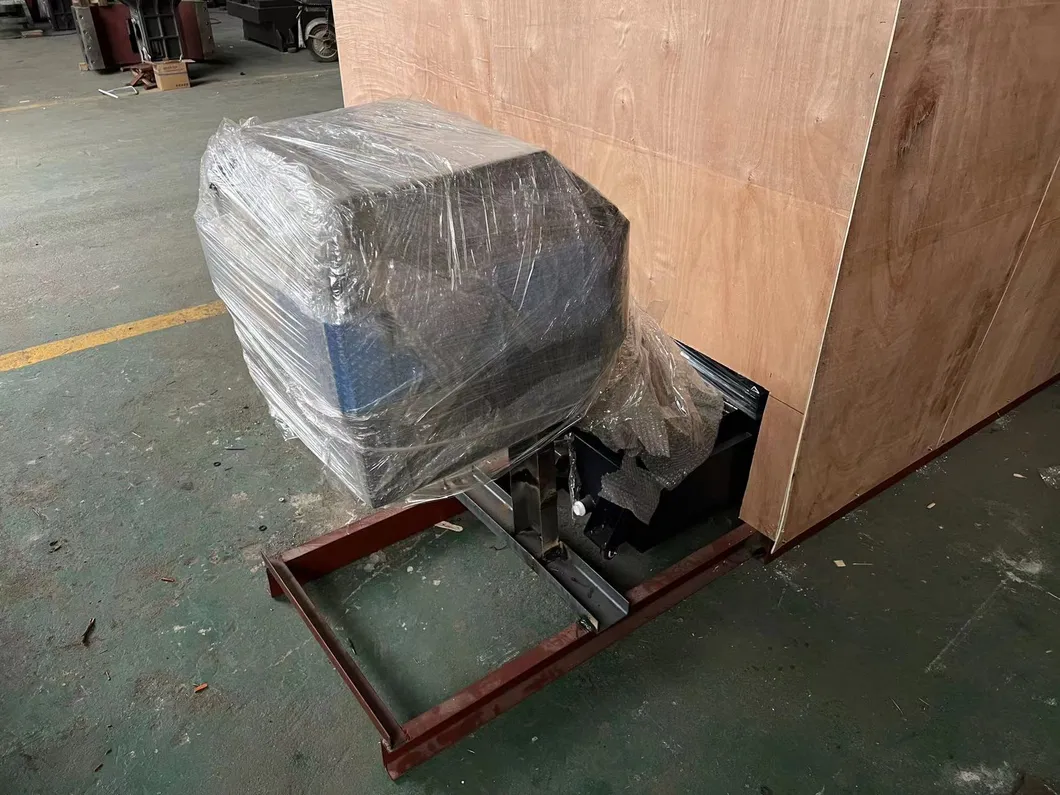

Packaging & Delivery

Package Size250.00cm * 220.00cm * 230.00cm

Gross Weight4500.000kg

Lead Time60 days (1 Set), Negotiable (> 1 Sets)

⚙

Product Description

CNC Vertical Type 3-Axis Universal Milling Machine VMC850

Equipped with high-precision linear guideways on X, Y, Z three axes.
High-performance 8000rpm spindle (set to 6000rpm upon delivery for stability).
Standard round disc type tool magazine with 24-tool capacity.
Robust construction suitable for high-end metal-cutting applications.

📋

Technical Specifications

Parameter	Unit	VMC850 Details
Table Area	mm	1000 × 500
T-slot	mm	5-18-100
Max. Load	kg	500
Travel (X, Y, Z)	mm	850 × 500 × 500
Spindle Nose to Table	mm	150 ~ 650
Rapid Feed Speed (X/Y/Z)	m/min	30 / 30 / 24
Feed Speed (X/Y/Z)	mm/min	10 ~ 10000
Spindle Taper	-	BT40
Spindle Power	kW	7.5 (AC Servo)
Tool Magazine Capacity	qty	24
Positioning Accuracy	mm	±0.015
Re-positioning Accuracy	mm	0.0075

📷

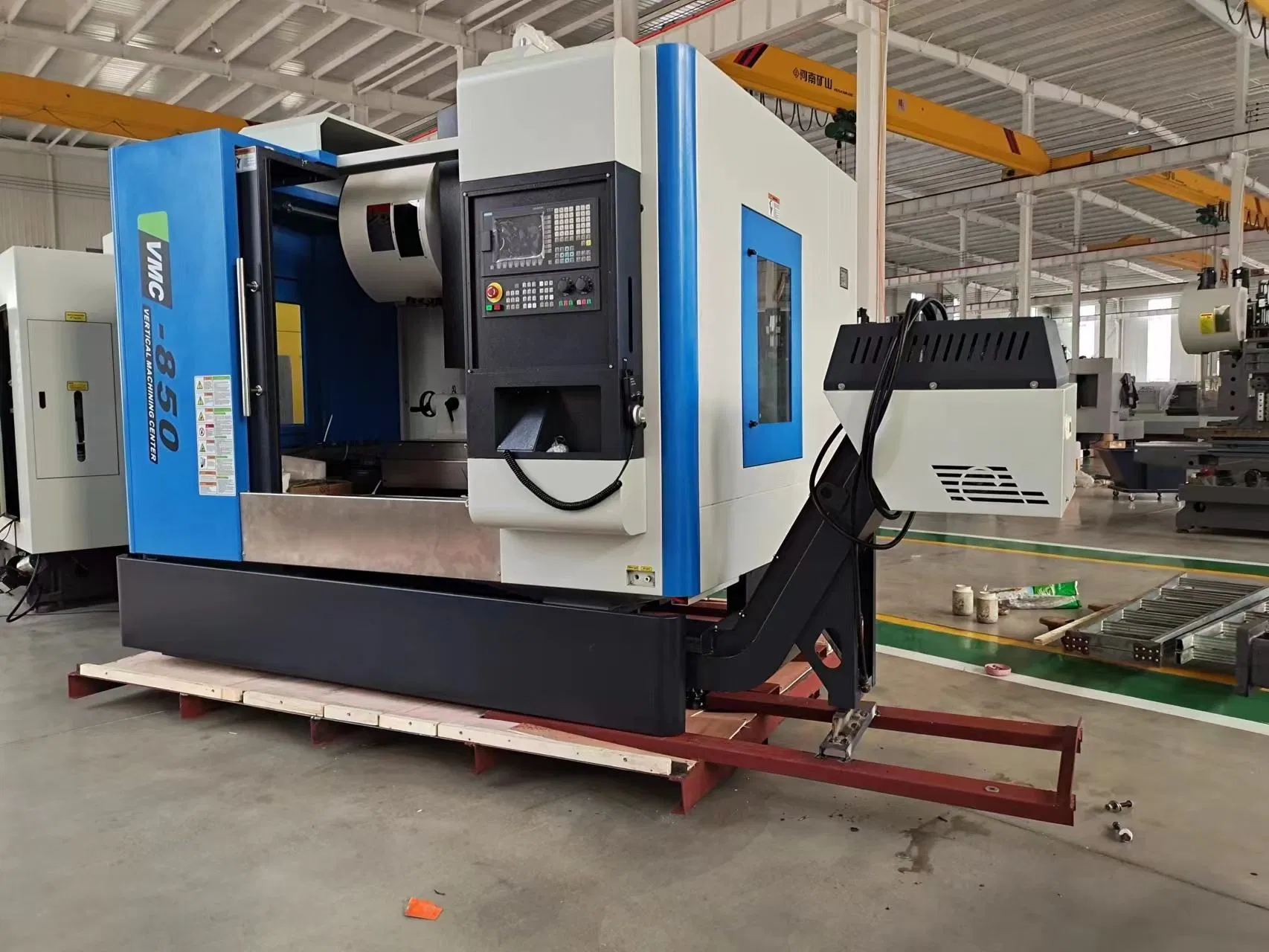

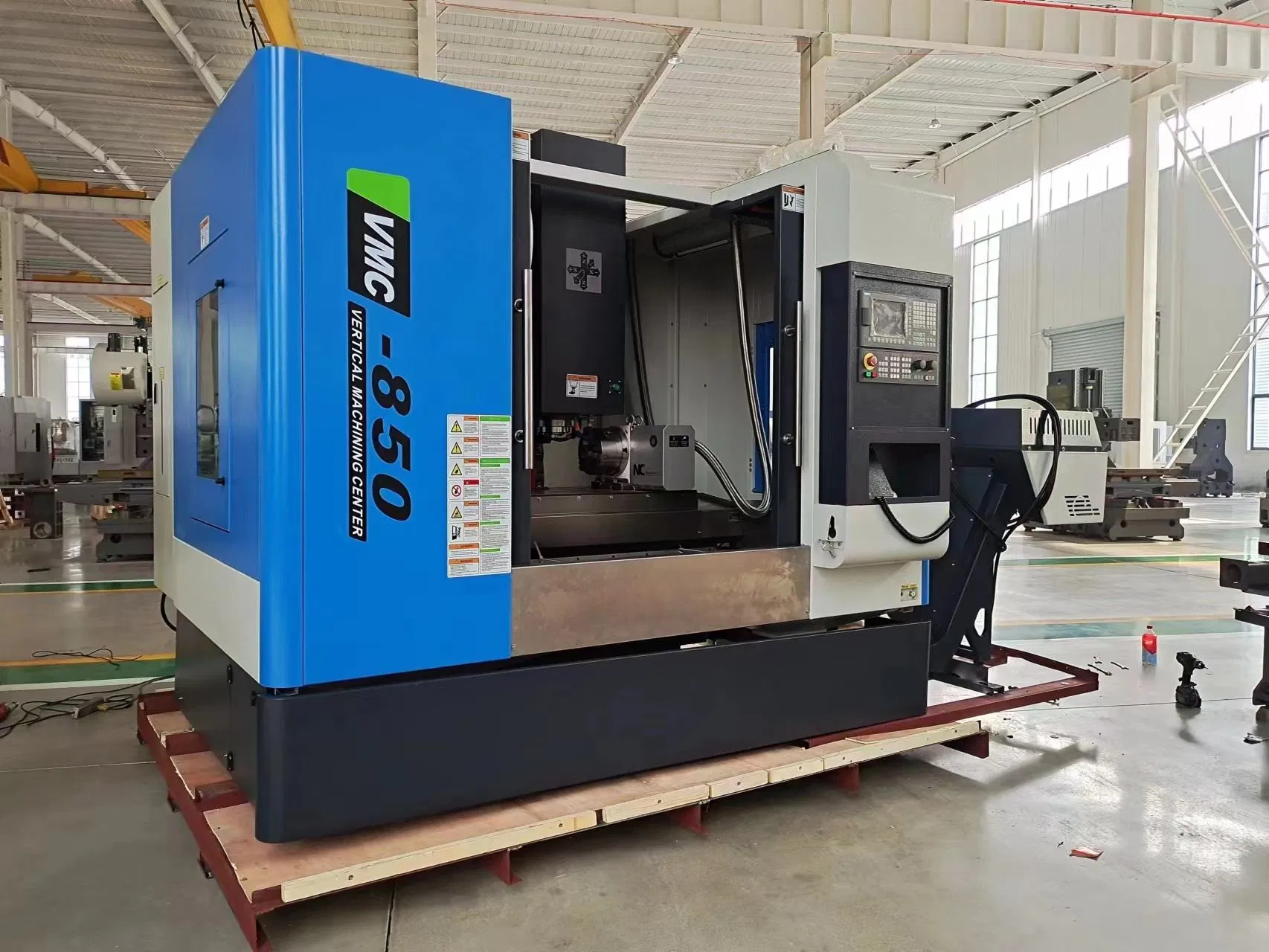

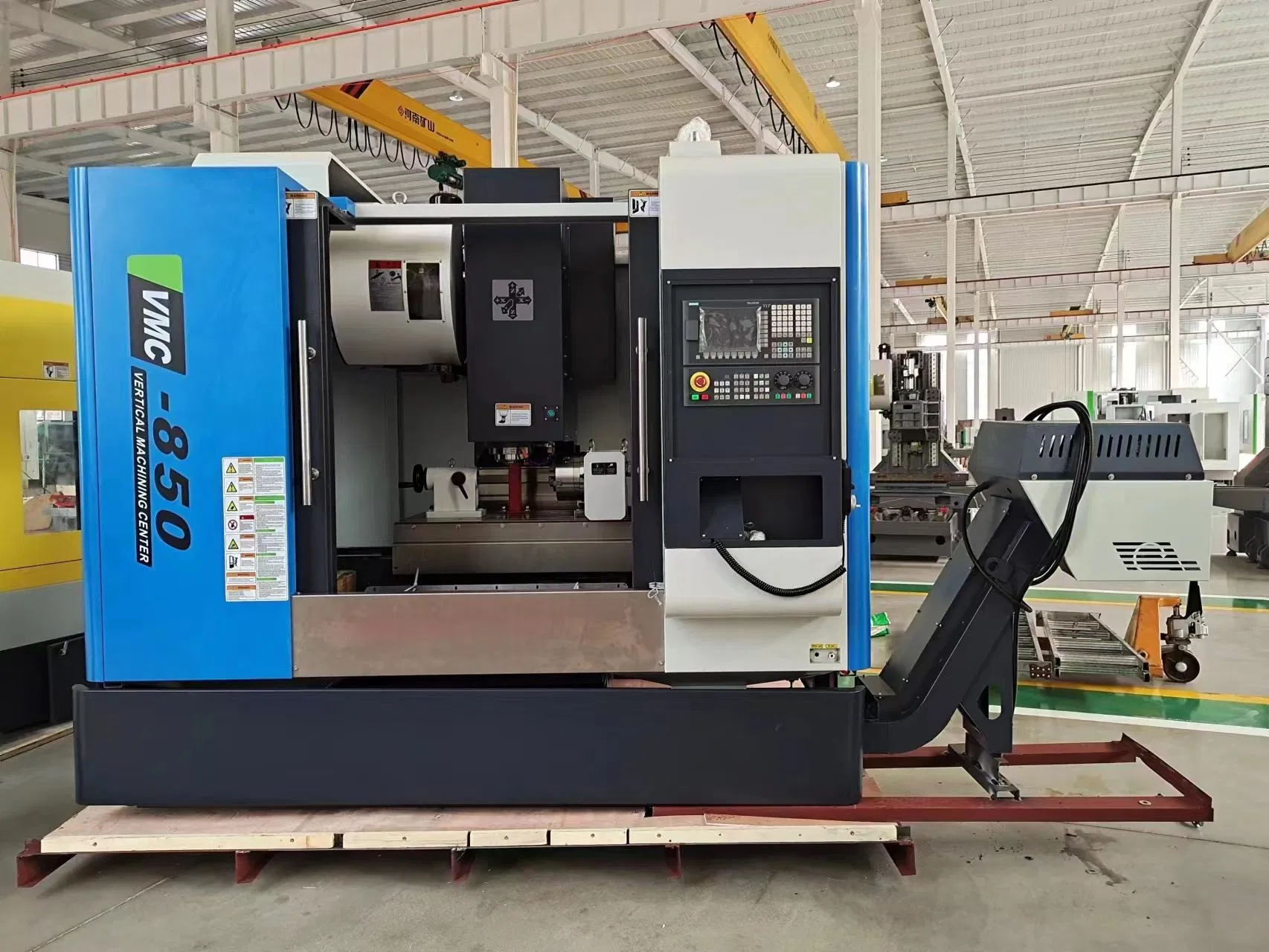

Product Gallery

★

Manufacturing & Quality Control

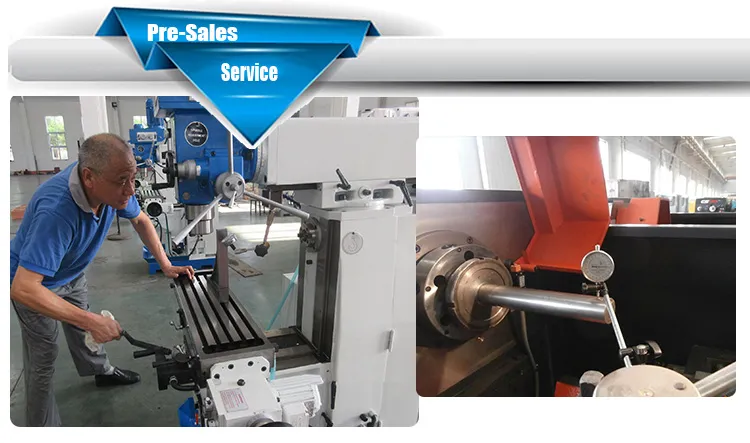

Strict inspection of each machine before leaving the factory.
One-year guarantee under normal working conditions.
Training on machine installation and operation.
Professional technical support available within 24 hours.

➕

Related Machine Series

?

Frequently Asked Questions

1. What is the standard tool capacity for the VMC850? The VMC850 standardly comes with a round disc type tool magazine featuring a 24-tool capacity. Options for 10, 16, or 20 tools are also available based on requirements.

2. What type of control system does the machine use? The machine is equipped with the GSK CNC control system, providing stable and precise closed-loop control for complex machining tasks.

3. What are the travel ranges for the X, Y, and Z axes? The travel range for the X-axis is 850mm, while both the Y and Z axes provide 500mm of travel.

4. Does the machine come with any quality certifications? Yes, all our vertical machining centers are CE certified, ensuring they meet international safety and quality standards.

5. What is the typical lead time for an order? The typical lead time for a single set is 60 days. For larger orders, the delivery schedule can be negotiated to meet project timelines.

6. What kind of after-sales support is provided? We offer a one-year guarantee, technical training for installation and operation, and 24-hour technical support via digital communication methods.
