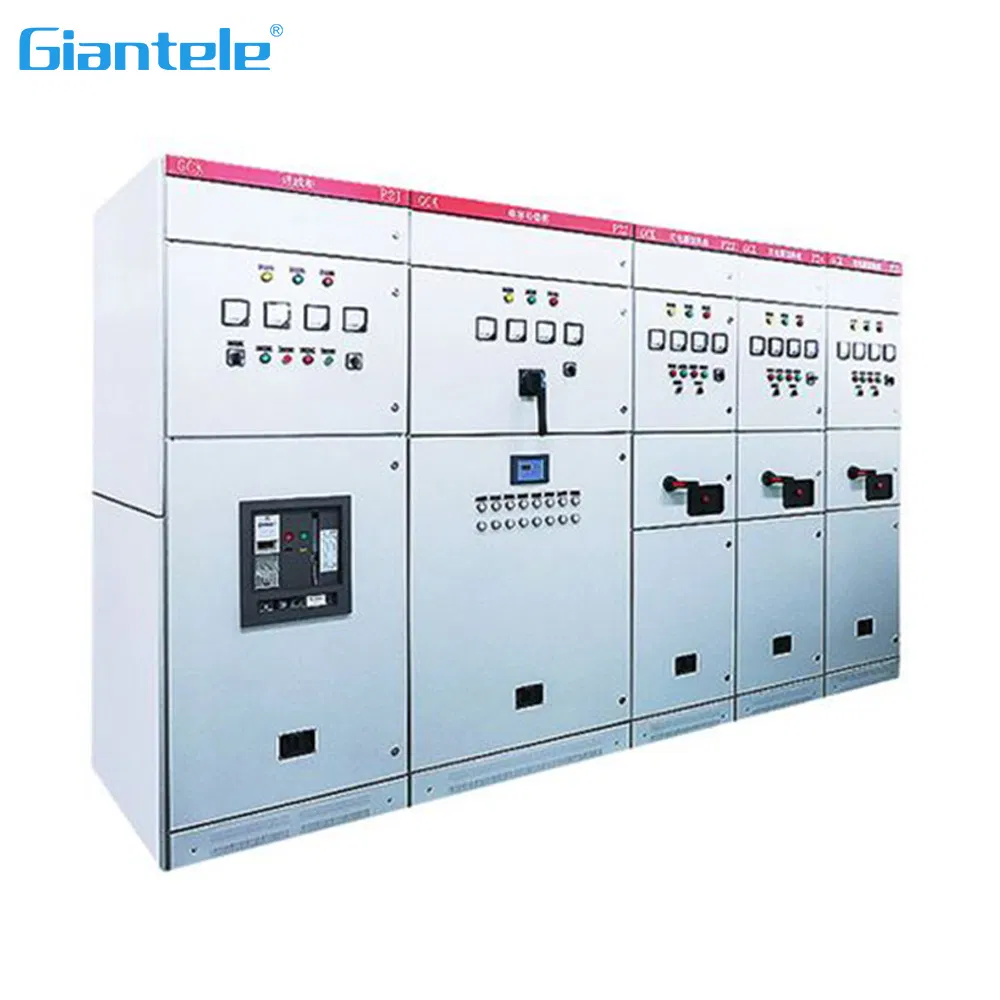

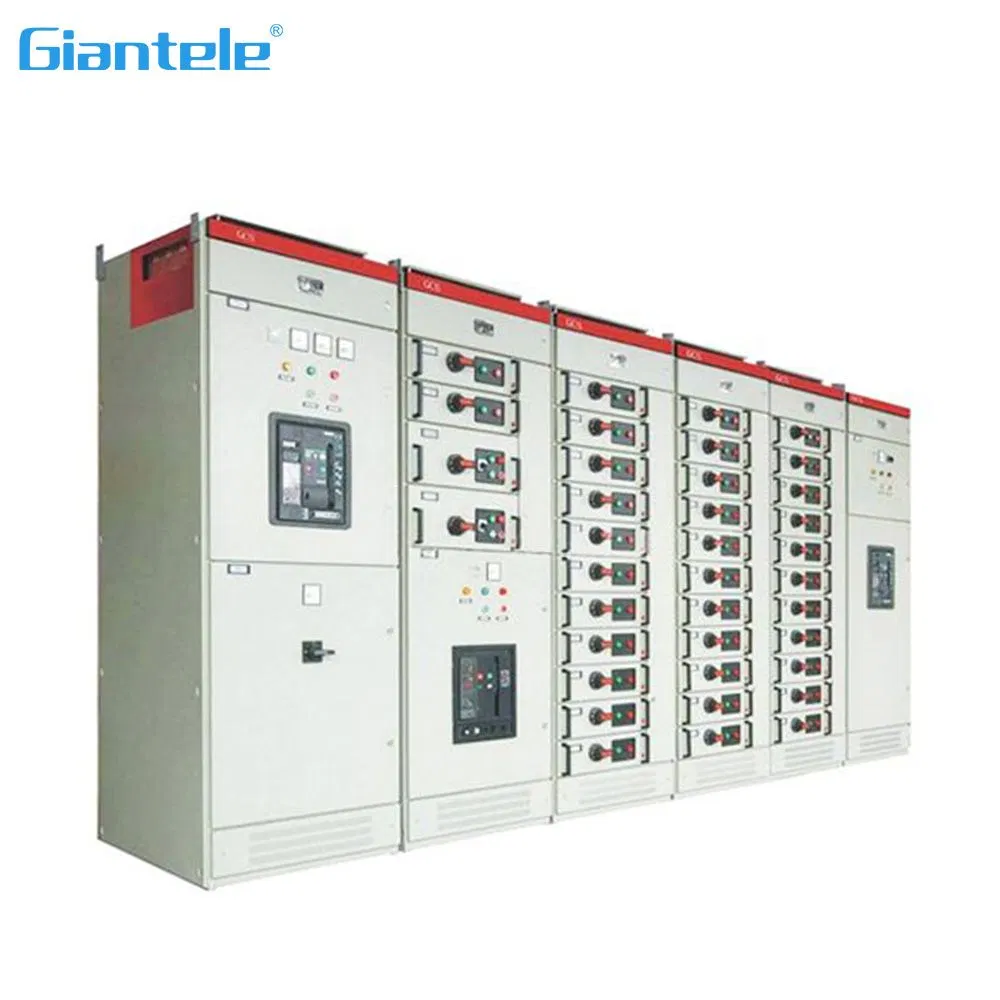

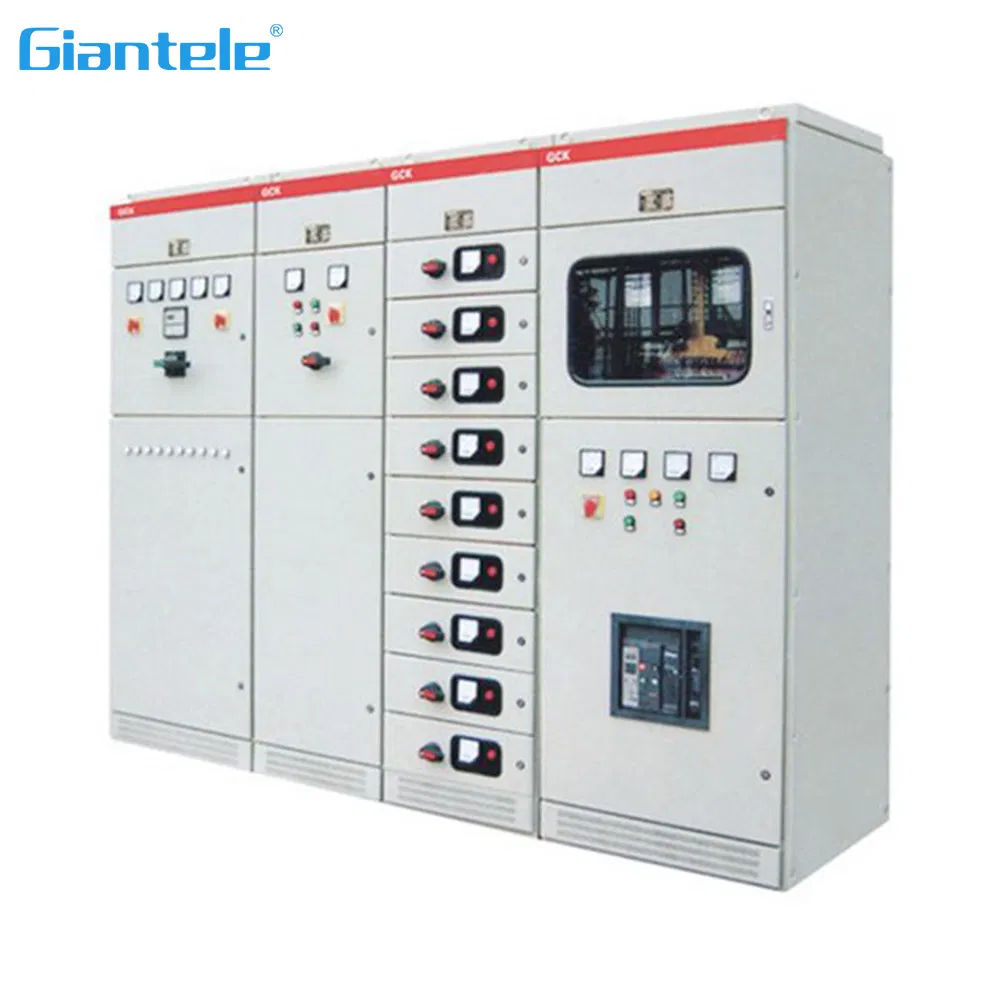

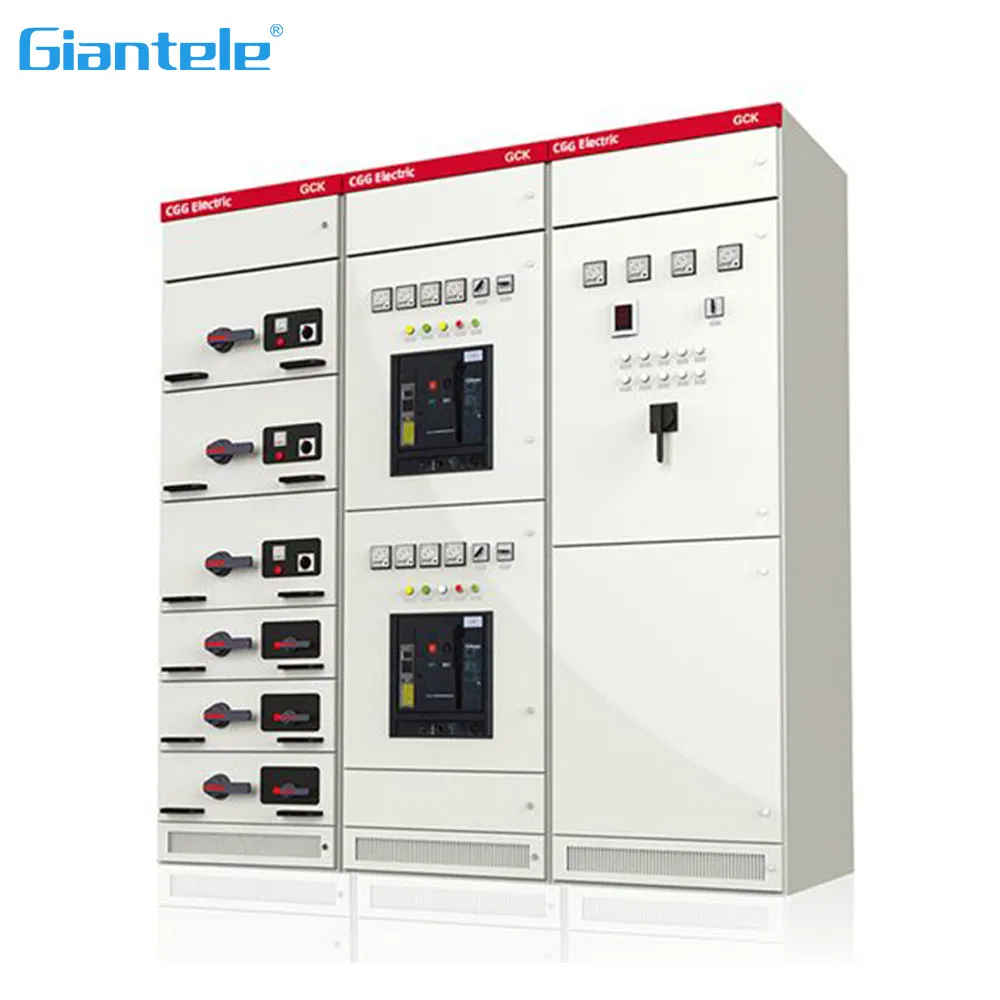

GCS low-voltage withdrawable type complete switchgear is designed to meet high technical performance indicators and adapt to power market development needs. It serves as an advanced replacement for existing low voltage draw-out switchgear products.

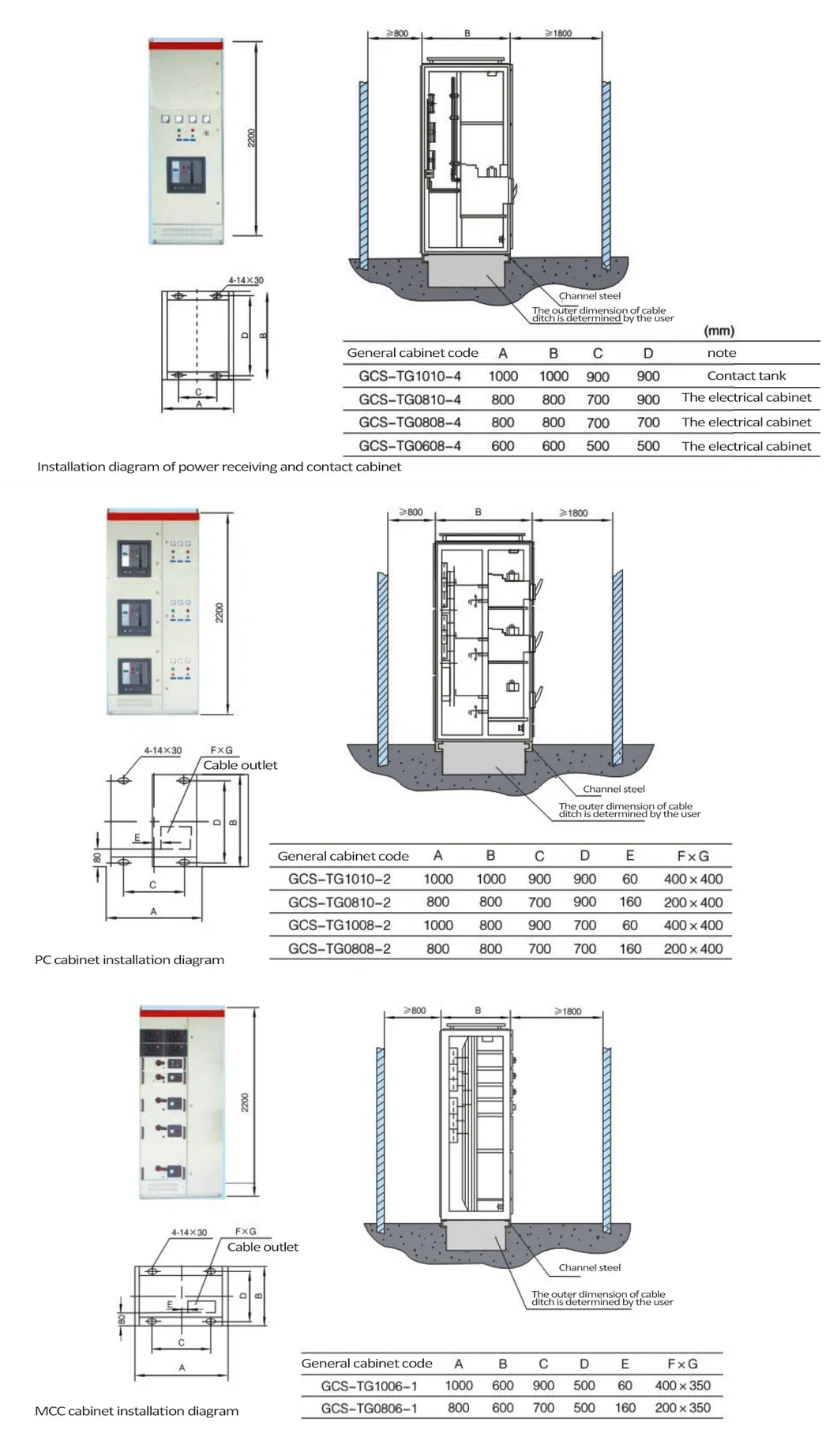

| The main structural frames adopt 8MF section steel; structural frames can be assembled or welded with modular holes E=20mm. |
| Each function compartment is fully separated: function unit compartment, bus compartment, and cable compartment. |
| Optimized horizontal bus arrangement allows for both upper and lower outgoing cables in the cable compartment. |
| Parameter Item | Value | |
|---|---|---|
| Rated voltage of main circuit (V) | AC 380(400), (660) | |
| Rated voltage of auxiliary circuit (V) | AC 220, 380(400); DC 110, 220 | |
| Rated frequency (Hz) | 50(60) | |
| Rated insulation voltage (V) | 660(1000) | |
| Rated current (A) | Horizontal bus | ≤4000 |
| Vertical busbar (MCC) | 1000 | |
| Rated short-time tolerable current (kA/1s) | 50, 80 | |
| Level of protection | IP30, IP40 | |
