| Model NO. | KYN28A | Voltage Level | High Voltage |
|---|---|---|---|
| Installation | Removable | Structure | Floorstanding |
| Current | AC | Rated Working Voltage | 380V/660V |
| Max Operating Current | 5000A | Rated Insulation Voltage | 660V(1000)V |
| Rated Frequency | 50Hz | Specification | Customizable |

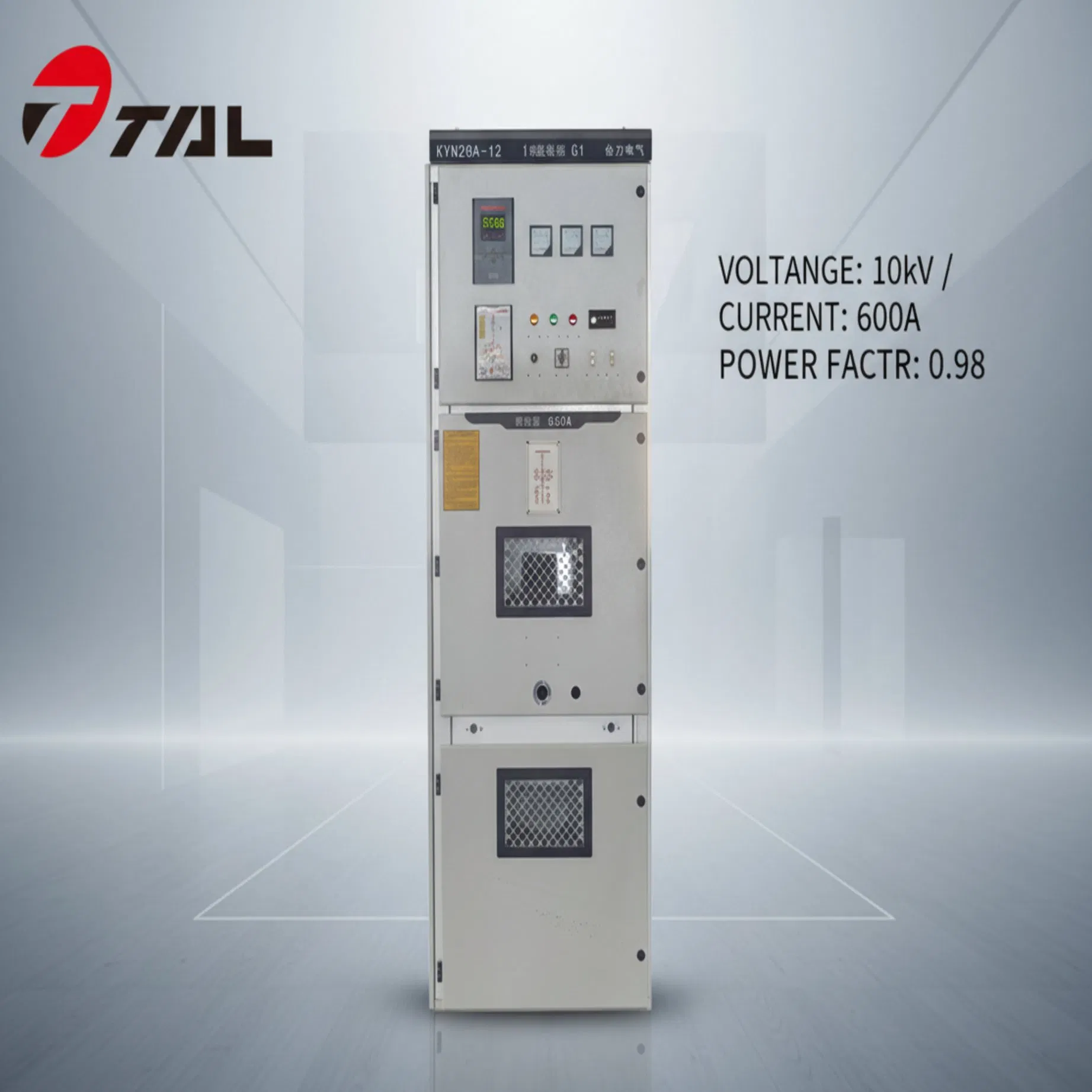

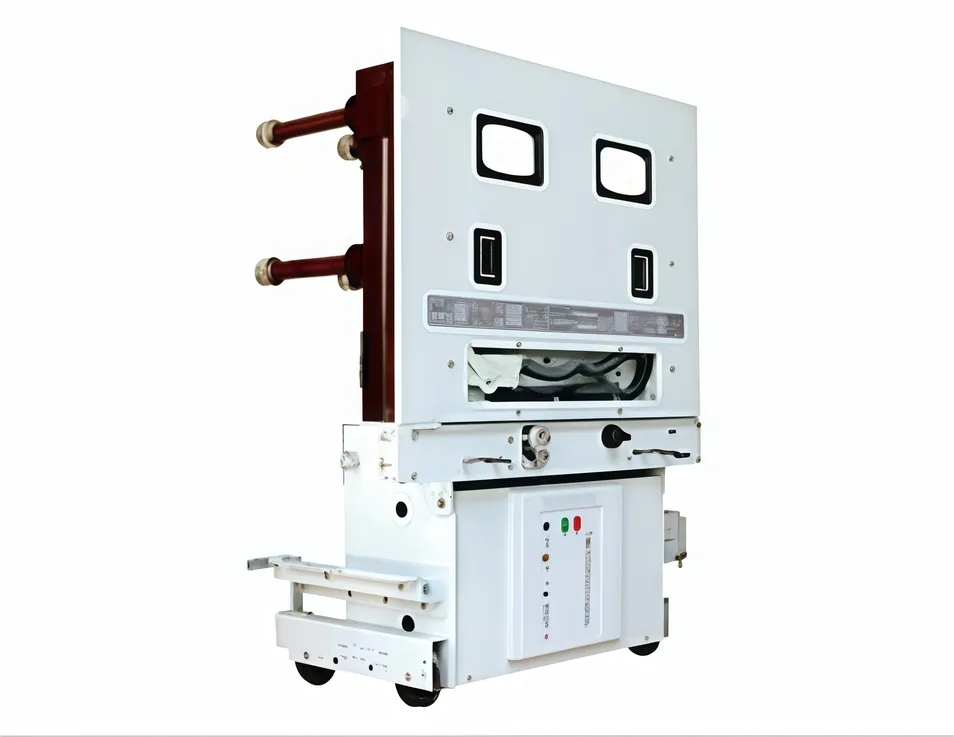

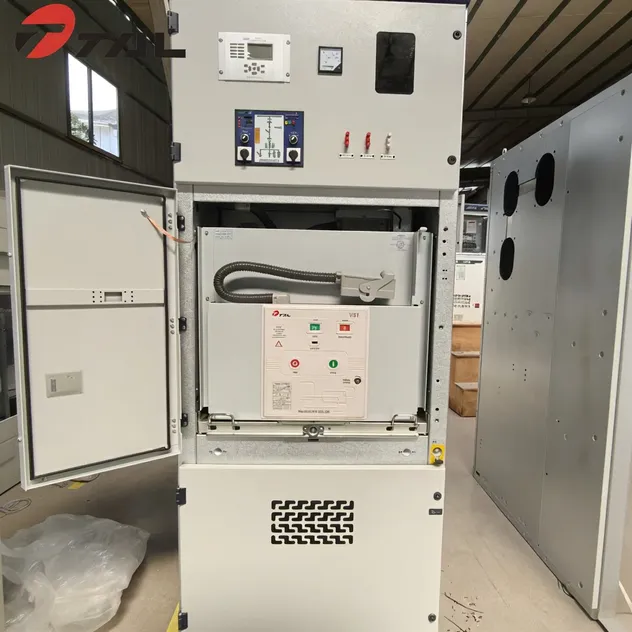

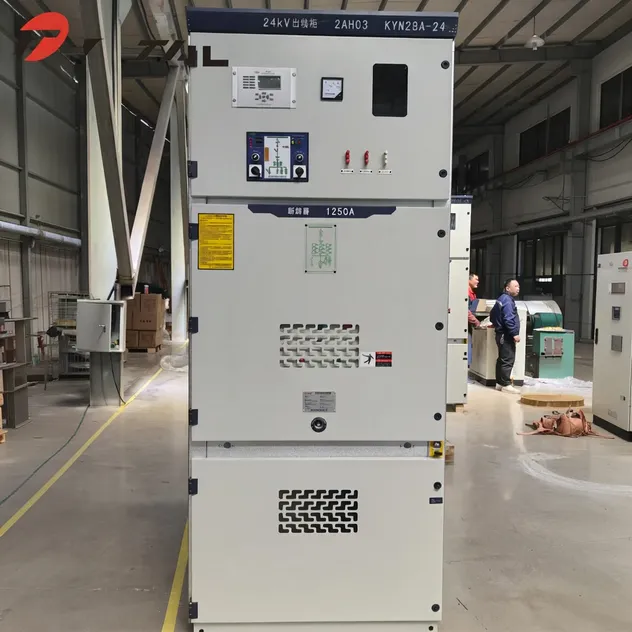

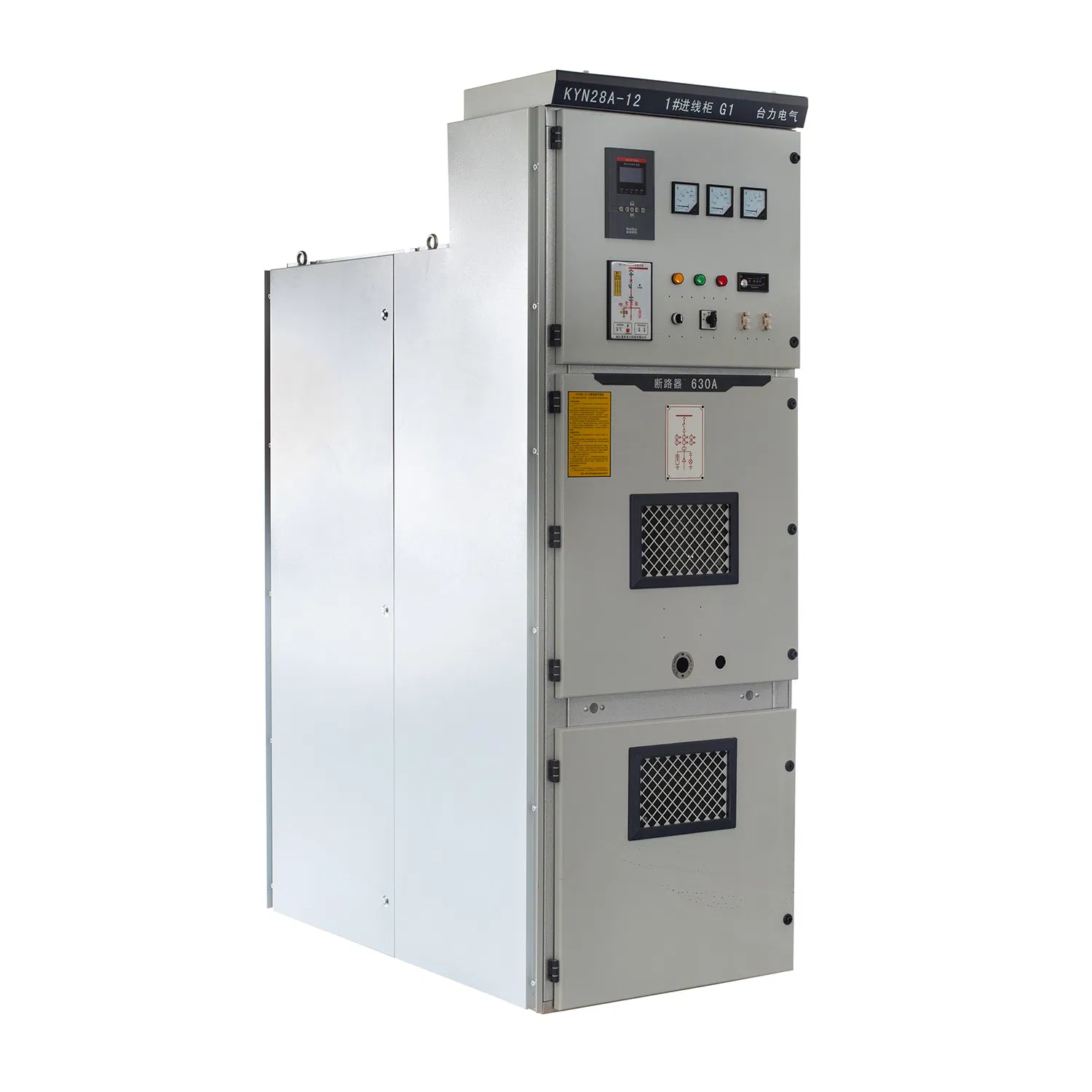

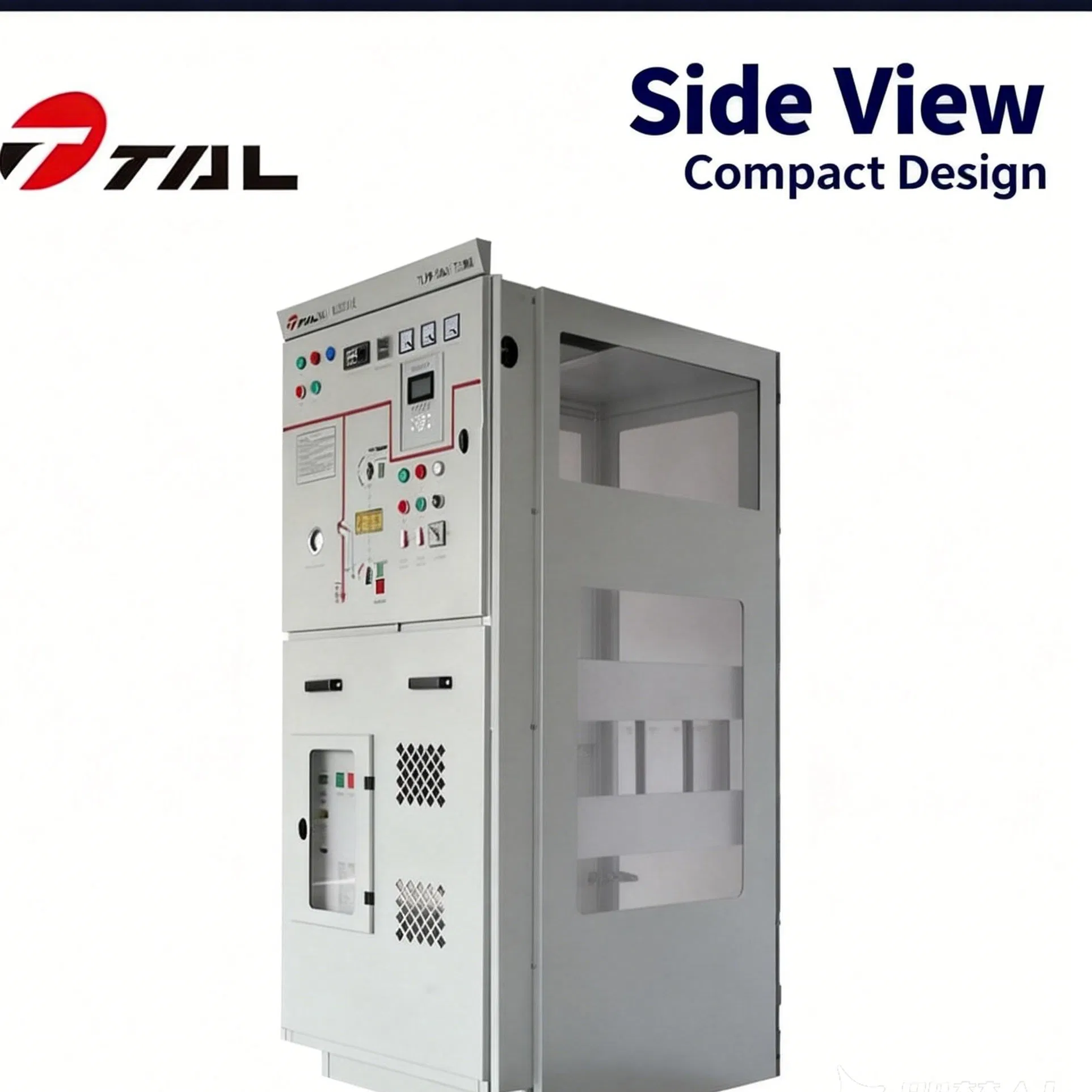

The KYN series air-insulated metal-enclosed withdrawable switchgear is a modular power distribution unit designed for medium/high-voltage electrical systems with withdrawable panels. The unit can be fitted with vacuum circuit breakers, isolation trucks, PT trucks, and fuse trucks. Its core features include a fully enclosed metal-clad structure and removable functional modules.

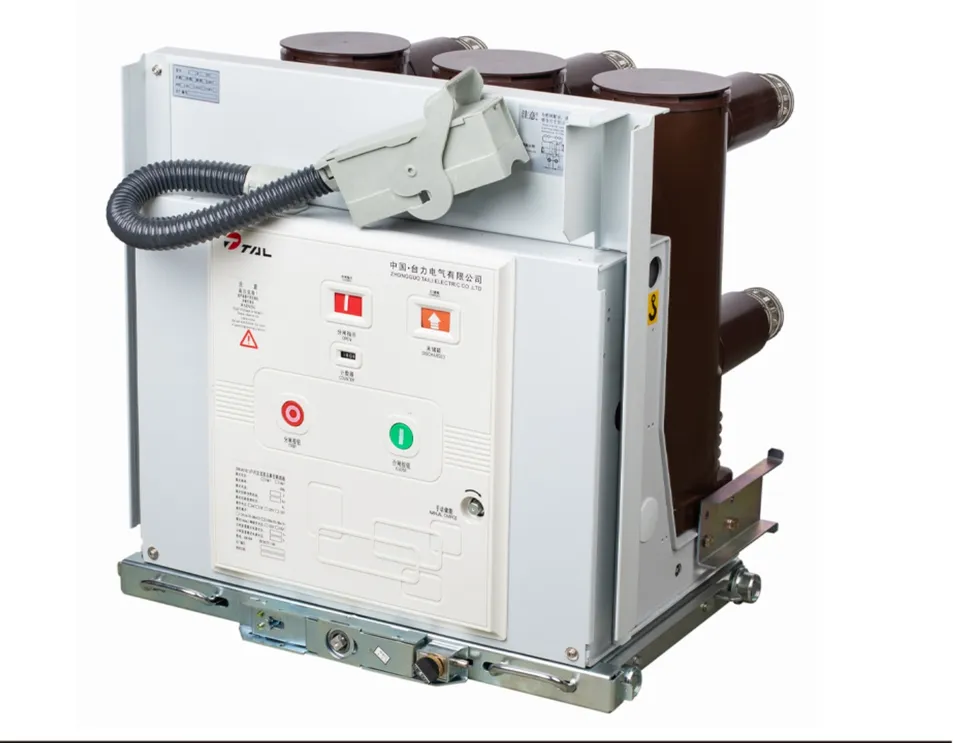

Quickly cuts off fault currents with high breaking capacity, long service life, and reliable operation in indoor distribution systems.
Controls power flow and protects systems by interrupting short-circuit currents. Features ease of maintenance and reliable arc-extinguishing technology.
We provide tailored solutions for specific voltage, capacity, protection classes, or environmental requirements for power, railway, and mining applications.
| Items | Unit | Data |
|---|---|---|
| Rated voltage | kv | 3.6/7.2/12 |
| Rated frequency | Hz | 50 |
| VCB Rated current | A | 630/1250/1600/2000/2500/3150 |
| Switchgear current | A | 630/1250/1600/2000/2500/3150 |
| Rated short withstand current(4s) | kA | 16/20/25/31.5/40/50 |
| Rated peak withstand current | kA | 40/50/63/80/100/125 |
| Protection class | - | IP4X |
| Package Size | 180.00cm * 180.00cm * 200.00cm |
|---|---|
| Gross Weight | 1000.000kg |
| Package Type | Export Wooden Cases / Strong Plywood Case |

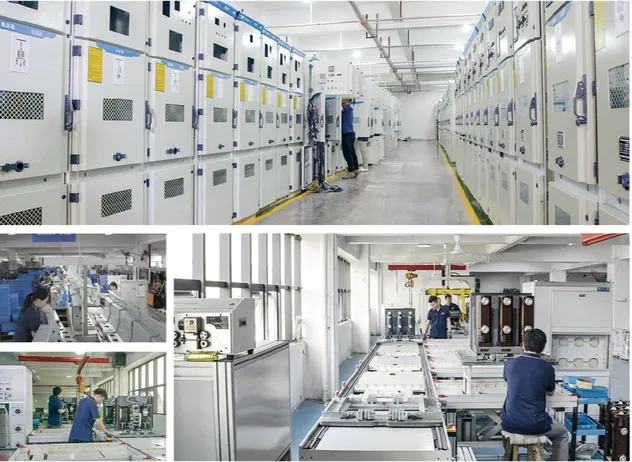

Professional Manufacturer Founded in 1988
With over 35 years of expertise, we specialize in:
Applications: Power grids, railways, mining, factories, commercial buildings, and residential communities.
7×24-hour technical consulting and remote guidance for installation and commissioning.
Standardized warranty service with free repair or replacement for non-human damage.
Customized courses for equipment operation and regular inspection services.
| Payment Term | T/T, 30% deposit + 70% balance against BL copy |
|---|---|
| Delivery Time | 15–20 working days |
| Warranty | 24 months from BL date |
| Material Option | Copper or aluminum (copper recommended) |
| OEM Service | Available for custom branding and design |
