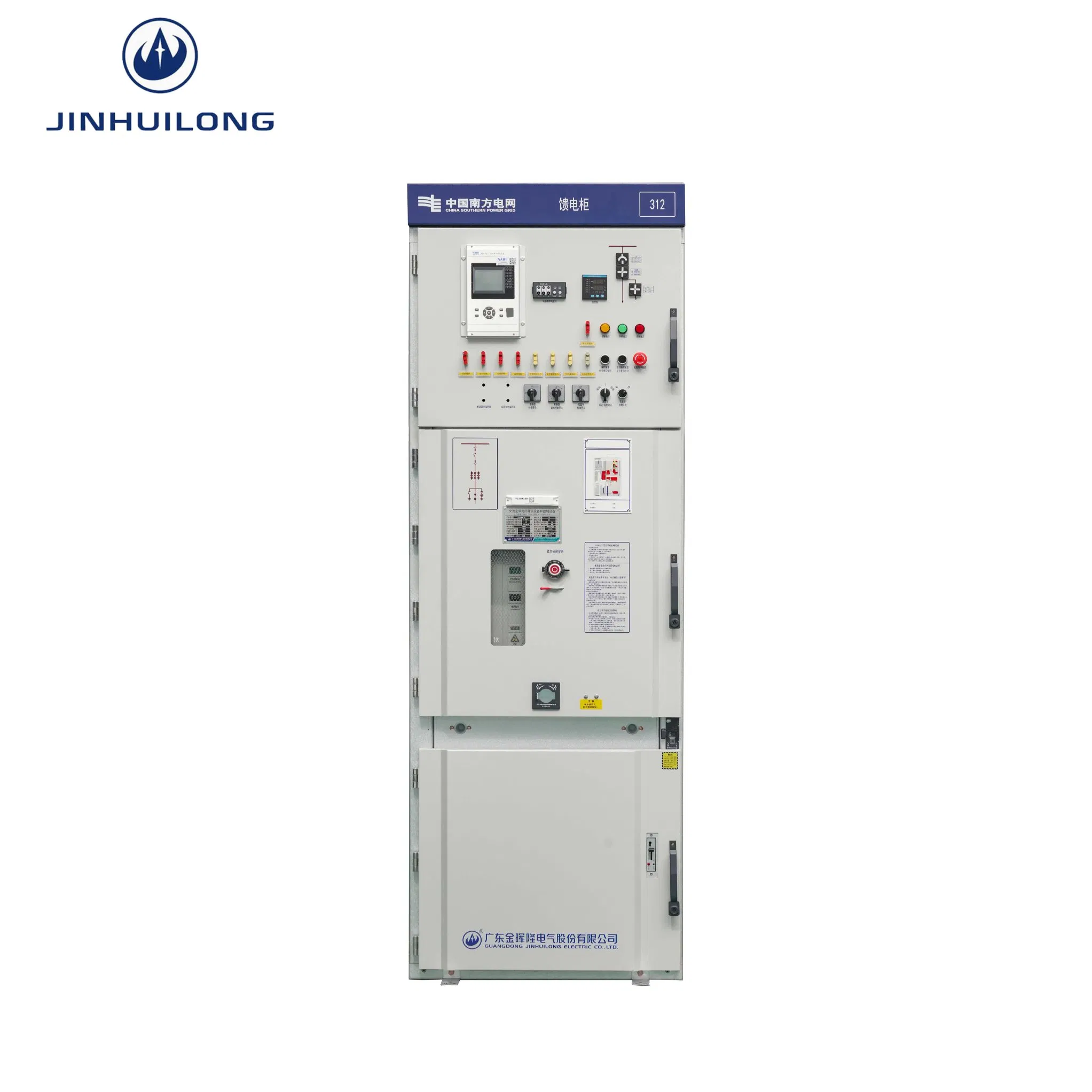

KYN28-12 Metal-clad Drawout Switchgear

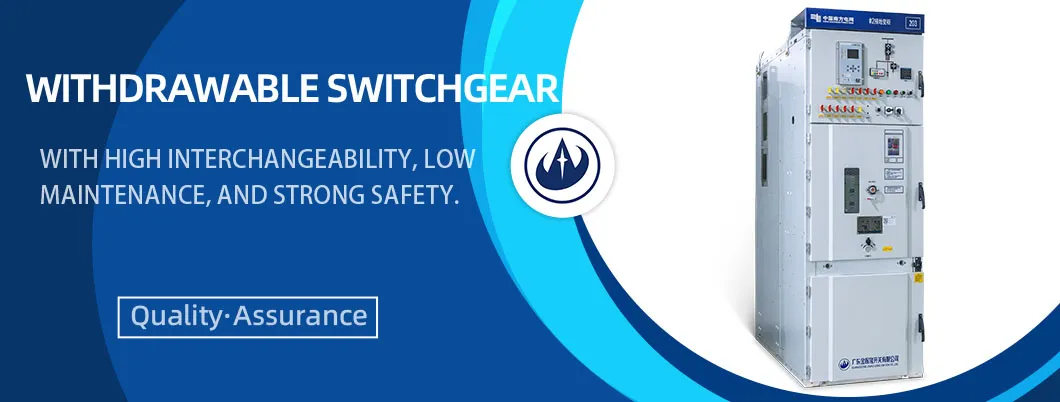

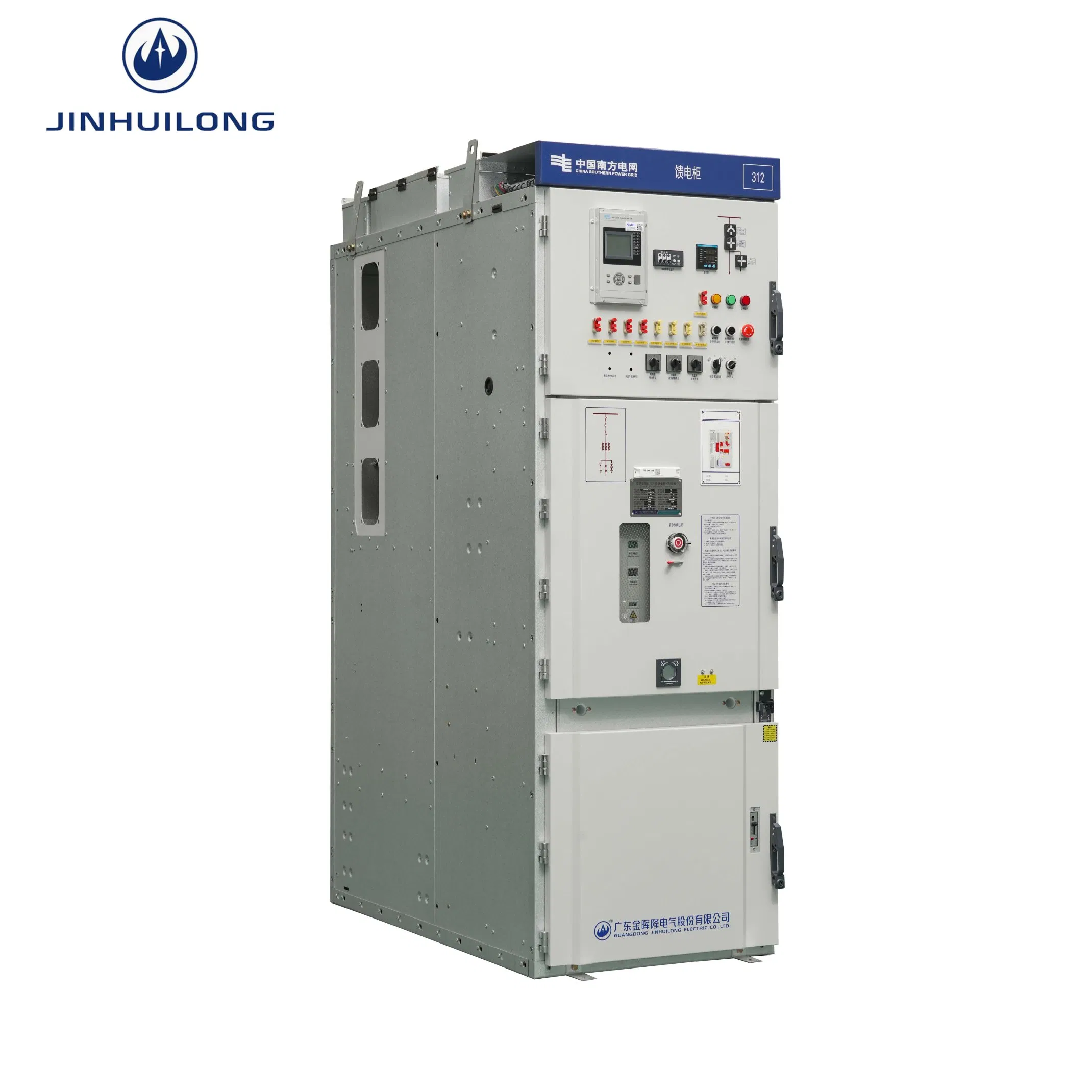

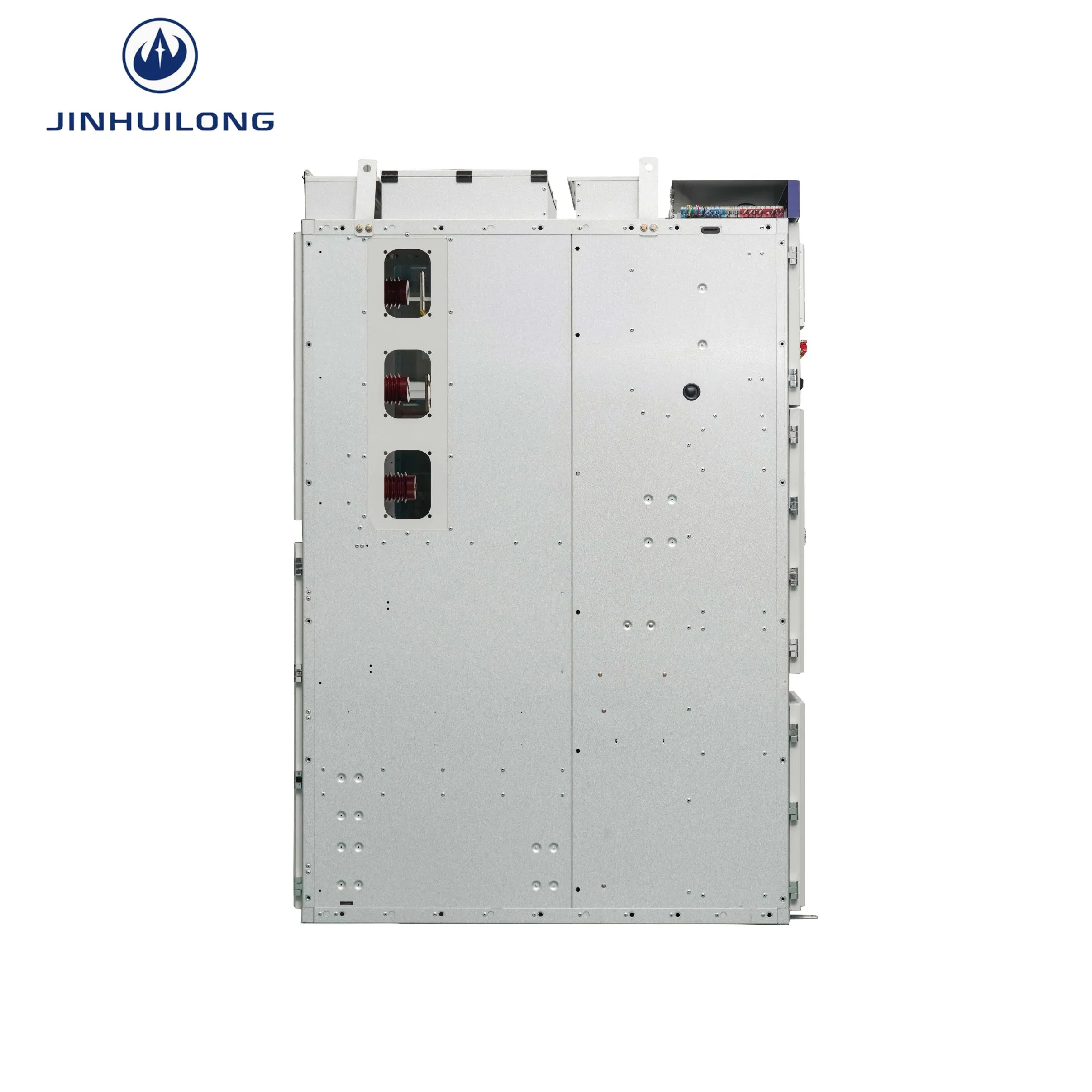

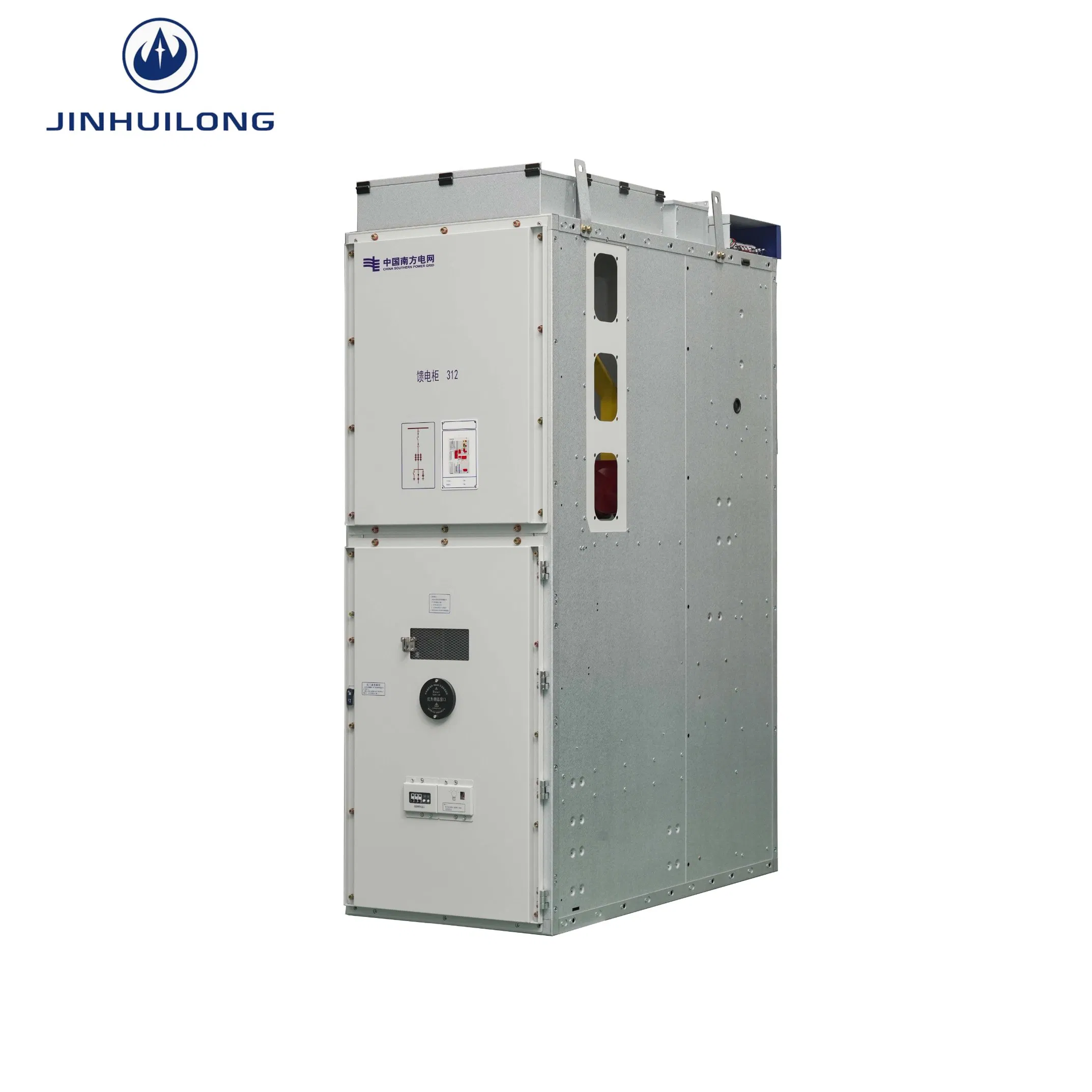

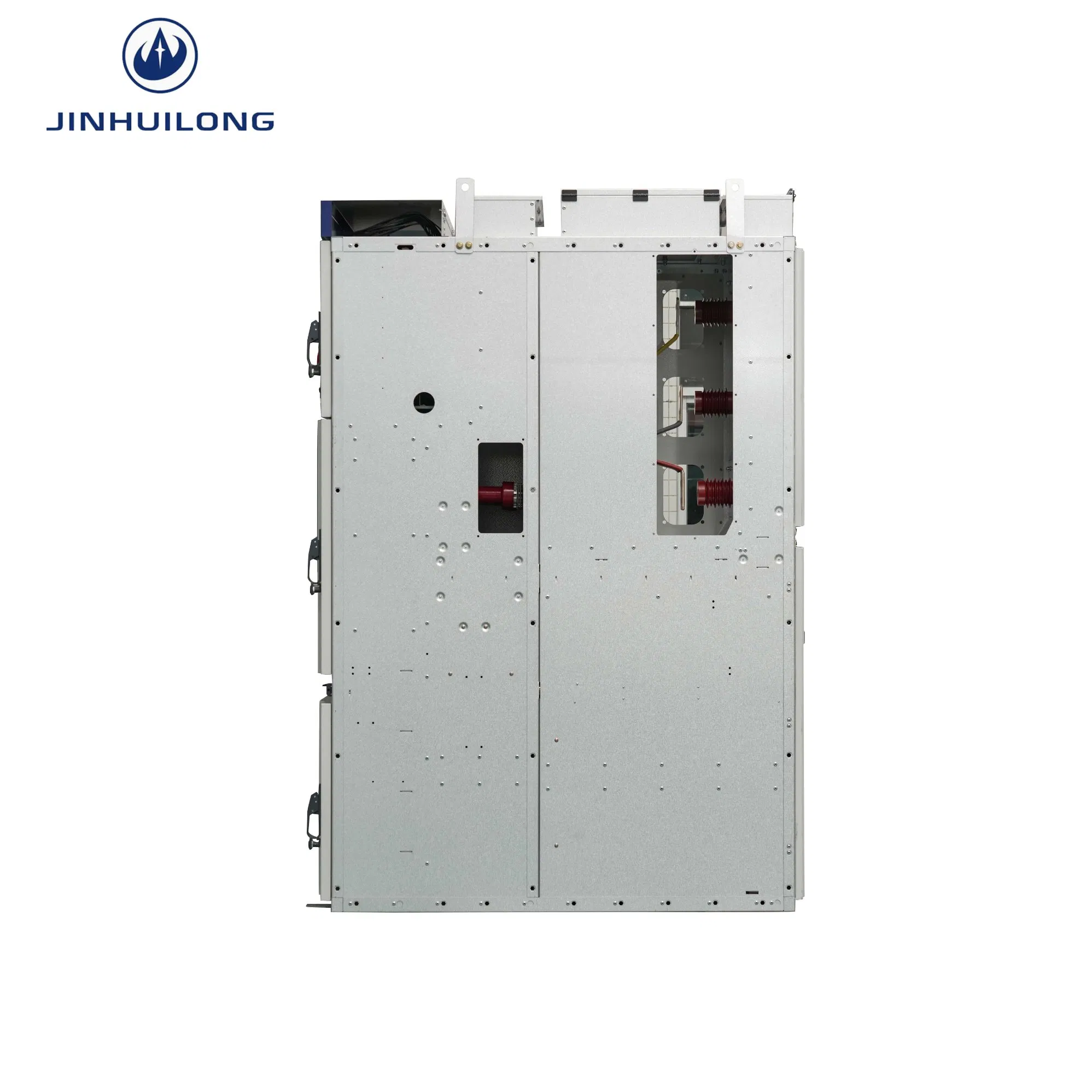

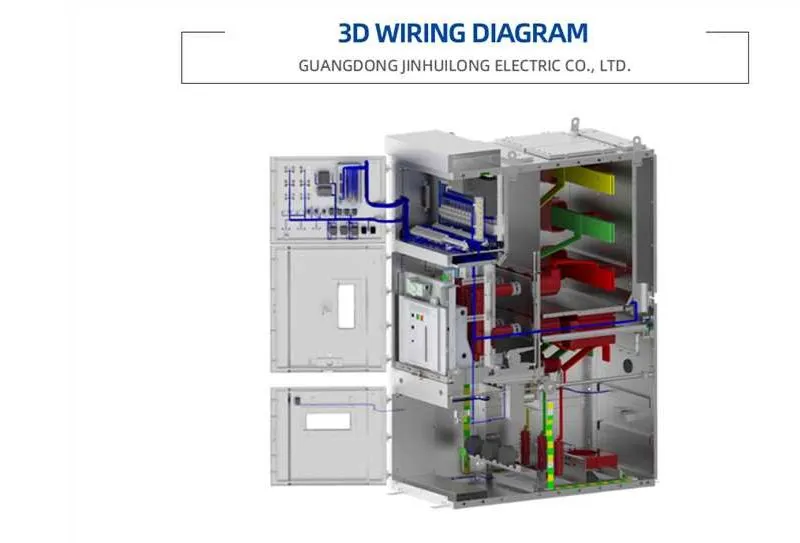

KYN28-12 is a 12kV indoor metal-clad withdrawable switchgear designed for 3.6–12kV AC power systems. It features a mid-mounted withdrawable truck, five-prevention interlock, compartmentalized structure, IP4X protection, and independent pressure relief. With high interchangeability, low maintenance, and strong safety, it is widely used in power grids, substations, industrial, petrochemical, infrastructure and new energy projects. Fully meets IEC 62271 & GB standards.
| Item | Unit | Technical Parameters |
|---|---|---|
| Rated Voltage | kV | 12 |
| Rated Frequency | Hz | 50 |
| Rated Current | A | 630 / 1250 / 1600 / 2500 / 3150 / 4000 |
| 1 min Power Frequency Withstand Voltage | kV | 42 (Isolation break: 48) |
| Lightning Impulse Withstand Voltage | kV | 75 (Isolation break: 85) |
| Rated Short-Circuit Breaking Current (RMS) | kA | 25 / 31.5 / 40 |
| Rated Peak Withstand Current | kA | 63 / 80 / 100 |
| Rated Short-Time Withstand Current (4s) | kA | 25 / 31.5 / 40 |
| Degree of Protection | - | IP4X |
| Cabinet Height | mm | 2360 |
| Weight | kg | 800~1000 |
* Note: Cabinet width can be adjusted (650mm to 1000mm) based on current ratings and specific configurations.
