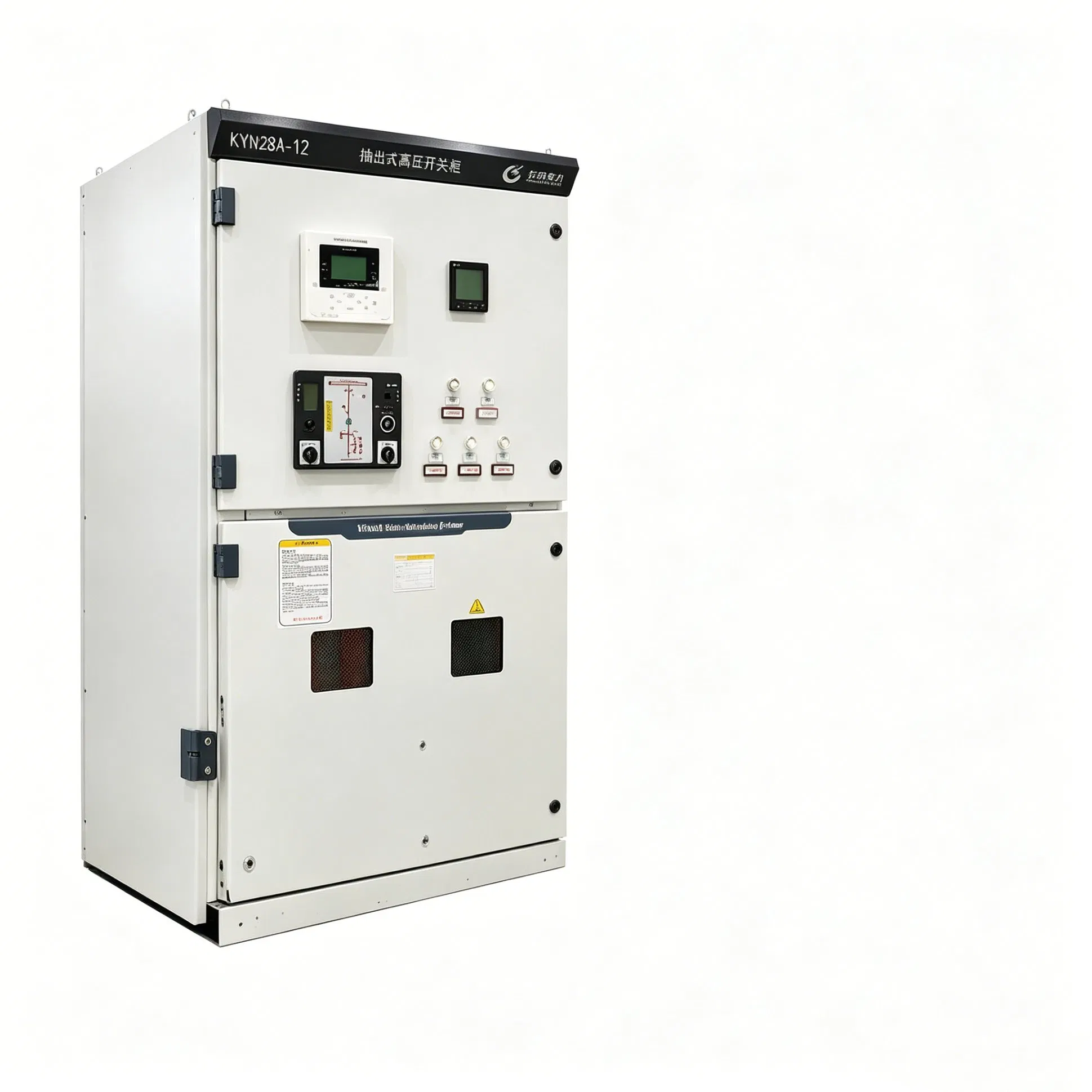

33kv 35kv 40.5kv High Voltage AC Metal-Enclosed Switchgear for Transformer Compact Substation
33kv 35kv 40.5kv High Voltage AC Metal-Enclosed Switchgear for Transformer Compact Substation
33kv 35kv 40.5kv High Voltage AC Metal-Enclosed Switchgear for Transformer Compact Substation
33kv 35kv 40.5kv High Voltage AC Metal-Enclosed Switchgear for Transformer Compact Substation
33kv 35kv 40.5kv High Voltage AC Metal-Enclosed Switchgear for Transformer Compact Substation
1 / 5
33kv 35kv 40.5kv High Voltage AC Metal-Enclosed Switchgear for Transformer Compact Substation
33kv 35kv 40.5kv High Voltage AC Metal-Enclosed Switchgear for Transformer Compact Substation
33kv 35kv 40.5kv High Voltage AC Metal-Enclosed Switchgear for Transformer Compact Substation
33kv 35kv 40.5kv High Voltage AC Metal-Enclosed Switchgear for Transformer Compact Substation
33kv 35kv 40.5kv High Voltage AC Metal-Enclosed Switchgear for Transformer Compact Substation

33kv 35kv 40.5kv High Voltage AC Metal-Enclosed Switchgear for Transformer Compact Substation

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Basic Info

Model NO.
KYN
Voltage Level
High Voltage
Installation
Removable
Structure
Cabinet
Current
AC
Product Name
Kyn Switchgear
Rated Voltage
380V / 400V / 660V
Rated Current
630A - 6300A
Rated Frequency
50/60Hz
Ambient Temp.
-50℃ ~ +40℃
Altitude
≤2000m
HS Code
8537109090
P

Product Description

High Voltage AC Metal-Enclosed Switchgear

KYN28A-12 armored removable AC switchgear is based on advanced domestic and international manufacturing technologies. It serves as a reliable power distribution solution with high mechanical strength and excellent durability.

Switchgear Detail

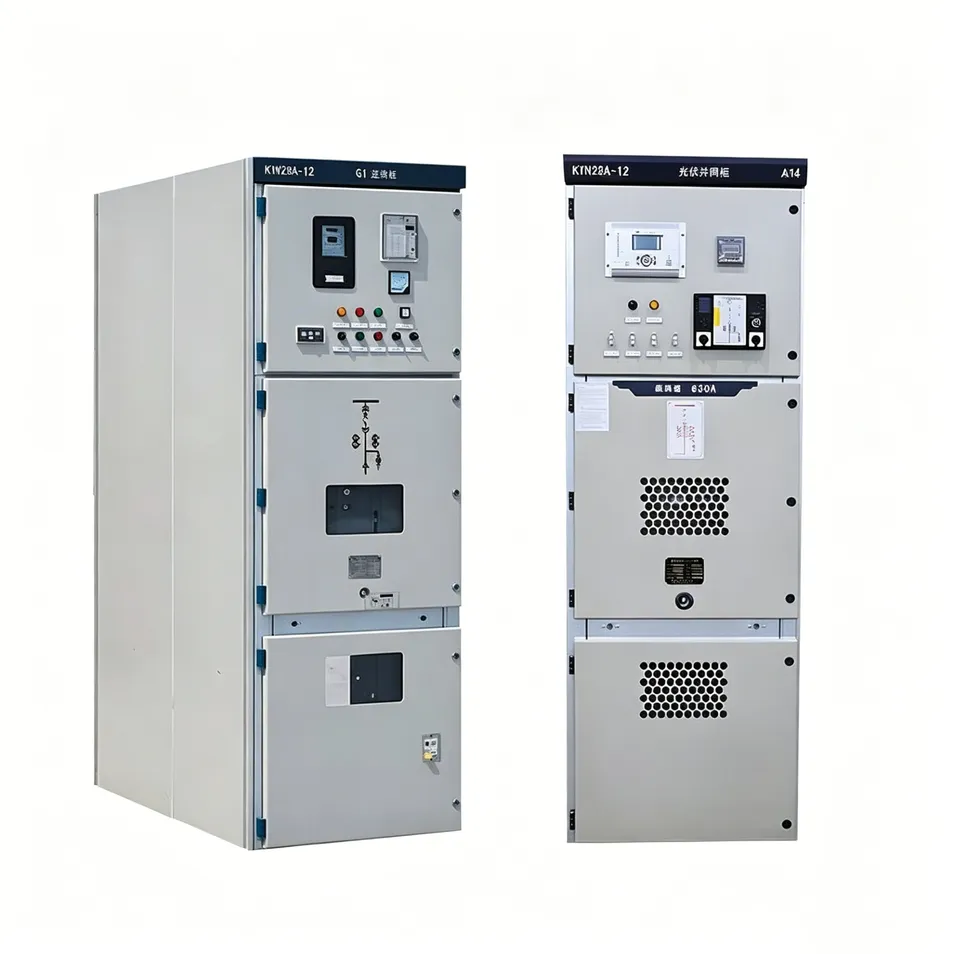

  • Fully assembled enclosure with bolts for high mechanical strength and impact resistance.
  • IP4X protection level with spray-coated cabinet doors for corrosion resistance.
  • Compatible with VD4, VS1, VH1, and other major vacuum circuit breakers.
  • Superior insulation: Air insulation >125mm, composite insulation >60mm.
  • Compact design with low maintenance requirements and extended service life.

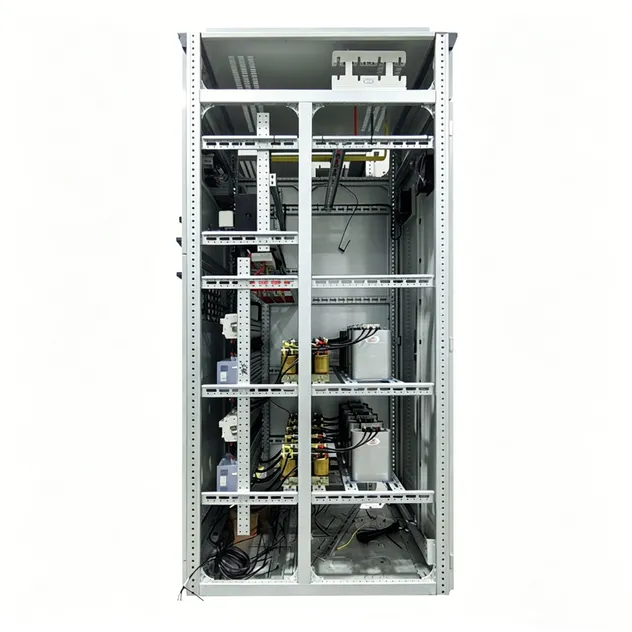

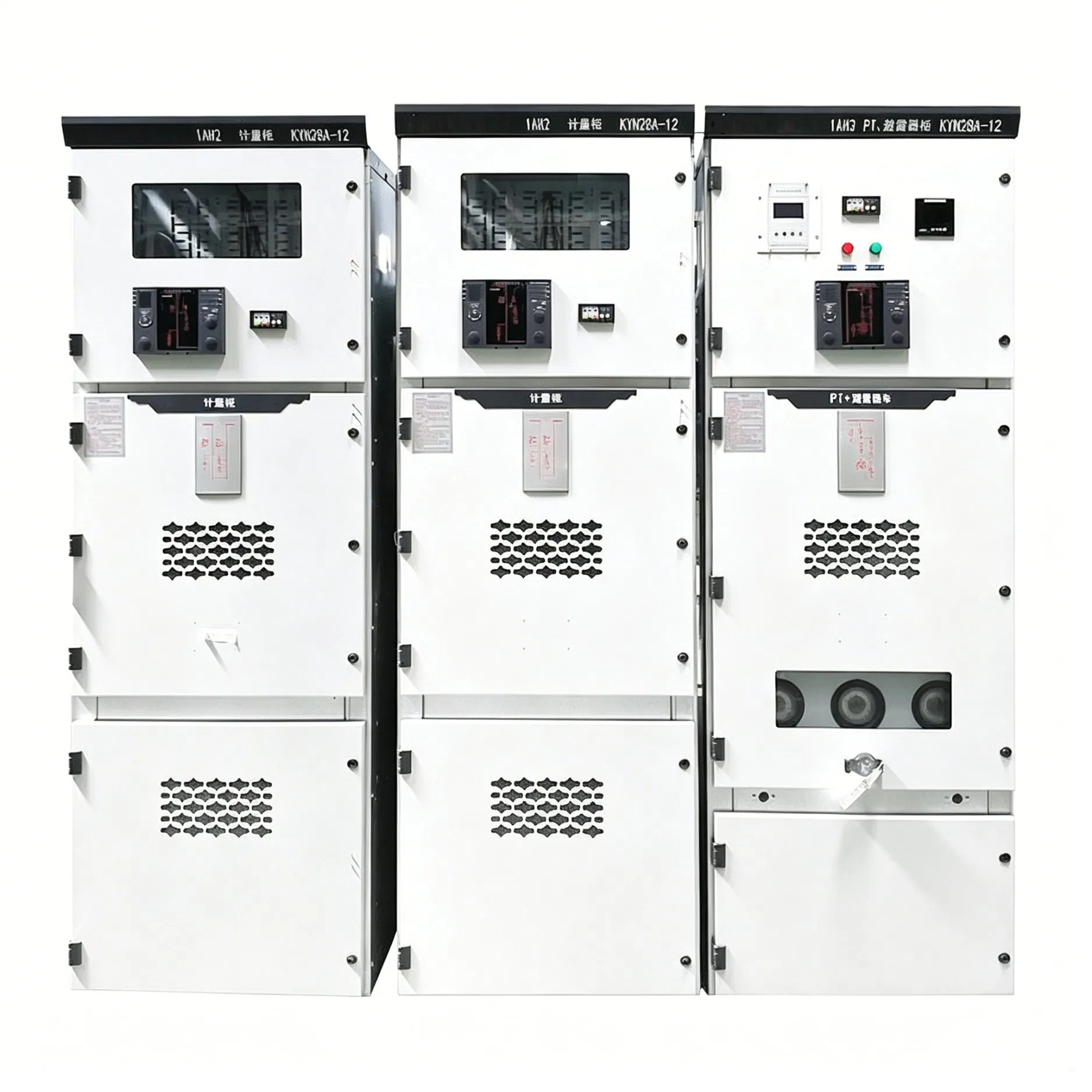

Switchgear View 1

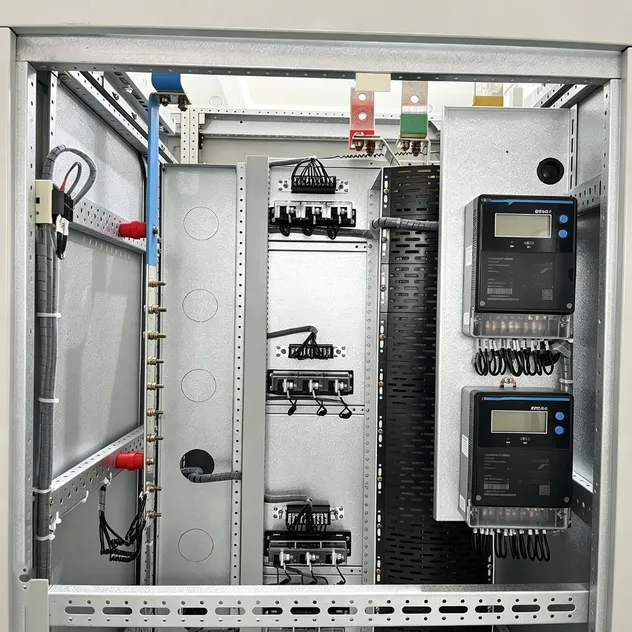

Switchgear View 2

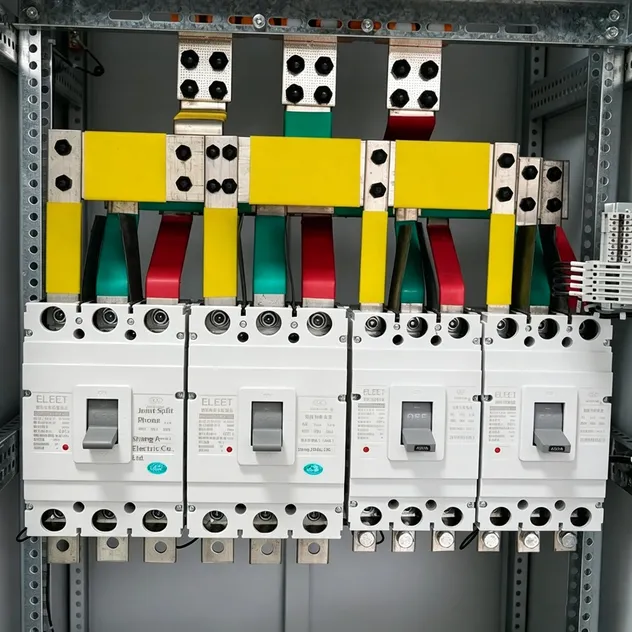

Switchgear View 3
A

Functional Advantages

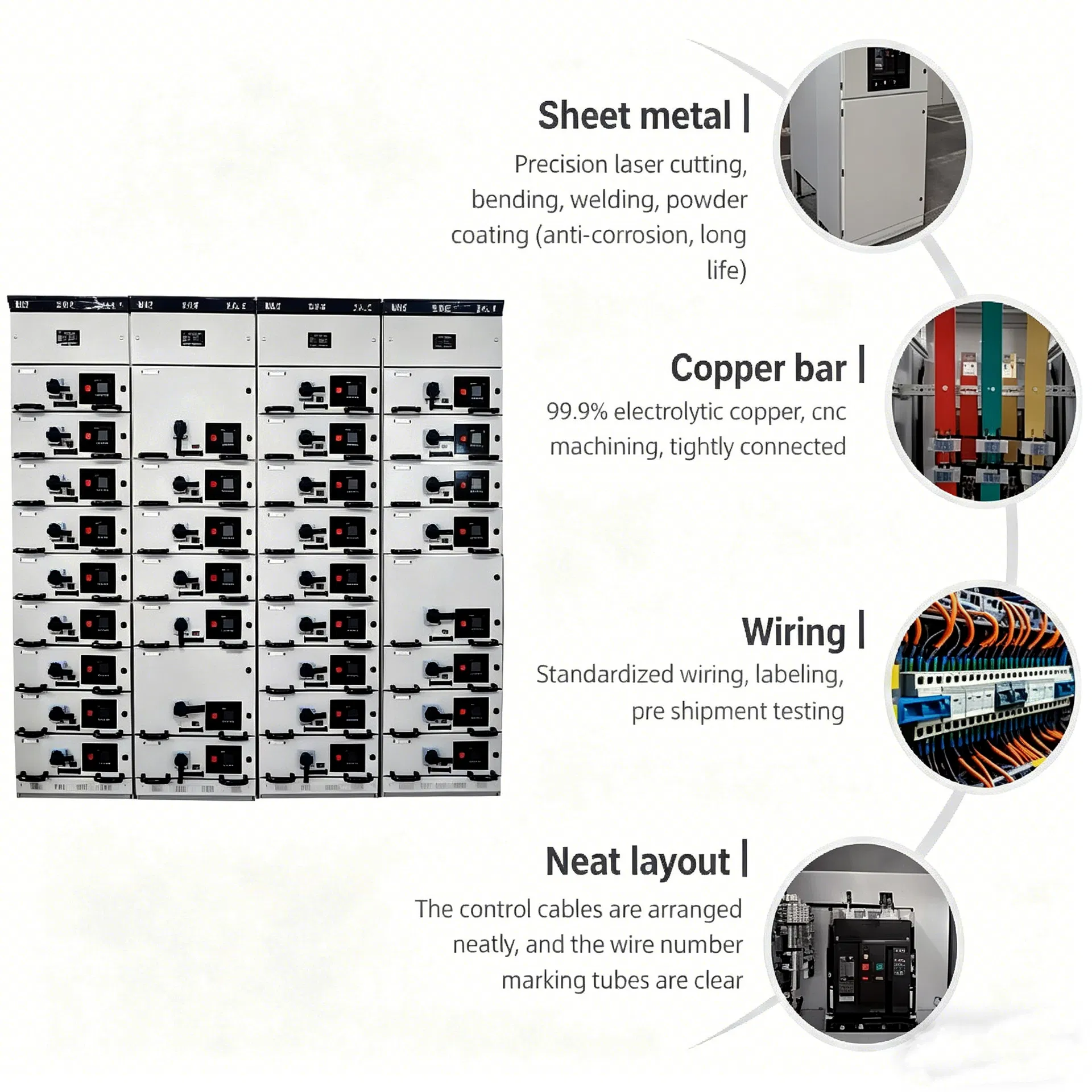

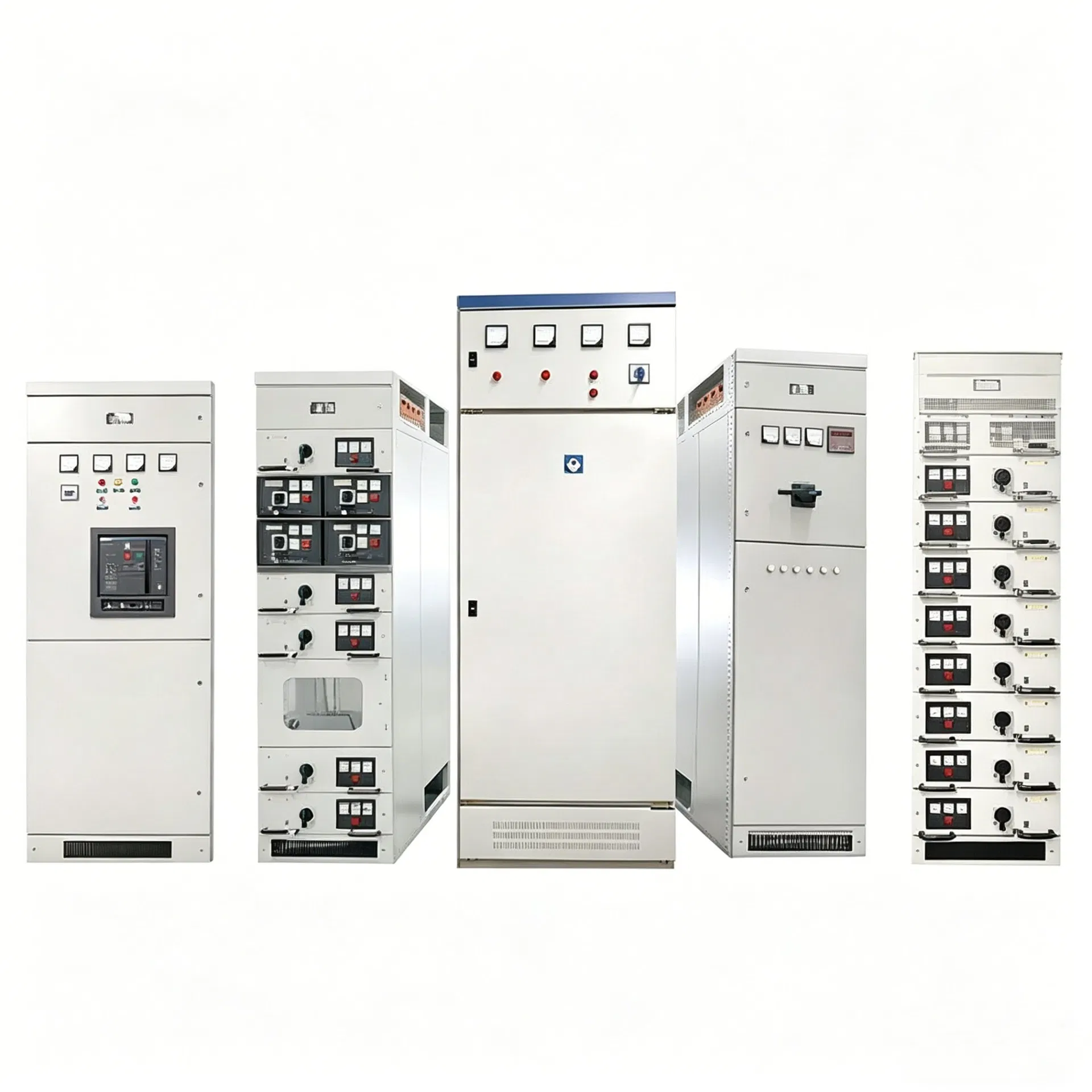

Functional Advantages Structure Details
S

Technical Specification

No. Item Unit Data
1Rated voltagekV3.6, 7.2, 12
2Rated frequencyHz50/60
3Rated current of circuit breakerA630, 1250, 1600, 2000, 2500, 3150, 4000
4Rated short-time withstand current (4s)kA16, 20, 25, 31.5, 40, 50
5Rated withstand current (peak)kA40, 50, 63, 80, 100
6Rated insulation level (1min Power Freq)kV24, 32, 42
7Lightening impulse withstand voltage (peak)kV40, 60, 75
8Protection level-Shell: IP4X
O

Operating Conditions

Operating Conditions
  • Ambient Air Temperature: -15°C ~ +40°C.
  • Altitude: ≤1000m (Standard), customizable for higher altitudes.
  • Relative Humidity: Daily average ≤95%, Monthly average ≤90%.
  • Earthquake Intensity: ≤ Magnitude 8.
  • Environment: Applicable in places without corrosive/flammable gas or water vapor.
Dimensional Drawing Internal Structure
