Innovative Horizontal CNC Machining Center with Double Sided Atc

1 / 5

Innovative Horizontal CNC Machining Center with Double Sided Atc

Customization:	Available
After-sales Service:	on Site / Online
Warranty:	1 Year

Send Inquiry

Product Description

iBasic Information

Model NO.

HMDB

Application

Metal Processing

Numerical Control

CNC/MNC

Precision

0.01~0.02(mm)

Name

Double Spindle CNC Machining Center

Core Advantage

Double Side Spindle Drilling Milling with ATC

Main Function

Double Ends Hole Drilling, Tapping, Face Milling

CNC Type

Dual Channel Absolute Value Bus

Bed Structure

Horizontal Milling Machine

PProduct Description

Double Spindle Horizontal CNC Machining Center

Purposefully crafted for precise shaft metal drilling, milling, and tapping processes.

Interactive Protection: Grating interactive protection system ensures a secure operating environment.
Active Positioning: Advanced system active positioning for precision and accuracy in every application.
Axisymmetric Processing: Facilitates complex machining needs with excellence.
Comprehensive Capabilities: Executes drilling, milling, boring, turning, and tapping to perfection.
High Efficiency: Dual-channel system ensures high-quality coaxial processing in a single clamping, doubling production efficiency.
Customization: Truly customized production options tailored to specific requirements.

TTechnical Specifications

Project	Unit	Parameter
Workpiece Diameter	mm	50~200
Workpiece Length	mm	500~1000/1500/2000/2500/3000/4000
Process Details	-	Heavy milling, edge hole drilling, tapping, boring, turning
Axis Each Side	Qty	3
Tool Magazine	P	16~32
CNC Controller	-	Double channel (KND, GSK, FANUC, SIEMENS optional)
Machine Size	mm	6400×2100×2600
Machine Weight	kg	Approx. 15000
Total Power	kw	60

DDetail Presentation

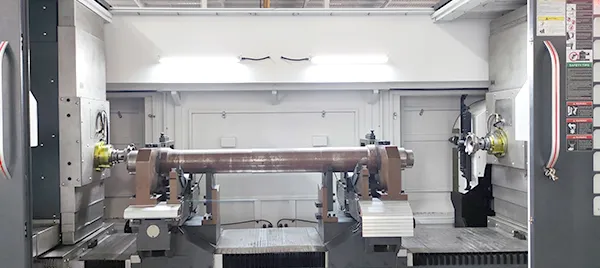

STRUCTURAL DESIGN

Groundbreaking double-ended spindle design, integrating a horizontal spindle box layout and three dynamic moving axes on each side. Allows for simultaneous milling, drilling, and tapping on dual workpiece sections.

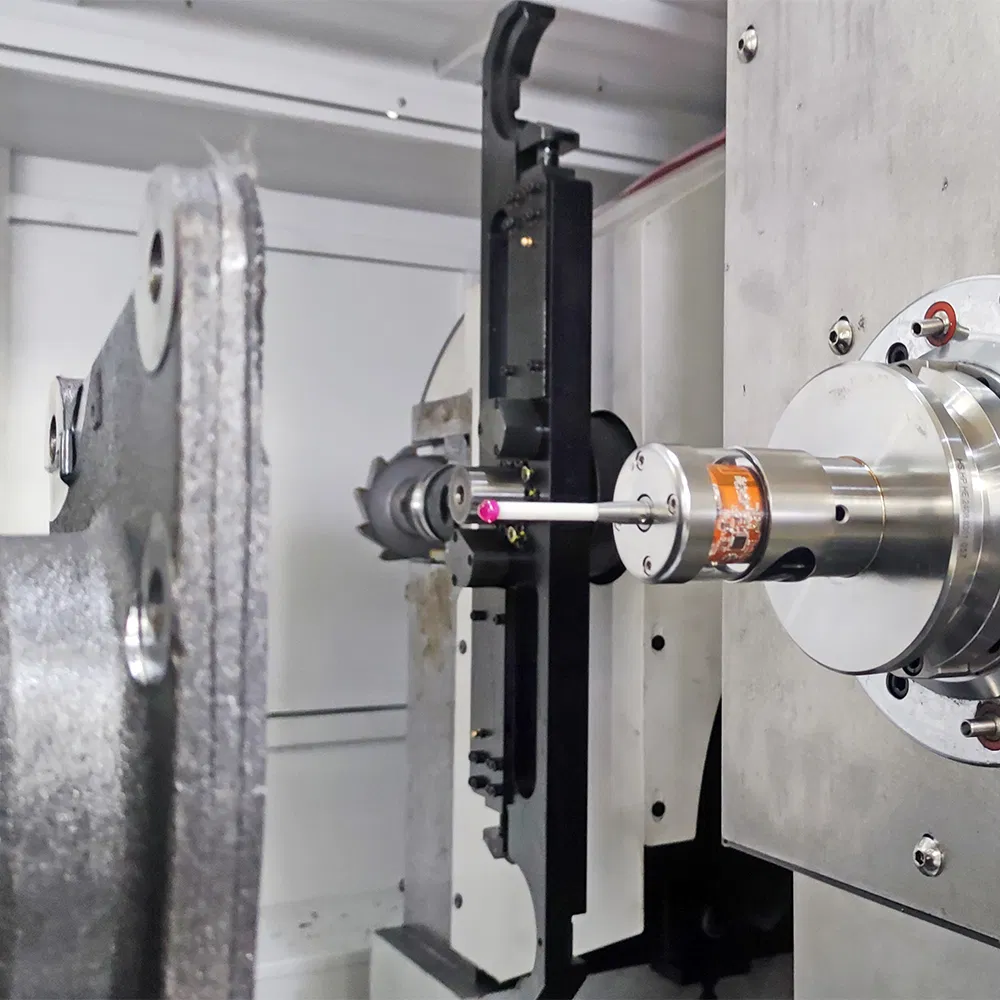

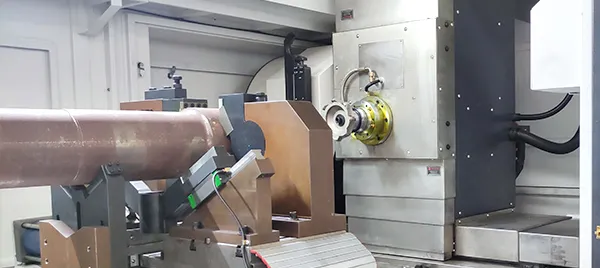

SPINDLE DESIGN

Advanced dual-end face processing with automatic tool change magazines on each end. Accommodates a variety of drilling and tapping needs for unmatched flexibility.

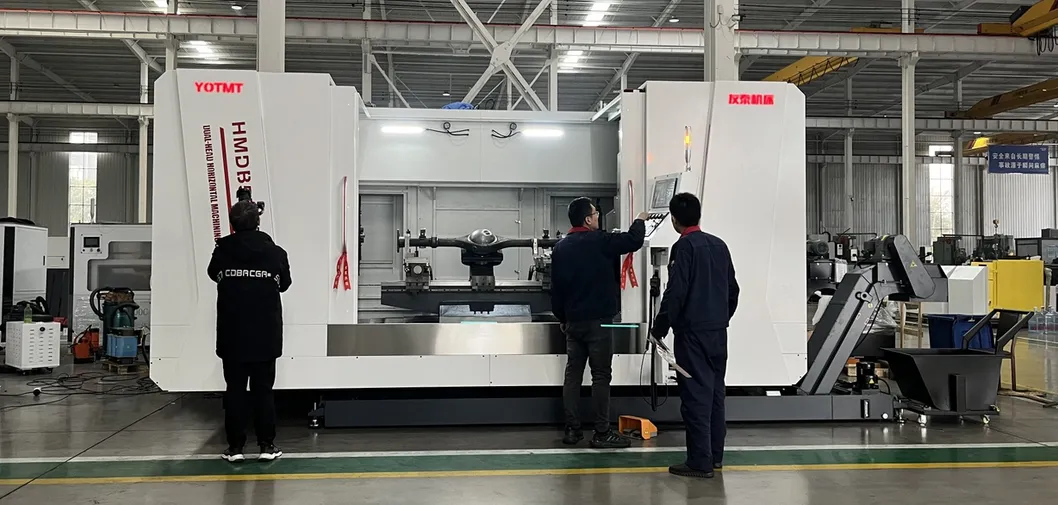

HARDWARE DESIGN

Integrated casting base and spindle box with a protective double-layer enclosure. Utilizes top-tier quality accessories and globally renowned brand components for prolonged durability.

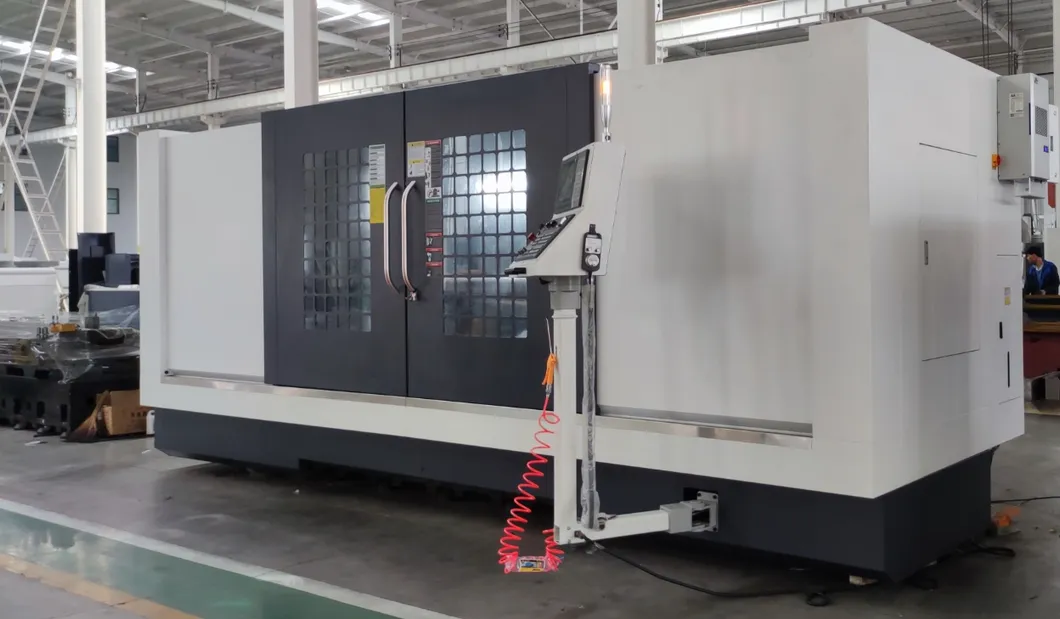

USE DESIGN

User-friendly foot switch and manual trimmer combined with robust BT50 spindles. Features an adjustable self-centering hydraulic clamp and high-pressure coolant for peak performance.

CCertificates & Factory Capability

Recognized as a trailblazer in CNC machine tool manufacturing, specializing in tools engineered for double-sided processing. With a portfolio of hundreds of technical patents, the focus remains on high-precision drilling, milling, and turning of shaft parts.

Established in 2011, the facility spans over 50 acres with more than 30,000 square meters of workshops. Equipped with gantry machining centers and CNC guide rail grinders, supported by over 100 professionals including 30+ technical experts.

MMore Models Recommended

Explore Premium Products: Double-Sided Machining Centers, Facing and Centering Machines, and Advanced Double-Side Turning CNC Lathes.

?Frequently Asked Questions

1. What materials can the Double Spindle Machining Center process?

This CNC machine is specifically designed for various metals, primarily focused on shaft parts, including railway axles, truck axles, motor shafts, and piston rods.

2. How does the double spindle design improve production efficiency?

The dual-spindle and dual-channel system allows for simultaneous machining on both ends of a workpiece in a single clamping. This ensures high-quality coaxial processing and effectively doubles the output compared to single-spindle machines.

3. What processing functions are integrated into this machine?

The HMDB series is a comprehensive solution that can perform heavy milling, edge hole drilling, tapping, boring, and turning in one setup.

4. Can the machine be customized for different workpiece lengths?

Yes, we offer model extensions for various lengths including 1000mm, 2000mm, 3000mm, and up to 4000mm, depending on your specific industrial requirements.

5. What CNC control systems are supported?

The machine features a dual-channel absolute value bus system. It is compatible with several world-class controllers including FANUC, SIEMENS, KND, and GSK.

6. What safety features are included in the equipment?

The machine is equipped with a grating interactive protection system and a double-layer enclosure to ensure a safe operating environment for technicians.

Product Detail

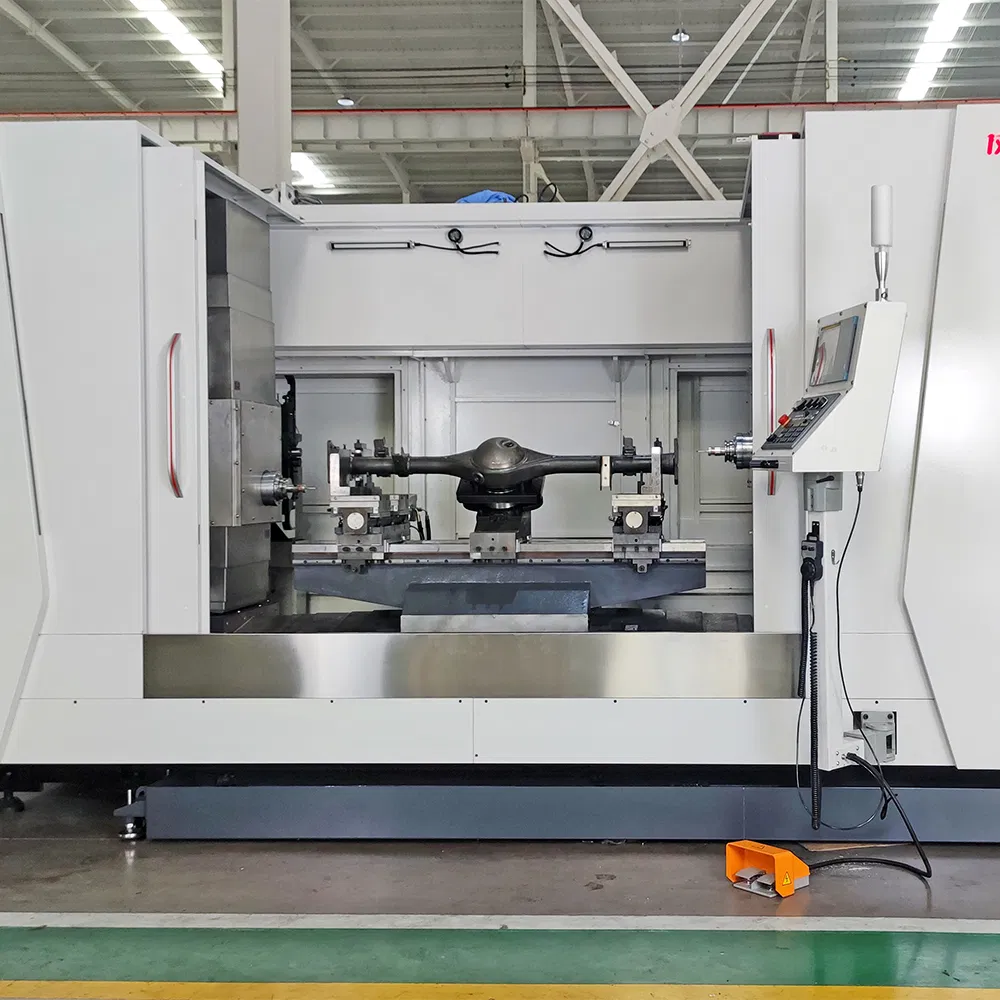

Innovative Horizontal CNC Machining Center with Double Sided Atc
