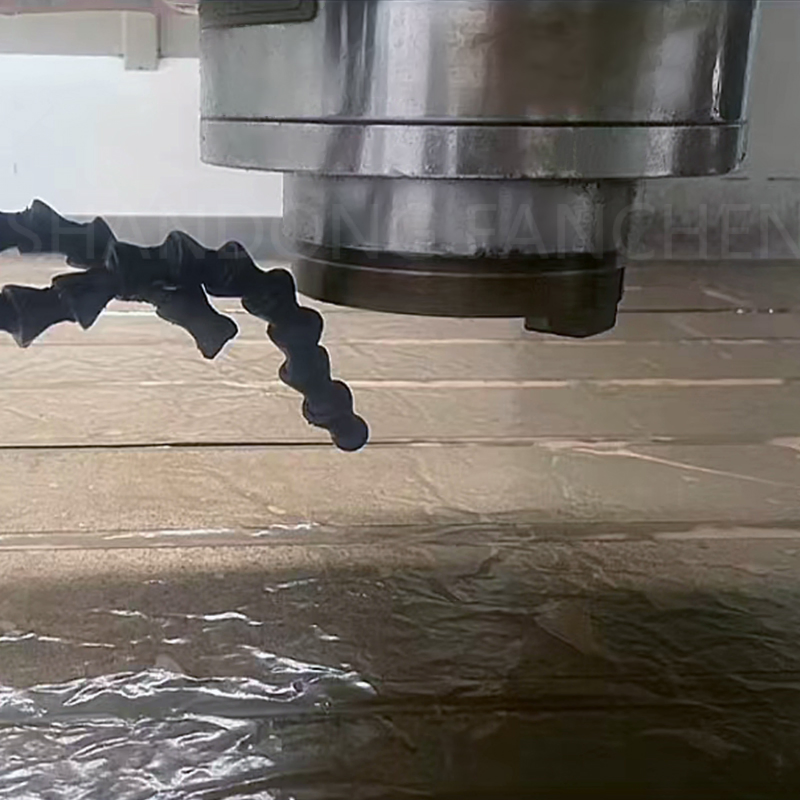

Gmb3030 3016 CNC Horizontal Gantry Machining Center Servo Motor
Gmb3030 3016 CNC Horizontal Gantry Machining Center Servo Motor
Gmb3030 3016 CNC Horizontal Gantry Machining Center Servo Motor
Gmb3030 3016 CNC Horizontal Gantry Machining Center Servo Motor
Gmb3030 3016 CNC Horizontal Gantry Machining Center Servo Motor
1 / 5
Gmb3030 3016 CNC Horizontal Gantry Machining Center Servo Motor
Gmb3030 3016 CNC Horizontal Gantry Machining Center Servo Motor
Gmb3030 3016 CNC Horizontal Gantry Machining Center Servo Motor
Gmb3030 3016 CNC Horizontal Gantry Machining Center Servo Motor
Gmb3030 3016 CNC Horizontal Gantry Machining Center Servo Motor

Gmb3030 3016 CNC Horizontal Gantry Machining Center Servo Motor

Send Inquiry

Product Description

CNC Horizontal Gantry Machining Center Product Specifications Banner
⚙️ Technical Specifications
Content Name Specifications (Model A) Specifications (Model B)
Operating platform Bed dimension 3000mm X 2000mm 3000mm X 2600mm
Maximum load-bearing 2200kg 3000kg
Range of work X-axis stroke 3000 mm 3000mm
Y-axis stroke 2200 mm 3000mm
Z-axis stroke 1100 mm 1200mm
Gantry width 2200 mm 2600mm
Principal axis Range of speeds 6000 r/min 6000r/min
Spindle motor power 22 kw 22kw
Spindle to mesa dist. 150-1250 mm 150-1250
Spindle taper BT50/190 BT50/190
Servo 3-axis motor torque 36/36/36 NM 36/36/36NM
Feed Speed Quick travel (X/Y) 28m/min 28m/min
Quick travel (Z) 12m/min 12m/min
Max cutting speed 6000 mm/min 6000 mm/min
Accuracy Positioning accuracy 0.01mm 0.01mm
Weight Machine tool weight 42T 38T
Machining Center Feature
🔍 Product Gallery

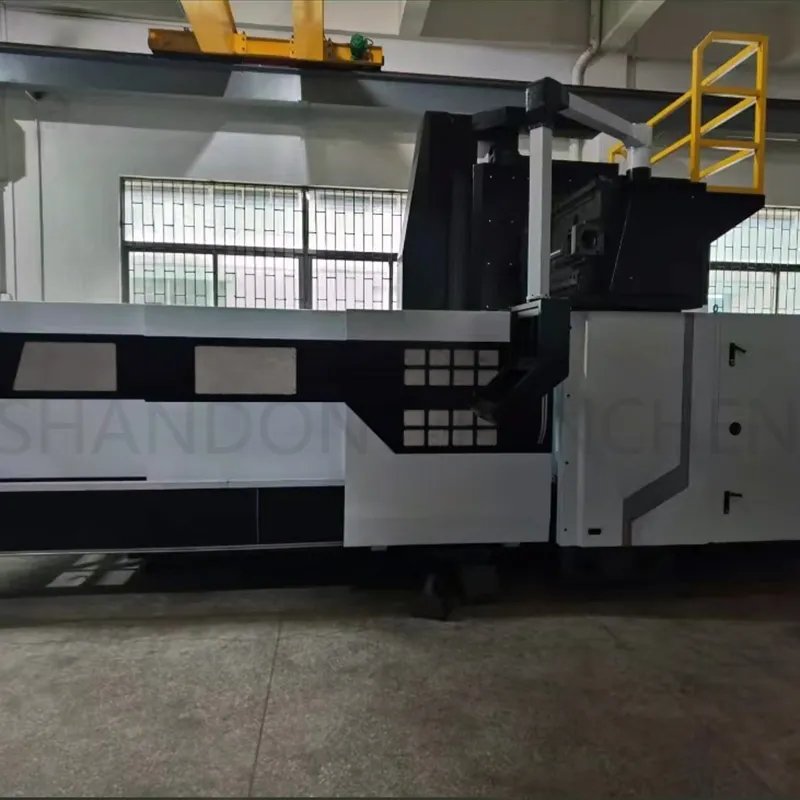

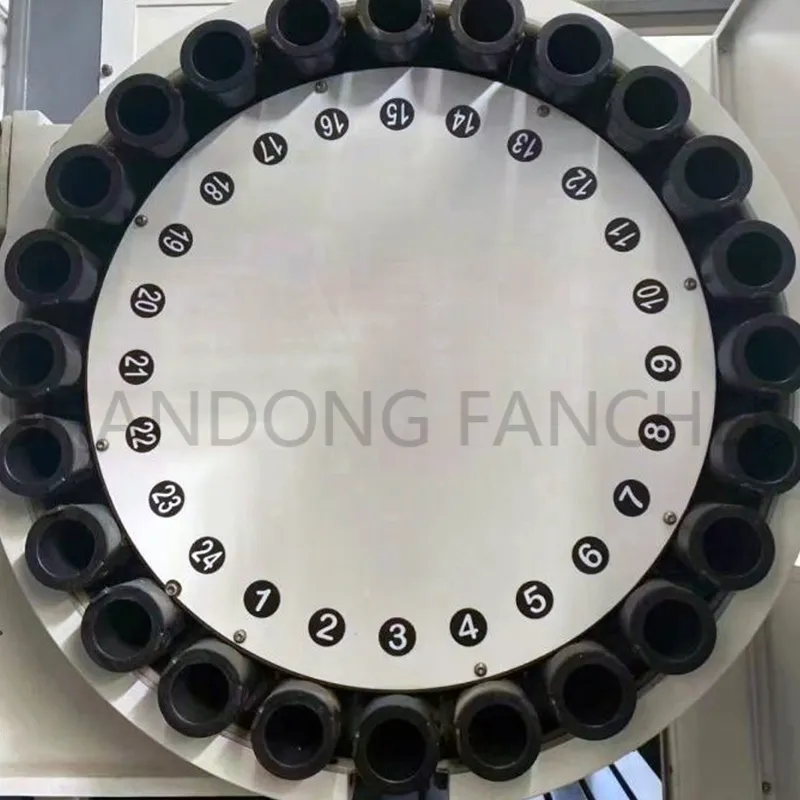

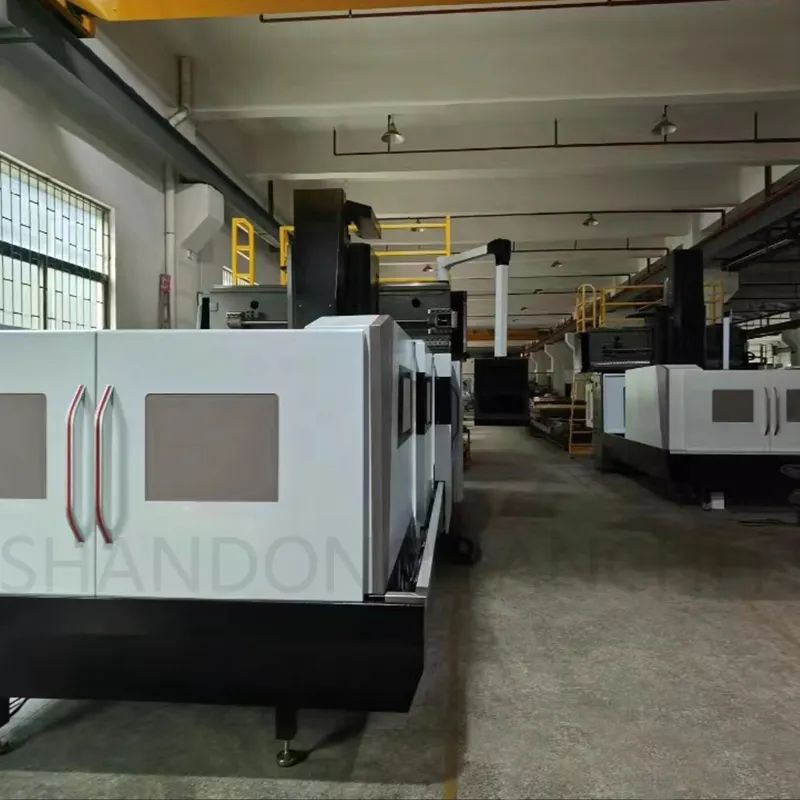

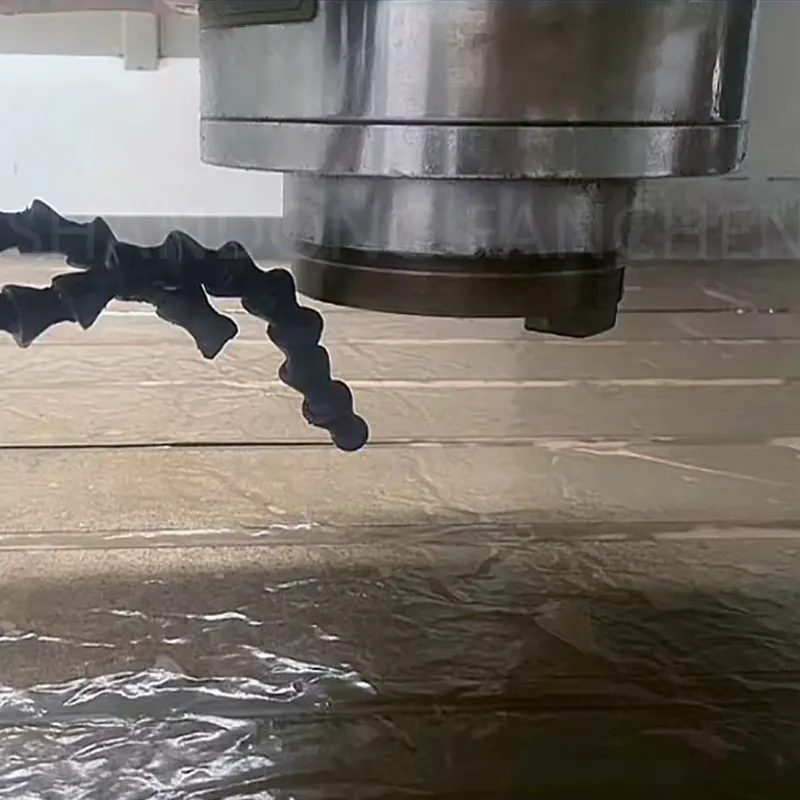

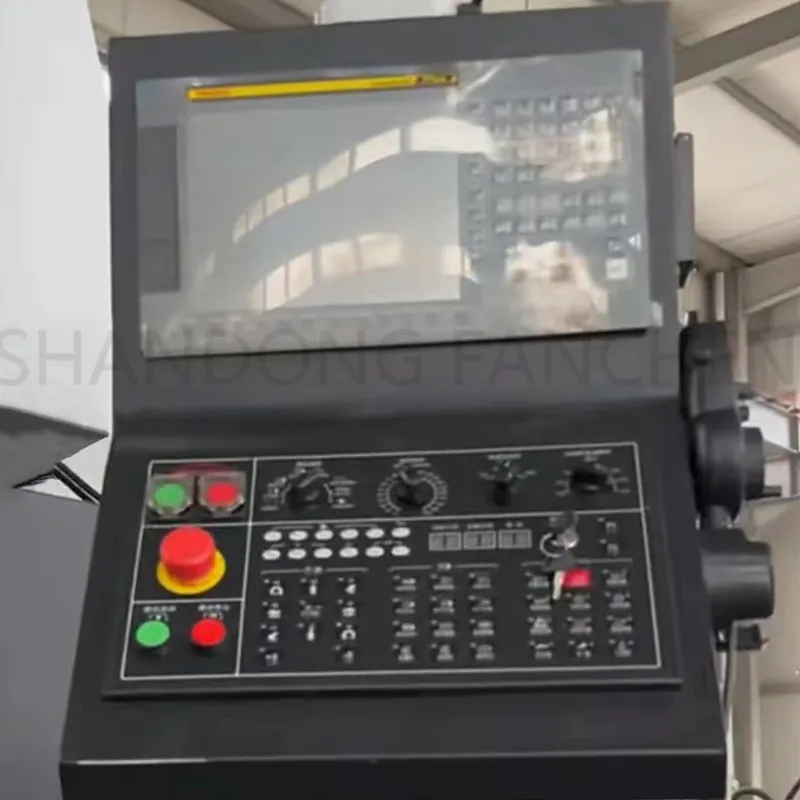

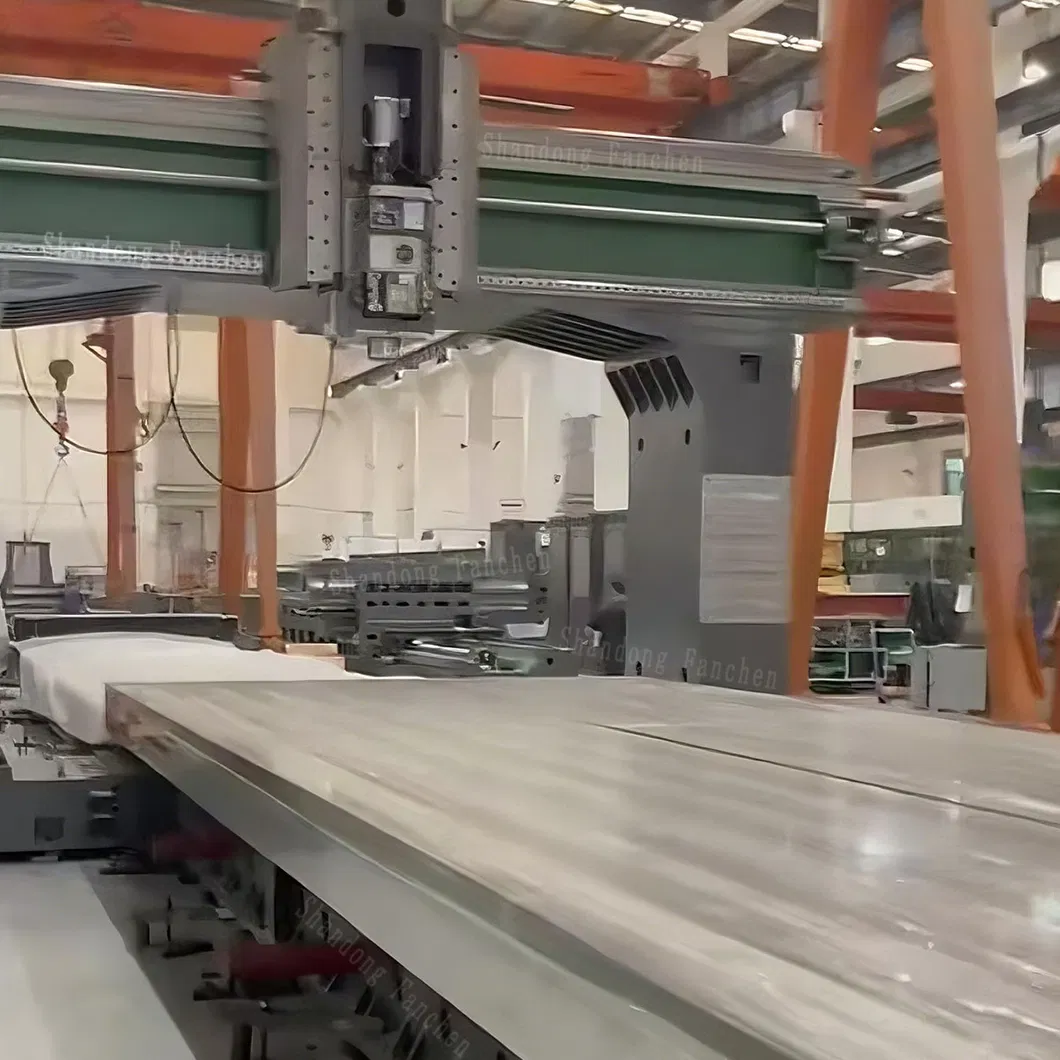

CNC Component 1 CNC Component 2 CNC Component 3 CNC Component 4 CNC Component 5 CNC Component 6
📋 Technical Details

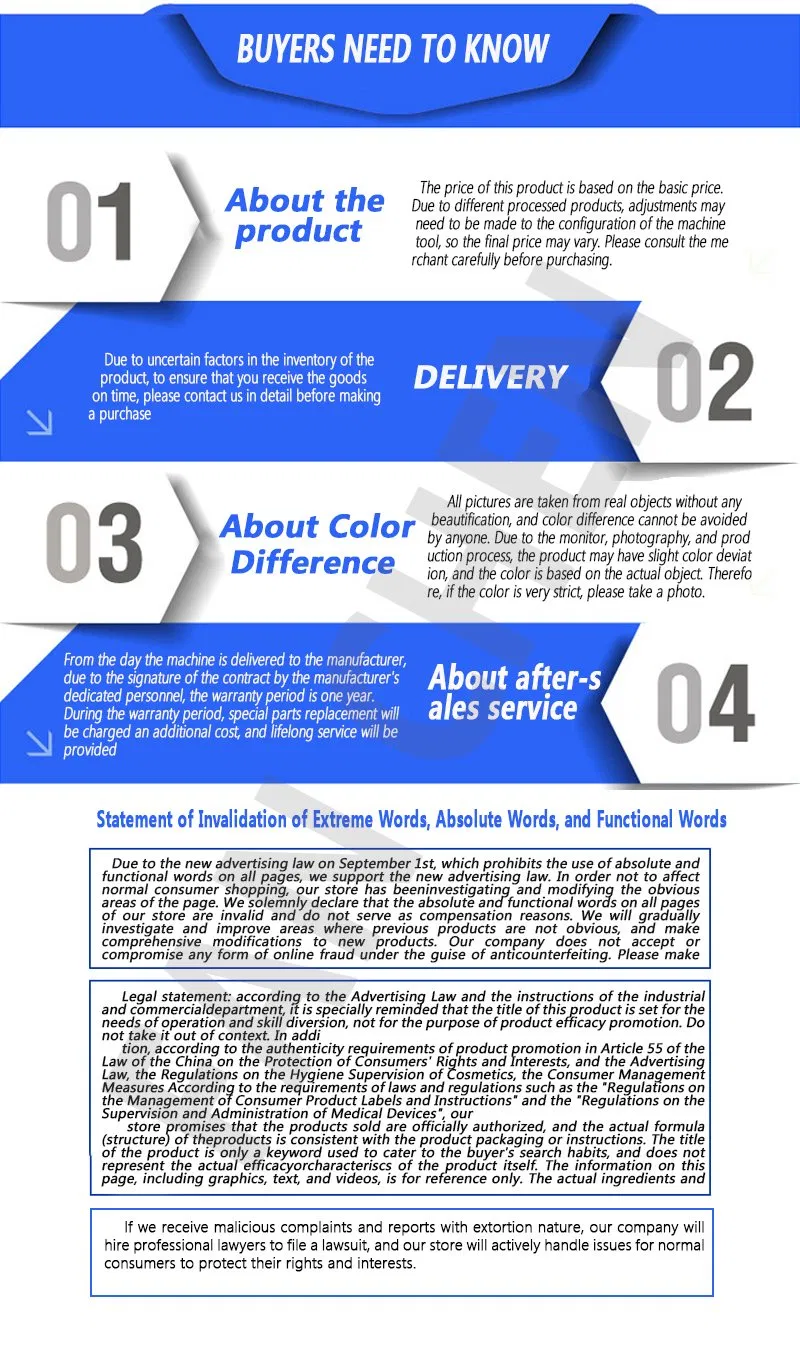

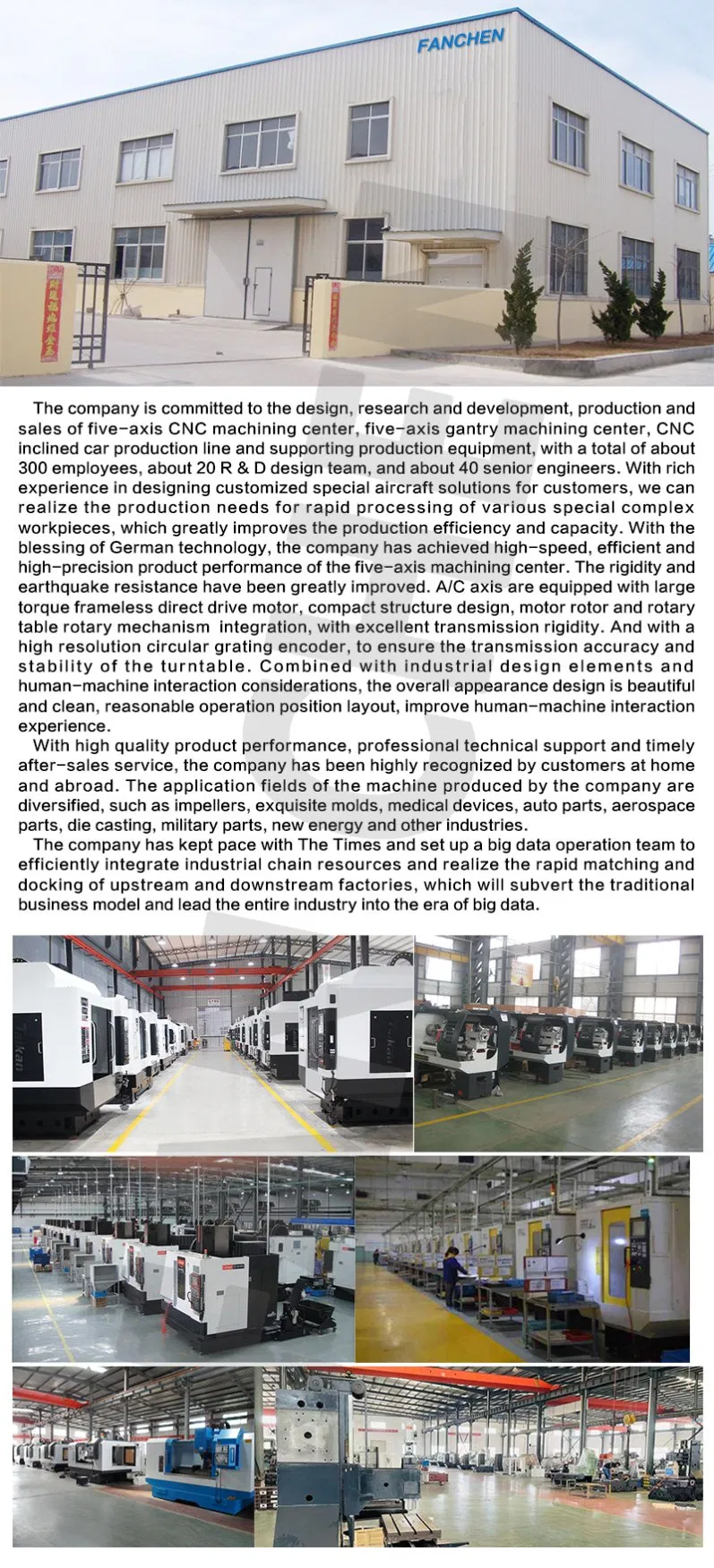

Technical Specifications Sheet 1 Technical Specifications Sheet 2
❓ Frequently Asked Questions
How can I choose the most suitable machine?
Please provide your specific requirements or product drawings, and we can recommend the best model for your needs based on the required specifications.
What are the main products available?
We specialize in a wide range of industrial machinery, including CNC Lathes, CNC Milling Machines, Vertical Machining Centers, Drilling Machines, Radial Drilling Machines, and Sawing Machines.
What are the accepted trade terms?
We accept various international trade terms, including FOB, CFR, and CIF.
What are the standard payment terms?
Typically, we require a 30% initial payment upon ordering, with the remaining 70% balance due before shipment. Irrevocable LC at sight is also accepted.
What is the Minimum Order Quantity (MOQ)?
The MOQ for most of our heavy machinery is 1 set. Some smaller, low-cost equipment may require a higher quantity.
Can I visit the production facility?
Yes, visitors are warmly welcomed to inspect our factory and see the machinery in operation. Please contact us to schedule a visit.
