Basic Information
Installation
Indoor High-voltage
Number of Poles
Three Pole
Movement Mode
Vertical Rotary Type

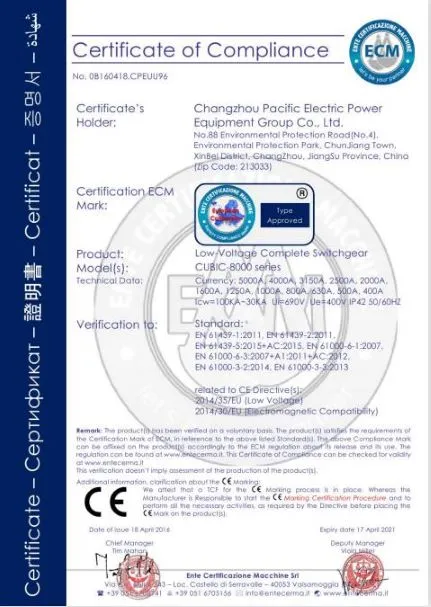

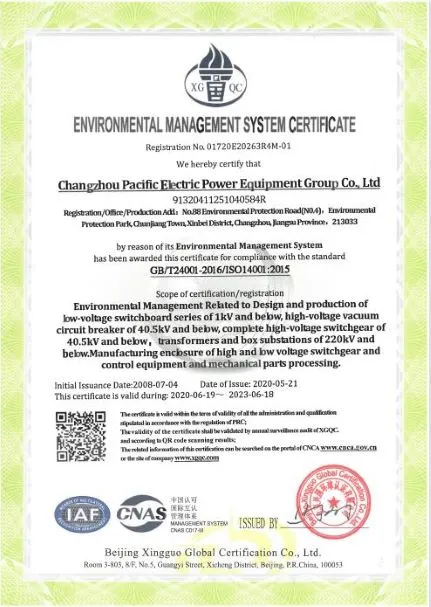

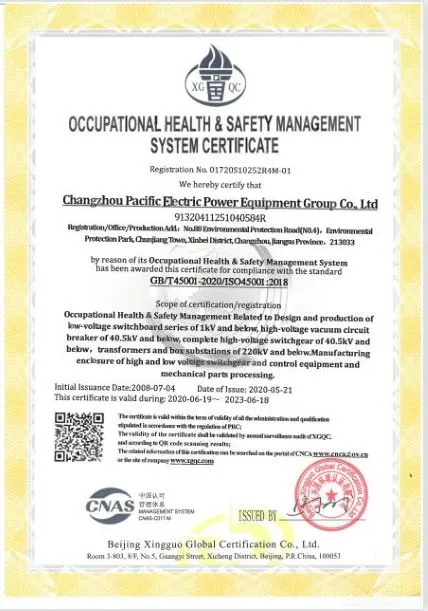

Certification
ISO, GS, RoHS, CE, ISO9001
Production Capacity
50,000 PCS/Year

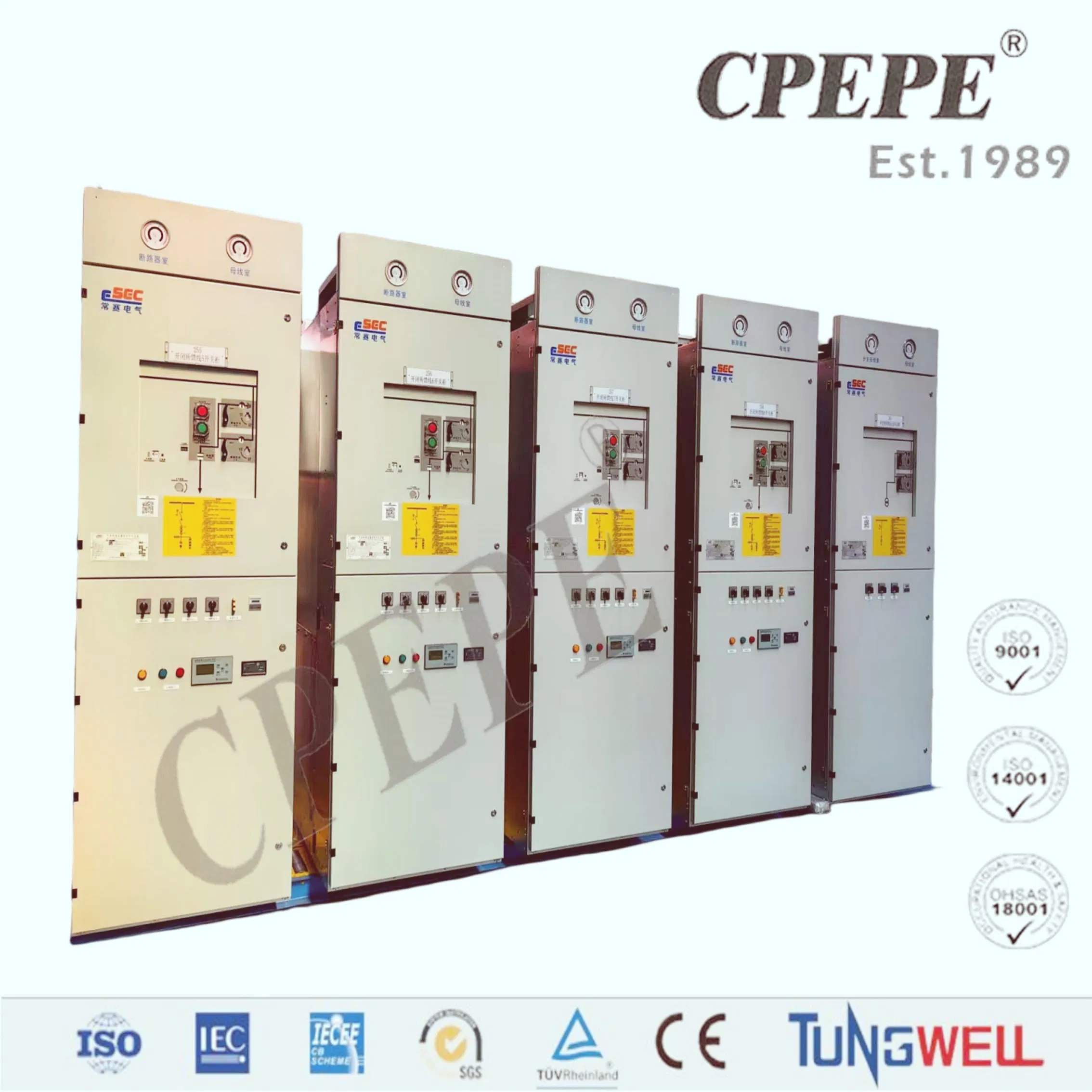

Product Description
Important Features
🛡️ Safe
Vacuum interrupt technology & low pressure gas insulation. Metal-enclosed to protect against accidental contact. Unaffected by climate.
💎 Reliable
Compact design with standard components. Advanced manufacture process and strict quality control. Leakage rate <0.5%/y.
💰 Economical
Small space requirement, short installation time, long service period, and virtually maintenance-free.
⚙️ Extension & Convenient
Easy to extend from both sides. Light weight, friendly operation interface, and good accessibility.
Technical Specification
| Item |
XGN80-12 |
XGN80-24 |
XGN80-40.5 |
| Rated Voltage | 12 kV | 24 kV | 40.5 kV |
| Power Frequency Withstand Voltage | 65kV | 65 kV | 120 kV |
| Lightning Impulse Withstand Voltage | 125 kV | 125kV | 220 kV |
| Rated Current | 2500A | 2500A | 2500A |
| Short Circuit Breaking Current | 40kA | 31.5 kA | 31.5 kA |
| Peak Withstand Current | 100 kA | 80 kA | 80 kA |
| Mechanical Life (VCB) | 20000 times | 20000 times | 30000 times |
| Insulated Gas | N2/SF6 | N2/SF6 | SF6 |
| Protection Degree | IP65 | IP65 | IP65 |

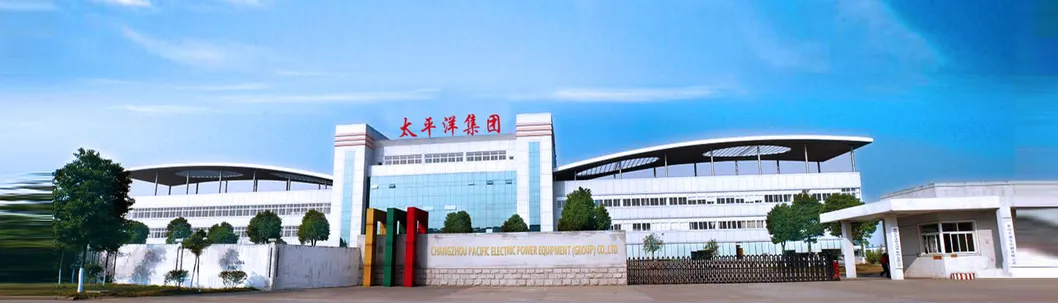

Our high-tech enterprise specializes in research, design, and manufacturing for High Voltage and Low Voltage power transmission and distribution. With over USD 100 million in fixed assets and a 240,000 square meter facility, we produce over 20,000 sets of switchgears and 3,000MVA in transformers annually.

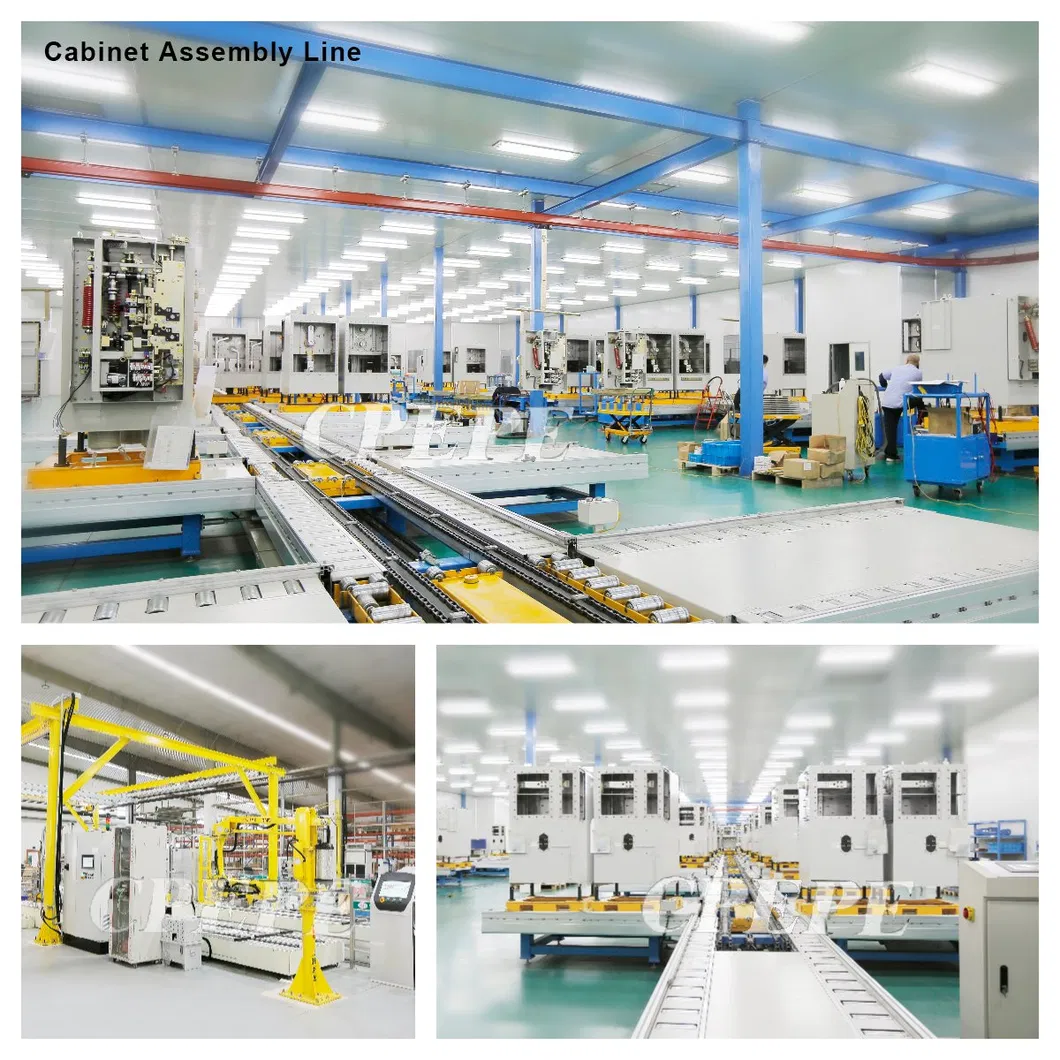

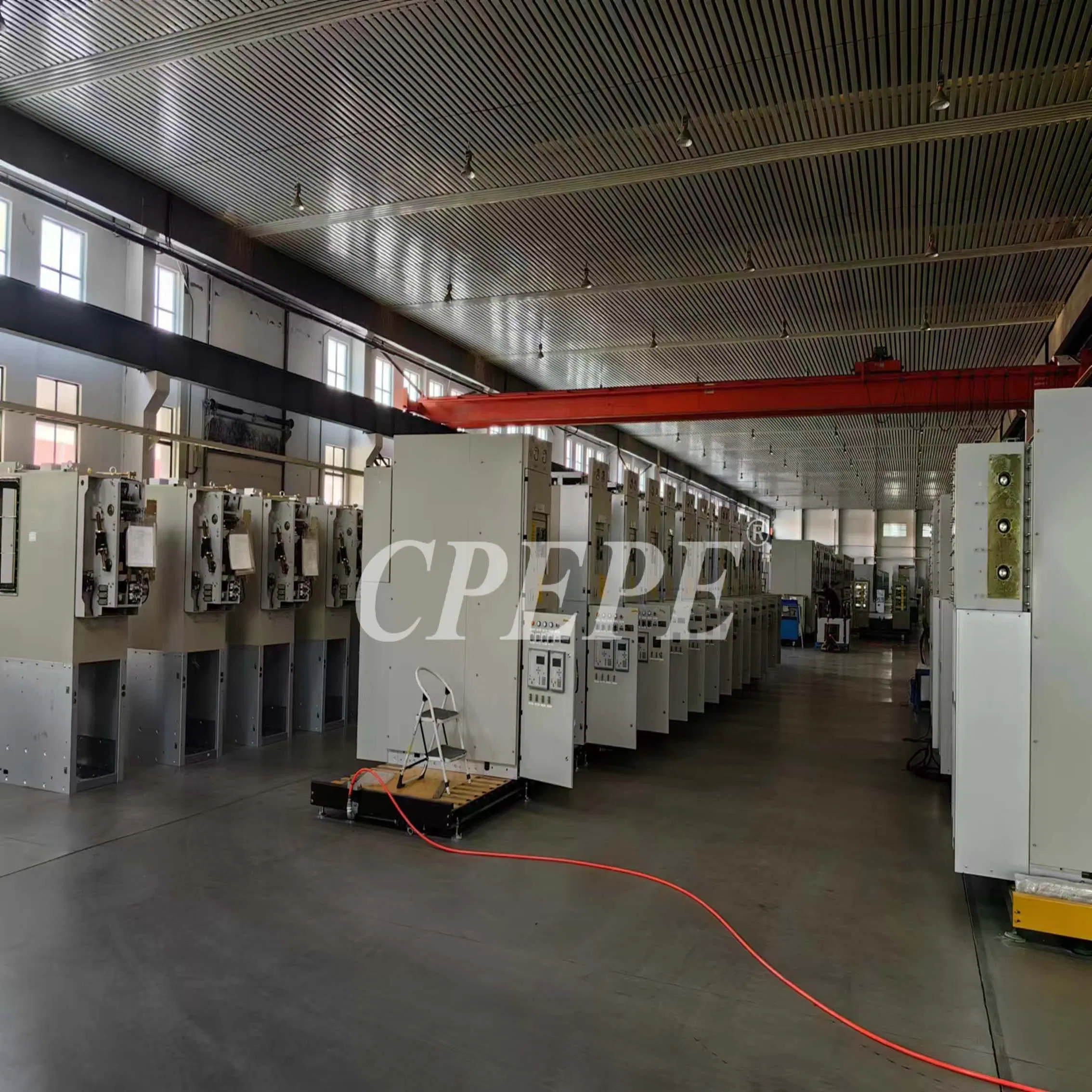

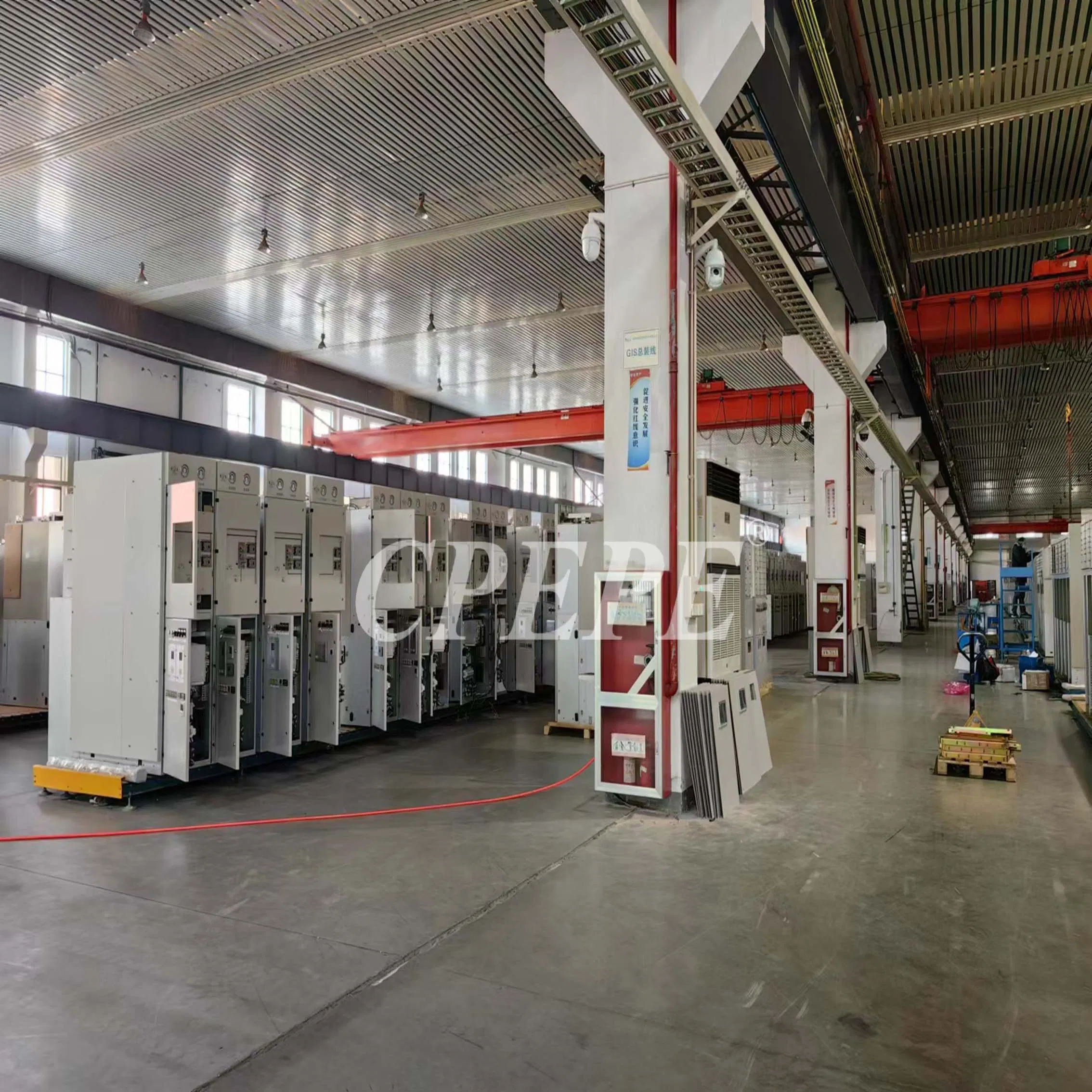

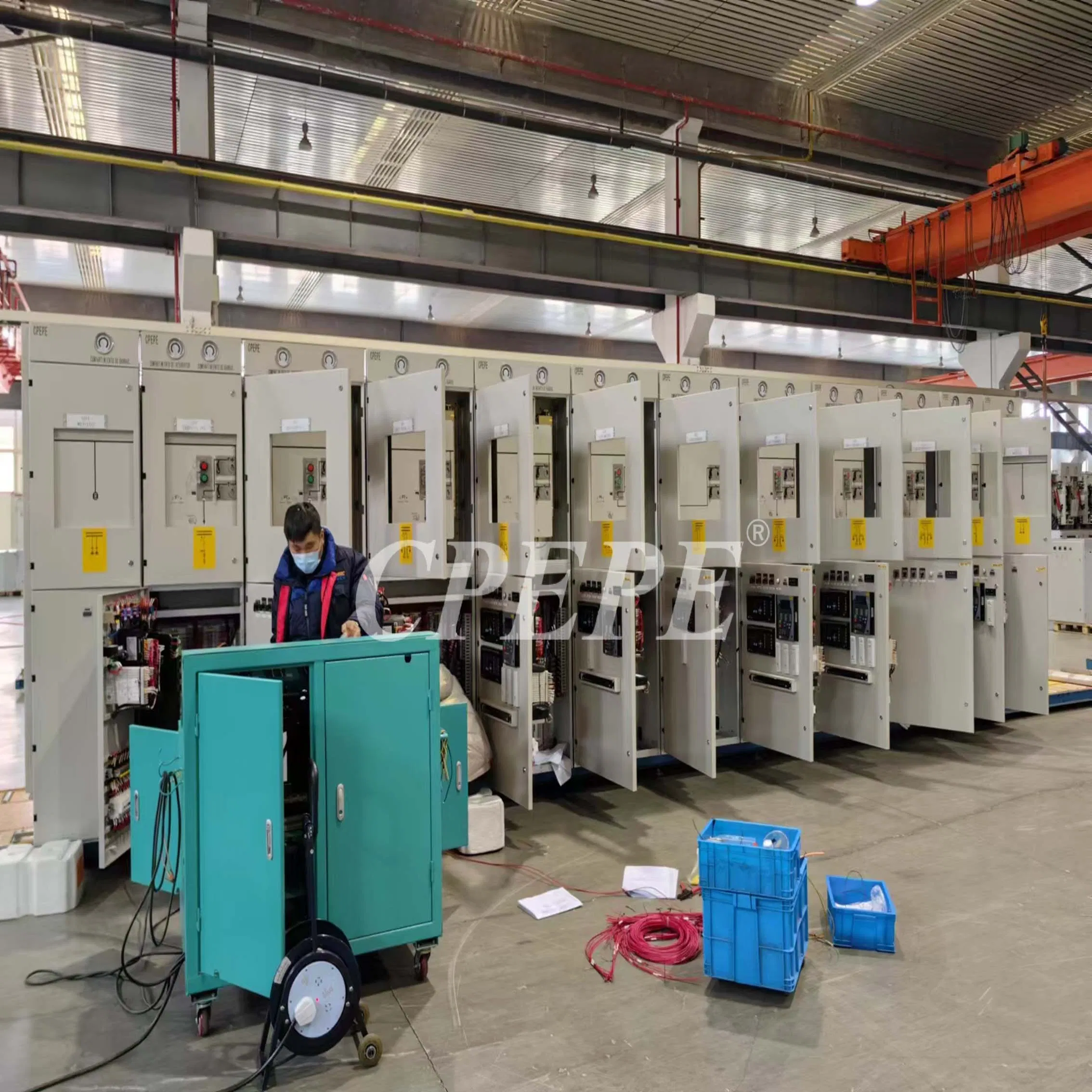

Workshops & Production Lines

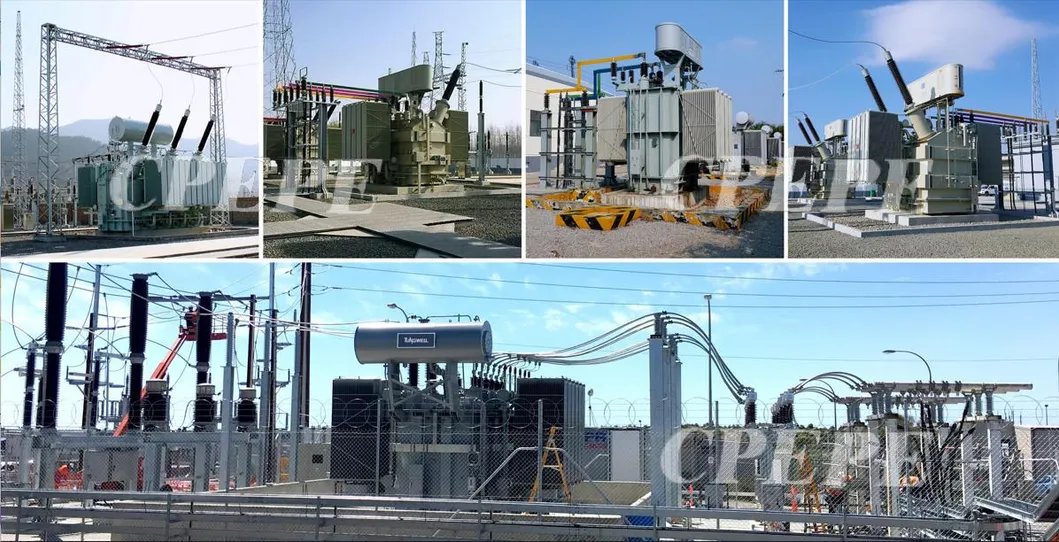

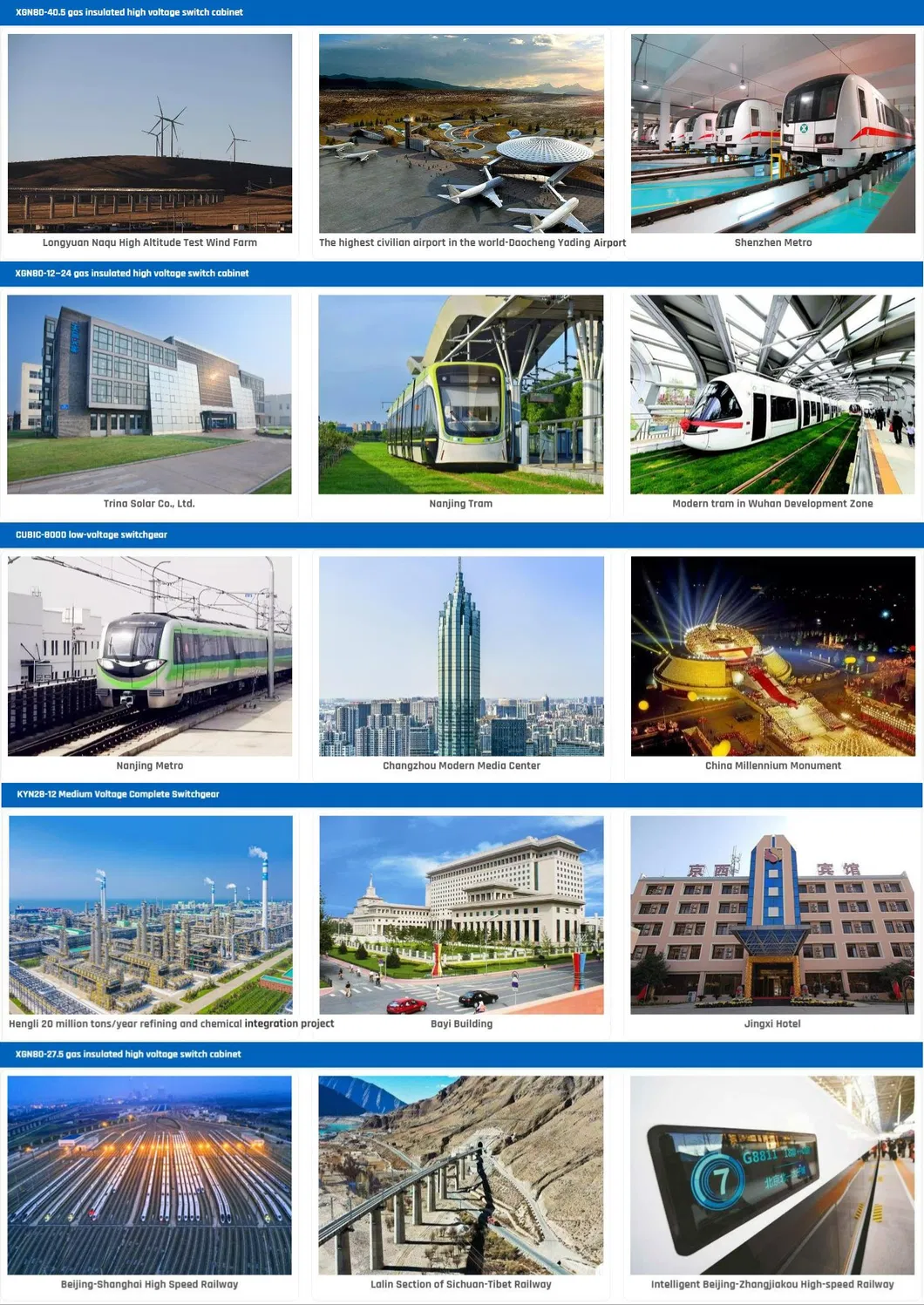

Typical Projects & Industries
Subway Industry: Shenzhen Metro, Changsha Metro, Nanning Metro, Xi'an Metro, Chengdu Metro, etc.
Petrochemical Industry: Hengli Chemical Fiber, Jurong Petrochemical, Juhua Group, Tianjin Bohai Chemical, etc.
Power Grid & Plants: Harbin Thermal Power, Ningxia Datang Wind Farm, China Resources Guangxi Wind Power, etc.
Metallurgy & Cement: Baosteel, Nanjing Iron and Steel, Anhui Conch, TCC, etc.
Oversea Markets: Indonesia, Russia, Malaysia, Iraq, Japan, Philippines, South Africa, Mexico, etc.
Frequently Asked Questions
Q1: What are your standard trade terms?
A: We support FOB, CIF, and EXW terms, which are all negotiable based on the project requirements.
Q2: What are the available payment methods?
A: Our standard term is T/T 30% as a deposit and 70% before shipment. Other arrangements are negotiable.
Q3: How long is the typical delivery lead time?
A: Delivery usually takes between 10 to 30 days after the deposit is confirmed, depending on the order volume.
Q4: What is the warranty period for the GIS equipment?
A: We offer a warranty of 12 to 24 months depending on the specific product type and application.
Q5: Do you provide OEM/ODM services?
A: Yes, comprehensive OEM and ODM services are available to meet specific technical requirements.
Q6: What is the minimum order quantity (MOQ)?
A: Our MOQ starts from 1 unit, though this may vary depending on the specific product category.
