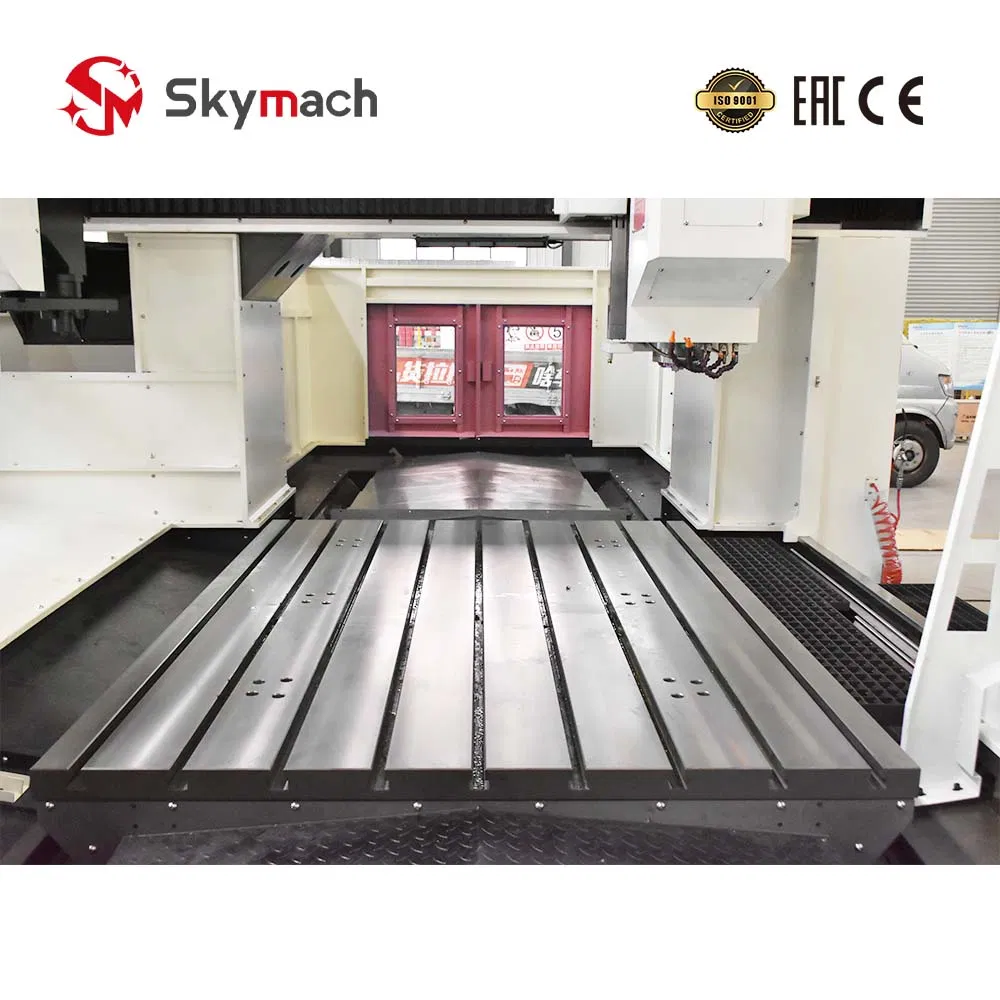

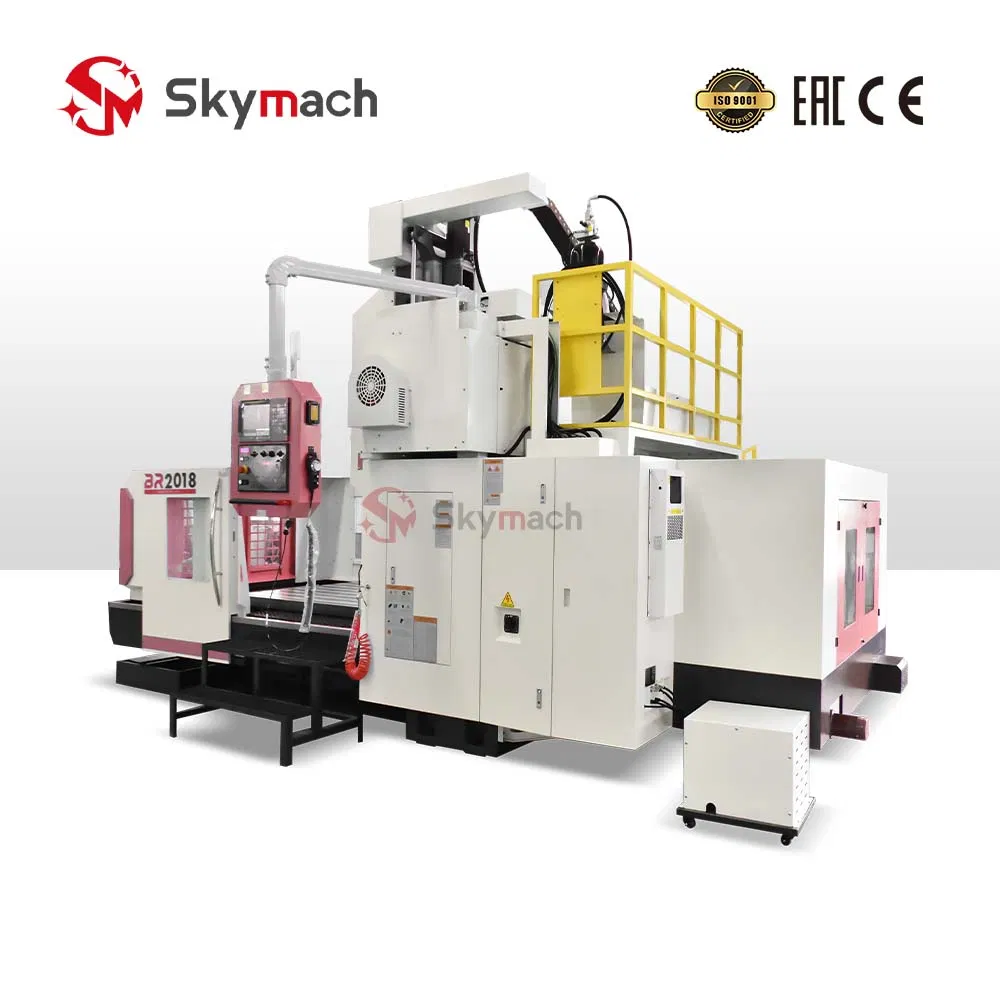

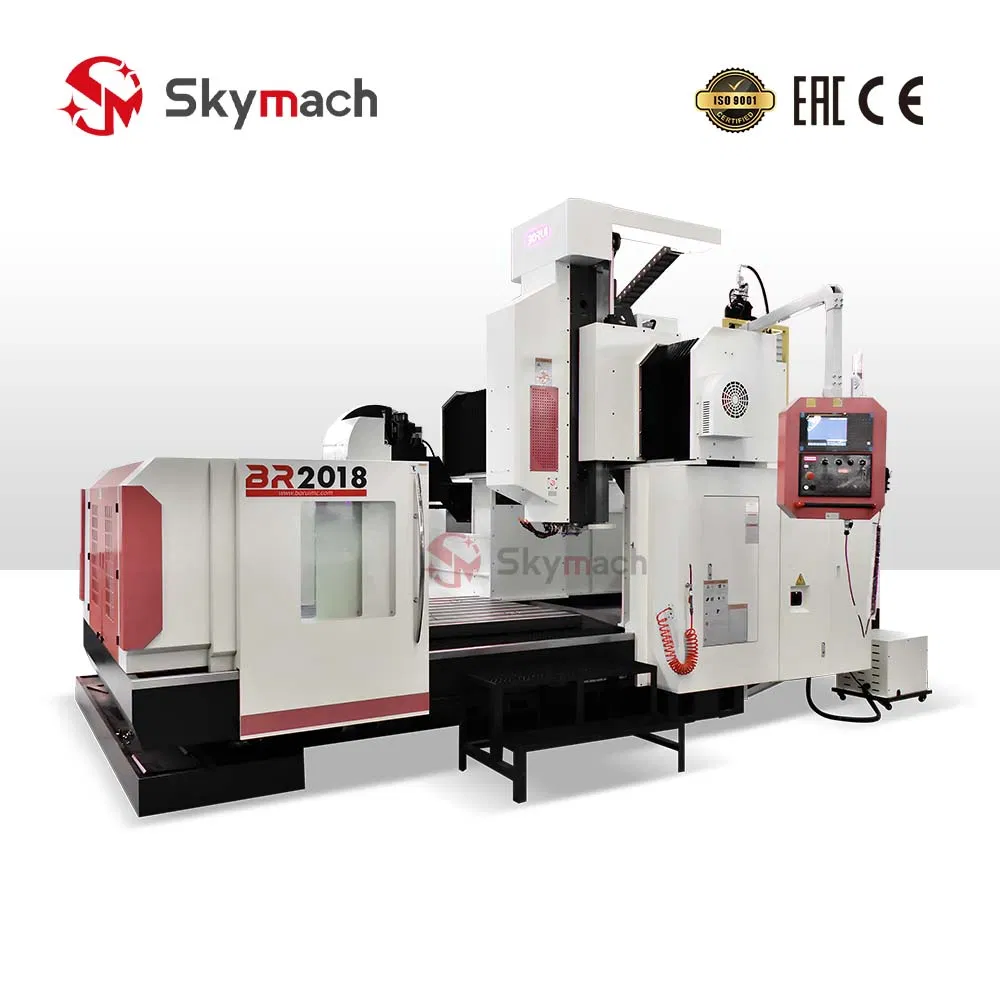

Br2018 Heavy-Duty Bt50 CNC Gantry Machining Center with Linear Guideways and Servo Motors and Fanuc Control
Br2018 Heavy-Duty Bt50 CNC Gantry Machining Center with Linear Guideways and Servo Motors and Fanuc Control
Br2018 Heavy-Duty Bt50 CNC Gantry Machining Center with Linear Guideways and Servo Motors and Fanuc Control
Br2018 Heavy-Duty Bt50 CNC Gantry Machining Center with Linear Guideways and Servo Motors and Fanuc Control
Br2018 Heavy-Duty Bt50 CNC Gantry Machining Center with Linear Guideways and Servo Motors and Fanuc Control
1 / 5
Br2018 Heavy-Duty Bt50 CNC Gantry Machining Center with Linear Guideways and Servo Motors and Fanuc Control
Br2018 Heavy-Duty Bt50 CNC Gantry Machining Center with Linear Guideways and Servo Motors and Fanuc Control
Br2018 Heavy-Duty Bt50 CNC Gantry Machining Center with Linear Guideways and Servo Motors and Fanuc Control
Br2018 Heavy-Duty Bt50 CNC Gantry Machining Center with Linear Guideways and Servo Motors and Fanuc Control
Br2018 Heavy-Duty Bt50 CNC Gantry Machining Center with Linear Guideways and Servo Motors and Fanuc Control

Br2018 Heavy-Duty Bt50 CNC Gantry Machining Center with Linear Guideways and Servo Motors and Fanuc Control

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year
Send Inquiry

Product Description

🔹 Basic Information Overview
Model NO.
BR2018
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Point to Point Control
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.005
Performance
High-End CNC Machine Tools
Certification
GS, CE, RoHS, ISO 9001
X, Y, Z Travel
2000*1900*800mm
Table Size
1600×2200mm
Max. Load
4500kg
Spindle Speed
6000rpm
Spindle Taper
Bt50
Control System
Fanuc, Siemens, Mitsubishi
HS Code
8457103000
📦 Product Description

BR2018 Heavy-Duty BT50 CNC Gantry Machining Center

This high-precision CNC Gantry Machining Center is equipped with linear guideways, high-performance servo motors, and advanced Fanuc control systems, designed for heavy-duty metal processing and high-end industrial applications.

CNC Gantry Machining Center 1
CNC Gantry Machining Center 2

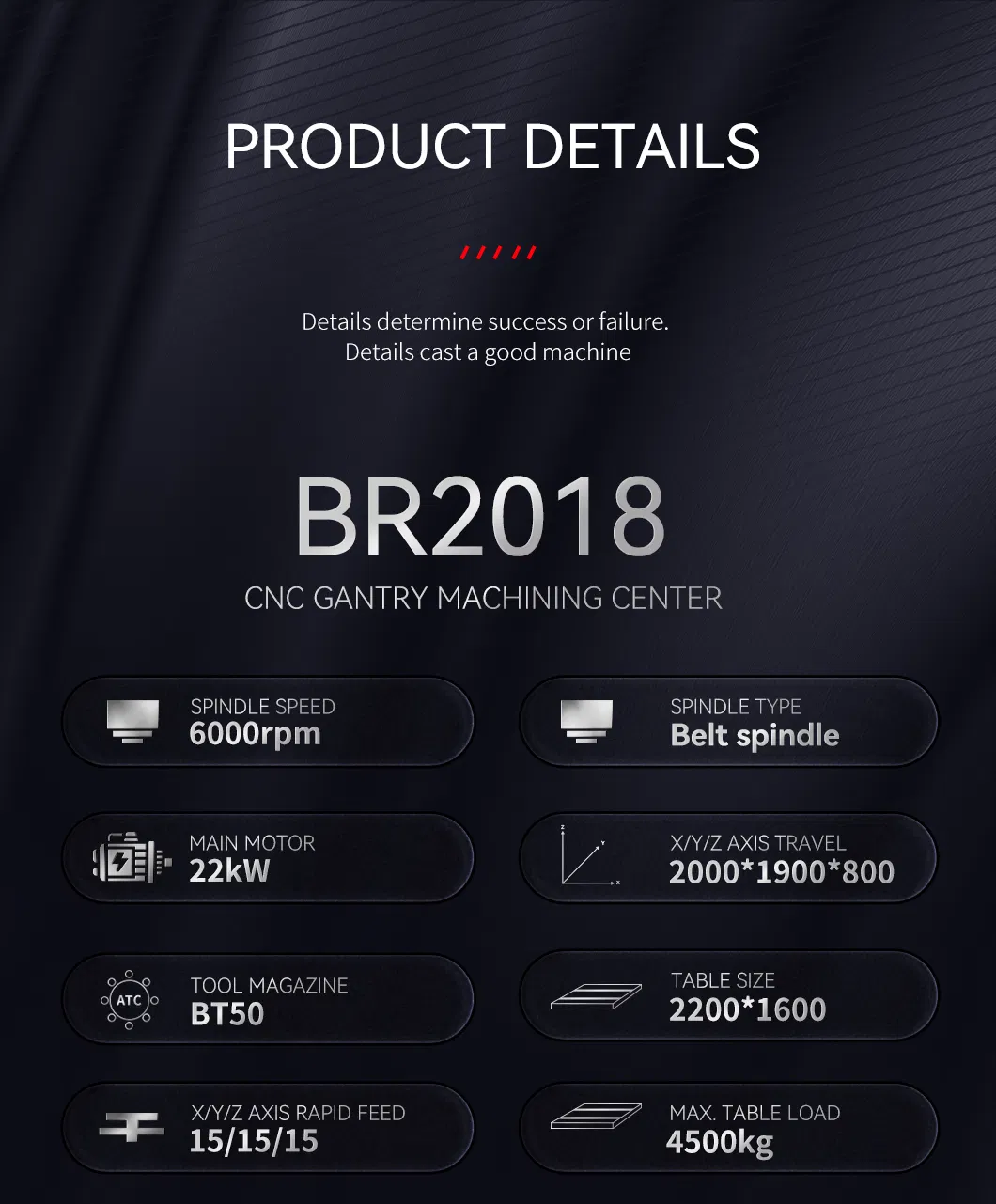

CNC Gantry Machining Center 3

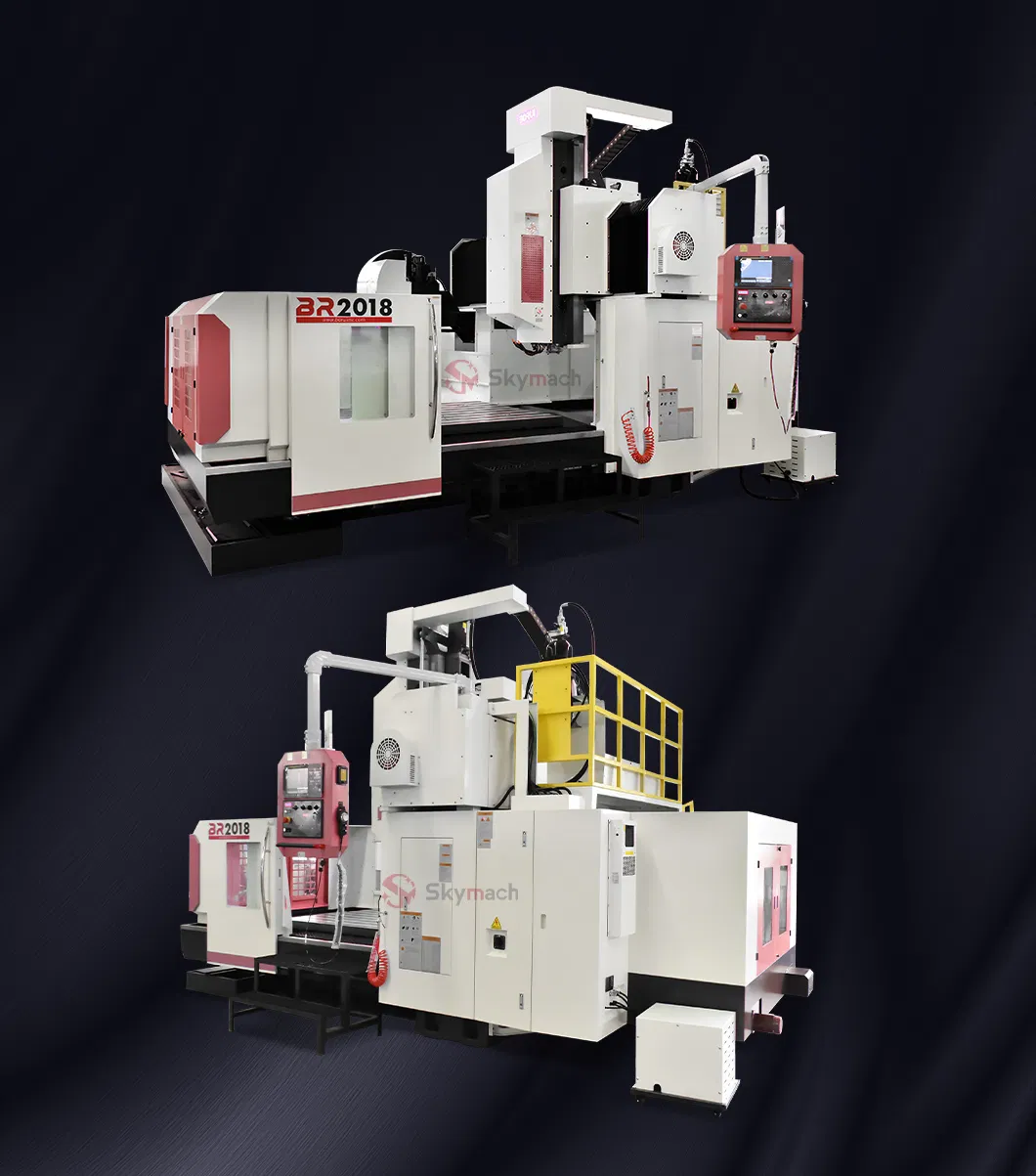

CNC Gantry Machining Center 4

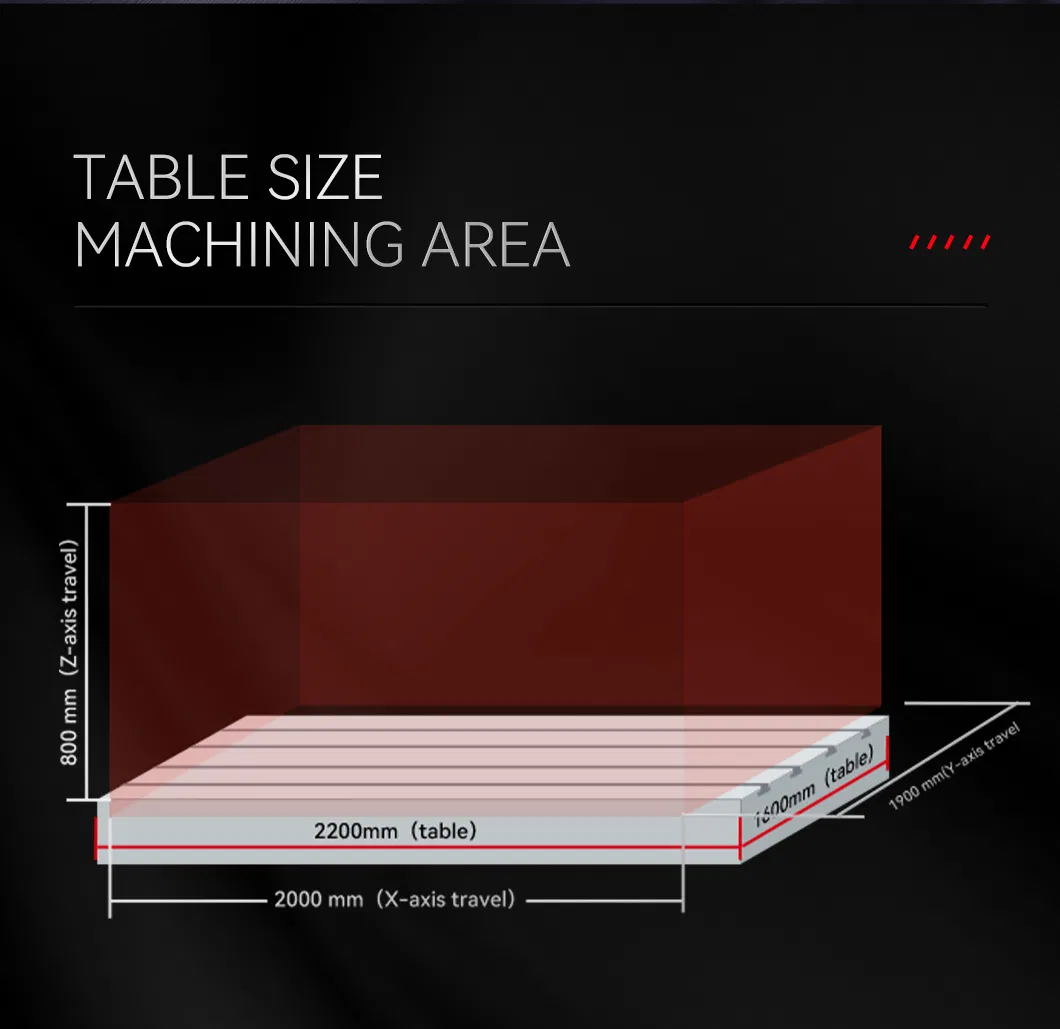

CNC Gantry Machining Center 5

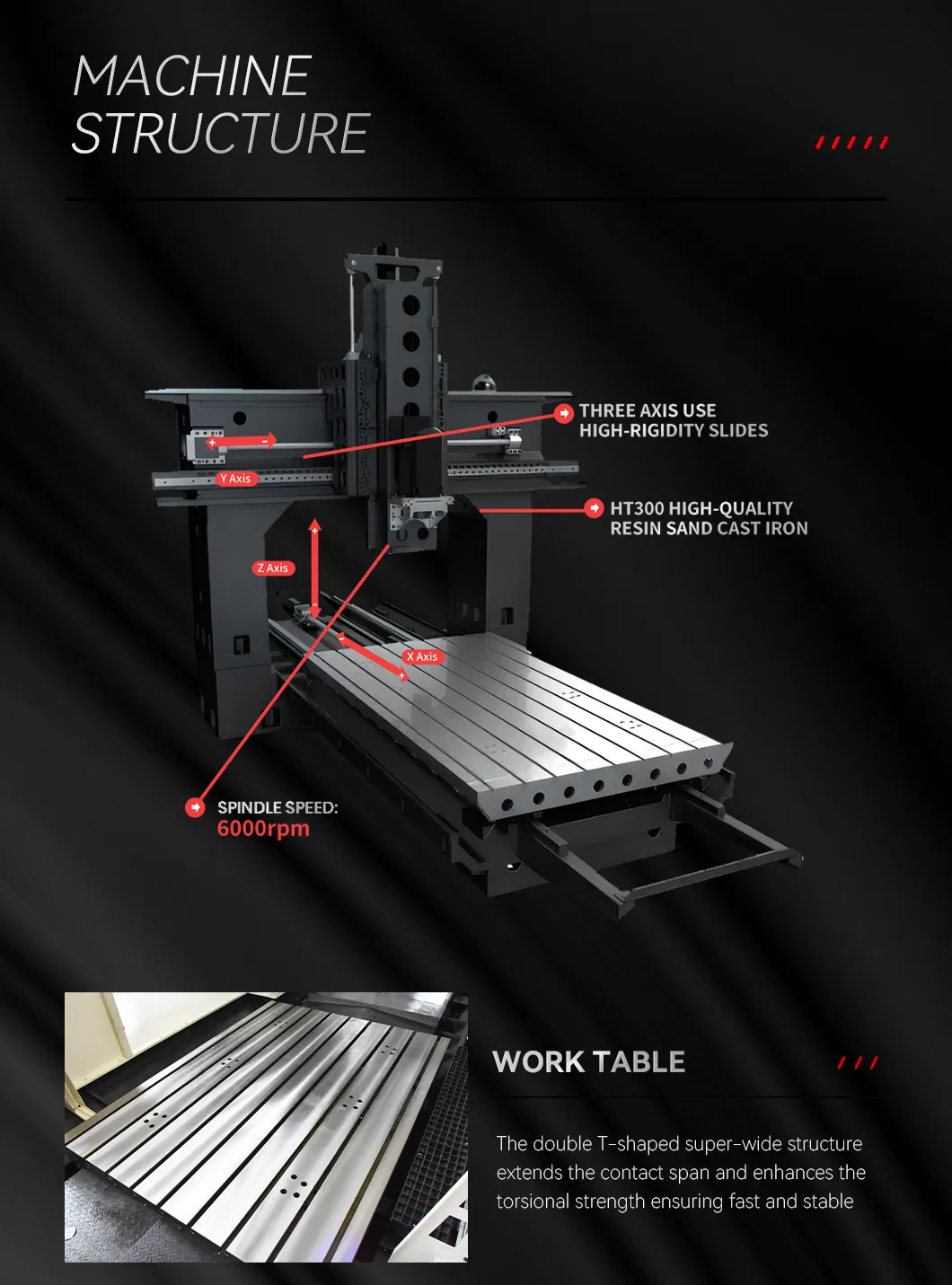

CNC Gantry Machining Center 6
⚙️ Technical Parameters
Item Description Specifications (BR-2018)
Worktable size (W x L) (mm)1600x2200
X axis travel (mm)2000
Y axis travel (mm)1900
Z axis travel (mm)800
Gantry width (mm)1900
Spindle to worktable surface (mm)100-1000
Workbench T-slots9-22x180
Spindle specificationsBT50 / 190mm
Spindle drive modeStandard Belt6000r/min (1.5:1)
ZF Reducer + Belt6000r/min (4:1)
Gear Head6000r/min (4.4:1)
Rapid feed speed (m/min)15
Cutting feed speed (m/min)10
X/Y/Z axis rail specsX: Roller 55/6; Y: Roller 55/4; Z: Rectangular
Spindle motor power22kw
Machine Weight (t)14.5
🔍 Component Details

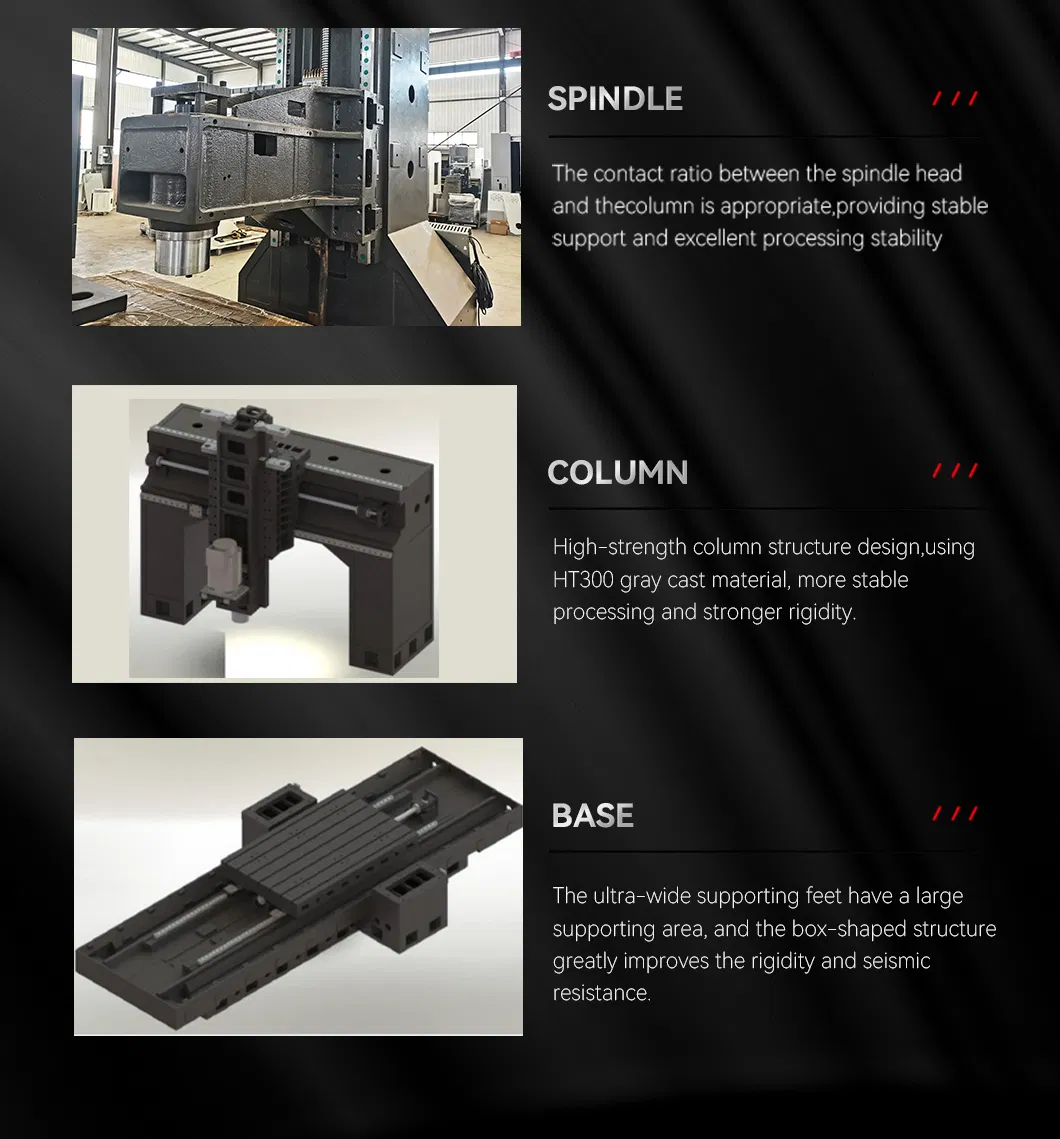

Component 1

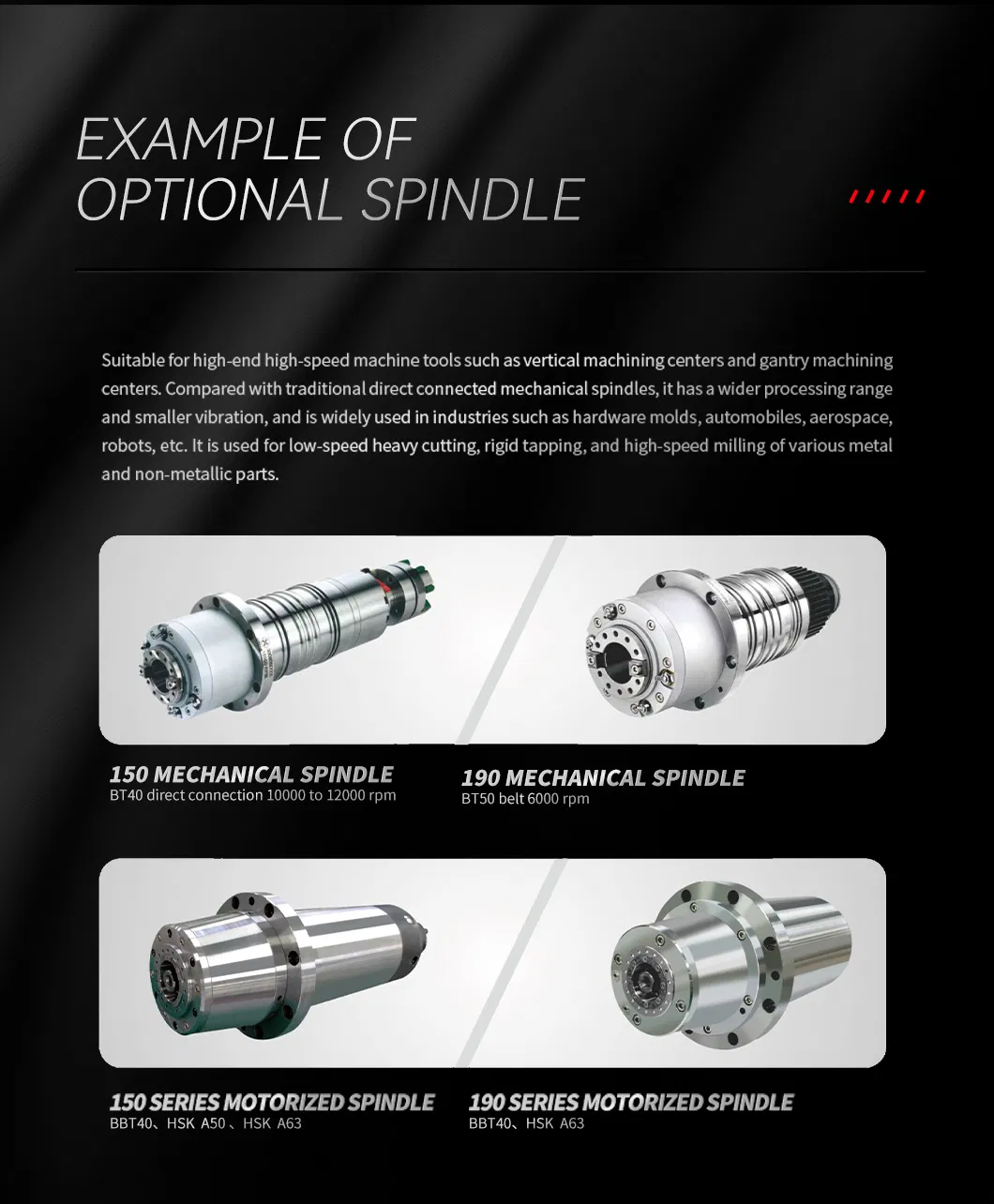

Component 2
Component 3
Component 4
Component 5

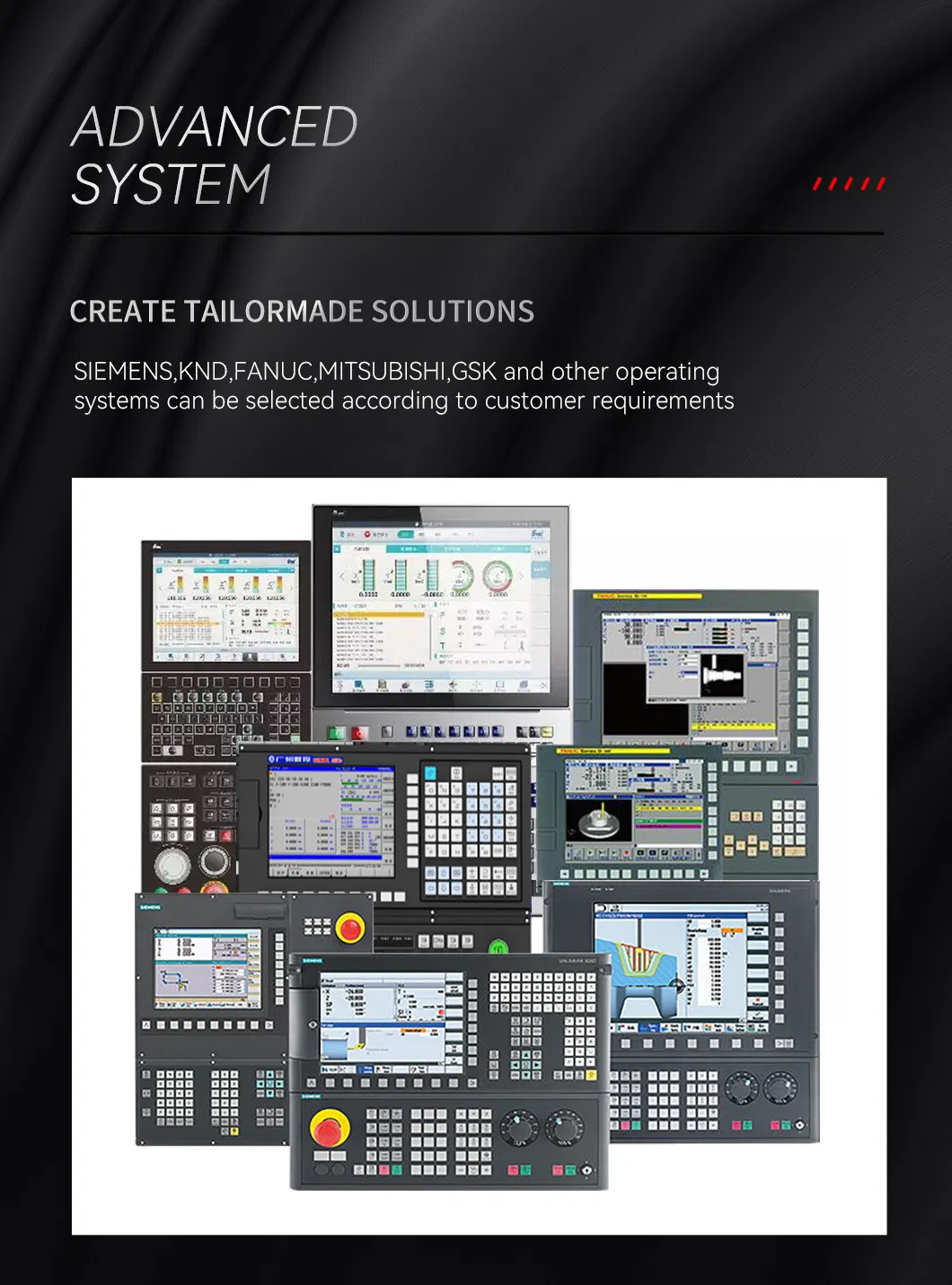

Component 6

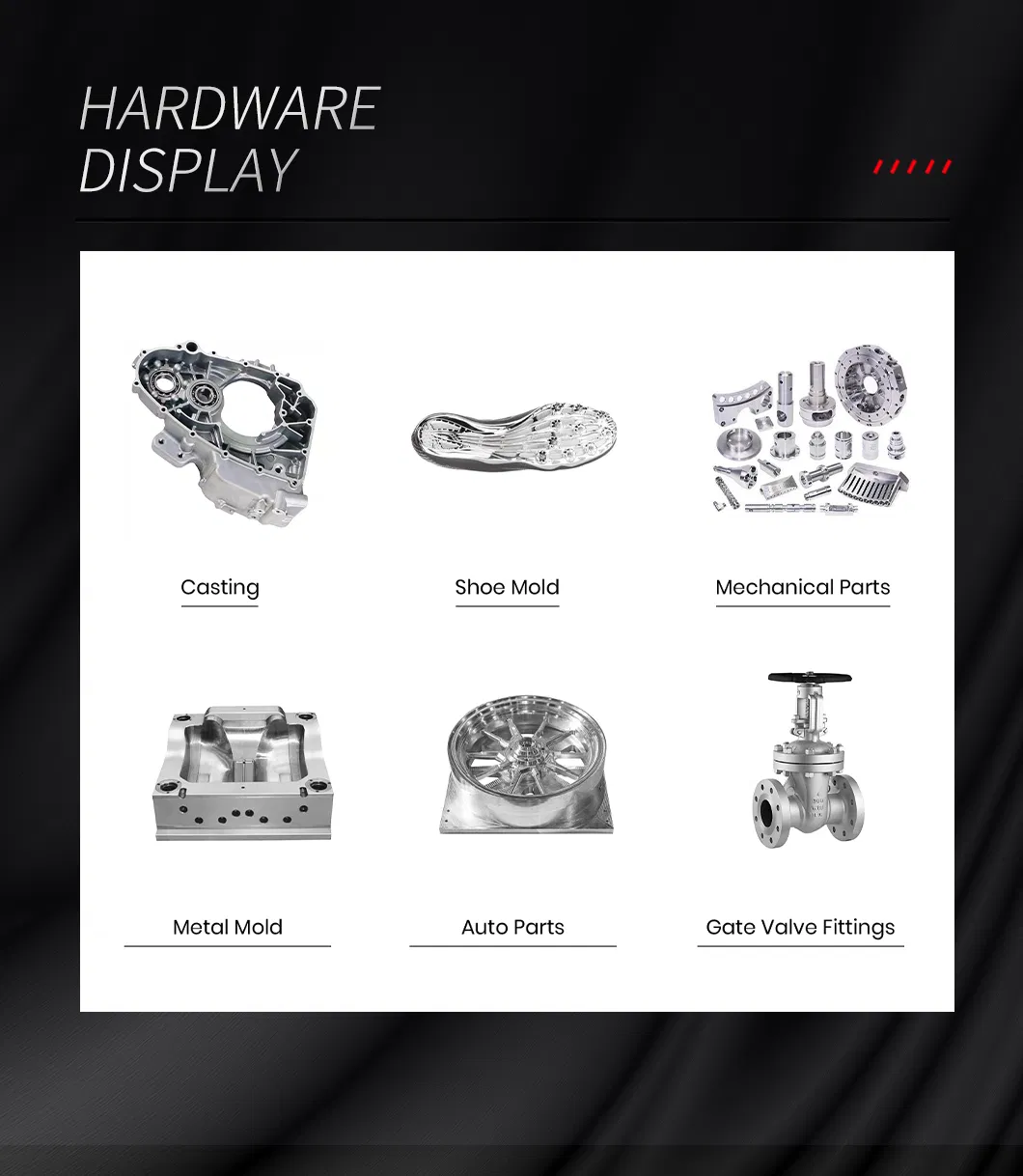

Component 7
Component 8
Component 9
Component 10
Component 11
❓ Frequently Asked Questions
1. How can I choose the most suitable machine?
Please provide your specific requirements or product drawings, and we can recommend the best model based on your technical needs.
2. What are the main product categories available?
We specialize in a wide range of CNC equipment, including CNC Lathes, CNC Milling Machines, Vertical Machining Centers, Radial Drilling Machines, and Gantry Machining Centers.
3. What international trade terms do you support?
We support standard international trade terms including FOB, CFR, and CIF.
4. What are the standard payment terms?
Typically, a 30% initial payment is required upon ordering, with the 70% balance due before shipment. Irrevocable LC at sight is also acceptable.
5. What is the Minimum Order Quantity (MOQ)?
The MOQ is 1 set for most CNC machinery.
6. Can I visit the production facility?
Yes, visits are welcomed to inspect the machinery and production quality firsthand. Please coordinate in advance for scheduling.
