Product Description

🔹 Product Description

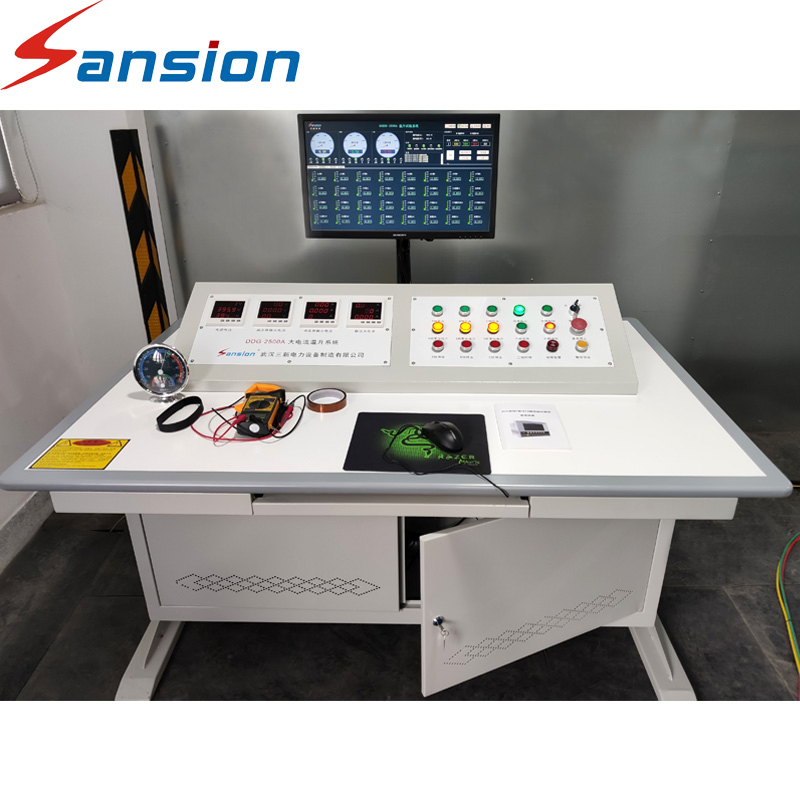

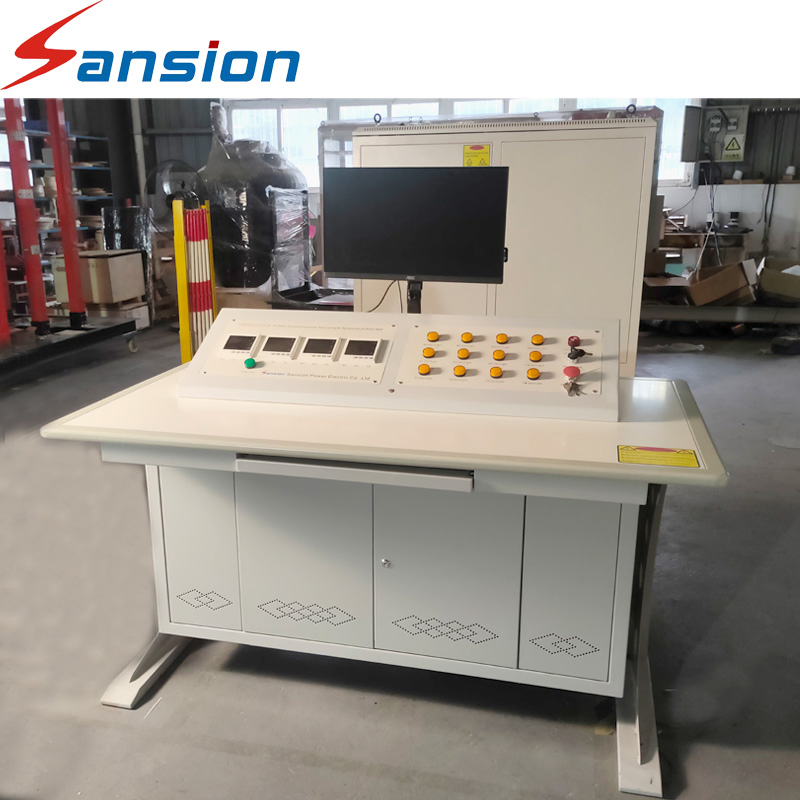

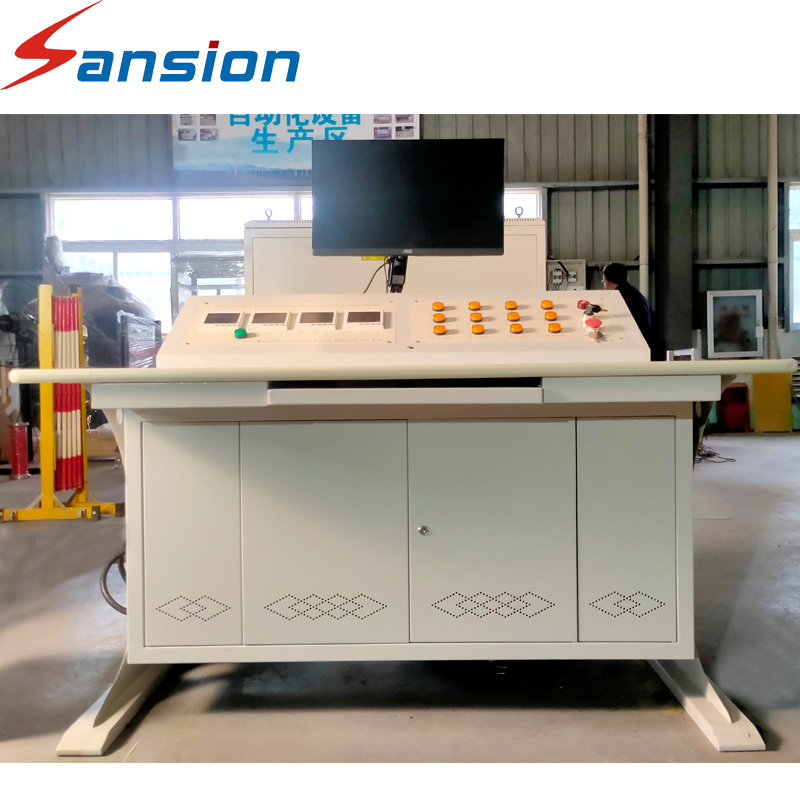

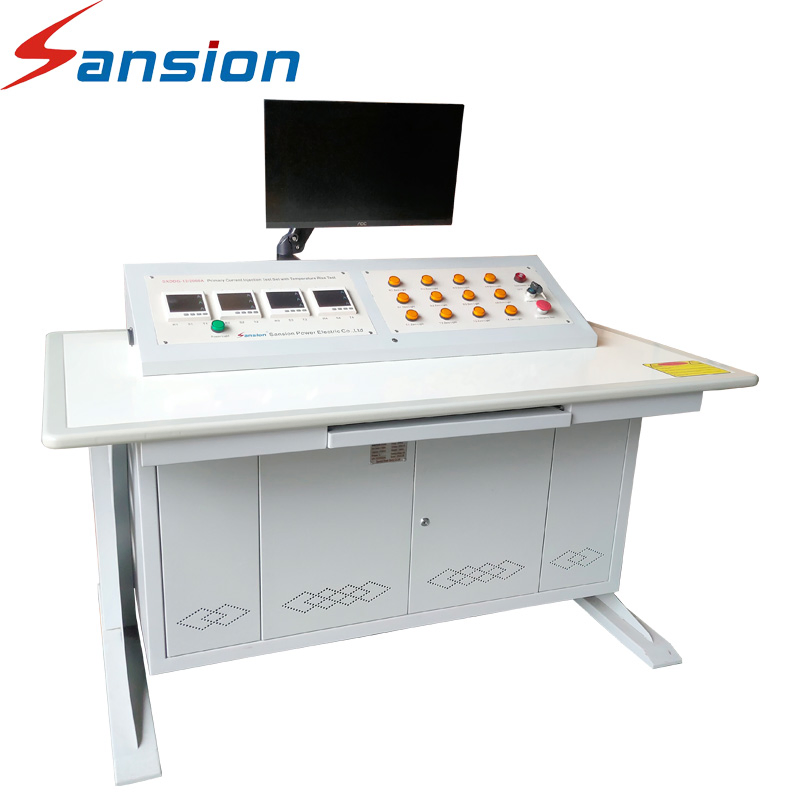

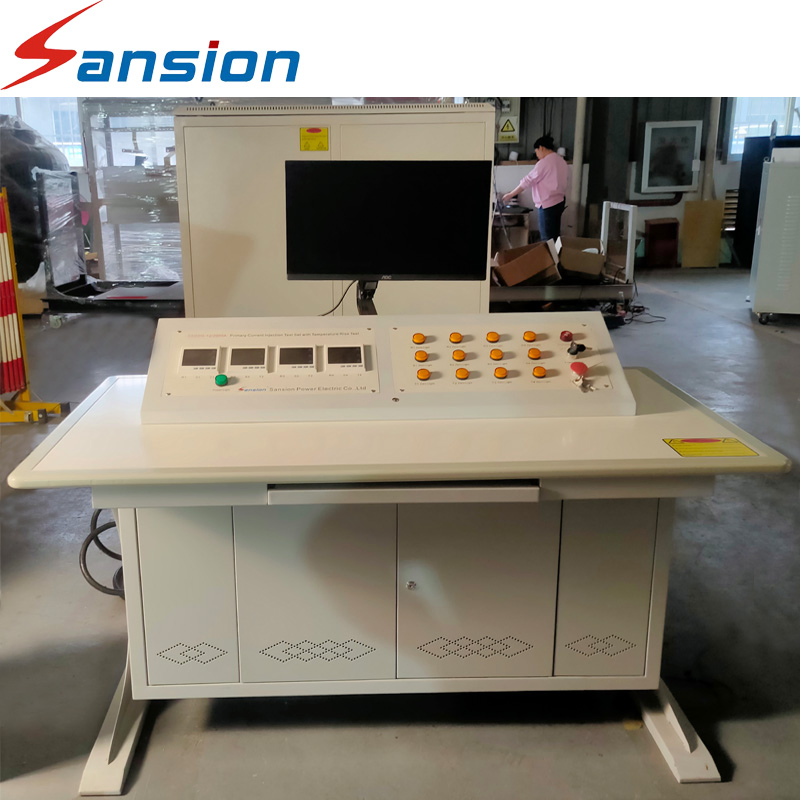

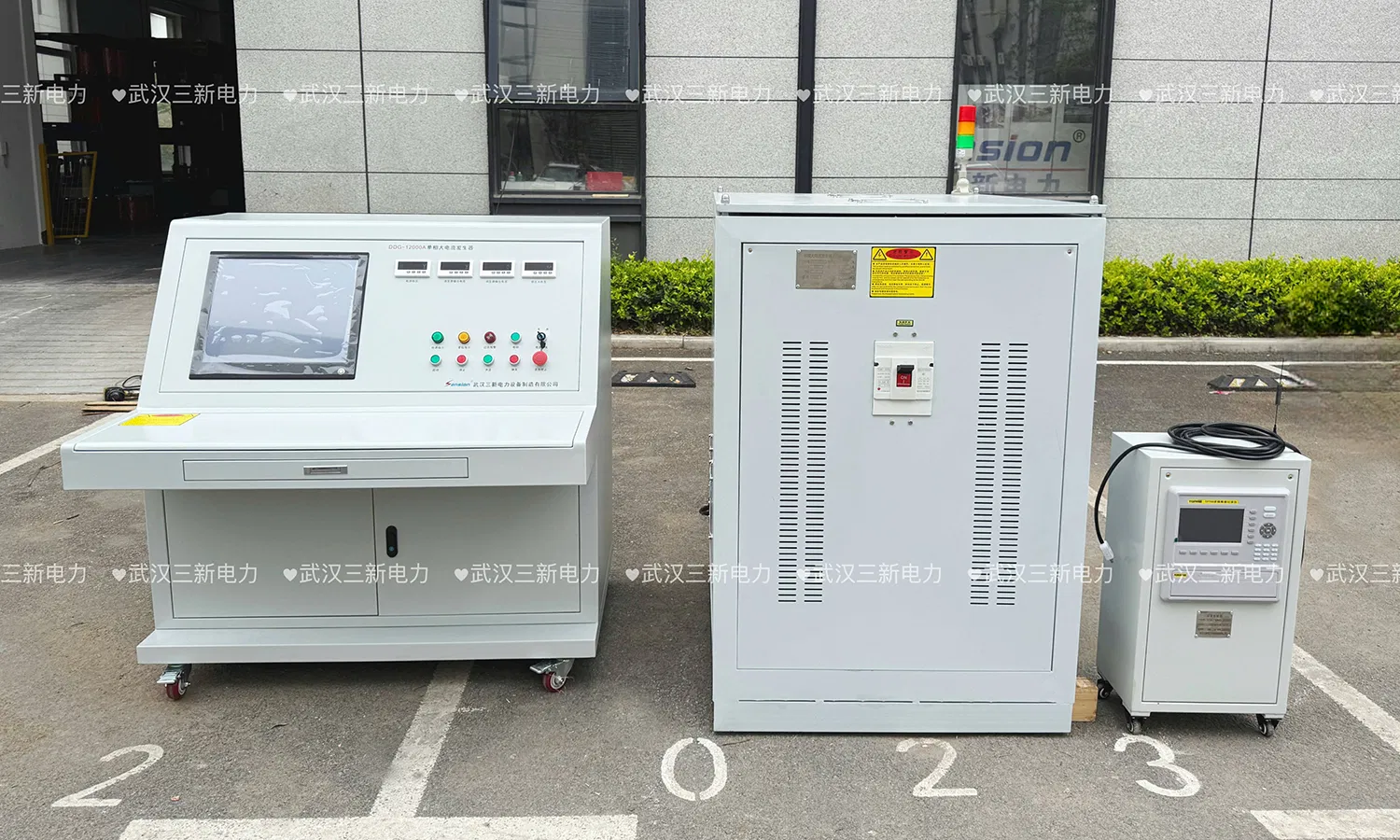

Three-Phase Primary Current Injection System for HV/MV Switchgear Testing

The DDG Series Primary Current Injection Test Set is specifically engineered for current load tests and temperature rise tests on various circuit breakers, switch gears, CT/PT, and other electrical equipment. This system is widely utilized across power divisions and industrial mining enterprises for reliable equipment verification.

⚙️ Features

✔ Intuitive Reading: Adopts a digital meter head displaying current, voltage, and temperature factors directly for convenient observation.

✔ Accurate Measurement: High precision measurement ensuring reliable and accurate test values.

✔ Digital Protection: Fully digitized processing for overcurrent protection and timing settings.

✔ Operating Modes: Supports both manual and automatic operation.

✔ Intelligence: Capable of automatically generating performance curves and standard test reports.

✔ Current Recovery Tracking: Automatically adjusts and tracks current to set levels as circuit impedance changes during heating.

✔ Temperature Inspection: Supports up to 32 inspection channels to record and generate temperature rise curves automatically.

✔ Switch Protection: Measures action time for switchgear and thermal relays via contact or current on/off discrimination.

📊 Technical Specifications

◈ Input AC two-phase 380V 50Hz

◈ Output single-phase 0-20kA AC high current (Accuracy > 0.2 level)

◈ Standard sine wave output with ripple factor < 0.3%

◈ Output opening voltage: 10V / 15V / 20V

◈ Current Stability: 0.2% | THD: < 1%

◈ Protection Settings: Overcurrent, Overvoltage, Overheating

◈ Time Measurement: 0.01S - 99999.99S (Accuracy: 0.001S)

◈ Temperature Rise Range: 10-800 ℃ (12/24/48/64 channels)

Model	Rated Capacity (KVA)		Rated Input		Rated Output
Model	Regulator	Injector	Current (A)	Voltage (V)	Current (KA)	Voltage (V)
DDG-3/500	3	3	13.6	220	0.5	6
DDG-9/1500A	9	9	40.0	220	1.5	6
DDG-18/3000	18	18	45.0	400	3	6
DDG-24/4000	24	24	60.0	400	4	6
DDG-30/5000	30	30	75.0	400	5	6
DDG-90/15000	90	90	225.0	400	15	6
Custom designs available based on technical requirements.
