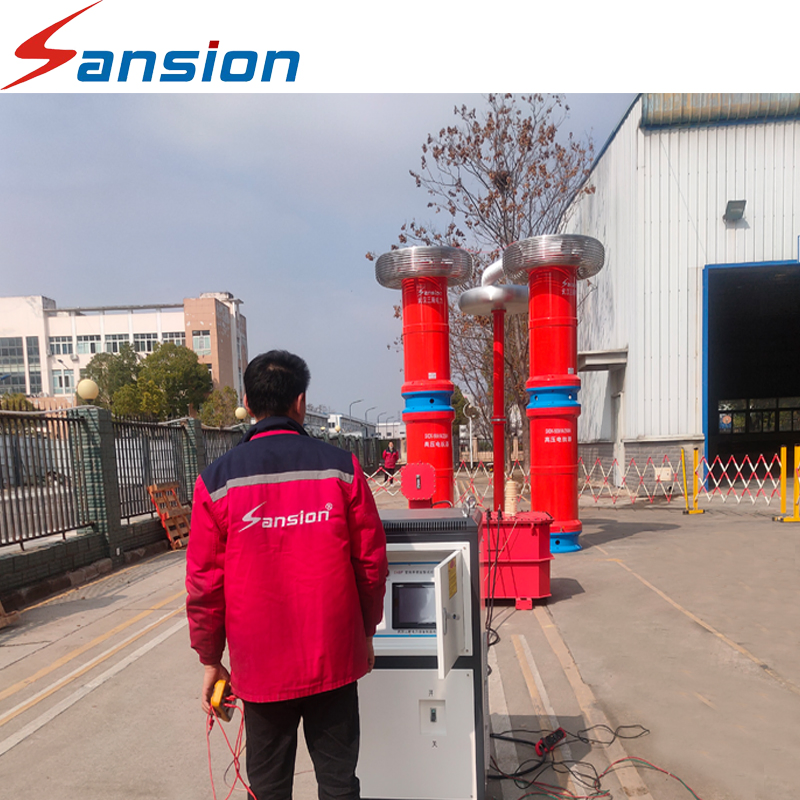

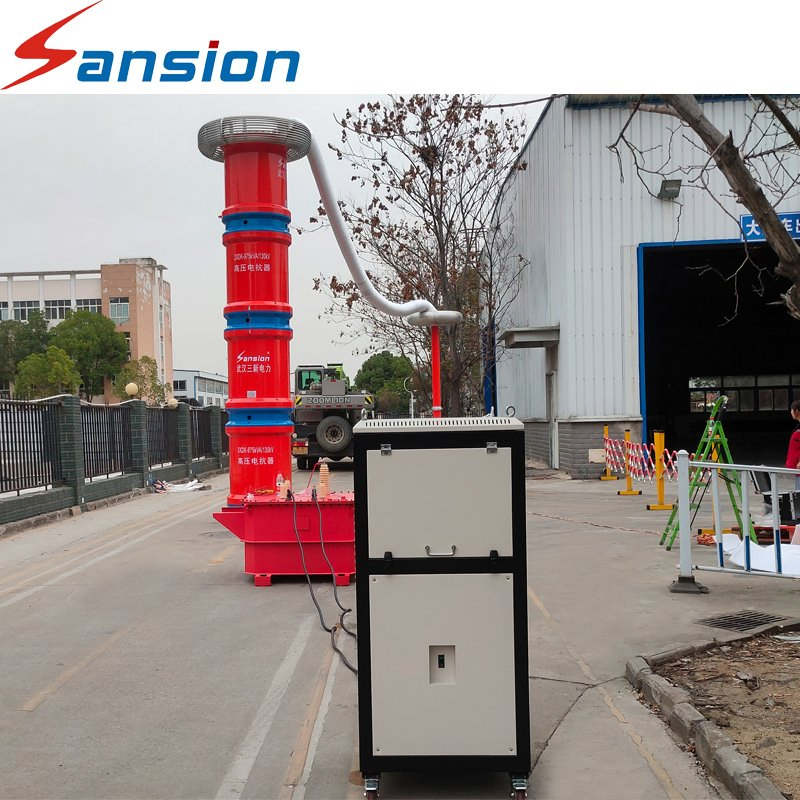

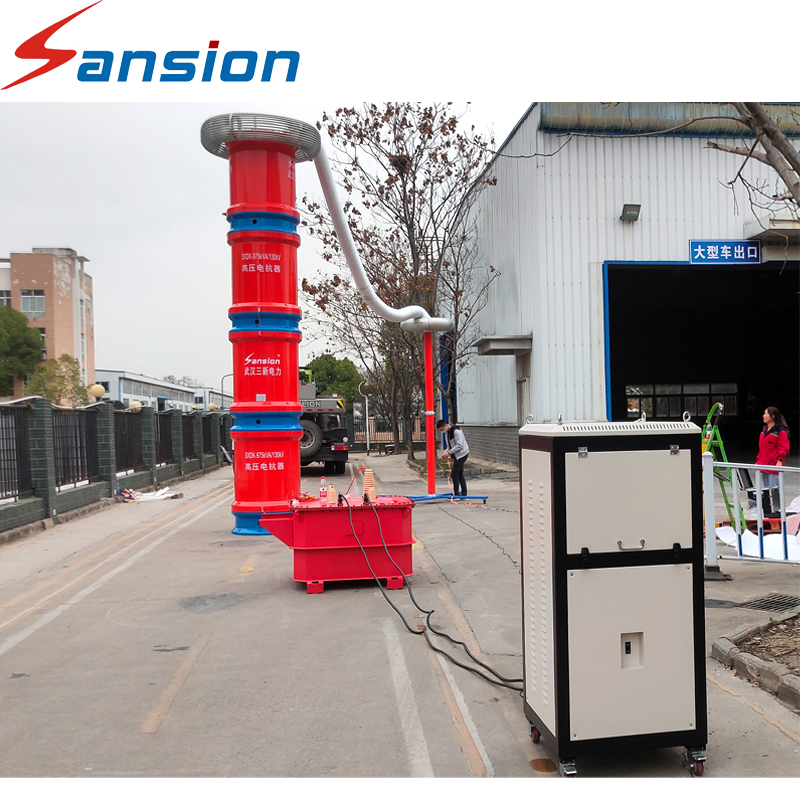

HV AC Series Resonance Test System
The series resonant test set is specifically engineered for AC withstand testing of substation electrical equipment ranging from 10kV to 500kV.
Key Features:
- Compact and portable design for field operations.
- Real-time LCD display for test data, status, and operational steps.
- Minimal temperature rise at rated load with high-strength dry-type epoxy casting.
- Compatible with standard 220V or 380V single-phase power sources.
- Versatile reactors for multi-purpose testing applications.
- Comprehensive protection including over-current, over-voltage, IPM, and discharge protection.
- Integrated printing capability for test results.
Applications
Power Transformers
High Voltage Cables
GIS (Gas Insulated Switchgear)
Insulators & Switchgear
CT/PT Testing
Generator Testing
Technical Configurations
| Model |
Test Object |
AC Power |
Transformer |
Reactor |
Divider |
| SXBP-27/54/108-108 |
35KV Transformer / 10KV Cable 2000m |
10KW |
10KW |
27KV/1A (4 Units) |
120KV |
| SXBP-54/108/216-216 |
110KV GIS / 35KV Cable 1500m |
15KW |
15KW |
65KV/2A (4 Units) |
300KV |
| SXBP-65/130/260-520 |
110KV GIS / 110KV Cable 800m |
30KW |
30KW |
45KV/1A (6 Units) |
200KV |
Technical Note: If the capacity of your equipment is small or the voltage is low, additional reactors or dividers can be added to customize the capacity and test voltage for specific requirements.
