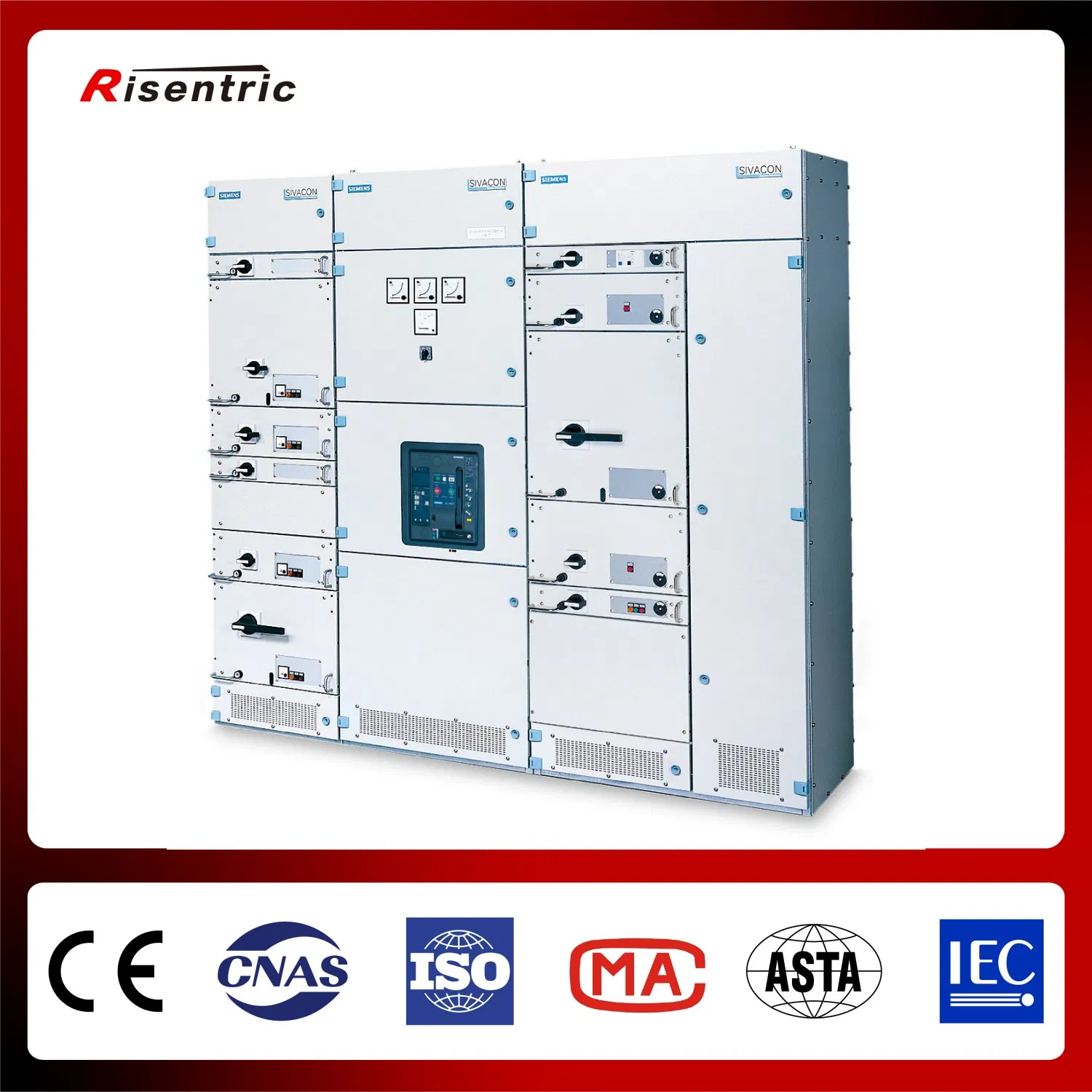

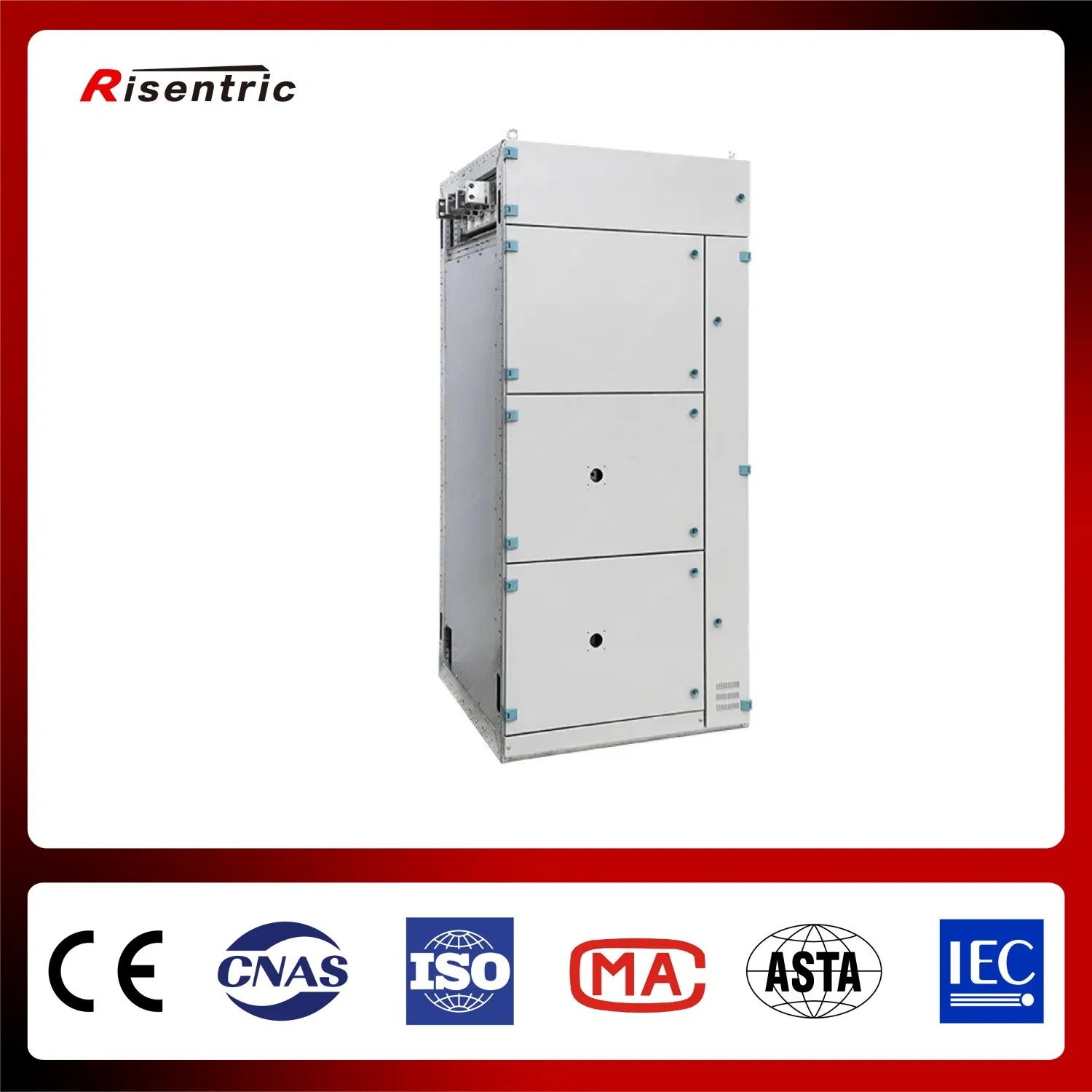

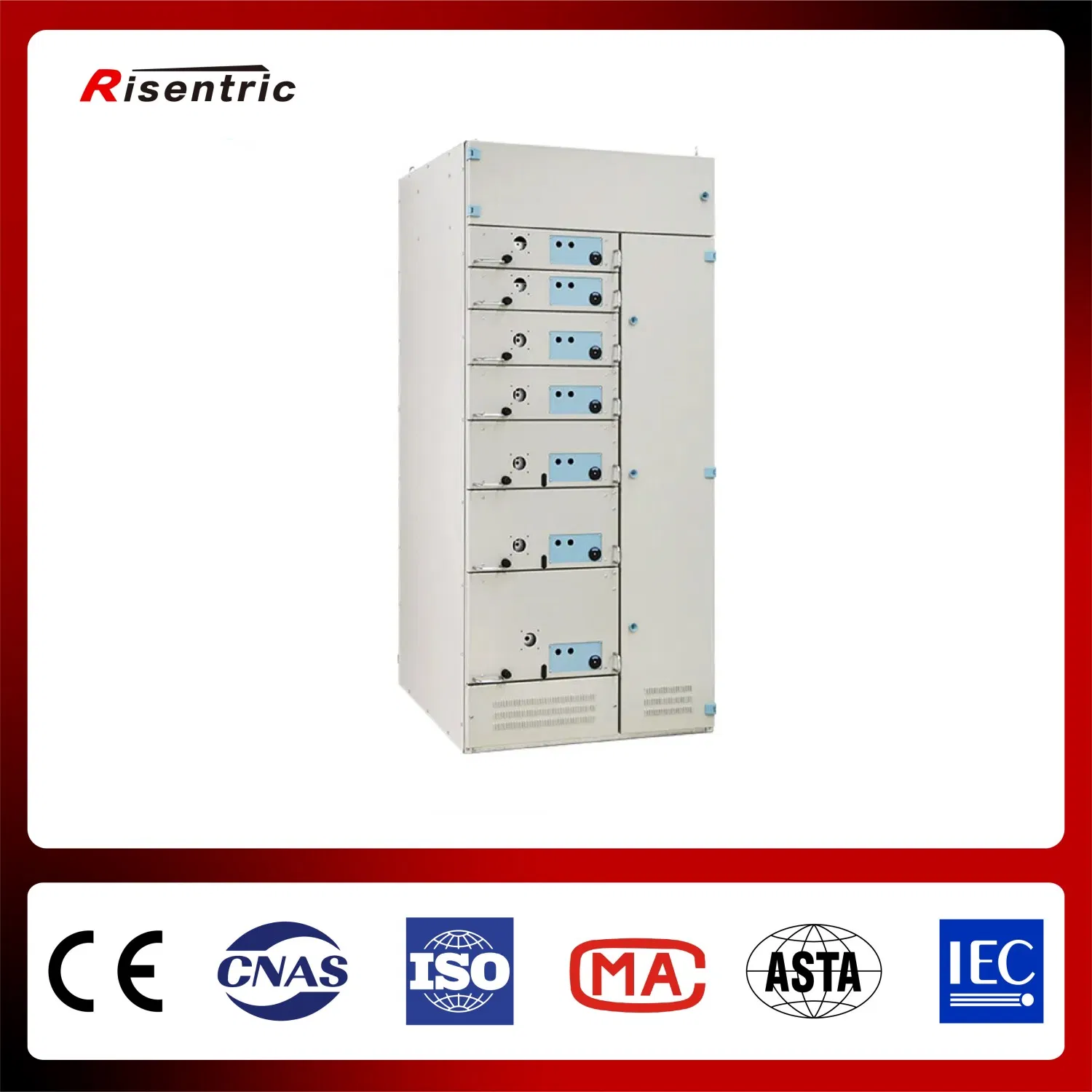

SIVACON 8PT AC low-voltage switchgear is an advanced type of low-voltage switchgear designed with world-class technology. It incorporates circuit breaker technology, fixed-mounted technology, withdrawable technology, and plug-in technology. With high safety, reliability, and flexibility, it is widely used in the construction industry and industrial technology fields. After full intelligent integration, SIVACON 8PT can be used as an intelligent power distribution center, an intelligent motor control center, and a centralized monitoring system for power and lighting.
This equipment is suitable for power engineering, high-rise buildings, large-scale facilities, institutions, hospitals, underground infrastructure, and industrial and mining enterprises. It can be applied to systems with rated currents up to 7400A, serving as power distribution devices for electrical and auxiliary systems, power centers and main distribution equipment, building power distribution units, and on-site power distribution devices in production facilities.

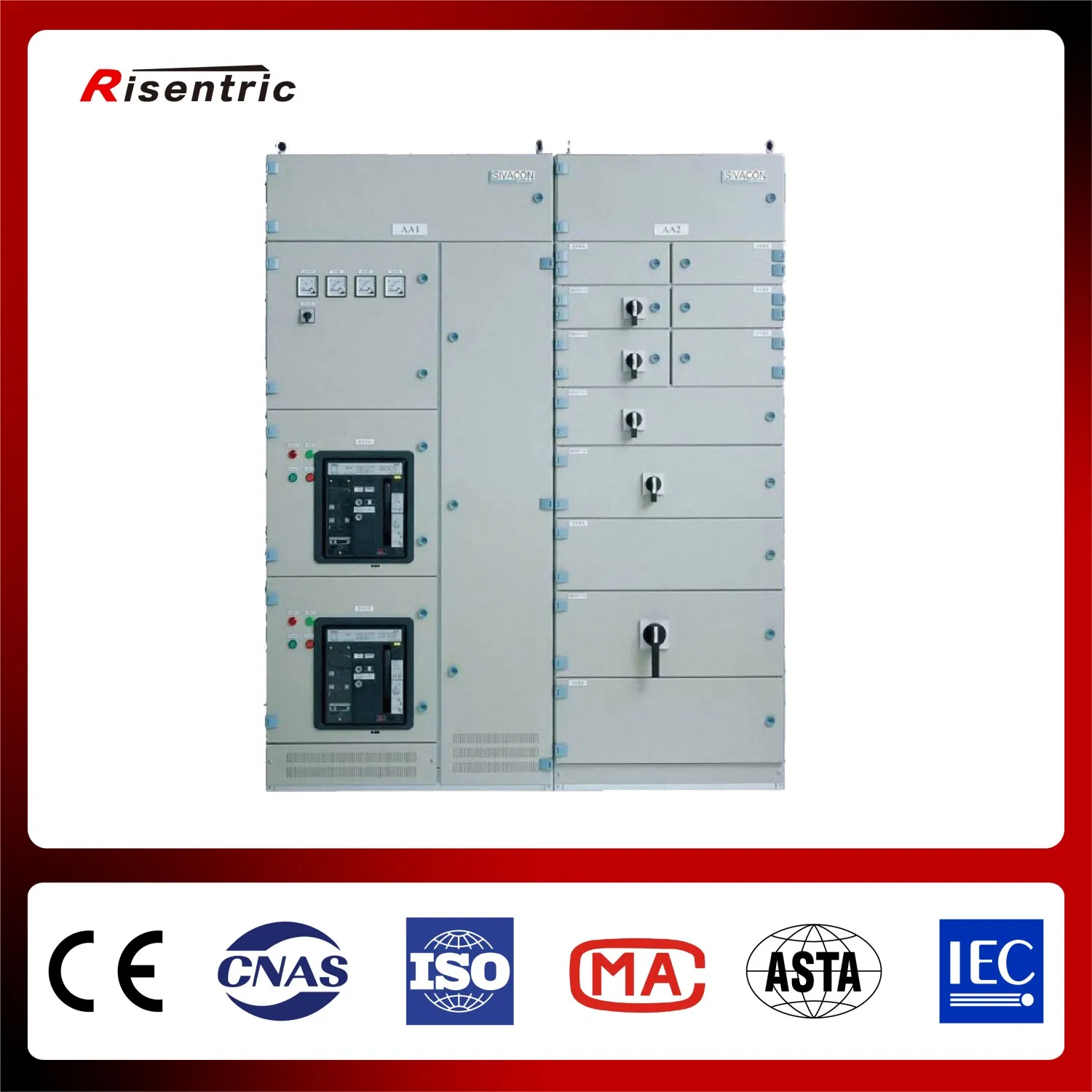

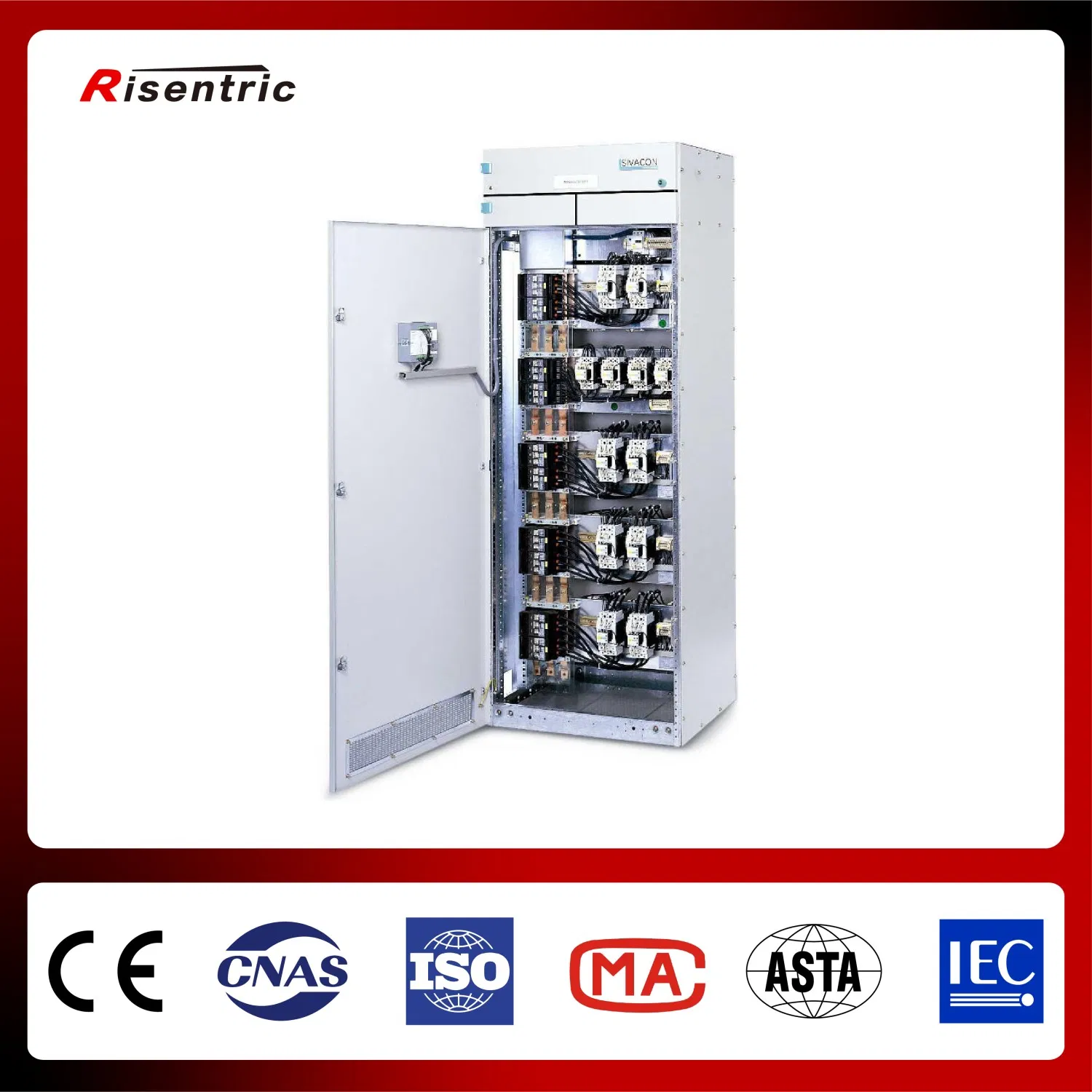

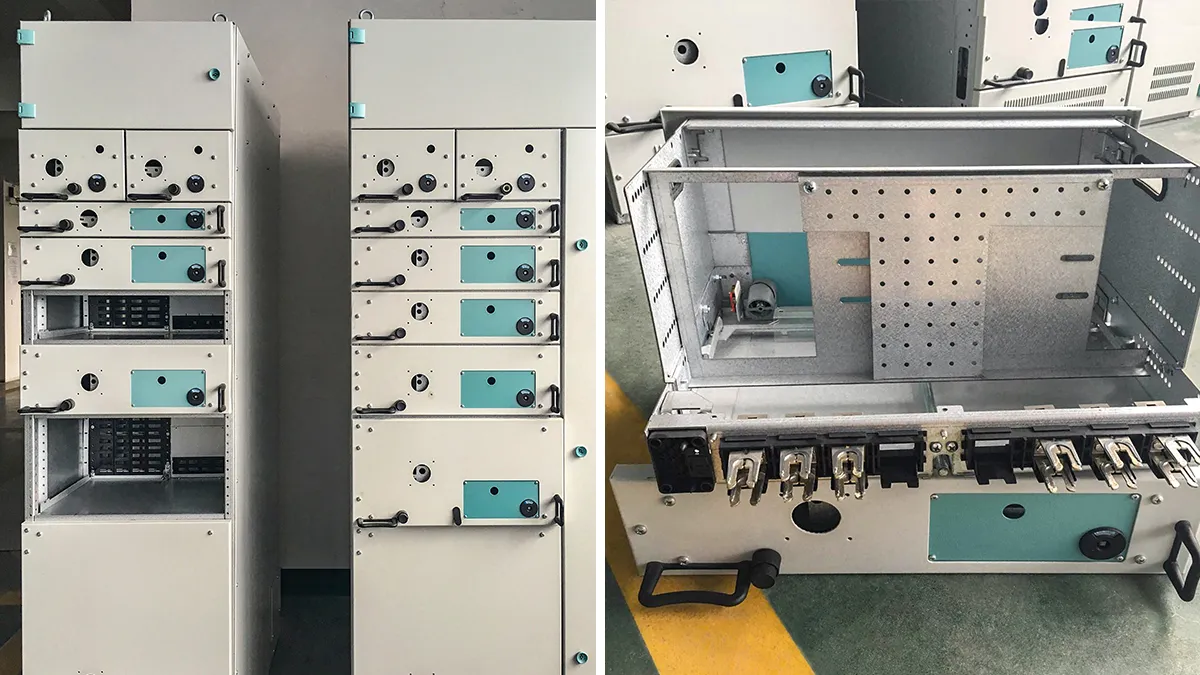

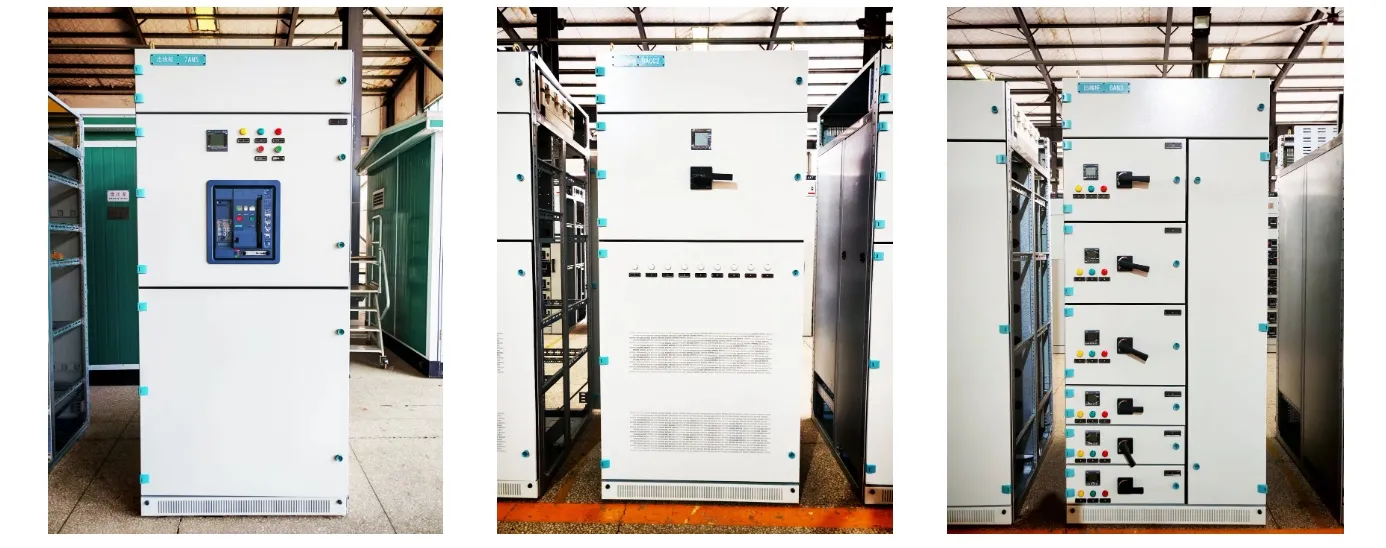

Detailed Photos
Common Data & Specifications
Parameter Item
Standard Specification
Standards
Low-voltage switchgear and controlgear
IEC60439-1, DINEN60439-1, VDE0660 Part 500
Internal Faults Arc Testing
IEC61641
Distances
Rated impulse withstand voltage
8kV
Overvoltage category
Ⅲ
Pollution level
3
Voltage
Rated insulation / Working Voltage
1000V / Up to 690V
Color
Standard Color
RAL7032
Operating Environmental Conditions
◈Ambient Temperature: +5 °C to +40 °C, with a 24-hour average not exceeding +35 °C.
◈Relative Humidity: Max 50% at +40 °C; higher humidity allowed at lower temperatures.
◈Altitude: Standard ≤ 2000 m (custom solutions available for higher altitudes).
◈Seismic Intensity: ≤ 8 degrees; Overvoltage category: III.
Structural Features
✔The frame uses 2.5 mm steel plates for a strong and reliable cabinet body.
✔Top-mounted internal arc release device ensures maximum personnel safety.
✔OFF1 fixed or plug-in cabinets can be equipped with aesthetic glass doors.
✔No transition pieces required, resulting in fewer connection points and easier maintenance.
✔Minimal use of plastic; high use of steel components to reduce fire load.
✔Units rated above 250A feature a force-saving mechanism for easy operation.
Main Product Gallery

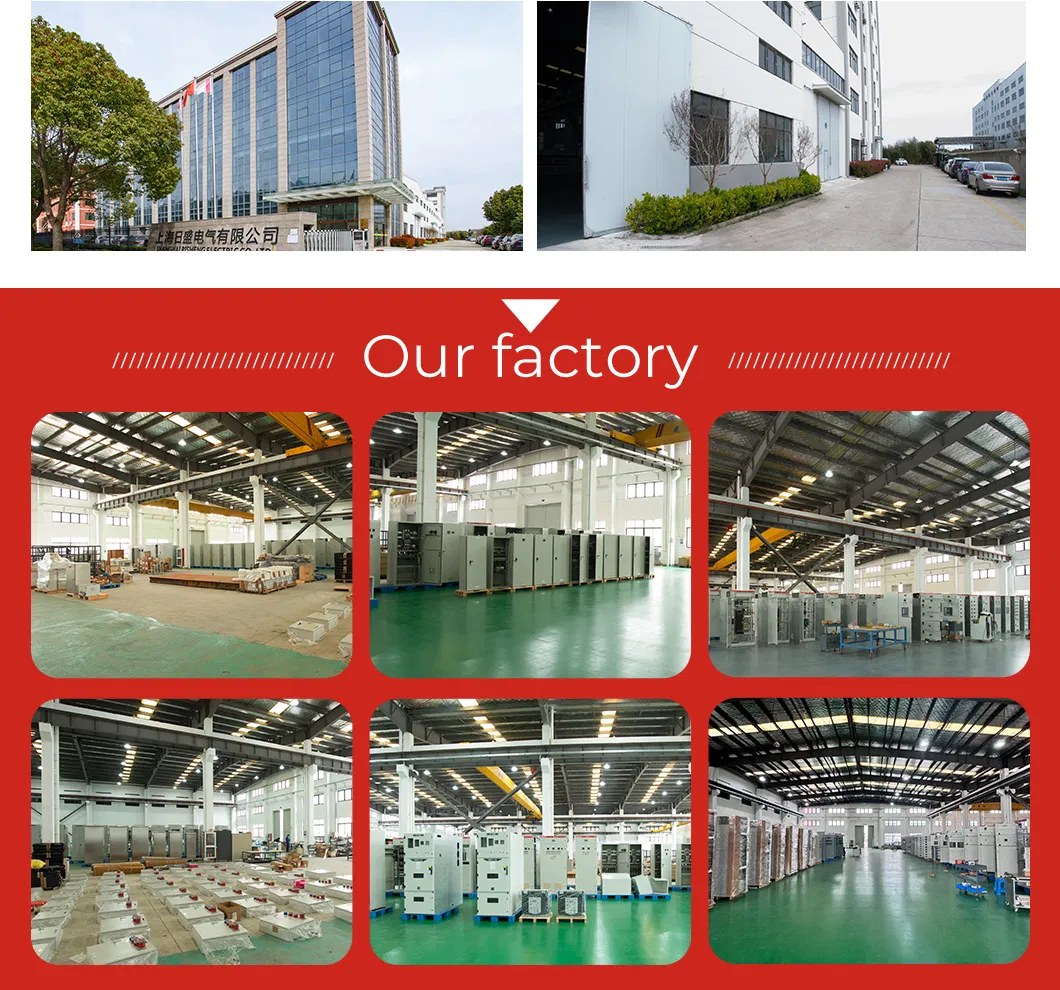

Production Capabilities
Our manufacturing facility was established in 2005 and is a national high-tech enterprise specializing in intelligent power transmission and industrial electrical control. We have passed ISO 9001, ISO 14001, and ISO 45001 certifications. All products are designed and manufactured in strict accordance with IEC standards and national regulations. Multiple products have obtained CCC, CQC, and CE certifications, ensuring international applicability.

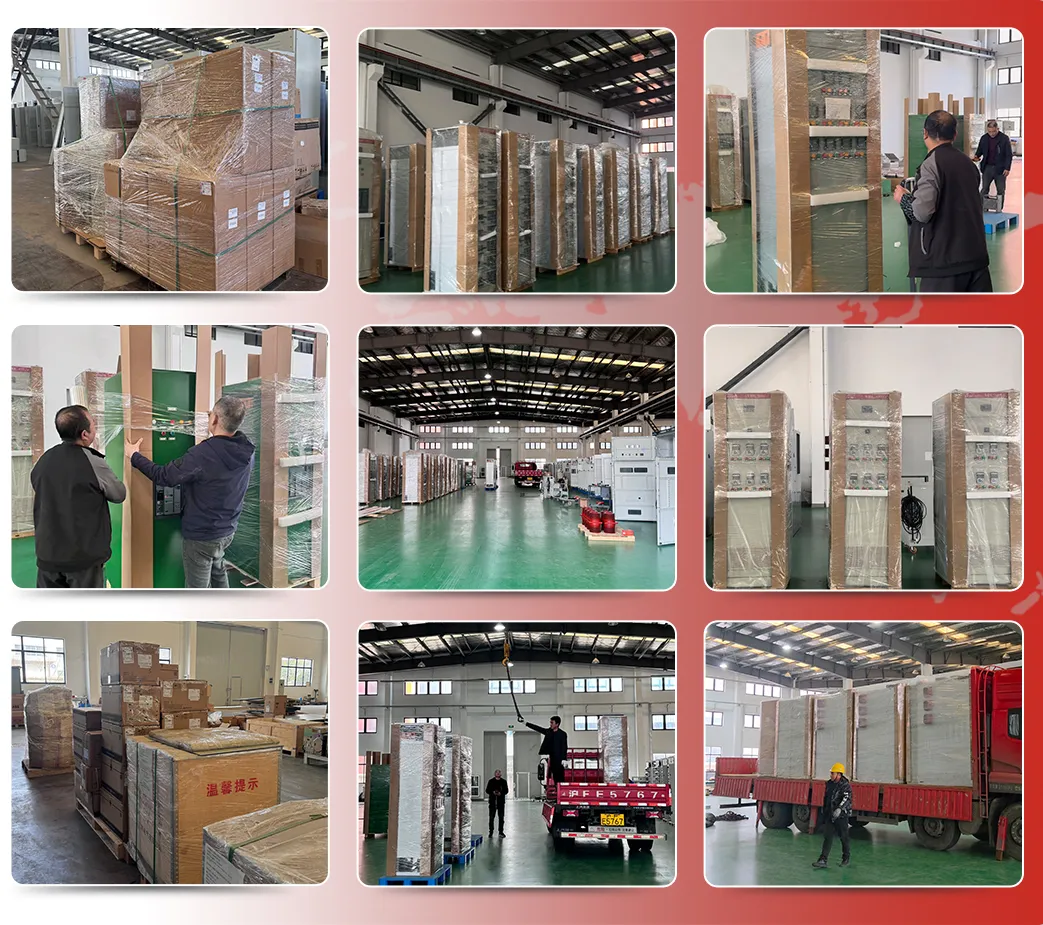

Packaging & Shipping
Frequently Asked Questions
Q1: Are you a factory or a trading company?
We are a direct factory. This allows us to guarantee first-hand, competitive pricing and ensure strict quality control throughout the manufacturing process.
Q2: What are your standard payment terms?
We generally accept T/T. For standard orders, it is 100% TT. For large-scale projects, we typically require a 30% advance payment with the remaining 70% due after customer confirmation before shipment.
Q3: How long is the typical delivery lead time?
Delivery time depends on the specific order quantity and complexity, but it normally ranges between 15 to 20 days.
Q4: What is the quality guarantee period for your equipment?
Our standard quality guarantee period is 12 months. We hold ISO9001, ISO14001, and ISO45001 certifications, and all production complies with international standards such as IEC and ANSI.
Q5: Do you accept customized product designs?
Yes, we specialize in customization. Customers should provide detailed technical specifications, Single Line Diagrams (SLD), or relative drawings for our engineering team to review.
Q6: Which international standards do your products follow?
Our products are manufactured according to IEC60439-1, IEC61641, and related VDE and DIN standards to ensure global safety and performance compliance.
