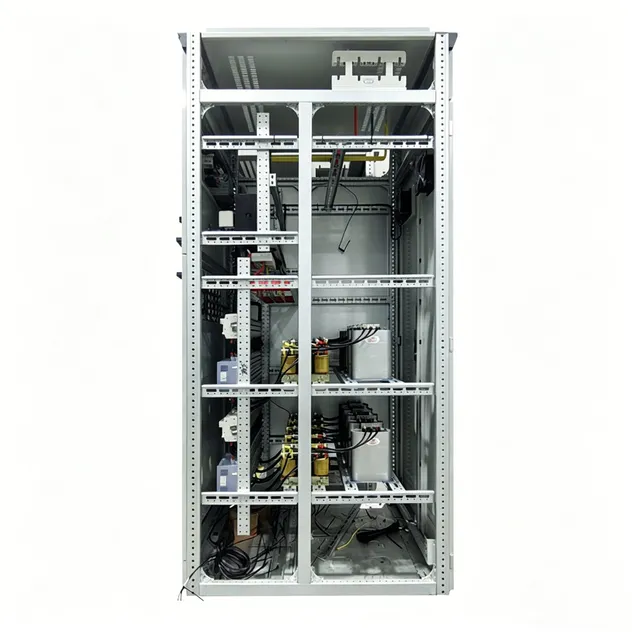

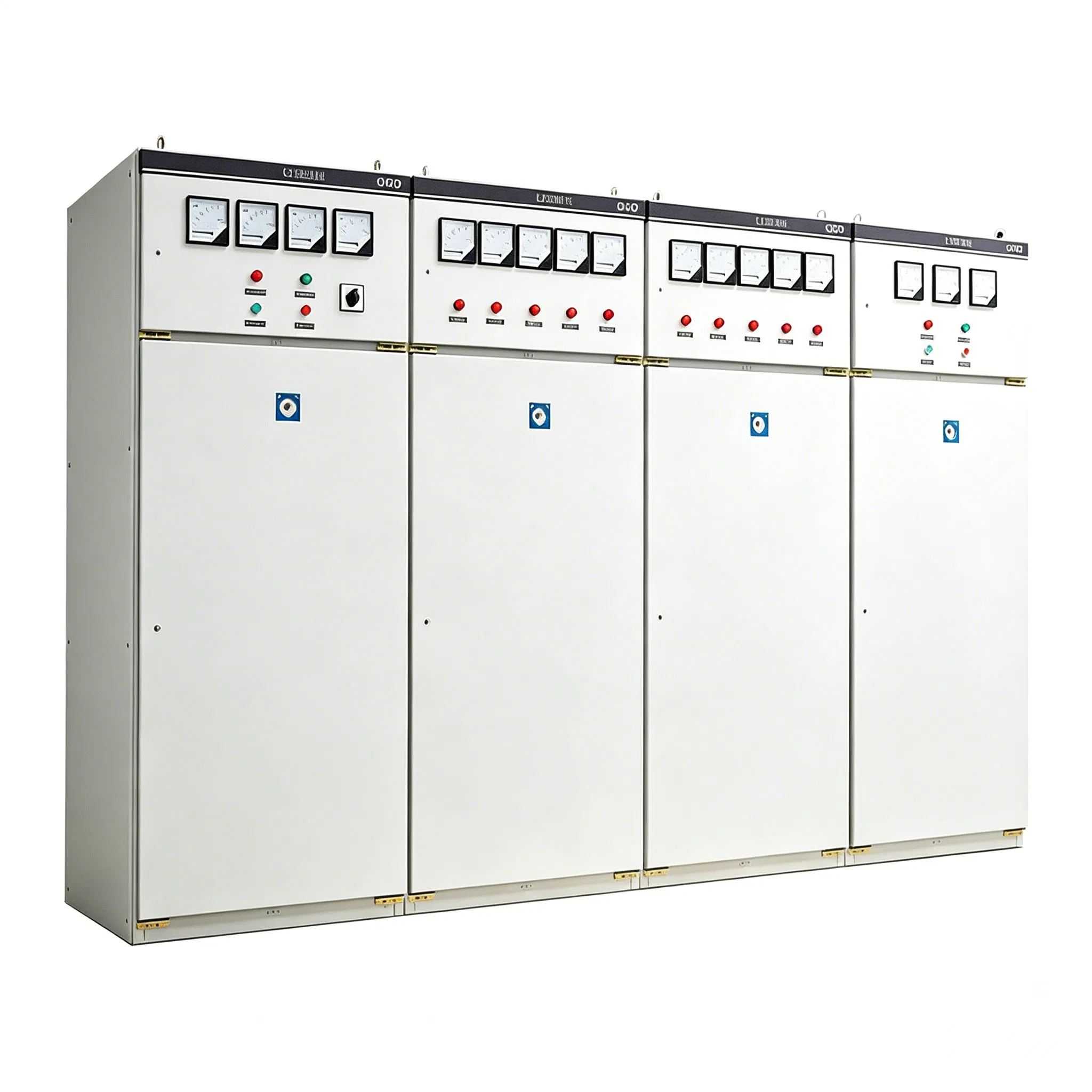

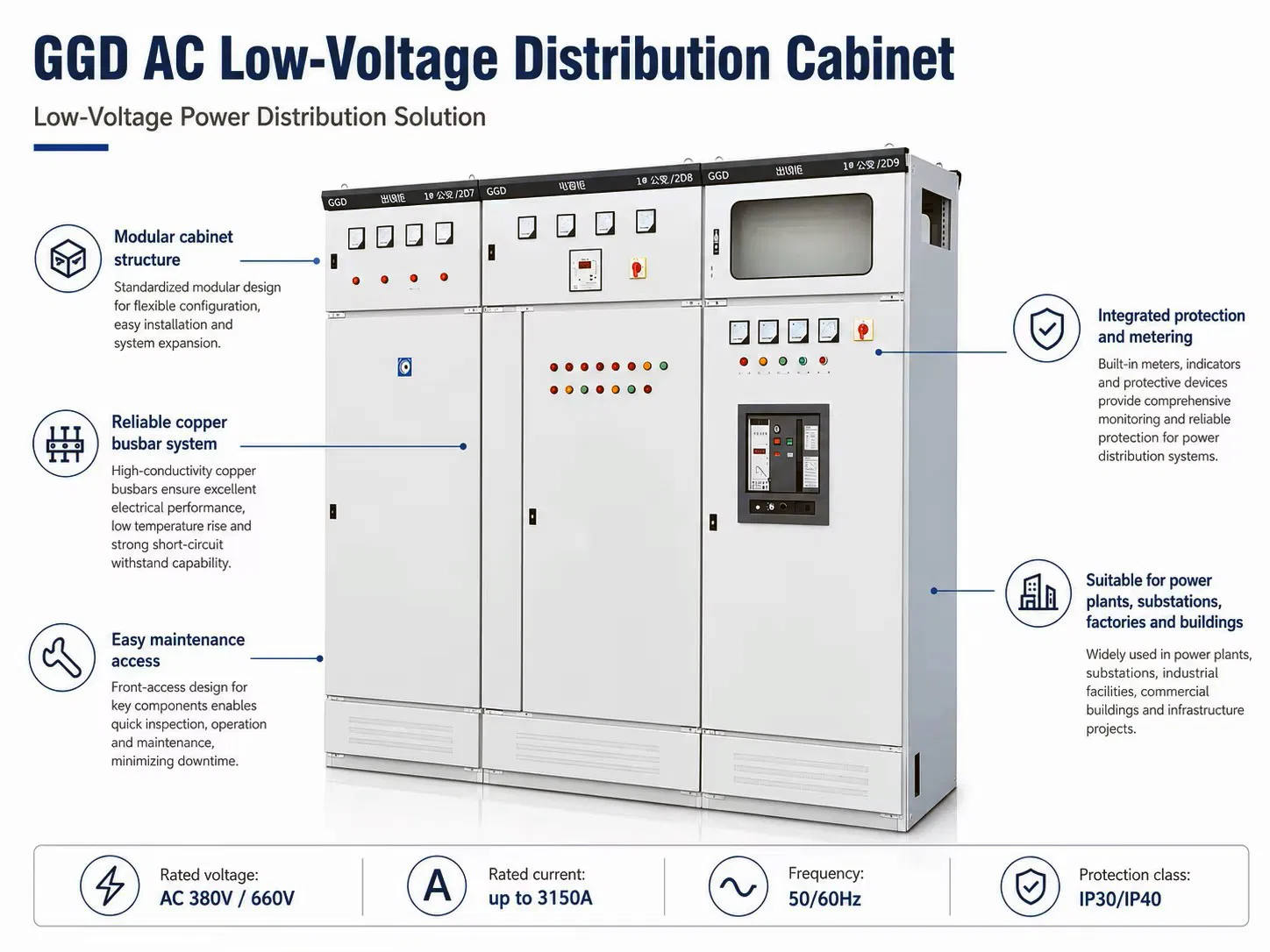

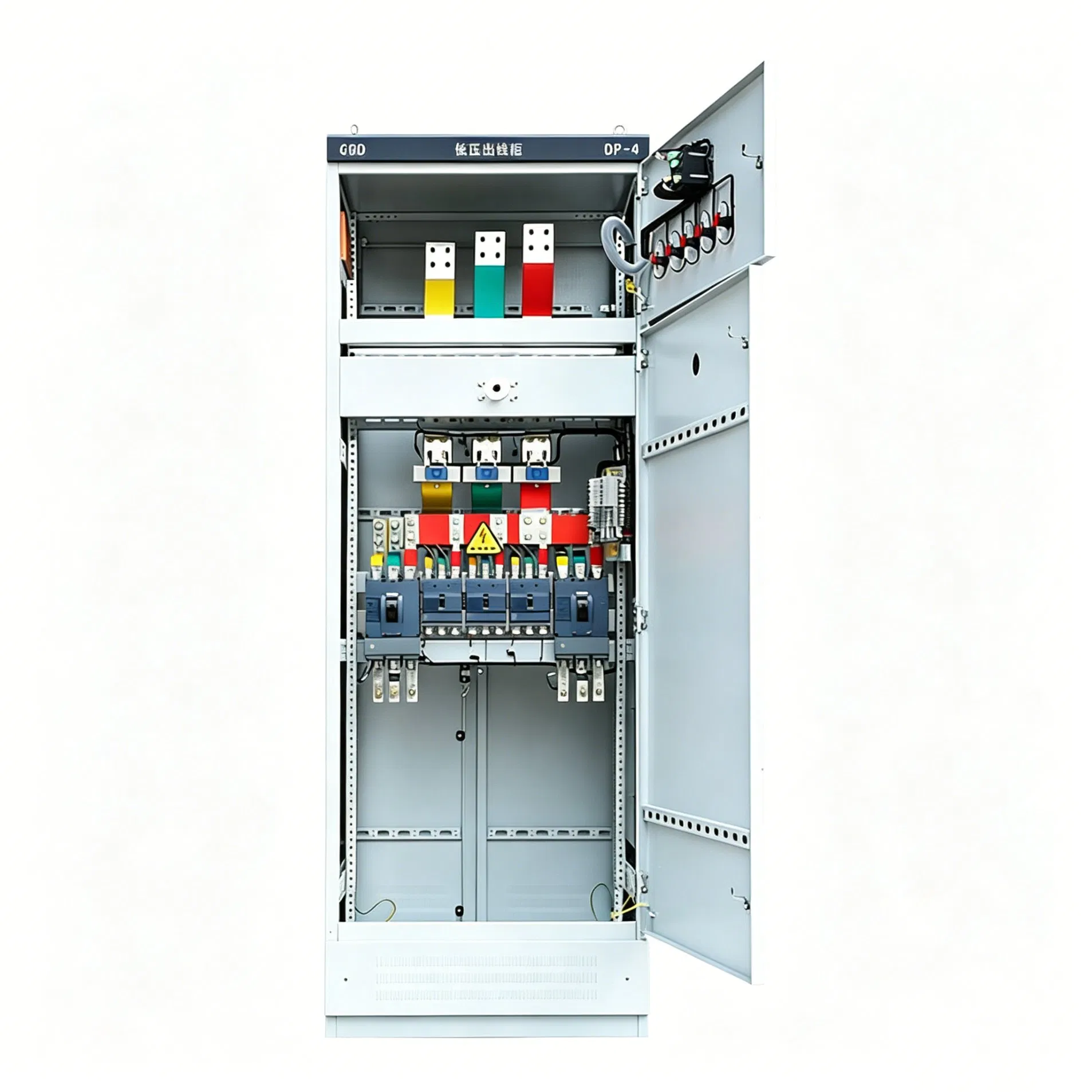

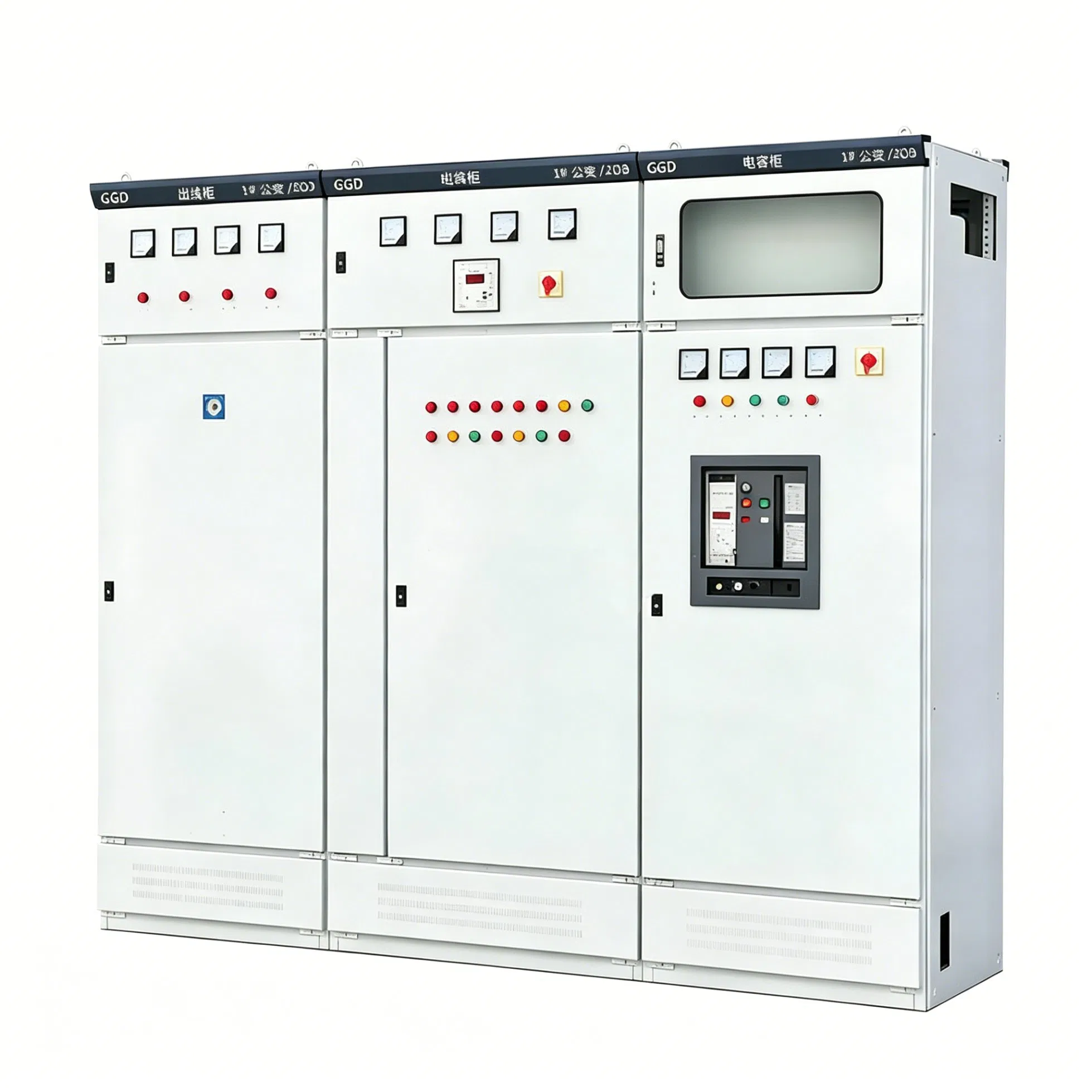

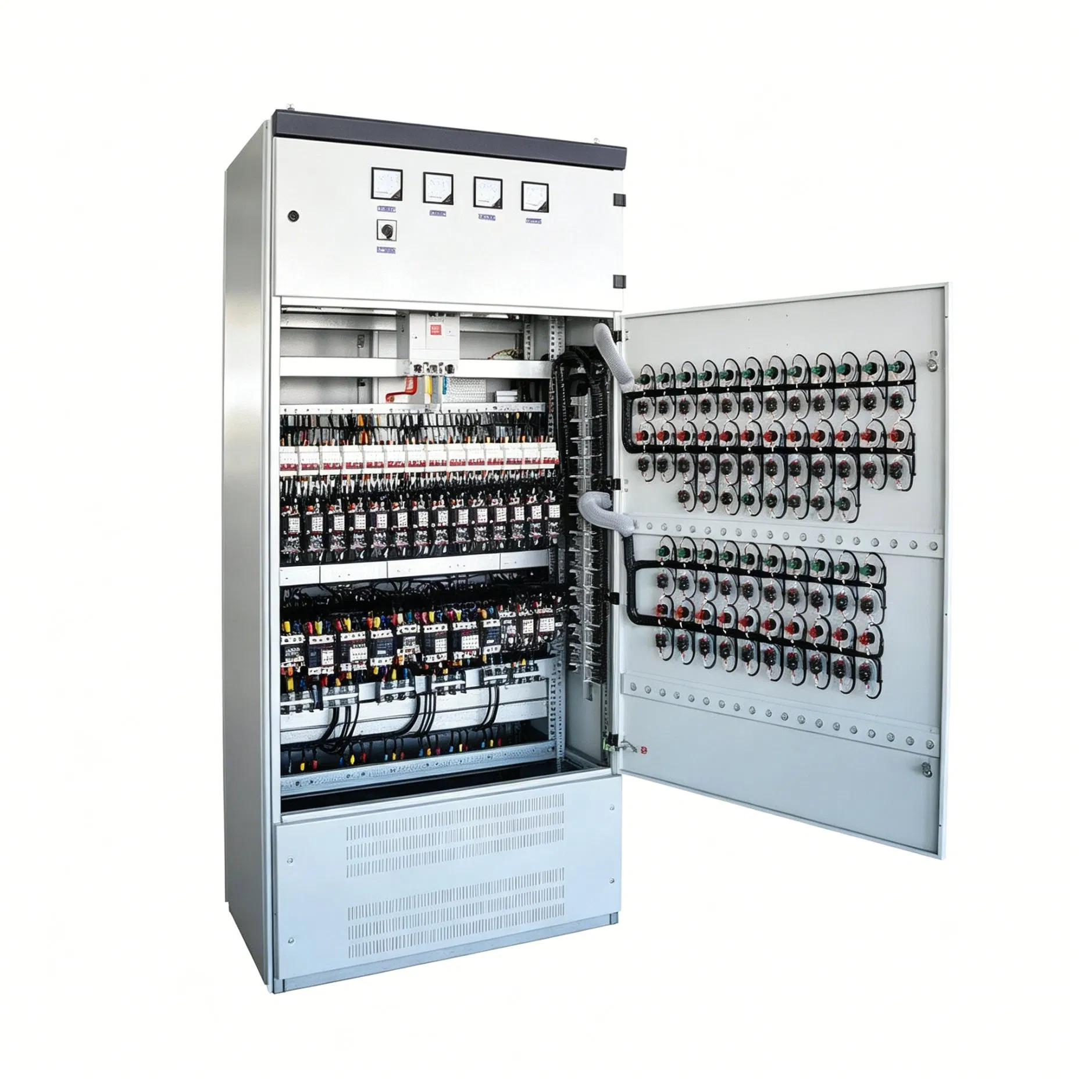

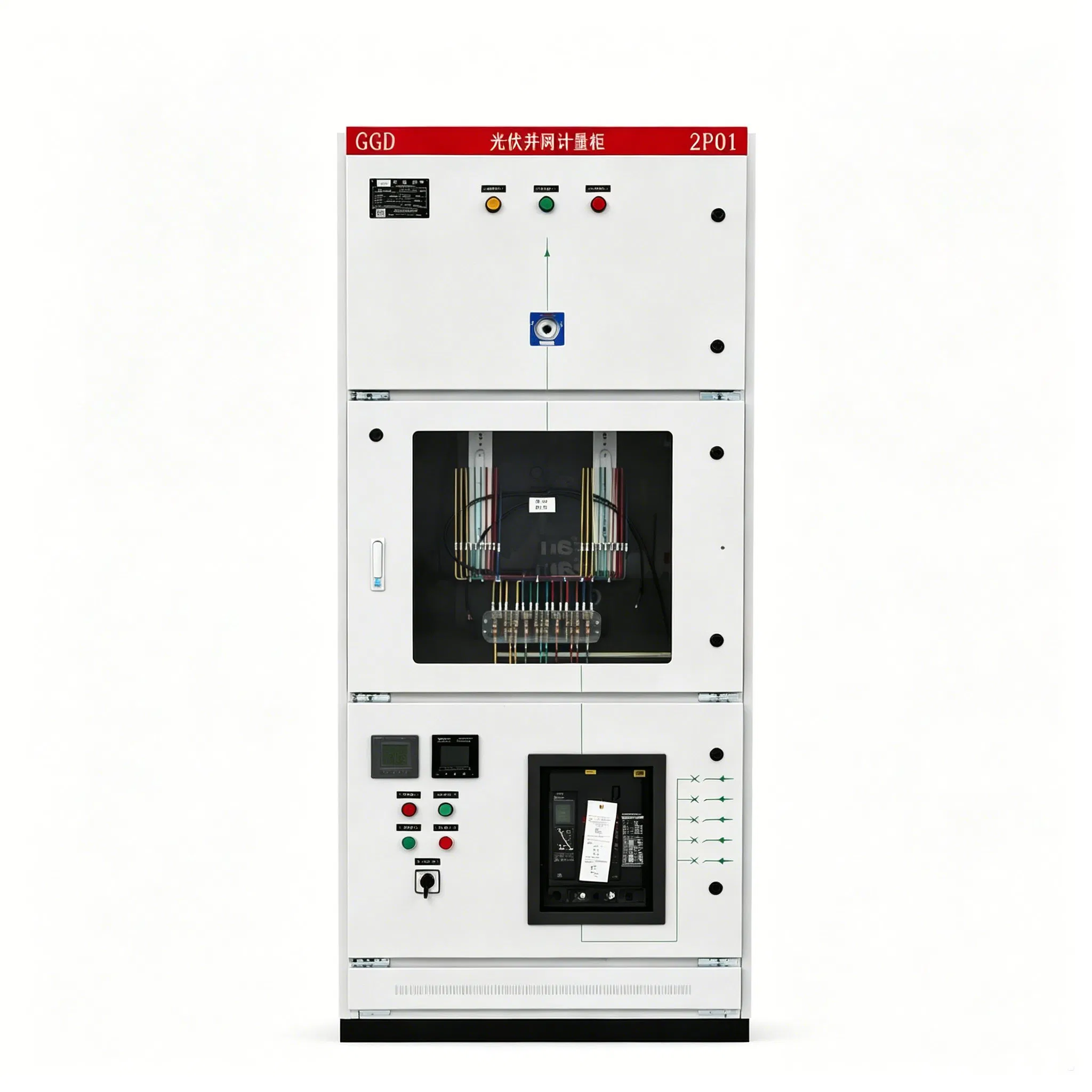

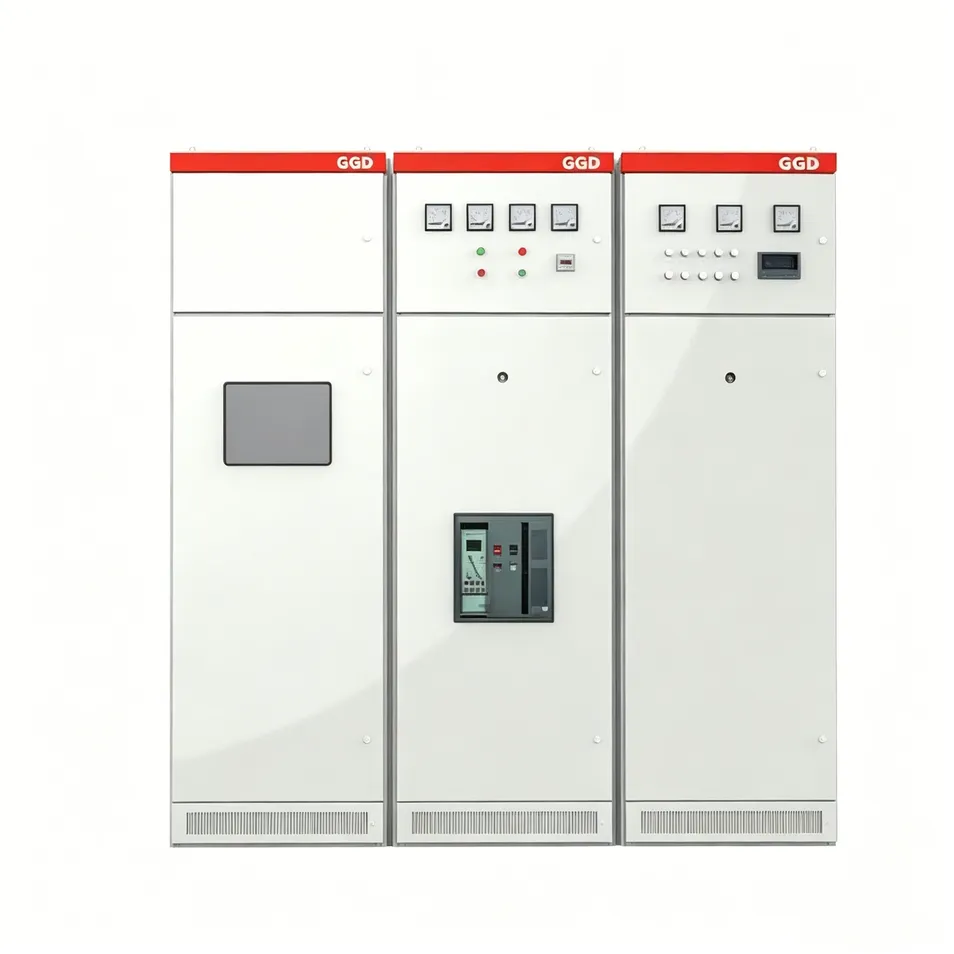

GGD Low Voltage Power Distribution Cabinet
Rating: Rated voltage 380V; Frequency 50–60Hz.
Application: The GGD series low-voltage distribution cabinet is primarily used in power stations, substations, industrial and mining enterprises. It serves as an energy conversion, distribution, and control unit for power and lighting systems.
The GGD model AC low-voltage cabinet is designed for power plants and industrial facilities with a rated operating voltage of 380/415V and rated current up to 3150A, functioning as a distribution device for motor power and lighting control.
| Type | Rated Voltage (V) | Rated Current (A) | Short-circuit Breaking (kA) | Short-circuit Withstand (1s)(kA) | Peak Withstand Voltage (kA) |
|---|---|---|---|---|---|
| GGD1 | 380 | A1000 | 15 | 15 | 30 |
| 380 | B600(630) | 15 | 15 | 30 | |
| 380 | C400 | 15 | 15 | 30 | |
| GGD2 | 380 | A1500(1600) | 30 | 30 | 63 |
| 380 | B1000 | 30 | 30 | 63 | |
| 380 | C600 | 30 | 30 | 63 | |
| GGD3 | 380 | A3150 | 50 | 50 | 105 |
| 380 | B2500 | 50 | 50 | 105 | |
| 380 | C2000 | 50 | 50 | 105 |
