Indoor Gcs Withdrawable Low Voltage LV Power Distribution Panel Electrical Switchgear
Indoor Gcs Withdrawable Low Voltage LV Power Distribution Panel Electrical Switchgear
Indoor Gcs Withdrawable Low Voltage LV Power Distribution Panel Electrical Switchgear
Indoor Gcs Withdrawable Low Voltage LV Power Distribution Panel Electrical Switchgear
Indoor Gcs Withdrawable Low Voltage LV Power Distribution Panel Electrical Switchgear
1 / 5
Indoor Gcs Withdrawable Low Voltage LV Power Distribution Panel Electrical Switchgear
Indoor Gcs Withdrawable Low Voltage LV Power Distribution Panel Electrical Switchgear
Indoor Gcs Withdrawable Low Voltage LV Power Distribution Panel Electrical Switchgear
Indoor Gcs Withdrawable Low Voltage LV Power Distribution Panel Electrical Switchgear
Indoor Gcs Withdrawable Low Voltage LV Power Distribution Panel Electrical Switchgear

Indoor Gcs Withdrawable Low Voltage LV Power Distribution Panel Electrical Switchgear

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications
Model:GCS
Installation:Removable
Structure:Withdrawable
Current Type:AC
Protection:IP30/IP40
Rated Frequency:50(60) Hz
Max Altitude:2000m
Insulation Voltage:660(1000)V
Technical Parameters
Parameter Item Technical Specifications
Main circuit rated voltage (V) AC 380 (400), (600)
Auxiliary circuit rated voltage (V) AC 220, 380 (400) / DC 110, 220
Rated short-time withstand current (kA/1S) 50, 80 (KA/1s)
Rated peak withstand current (kA/1S) 105, 176 (KA/1s)
Current rating (Horizontal busbar) ≤ 4000A
Current rating (Vertical busbar MCC) 1000A
Power frequency test voltage (Main) 2500V / 1min
System Configuration 3-phase 4-wire (A.B.C.PEN) / 3-phase 5-wire (A.B.C.PE.N)
Product Gallery

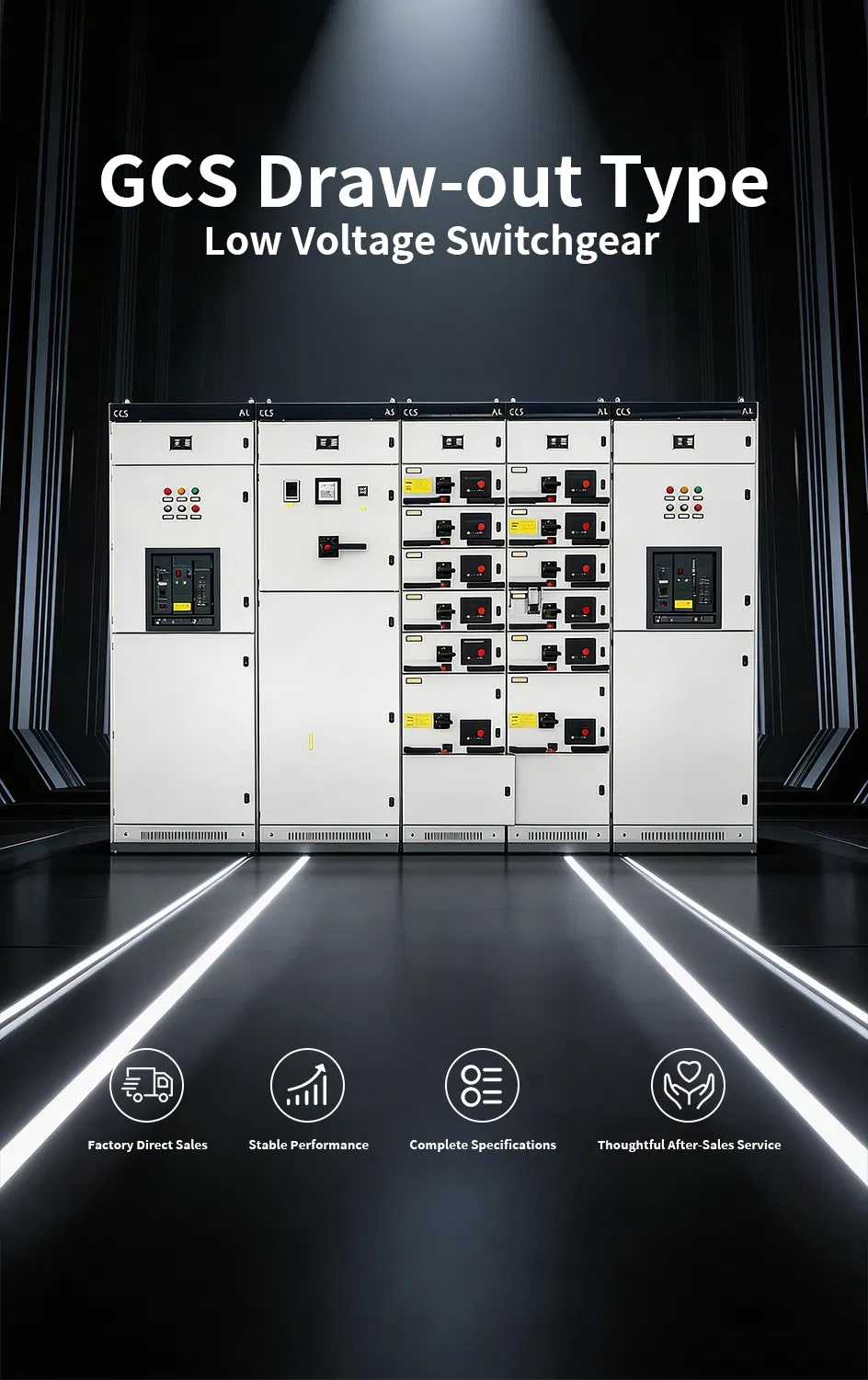

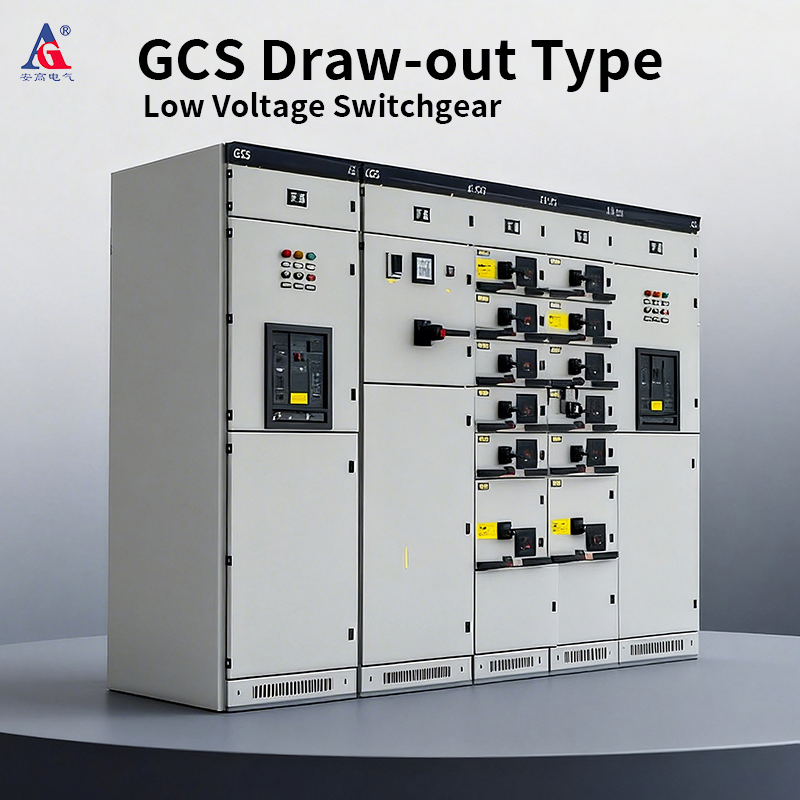

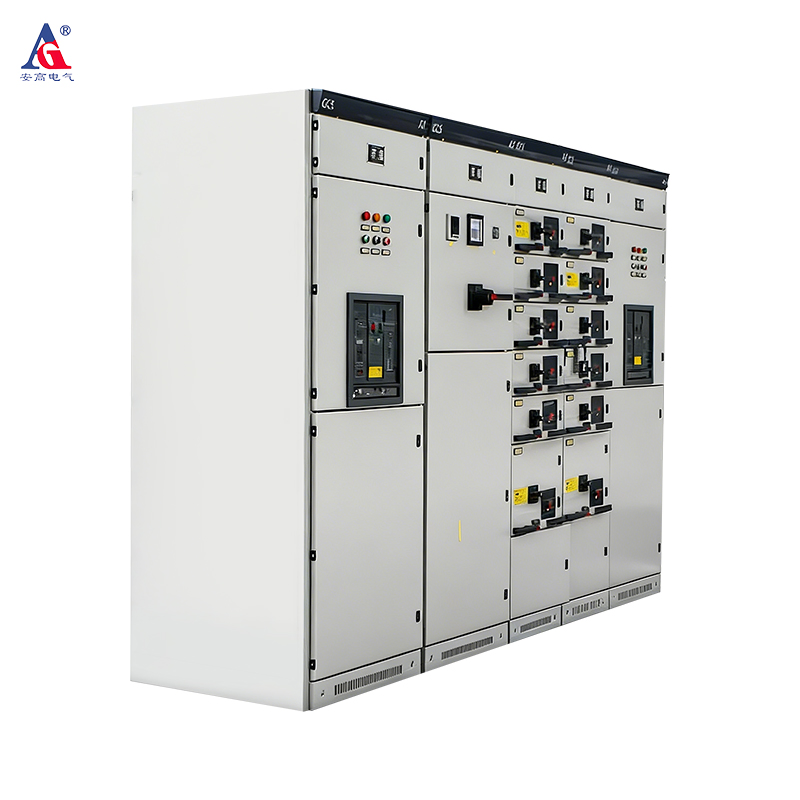

GCS Withdrawable Low Voltage Distribution Panel LV Power Distribution Switchgear Detail

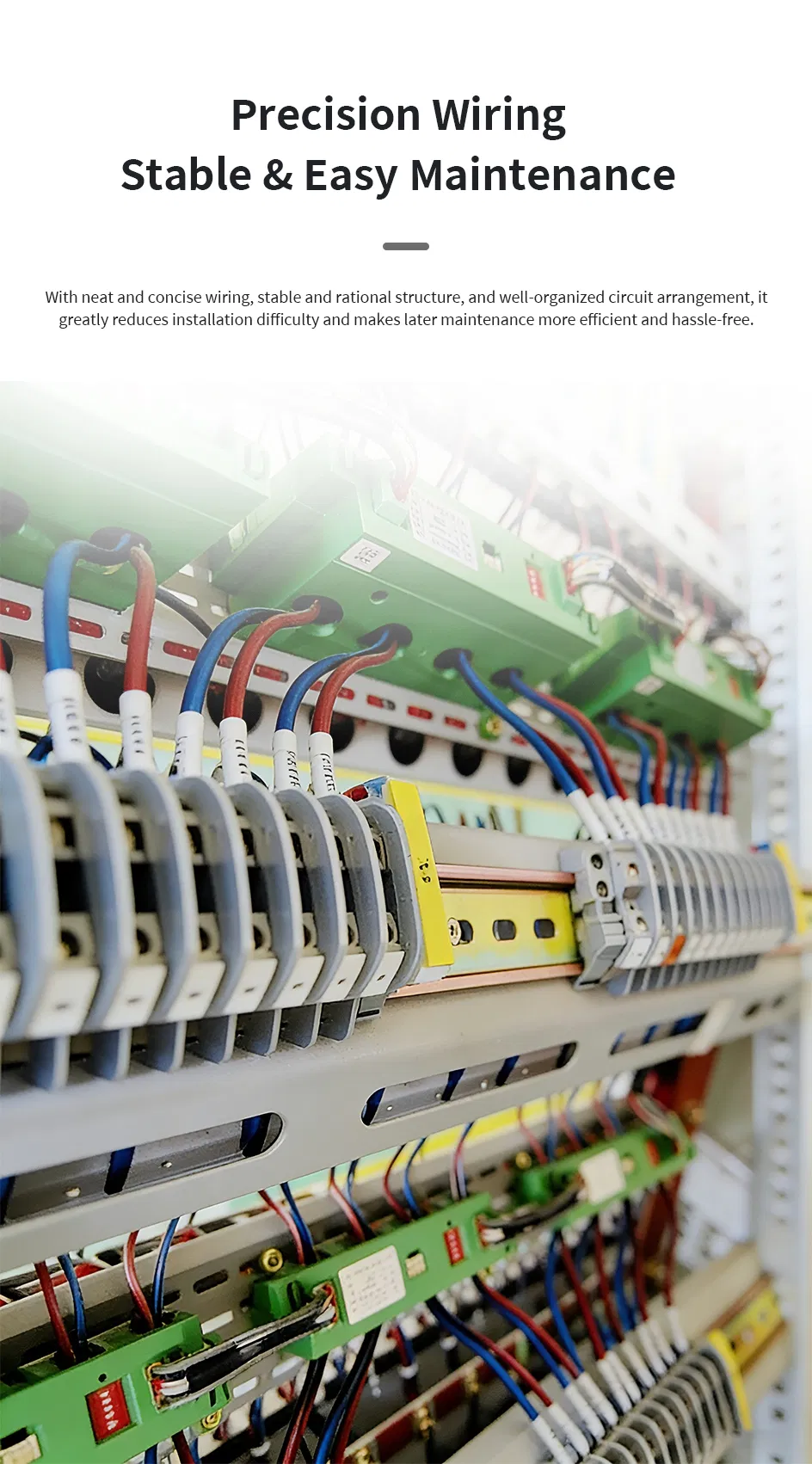

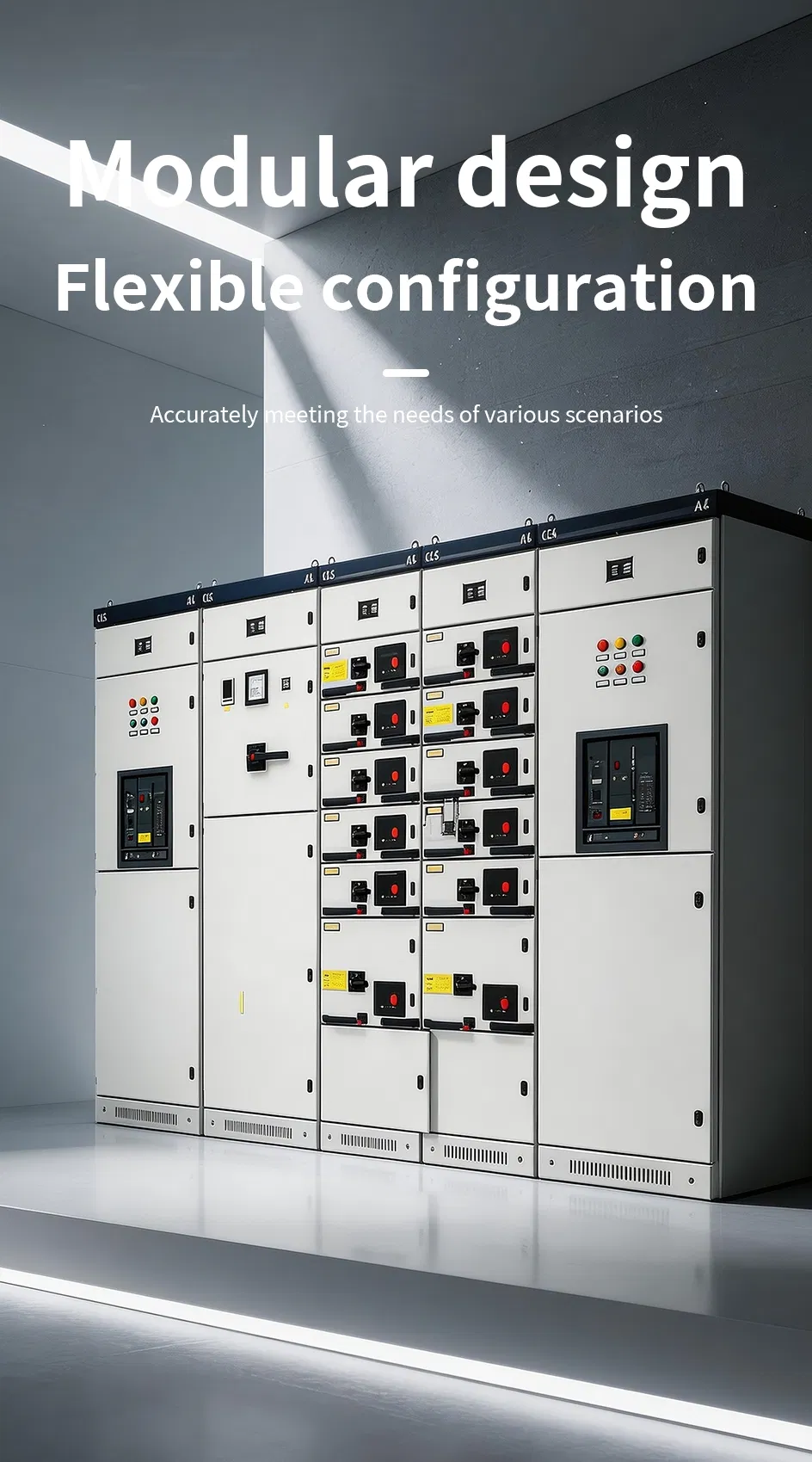

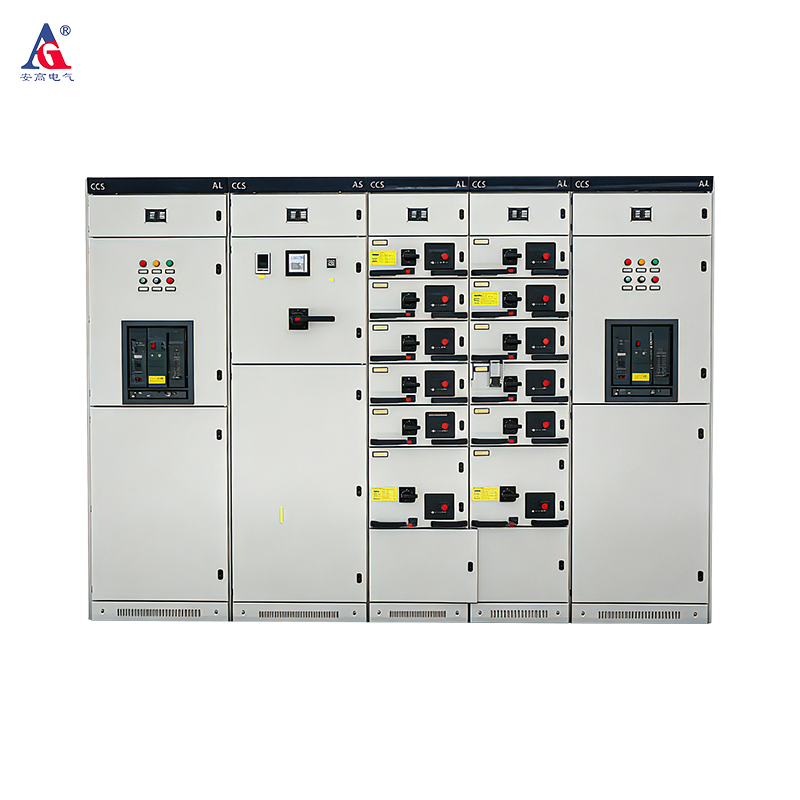

Electrical Switchgear Internal View GCS Switchgear Back View Withdrawable Switchgear Components
Cooperative Project Cases

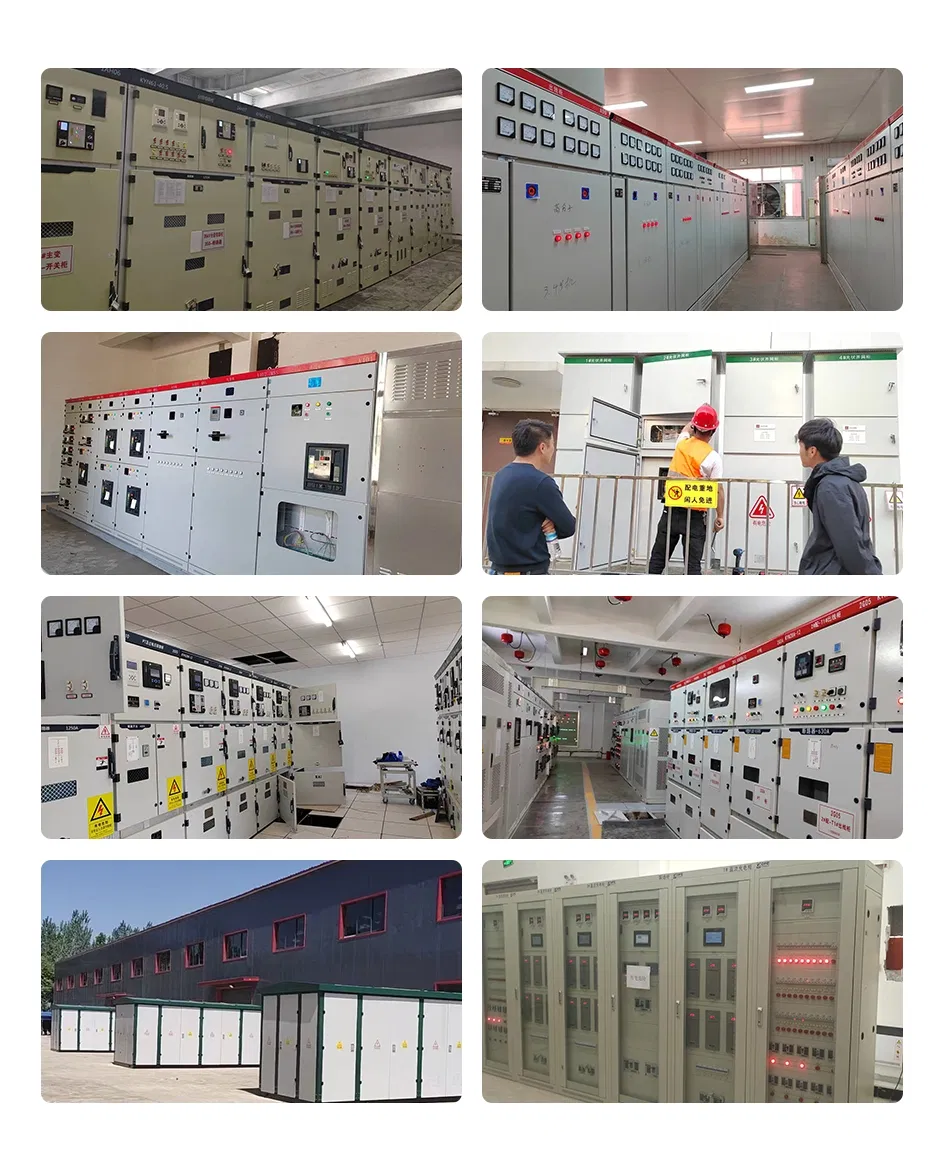

Project Cases Distribution Panel Installation
Manufacturing & Quality Control

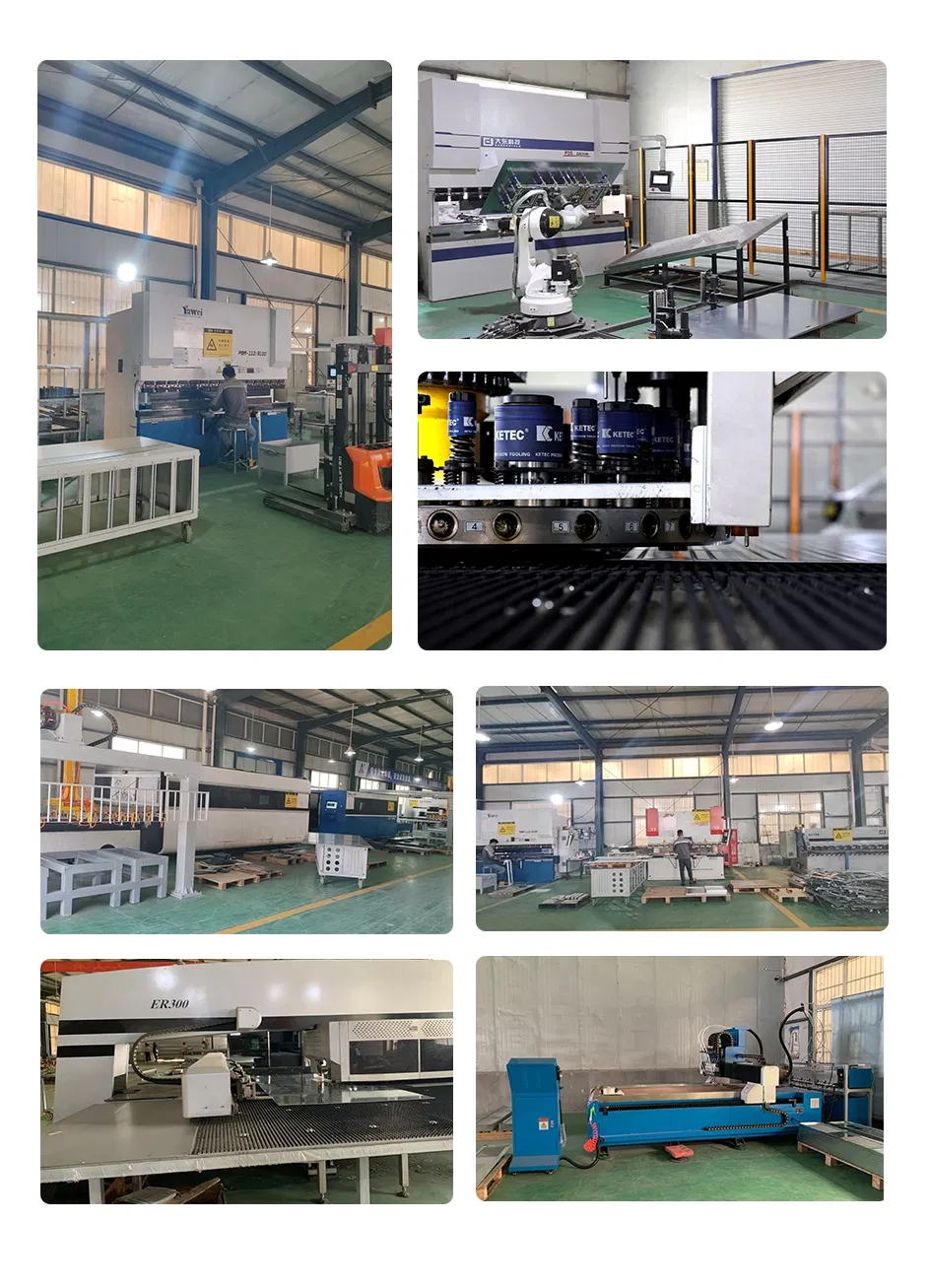

Manufacturing Facility View
Production Line Testing Area
Quality Assurance Equipment
Packaging & Delivery

Package Type: Robust Wooden Case for export protection.

Dimensions: 1000cm * 800cm * 2300cm (Approx. per unit)

Gross Weight: 500.00kg

Frequently Asked Questions (FAQ)
What is the main application of GCS Low-Voltage Switchgear?
The GCS switchgear is designed for power distribution, motor centralized control, and capacitance compensation in power systems, typically used in power plants, petroleum, chemical, metallurgy, and high-rise buildings.
What are the protection ratings for this model?
The standard Ingress Protection (IP) rating is IP30 or IP40, depending on specific customer requirements for dust and moisture resistance.
Can the GCS switchgear operate on both 50Hz and 60Hz systems?
Yes, it is compatible with both 50Hz and 60Hz rated frequencies, making it suitable for various international power grid standards.
What is the maximum current capacity for the busbars?
The horizontal busbar can handle a rated current up to 4000A, while the vertical busbar (MCC) is rated for 1000A.
Does it support both 3-phase 4-wire and 3-phase 5-wire systems?
Yes, the GCS switchgear can be configured for both three-phase four-wire (A.B.C.PEN) and three-phase five-wire (A.B.C.PE.N) systems.
What is the rated insulation voltage of the GCS unit?
The unit features a rated insulation voltage ranging from 660V up to 1000V to ensure high safety and reliability in electrical operations.
