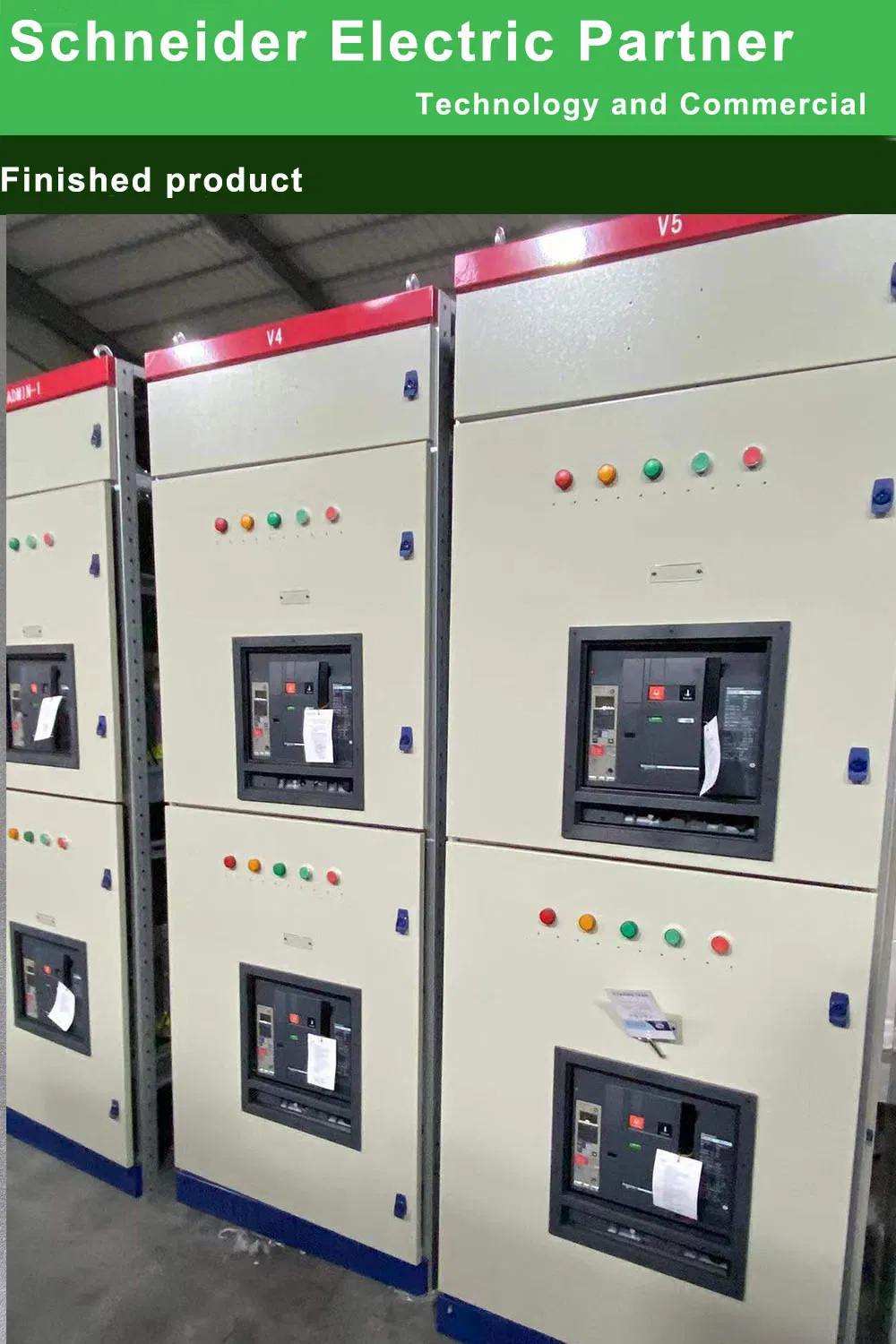

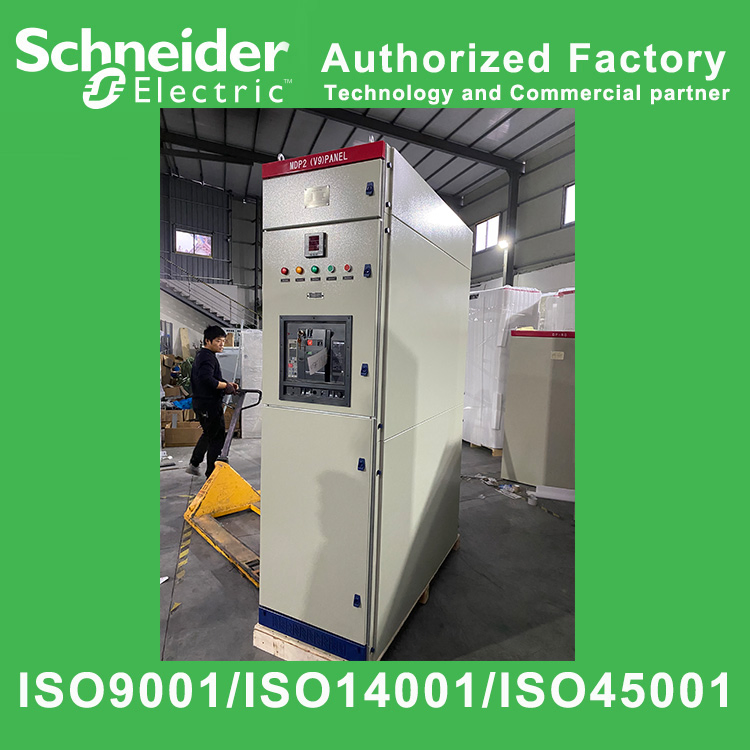

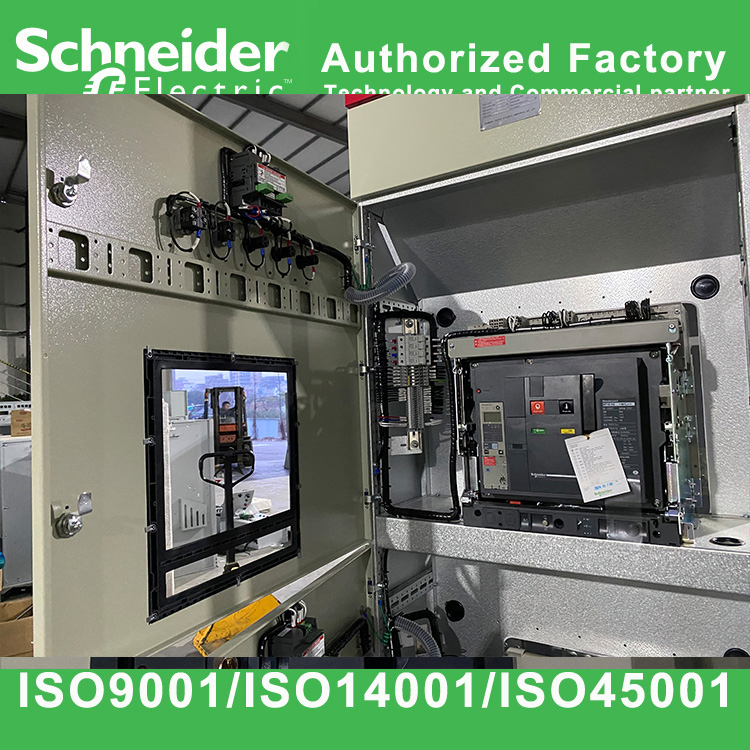

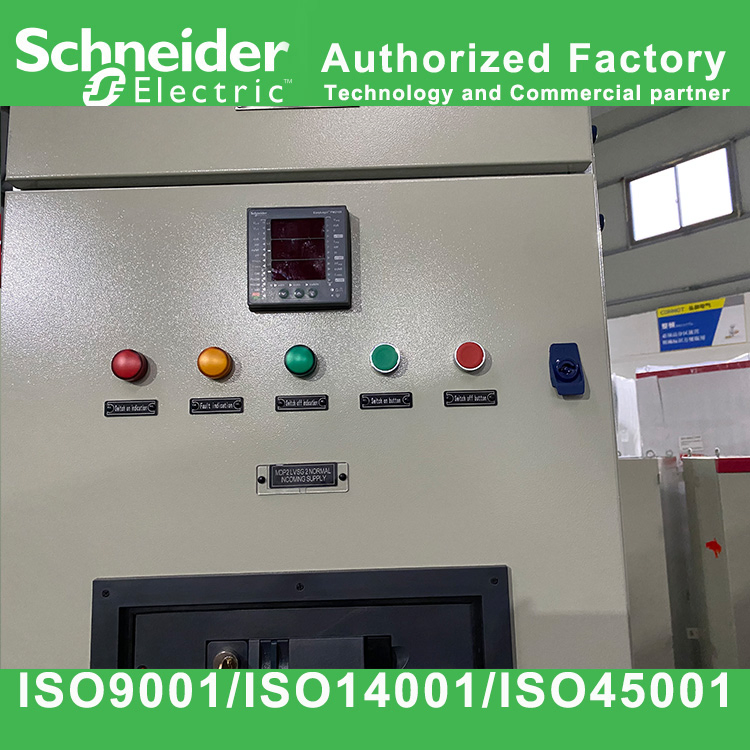

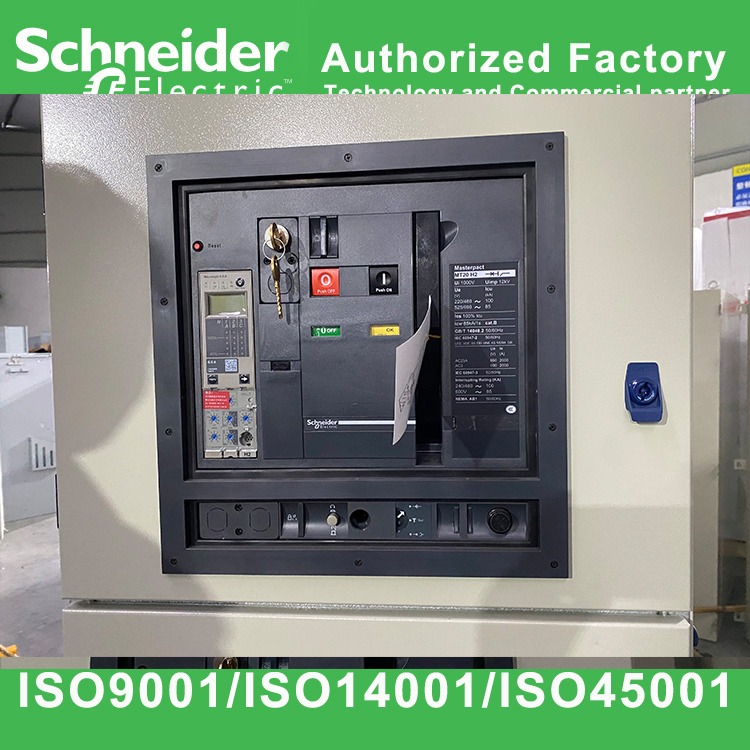

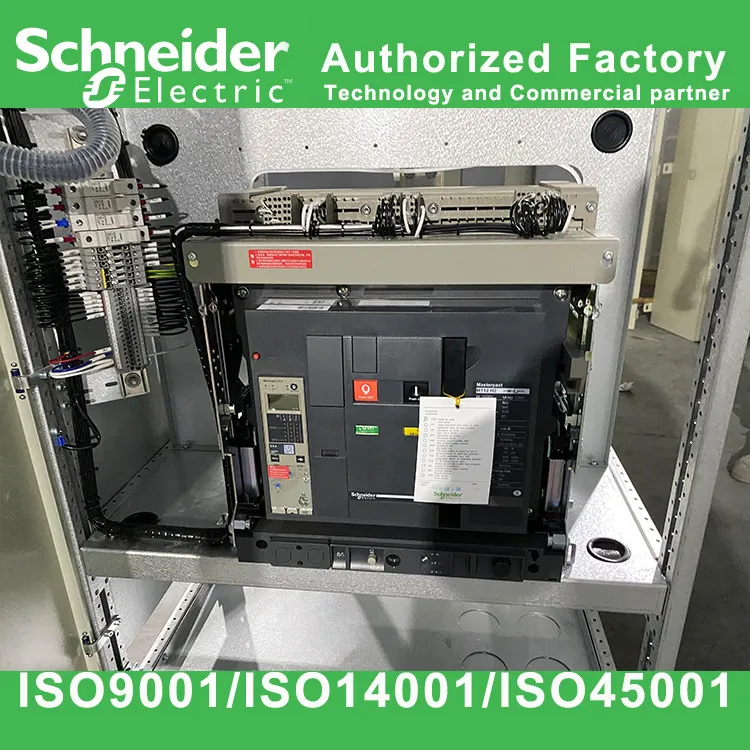

GCS LV drawout switch cabinet is suitable for the distribution power system of the power plant, petroleum, chemical, metallurgical, textile and skyscraper. It is as the distribution and motor centralized control, reactive power compensation of LV packaged distribution devices of AC three phase 50 (60) Hz, 380V, (440V), (660V) rated working voltage, 6300AA rated current or down to generating and supplying power system.

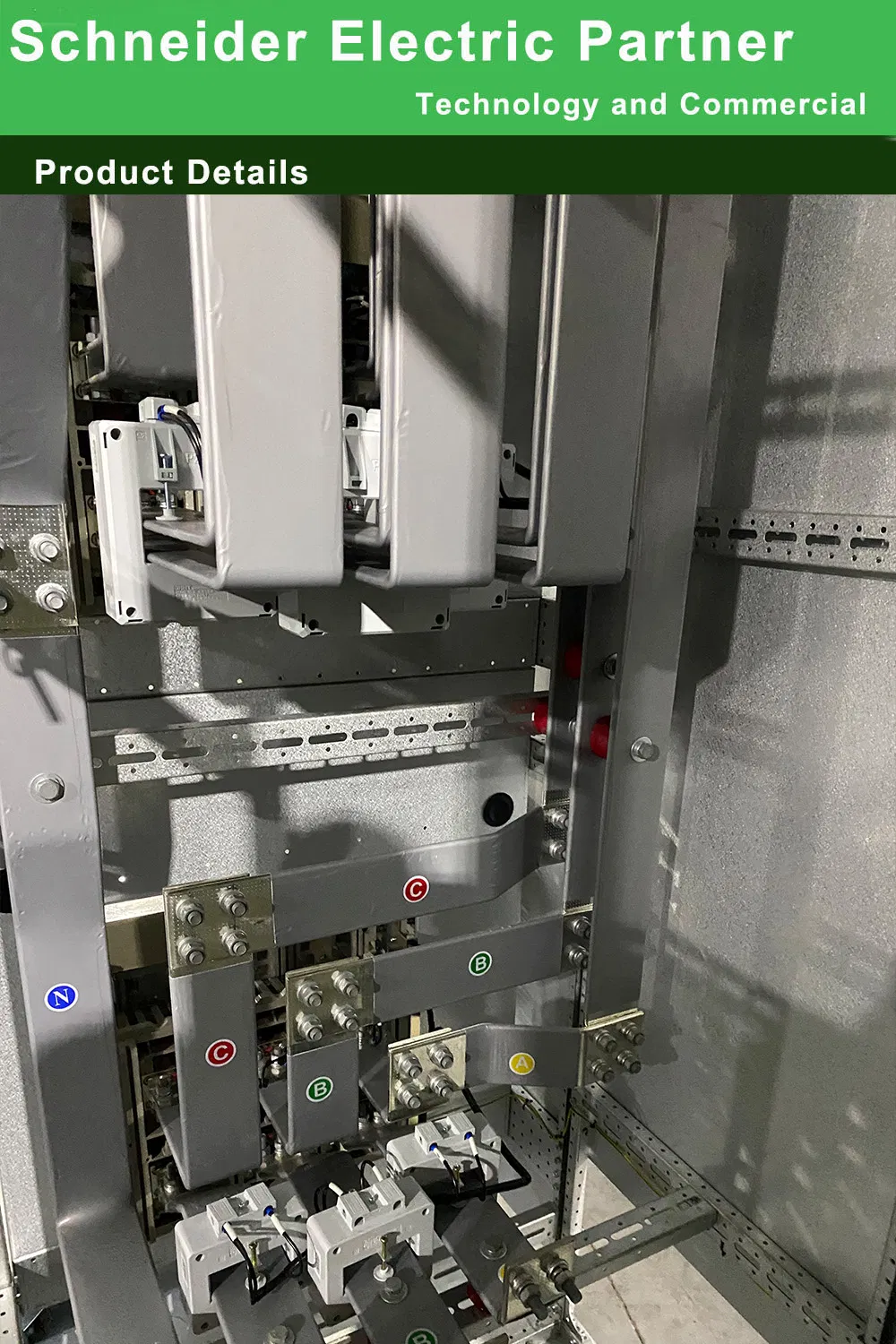

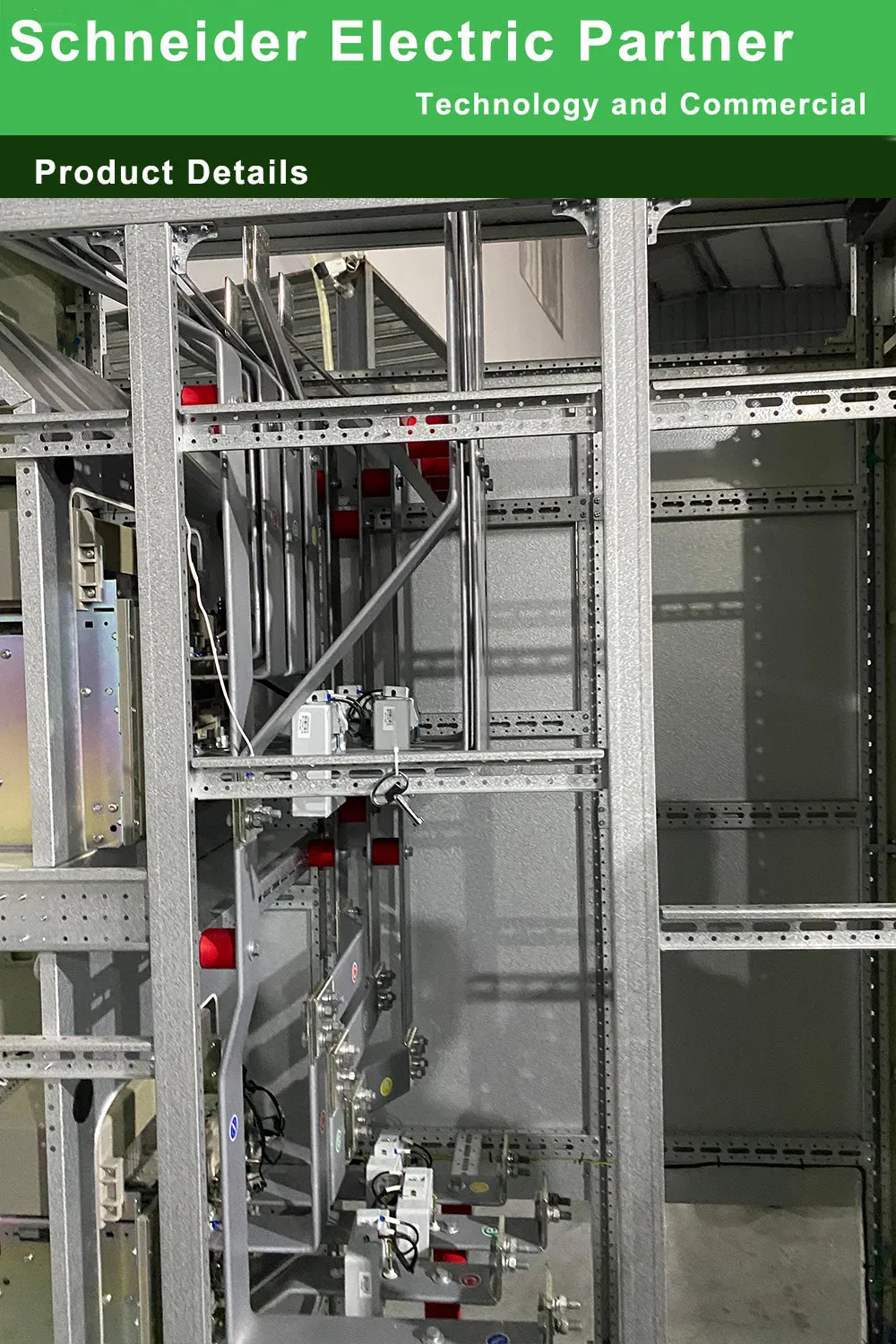

The equipment applies standard Modula design with independent functional unit. The output unit can be more than 22 lines with lever feed mechanism, which ensure the reliable power supply and interchangeable of the same unit.

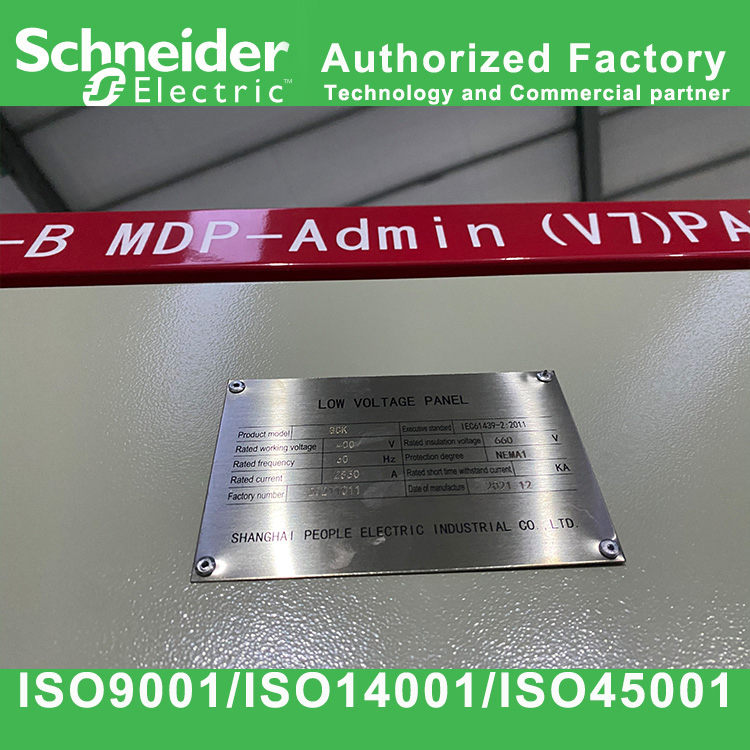

| Item | Unit | Parameters |
|---|---|---|
| Rated working voltage | V | AC380, AC660 |
| Rated frequency | HZ | 50/60 |
| Rated current (Horizontal busbar) | A | ≤6300 |
| Rated current (Vertical busbar) | A | 1000, 1600 |
| Rated short time withstand current (1s) | KA | 50, 80 |
| Rated withstand current (peak) | KA | 105, 176 |
| Dielectric strength | V/1min | 2500 |
| Rated insulation voltage | V | AC660, AC1000 |
| Control motor capacity | KW | 0.5~155 |
| Protection degree | - | IP30/IP40 |
| External dimension (W*D*H) | mm | 600-1000 * 600-1000 * 2200 |
