| Model NO. | GCK | Voltage Level | Low Voltage |
| Installation | Fixed | Structure | Cabinet |
| Current Type | AC | Frequency | 50/60Hz |
| Ambient Temp | -5℃ ~ 40℃ | Rated Current | 400~3200A |
| Breaking Current | 16-50ka | Protection Grade | IP30 IP40 |
| Phase | Three Phase | Transport Package | Wooden Case |

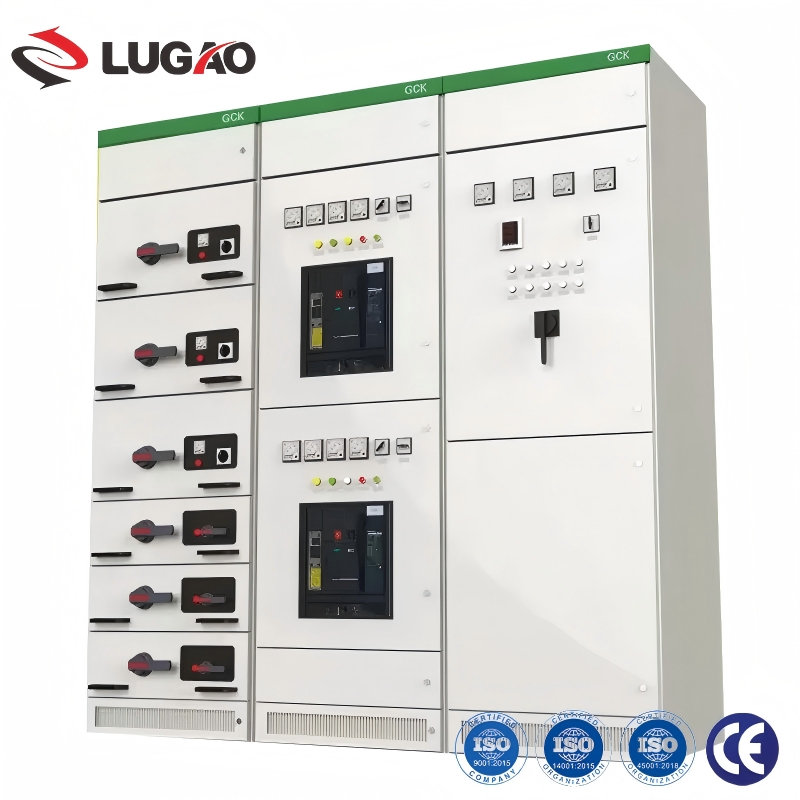

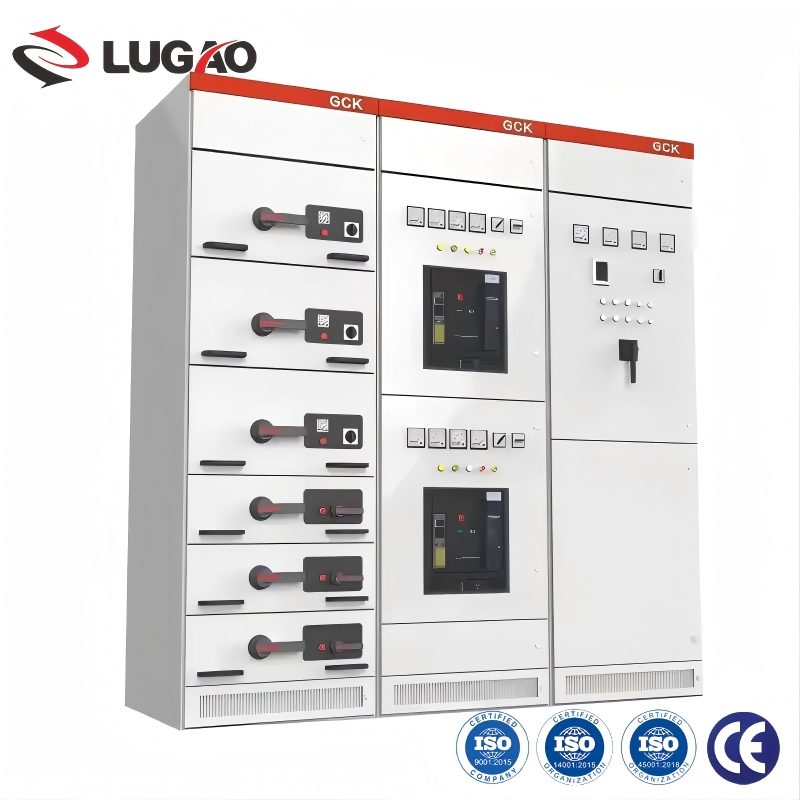

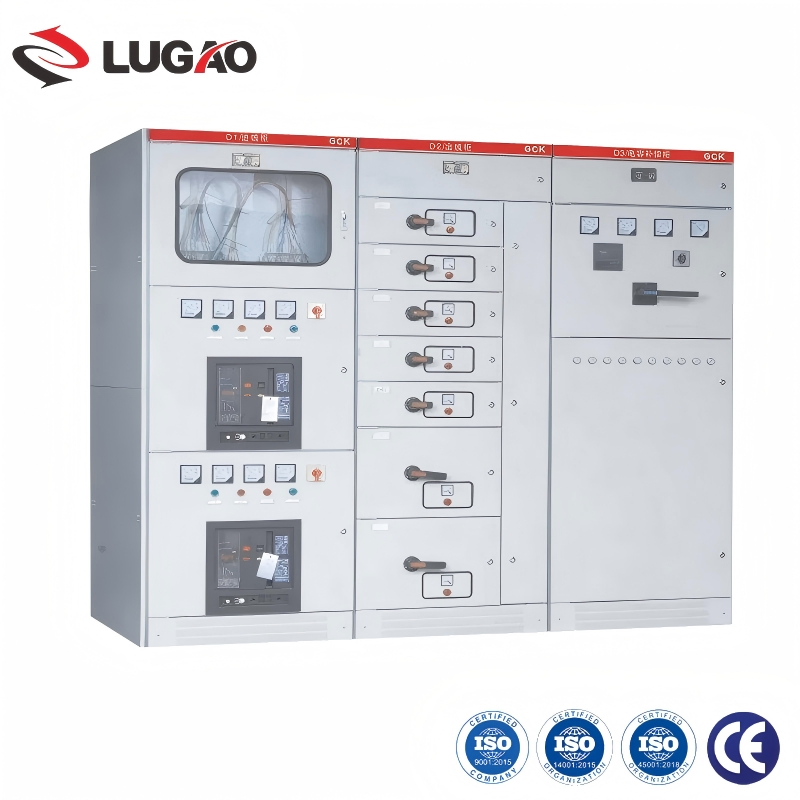

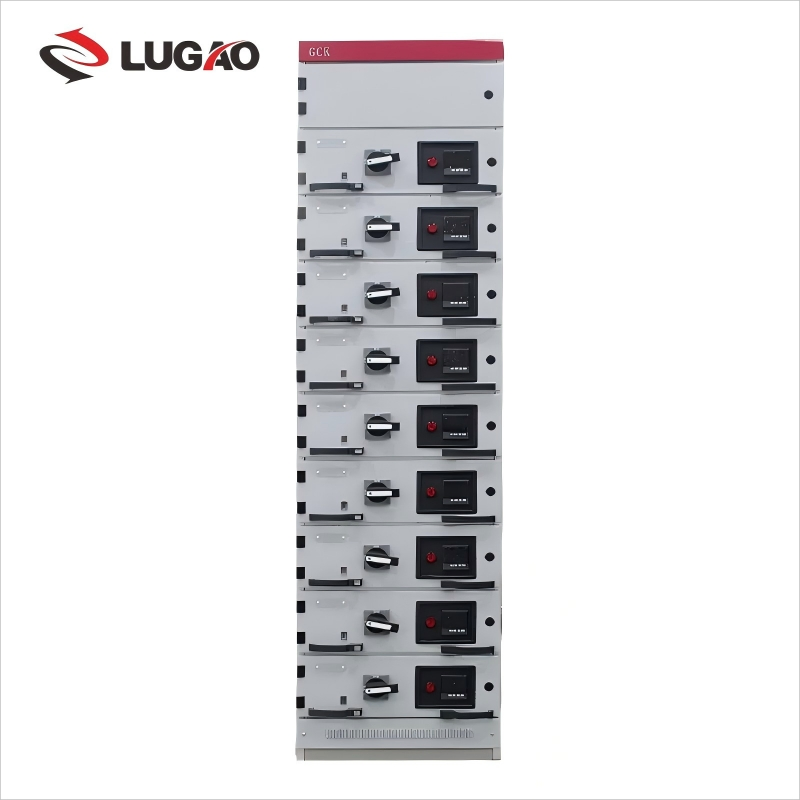

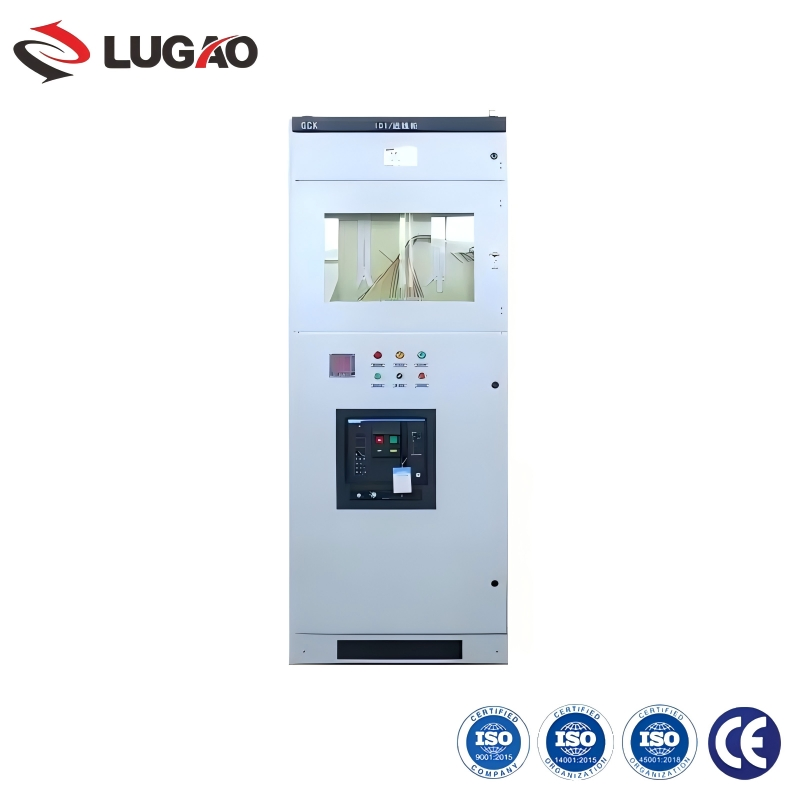

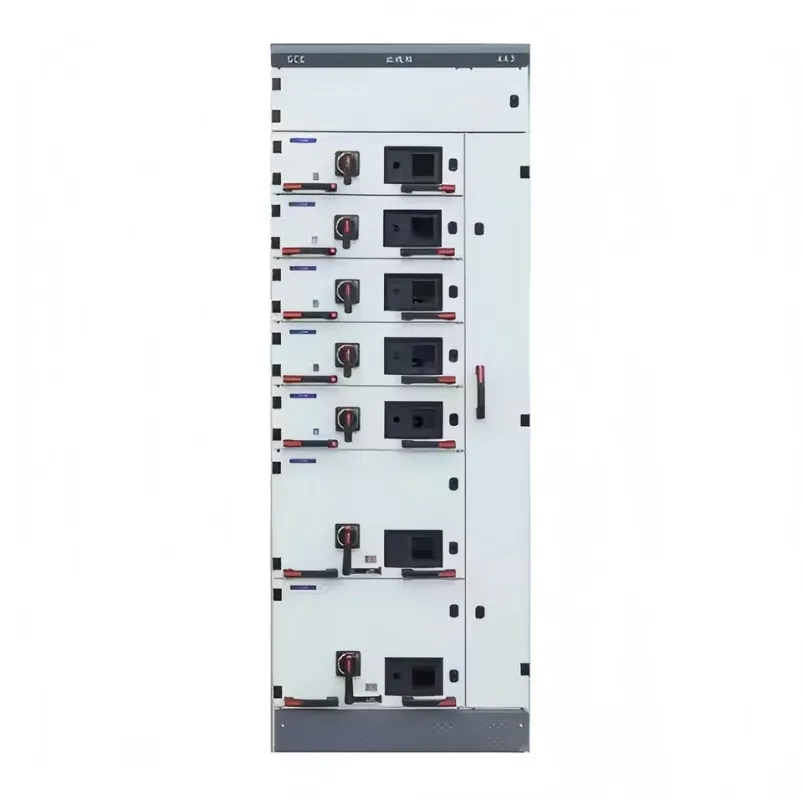

The low-voltage withdrawable switchgear has high technical performance indicators, designed to adapt to the evolving power market. It is suitable for power distribution systems in power plants, petroleum, chemical, metallurgy, textile, and high-rise buildings. In environments requiring a high degree of automation and computer interfaces, it serves as a reliable low-voltage distribution device for motor centralized control and reactive power compensation.

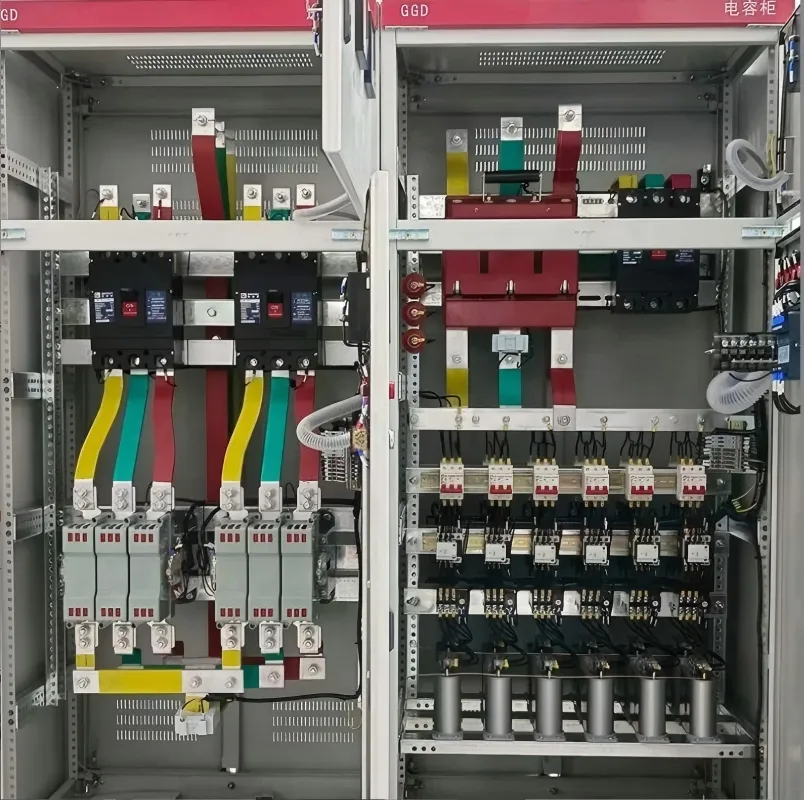

This equipment is engineered for three-phase AC frequency of 50/60 Hz, with a rated working voltage of 380V (400V) or 660V, and a rated current capability up to 6300A. Its modular design ensures safety and ease of maintenance.
| Parameter Description | Specification Value |
| Environment | Indoors |
| Ambient Temperature | -5ºC ~ +40ºC |
| Altitude | ≤2000m |
| Horizontal Busbar | 1600 / 2000 / 3150 A |
| Vertical Busbar | 630 / 800 A |
| Rated Working Voltage | 380V AC |
| Rated Insulation Voltage | 660V AC |
| Line Frequency Withstand Voltage | 2500V / 1min |

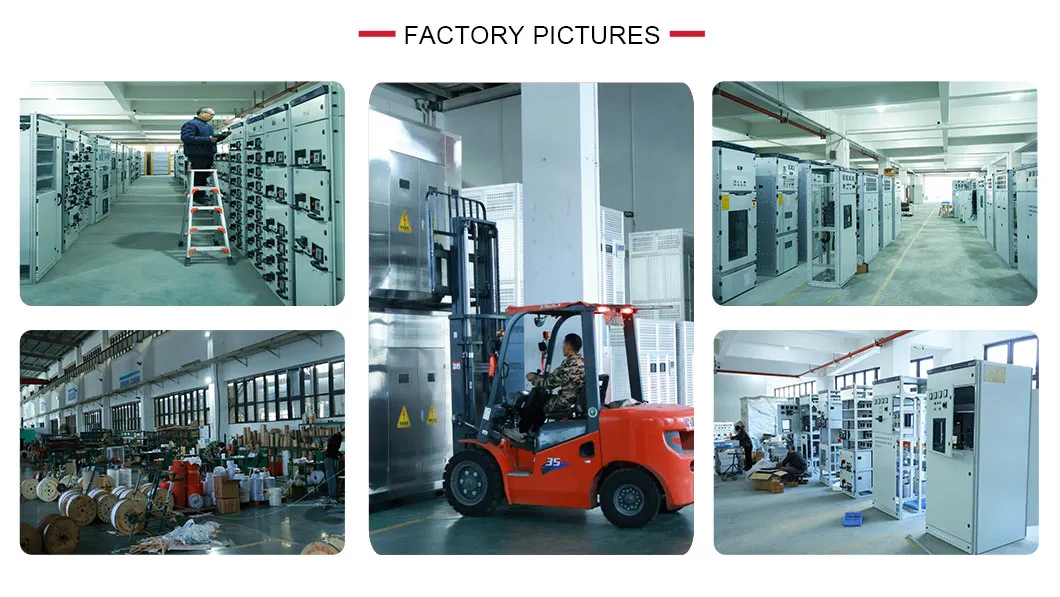

As an international high-tech enterprise, we specialize in the R&D and production of high, medium, and low-voltage transmission and distribution equipment. Our facility integrates cutting-edge production technologies supported by rigorous quality control systems to provide global power infrastructure solutions.
