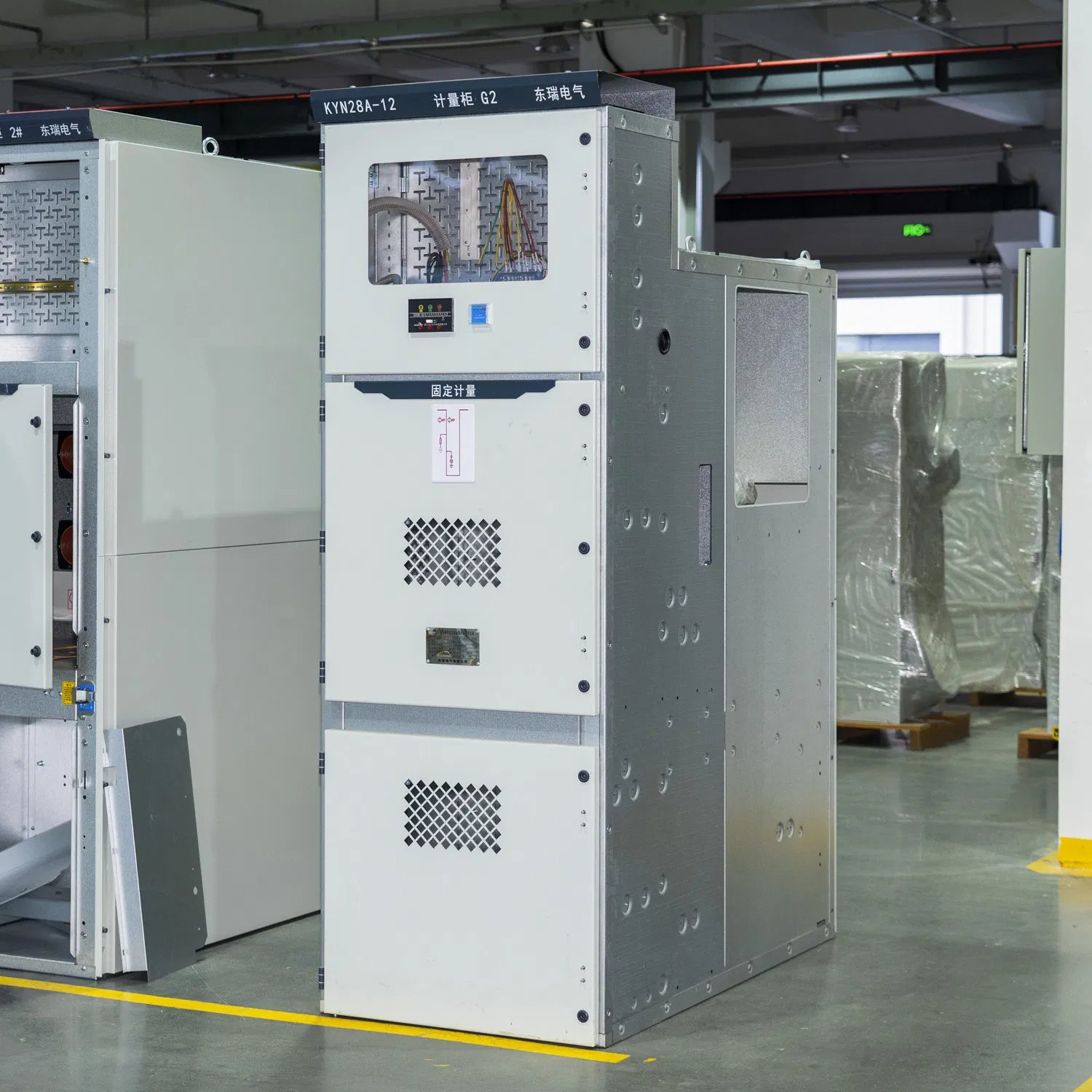

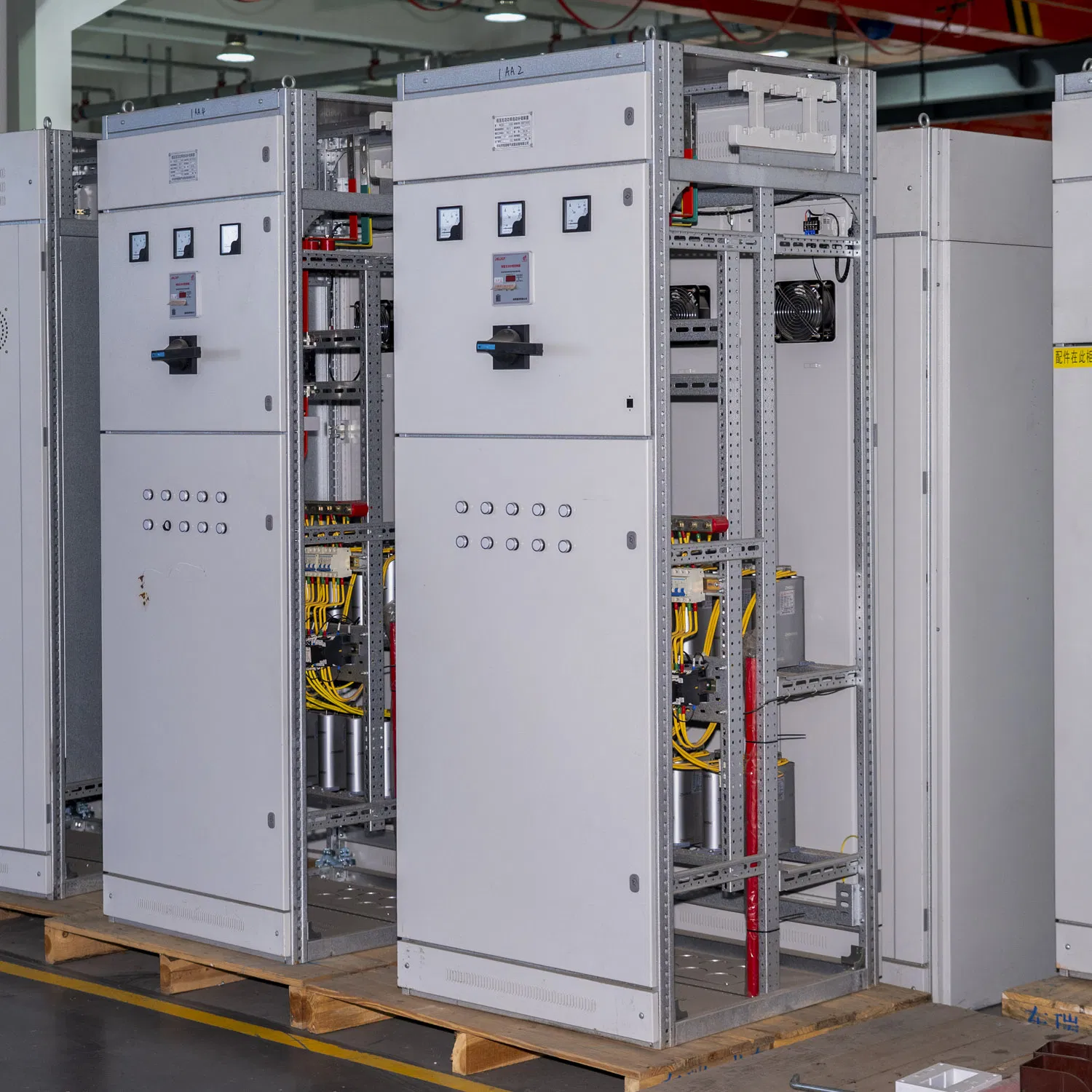

Industrial Complete Switchgear System of Power Distribution Equipment

Product Description

Switchgear System
Distribution Equipment

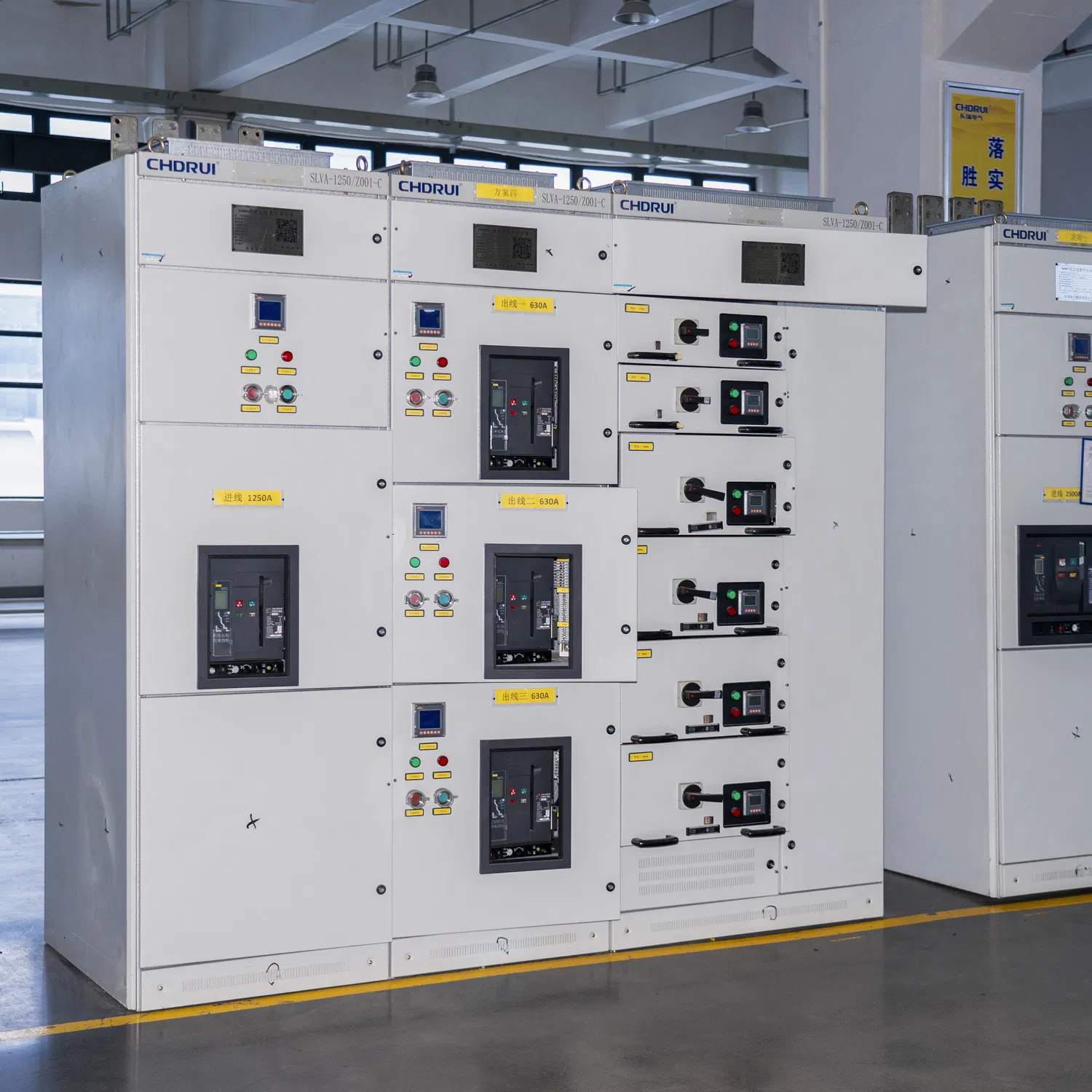

Industrial Switchgear
Power System
Electrical Equipment
Industrial Power Distribution
Control Panel
Low Voltage Switchgear
Electrical Cabinet
📋 Product Specification
Rated operational voltage690V AC
Rated insulation voltage1000V AC
Degree of protectionIP54 (indoor)/ IP65 (customized)
Short-time withstand current50kA for 1 second

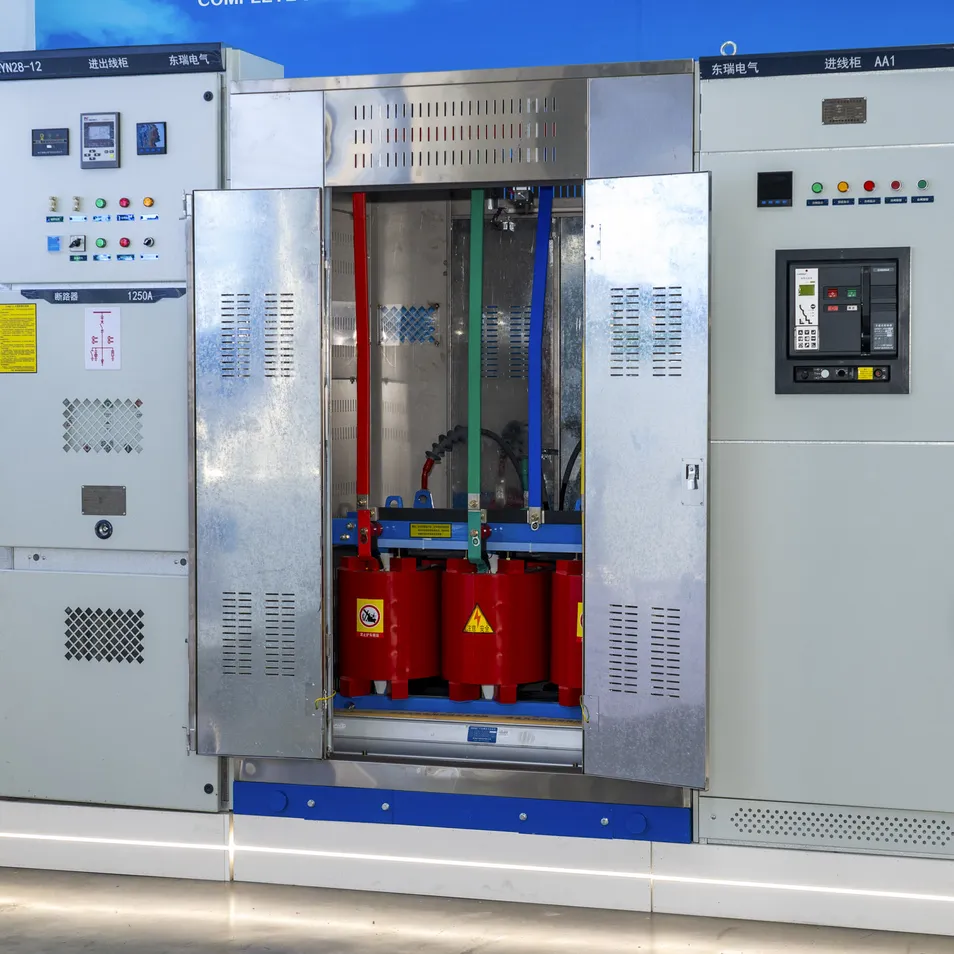

Technical Detail

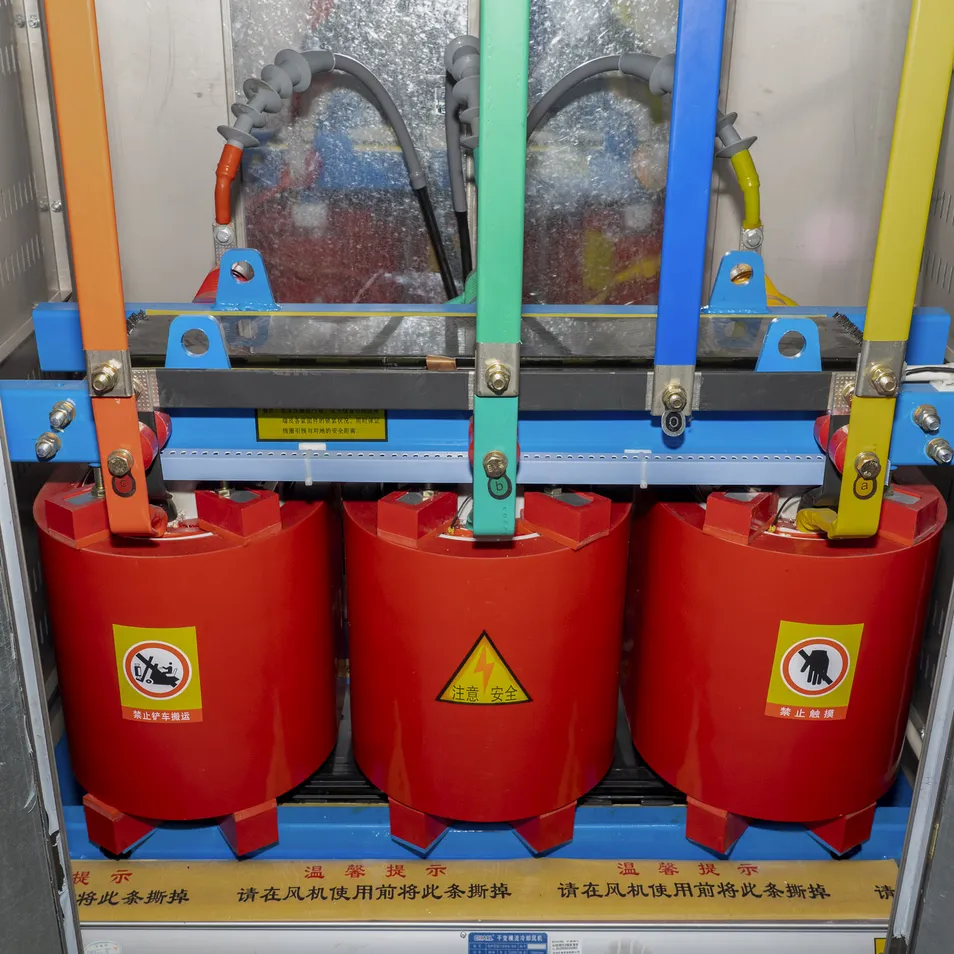

Component View
Standards Compliance: IEC 61439-1/2, GB7251.1
Rated Operational Voltage: 690V AC
Rated Insulation Voltage: 1000V AC
Degree of Protection: IP54 (Indoor), IP65 (Optional)
Short-time Withstand Current (Icw): 50kA/1s
Ingress Protection: IP54
🏢 Professional Manufacturer Profile
Video Presentation

Established in 1993, our enterprise has matured over three decades into a modern high-tech enterprise integrating R&D, production, and sales. Building upon a solid foundation in electrical manufacturing, our product lines have continuously evolved.

We manufacture a wide range of electrical components including AC contactors and miniature circuit breakers. Our portfolio features over 300 products across seven major series sold successfully worldwide.

Guided by the principle of "Quality First, Customers First, Reputation First," we have obtained ISO 9001 Quality Management System certification and international approvals including CE, CB, UL, ETL, and CCC. We sincerely welcome partners from across the globe to collaborate.

Gallery 1

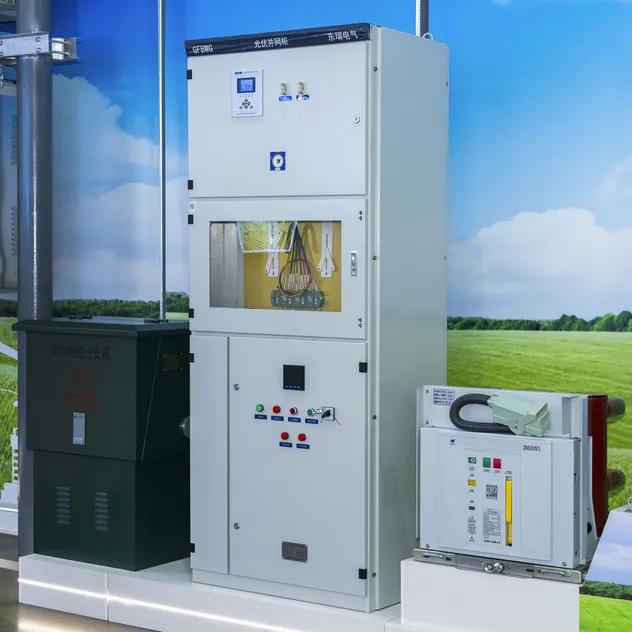

Gallery 2
Gallery 3
Gallery 4
Gallery 5
Gallery 6
Gallery 7
Gallery 8
Gallery 9
Frequently Asked Questions
What standards does your low voltage switchgear comply with?
Our switchgear is designed and manufactured in full compliance with the international IEC 61439 series of standards (specifically IEC 61439-1 & -2). We also hold complete Type Test Certification (TTA) from independent laboratories and meet national standards such as GB7251.1.
What is the meaning of "Form 4B" separation?
Form 4B per IEC 61439 specifies the highest degree of internal separation. It ensures complete isolation between busbars, functional units, and terminal compartments, enhancing safety by containing internal fault arcs and allowing for safer maintenance.
What is the advantage of a withdrawable circuit breaker design?
A withdrawable design allows circuit breakers to be easily disconnected and moved to a "test" or "withdrawn" position without de-energizing the entire panel, minimizing downtime for critical maintenance or replacement.
What is the short-circuit withstand rating (Icw) of your panels?
Our standard panels are rated for a short-time withstand current (Icw) of 50kA for 1 second. Higher ratings can be specifically engineered for custom projects.
What is the typical delivery lead time for a custom switchgear project?
For standard configurations, lead time is typically 4-6 weeks. For fully customized projects involving complex engineering, the lead time can range from 8 to 12 weeks upon technical finalization.
What is the degree of ingress protection offered?
Standard indoor models are rated IP54, while customized solutions for harsher environments can reach IP65 protection.
