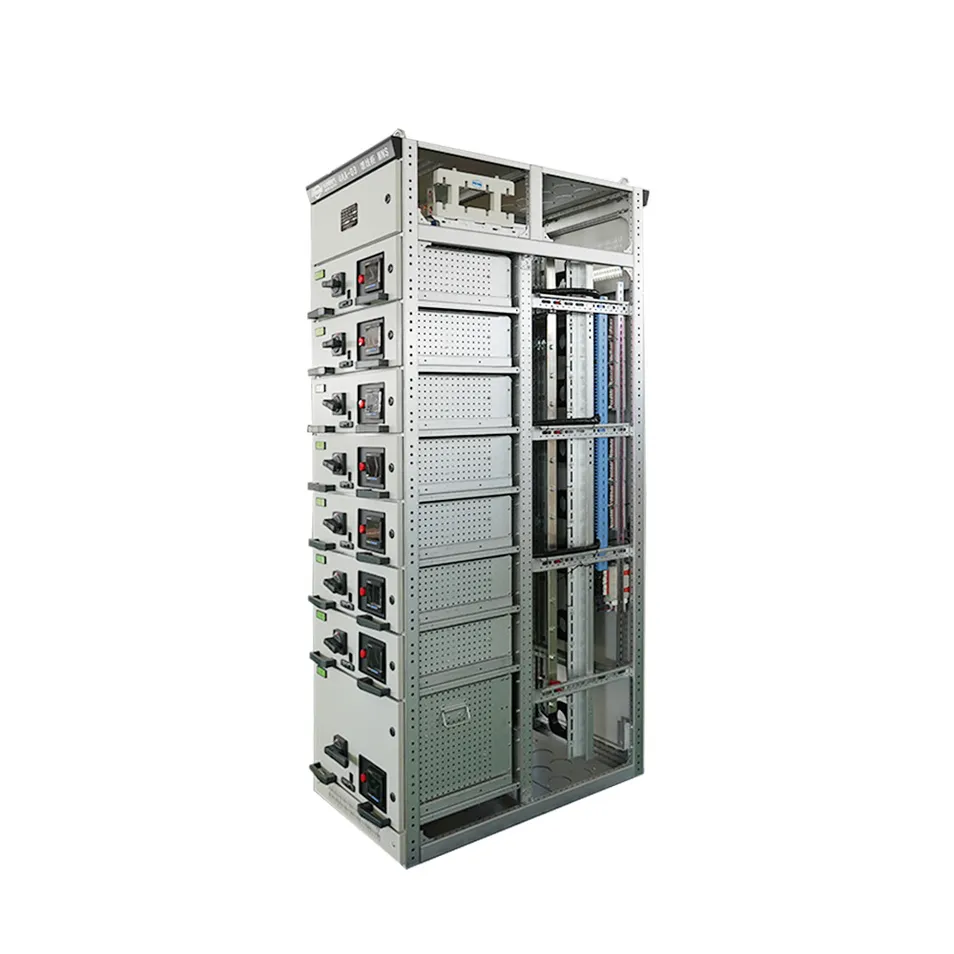

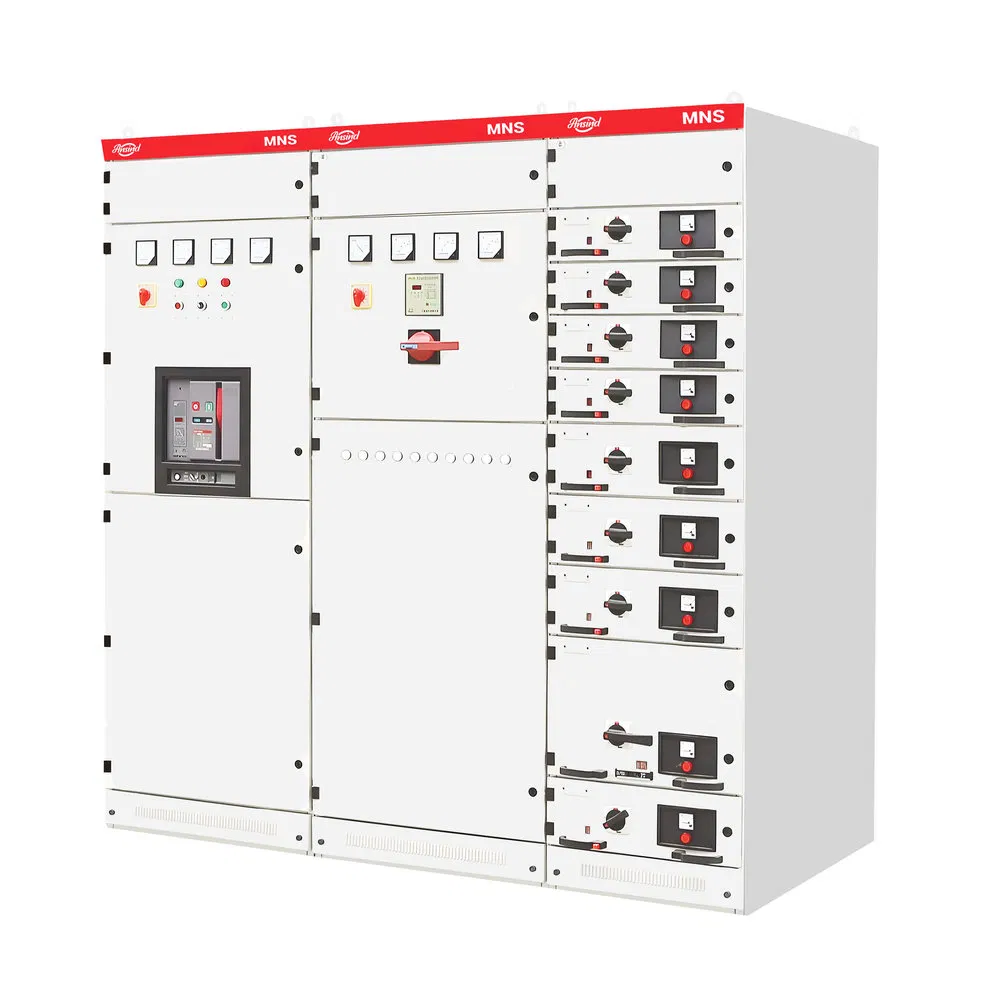

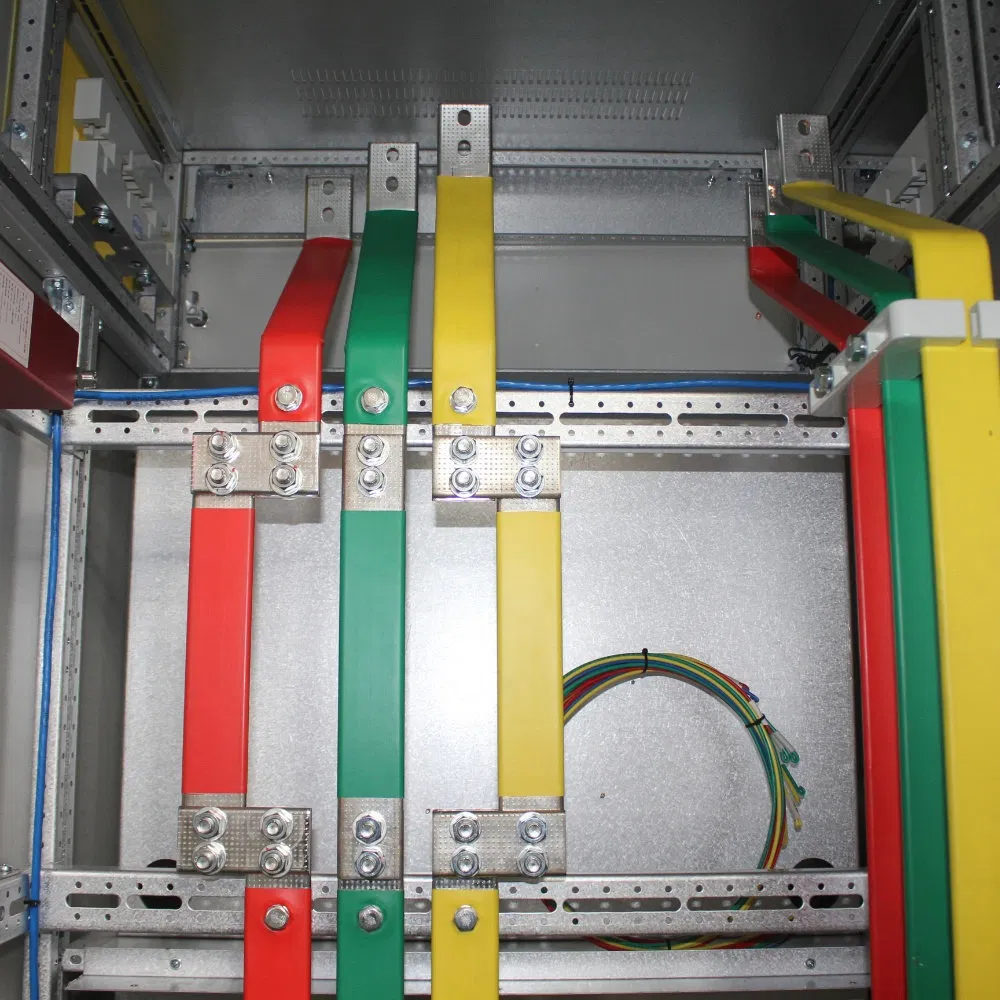

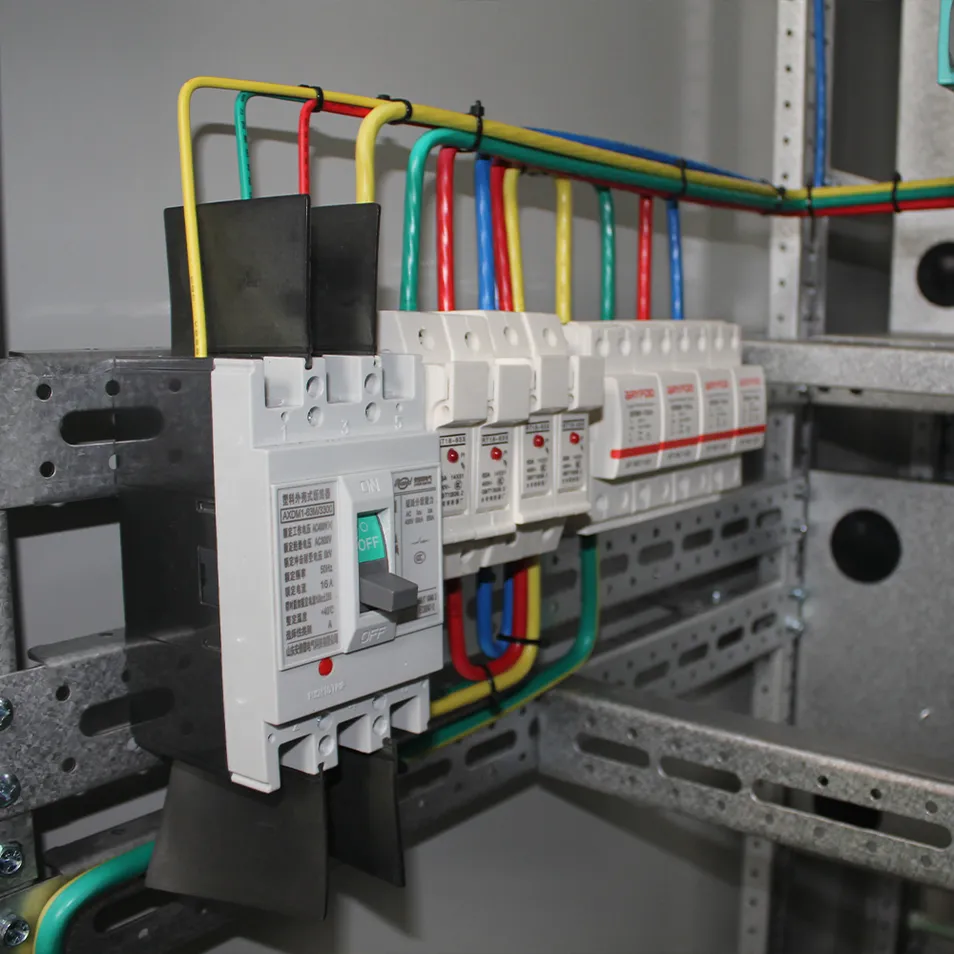

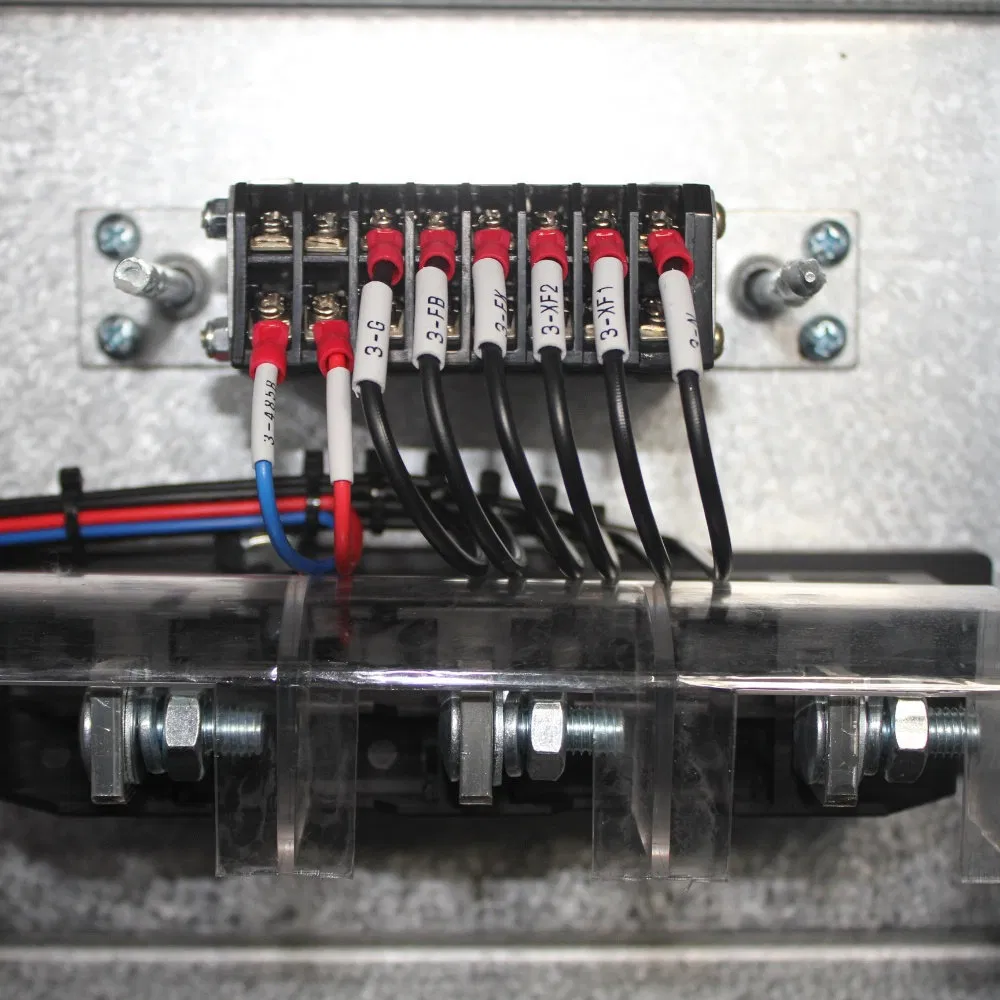

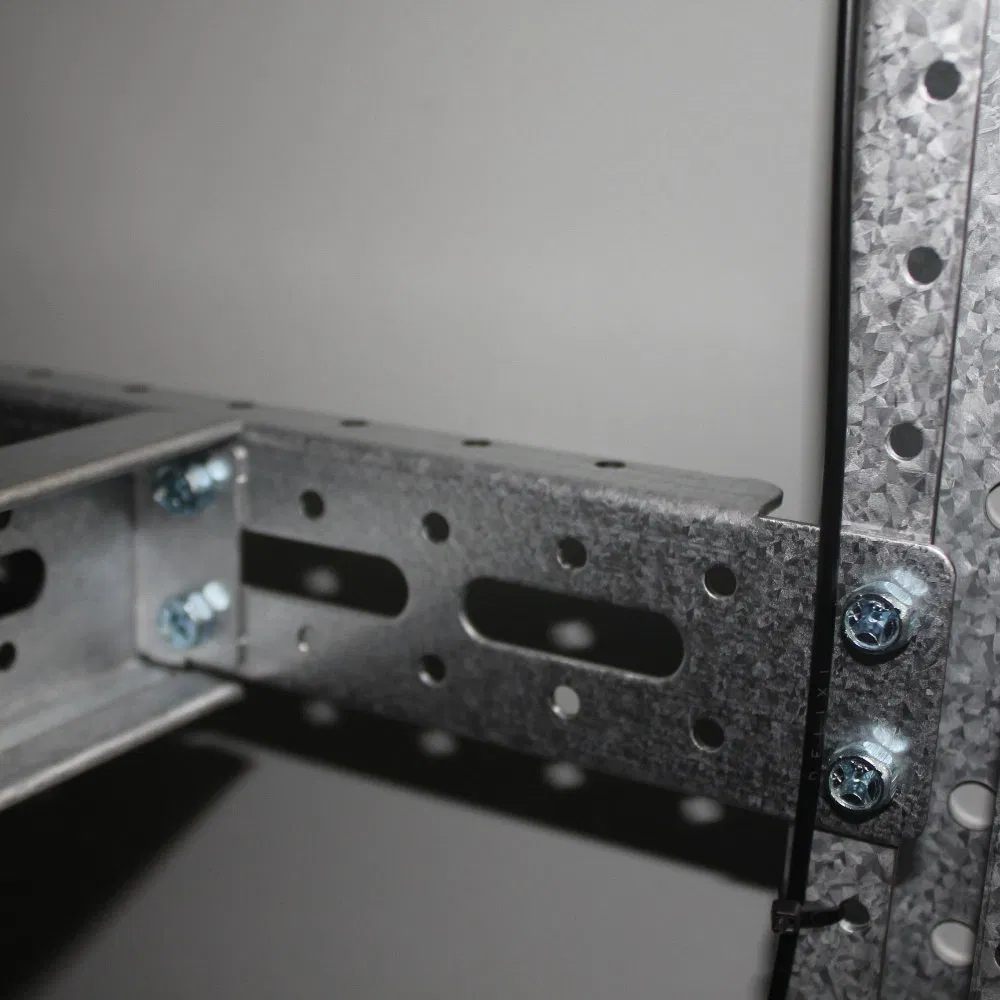

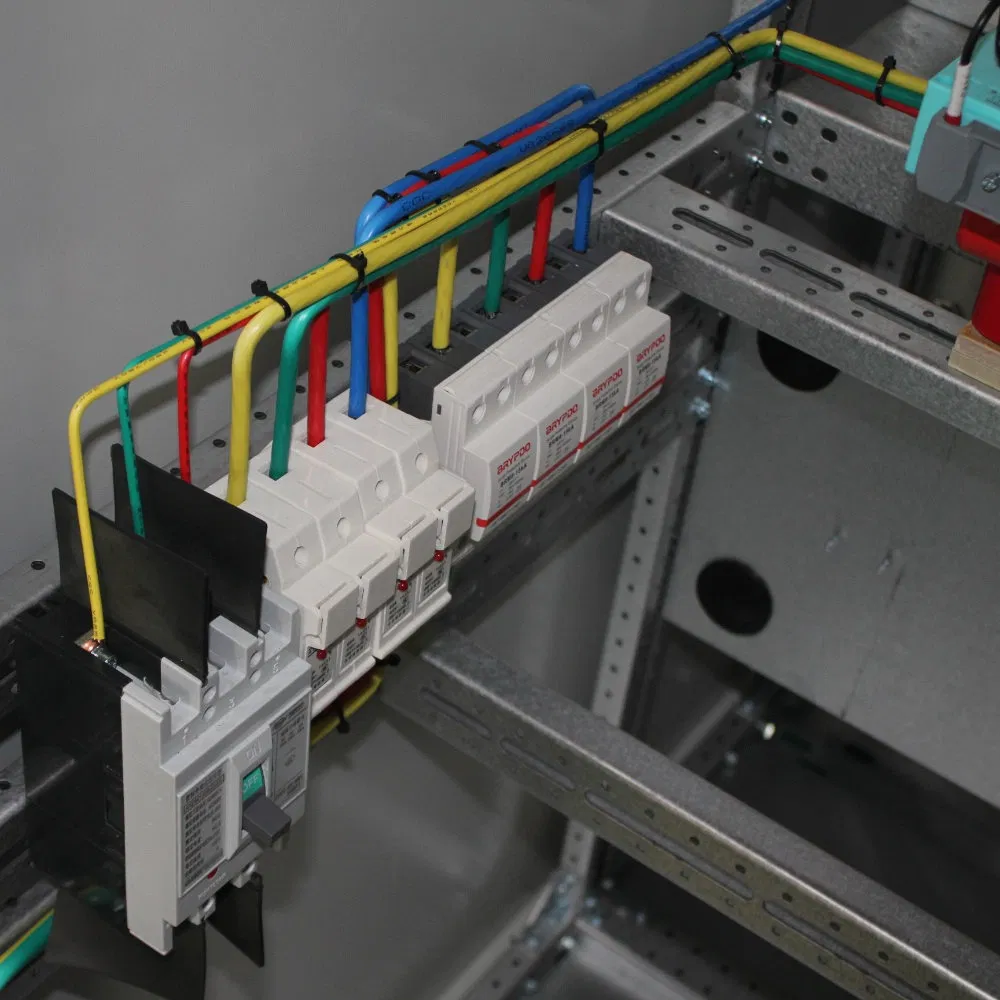

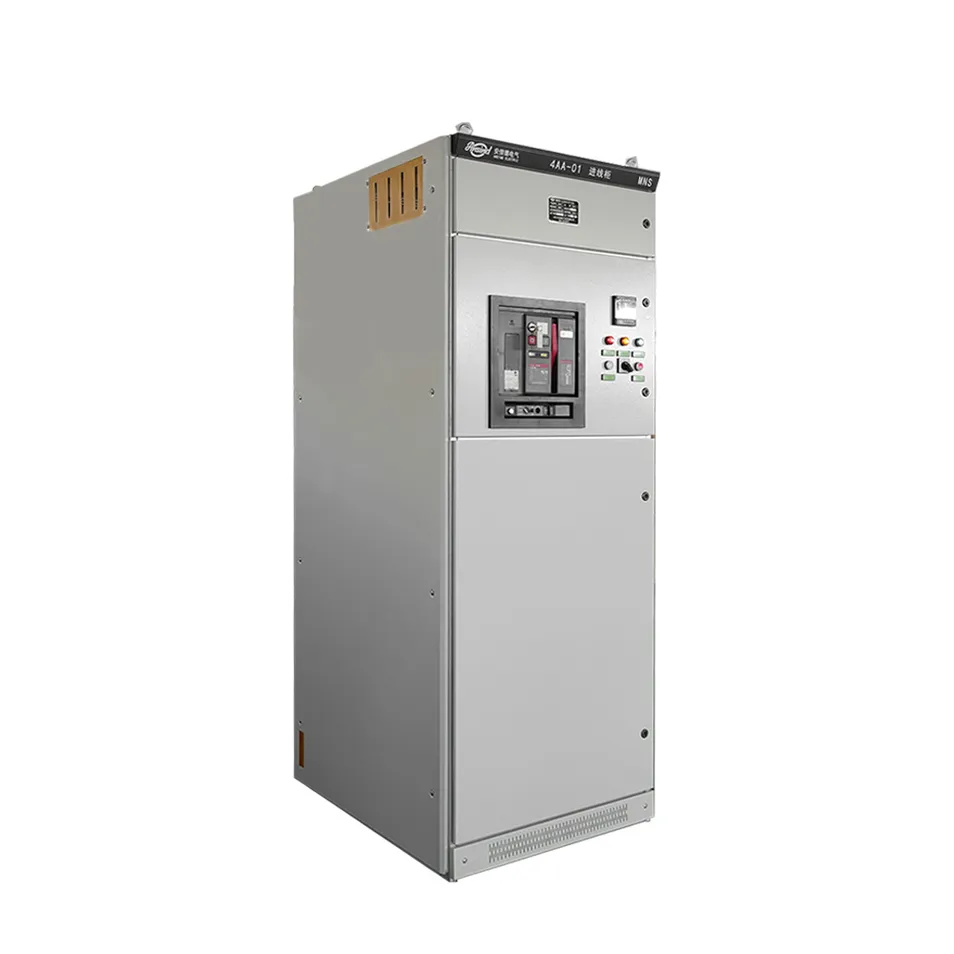

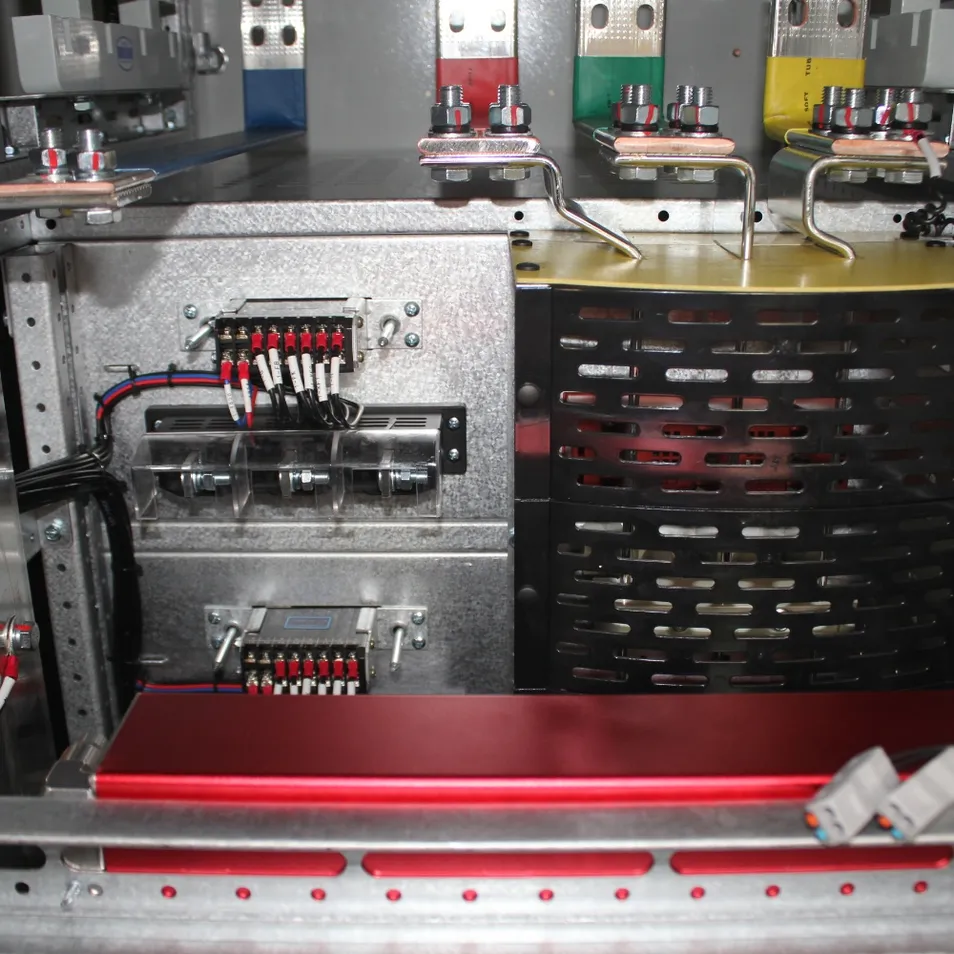

MNS Low-Voltage Draw-Out Switchgear consists of standardized, modular components. Its drawers feature reliable mechanical interlocking devices, ensuring safer and more dependable operation for users.
This switchgear is suitable for AC 50/60 Hz power systems with rated operating voltages of 400 V, 660 V, and rated currents of 5000 A or below. It serves as a control device for power generation, transmission and distribution, power conversion, and power consumption equipment.

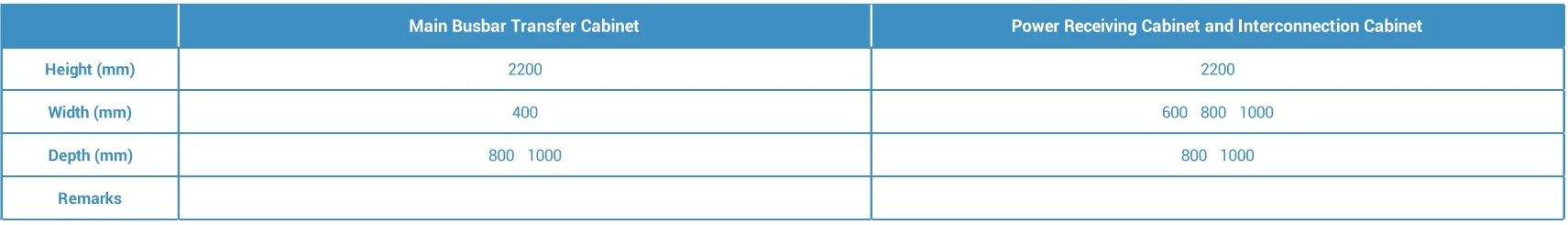

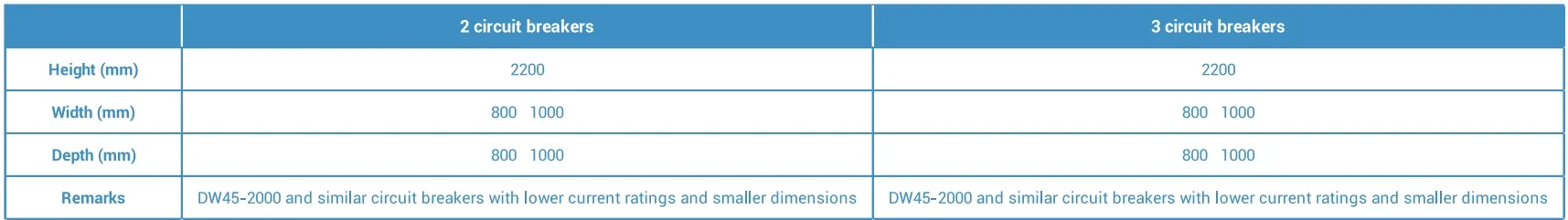

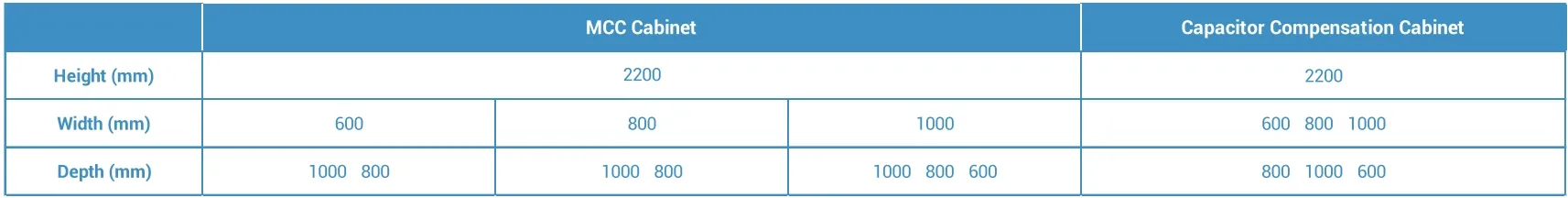

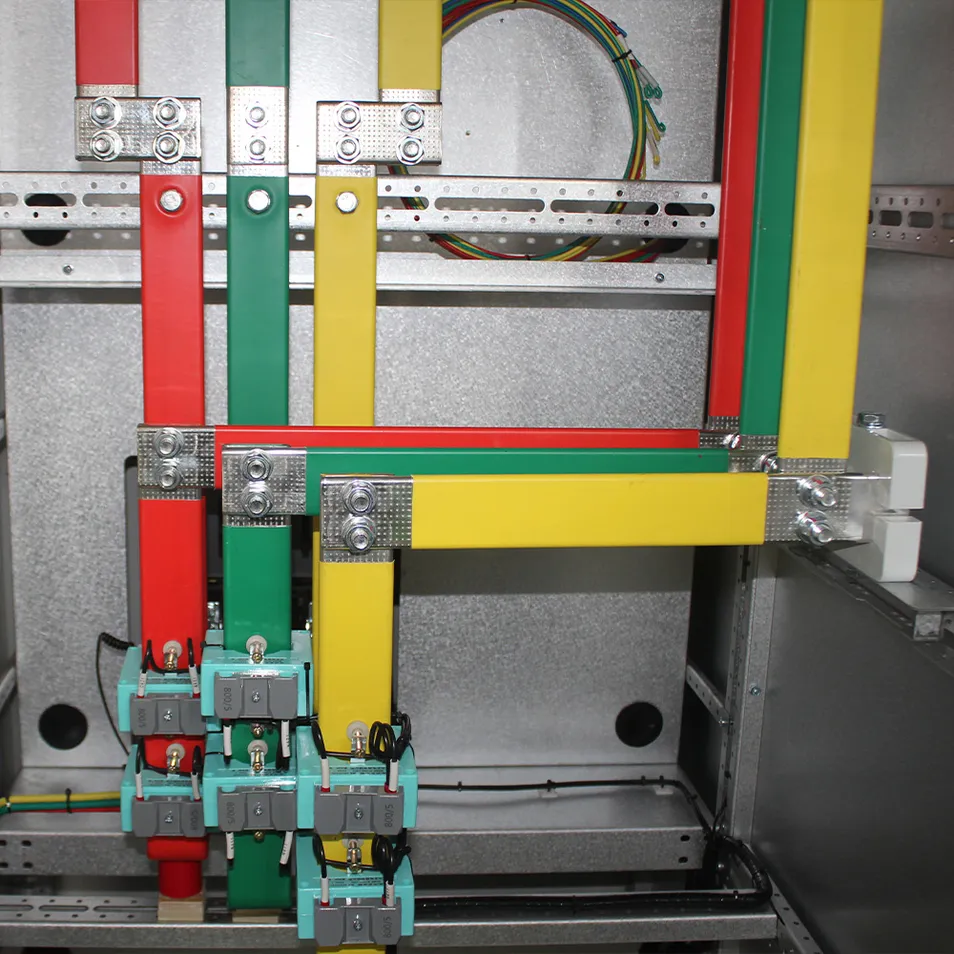

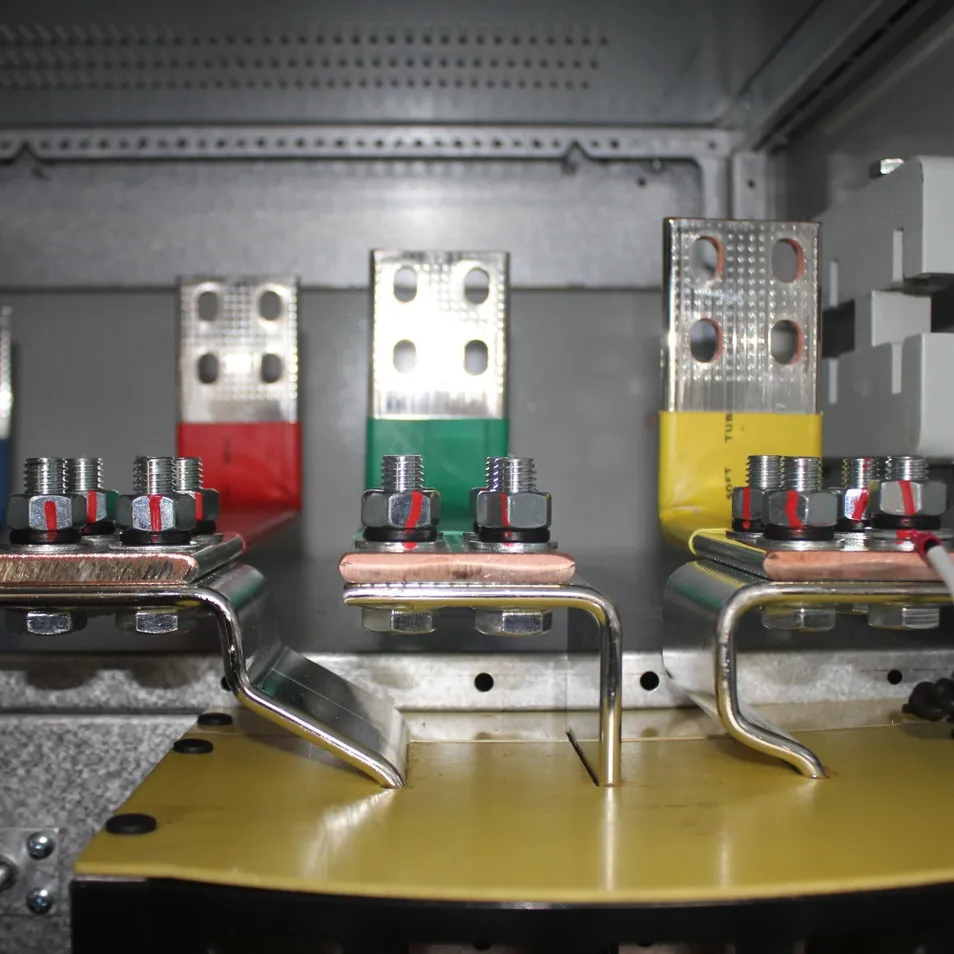

| Parameter Name | Data | |
|---|---|---|
| Overvoltage Category | IV III | |
| Pollution Degree | 3 | |
| Rated Operating Voltage (Ue) | 400/660 V | |
| Rated Insulation Voltage (Ui) | 660/1000 V | |
| Rated Frequency | 50(60) Hz | |
| Horizontal Busbar | Rated Current | ≤5000A |
| Rated Short-Time Current (Icw) | 50, 65, 80 kA (1s) | |
| Rated Peak Withstand Current (Ipk) | 105, 140, 176 kA | |
| Vertical Busbar | Max Operating Current | ≤1000A |
| Rated Short-Time Current | 50kA | |
| Rated Peak Current | 105kA | |
| Enclosure Protection Rating | IP30 / IP40 | |
