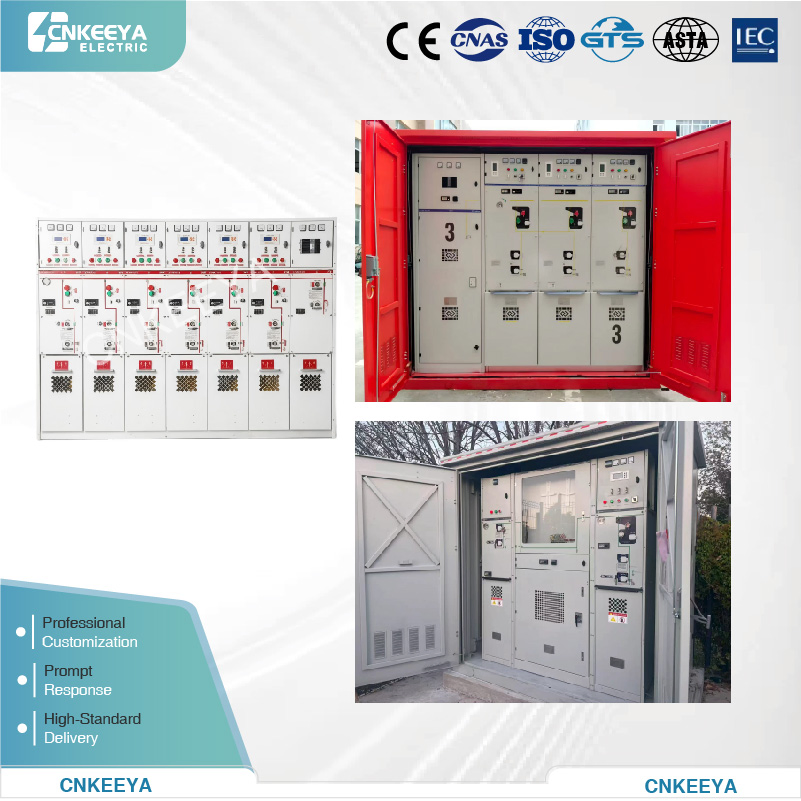

Cnkeeya 12kv Rmu Switchgear for Industrial Power Distribution

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information

Model NO.
XGN15-12
Voltage Level
Medium Voltage
Installation
Fixed
Structure
Cabinet
Current
AC
Rated Voltage
12kv, 24kv
Rated Frequency
50Hz, 60Hz
Rated Current (IR)
630A.1250A
Withstand Current
25ka/2s
Peak Withstand
50ka or 63ka
Origin
China
Production Capacity
10000 Set/Month

Product Introduction

Product Banner

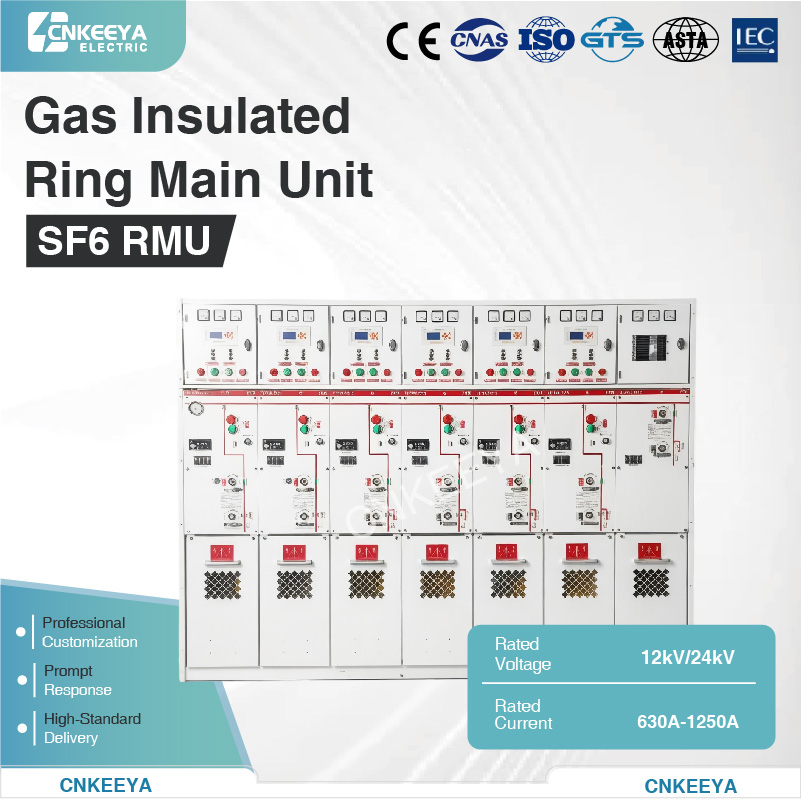

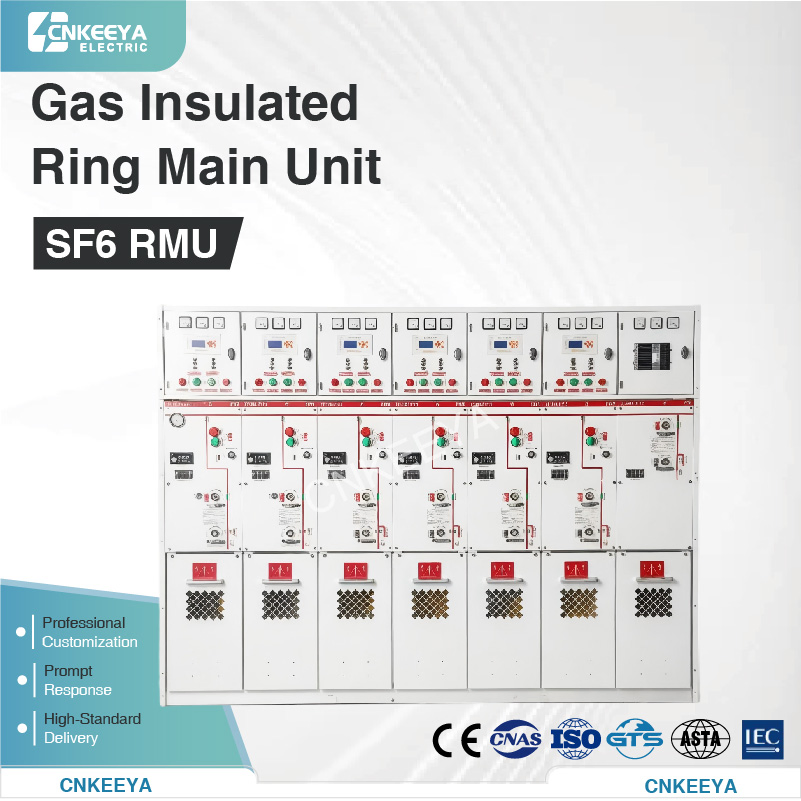

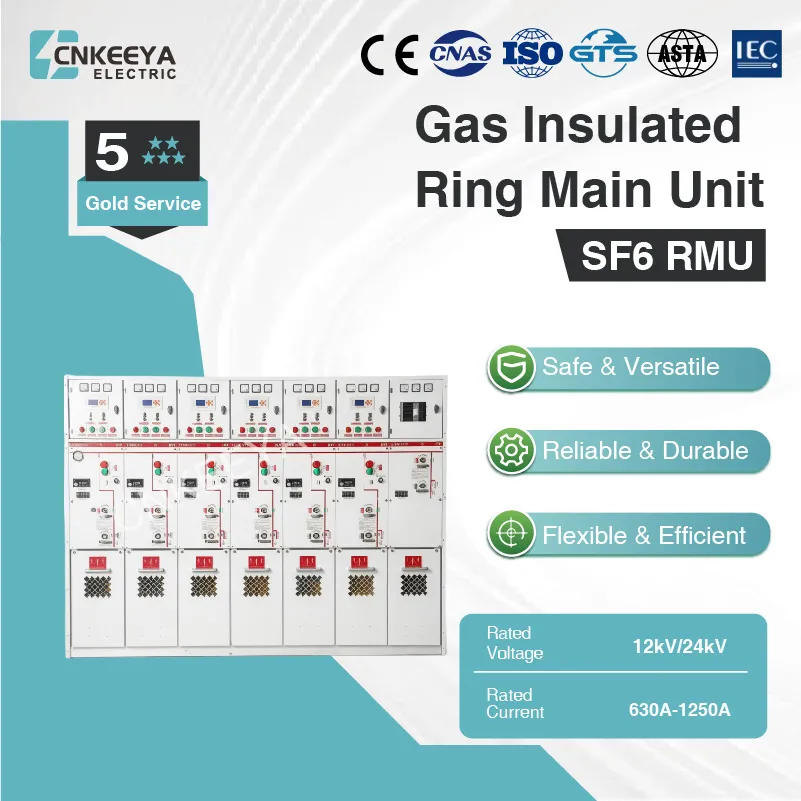

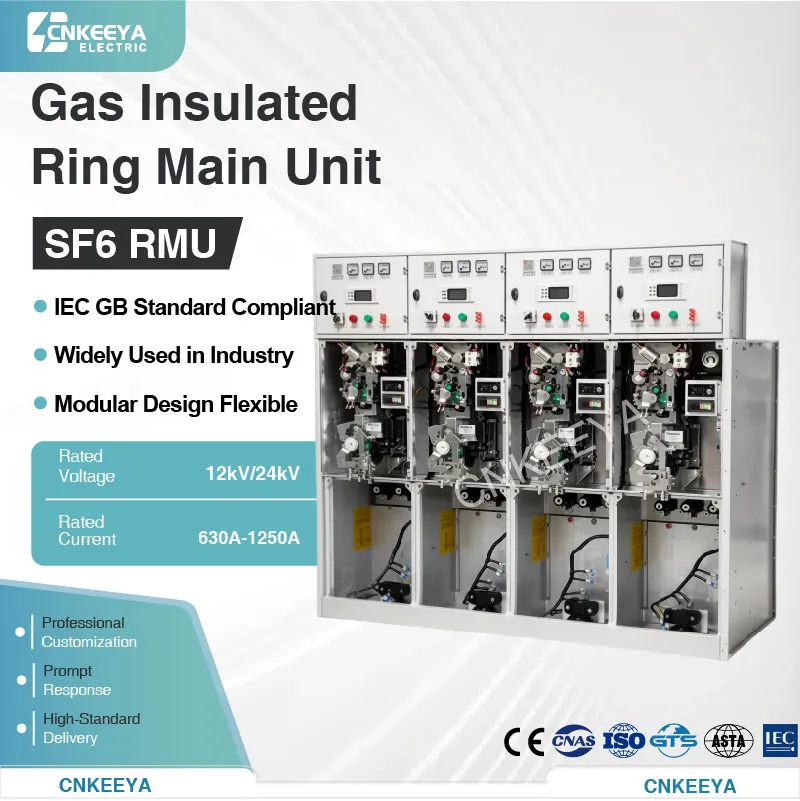

Gas-Insulated Ring Main Unit (RMU)

  • Reliable Fully Sealed Structure: Fully insulated, fully sealed stainless steel gas tank with SF6-insulated high-voltage components. Resistant to harsh environments like humidity and pollution.
  • Flexible Modular Design: Standardized modular units support free combination of incoming, outgoing, metering, PT and bus tie circuits for easy installation and expansion.
  • Comprehensive Safety Protection: Built-in mechanical five-prevention interlock eliminates misoperation risks. Equipped with precise relay protection.
  • Wide Application Scenarios: Compact structure with small footprint, used in 10kV indoor distribution, industrial parks, and commercial buildings.

Product Parameters

Rated Voltage 12kV, 24kV Rated Current 630A, 1250A
Frequency 50 Hz, 60Hz Application Indoor, Industrial, Power Transmission, Gas Insulated
Material Aluzinc steel / Cold-rolled steel Certificate ISO9001

Detailed Photos

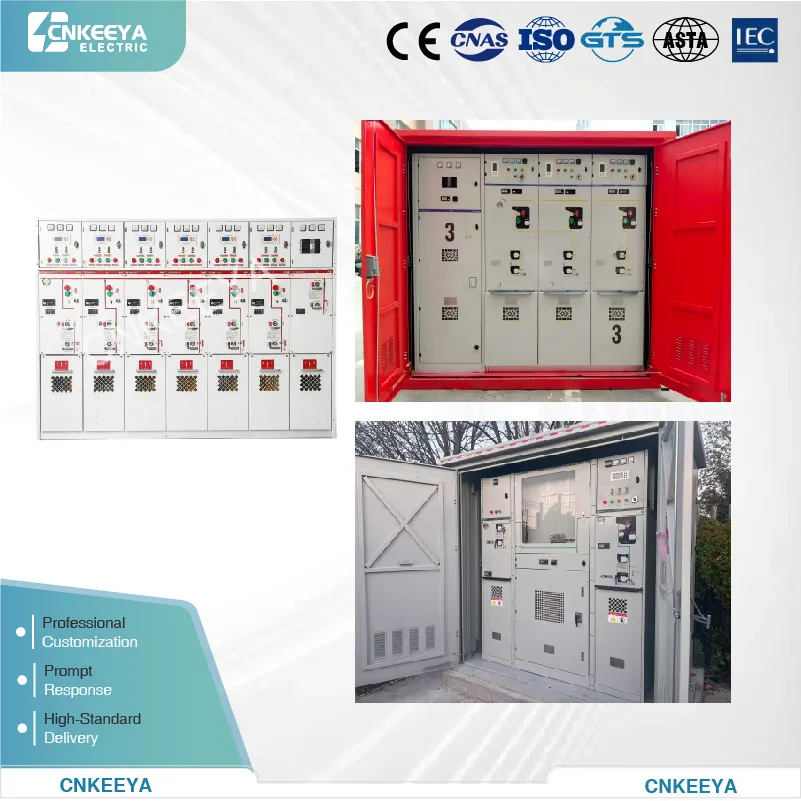

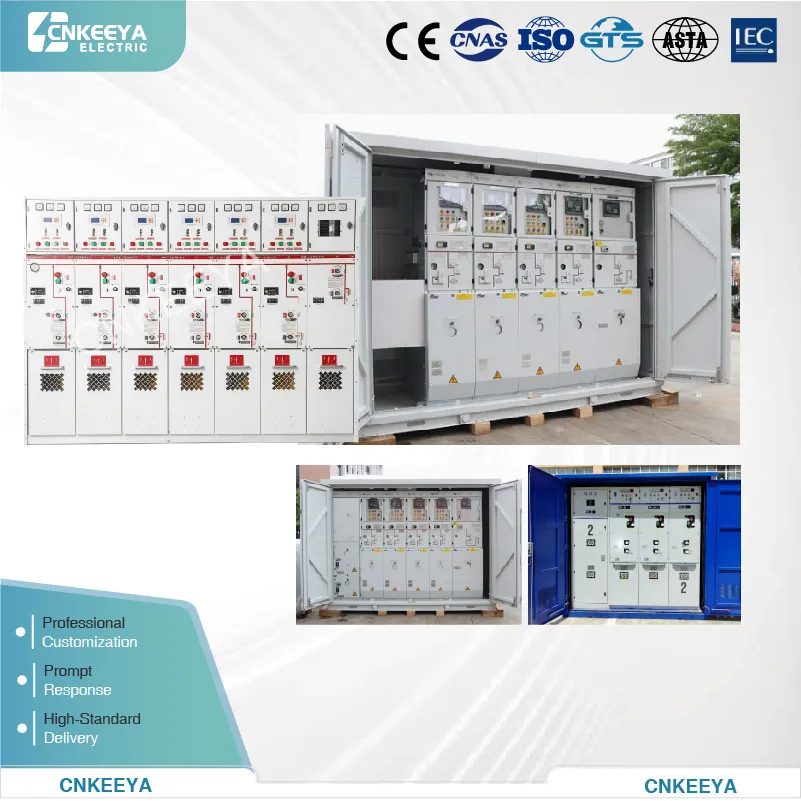

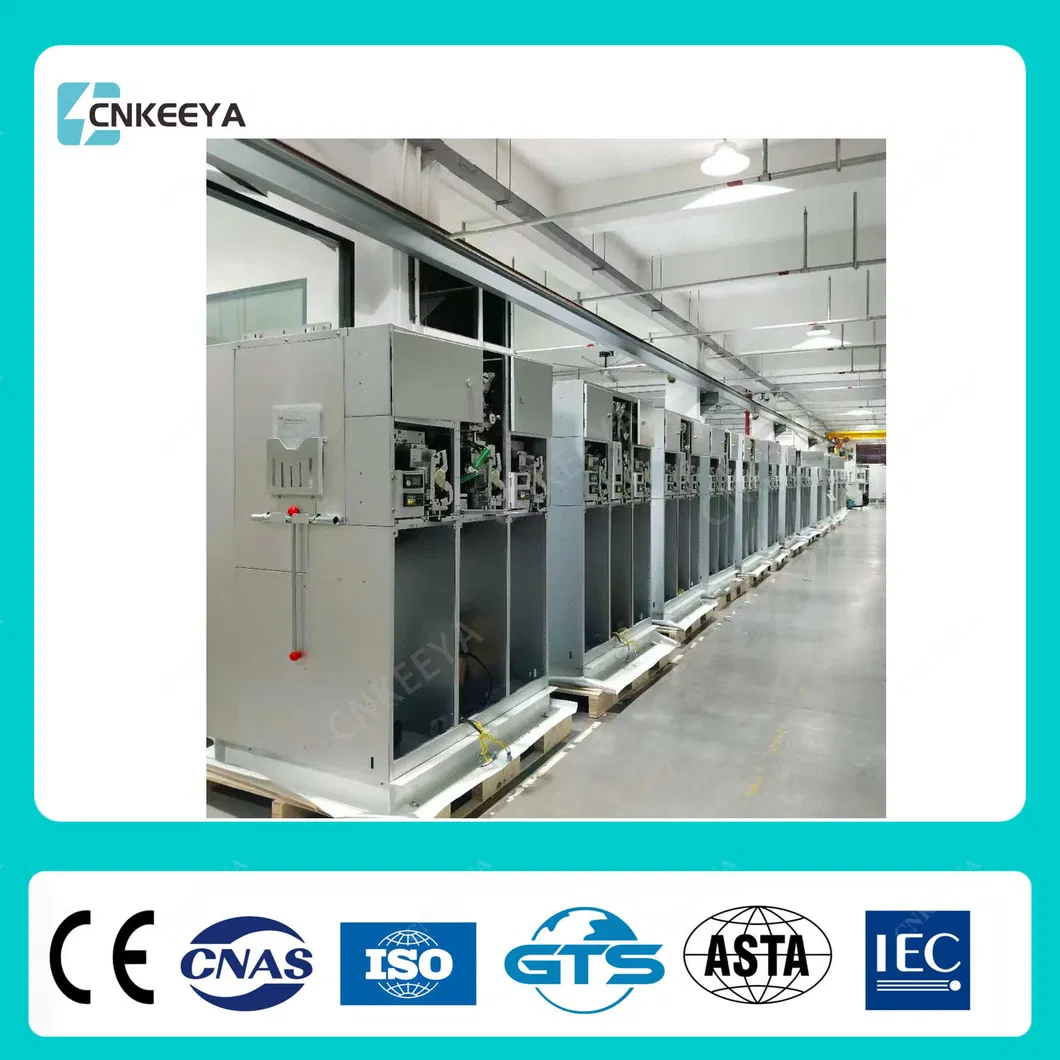

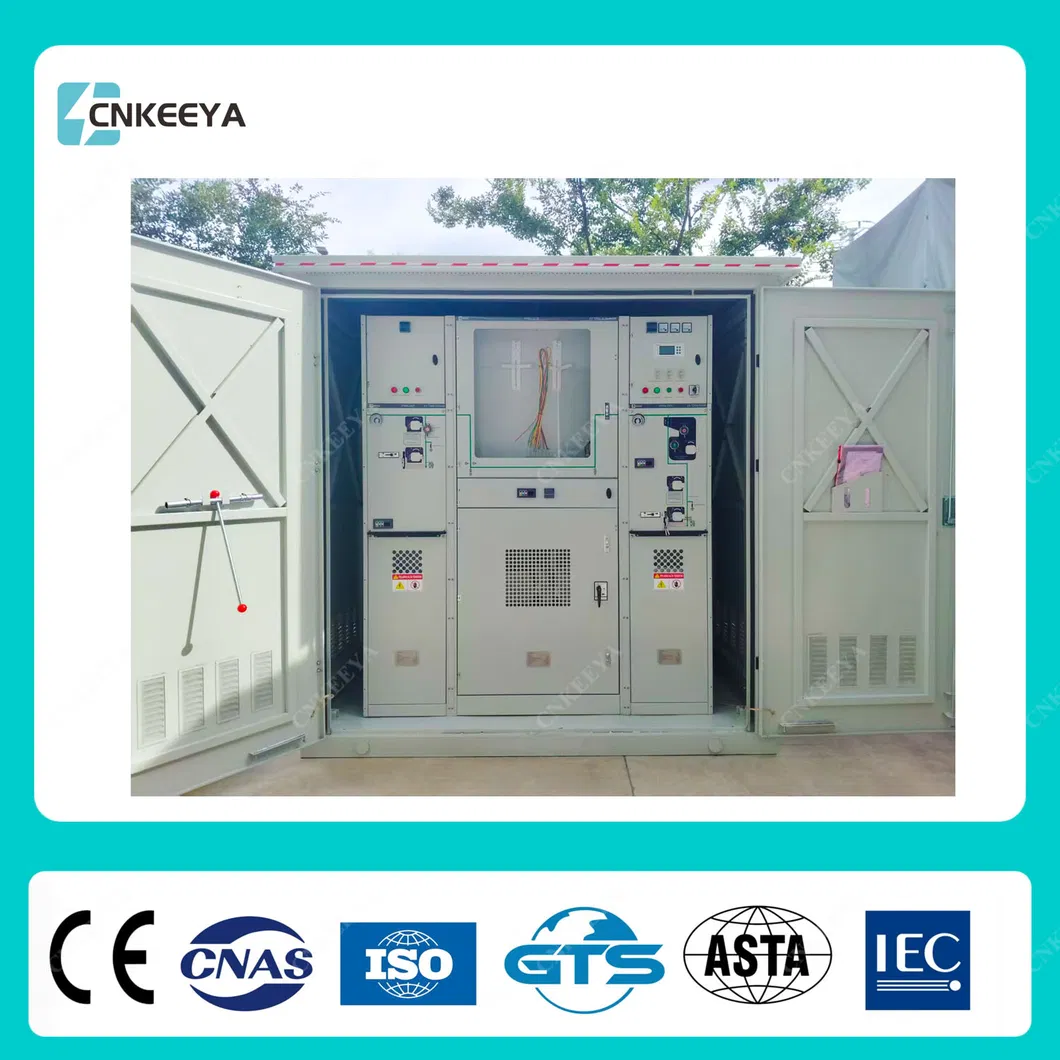

Single Detailed View Technical Layout

Company & Factory

Company Showcase
Focus on transmission and distribution and control equipment manufacturing. We are a comprehensive modern science and technology enterprise integrating power equipment resource development, manufacturing, and international power equipment agency. Providing a perfect power supply system for customers is our mission. The group mainly develops and produces: high and low voltage complete sets of equipment, box-type substations, power transformers, cable branch boxes, and stainless steel distribution boxes.

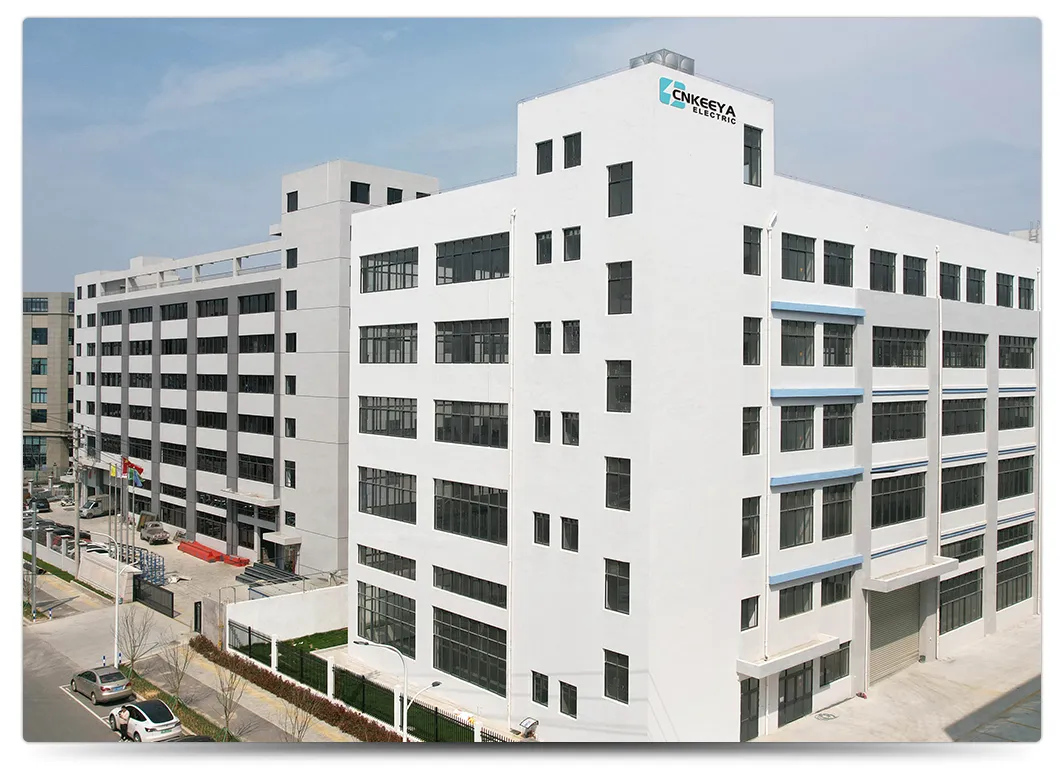

Factory View

Certificates & Shipping

Certificates Packaging

Frequently Asked Questions

Are you a professional manufacturer?
Yes, we are a professional manufacturer specializing in power equipment including high and low voltage sets, transformers, and distribution units.
What is the typical ordering process?
Please provide detailed technical specifications or a Single Line Diagram (SLD). Our team will review the requirements and provide a formal quotation and technical consultation.
Do you support OEM and ODM services?
Yes, we provide full OEM and ODM support to meet specific project requirements and customized technical standards.
What are the standard payment terms?
We generally accept T/T. For large orders, a 30% advance payment is required, with the remaining 70% balance due after customer confirmation before shipment.
What is the quality guarantee period?
Our standard quality guarantee period is 12 months. Our production strictly complies with international standards like IEC and ANSI, and we hold ISO9001 and ISO14001 certifications.
Which international markets do you serve?
Our products are exported globally, with major markets in Southeast Asia, Central Asia, Eastern Europe, North America, Africa, and the Middle East.
