Cabinet Radiator Switchgear Industrial Powder Coating Equipment Oven System

Customization:	Available
Voltage:	380V
Warranty:	2 Years

Basic Specifications

Model NO.

HN-SA

Equipment Name

Powder Coating Oven

Powder Recovery Rate

99.2%

Heating Energy

Electric/Diesel/Gas/LPG

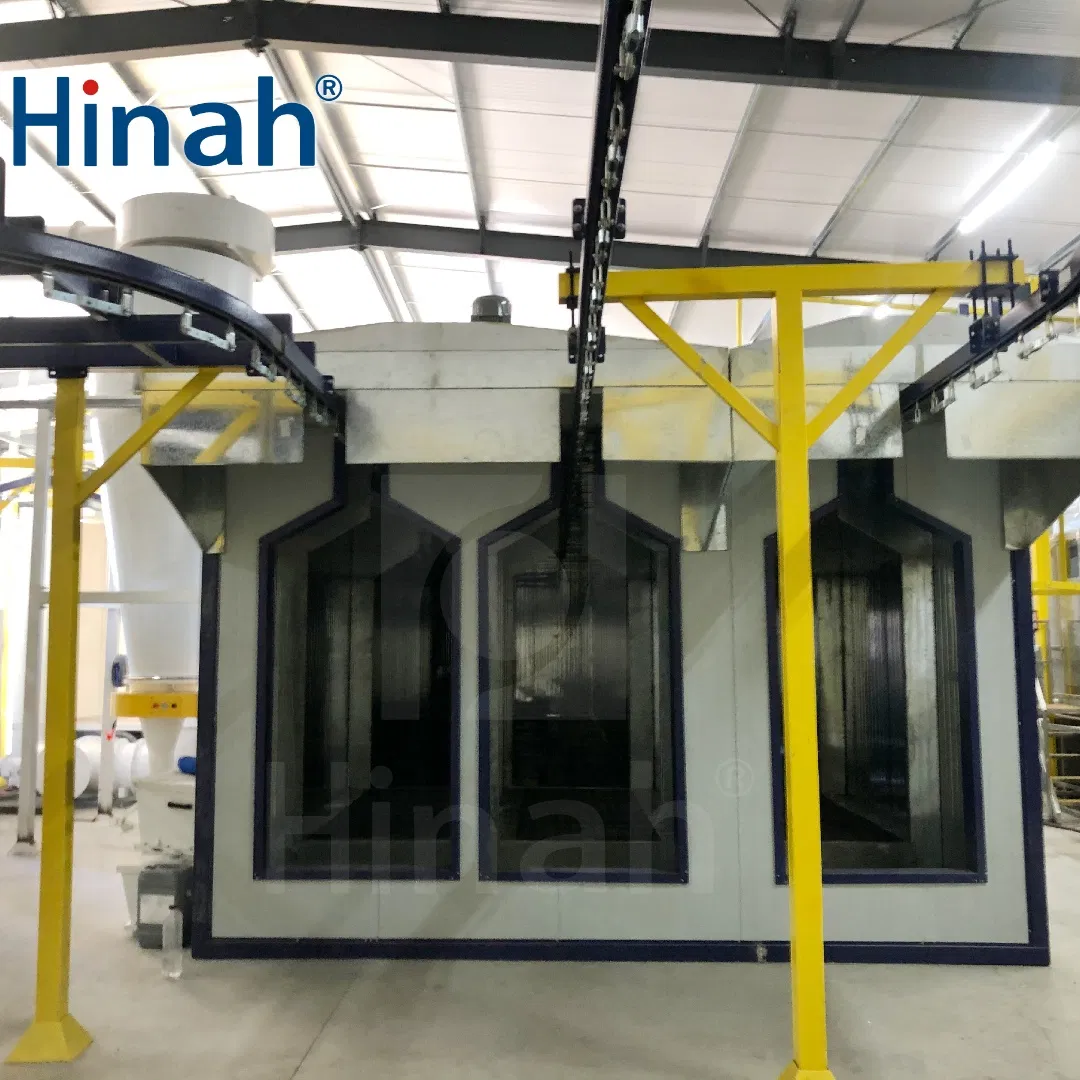

Powder Coating Booth

Quick Color Change Cyclone

Control Mode

Siemens PLC+Touch Screen

Application

Hardware & Plastic Spraying

Certification

CE, ISO

Method Type

Automatic

Production Capacity

1500

Industrial Powder Coating Oven System

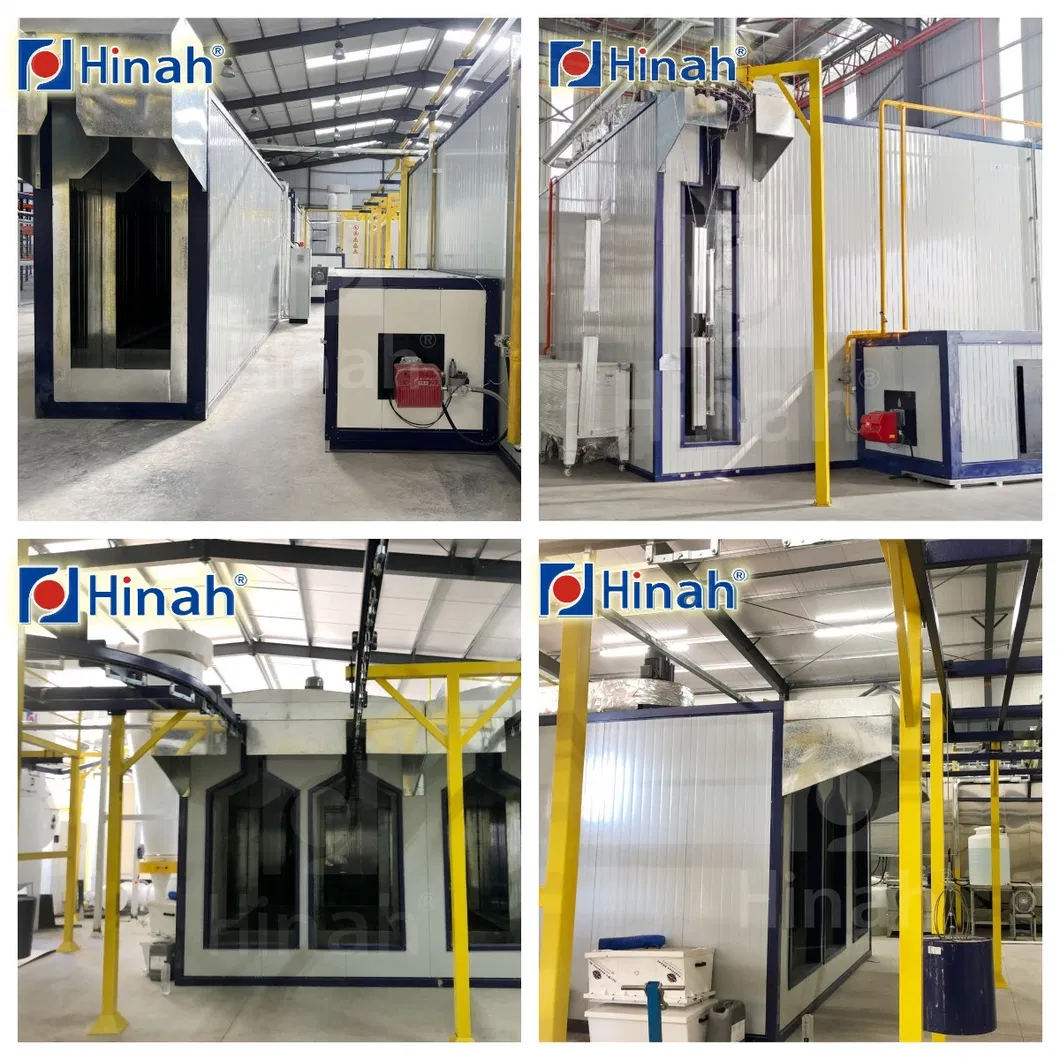

In electrostatic powder coating, the curing oven is critical for quality. Temperature uniformity is a key index to ensure the durability and finish of the coating.

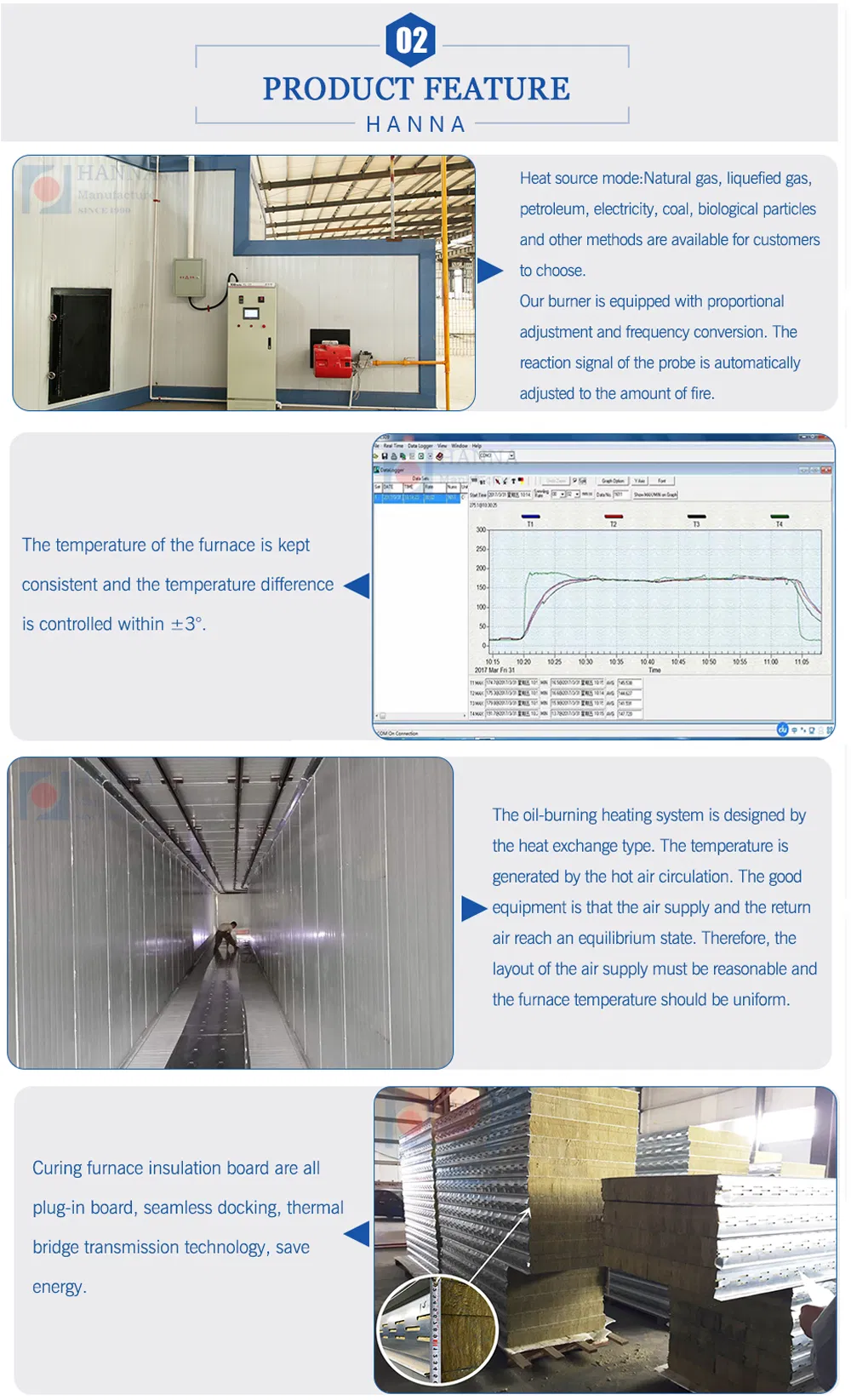

Fuel Saving: Seamless plug-in insulation boards with thermal bridge transmission technology.

High Safety: Automatic ventilation before ignition eliminates safety hazards.

Balanced Heating: Hot air circulation ensures uniform furnace temperature.

Direct Heat Efficiency: Gas direct heat type ensures 100% efficiency with no waste.

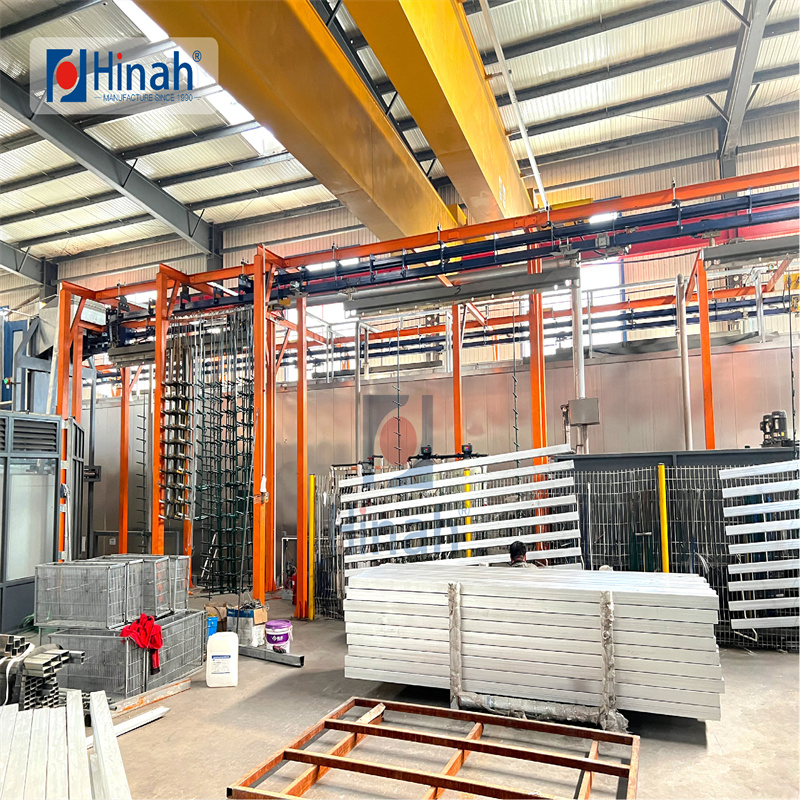

Equipment Constitution of Powder Coating Line

System Component	Specifications & Details

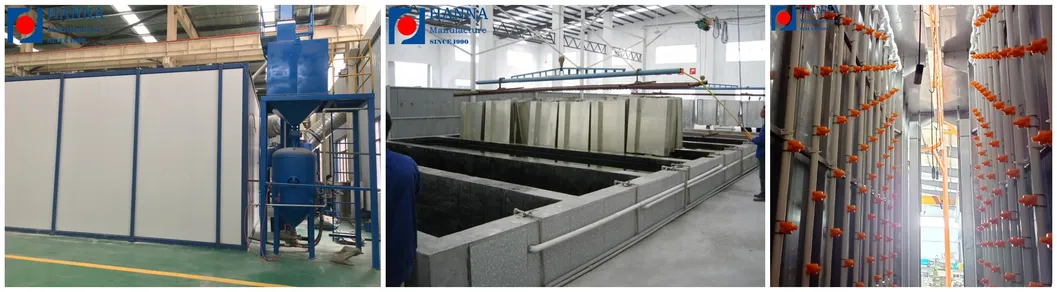

Pretreatment System	Spraying; immersion type; dip tank; shot blasting; sandblasting, etc.
Drying Oven	Dries water post-pretreatment. Heat source: Gas, electricity, coal, diesel, bio pellets.
Powder Coating Booth	Material: PP/PVC. Large cyclone automatic color change (99.2% recovery, <10 min color change).

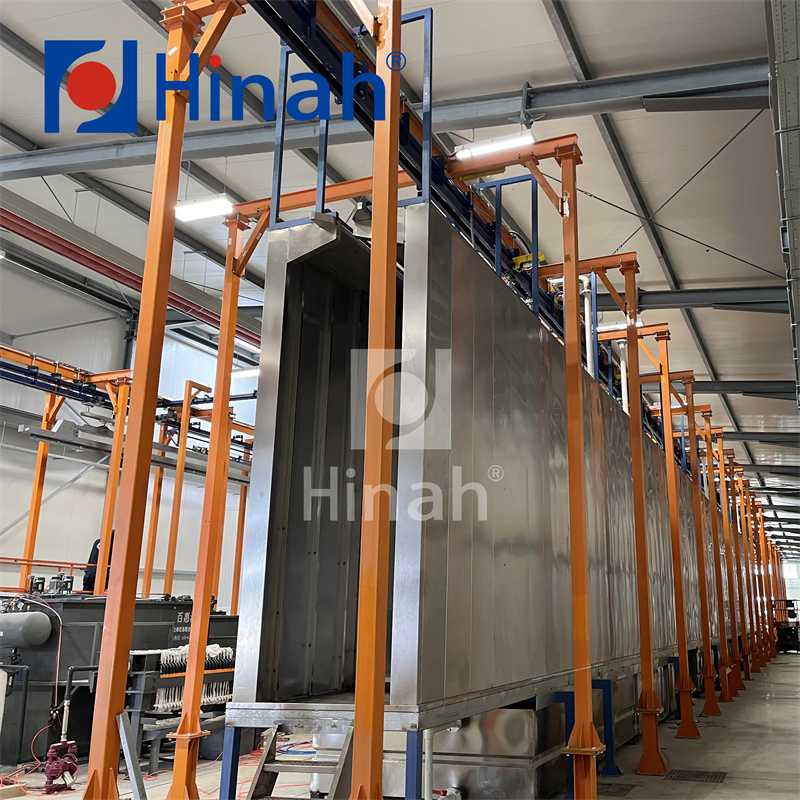

Curing Oven	Tunnel or Bridge type curing oven. Multi-fuel heating sources available.

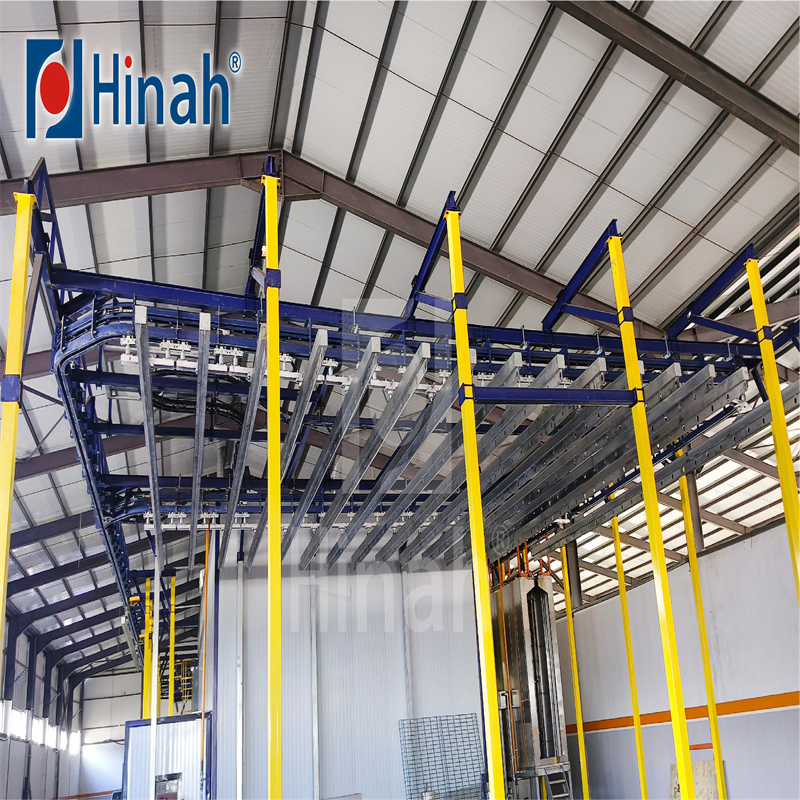

Conveyor System	C-Shaped closed rail or die-forged open type, high bearing capacity.

Production Process Overview

Process	Mode	Temp (ºC)	Time	Type
Loading	Manual	RT	Adjustable	-
Pre-treatment	Automatic	50-60	10 mins	Dip/Spray/Blasting
Drying	Automatic	180-220	10 mins	-
Powder Coating	Automatic	RT	3-5 mins	Manual/Auto/Robot
Curing	Automatic	180-220	20 mins	Tunnel/Bridge/Box
Cooling	Automatic	RT	10-15 mins	-
Unloading	Manual	RT	Adjustable	-

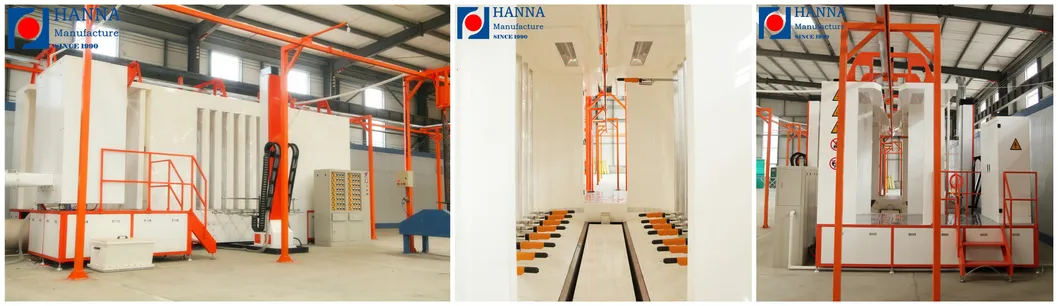

Advanced Recovery & Color Change Systems

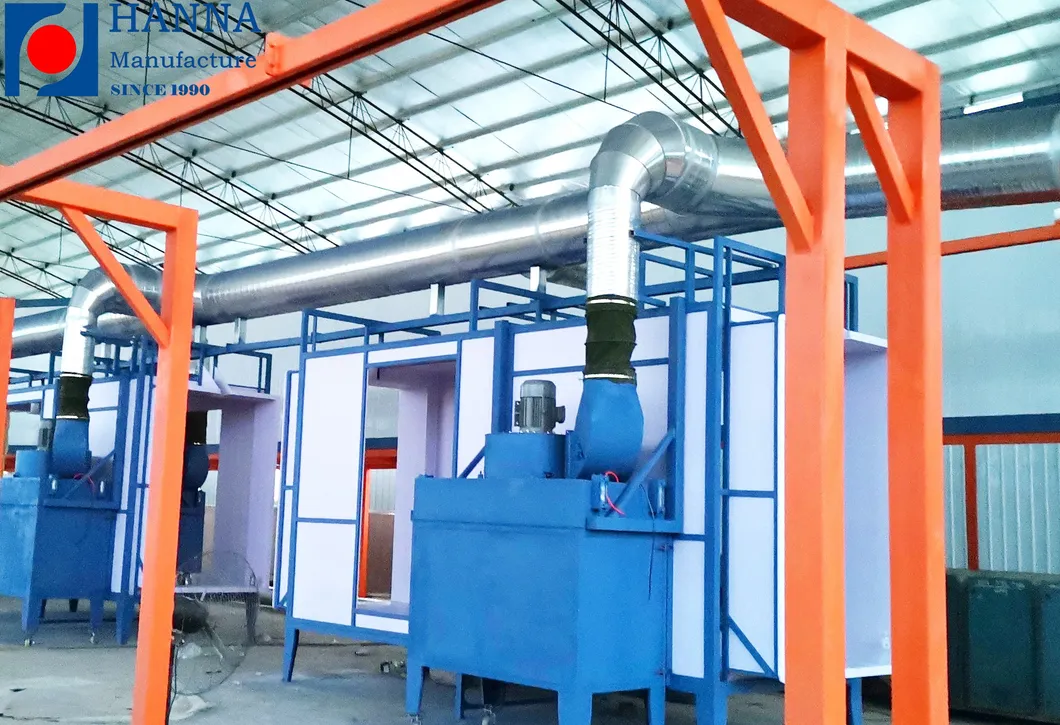

Simple Filter Recovery

Color change: 15 mins | Recovery rate: 98%

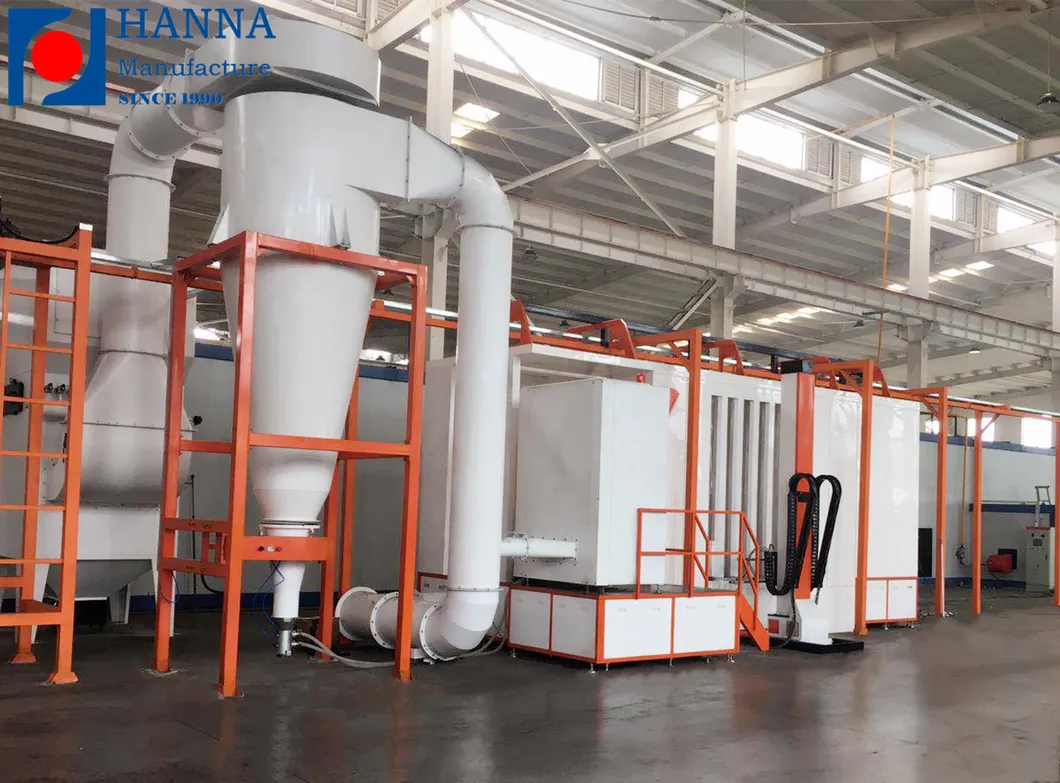

Big Cyclone Recovery

Color change: 10-15 mins | Recovery rate: 99.2%

Core Advantages

Intelligent Sprayer: Solves powder accumulation in dead angles and grooves.

Air Curtain System: Prevents heat dissipation, significantly saving fuel.

Temperature Control: Fluctuation within ±3ºC ensures no color difference.

Patented Design: Over 70 patents in powder coating technology.

Frequently Asked Questions

Q1: What information is needed for a powder coating equipment quote?

Please provide the material, maximum size, and weight of your workpiece; your daily output requirements (e.g., 8 hours/day); preferred heating source (electric, gas, diesel); and your factory dimensions.

Q2: How do you ensure the quality of the coating equipment?

Quality is ensured through ISO9001:2015 certification, specialized quality inspectors for every processing stage, and a technical review committee that oversees design, production, and commissioning.

Q3: What is the powder recovery rate of the cyclone system?

Our advanced big cyclone secondary filter recovery system achieves a powder recovery rate as high as 99.2%, ensuring virtually no dust spillover.

Q4: How long does it take to change colors?

With our automatic color change powder supply center, the color change process takes only 10 to 15 minutes, improving overall work efficiency.

Q5: What heating sources can be used for the curing oven?

The system is versatile and can support Gas, Diesel, Electricity, Coal, and Bio-particle fuels depending on your local availability and costs.

Q6: How is the equipment installed and serviced after purchase?

We provide detailed installation videos and documentation. Our engineers can guide the installation and commissioning remotely or on-site, followed by complete operator training. Solutions for any issues are guaranteed within 12 hours.
