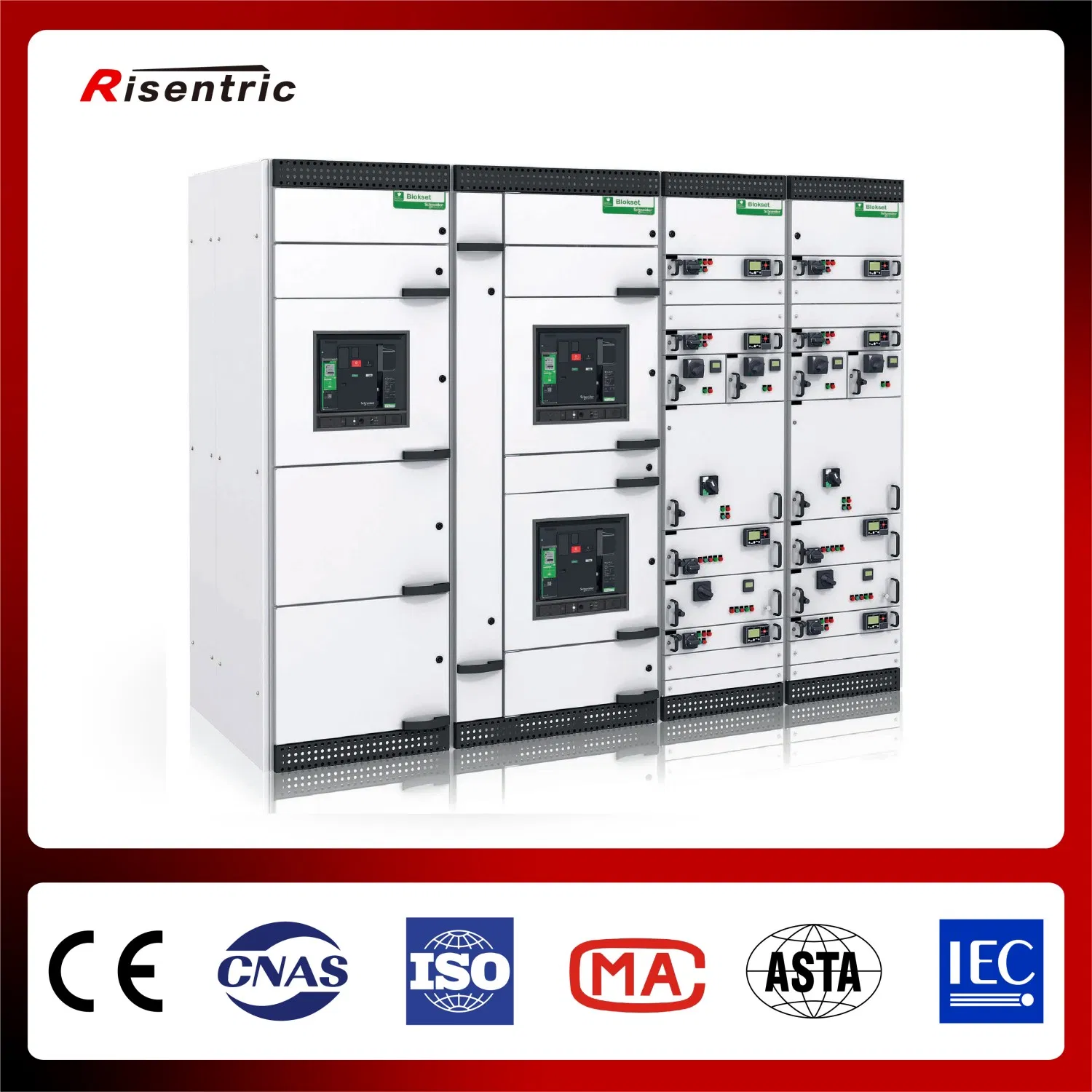

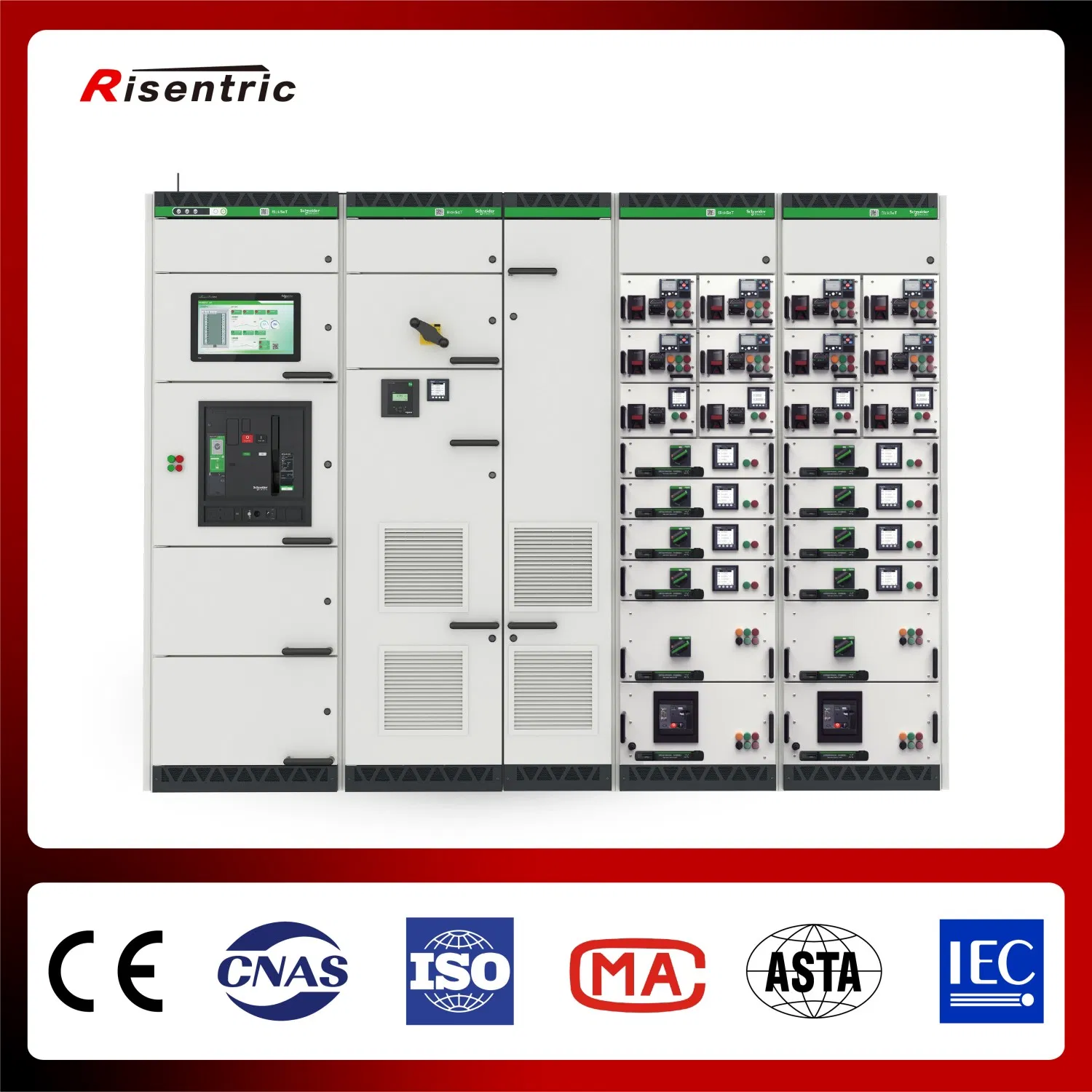

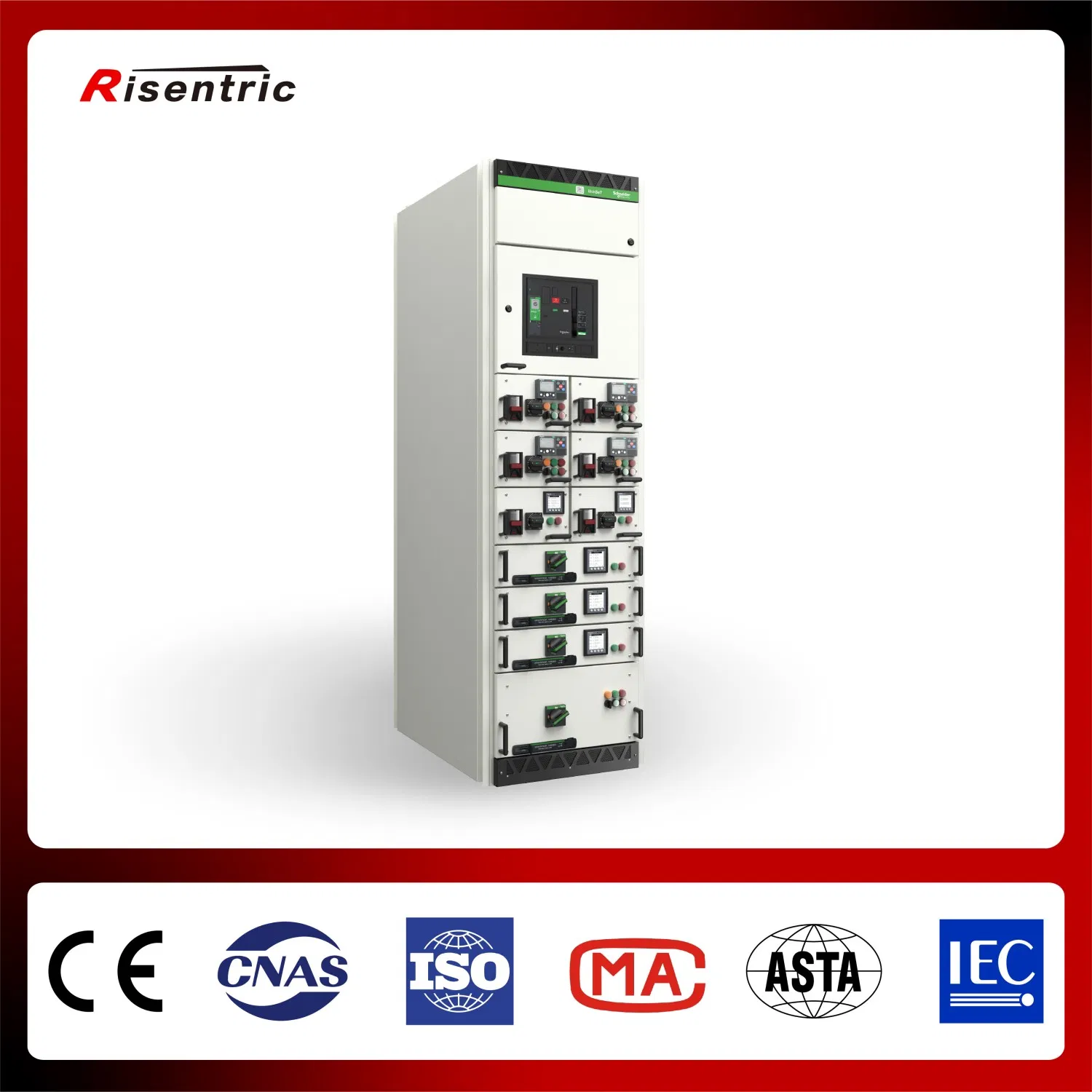

3 Phase Low Voltage Electrical Switchgear Distribution Board for Reliable Power Distribution
3 Phase Low Voltage Electrical Switchgear Distribution Board for Reliable Power Distribution
3 Phase Low Voltage Electrical Switchgear Distribution Board for Reliable Power Distribution
1 / 3
3 Phase Low Voltage Electrical Switchgear Distribution Board for Reliable Power Distribution
3 Phase Low Voltage Electrical Switchgear Distribution Board for Reliable Power Distribution
3 Phase Low Voltage Electrical Switchgear Distribution Board for Reliable Power Distribution

3 Phase Low Voltage Electrical Switchgear Distribution Board for Reliable Power Distribution

Send Inquiry

Product Description

Low Voltage Electrical Switchgear Distribution Board
Product Description
BlokSeT Intelligent Low-Voltage Complete Set Of Equipment
The Blokset series switchgear is specially designed for low voltage distribution products. It is suitable for power distribution systems with a frequency of 400Hz or less, a rated working voltage of 690V, a rated insulation voltage of 1000V, and a rated current of 6300A or less. It complies with relevant standards such as IEC60439-1, IEC60529, and IEC60947.
Blokset can be used as a power distribution center, motor control center, power factor compensation, and terminal distribution equipment for power control, conversion, and distribution. It is applied in industrial fields such as metallurgy, papermaking, manufacturing, and mining, as well as infrastructure fields like water treatment, airports, and ports.
Detailed Photos

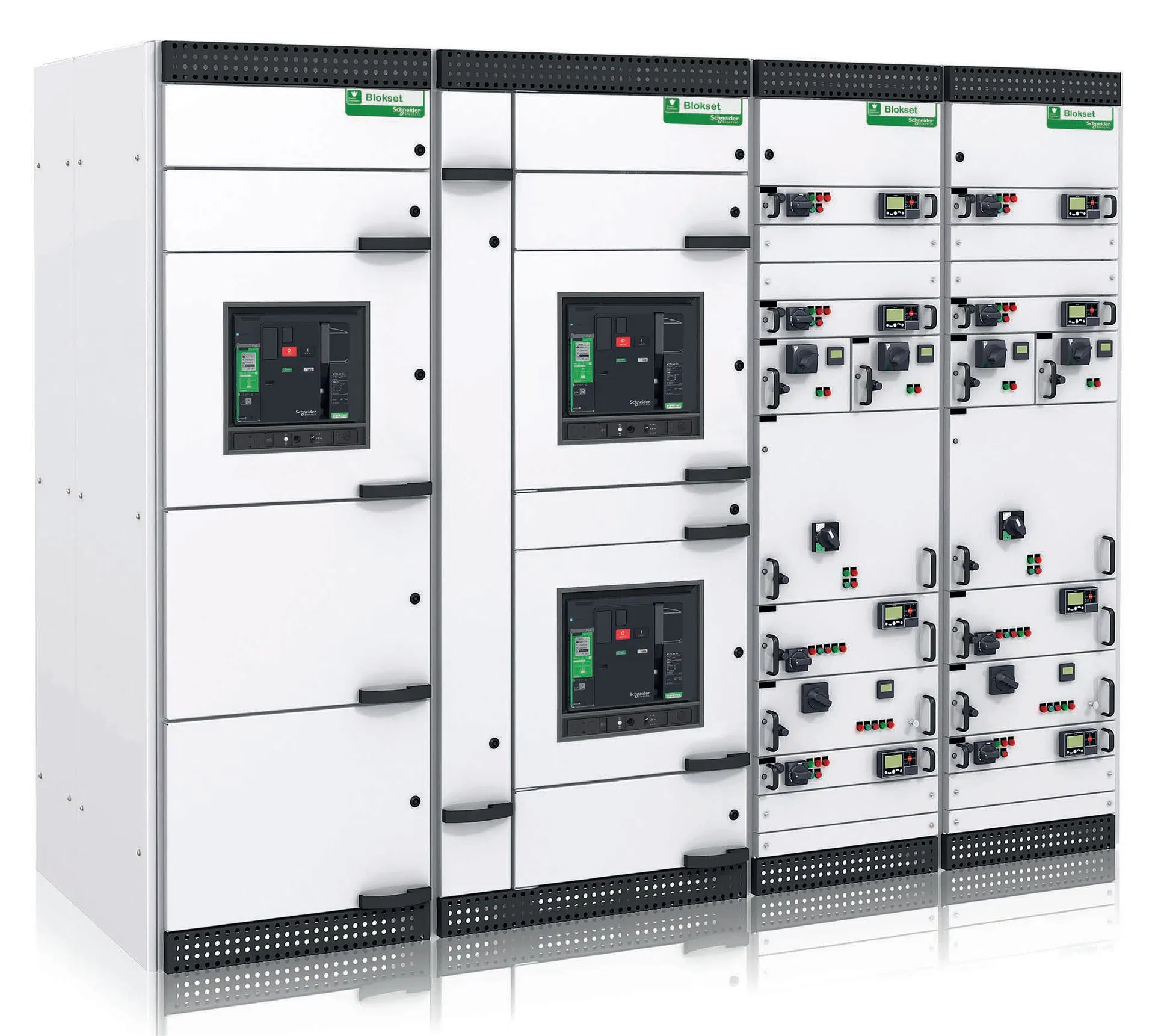

Detailed Switchgear View

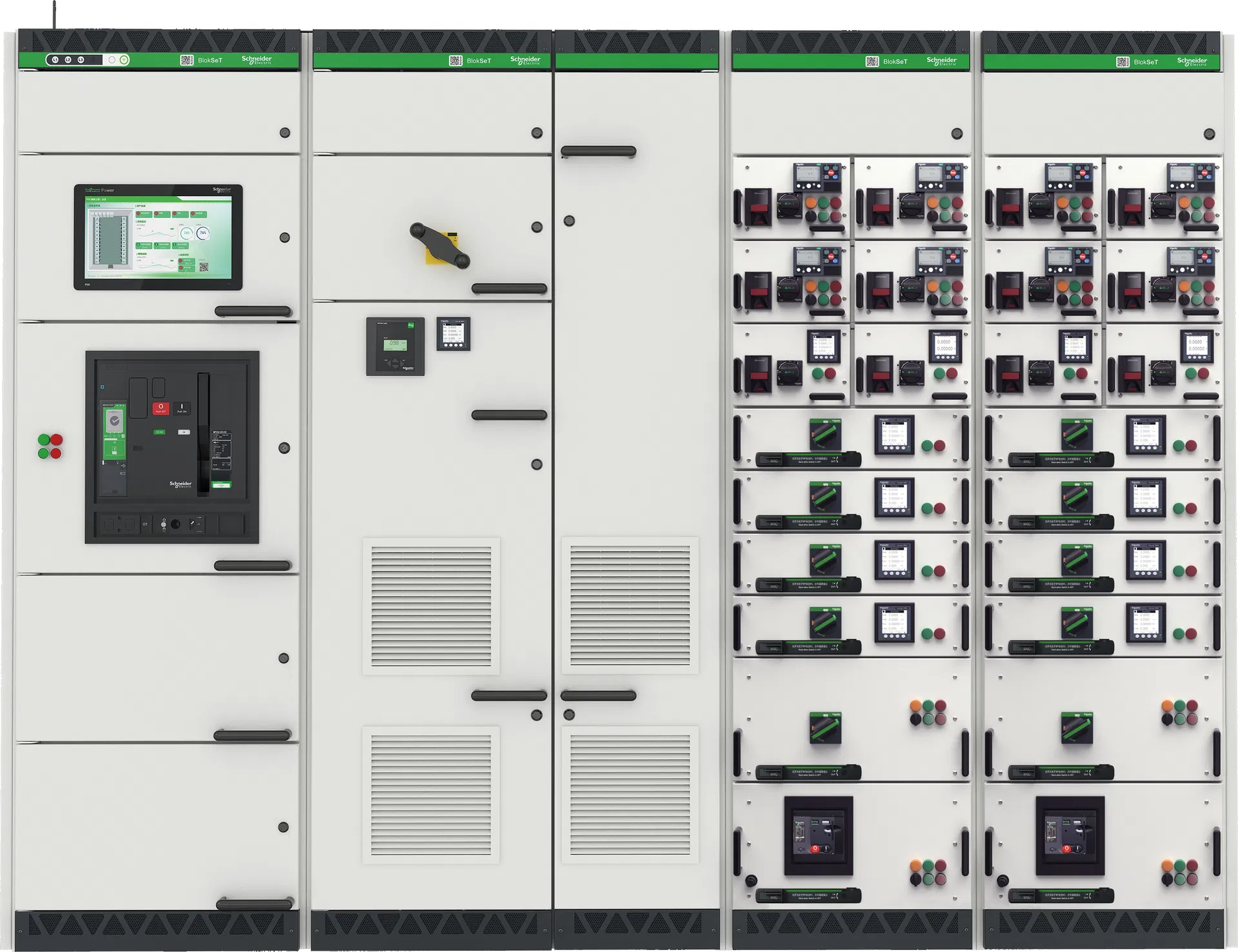

Switchgear Internal View

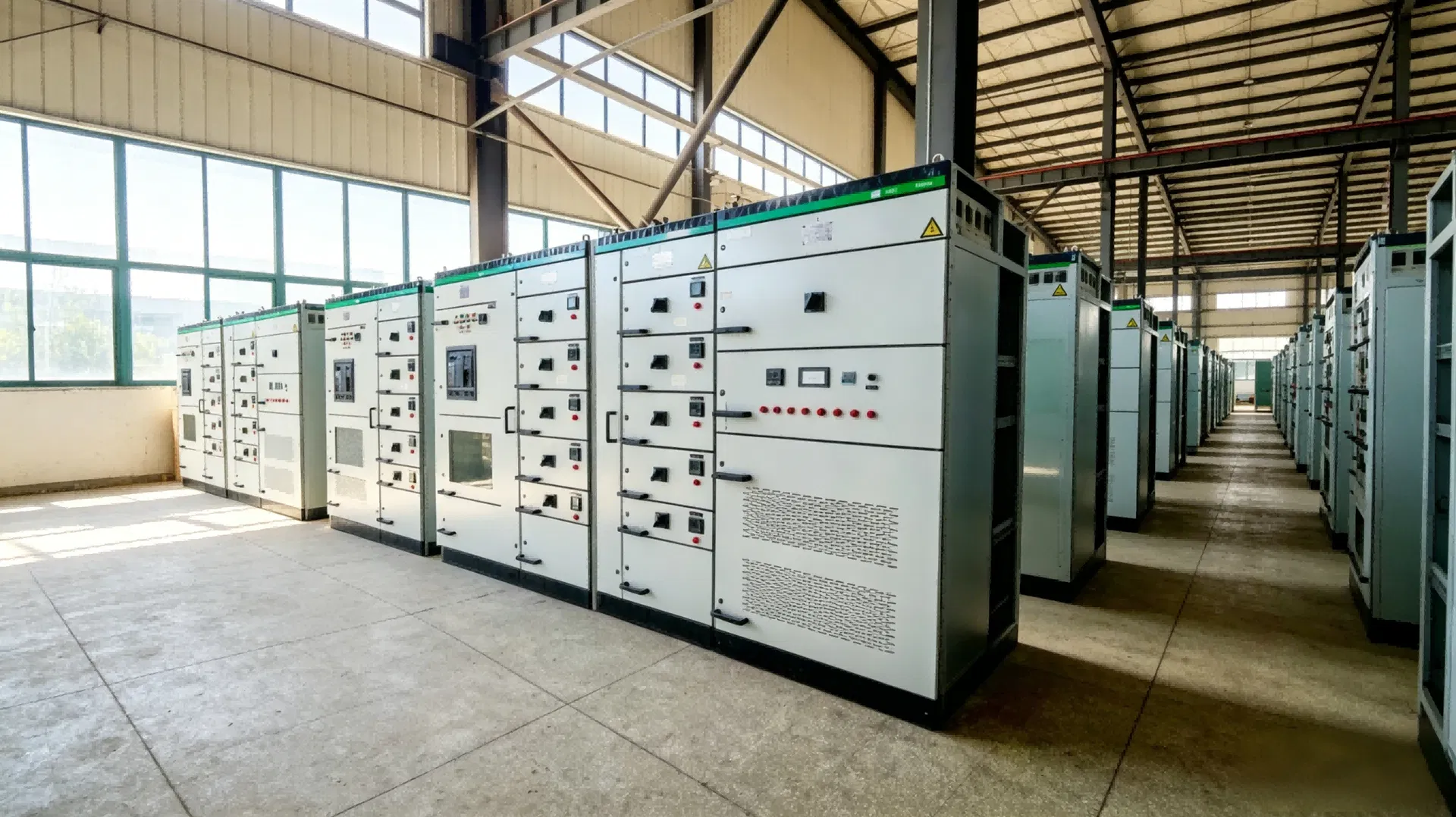

Switchgear Distribution Unit

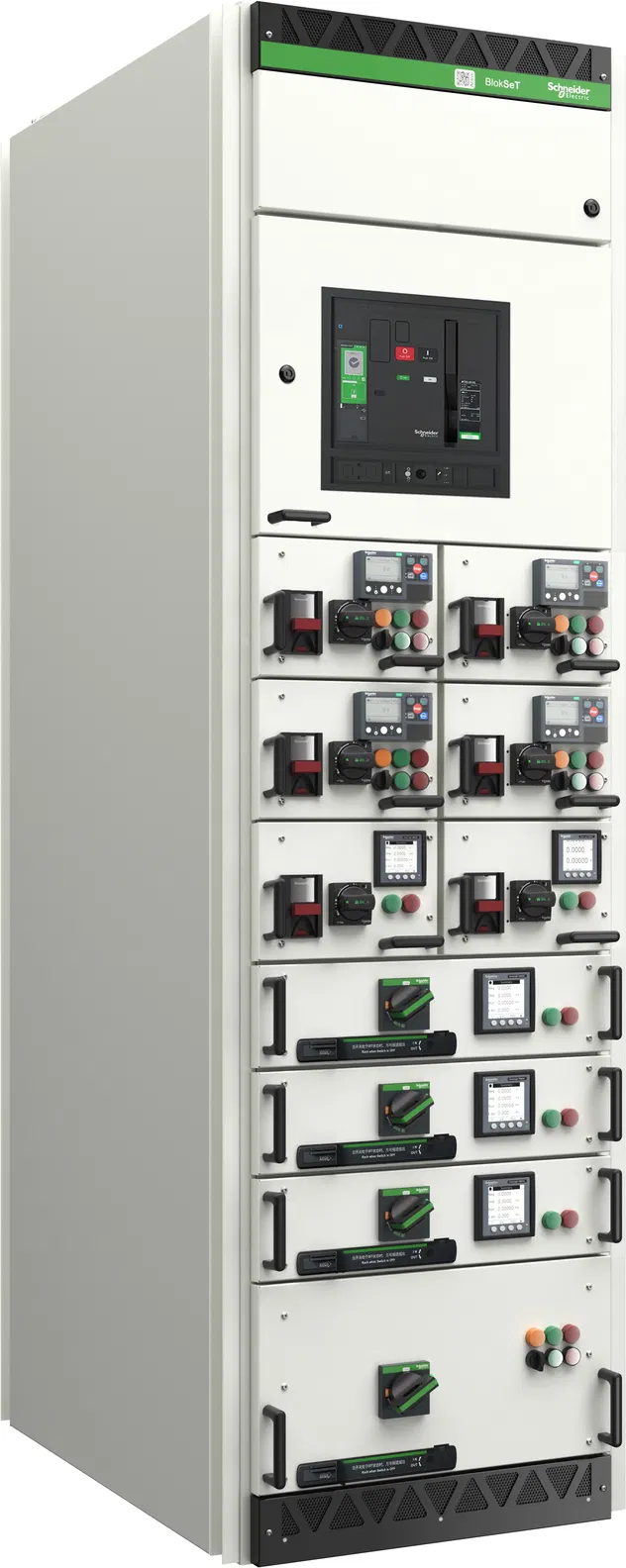

Switchgear Component

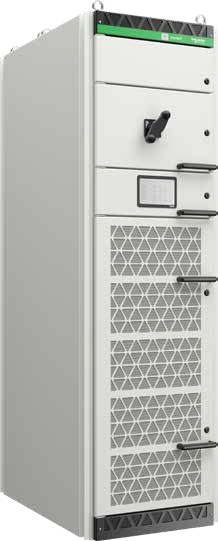

Vertical Busbar

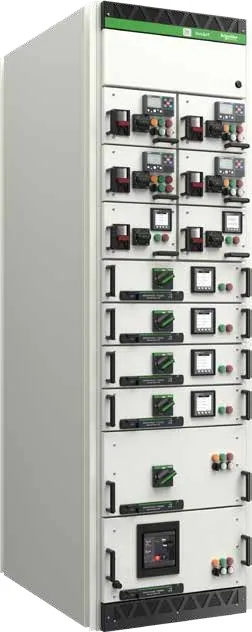

Component Details
Technical Specifications
Parameter Item Technical Value
Rated insulation voltage (Ui)-1000V
Rated operating voltage (Ue)-400/690V AC
Rated frequency (f)-50/60 Hz
Rated impulse voltage (Uimp)-12 kV
Horizontal busbar rating-Maximum up to 7000A
Vertical busbar rating-Maximum up to 3200A
Horizontal busbar withstandShort-time (Icw/1s)30/50/65/80/100 kA
Peak (lpk)63/105/143/176/220 kA
Seismic resistance-9 degrees intensity
Maximum switch capacity-6300 A
Mechanical & General Data
Cable entry/exitTop/Bottom
Wiring methodFront / Back
Protection levelIP20 ~ IP54
Average weight per unit650 kg
Casing finishEpoxy resin powder coating >50μm
Casing colorRAL9003 / RAL7016
Installation LocationIndoor
Product Advantages
  • Simple installation, optimized size and professional connection interface.
  • Highly controllable costs for upgrades or system renovations.
  • Standardization and upgradability maintain low long-term maintenance costs.
  • Modular structure meeting diverse local standards and specific application requirements.
  • Intelligent equipment integration with advanced protection and communication functions.
Operating Environmental Conditions
1. Ambient air temperature: -15ºC to +40ºC (24h average ≤ +35ºC).
2. Installation altitude: Not exceeding 2000m.
3. Relative humidity: ≤ 50% at +40ºC (up to 90% at +20ºC).
4. Installation inclination: Not exceeding 5° to vertical.
5. Site requirements: Free from severe vibration, shock, and corrosion.
Equipment Showcase
Main Product Line
Certifications & Logistics
Product Certifications
Packaging and Shipping
Frequently Asked Questions
Q1: What are the primary applications for the Blokset switchgear?
It is ideal for power distribution, motor control, and power factor compensation in industrial, infrastructure, and commercial building sectors.
Q2: Does the equipment support customization?
Yes, we provide customized solutions based on detailed technical specifications, Single Line Diagrams (SLD), or specific project drawings.
Q3: What is the typical lead time for an order?
The delivery time usually ranges from 15 to 20 days, depending on the order quantity and specific configuration requirements.
Q4: What quality standards do your products meet?
Our equipment strictly complies with international standards including IEC 60529, IEC 61439-1/2, and is certified under ISO 9001 and CE.
Q5: What is the protection level of the switchgear casing?
The equipment offers a protection range from IP20 up to IP54, making it suitable for various indoor environmental conditions.
Q6: What is the standard warranty period?
We typically offer a 12-month quality guarantee period from the date of delivery for our low and medium voltage assemblies.
