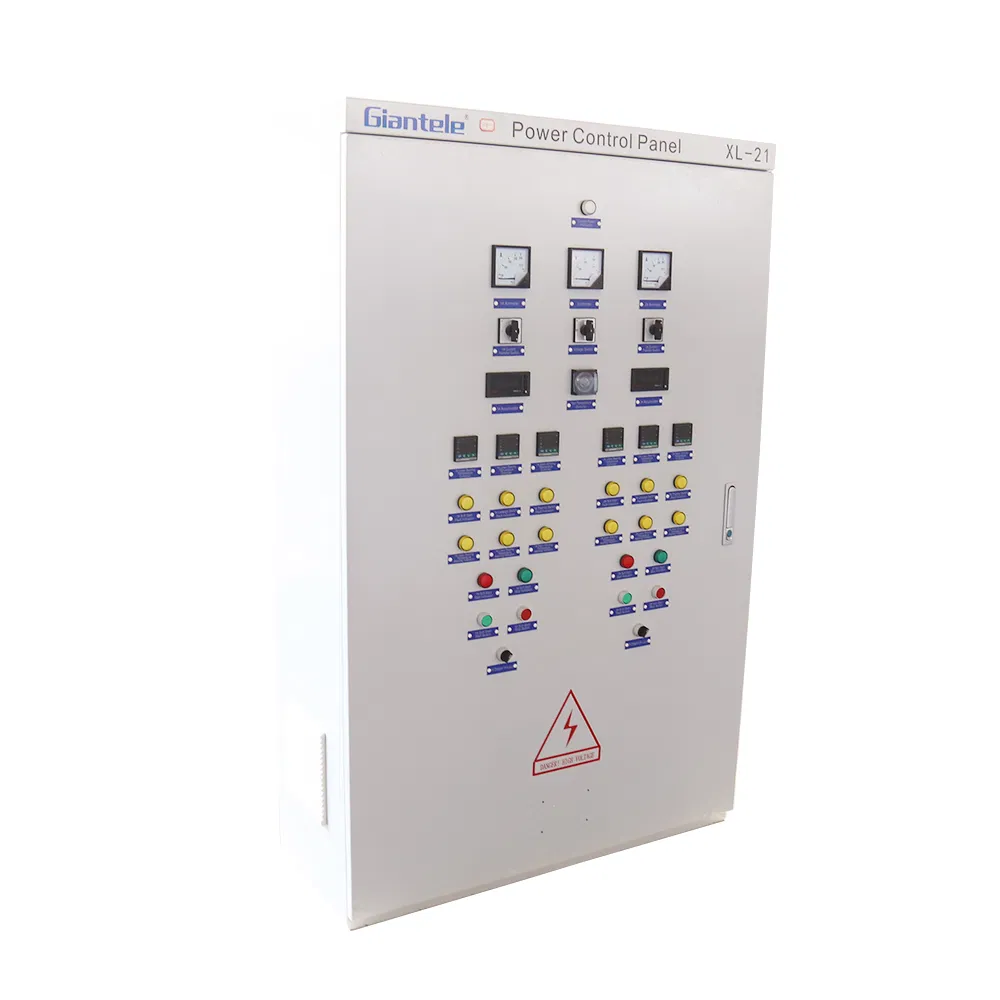

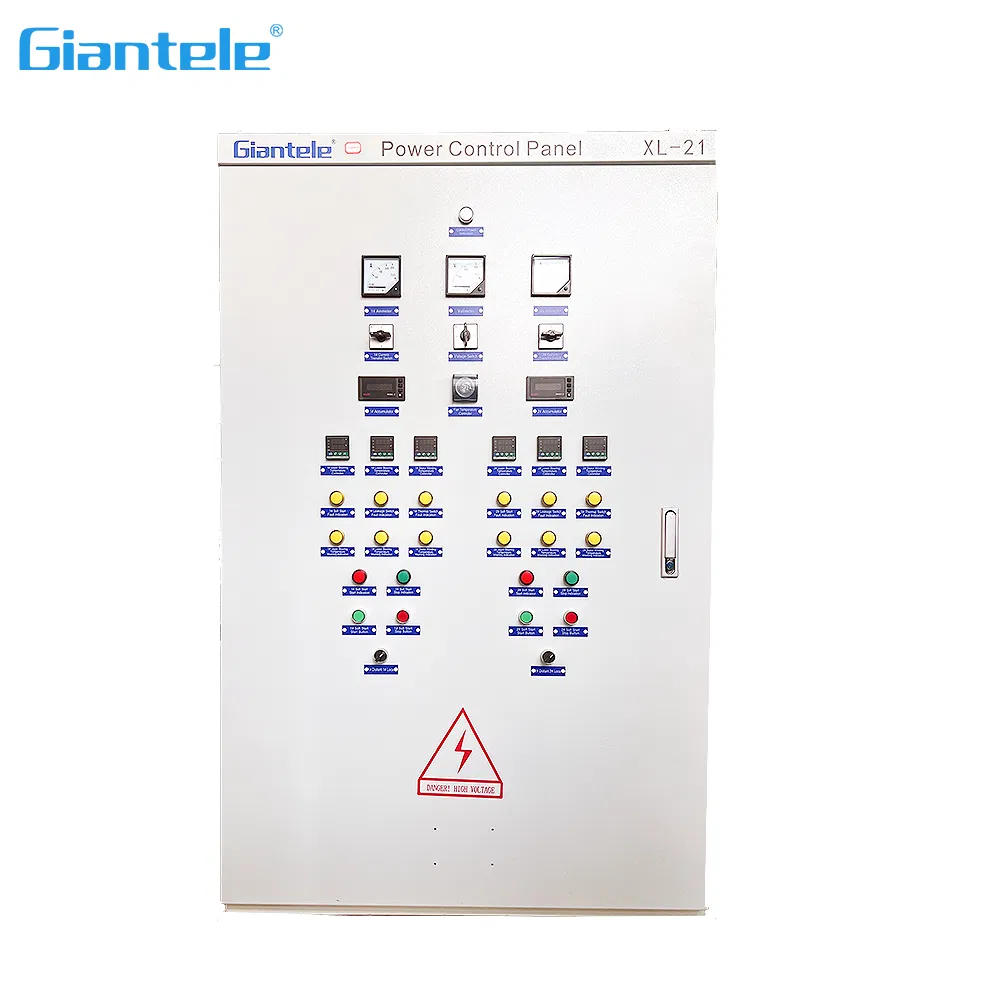

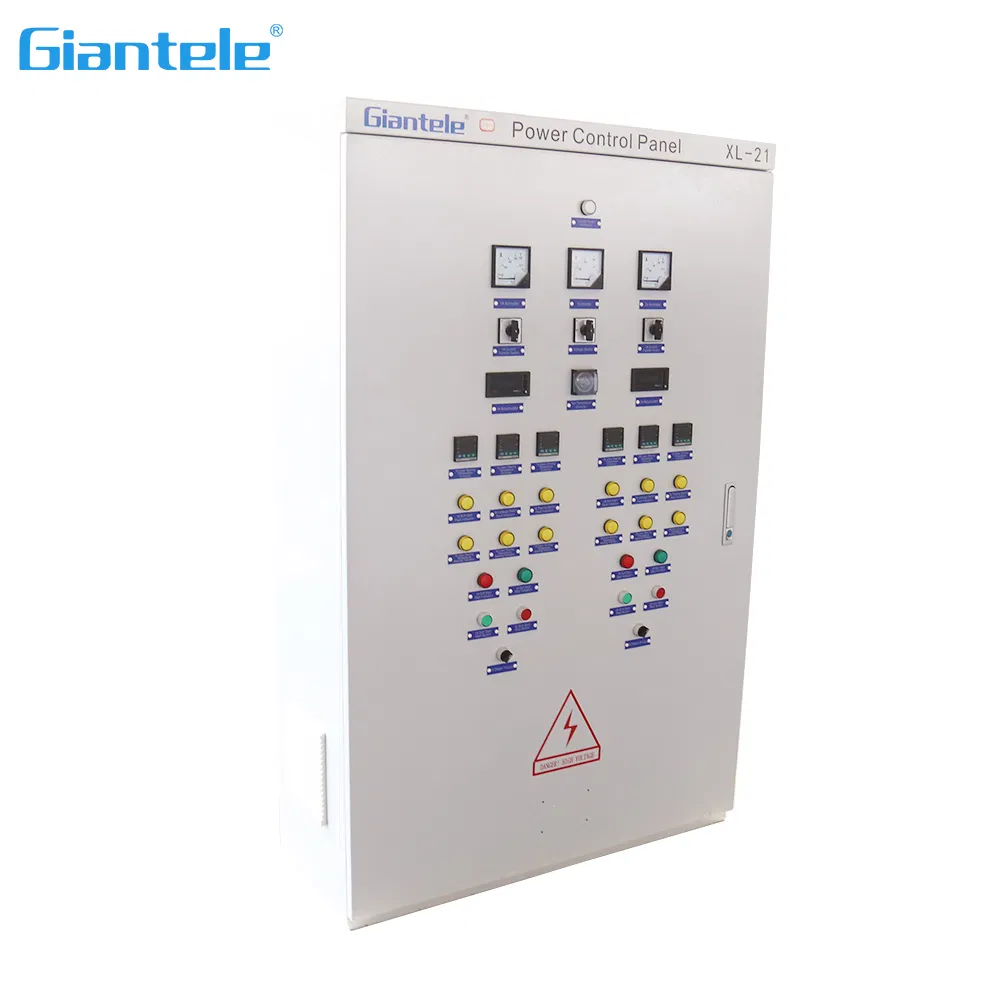

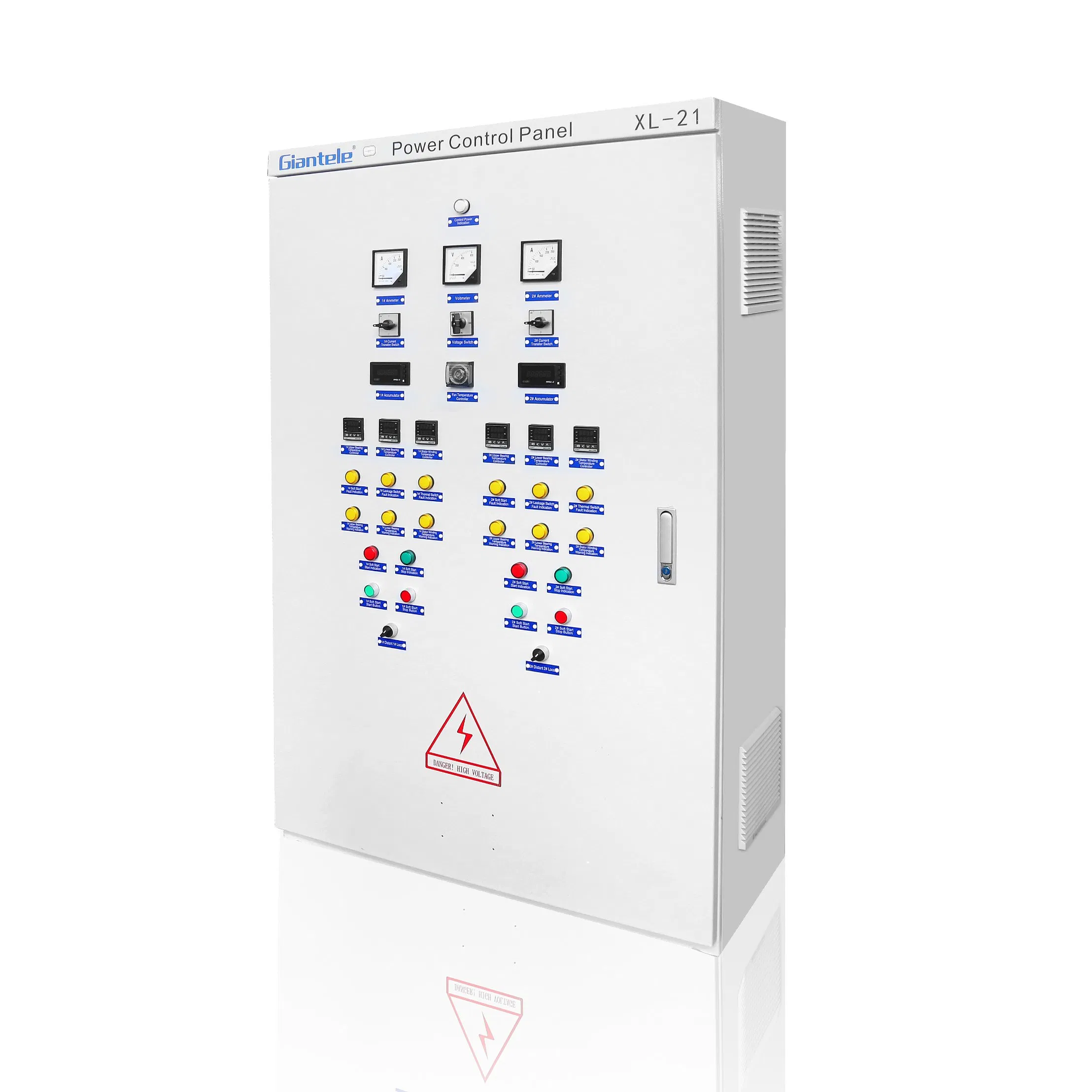

XL-21 Type Control Cabinet Low Voltage Power Box Free Standing Electrical Distribution Board/Switchgear Panel for Factory Price

Technical Overview

Model NO.

XL-21

Certification

ISO9001:2000, CCC

Form

Partly-welded Type

Operation Voltage

Low Voltage

Application Range

Power Plants

Shell Material

Steel Plate

Protection Grade

IP55

Product Name

Power Distribution Cabinet

Related Voltage

Below 500V

Rated Frequency

50/60Hz

Rated Current

up to 1250A

Color

White

MOQ

1 Set

Material

Cold-Roll Steel Sheet

Specification

800*600*1800

HS Code

8537209000

Product Description

Technical Parameter	Details
Model Number	XL-21
Usage	Power distribution
Rated voltage	400V
Rated Current	400A
Ambient temperature	-5° to 40°
Altitude	no more than 2000m
Material	metal sheet spray coating
Fuse	15-400A

Order Instructions

1. The customer shall provide the following information when ordering:

Single-line plan and single-line system diagram;
Secondary line expansion system diagram;
Detailed specifications and data of various electrical equipment in each box;
The arrangement and layout of the power distribution cabinet shall be provided when ordering the Type B structure.

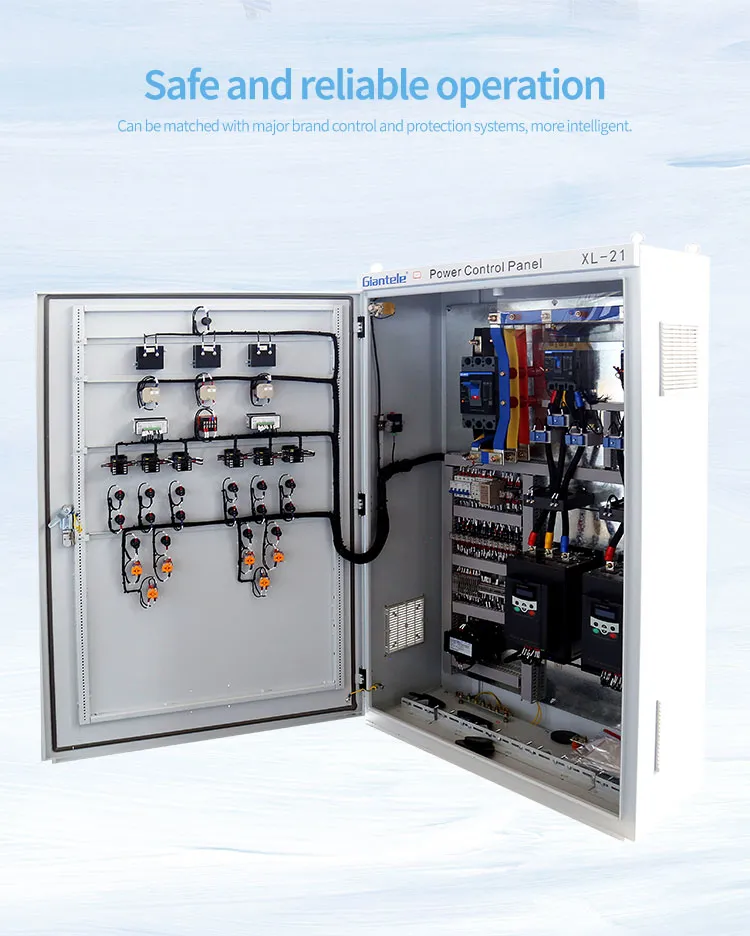

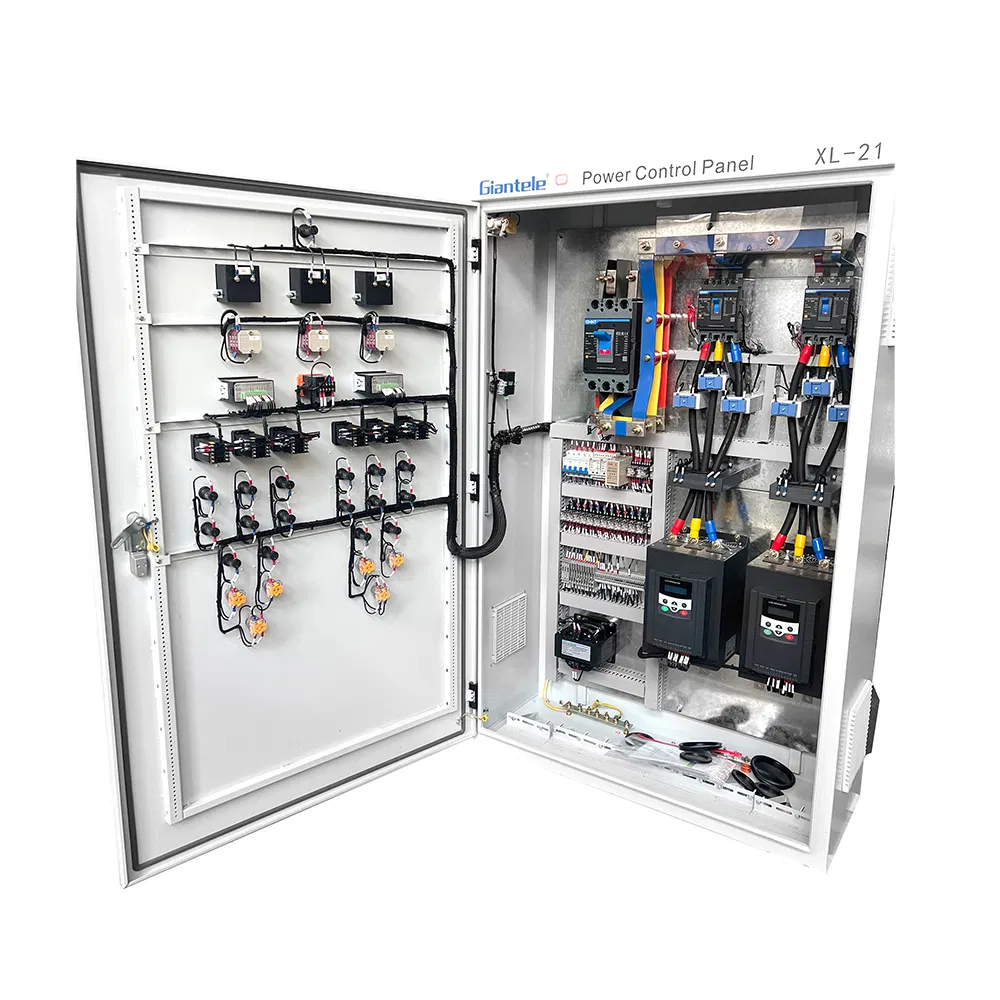

Internal Components Specification

Item	Model Number	Rated Current (A)	Melt Current Rating (A)	Remark
Knife Fusion Combination Switch	HR3-400/34	400	150, 200, 250, 300, 350, 400	No melt when installing the isolating blade
Current Transformer	LM-0.5	75 - 600	5	-
Fuse	RL1 series	15 / 60 / 100 / 200 / 400	Various (2A to 400A)	Multi-spec options
AC Contactor	CJ10 series	10 / 20 / 40 / 80 / 150	-	Suction Coil Voltage: 110, 220, 380V

Frequently Asked Questions

Are you a factory or trading company?

We are a factory, and we can guarantee that our price is direct, highly competitive, and cost-effective.

How does your factory handle quality control?

Quality is our priority. All products undergo a 100% inspection and testing process before shipment to ensure they meet technical standards.

When can I expect a price quotation?

Typically, we provide a detailed quote within 24 hours after receiving your specific inquiry and requirements.

How can I obtain a product sample?

If our products are not available locally, we can ship a sample to you. Please note that sample costs and related express shipping charges will apply.

What are the shipping costs?

Shipping prices vary depending on the destination port, total weight, and volume of the order. We provide competitive freight options upon request.

Do you offer OEM services?

Yes, we provide full OEM services including custom configurations, shell materials, and branding according to your technical specifications.
