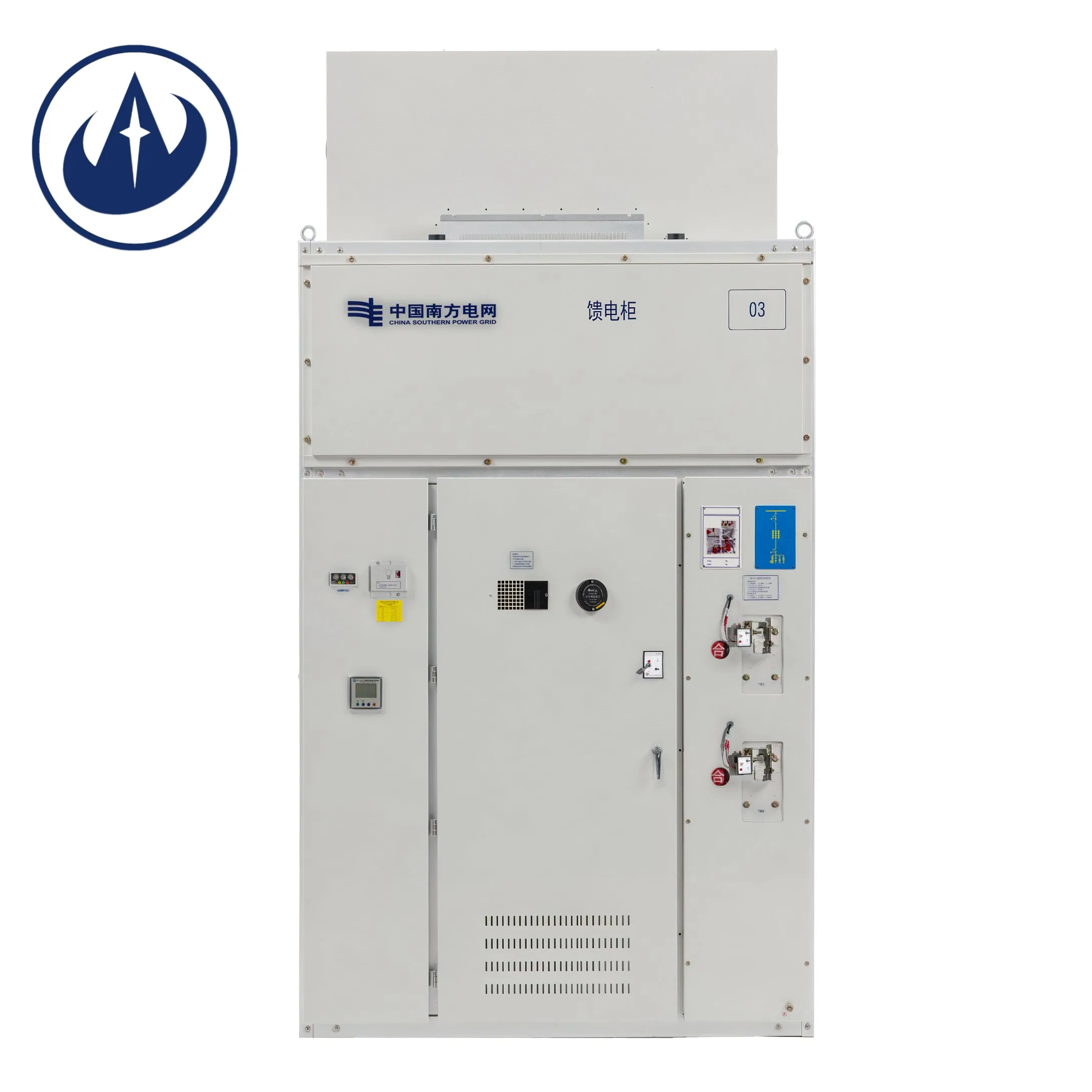

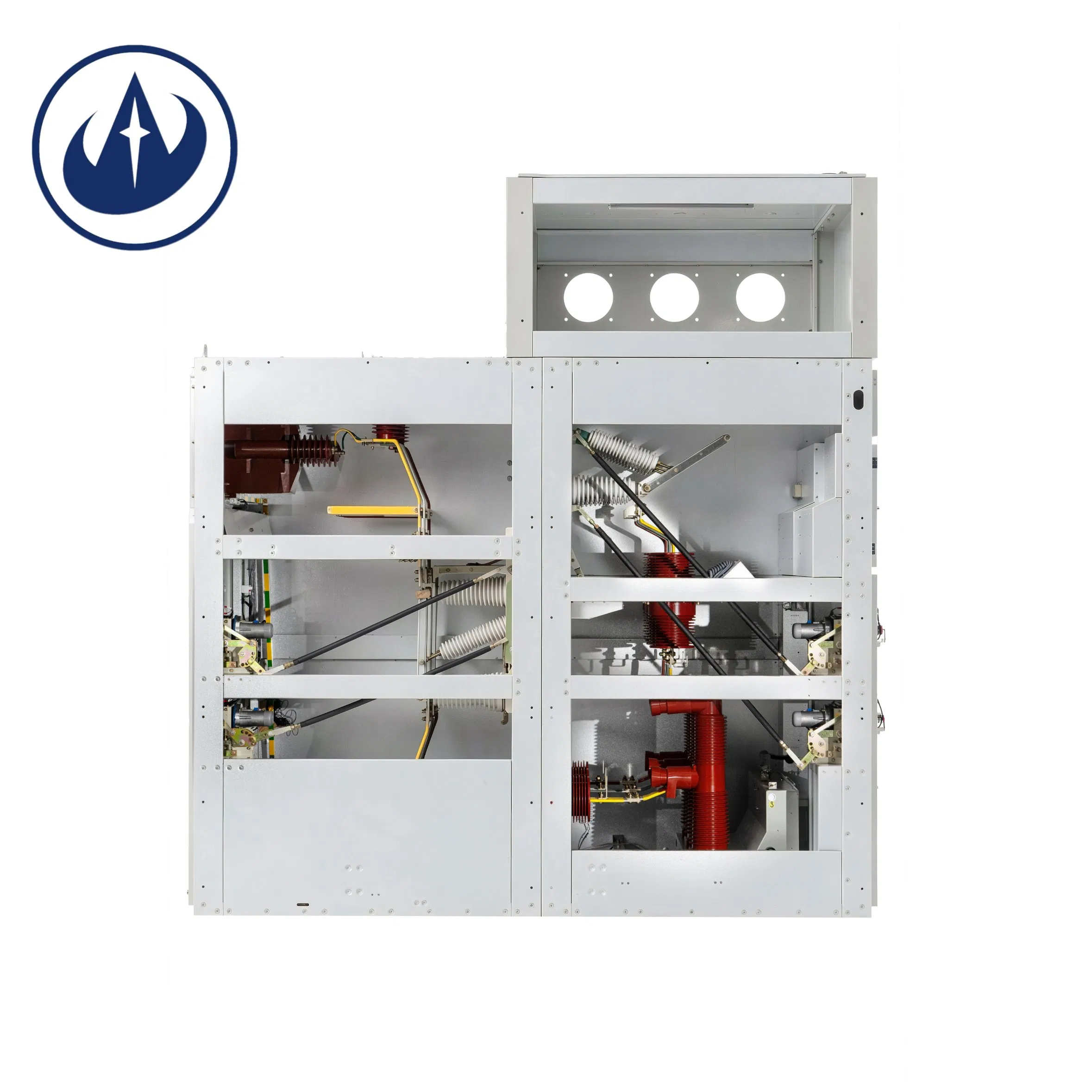

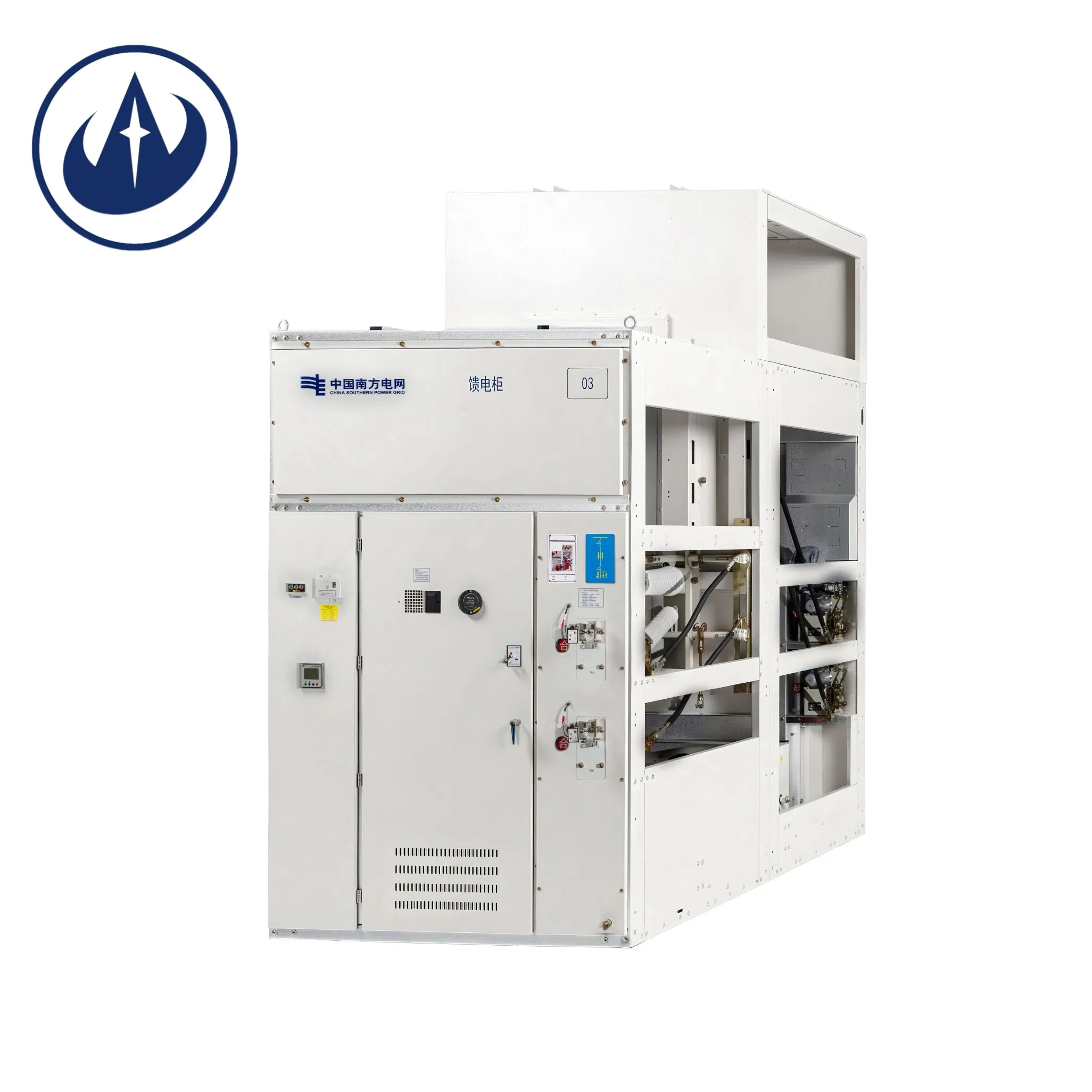

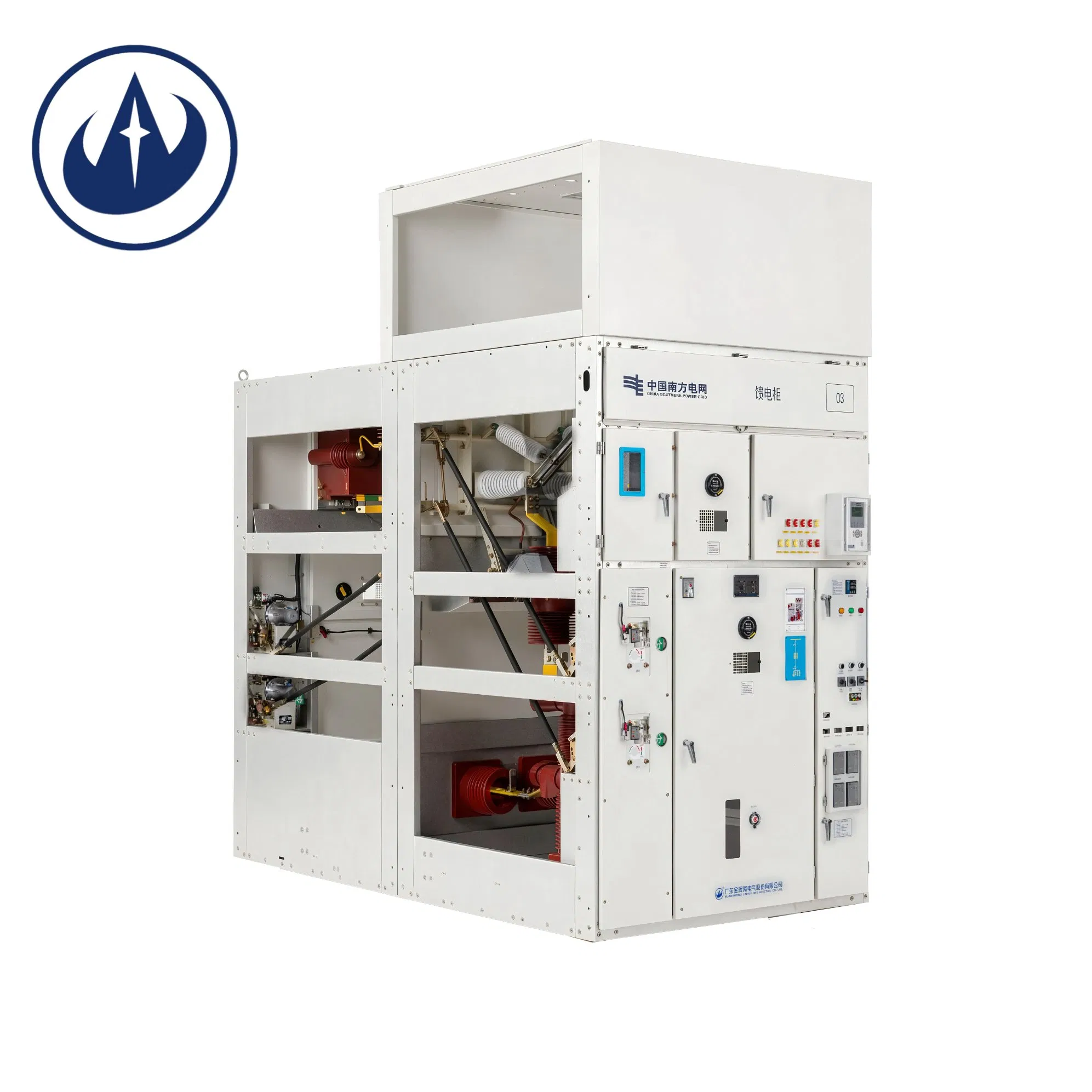

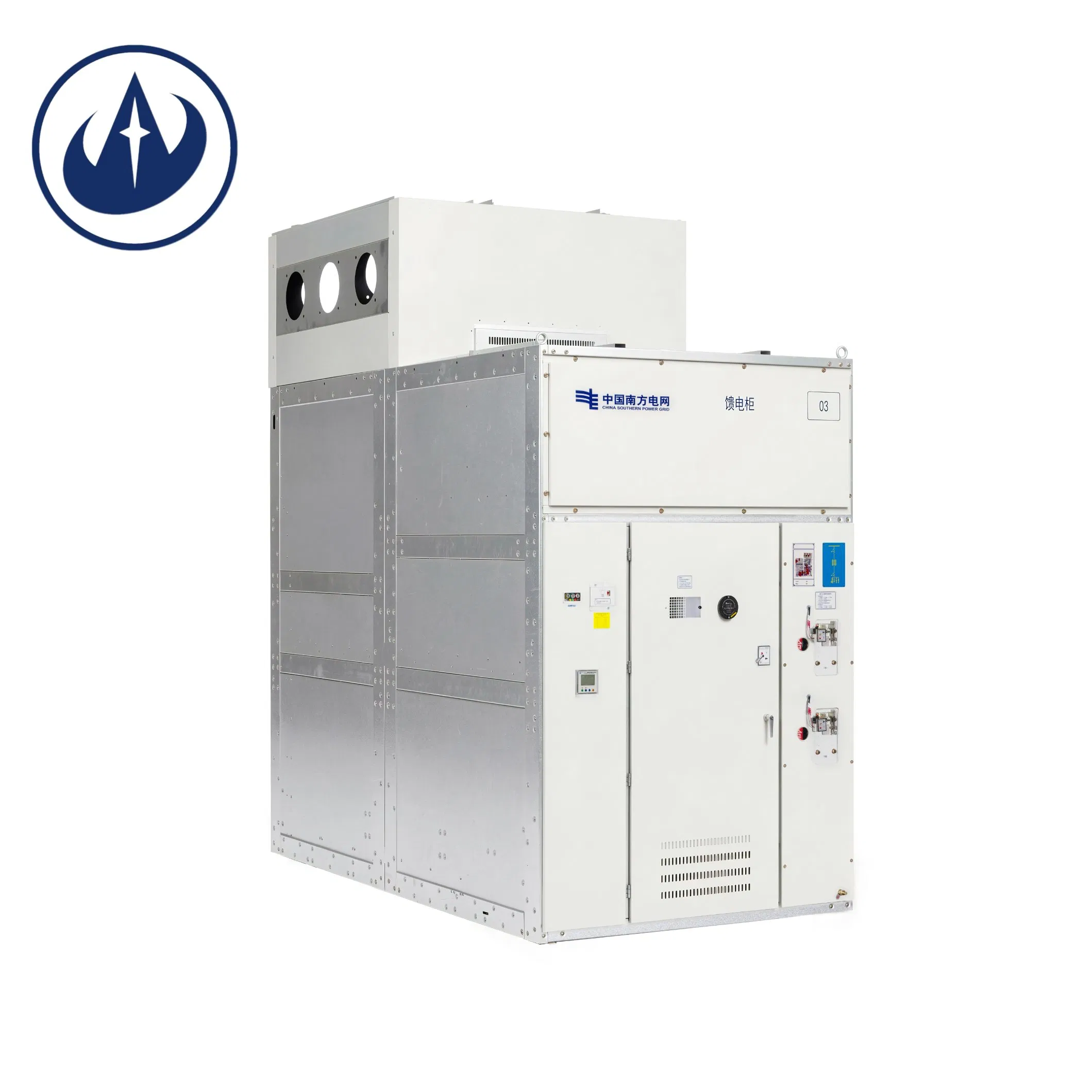

Xgn2-40.5kv Electrical Air Insulated AC Metal Clad Metal Enclosed Mv/Hv Switchgear for Compact Substation and Power Distribution Compact Substation

Customization:	Available
Certification:	ISO 9001:2015
Shell Material:	Stainless Steel

Send Inquiry

Product Description

📋

Basic Information

Model NO.

XGN2-40.5

Voltage Level

Medium Voltage

Installation

Fixed

Structure

Embedded

Current

Product Name

Metal-Clad Withdrawable Switchgear

Rated Voltage

12kv/24kv

Frequency

50 Hz

Rated Current

1250A/2500A/3150A/4000A

Origin

China

Production Capacity

50pieces/Week

⚙️

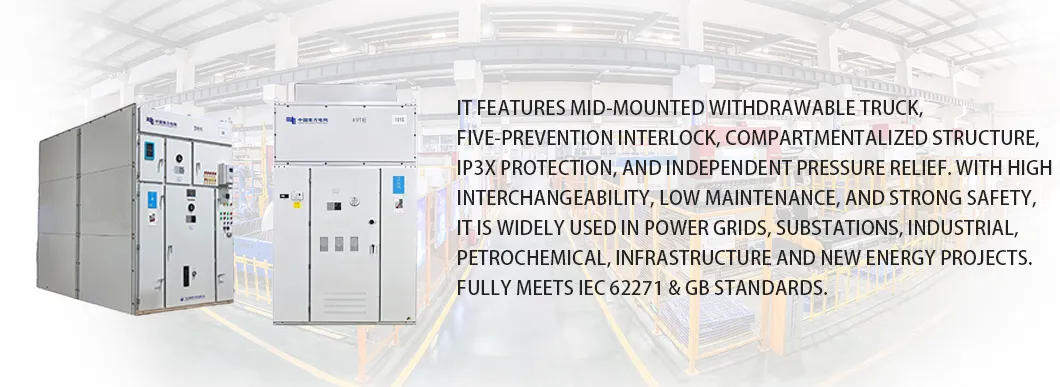

Product Description

📊

Technical Specification

No.	Item			Unit	Technical Parameters
1	Rated Voltage			kV	40.5
2	Rated Frequency			Hz	50
3	Rated Current			A	1250 / 1600 / 2000 / 2500
4	Rated Insulation Level	1 min power frequency withstand voltage	Alternately, relatively	kV	95
		1 min power frequency withstand voltage	Isolation break		110
		Lightning impulse withstand voltage	Alternately, relatively		185
		Lightning impulse withstand voltage	Isolation break		215
5	Rated Short-Circuit Breaking Current (RMS)			kA	25	31.5
6	Rated Short-Time Withstand Current (RMS)			kA	25	31.5
7	Rated Short-Circuit Making Current (Peak)			kA	63	80
8	Rated Peak Withstand Current			kA	63	80
9	Rated Duration Of Short-Circuits			s	4
10	Degrees of Protection			-	IP3X
11	Control Circuit Rated Voltage			V	DC/AC 110/220
12	Weight			kg	2000-3000
13	Mechanical Endurance			times	1000
14	Dimensions (W x D x H)			mm	202032003600

Note: Specific dimensions may be determined based on the preliminary layout drawings.

🏢
