Air-Insulated High Voltage Electrical Compact Substation Switchgear

Overview

Basic Info

Model NO.

KYN

Voltage Level

Medium Voltage

Installation

Fixed

Structure

Cabinet

Current

AC

Rated Working Voltage

380V/660V

Max Operating Current of Main Bus

5000A

Rated Insulation Voltage

660V(1000)V

Rated Frequency

50Hz

Transport Package

Export Wooden Case

Specification

Customizable

Packaging & Delivery

Package Size

200.00cm * 90.00cm * 200.00cm

Package Gross Weight

400.000kg

Product Description

Armored Removable AC Metal-enclosed Switchgear

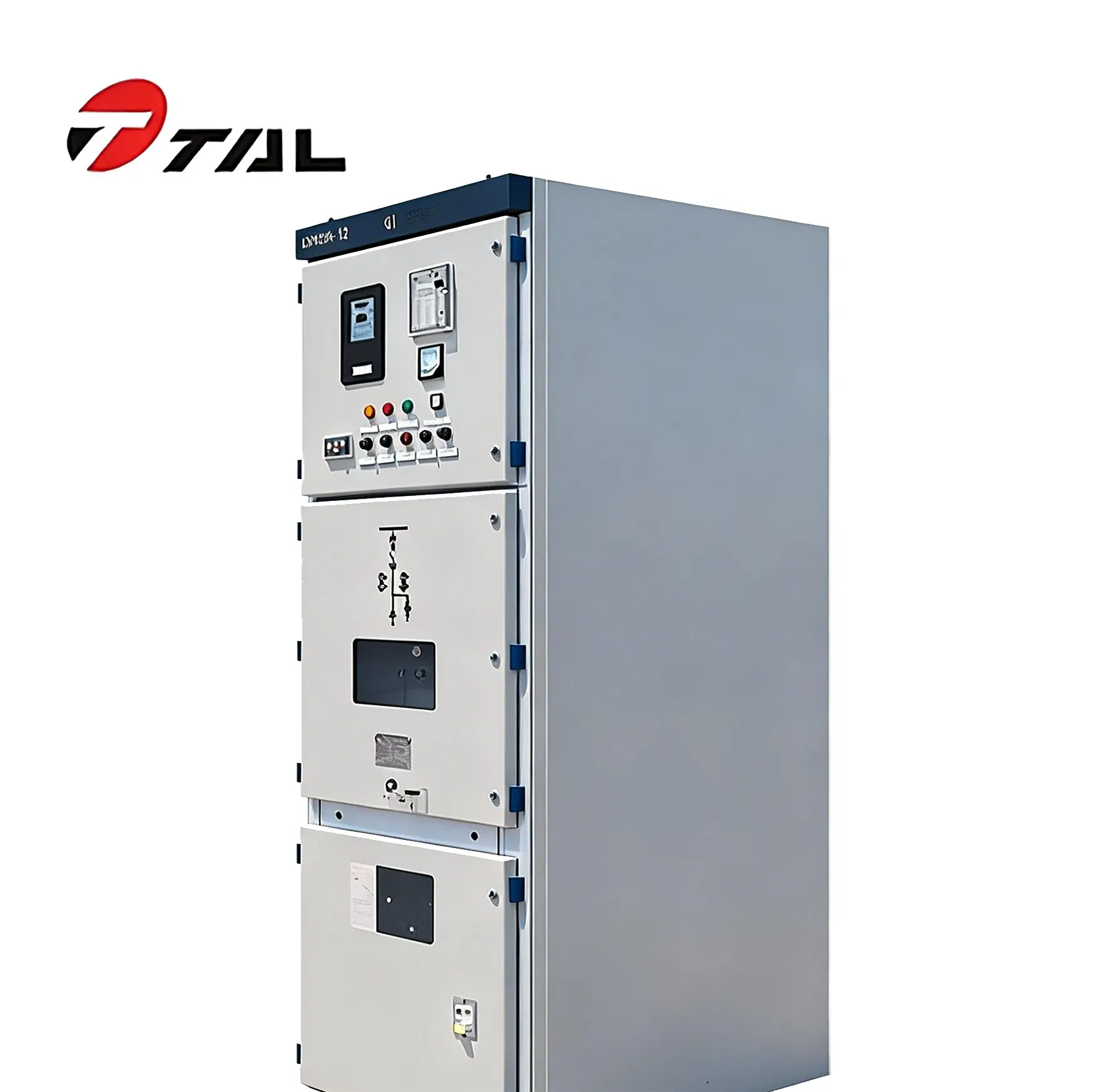

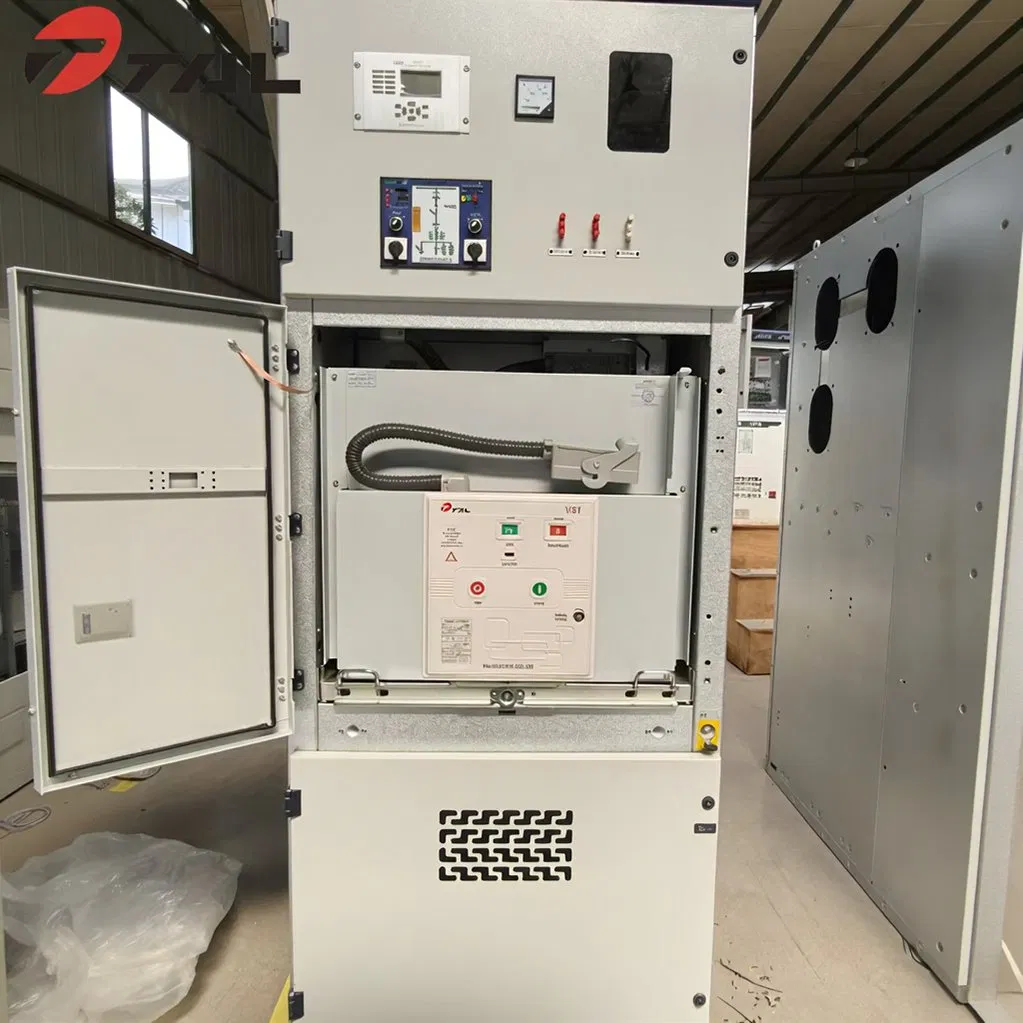

The KYN series air-insulated metal-enclosed withdrawable switchgear is a modular power distribution unit designed for medium/high-voltage electrical systems with withdrawable panel. The withdrawable unit can be fitted with the vacuum circuit breaker. It can also accommodate an isolation truck, PT truck, fuse truck, and other optional modules. Its core features include a fully enclosed metal-clad structure and removable functional modules (e.g., circuit breaker carriages).

Air-Insulated High Voltage Electrical Compact Substation Switchgear

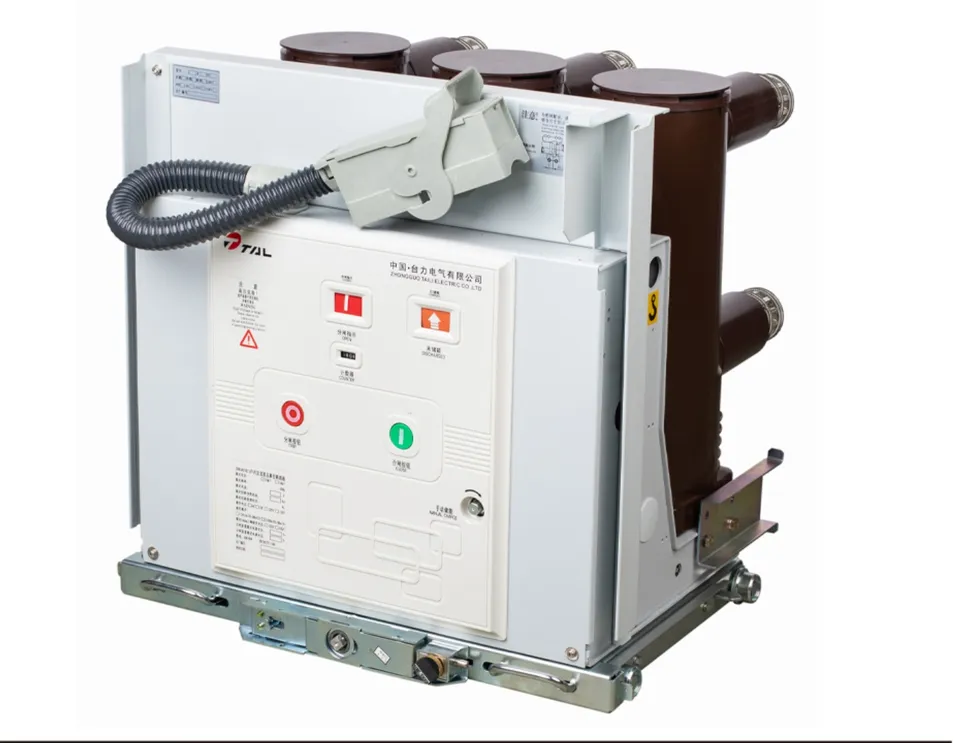

The indoor high-voltage vacuum circuit breaker

It can quickly cut off fault currents to protect the power system. It has advantages like high breaking capacity, long service life, low maintenance, good arc-extinguishing performance, and reliable operation in indoor power distribution systems.

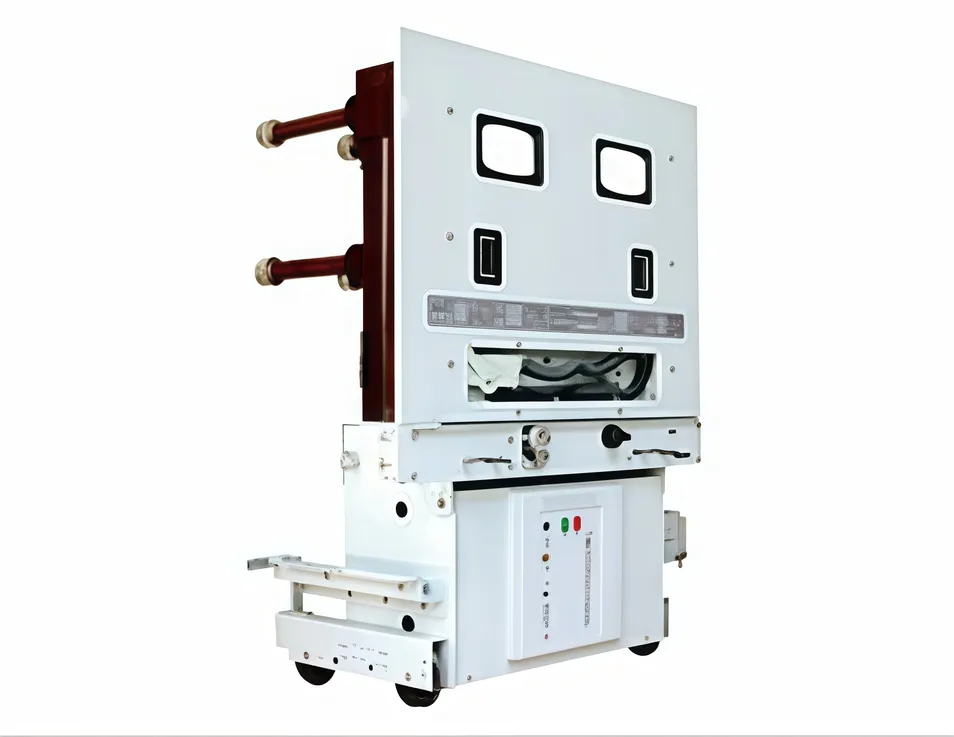

The vacuum circuit breaker handcart

It controls the power flow by making and breaking normal load currents, and protects the electrical system from faults by quickly interrupting short-circuit currents. Its advantages are remarkable, featuring high reliability thanks to vacuum arc-extinguishing technology, a long service life due to minimal wear, and ease of maintenance as it can be easily removed for inspection and repair.

Specification

Customization Service

Need specific voltage, capacity, protection class, or environmental requirements? Contact us. Our team will conduct on-site surveys to identify your application scenario (power/railway/mining), technical parameters (voltage/capacity/protection class), and environmental conditions (temperature/humidity/outdoor) – then deliver a tailored solution that meets your budget and delivery timeline.

Items	Unit	Data
Rated voltage	kv	3.6/7.2/12
Rated frequency	Hz	50
VCB Rated current	A	630/1250/1600/2000/2500/3150
Switchgear current	A	630/1250/1600/2000/2500/3150
Rated short withstand current(4s)	kA	16/20/25/31.5/40/50
Rated peak withstand current	kA	40/50/63/80/100/125
Rated short breaking current	kA	16/20/25/31.5/40/50
Rated insulation level-1 min withstand frequency voltage	kv	24/32/42
Rated insulation level-Lighting impulse withstand voltage	kv	40/60/75
Protection class	-	IP4X
