Xgn2-40.5 and Metal Clad Withdrawable Switchgear for Medium Voltage and Gas Insulated Switchgear Systems

1 / 5

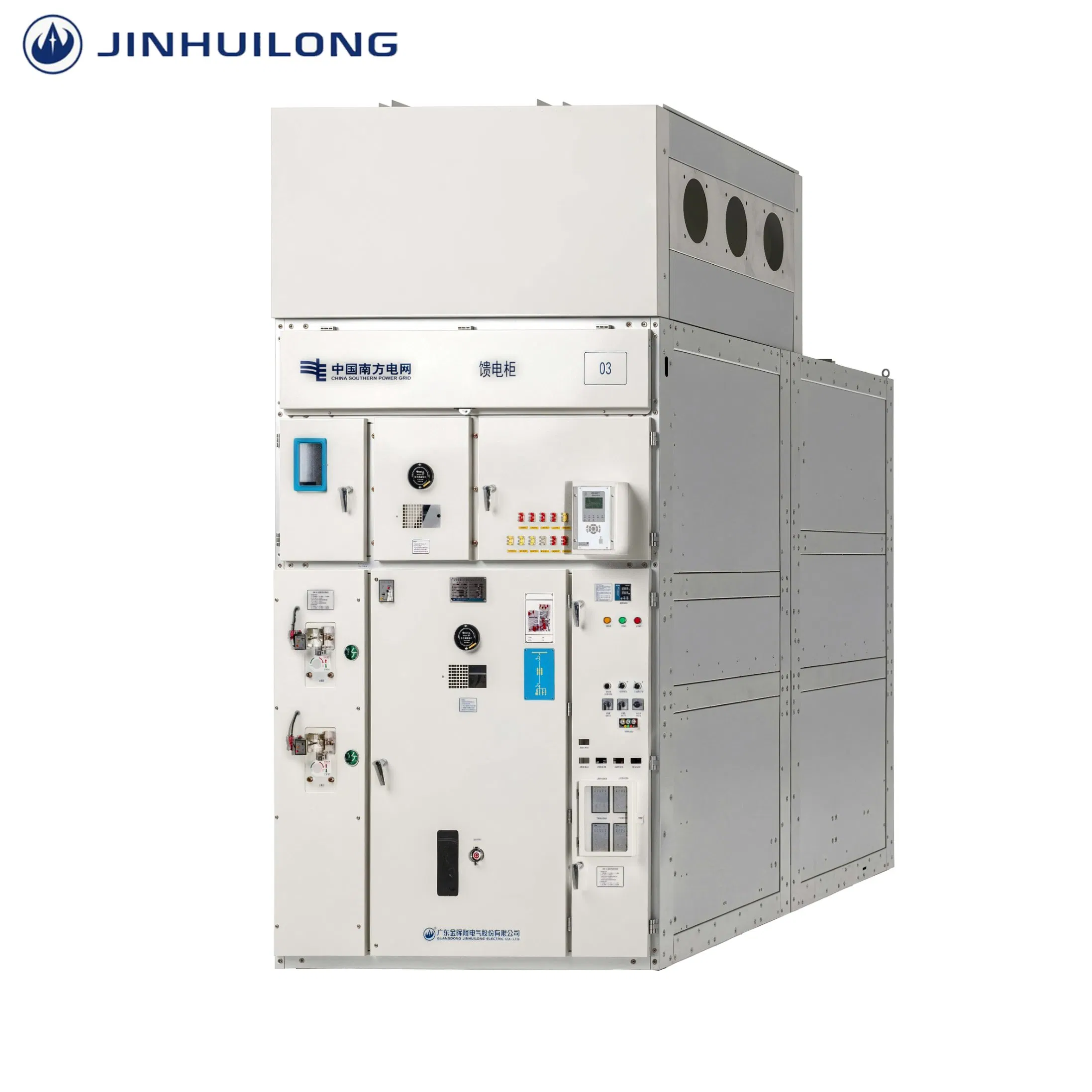

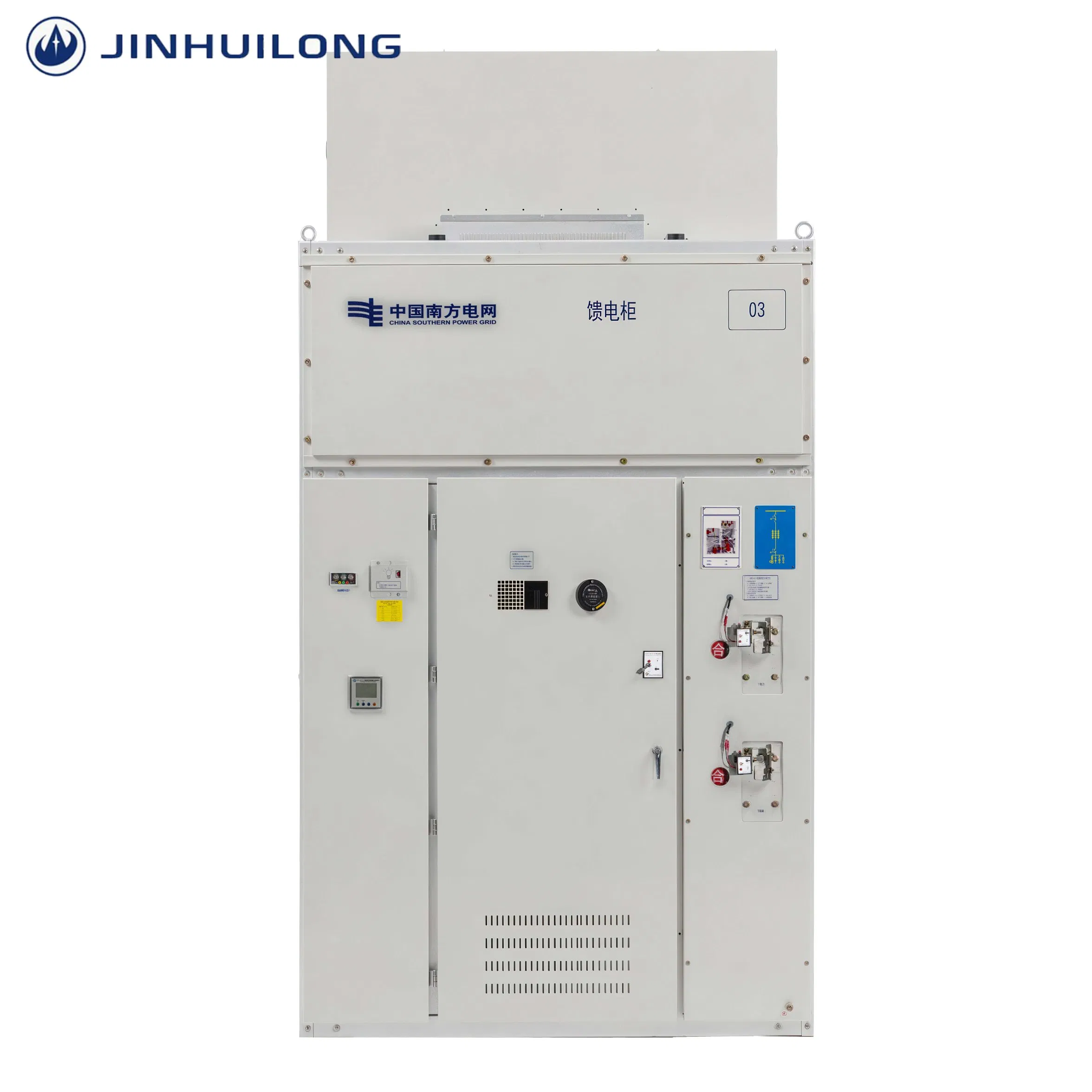

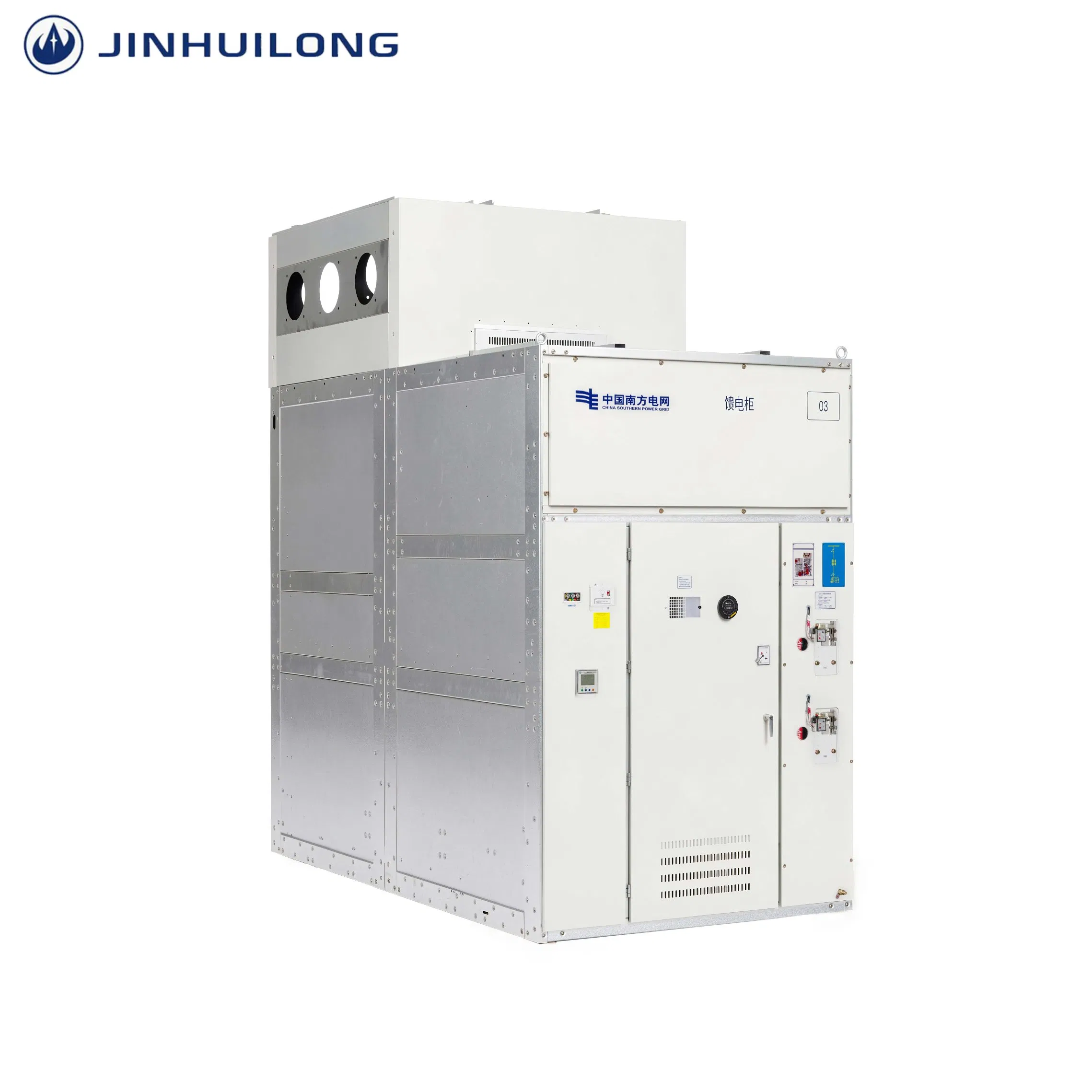

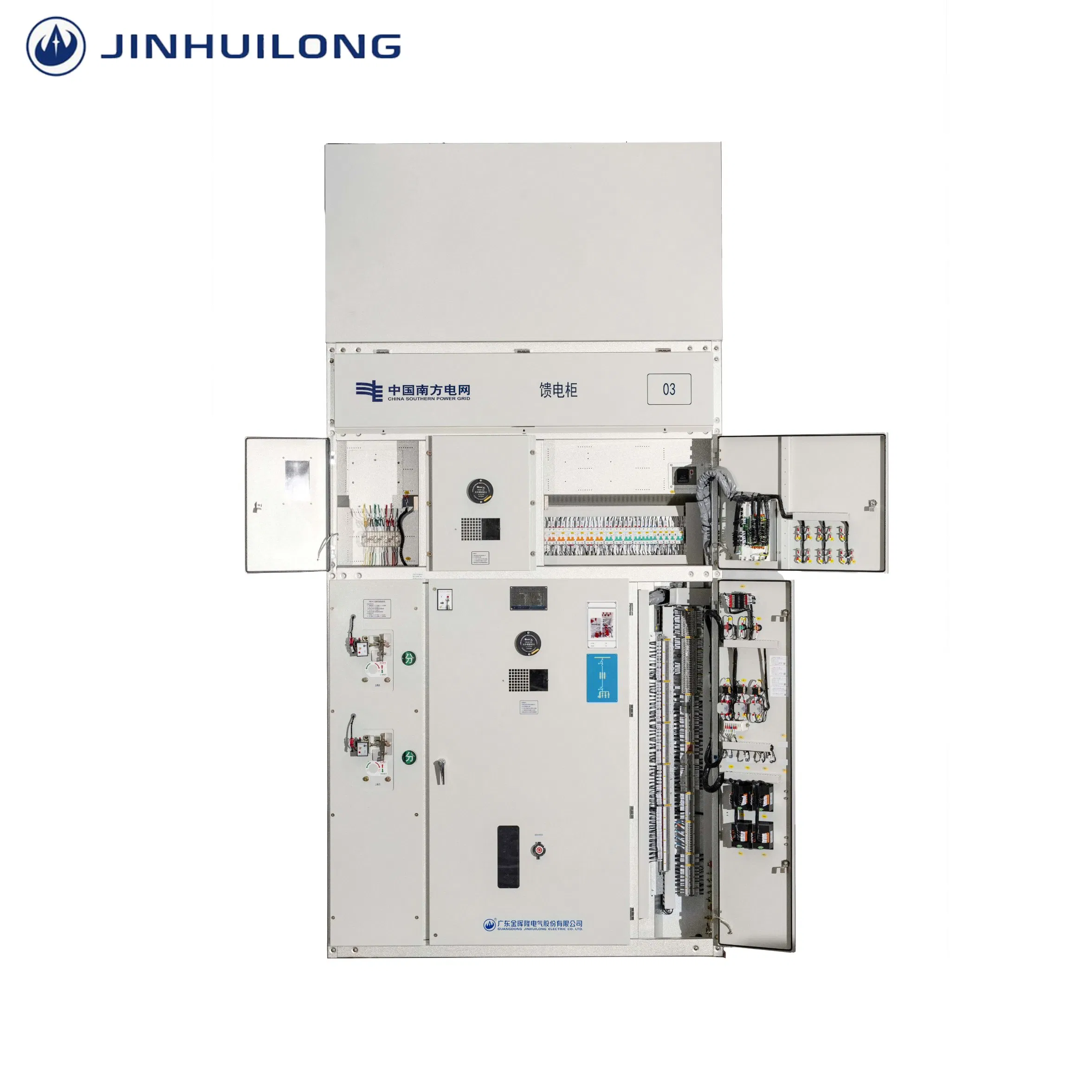

Xgn2-40.5 and Metal Clad Withdrawable Switchgear for Medium Voltage and Gas Insulated Switchgear Systems

Customization:	Available
Certification:	ISO 9001:2015
Shell Material:	Stainless Steel

Send Inquiry

Product Description

Basic Information

Model NO.:

XGN2-40.5

Voltage Level:

Medium Voltage

Installation:

Fixed

Structure:

Cabinet

Current:

Product Name:

Metal-Clad Withdrawable Switchgear

Rated Voltage:

12kv/24kv

Frequency:

50 Hz

Rated Current:

1250A/2500A/3150A/4000A

Origin:

China

Production Capacity:

50pieces/Week

Product Description

Technical Specification

No.	Item			Unit	Technical Parameters
1	Rated Voltage			kV	40.5
2	Rated Frequency			Hz	50
3	Rated Current			A	1250 1600 2000 2500
4	Rated Insulation Level	1 min power frequency withstand	Phase/Earth	kV	95
		1 min power frequency withstand	Isolation		110
		Lightning impulse withstand	Phase/Earth		185
		Lightning impulse withstand	Isolation		215
5	Rated Short-Circuit Breaking Current (RMS)			kA	25	31.5
6	Rated Short-Time Withstand Current (RMS)			kA	25	31.5
7	Rated Short-Circuit Making Current (Peak)			kA	63	80
8	Rated Peak Withstand Current			kA	63	80
9	Rated Duration Of Short-Circuits			s	4
10	Degrees of Protection			-	IP3X
11	Control Circuit Rated Voltage			V	DC/AC 110/220
12	Weight			kg	2000-3000
13	Mechanical Endurance			times	1000
14	Dimensions (W x D x H)			mm	202032003600

Note: Specific dimensions may be determined based on the preliminary layout drawings.

Company Profile

Packaging & Shipping

Package Size:

320cm * 202cm * 360cm

Gross Weight:

2649.00kg

Package Type:

Wooden Box

Certifications

Frequently Asked Questions

What main electrical products do you supply?

We mainly supply LV/MV (0.4kV-40.5kV) distribution cabinets, circuit breakers, box substations, pole mounted switches and related electrical supporting parts.

Do you accept OEM/ODM?

Yes, we do. Our professional engineering team can customize products according to your drawings or specific requirements.

What is your MOQ?

Our MOQ is one set. We welcome small trial orders for your initial cooperation.

What is the delivery time?

It depends on your order quantity and specifications, and it normally takes about 15-20 working days.

How do you ensure product quality?

We have a strict QC team and complete testing process. Every product will be fully tested before shipment, and we can provide test photos or videos if needed.

What after-sales service do you offer?

We provide online technical support at any time. If you have product use problems, we will reply and solve them for you in a timely manner.
