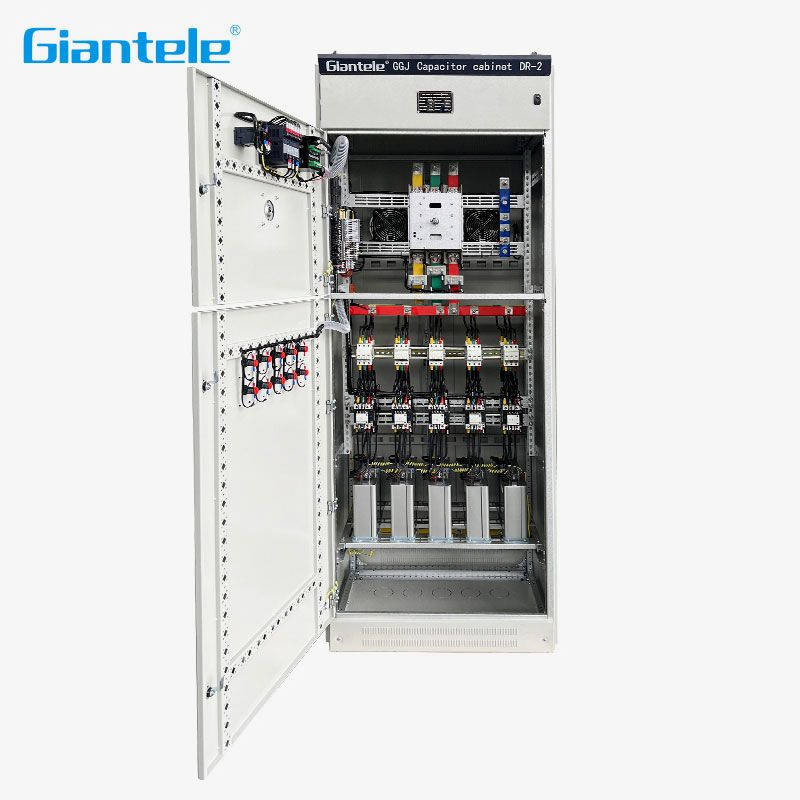

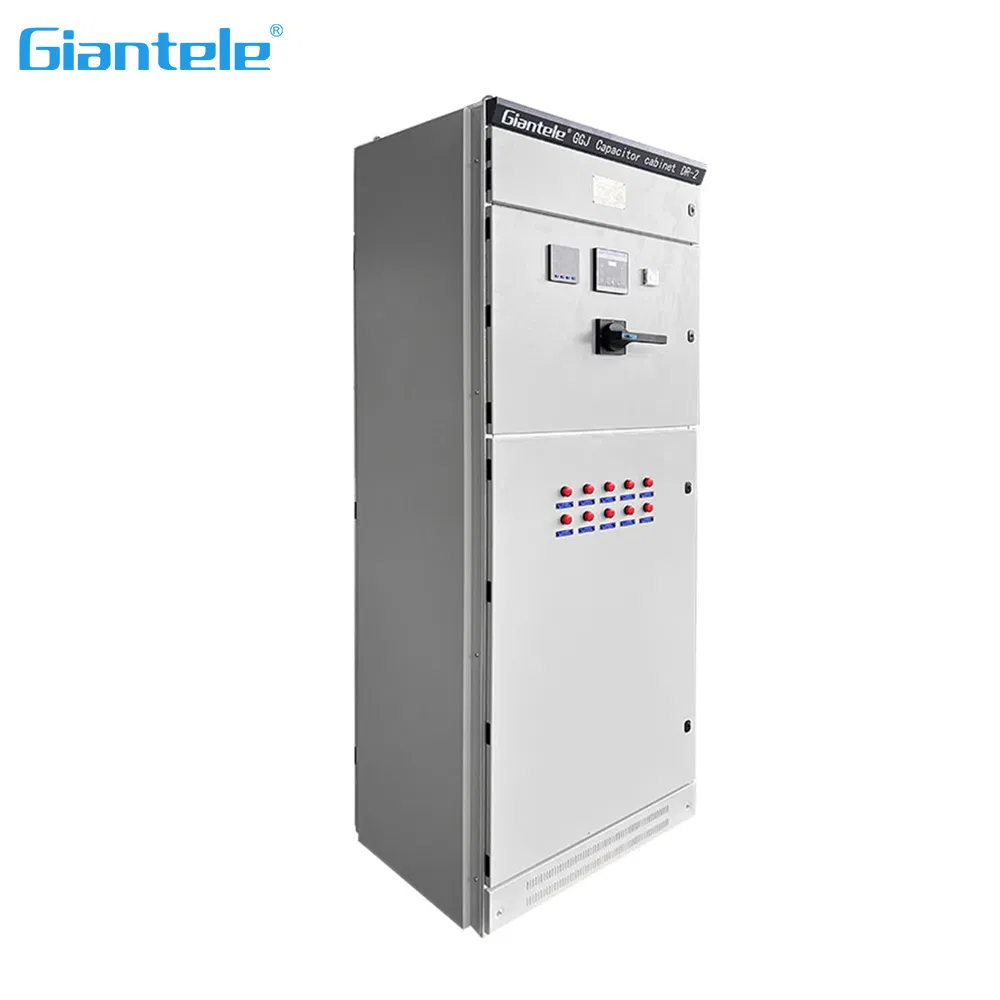

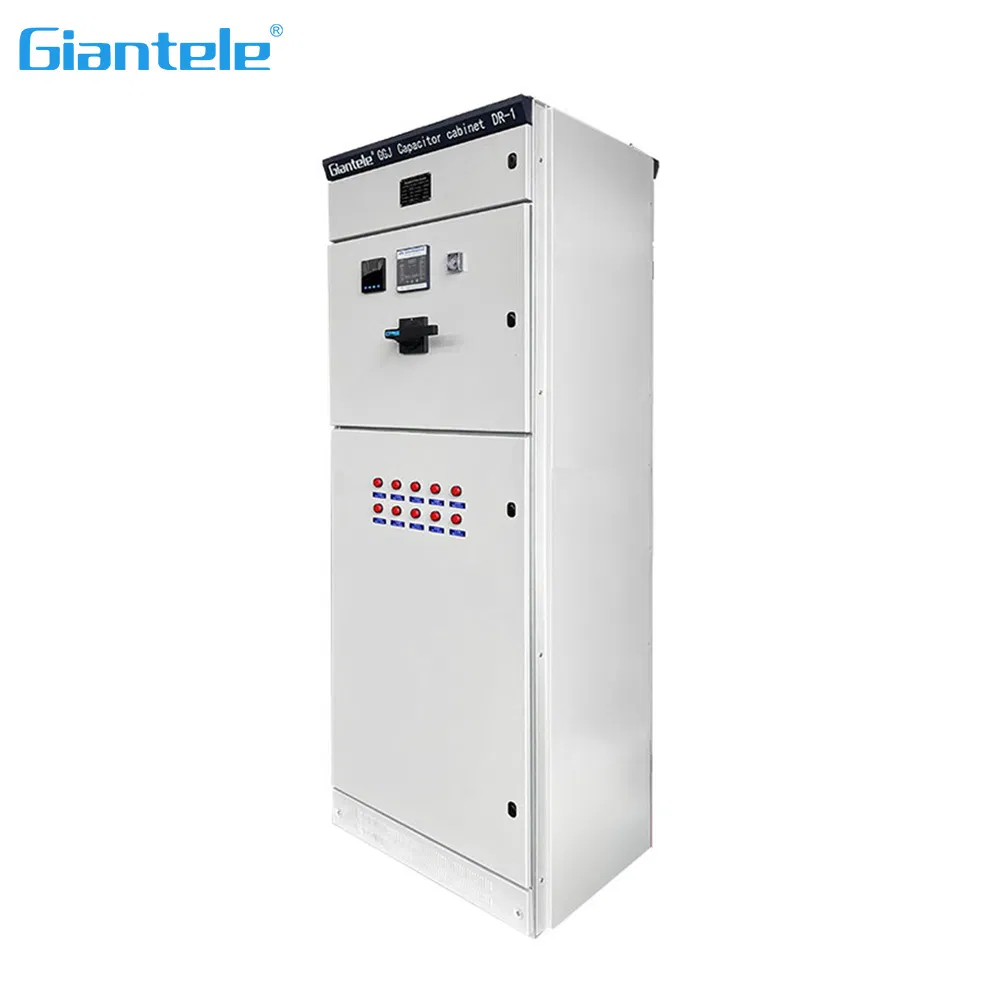

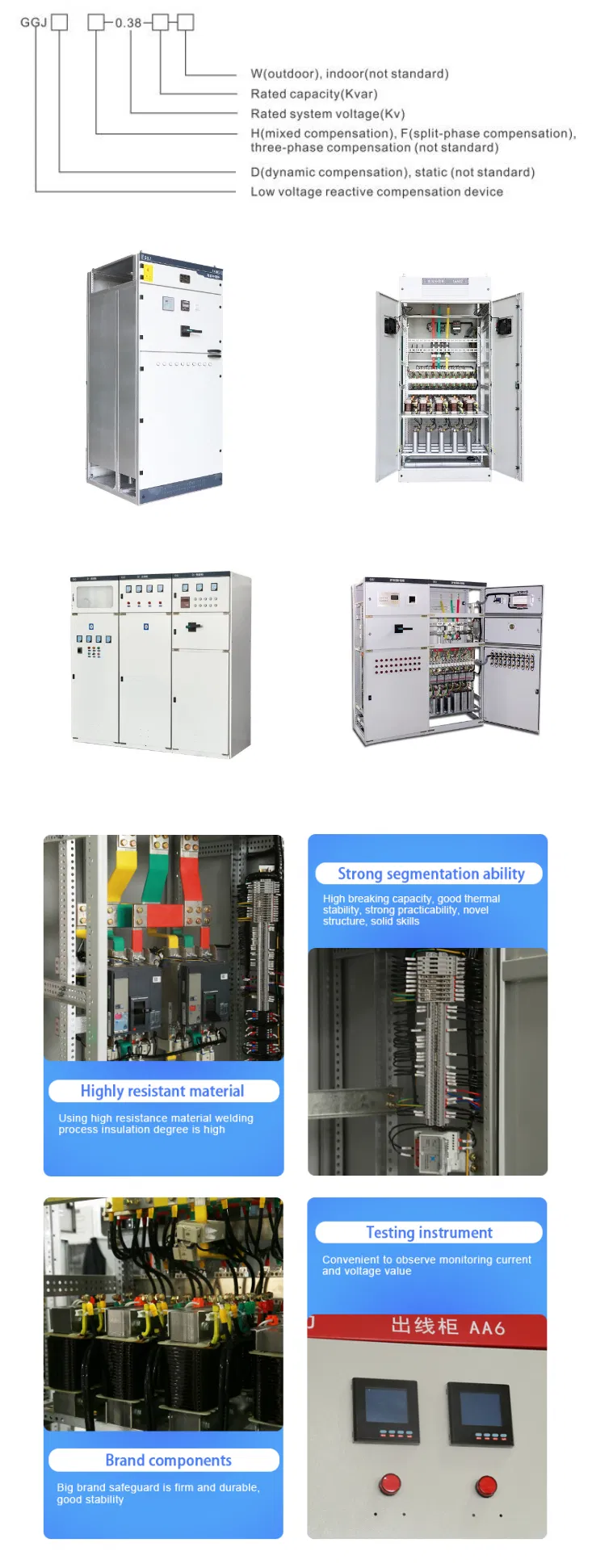

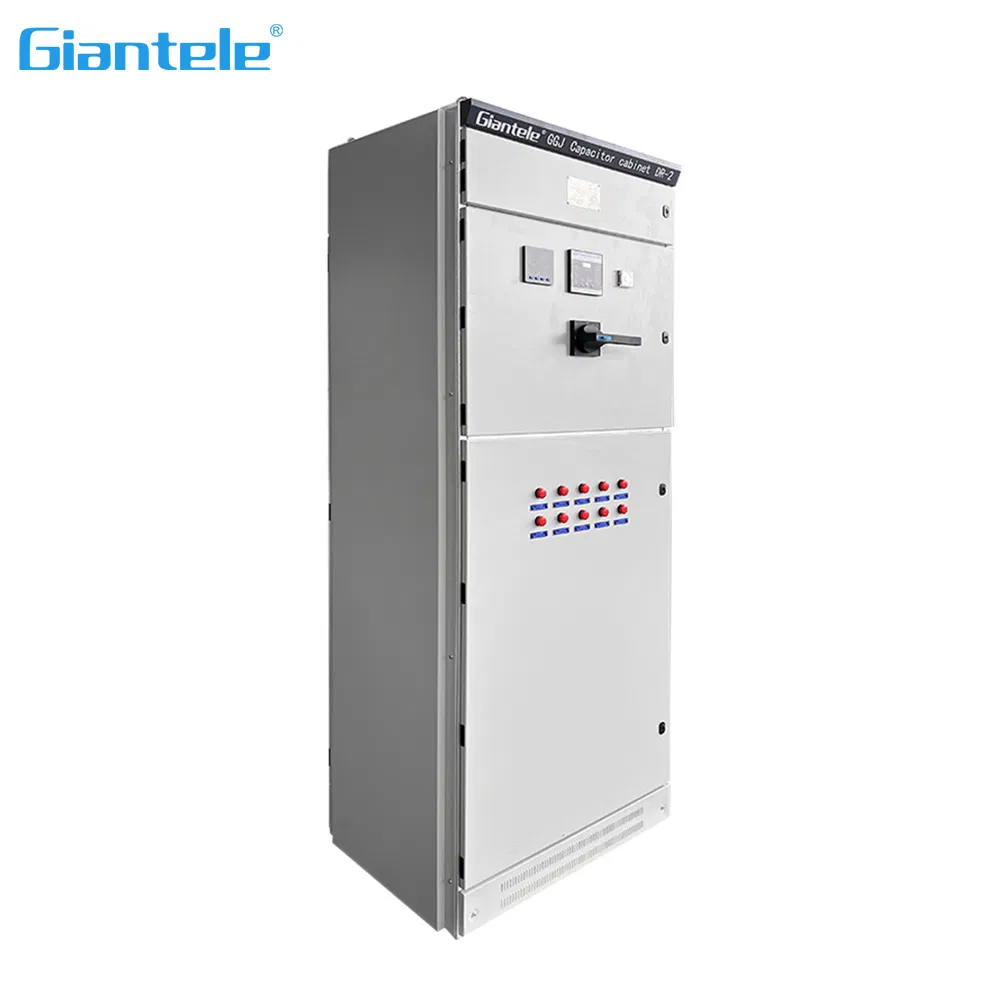

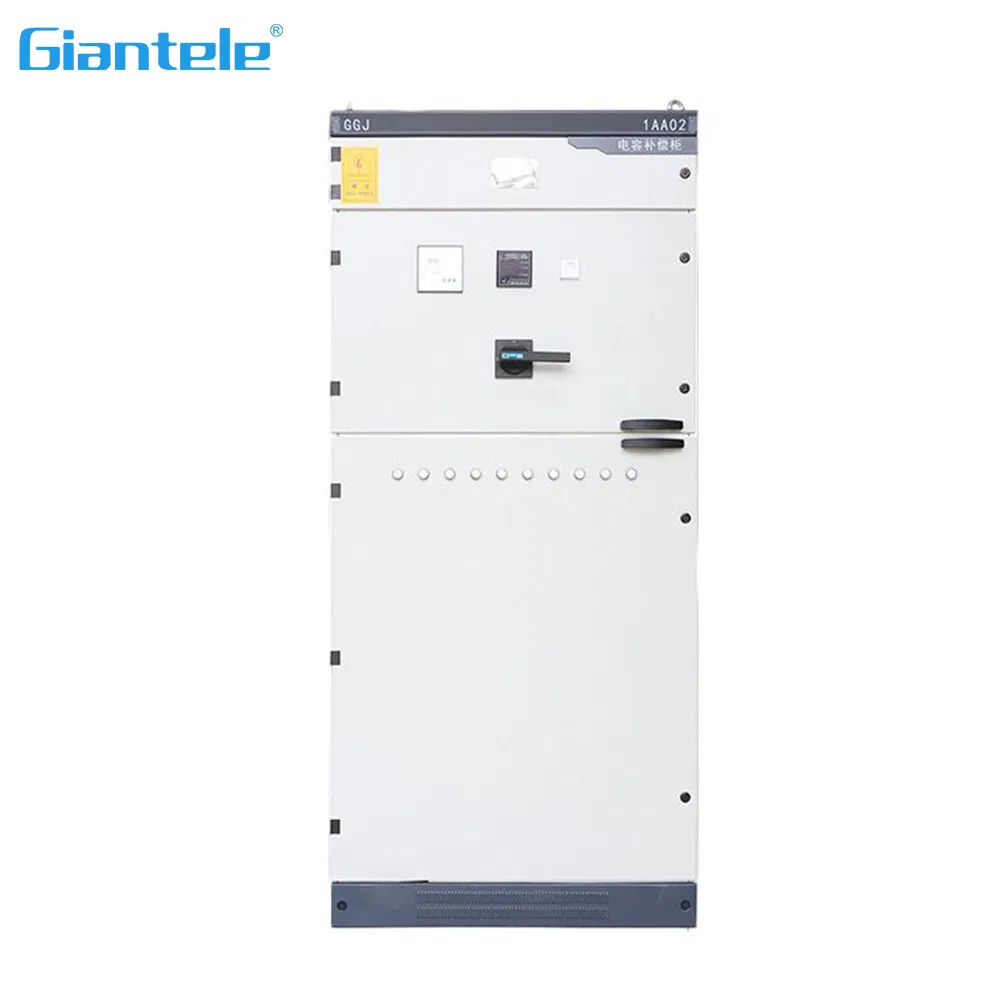

GGJ low-voltage power distribution reactive power compensation integrated cabinet is a new type of outdoor power distribution reactive compensation integrated cabinet designed by the principles of safety, economy, reasonableness, and reliability. Applicable to city network, rural power network transformation, industrial and mining enterprises, street lighting, residential quarters, etc. AC 50Hz (60Hz), rated voltage 380V (can be customized according to local national standards), with power distribution, control, protection, Multi-functional outdoor integrated distribution box with reactive power compensation, electric energy metering, etc., and can also add leakage protection function according to user requirements.
The product has the advantages of novel structure, reasonable structure, high protection level, convenient installation and debugging, maintenance and overhaul. The product complies with GB7251.1-1997, GB/T15576-2008, and has passed the 3C certification. It is an ideal low-voltage complete set in the current power grid transformation. GGJ series power distribution reactive compensation cabinet is suitable for electric energy distribution, metering, protection, and reactive power automatic compensation of 0.4kV voltage level.
| No. | Item | Unit | Data |
|---|---|---|---|
| 1 | Rated voltage | V | 400, 690 |
| 2 | Rated Frequency | Hz | 50/60 |
| 3 | Rated Capacity | Kva | 1-600 |
| 4 | Voltage Range | V | (0.85 ~ 1.1) times rated |
| 5 | Max Permissible Current | - | 1.3 times rated |
| 6 | Control Loop | - | 1-16 |
| 7 | Altitude | M | < 2000m |
| 8 | Ambient temperature | °C | -20 to +45 °C |
| 9 | Humidity | % | ≤90% at 20°C |
| 10 | Switching Time | s | 1 ~ 150 s (adjustable) |
| 11 | Manner of working | - | automatic and continuous |
We are a group of private enterprises that hold the production license issued by the former ministry of energy and ministry mechanical and electrical engineering. Specialized in R&D production of complete switchgear of high and low voltage equipment such as prefabricated substation, distribution cabinet/box, drawer cabinet, ring network cabinet, inflatable cabinet, etc.
Our facility utilizes CNC bending machines, CNC shearing machines, CNC laser cutting machines and a series of advanced production equipment to optimize product structure and improve production efficiency. We have passed ISO 9001-2000 quality system certification. All items are produced by our own factory, ensuring reliable quality and reasonable price.
