Sw14 Xgn17-40.5 Xgn17-12 Switchgear Enclosure Medium Voltage Switchgear

1 / 1

Sw14 Xgn17-40.5 Xgn17-12 Switchgear Enclosure Medium Voltage Switchgear

Customization:	Available
Type:	Power
Structure:	Protection

Send Inquiry

Product Description

Basic Information

Model NO.

XGN17-12

Form

Partly-welded Type

Operation Voltage

Low Voltage

Size

OEM

Application Range

Power Plants

Shell Material

Steel Plate

Shell Protection Grade

IP67

Main Voltage Range

35kv/24kv/12kv/0.4kv

Main Cabinet Type

Kyn28/Kyn61/Ggd/Xgn15/...

Rated Capacity

50 to 2000 kVA

Frequency

50Hz or 60Hz

Origin

China

Product Description

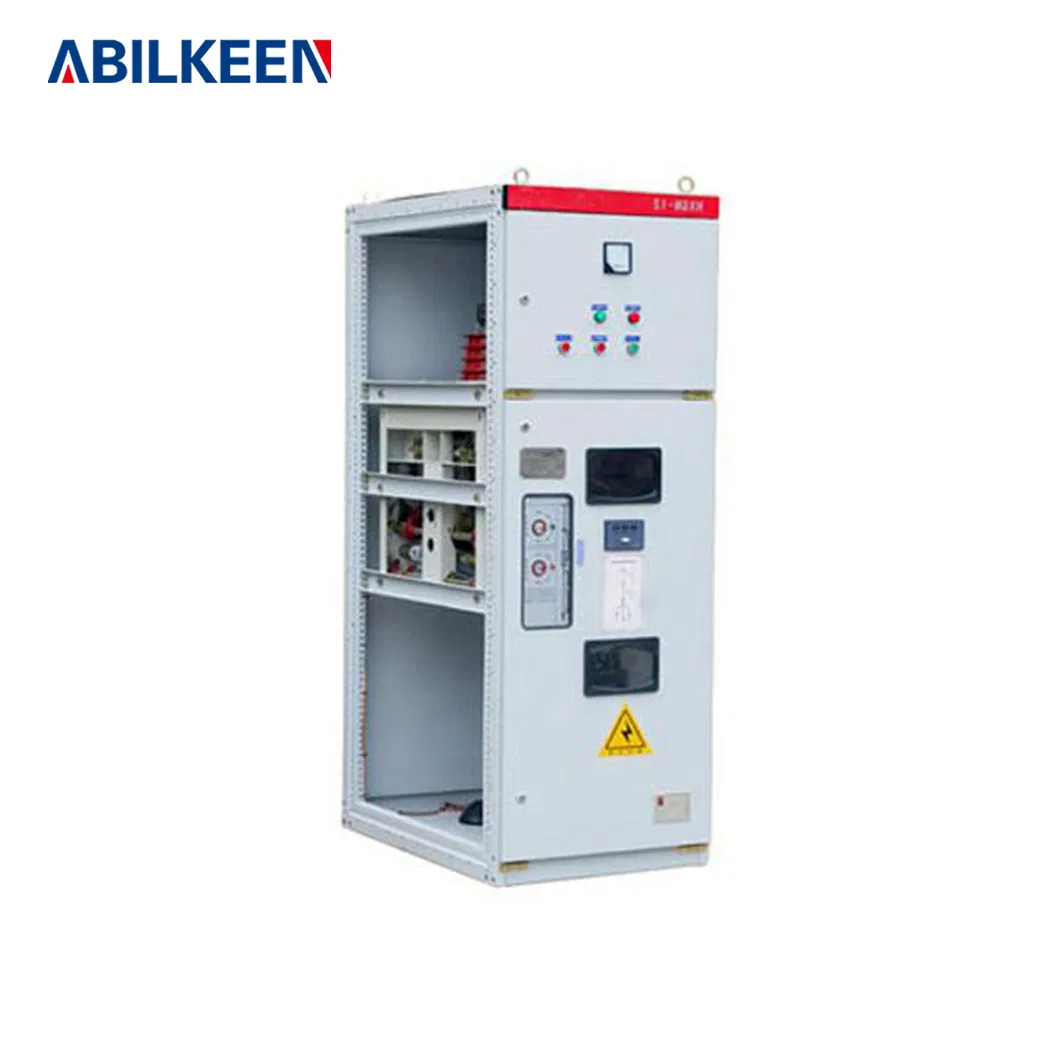

XGN17-40.5 XGN17-12 Switchgear enclosure medium voltage switchgear

Operating environment:
1) Ambient temperature: -10°C to +40°C;
2) Altitude: High voltage ≤1000m, Low voltage ≤2500m;
3) Relative humidity: ≤85%;
4) Seismic intensity: ≤ magnitude 8;
5) Application: Suitable for areas without fire, explosion danger, serious pollution, chemical corrosion, or violent vibration.

Executive Standards:
GB7251: Low voltage complete set switchgear and control device
GB3906-2006: 3.6kV~40.5kV AC metal enclosed switchgear and control device

Technical Parameters (35KV/24KV/12KV)

Parameter Item	Unit	35KV Range	24KV Range	12KV Range
Rated Voltage	kV	40.5~33	24~15	3.6 / 7.2 / 12
Power Frequency Withstand Voltage (1min)	kV	95	65	24 / 32 / 42
Lighting Impulse Withstand Voltage	kV	185	125	40 / 60 / 75
Rated Current	A	630-2500	630-2500	630-4000
Short Circuit Breaking Current	kA	25 / 31.5	25 / 31.5	20 / 25 / 31.5 / 40 / 50
Control Power	V	AC 110/220, DC 110/220

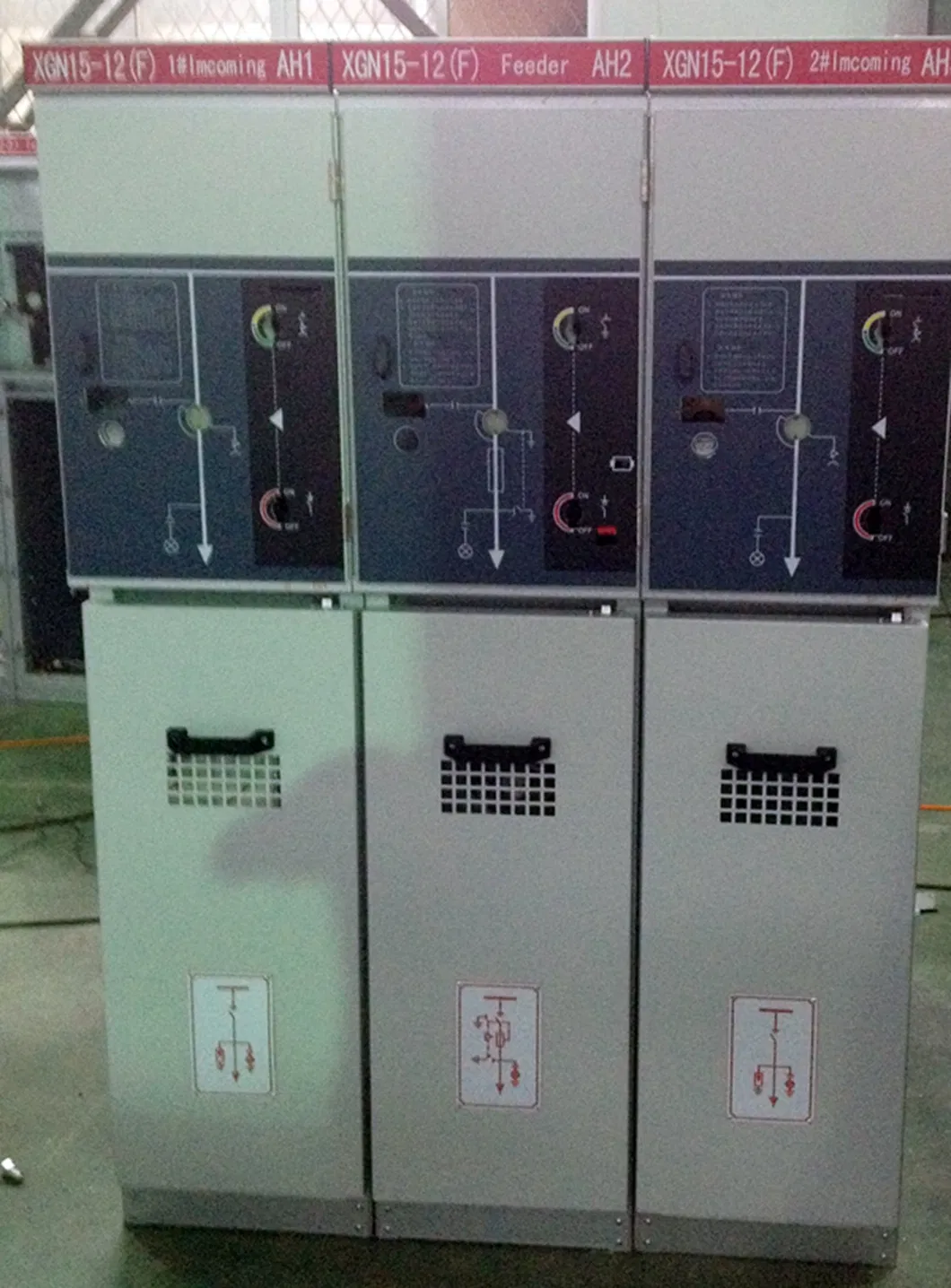

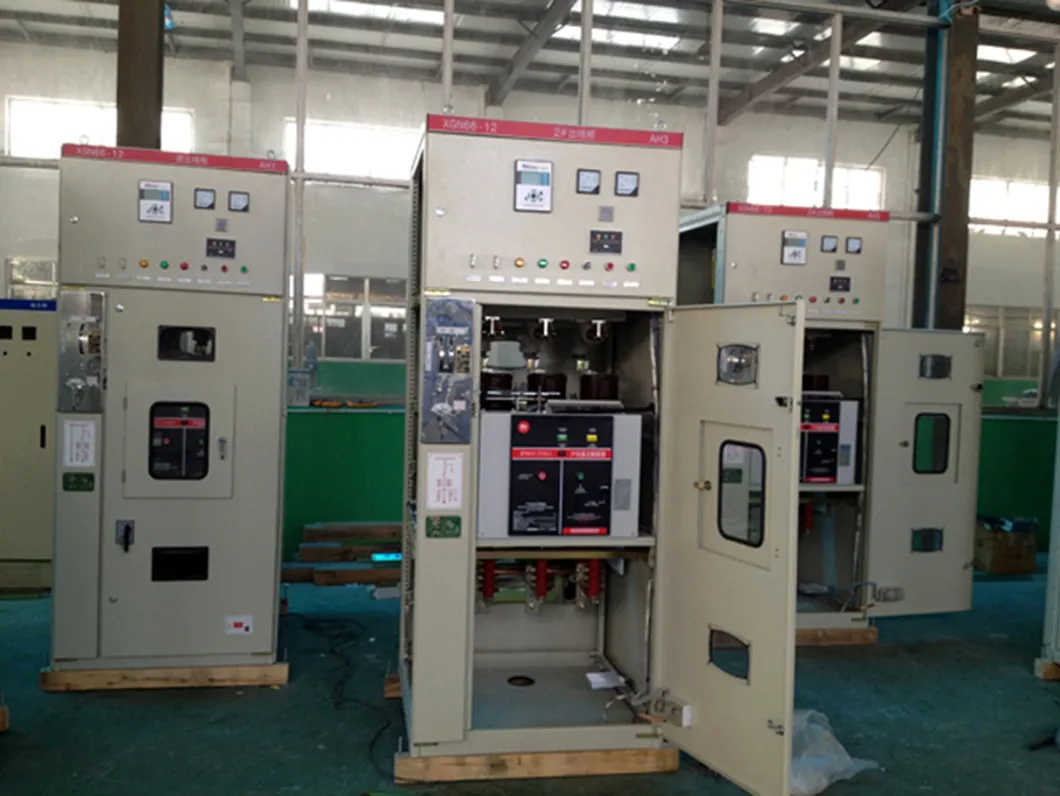

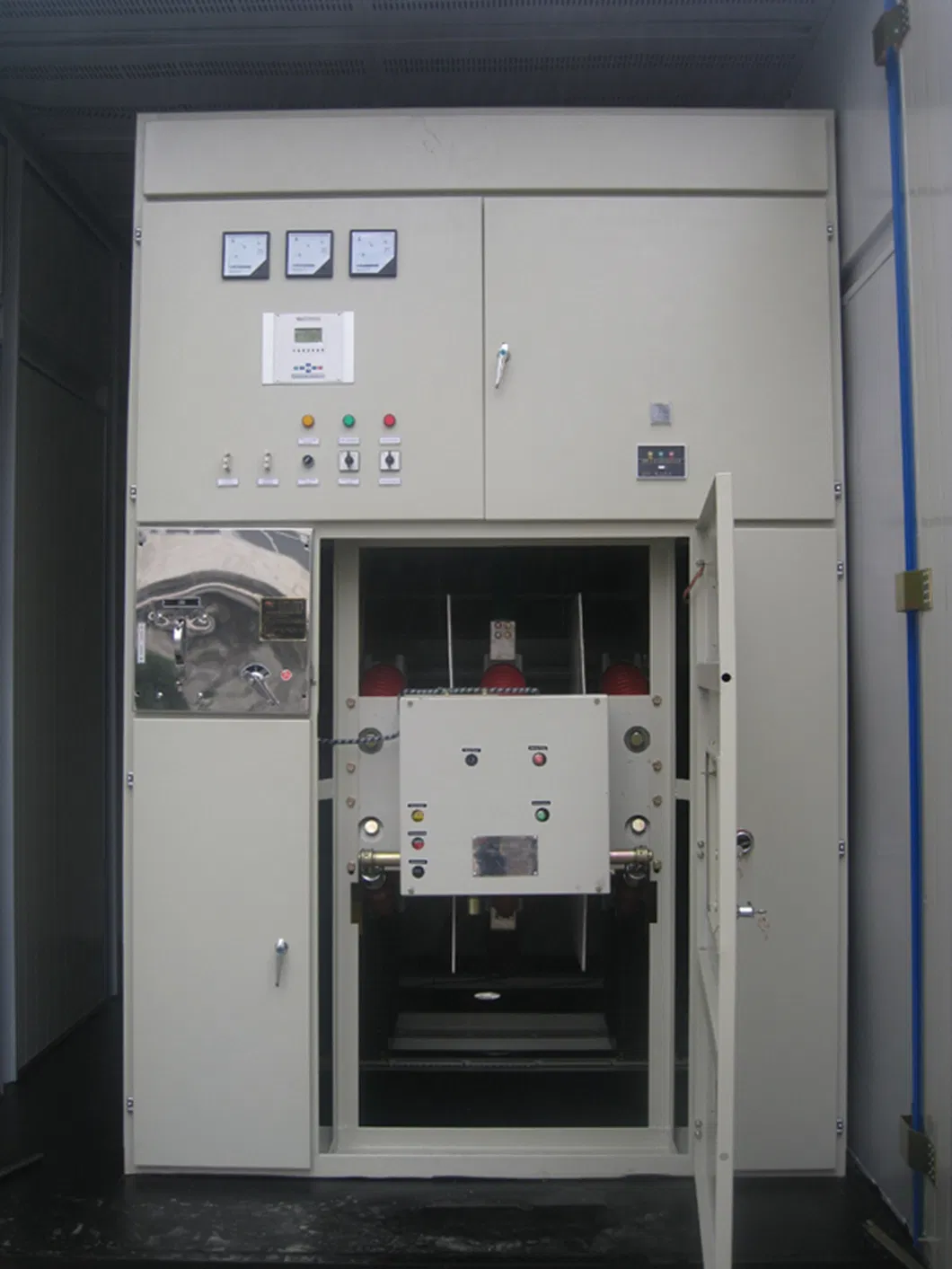

Detailed Photos

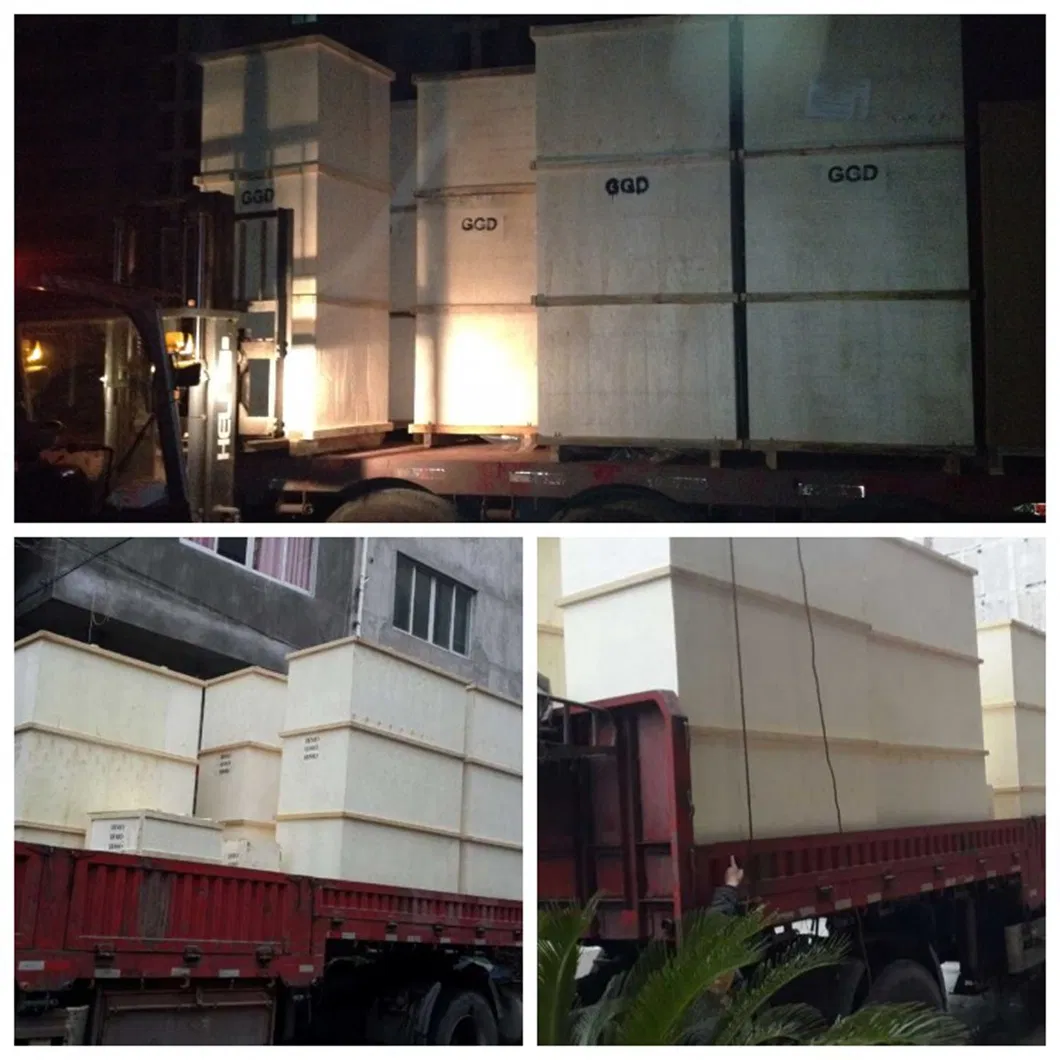

Packaging & Shipping
