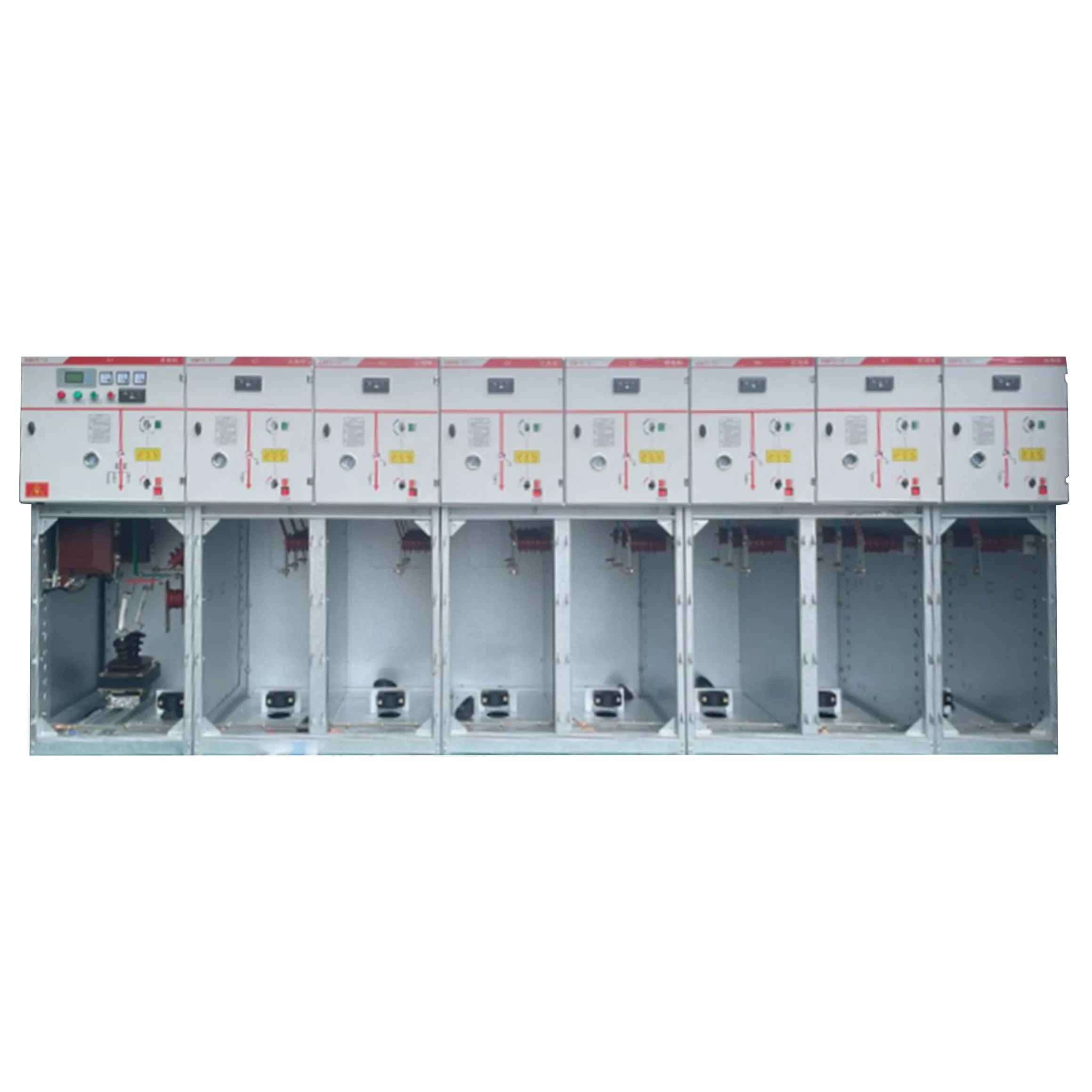

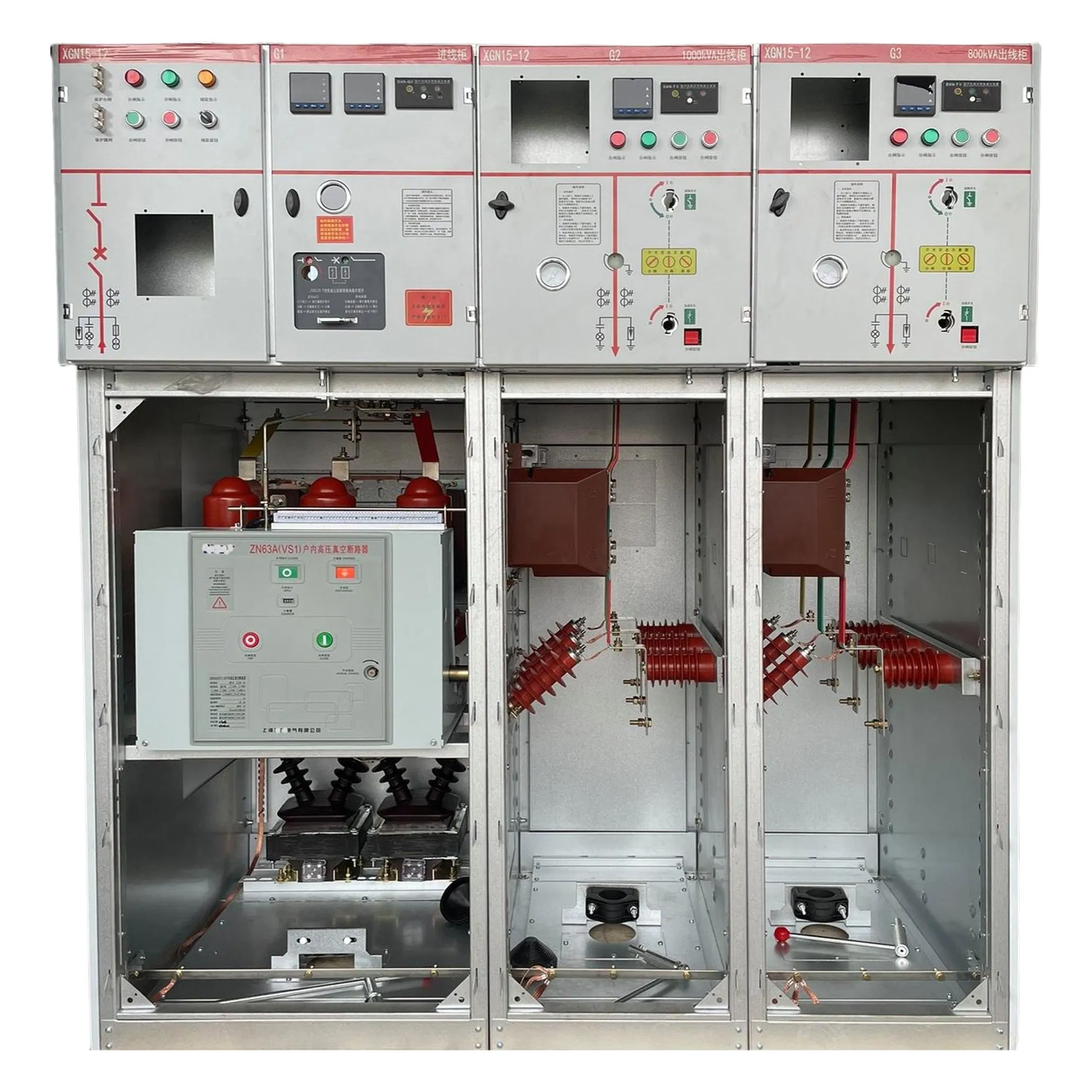

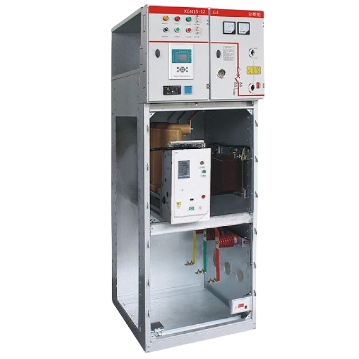

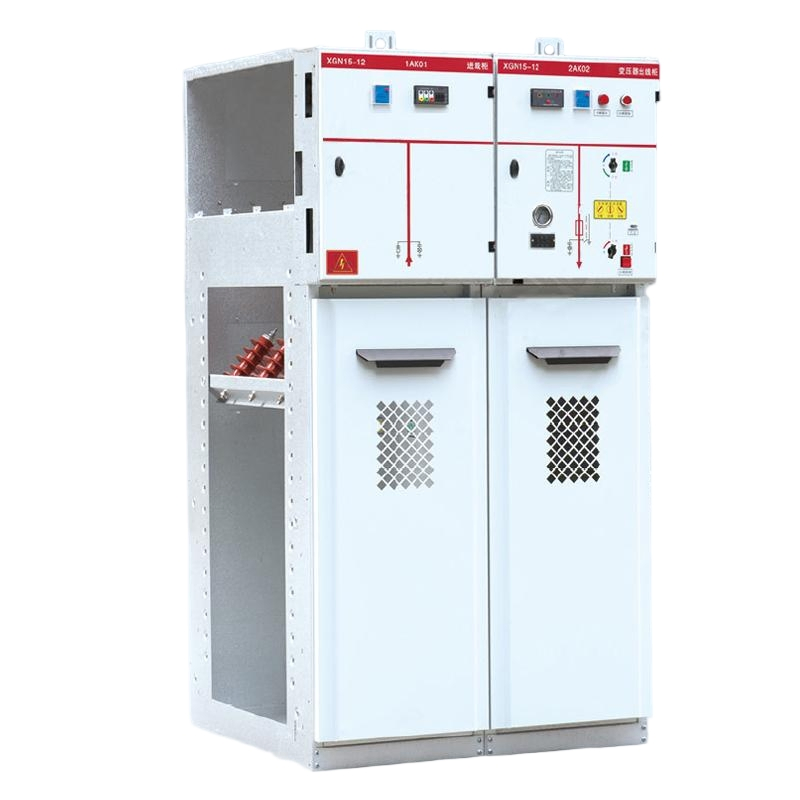

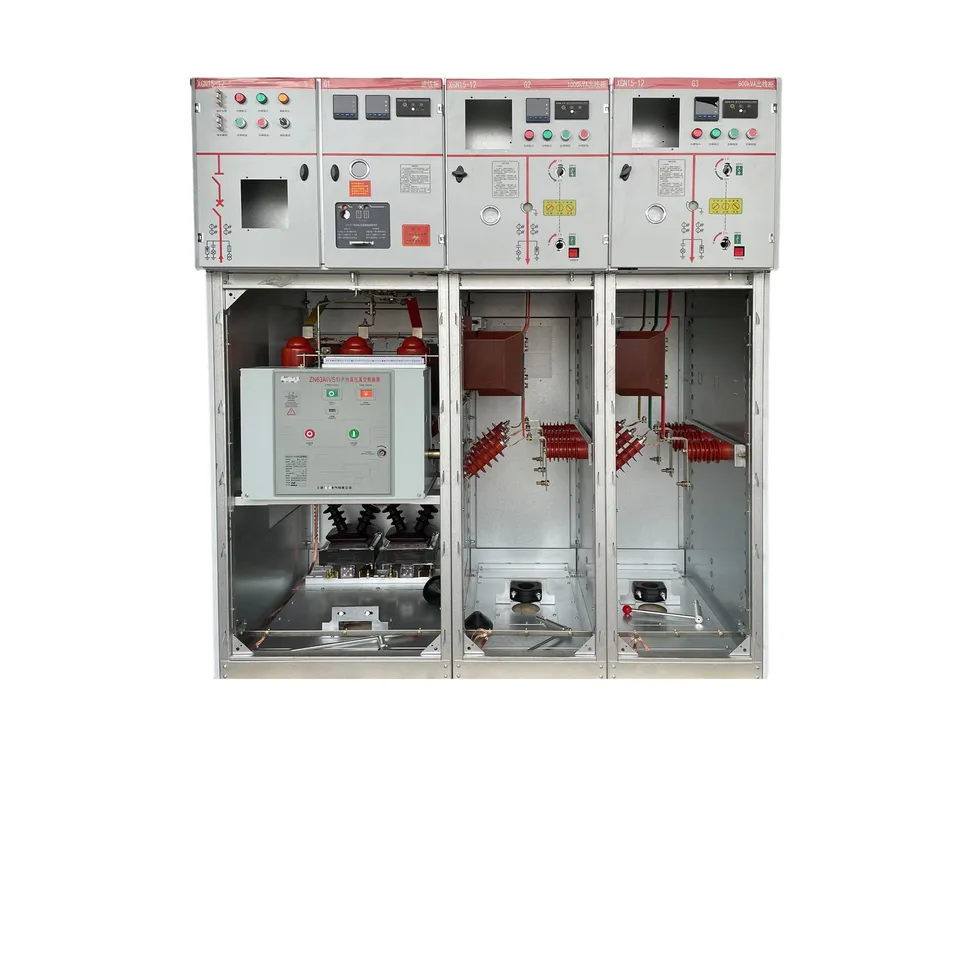

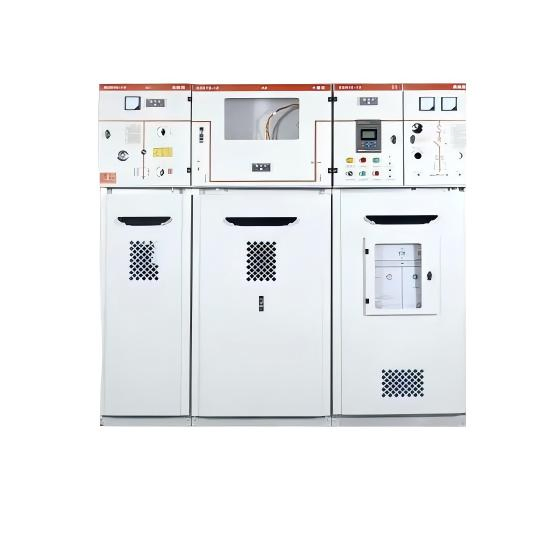

XGN15-12 Box-type fixed metal closed ring network switchgear
The XGN15-12 Solid Insulated RMU is an indoor fixed, fully insulated, and fully sealed solid insulated ring network switchgear designed specifically for 12kV distribution systems. This device uses solid insulation materials (epoxy resin/silicone rubber) instead of traditional SF6 gas, which has the characteristics of environmental protection, maintenance free, and high safety. It is suitable for ring network power supply and terminal distribution in urban power grids, industrial and mining enterprises, new energy power stations, and other occasions.
X G N 15 - 12 / 630
| Code | Definition |
|---|---|
| 1 | Box-type Construction |
| 2 | Fixed Type |
| 3 | Indoor Type |
| 4 | Design Serial Number |
| 5 | Rated Voltage (kV) |
| 6 | Rated Current (A) |
| 7 | I: FLN36-12 Load Switch / II: FLN48-12 Load Switch |
| No. | Parameter | Unit | Value |
|---|---|---|---|
| 1 | Rated Voltage | kV | 12 |
| 2 | Rated Frequency | Hz | 50 |
| 3 | Main Busbar Rated Current | A | 630, 1250 |
| 4 | Rated Short-time Withstand Current | kA/S | 20/3 |
| 5 | Rated Peak Withstand Current | kA | 50 |
| 6 | Mechanical Endurance | operations | 2000 |
| 7 | Protection Class | - | IP3X / IP4X |

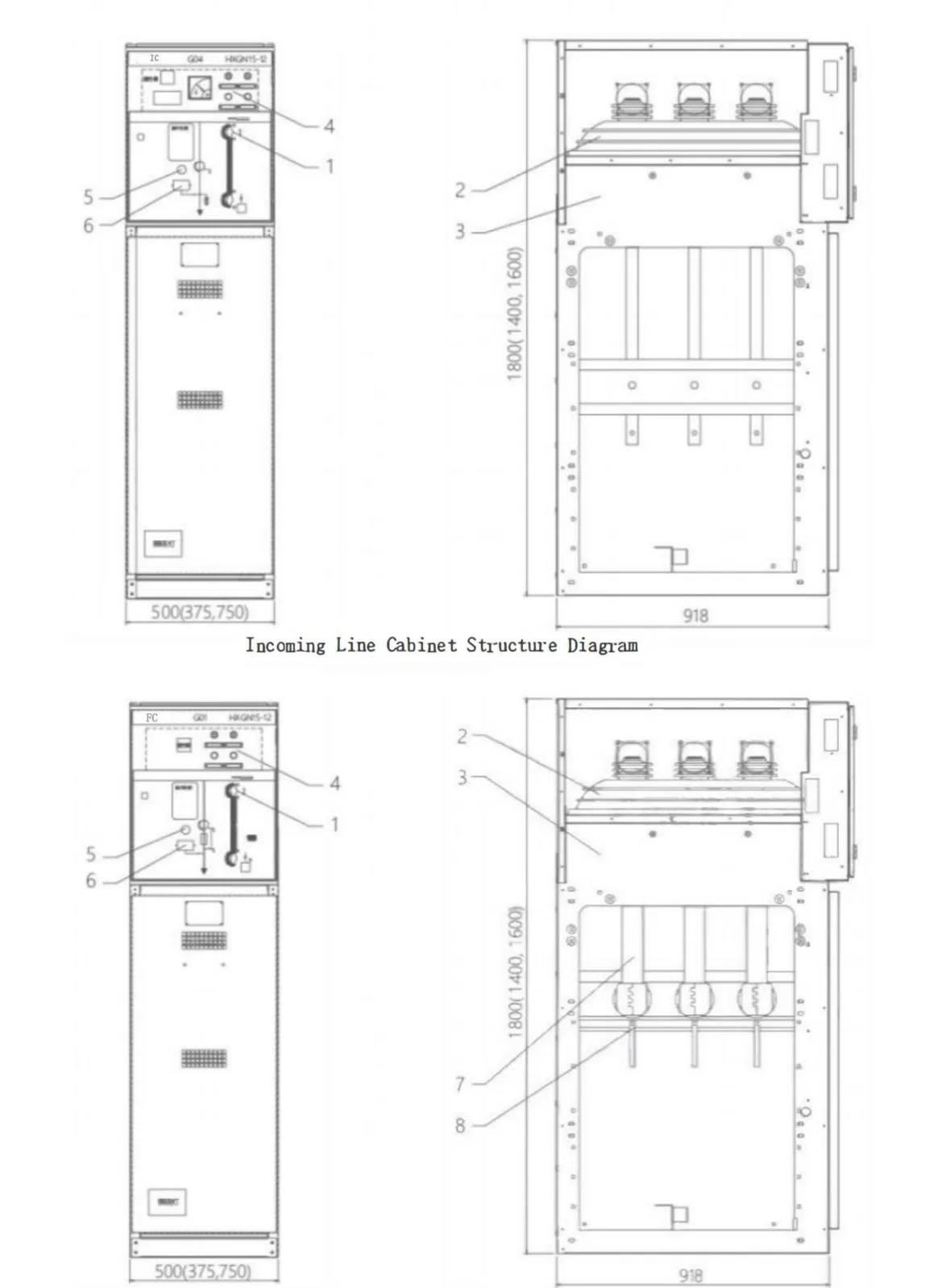

Outgoing Line Cabinet Structure Components:
1. Operating Mechanism | 2. Load Switch | 3. Cabinet Body | 4. Instrument Compartment | 5. SF6 Voltage Meter | 6. High-voltage Live Display | 7. Fuse | 8. Lower Grounding Switch
