Zago Electric
1 / 5
| Voltage Level | High Voltage |
| Installation | Removable |
| Structure | Cabinet |
| Current | DC |
| The Rated Voltage | 12kv |
| Rated Frequency | 50Hz |
| Power Frequency Withstand Voltage | 42/48kv |
| Lightning Shock Withstand Voltage | 75/85kv |
| Rated Current | 1250/630A |
| Production Capacity | 50 Pieces/Week |

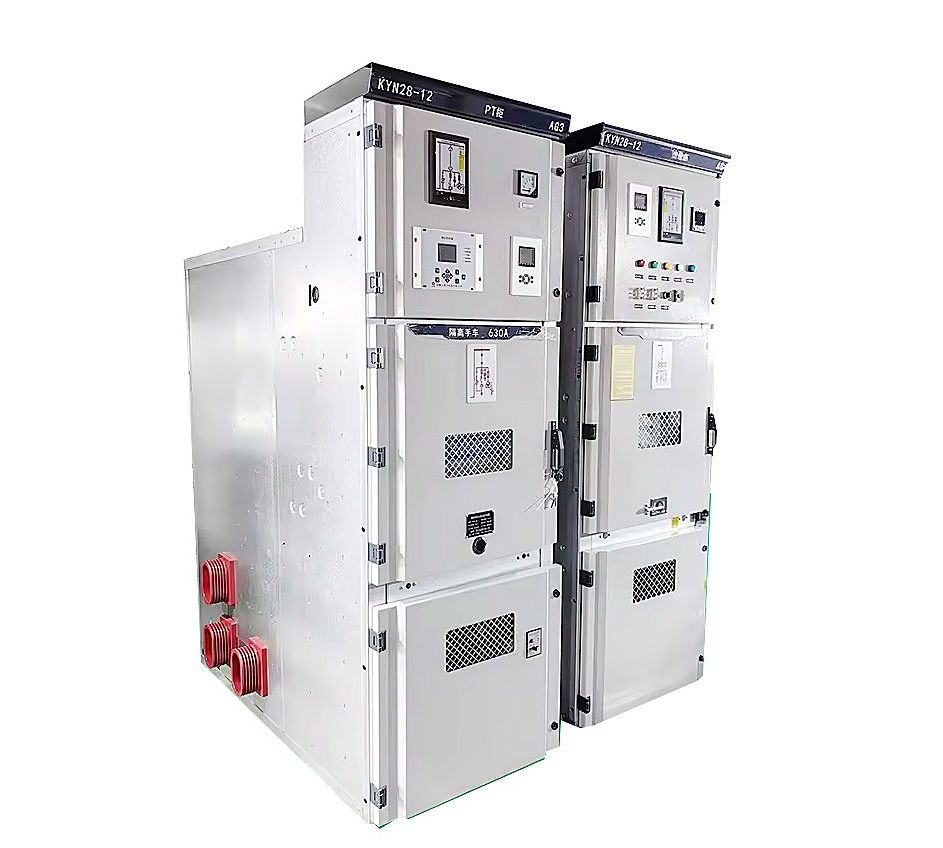

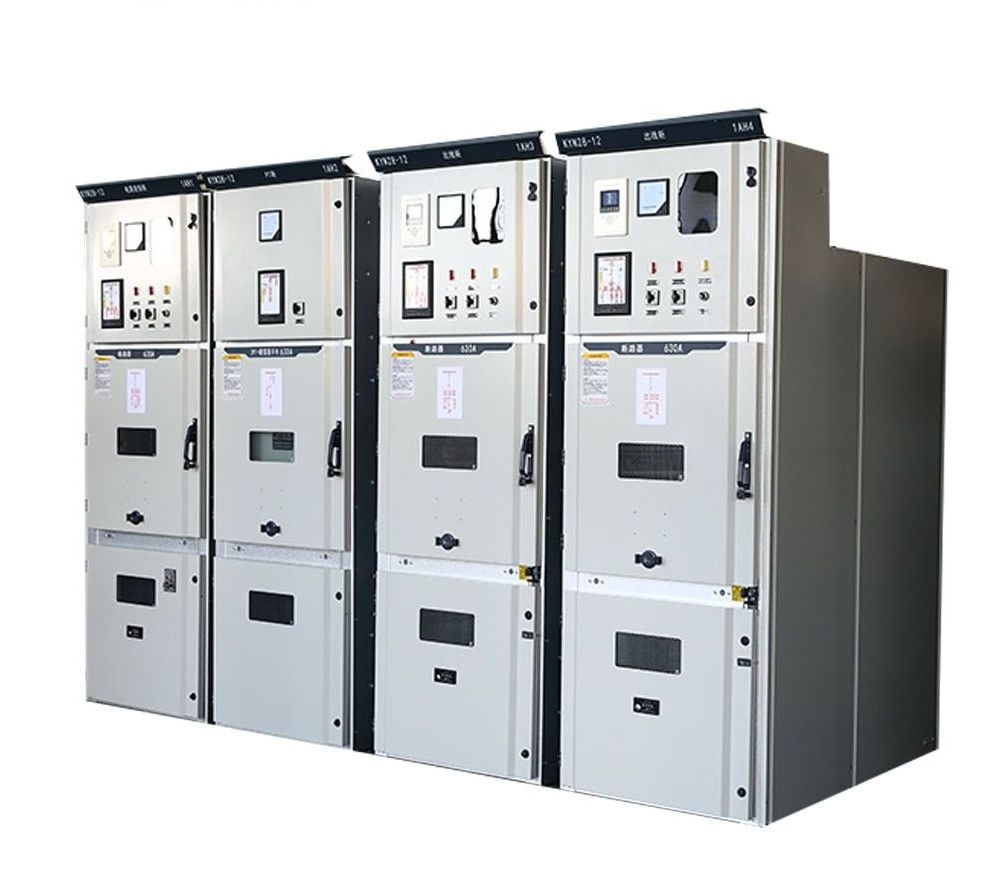

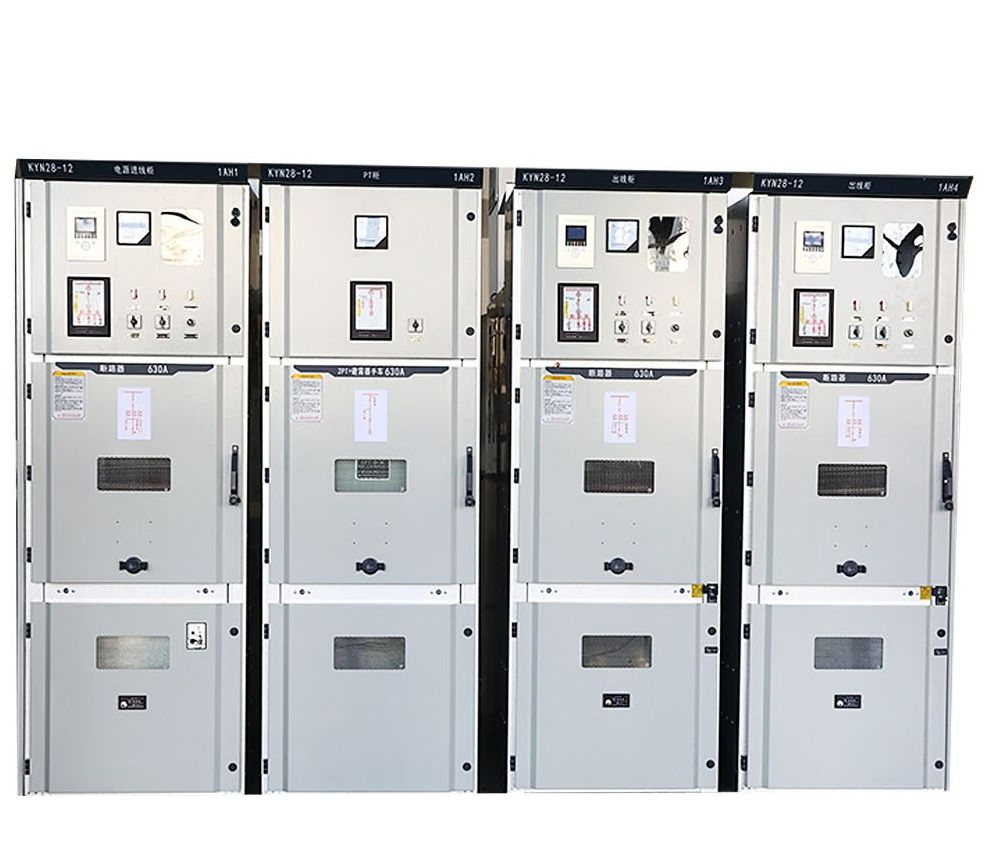

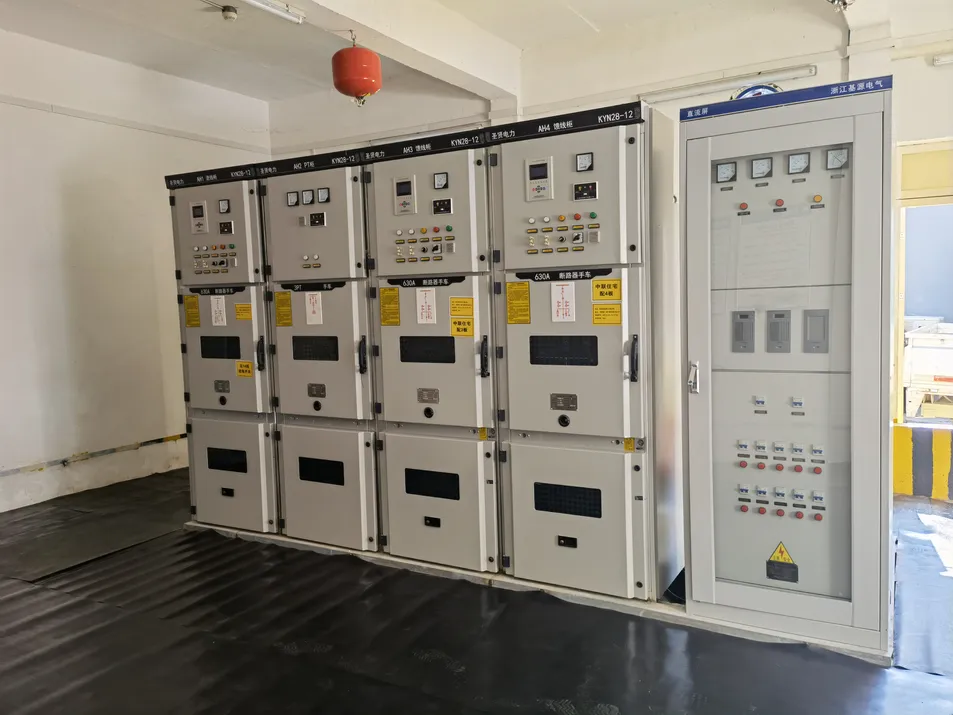

Medium Voltage Switchgear is a key component in power distribution systems, used for controlling, protecting and isolating electrical equipment.
It features high reliability, compact structure and flexible configuration, making it suitable for various applications such as industrial plants, substations and infrastructure projects.
With advanced design and strict quality control, the switchgear ensures long service life, stable operation and low maintenance cost. Customization is available according to project requirements.
| Project | Unit | Data |
|---|---|---|
| Rated voltage | kV | 12 |
| Rated frequency | Hz | 50 |
| Rated current of the main bus | A | 630-1250 |
| Current rating | A | 630-1250 |
| Ground Loop Rated Short-Time Current (2S) | kA | 27.3 |
| Rated peak withstand current (peak) | kA | 63-80 |
| Rated short-circuit interrupting current | kA | 31.5 |
| Ingress protection | - | IP4X |

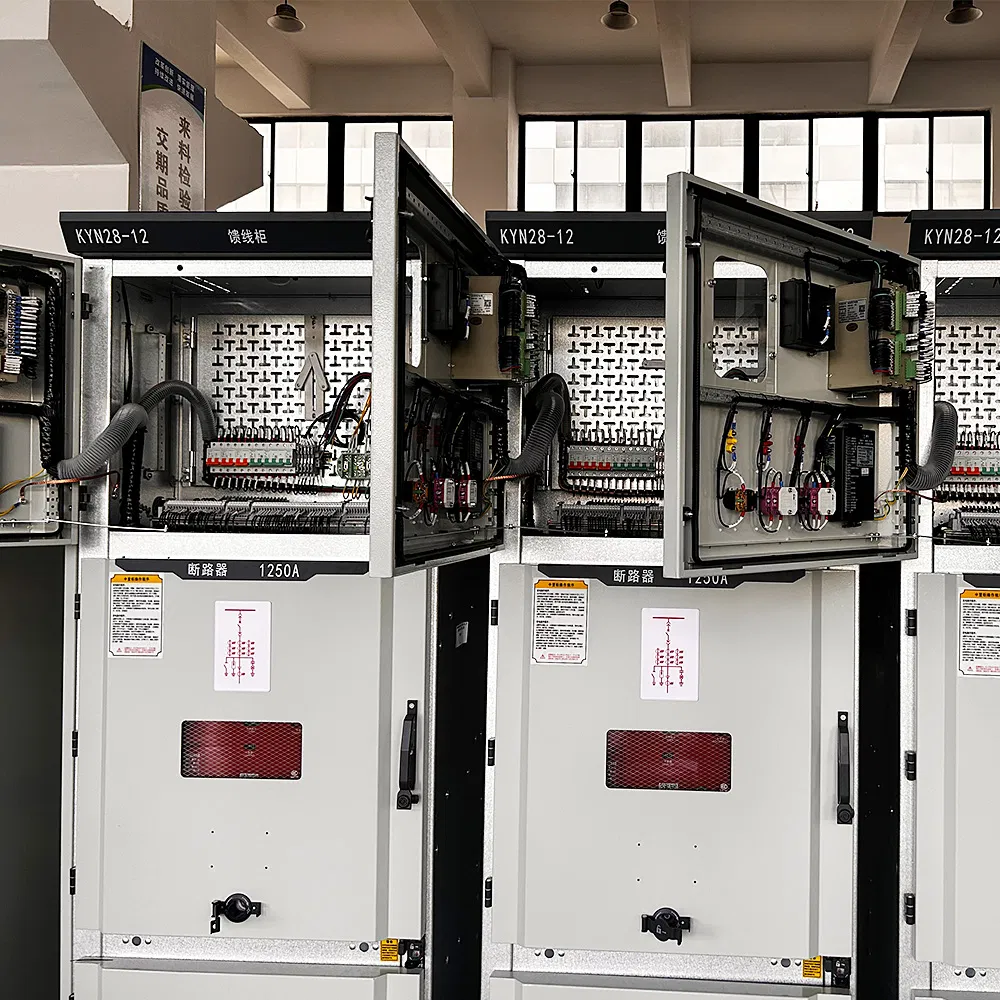

The switchgear mainly consists of:
Vacuum Circuit Breaker (VCB), Busbar System, Protection Relay, Current Transformer (CT), Voltage Transformer (VT), and Metal Enclosure.
2 years warranty for the entire unit and 5 years for key components.
24/7 technical consultation. Solutions proposed within 48 hours.
Continuous technical and maintenance support throughout the product lifecycle.

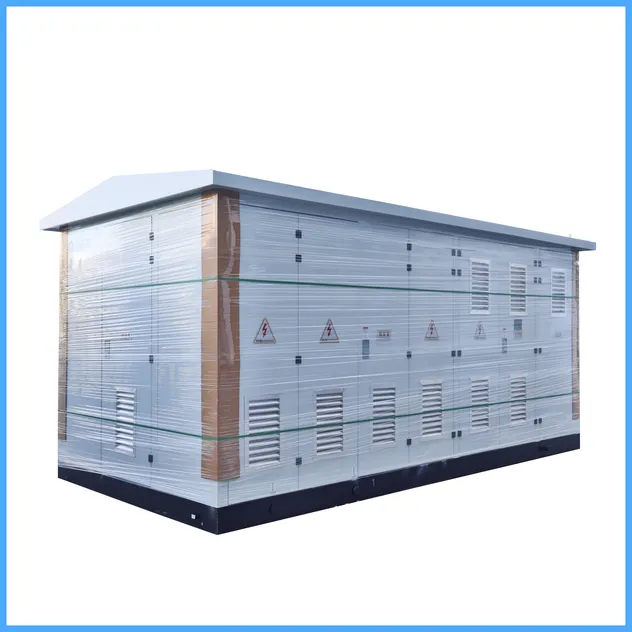

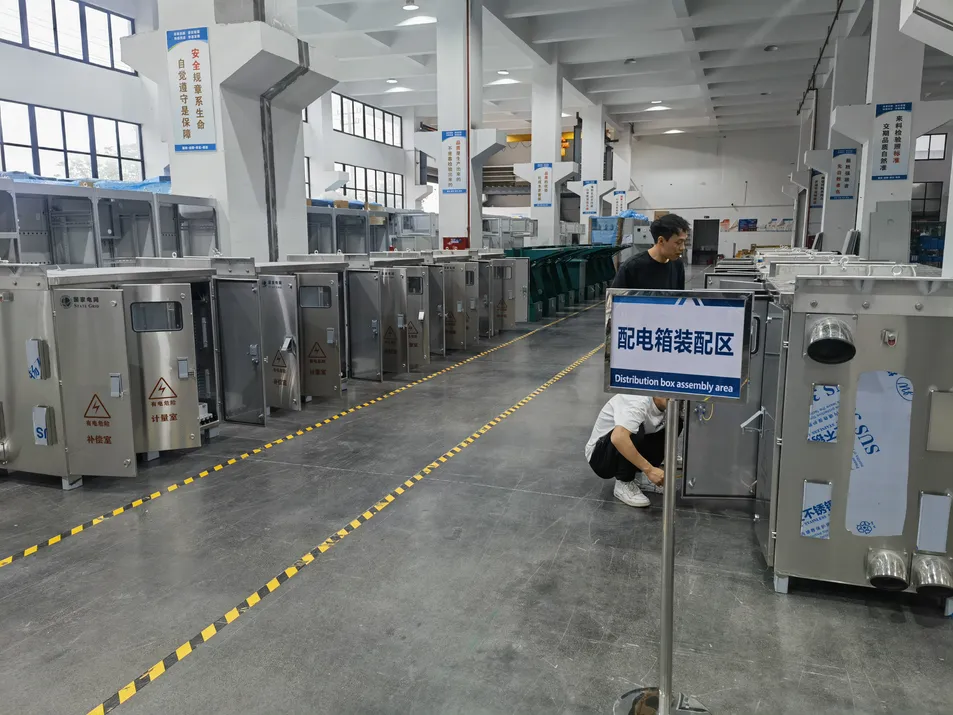

We are a professional manufacturer of high and low voltage power distribution equipment. We specialize in switchgear assemblies, box-type substations, transformers and distribution boxes, providing stable solutions for utility and infrastructure projects.
Our production follows ISO9001 quality management standards, with strict control from design to final delivery. Our products are widely used in power distribution systems and industrial projects globally.
