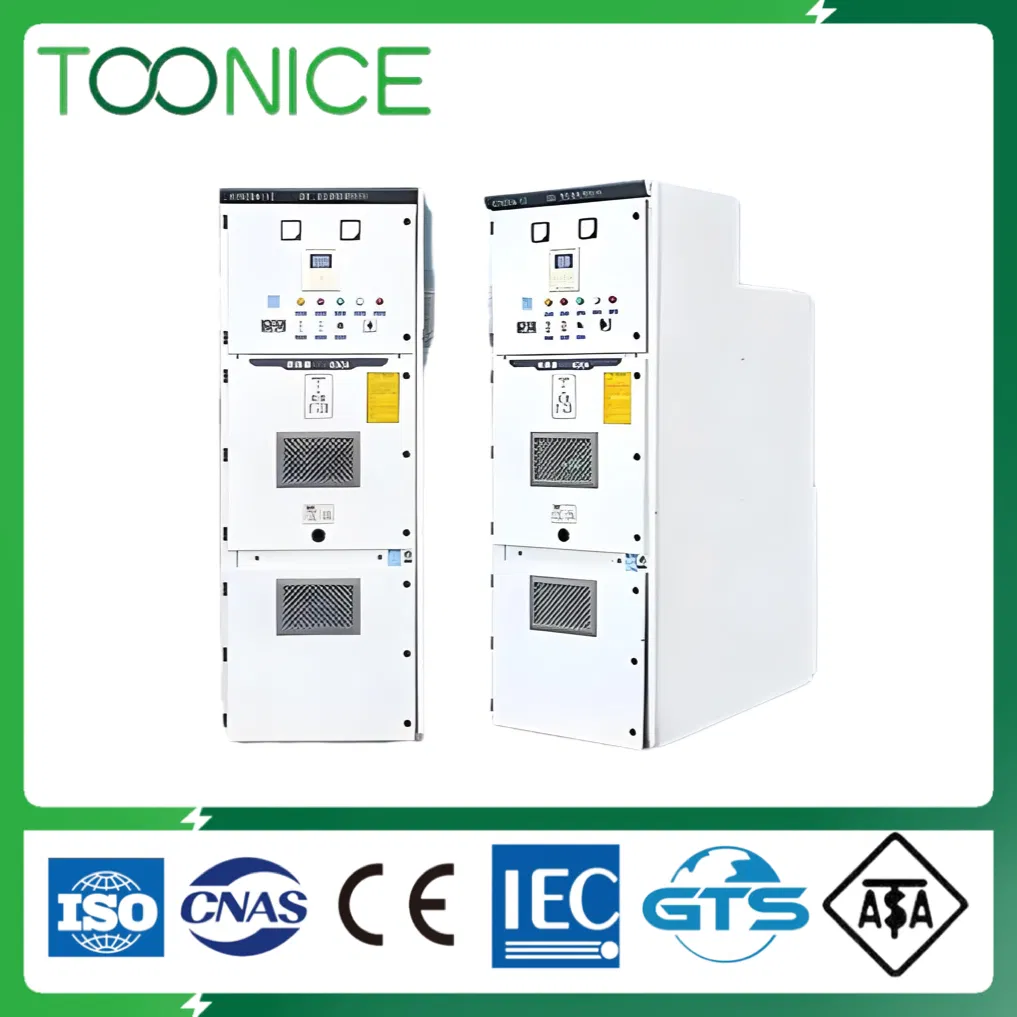

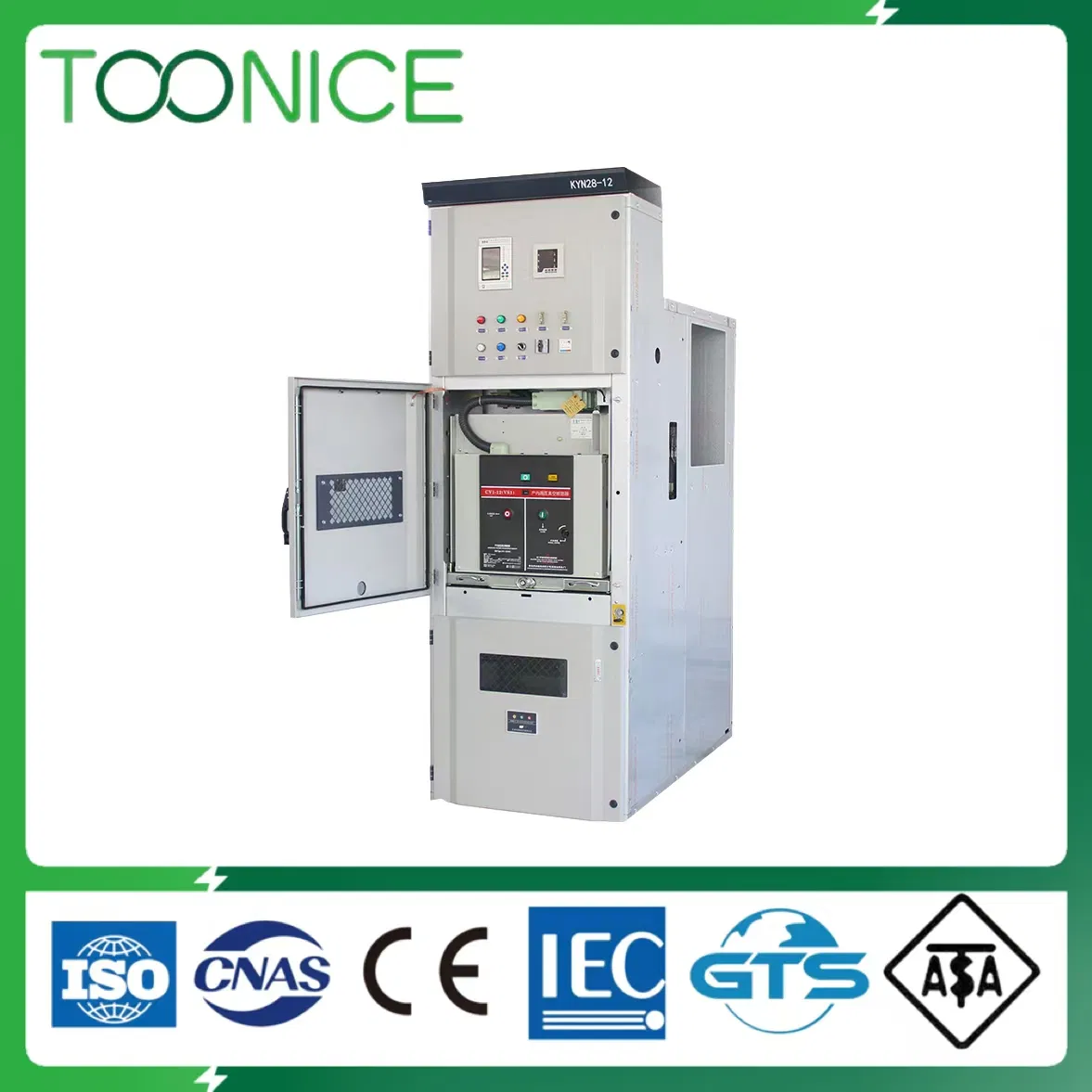

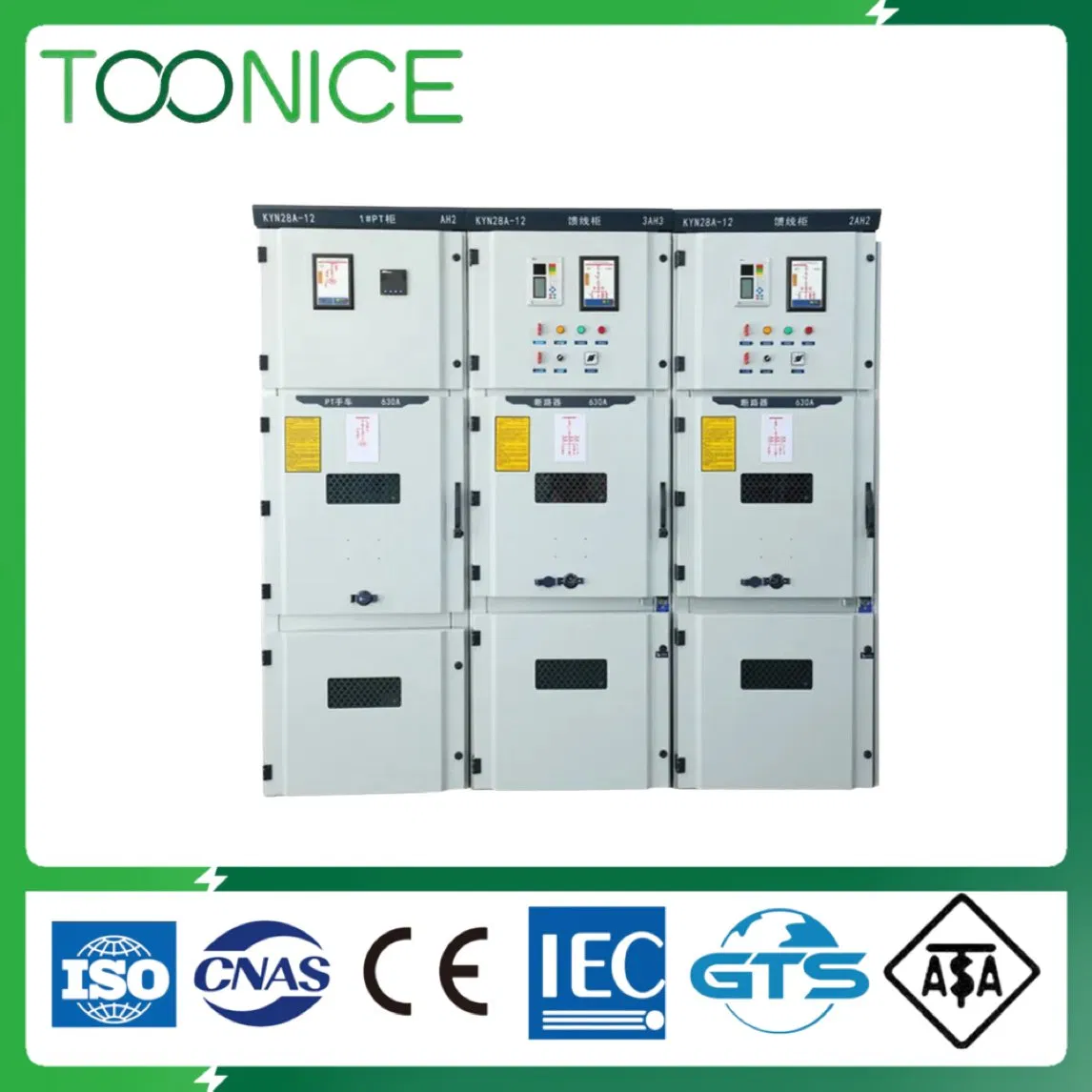

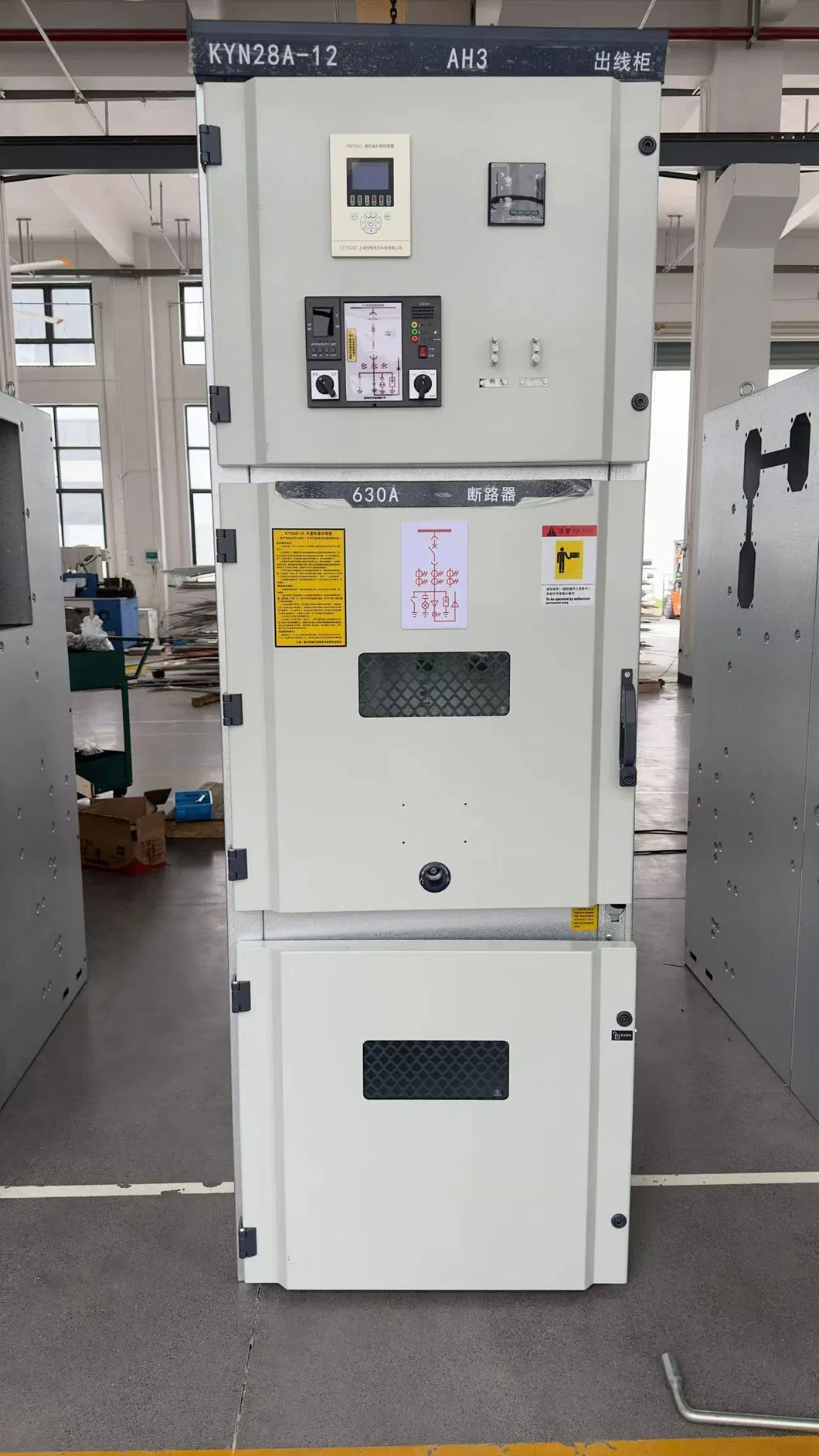

The KYN28-12 armored removable AC metal-enclosed switchgear is designed for 3.6-12kV three-phase AC 50Hz power grids. It is primarily used to receive and distribute electrical energy while providing control, monitoring, and protection for the circuit. This versatile system is compatible with single busbar, single busbar segmentation, or double busbar systems.

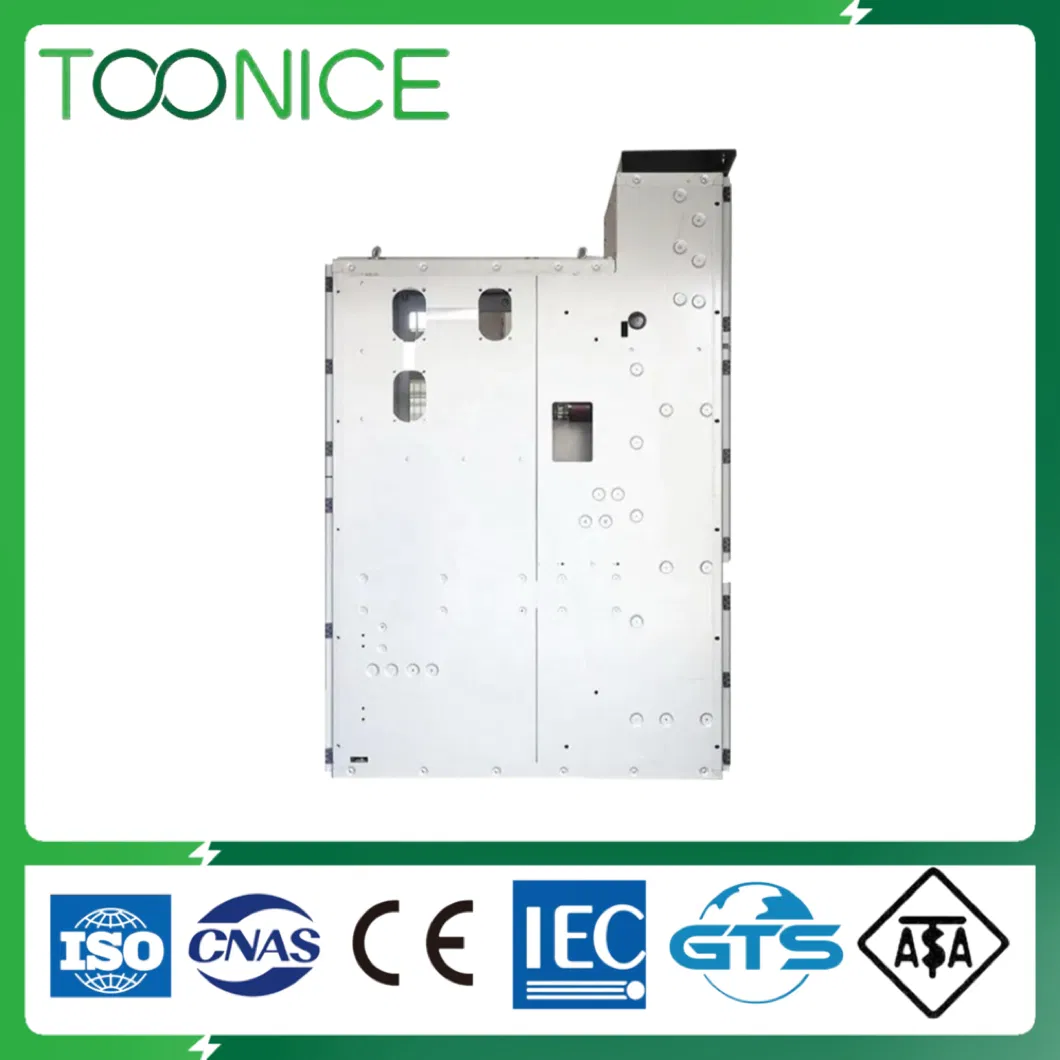

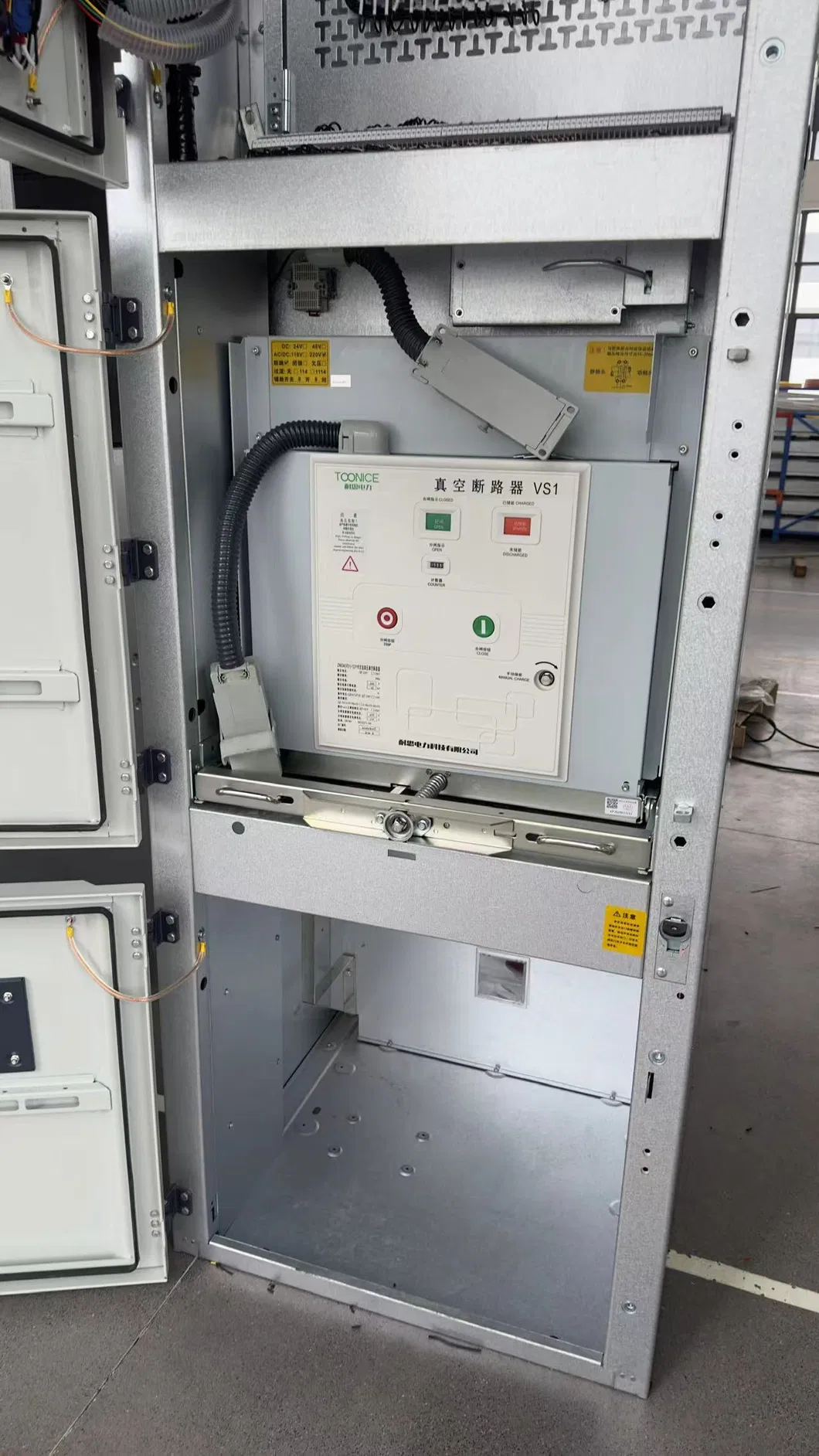

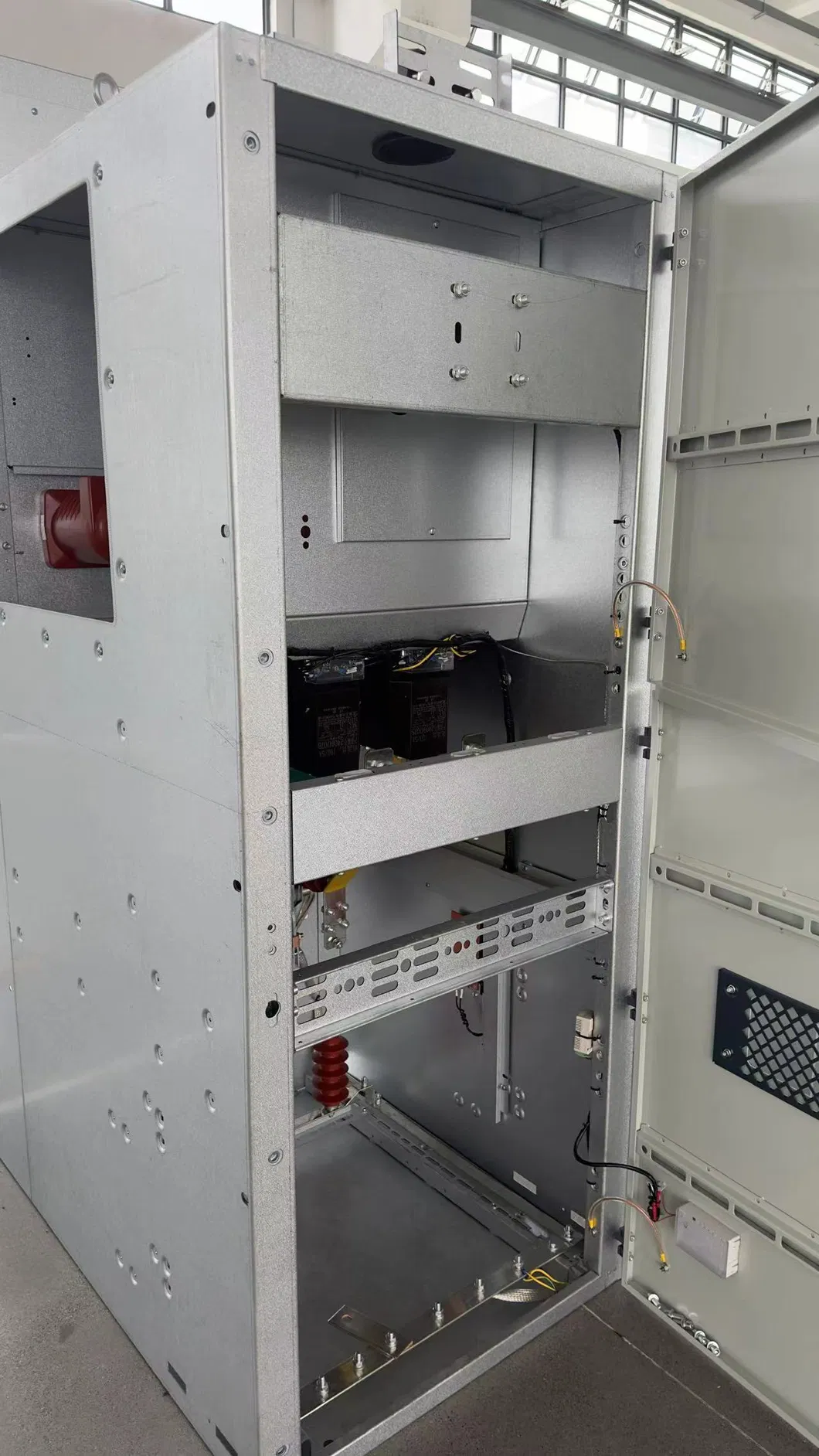

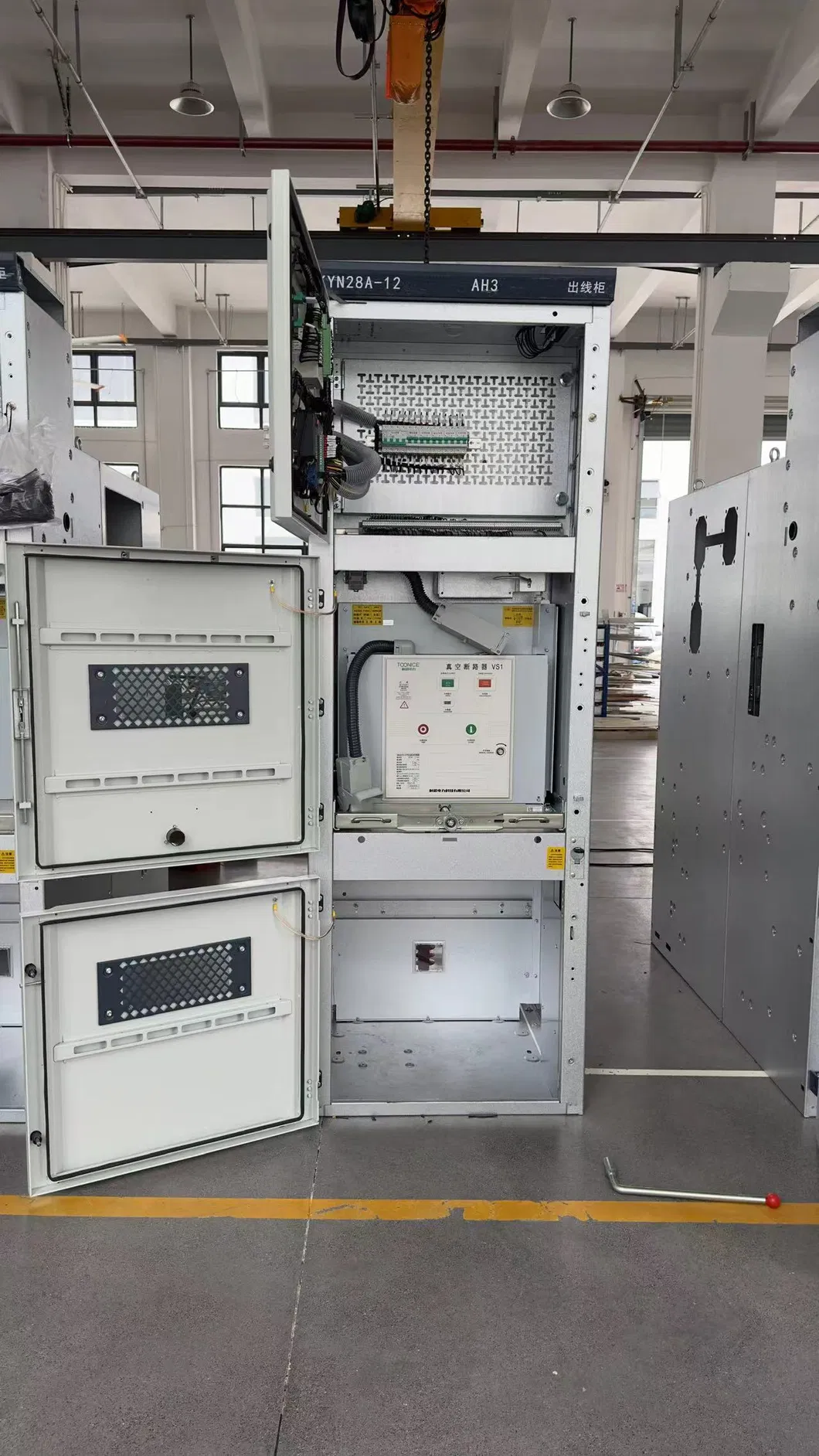

The enclosure is fully assembled with bolts, providing high mechanical strength and a neat appearance. The cabinet door is plastic-sprayed for enhanced impact and corrosion resistance. It can be equipped with various vacuum circuit breakers including VD4, VS1, VH1, VK, and ZN28, ensuring an air insulation distance of over 125mm.

* Note: Avoid fire, explosion hazards, serious pollution, chemical corrosion, and severe vibration.

• GB3906: 3~35kV AC metal-enclosed switchgear
• GB/T11022: Standard for high-voltage switchgear and control equipment
• DL/T404: Indoor AC High Voltage Switch Ordering Technical Specifications
• IEC298: AC Metal-enclosed Switchgear and Control Equipment

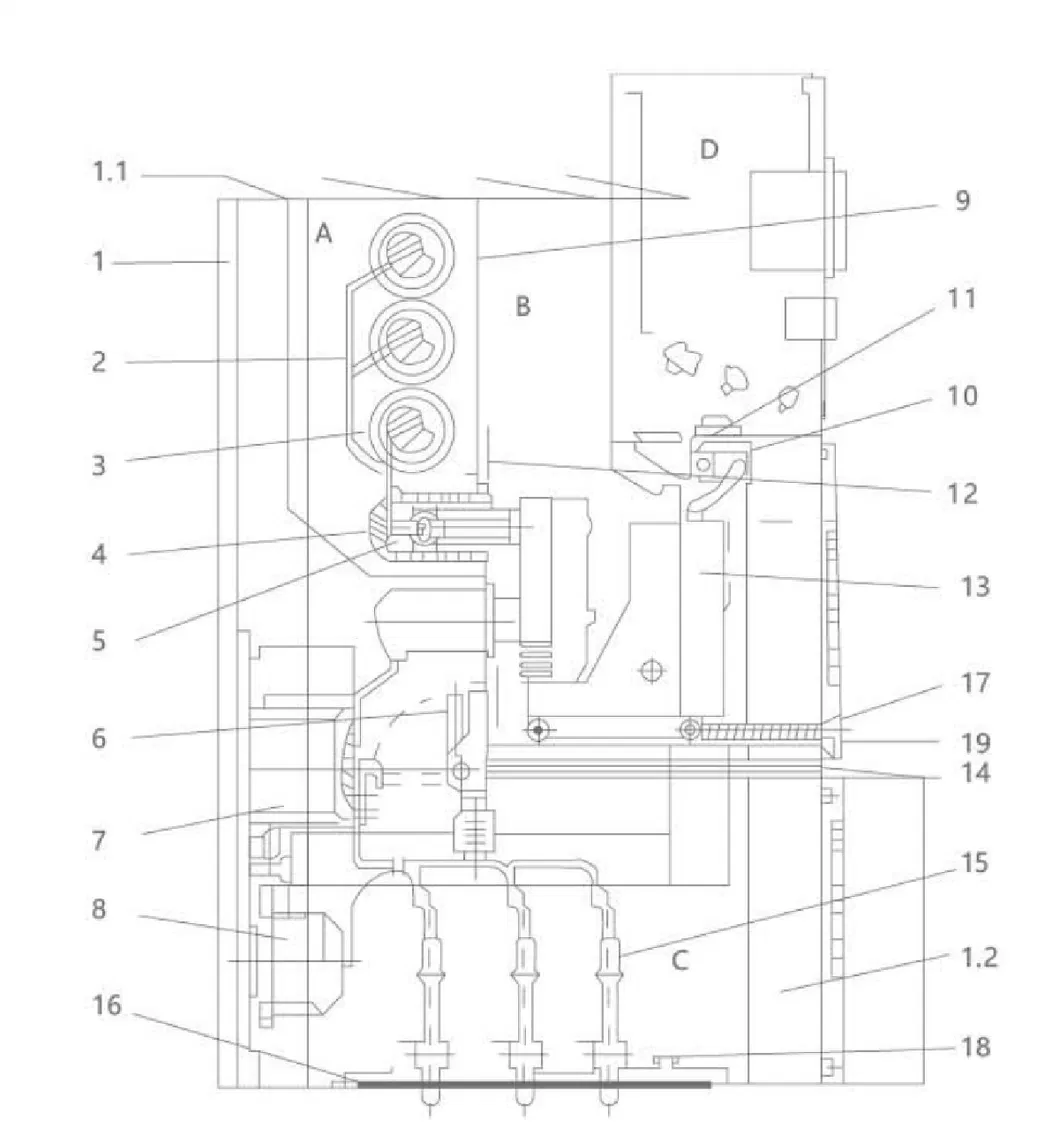

Component Guide:
A. Busbar compartment | B. Circuit breaker compartment
C. Cable compartment | D. Instrument compartment
1. Shell | 3. Busbar | 6. Grounding gate
7. Current transformer | 13. Pull-out hand car

1. Transport the switch cabinet to the specific position according to project drawings.
2. Use cranes or forklifts; roller crowbars are strictly forbidden.
3. Pull out the circuit breaker handcart and store it properly.
4. Install switchgear on the foundation, ensuring unevenness does not exceed 2mm.
5. Once assembled, weld firmly to the foundation channel steel or use anchor screws.
