PRODUCT INTRODUCTION

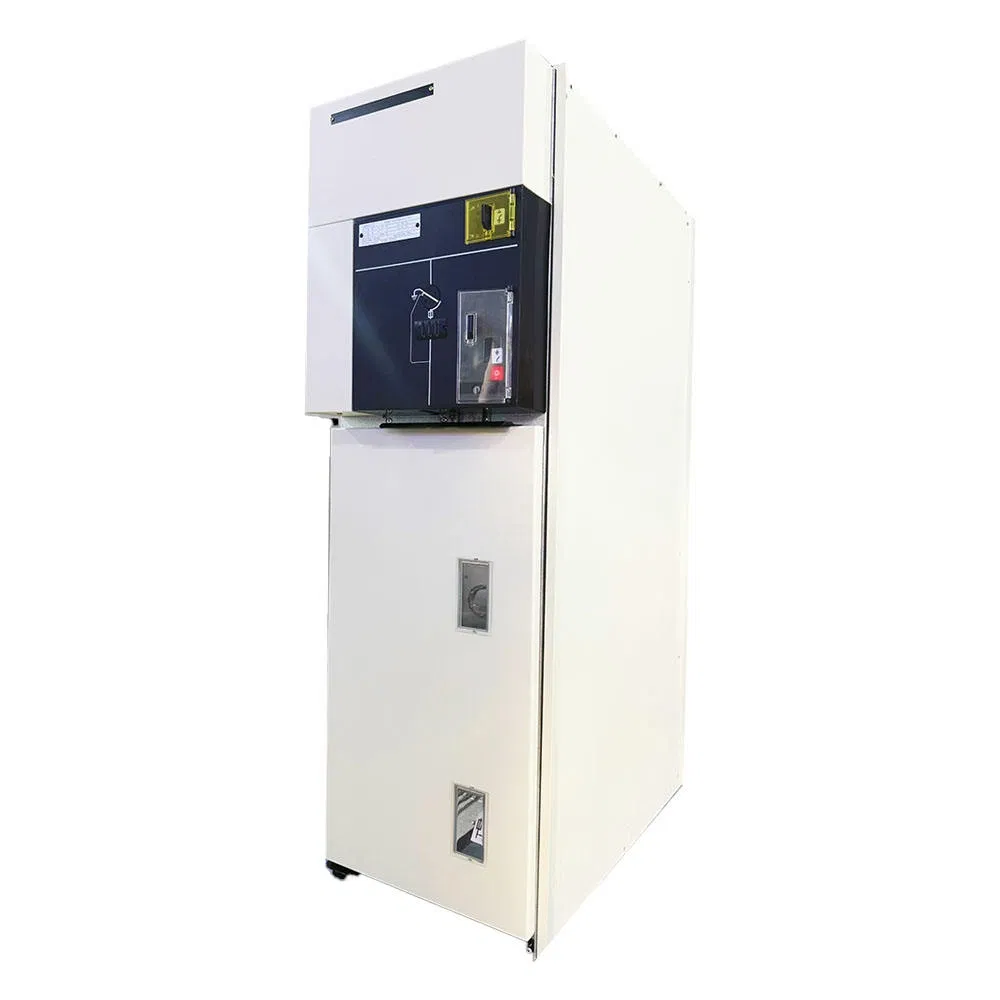

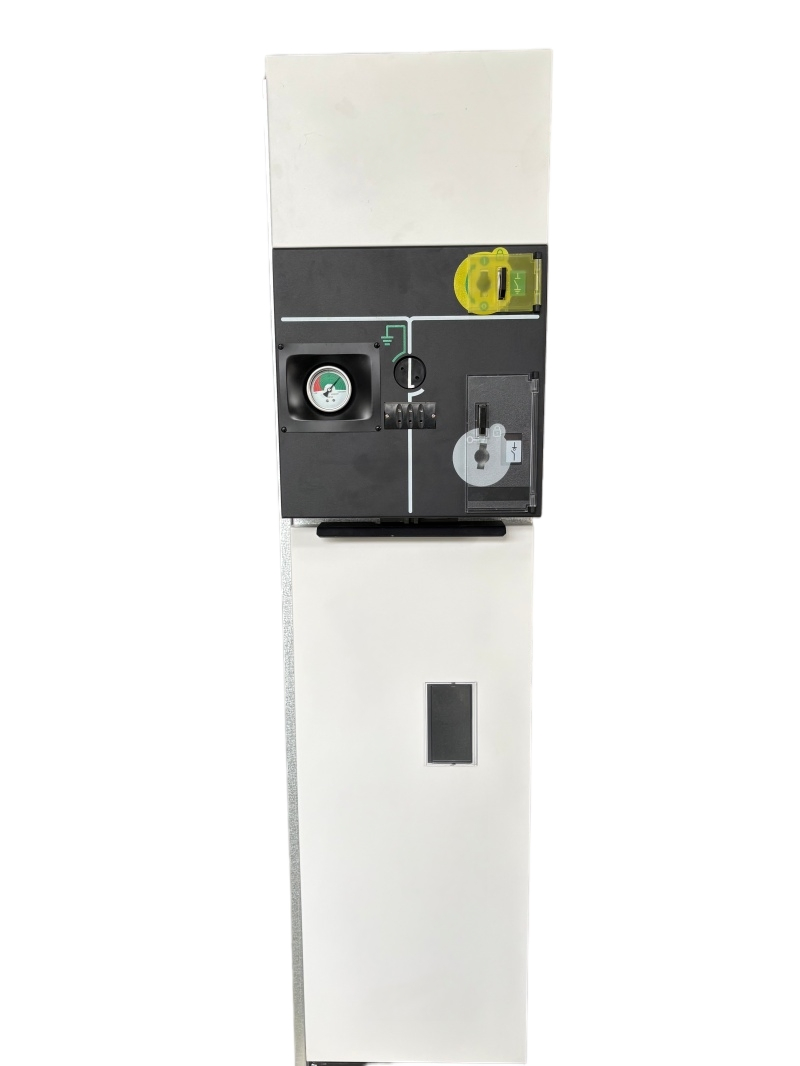

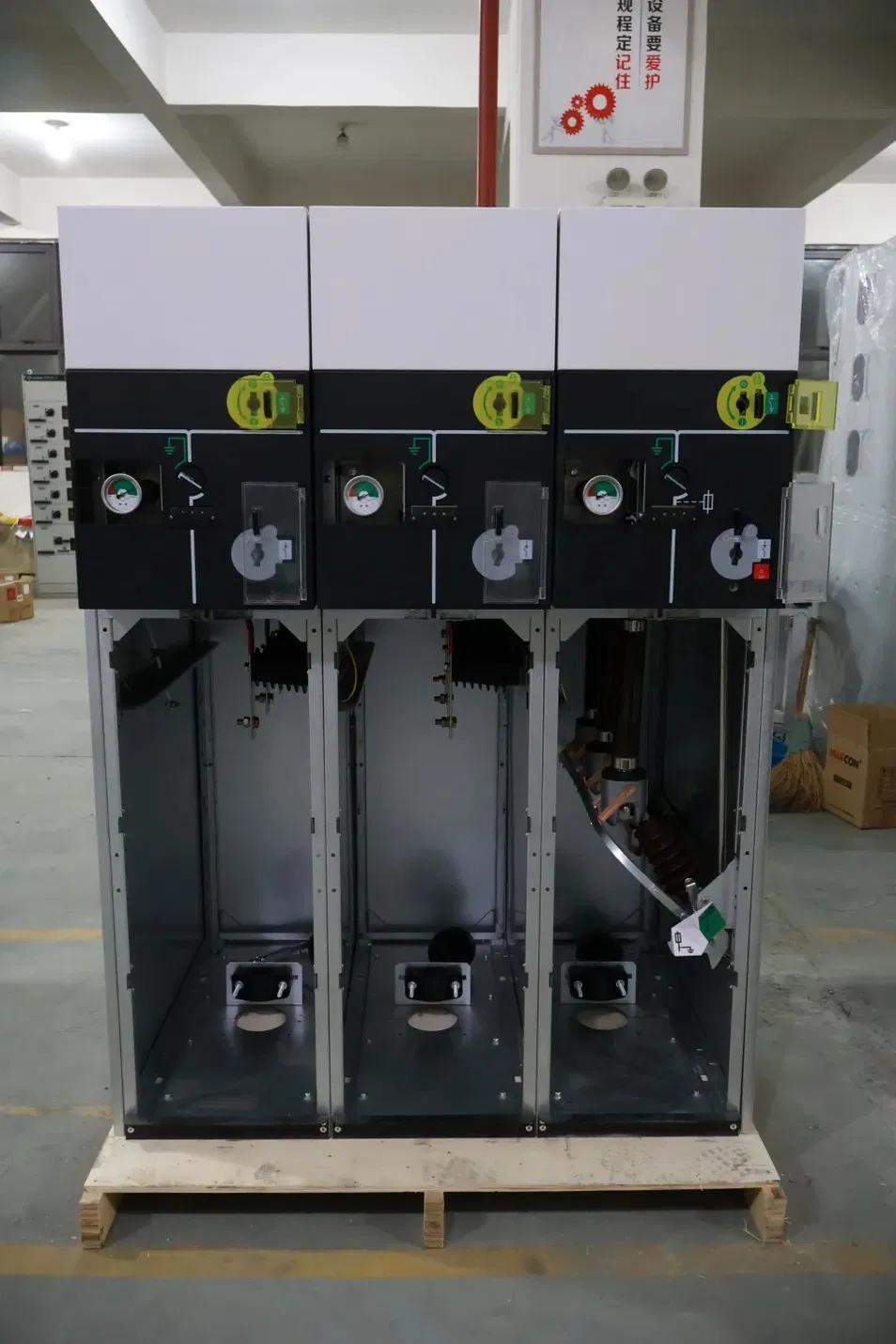

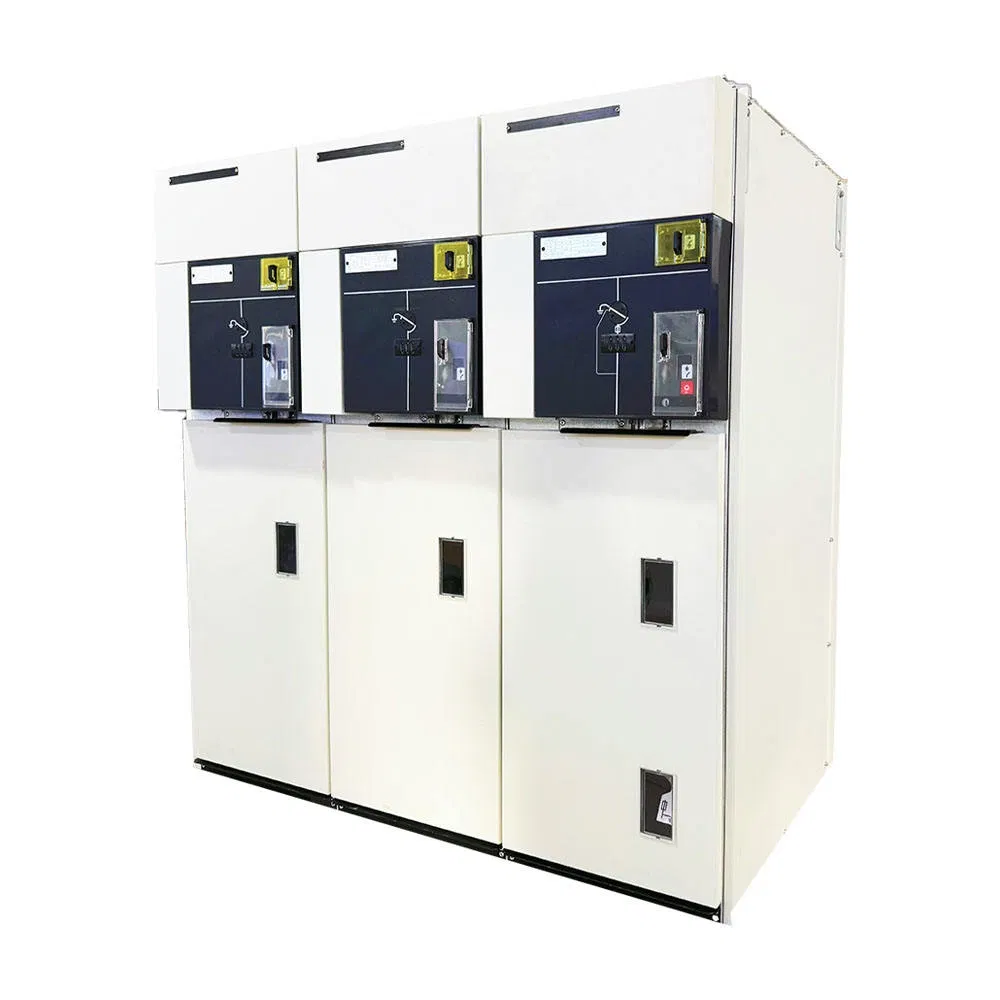

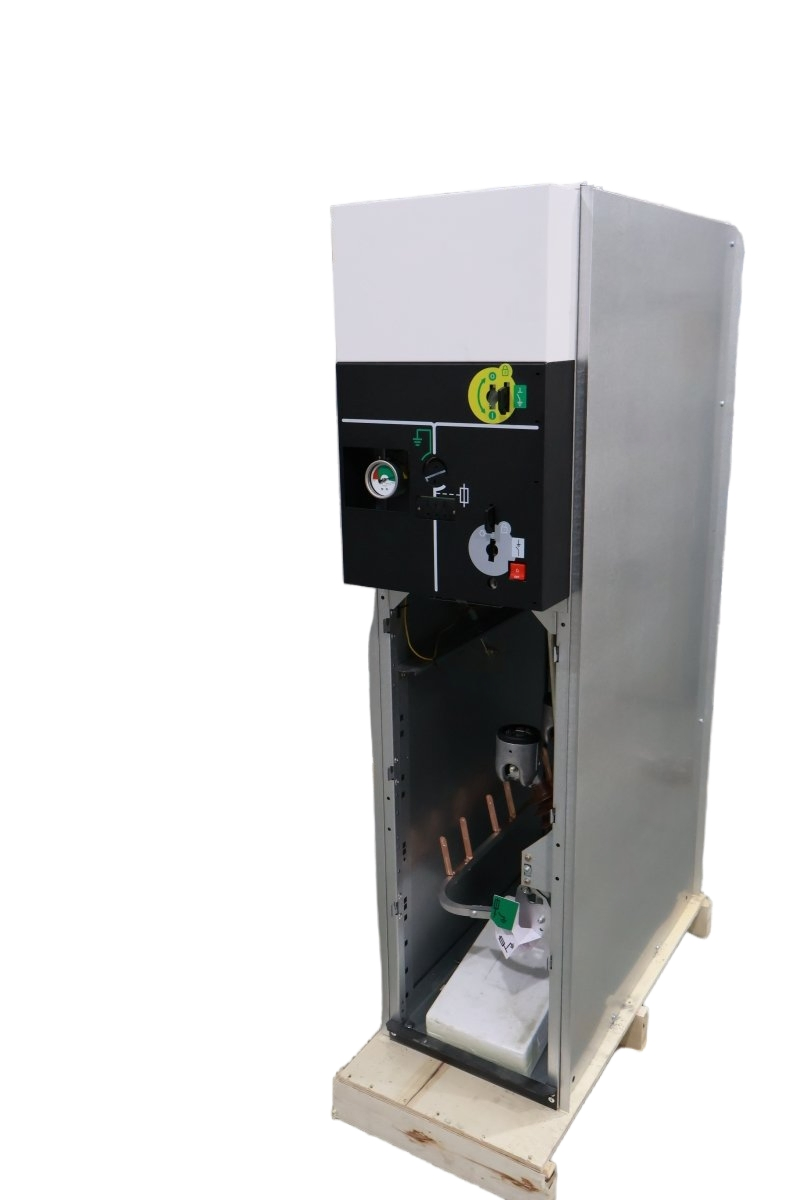

The Ring Main Unit (RMU) is a compact, lifetime sealed metal-enclosed switchgear widely used in urban distribution networks. It contains one or more load switches (LBS) and earthing switches for incoming and outgoing lines, as well as vacuum circuit breakers equipped with corresponding disconnectors.
RMUs are available with different rated voltages depending on requirements and are suitable for both indoor and outdoor installations. All switchgear and busbars are sealed for life in stainless steel housings filled with SF6 gas, ensuring a high level of safety, reliability, and a maintenance-free system.
| Item | Unit | Parameters |
|---|---|---|
| Maximum system voltage | kV | 12 / 15 / 24 / 40.5 |
| Rated voltage | kV | 7.2, 11 / 13.8, 15 / 17.5, 20, 22 / 30, 33, 36 |
| Rated current | A | 630 / 1250 |
| Rated frequency | Hz | 50 / 60 |
| 1min Power frequency withstand voltage (Phase to earth) | kV | 42 / 48 / 55 / 85 |
| Lightning impulse withstand voltage (Phase to earth) | kV | 75 / 90 / 125 / 170 |
| Short time withstand current (Main circuit) | kA | 25/2s |
| Protection level | - | IP4X |

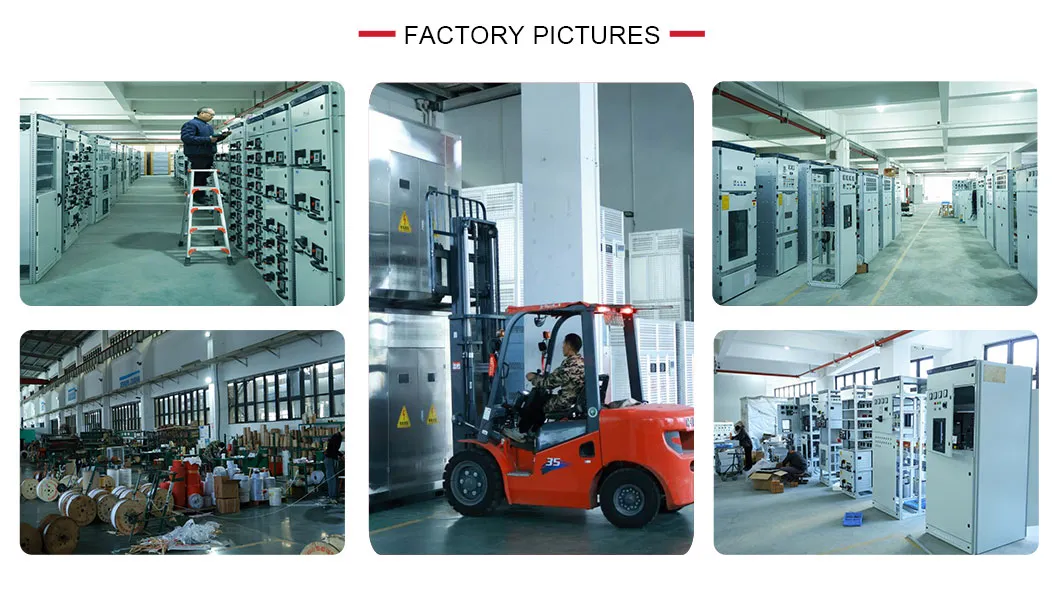

Founded in 2009, our enterprise is an international high-tech entity specializing in the R&D, production, and sales of high-voltage, medium-voltage, and low-voltage transmission and distribution equipment. We provide one-stop solutions for global power infrastructure projects with decades of pioneering innovation. We continuously enhance capabilities by integrating cutting-edge production technologies supported by rigorous quality control systems.
