Customization: Available
Container Size: 6500*2800*2896mm
Weight: 44t
Send Inquiry

Product Description

Battery Storage Container System
Basic Info & Overview
Model NO. JSKJ-ESS-DC5000-A Nominal Voltage 1331.2V
Nominal Capacity 3768Ah Rated Energy Expandable to 100mwh+
Warranty 5 Years Cycle Life 8000 Cycles
Cooling Method Liquid + Air Cooling Dual Management Cell Type Lfpbattery
Waterproof Design IP54 (Outdoor Durability) Fire Detection Temp, CO, Smoke Sensors

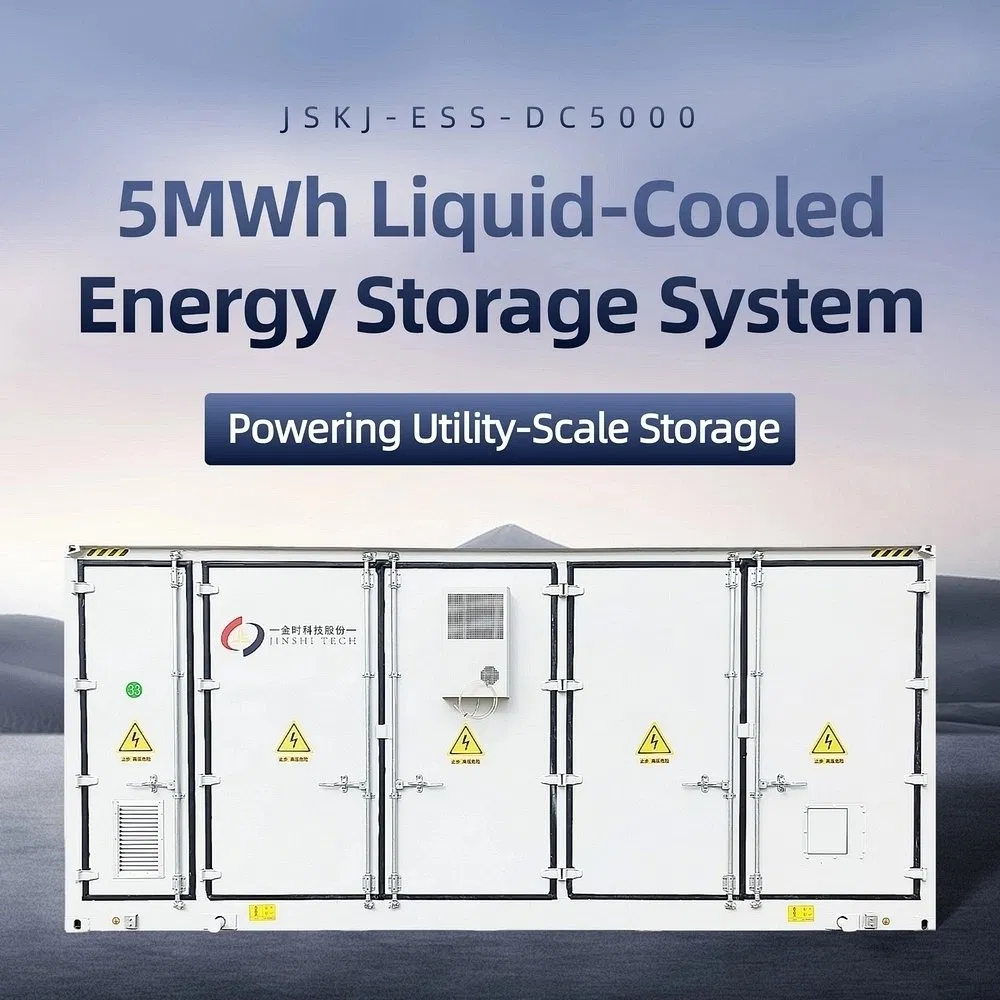

The 5MWh liquid-cooled system enhances energy density by 30% and extends battery life by 50% via AI-driven thermal management. Ideal for grid-side peak shaving, frequency regulation, and industrial energy arbitrage.

Product Features
  • 24/7 BMS (Battery Management System) Monitoring
  • High-Frequency Regulation Compatibility
  • Supports Fire Suppression Agents: NOVEC 1230, Liquid Nitrogen
  • Original Three-Level Fusing + Targeted Explosion Discharge Design
  • Supporting Perfluorohexanone and Liquid Nitrogen
  • Multi-Cabinet Parallel Connection for Easy Scalability

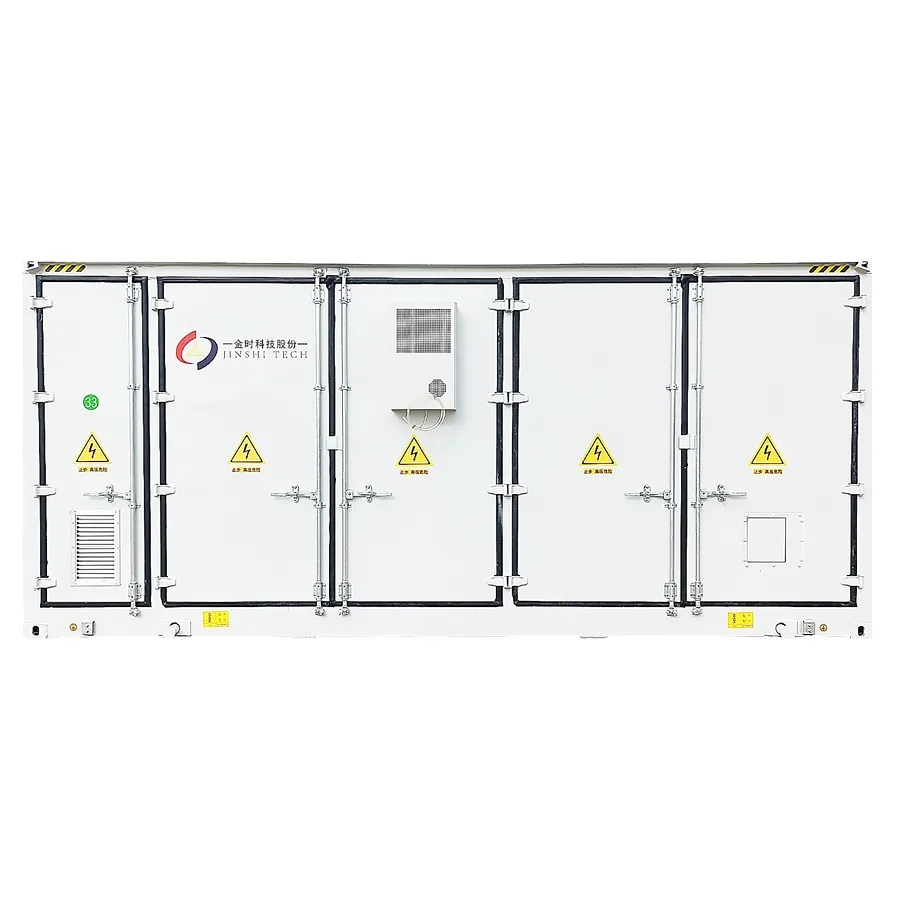

Energy Storage System Front View

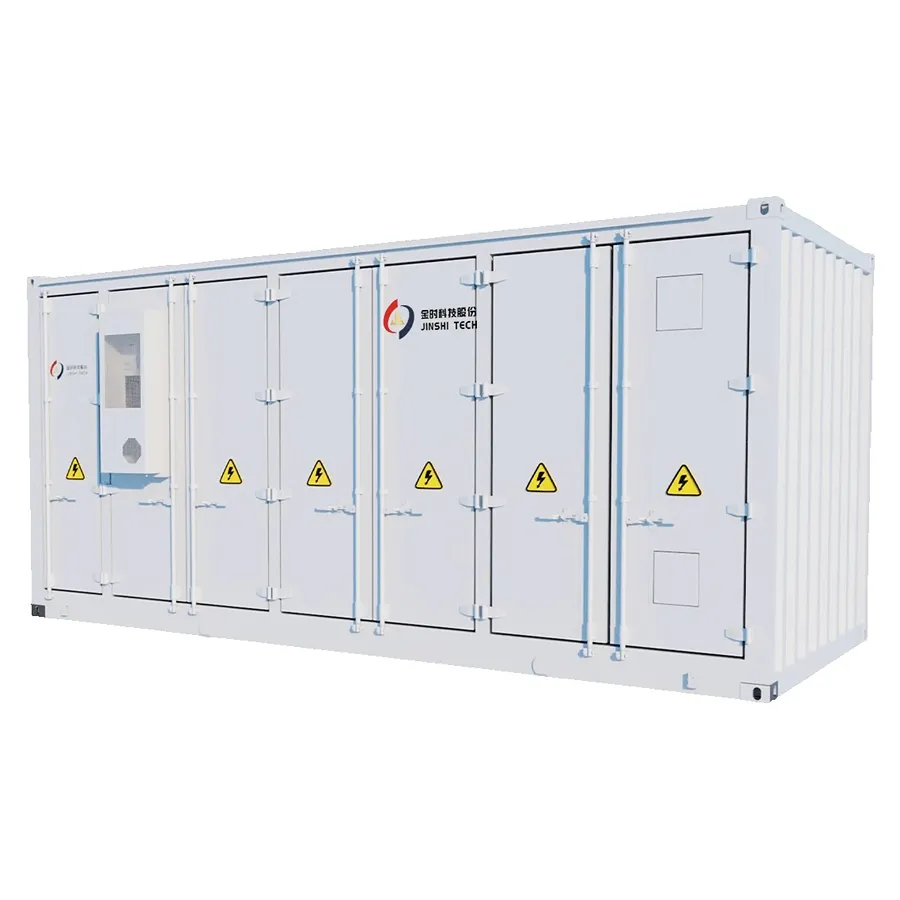

Energy Storage System Interior

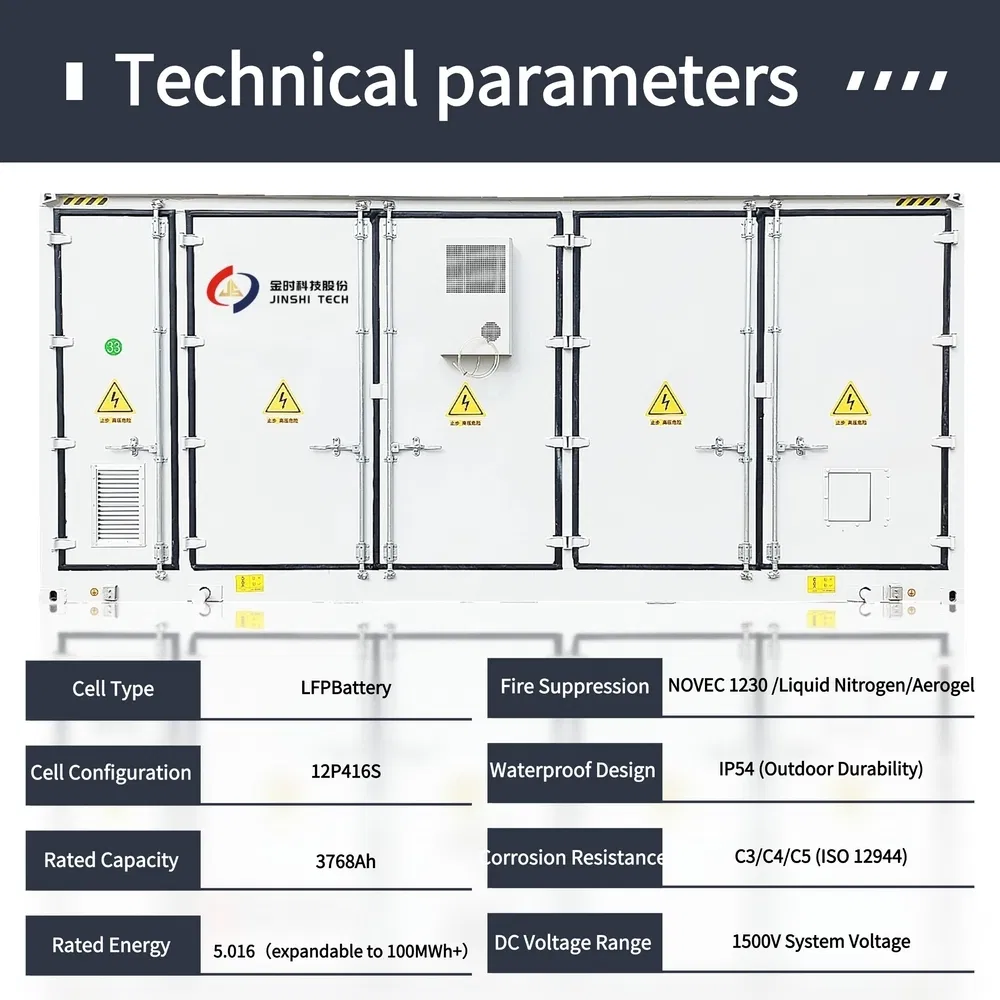

Technical Parameters
Parameter Item Specifications
Cell Configuration12P416S
Operating Voltage Range1164.8-1497.6V
Standard Charge/Discharge Current1884A/1884A
Charge/Discharge Rate0.5P
Corrosion ResistanceC3/C4/C5 (ISO 12944)
System ArchitectureTriple Fire Protection + Triple BMS
Application ScenariosInland, Plateau, Coastal
DC Voltage Range1500V System Voltage
Component Detail 1
Component Detail 2
Detailed System Features
Triple-Layer Fire Protection Three-level fusing system with targeted explosion discharge design; supports NOVEC 1230, perfluorohexanone, and liquid nitrogen.
Comprehensive Monitoring 24/7 BMS with real-time temperature, CO, and smoke sensors; triple BMS redundancy ensures fail-safe operation.
Robust Environmental Protection IP54 waterproof rating for outdoor durability; C3/C4/C5 corrosion resistance suitable for coastal and plateau applications.
Plug-and-Play Integration Containerized design with standardized interfaces for quick deployment and commissioning.
Detail 1
Detail 2
Detail 3
System Specification Layout Internal Architecture Performance Chart
Frequently Asked Questions
What is the energy capacity of this battery storage container?
The standard model provides a high-density 5MWh capacity and is scalable to 100MWh+ through multi-cabinet parallel connections.
What fire suppression systems are used?
The system features triple-layer protection and supports various agents including NOVEC 1230, Perfluorohexanone, and Liquid Nitrogen.
Is the system suitable for harsh outdoor environments?
Yes, with an IP54 waterproof rating and C3/C4/C5 corrosion resistance (ISO 12944), it is designed for inland, plateau, and coastal applications.
How long is the product warranty?
We offer a 5-year warranty on the battery system with a cycle life of up to 8000 cycles.
What type of cooling management does it use?
It utilizes a dual thermal management system combining liquid cooling and air cooling for optimal temperature control and efficiency.
Are customization options available for specific projects?
Yes, we support on-demand customization including color, appearance, size, and specific technical requirements to meet your project needs.
