We are deeply engaged in the industrial electrical field, focusing on the core business of customizing complete sets of power distribution cabinets. We provide new factory supporting services, old factory renovation and special scenario adaptation services.

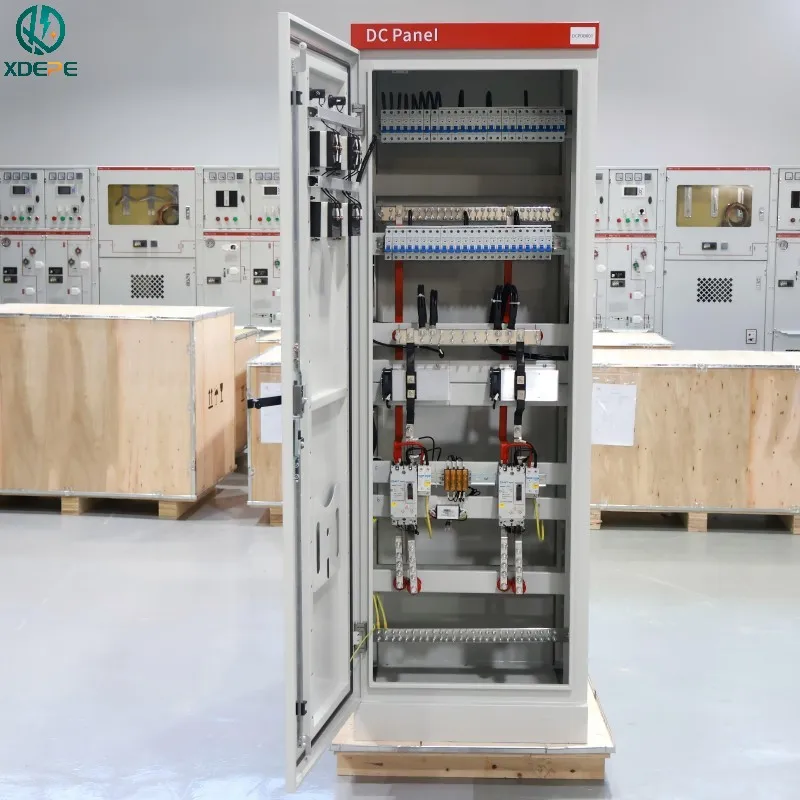

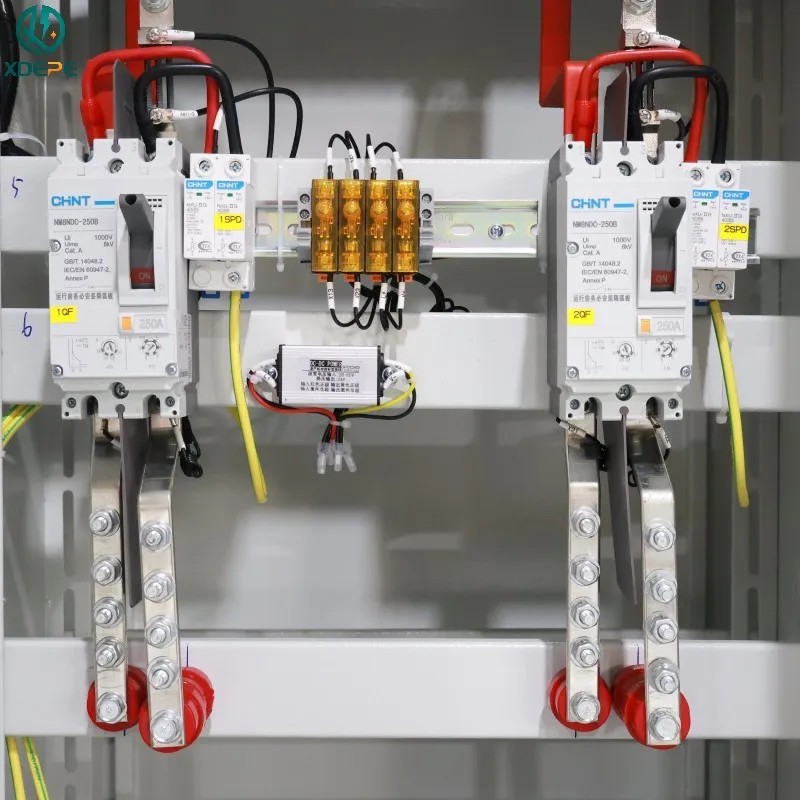

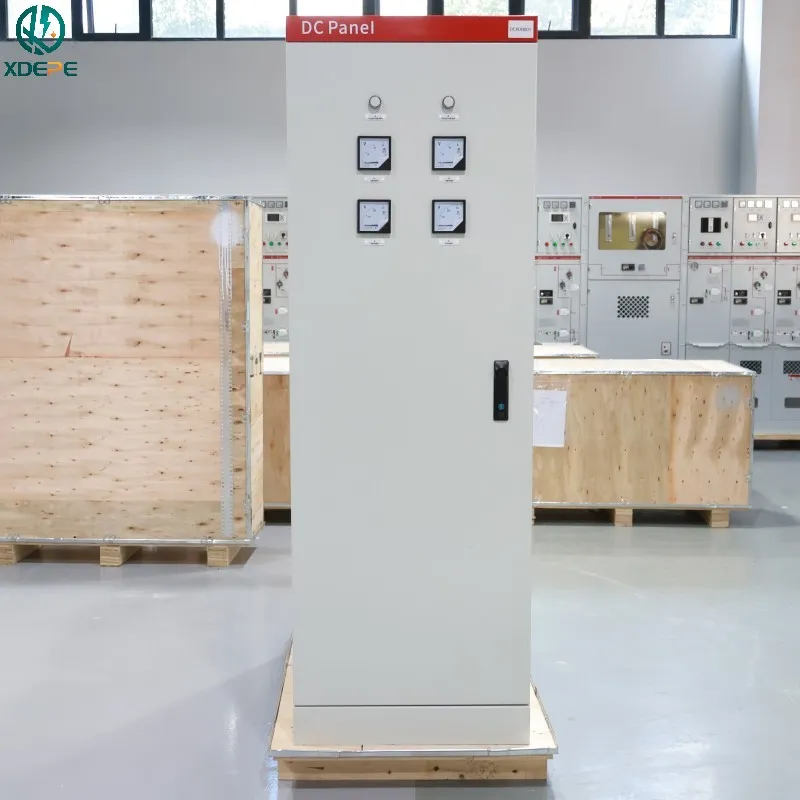

Internal Structure: This DC distribution panel uses industrial-grade components. Main circuit equipped with NM8DC-250B DC circuit breakers, compatible with 1000V DC systems. Includes NXU-1IG surge protectors and real-time power monitoring modules.
Key Advantages: High scenario adaptability for base stations (-48V/220V). Hierarchical safety configuration: "overload/short-circuit protection + lightning/surge resistance". Front-mounted visual monitoring modules for easy maintenance.
| Specific Parameters | Details Description |
|---|---|
| Protection level | IP30, IP40, IP54 |
| Cabinet material | High-quality cold-rolled steel (1.2-2.0mm) |
| External dimensions | Standard 2200mm height (customizable) |
| Rated working voltage | 380V, 400V, 660V |
| Rated insulation voltage | 660V or 1000V |
| Rated frequency | 50Hz / 60Hz |
| Rated current of busbar | 630A to 5000A |
| Short circuit withstand current | 25kA, 31.5kA, 40kA, 50kA |

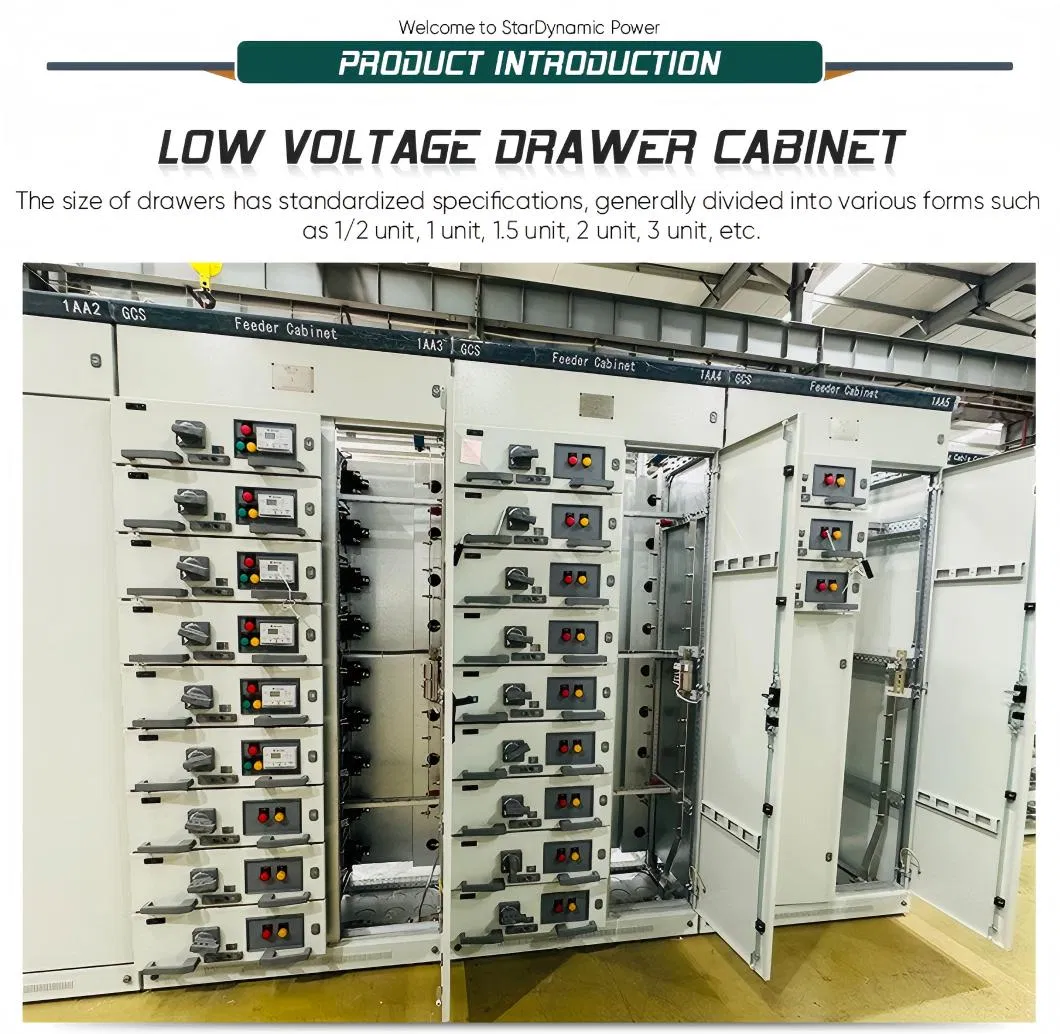

| Drawer Size | 1/2, 1, 1.5, 2, 3 units |
| Mechanical lifespan | ≥ 2000 times |
