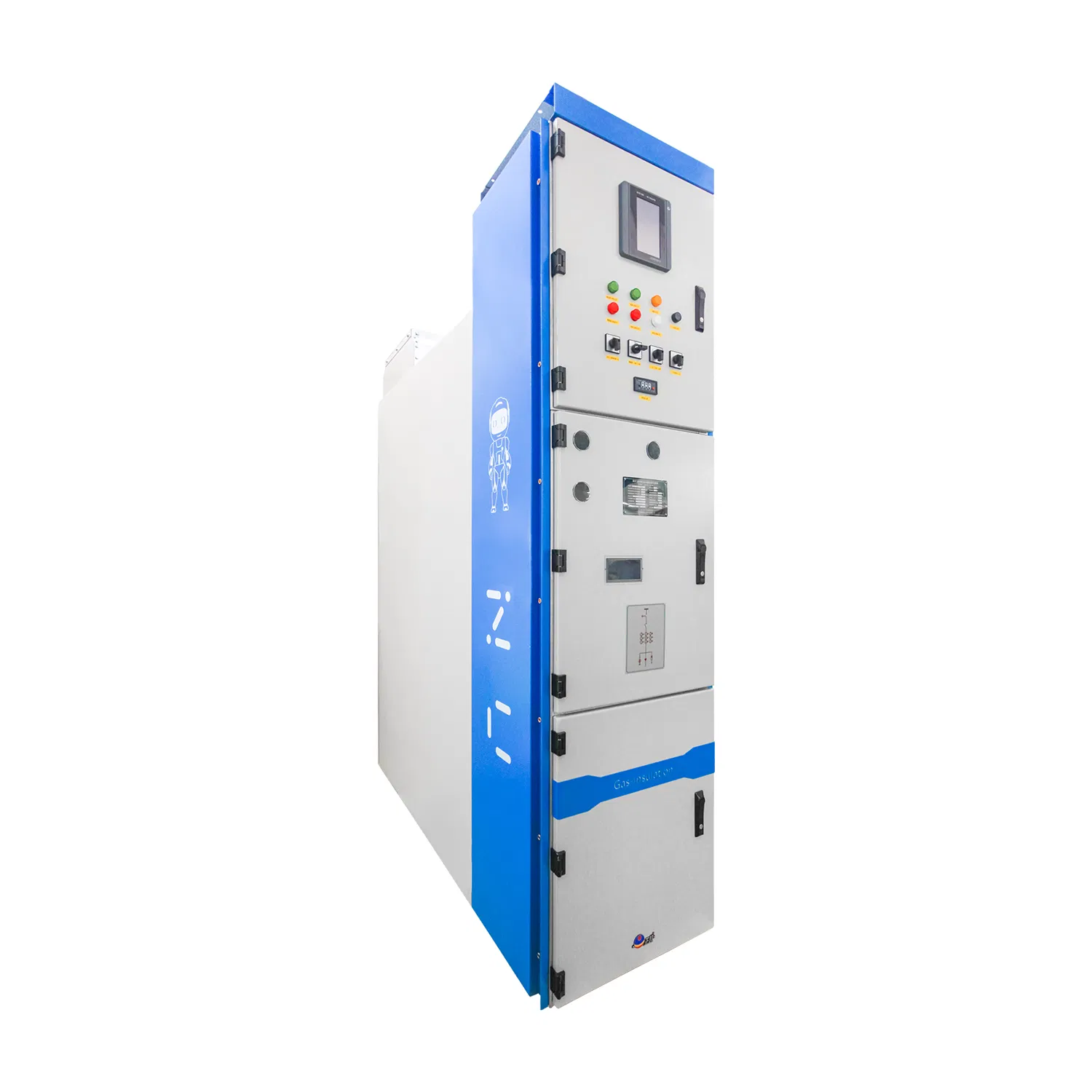

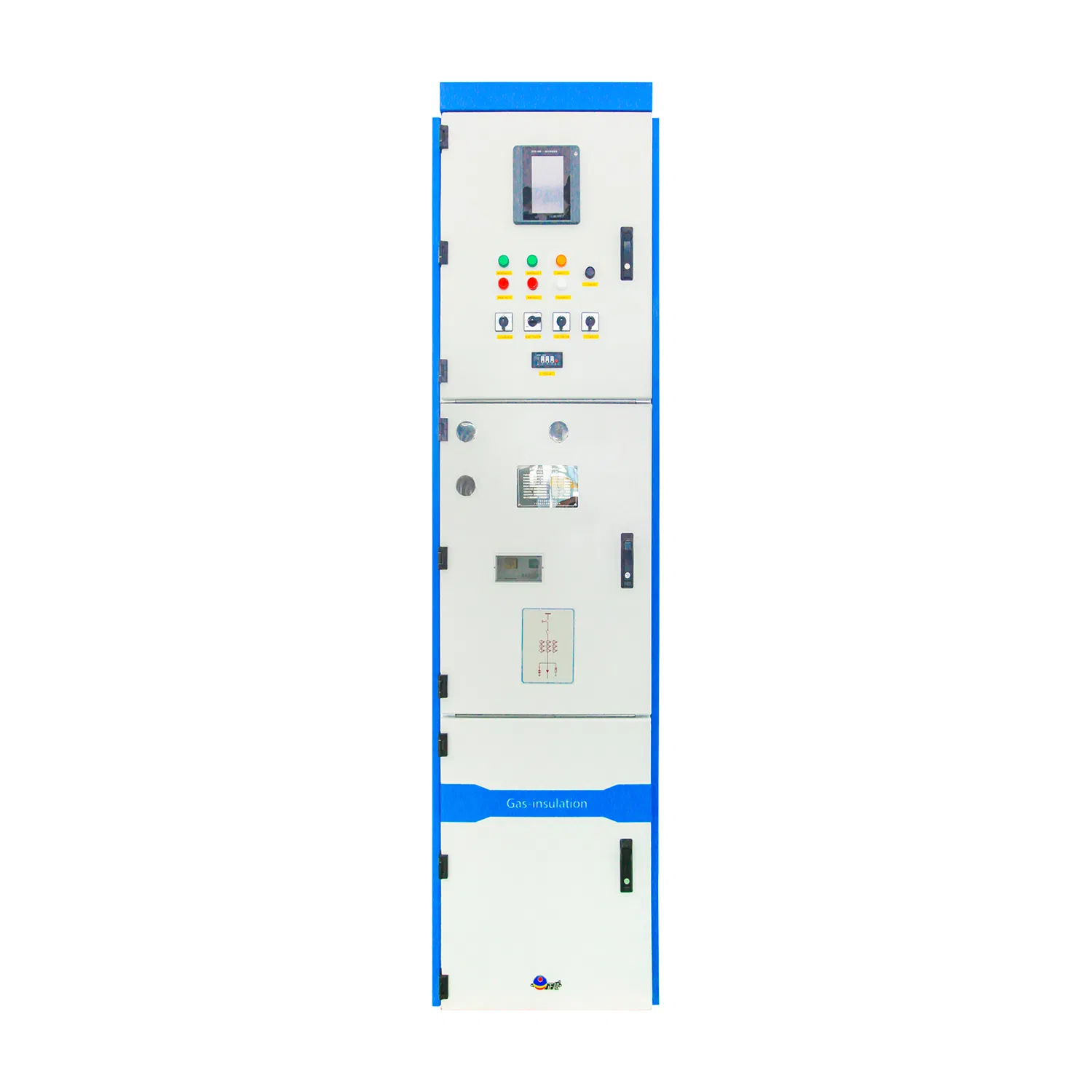

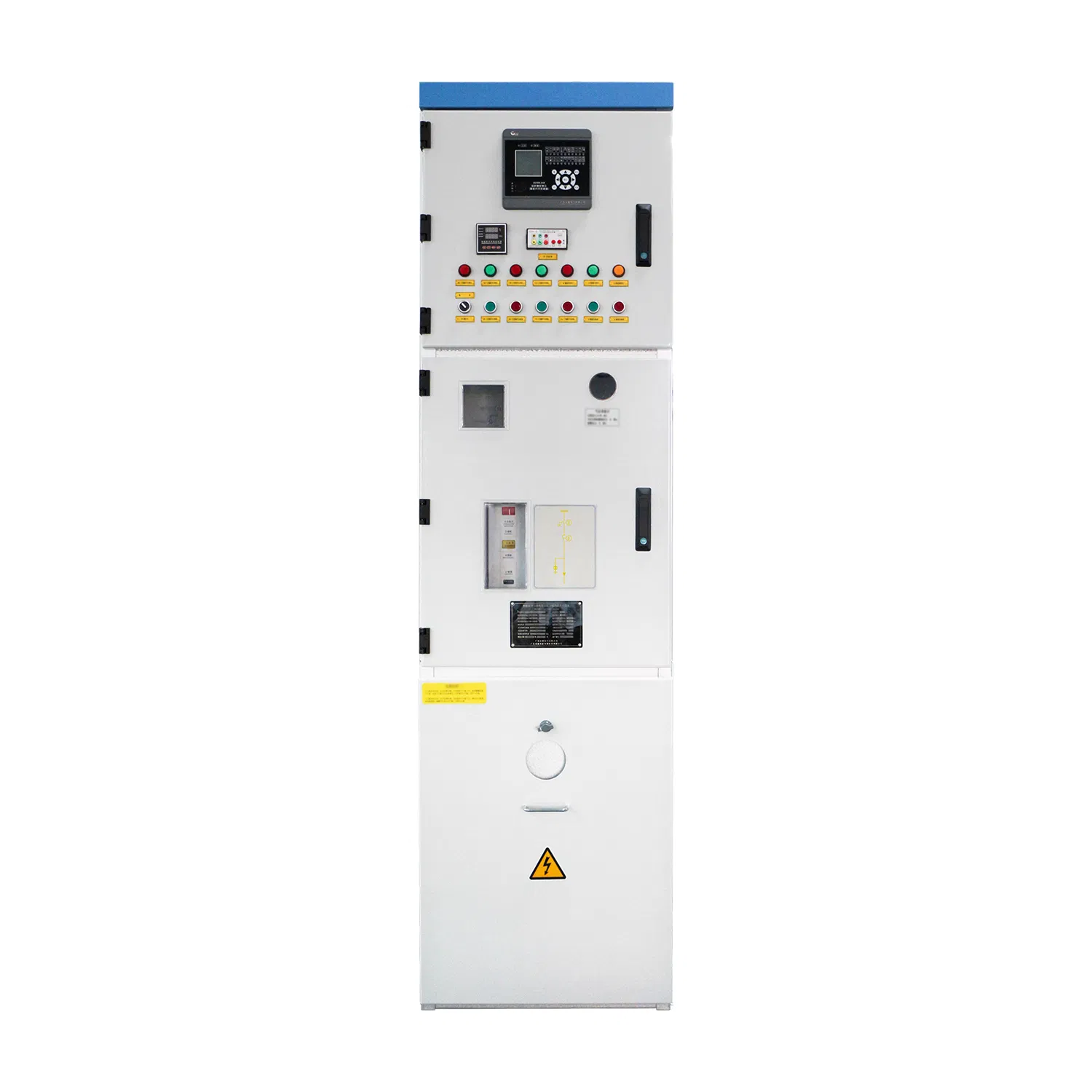

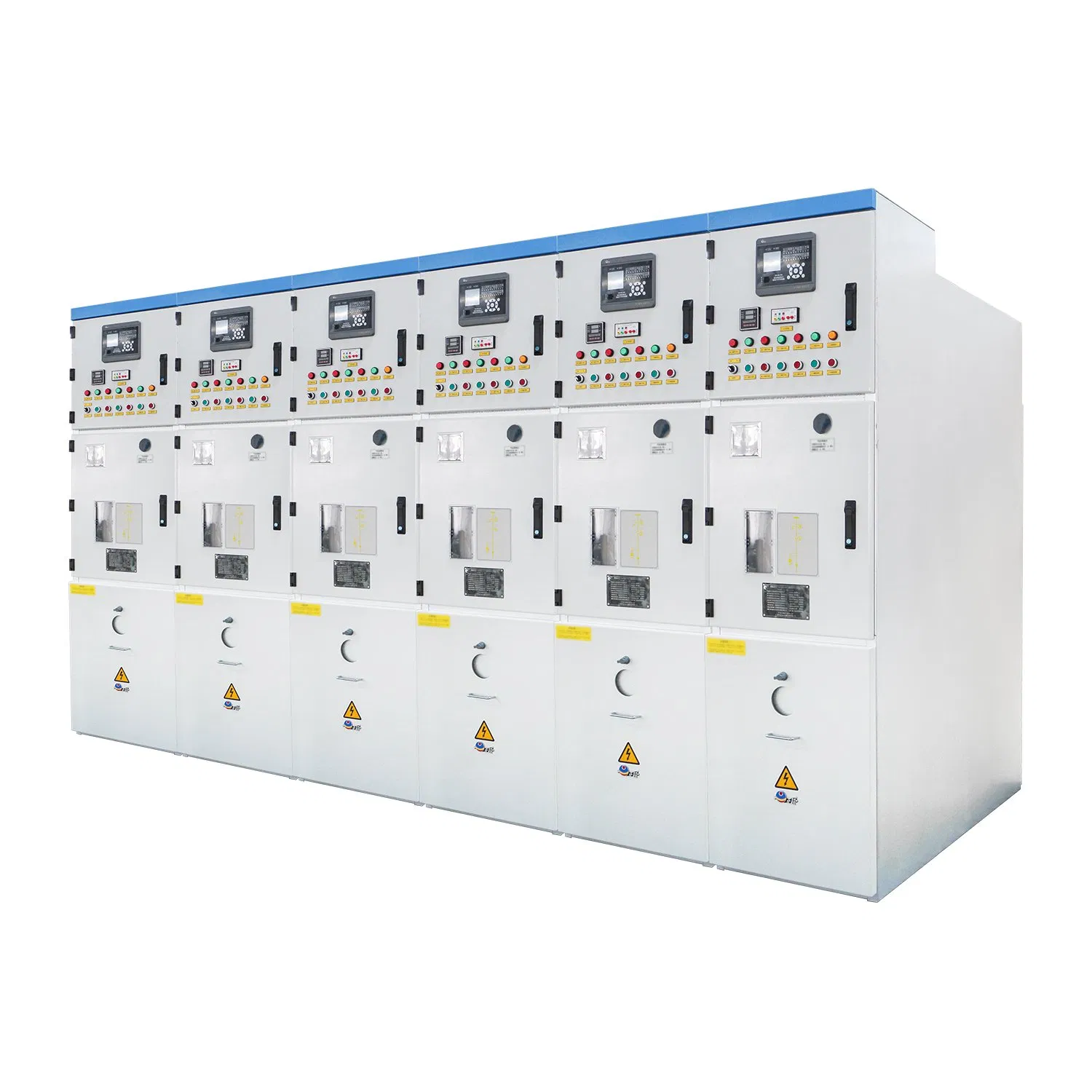

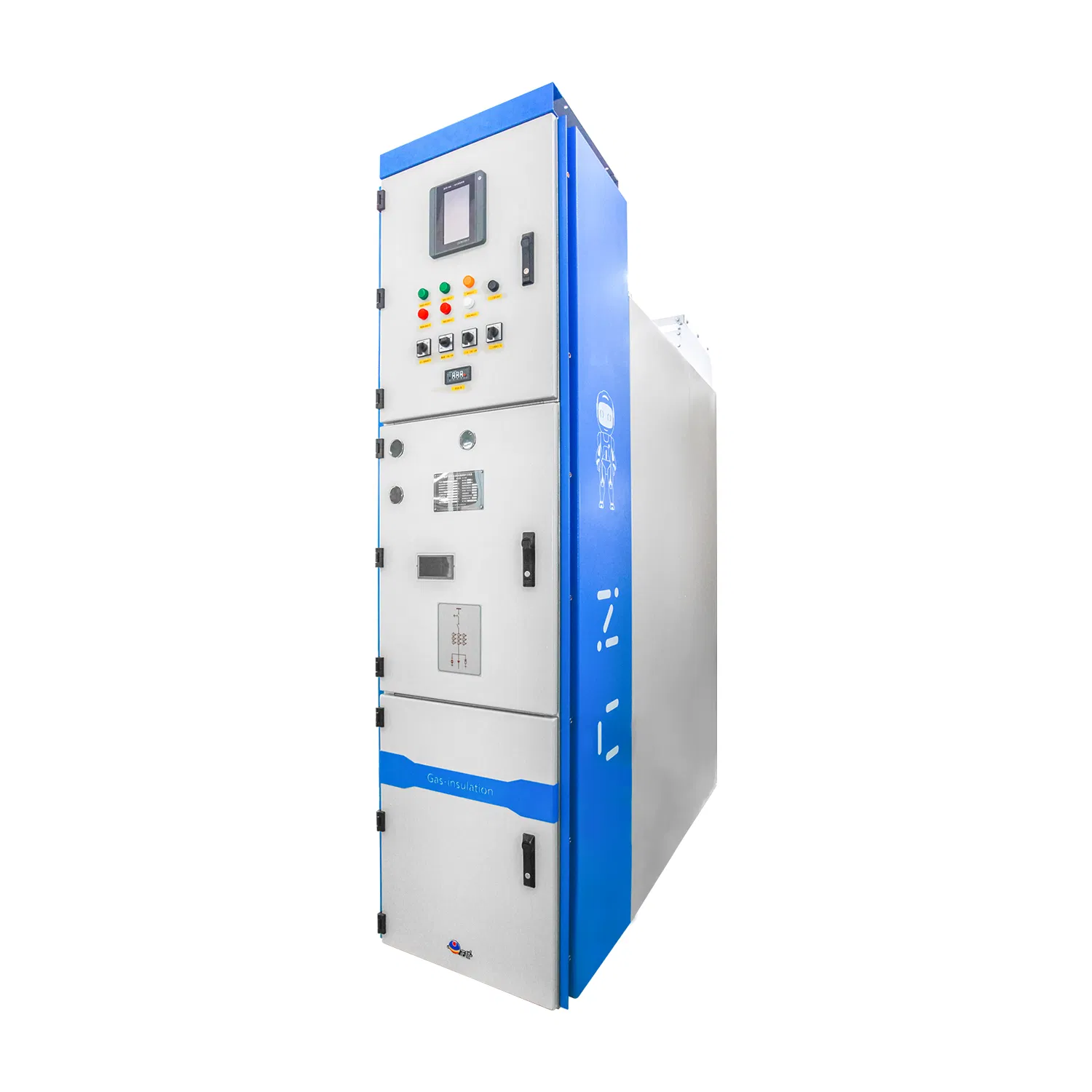

11kv 12kv Medium Voltage Cubicle Gas Insulated Switchgear for Data Center

i

Basic Specifications

Model NO.

ZCSFC-12

Voltage Level

Medium Voltage

Installation

Fixed

Structure

Floorstanding

Current

AC

Rated Voltage

12/40.5kv

Continuity

Lsc2a

Height

2200/2400mm

Width

600/800/900mm

Depth

1200/1400/1600mm

★

Product Description

11kv 12kV Medium Voltage Cubicle Gas Insulated Switchgear for Data Center

No.	Item	Unit	Technical Data
1	Rated voltage	kV	12	40.5
2	Rated frequency	Hz	50/60
3	Rated current	A	1250/2500/3150	1250/2500
4	Power frequency withstand (1min)	kv	42 / 48	95 / 118
5	Lightning impulse withstand	kv	75(95) / 85(110)	185 / 215
6	Short-time withstand current	kA	31.5/40	31.5
7	Peak withstand current	kA	80/100	80
8	Duration of short-circuit	s	4	4
9	Insulating gas	-	SF6
10	Annual leakage rate	%	≤ 0.01
11	IP Class (Sealed gas box)	-	IP67
12	Mechanical life (Breaker)	Times	12000	12000

✔

Standards & Specifications

IEC 62271-1: 2021 - Common specifications for alternating current switchgear and controlgear
IEC 62271-100: 2021 - Alternating-current circuit breakers
IEC 62271-102: 2022 - Alternating current disconnectors and earthing switches
IEC 62271-200: 2021 - AC metal-enclosed switchgear for rated voltages above 1kV up to 52kV
IEC 60529 - Degrees of protection provided by enclosures (IP Code)

?

Frequently Asked Questions

What is the primary insulating medium used in this switchgear?

The switchgear uses SF6 (Sulfur Hexafluoride) gas as the insulating medium, which is contained within a high-grade sealed gas box.

What is the IP protection rating for the enclosure?

The sealed gas box is rated at IP67, while the overall switchgear enclosure provides a standard protection degree of IP4X.

What are the available rated voltages for this model?

This equipment is designed for medium voltage applications, specifically supporting 12kV and 40.5kV requirements.

How reliable is the mechanical operation of the circuit breaker?

The circuit breaker is designed for high endurance with a mechanical life of up to 12,000 operations.

Does the equipment meet international safety standards?

Yes, it fully complies with multiple IEC standards including IEC 62271-1, IEC 62271-100, and IEC 62271-200 for high-voltage switchgear and controlgear.

What is the annual gas leakage rate?

The switchgear is engineered for extreme reliability with an annual leakage rate of ≤ 0.01%, ensuring long-term maintenance-free operation.
