Product Overview
🛡️

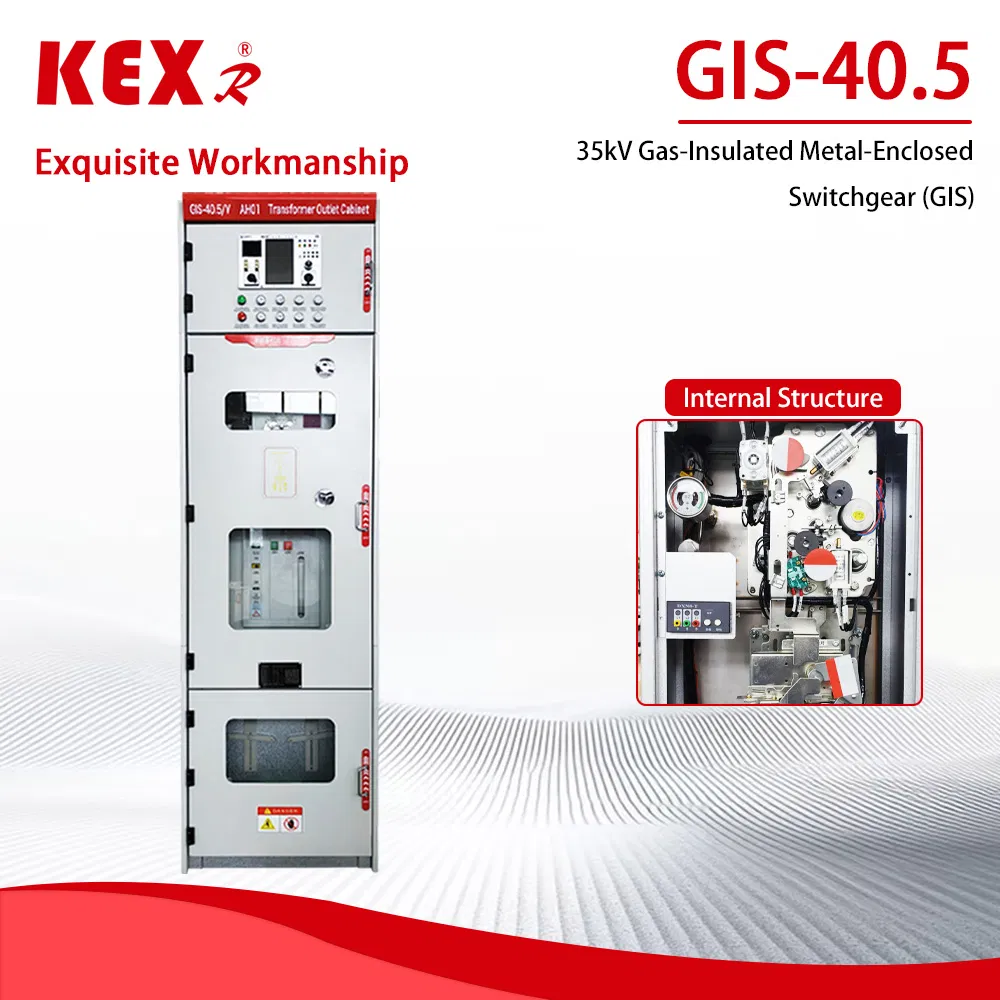

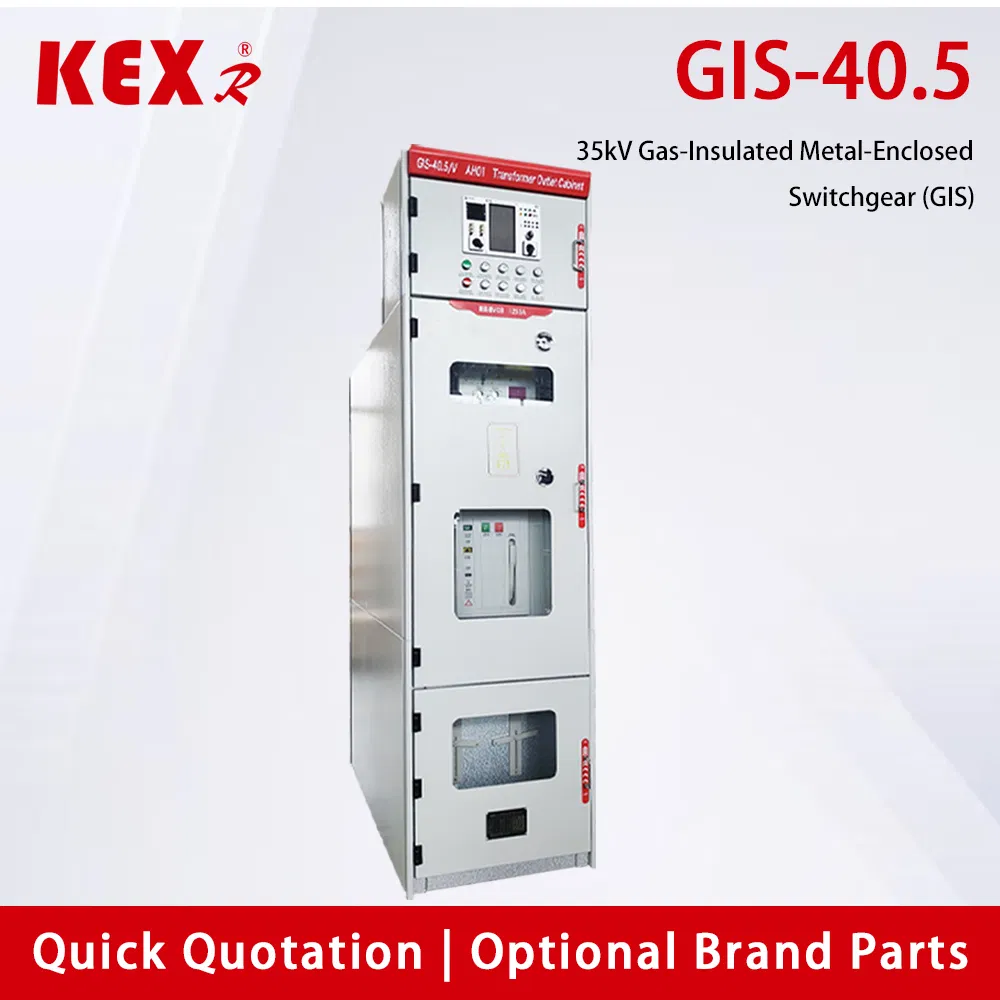

Reliable Protection: Introducing our state-of-the-art 35kV/1250A indoor high-voltage switchgear. This SF6 gas-insulated system is crafted for ultimate reliability and efficiency, encased in robust metal.
⚙️
Versatile Application: Ideal for three-phase AC 50Hz single busbar systems in power plants, substations, high-rise buildings, subways, wind energy, and photovoltaic setups. Engineered for high-altitude, humid, and coastal environments.
📏
Standard Compliance: Adheres to GB/T 11022-1999, GB 3906-200X (3.6kV-40.5kV AC metal-enclosed switchgear), and GB/T 404-1997.
Busbar Expansion Systems

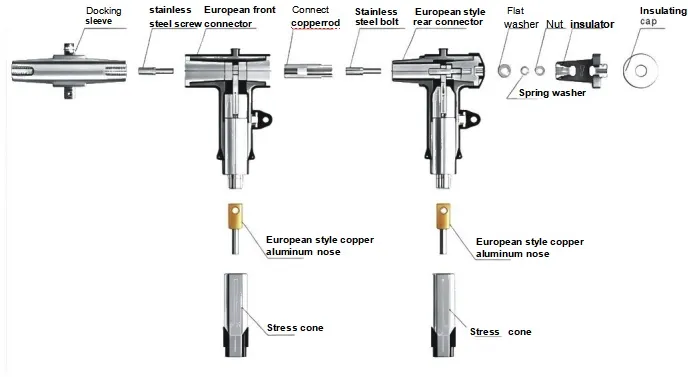

Horizontal and branch busbars are crafted from robust rounded copper bars. The system remains unaffected by dust and condensation, simplifying installation without SF6 gas operation in the assembly field.
Advanced Monitoring & Sensors
📊
Sensor System: Includes live display sensors, circuit breaker position sensors, and spring energy storage sensors. The SF6 gas pressure is continuously monitored by a gauge with temperature compensation.
🚨
Safety Measures: In the event of an internal arc fault, an independent explosion-proof membrane device promptly releases high-pressure gas through a dedicated channel at the rear.
Frequently Asked Questions
What are the primary applications for this 35kV switchgear?
It is designed for power plants, substations, high-rise buildings, and industrial mining. It is particularly effective in subways, wind energy projects, and coastal or high-altitude environments.
How does the gas insulation system enhance safety?
The sealed box is filled with dry SF6 gas, making the internal components completely unaffected by the external environment. It includes a pressure relief port and a real-time monitoring gauge for extreme safety.
What is the mechanical life of the circuit breaker?
The vacuum circuit breaker is designed for a mechanical life of 10,000 operations, while the three-position switch is rated for 3,000 operations, ensuring long-term durability.

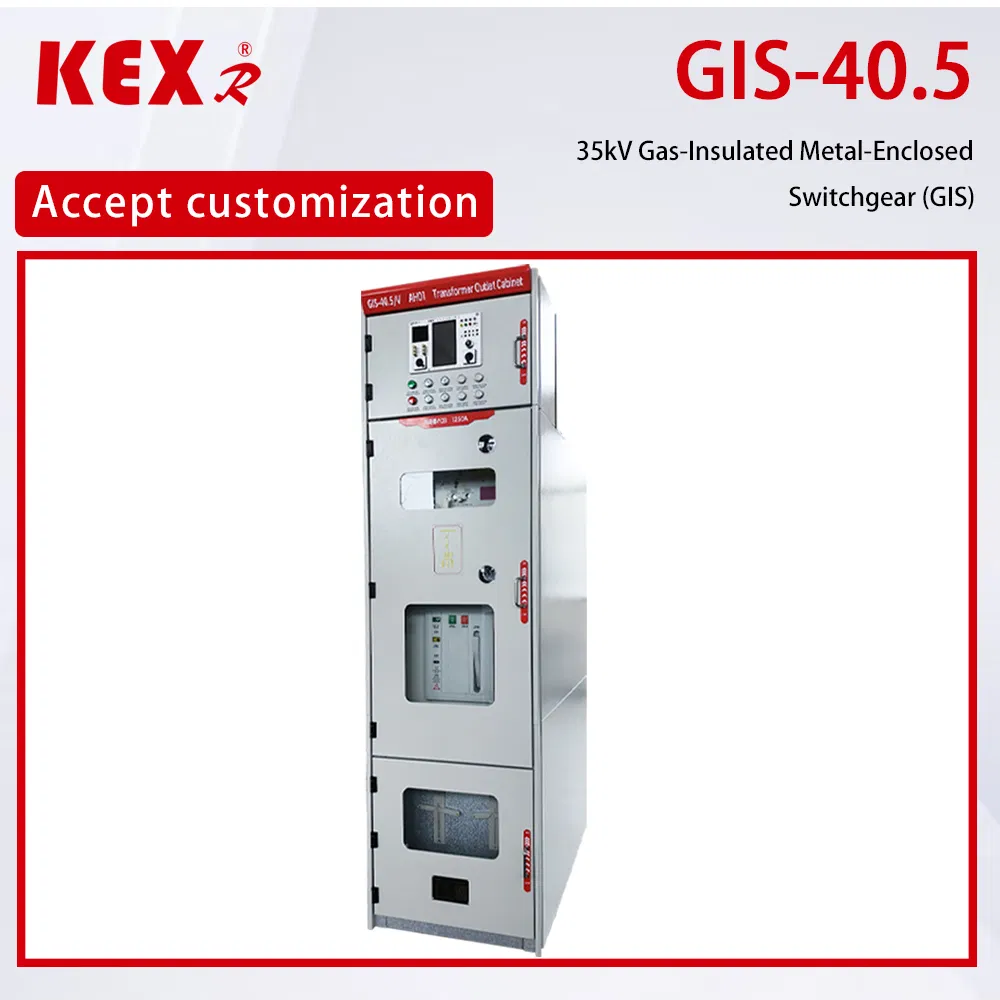

Is the equipment customizable for special environments?
Yes, bespoke solutions can be developed for scenarios stretching beyond typical environmental conditions, such as extreme permafrost or specific industrial requirements.
What protection level does the enclosure provide?
The sealed box body provides an IP67 rating, while the overall switchgear enclosure meets IP4X standards, offering top-tier protection against dust and moisture.
Does it support smart monitoring?
Yes, the system incorporates an intelligent control and protection unit that displays real-time data like voltage, current, and fault signals on a clear LCD screen.
