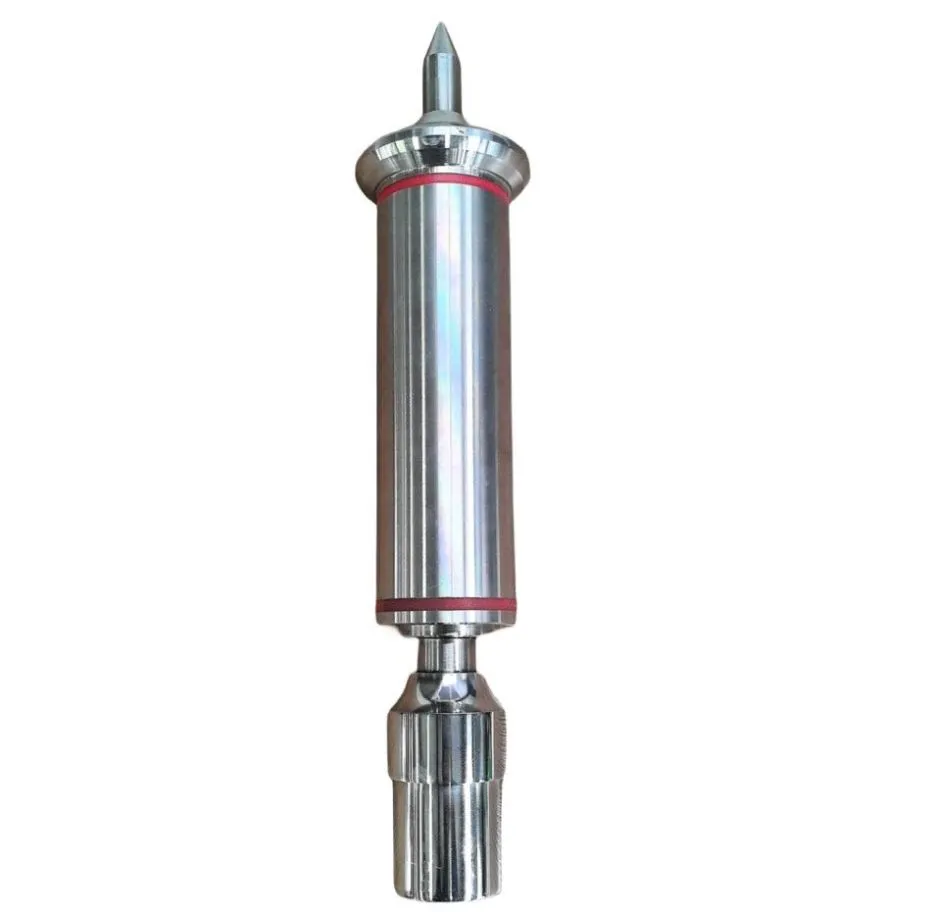

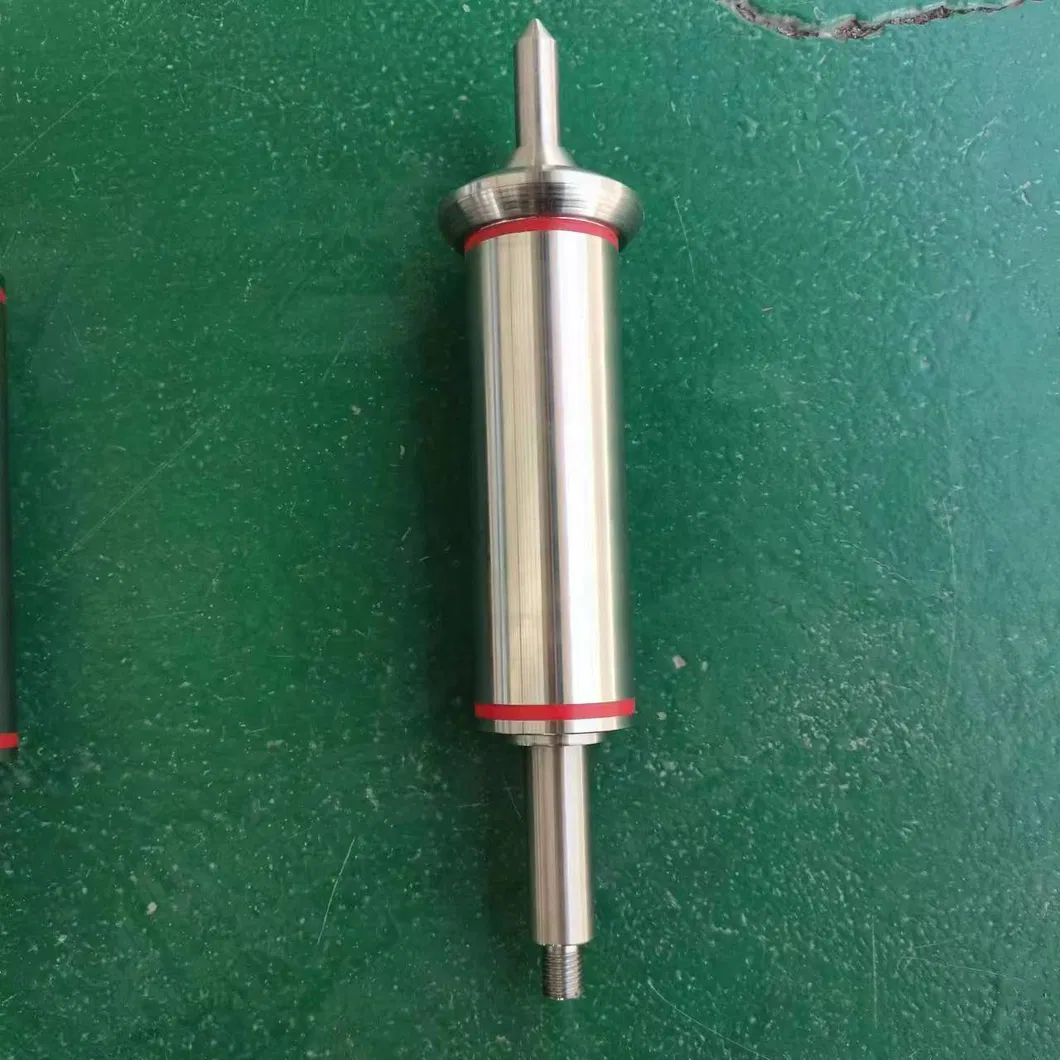

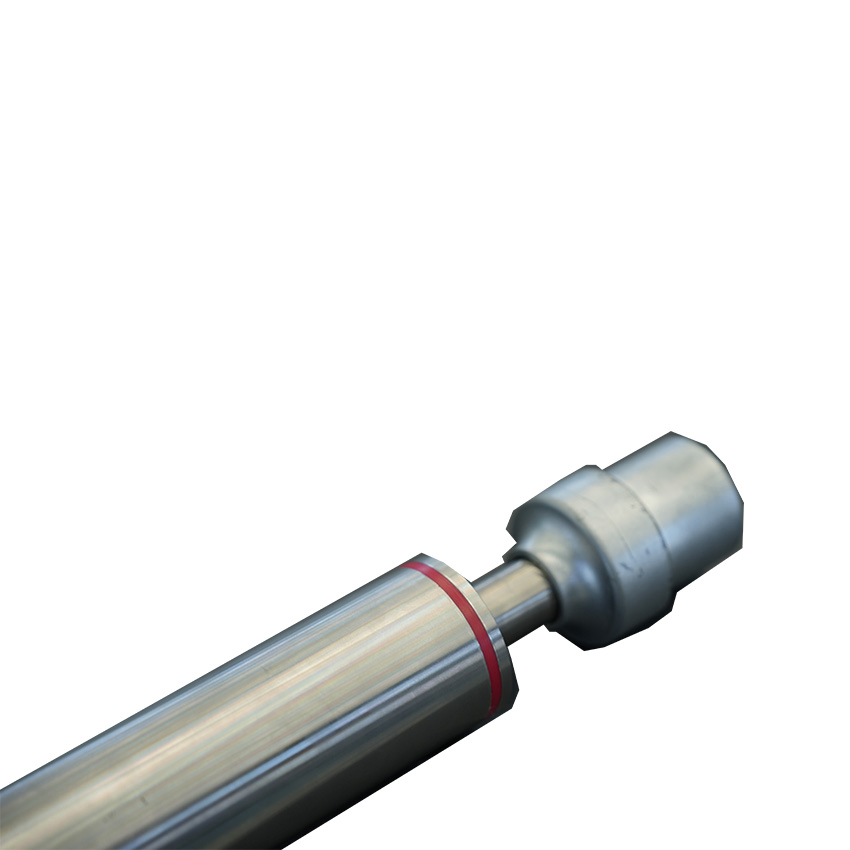

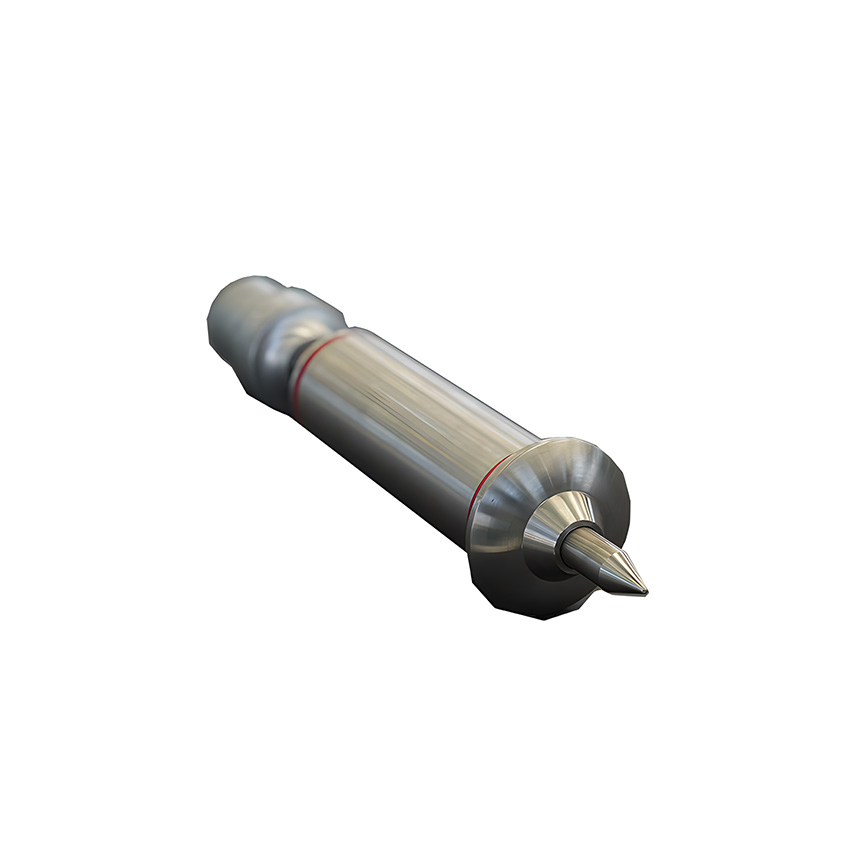

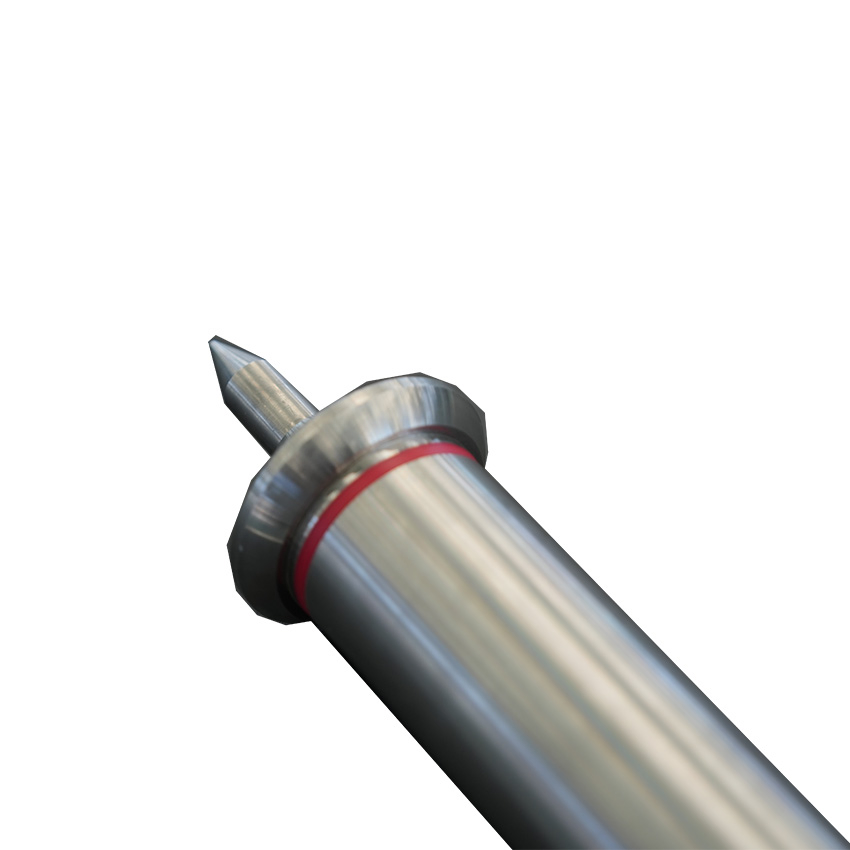

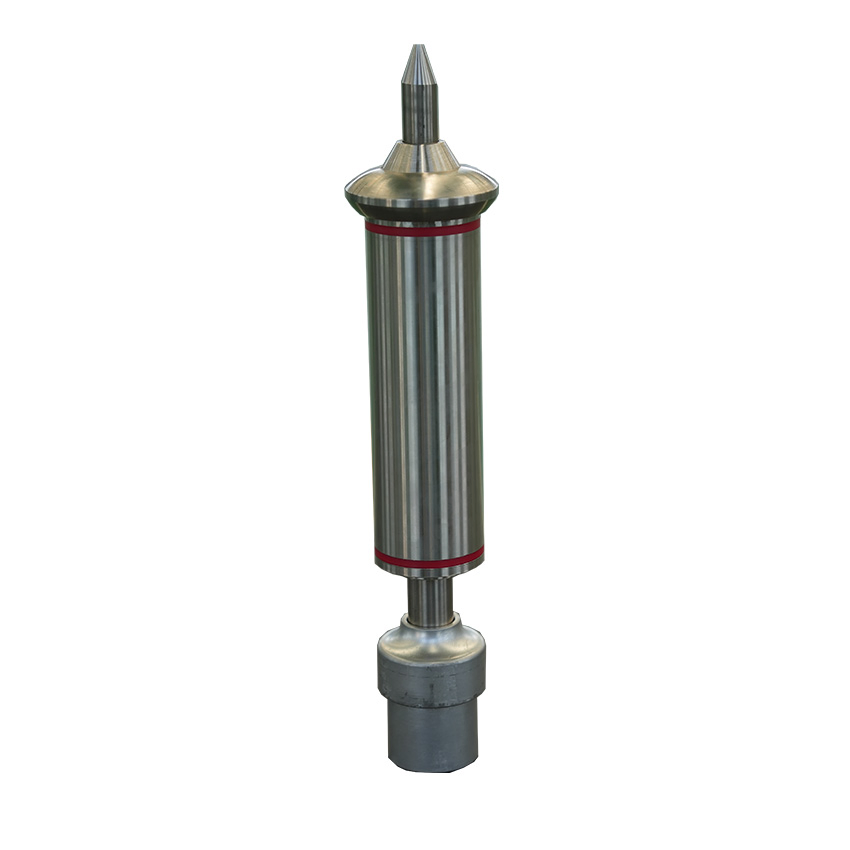

A high-performance Early Streamer Emission (ESE) lightning protection solution designed for versatile industrial and commercial applications.
| Category | Class I Protection | Class II Protection | Class III Protection | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ΔT (μs) | 18 | 30 | 45 | 60 | 18 | 30 | 45 | 60 | 18 | 30 | 45 | 60 |
| Height 2m | 14 | 19 | 25 | 32 | 19 | 25 | 32 | 40 | 22 | 28 | 36 | 44 |
| Height 3m | 21 | 28 | 38 | 48 | 29 | 38 | 48 | 59 | 33 | 42 | 57 | 65 |
| Height 4m | 28 | 38 | 51 | 64 | 38 | 50 | 65 | 78 | 44 | 57 | 72 | 87 |
| Height 5m | 35 | 48 | 63 | 79 | 49 | 63 | 81 | 97 | 55 | 71 | 89 | 107 |
| Height 10m | 37 | 49 | 64 | 79 | 52 | 66 | 83 | 99 | 60 | 75 | 92 | 109 |
| Height 20m | 38 | 50 | 65 | 80 | 58 | 71 | 86 | 102 | 67 | 81 | 97 | 113 |

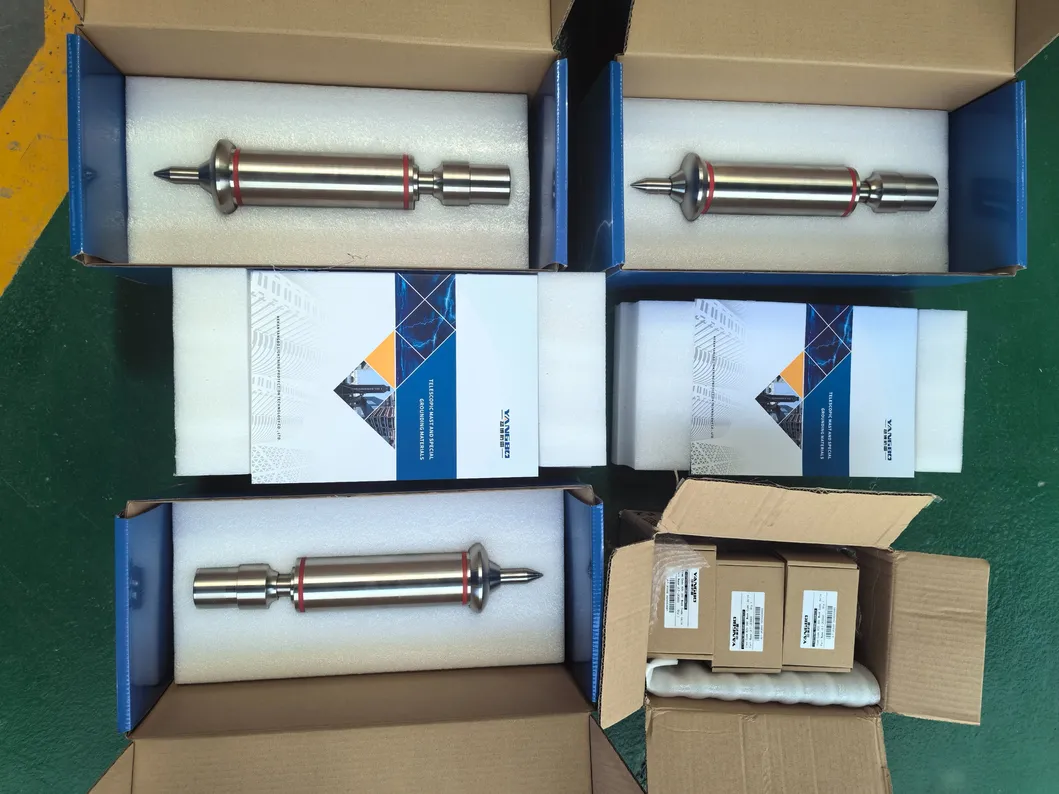

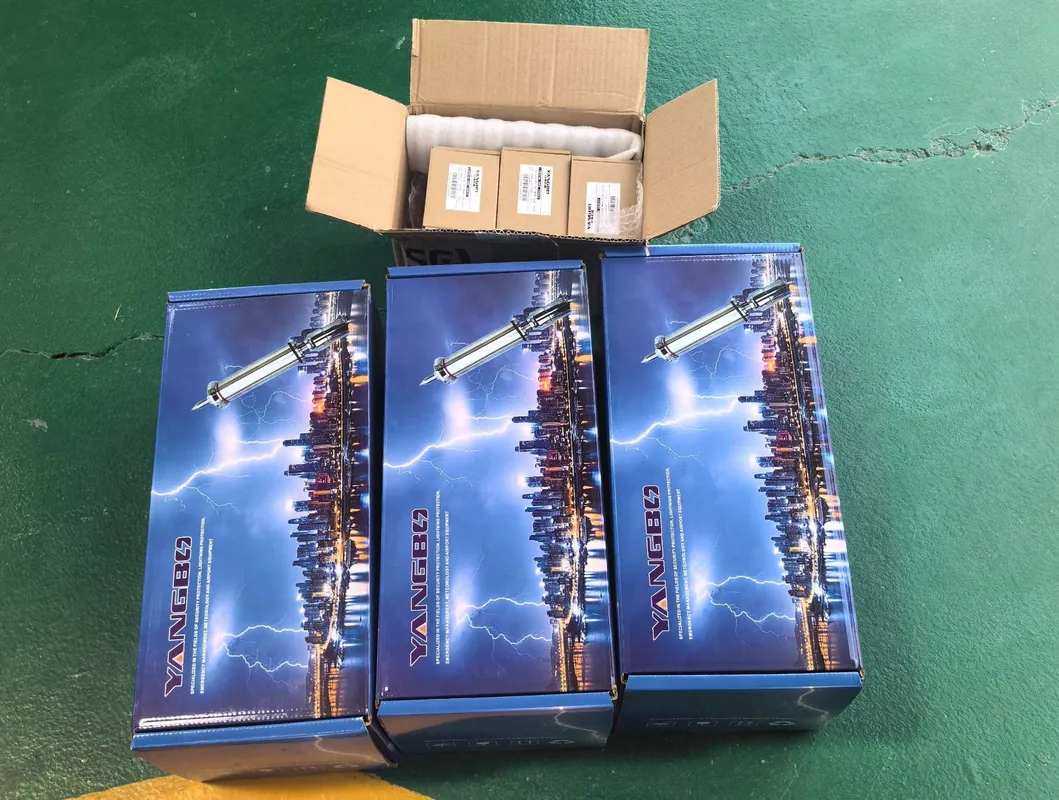

1. Installation Method: After opening the package, place the lower part of the lightning rod on the reserved installation position of the pole. Use bolt accessories to tighten or weld the connection as needed.
2. Precautions: Ensure reliable electrical connection between the lightning rod and the down conductor. The protected range should be calculated according to the rolling ball method. Grounding resistance should be less than 10 ohms.
