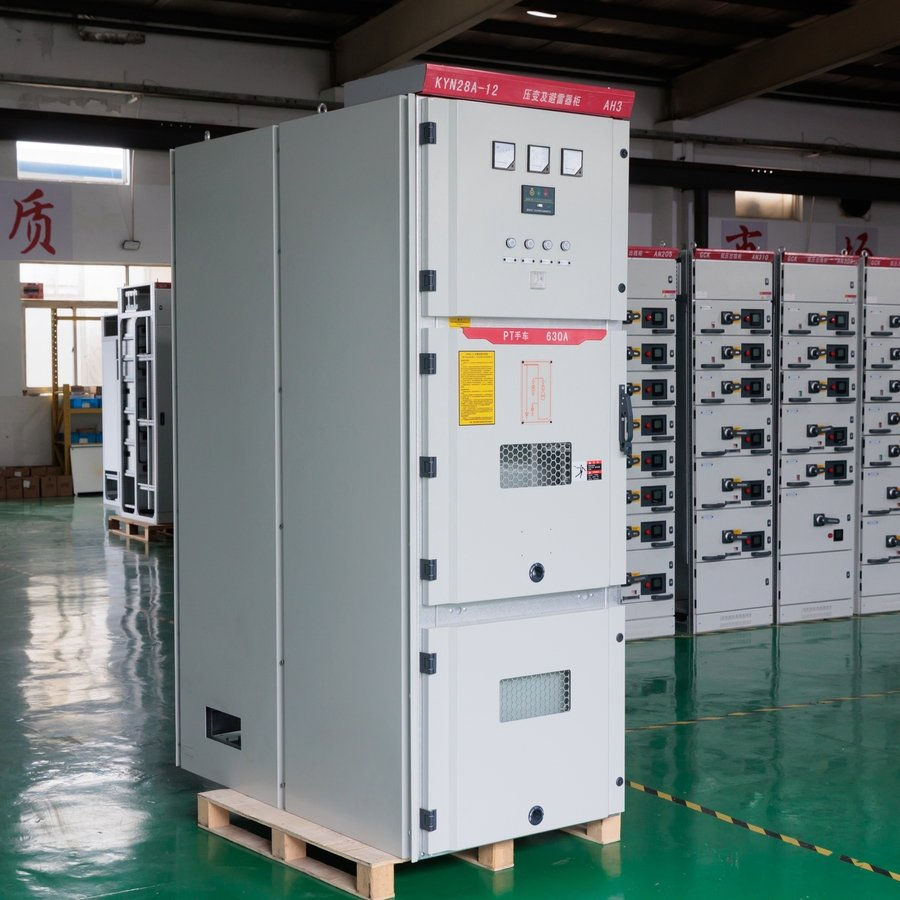

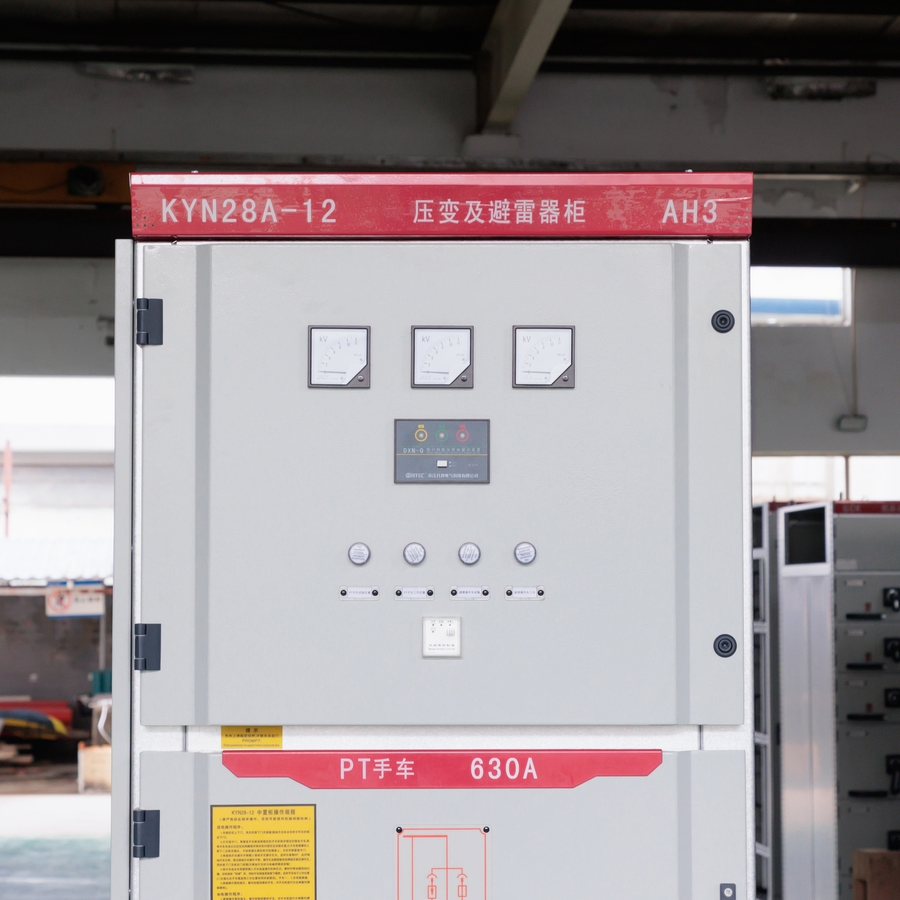

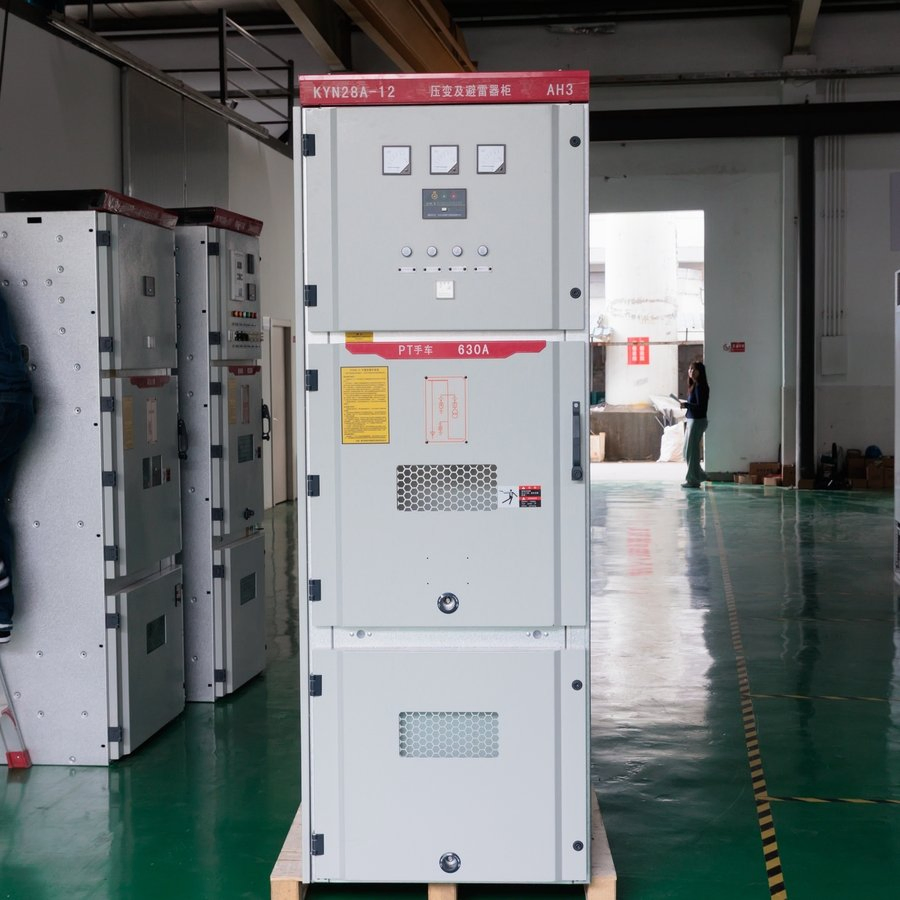

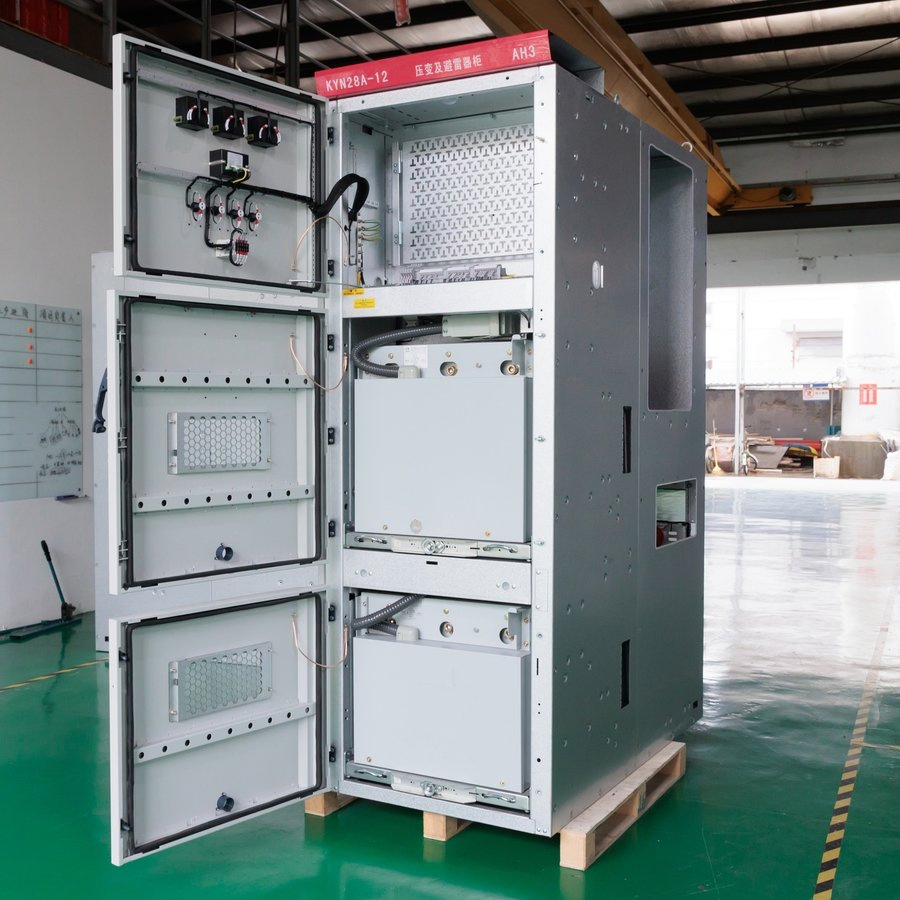

KYN28A-12 PT & LIGHTNING ARRESTER CABINET
The KYN28A-12 is a 12kV indoor metal-clad withdrawable switchgear that integrates high-precision voltage transformers and advanced lightning arresters for monitoring, metering, and overvoltage protection. Its middle-mounted, independently withdrawable PT handcart allows maintenance without power interruption, boosting safety and efficiency.
| Parameter | Standard Value |
|---|---|
| Rated Voltage | 12kV |
| Max. Operating Voltage | 12kV |
| Rated Frequency | 50Hz (60Hz customizable) |
| Rated Short-Time Withstand Current | 25kA (3s) |
| Rated Peak Withstand Current | 63kA (customizable) |
| Power Frequency Withstand Voltage | 42kV (rms, 1min) |
| Lightning Impulse Withstand Voltage | 75kV (peak) |
| Overall Dimensions (W×D×H) | 800×1500×2200mm (customizable) |
| PT Accuracy Class | 0.5 / 0.2 / 0.2S (Optional) |

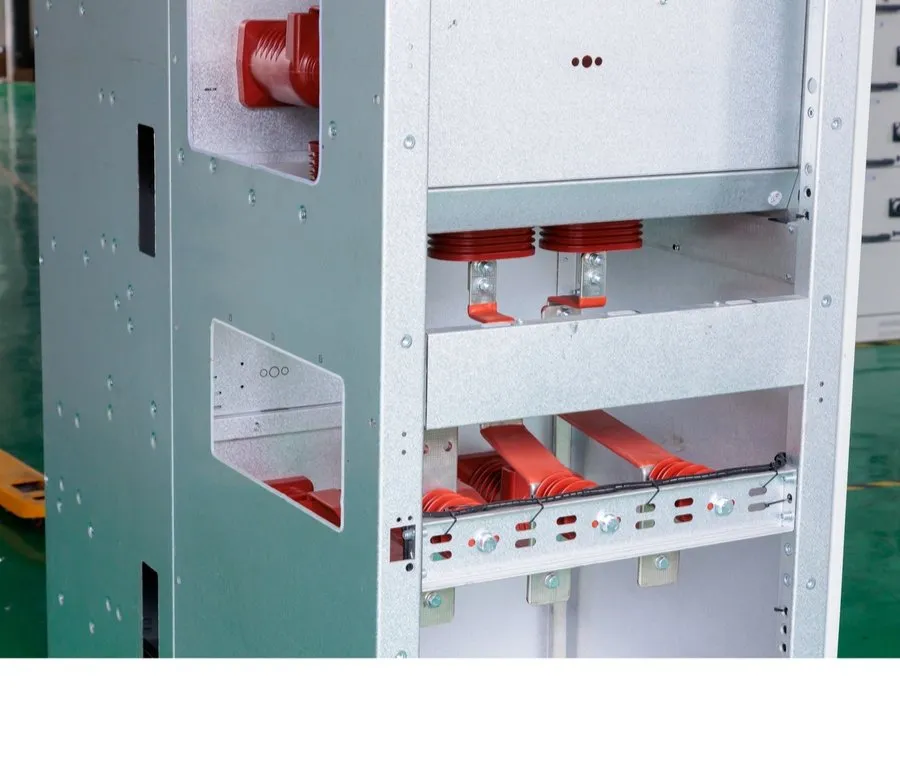

Engineered for extreme fault conditions with 25kA short-time withstand current (3s) and 63kA peak current ratings. Our robust design keeps your distribution network resilient under the most demanding electrical stress.

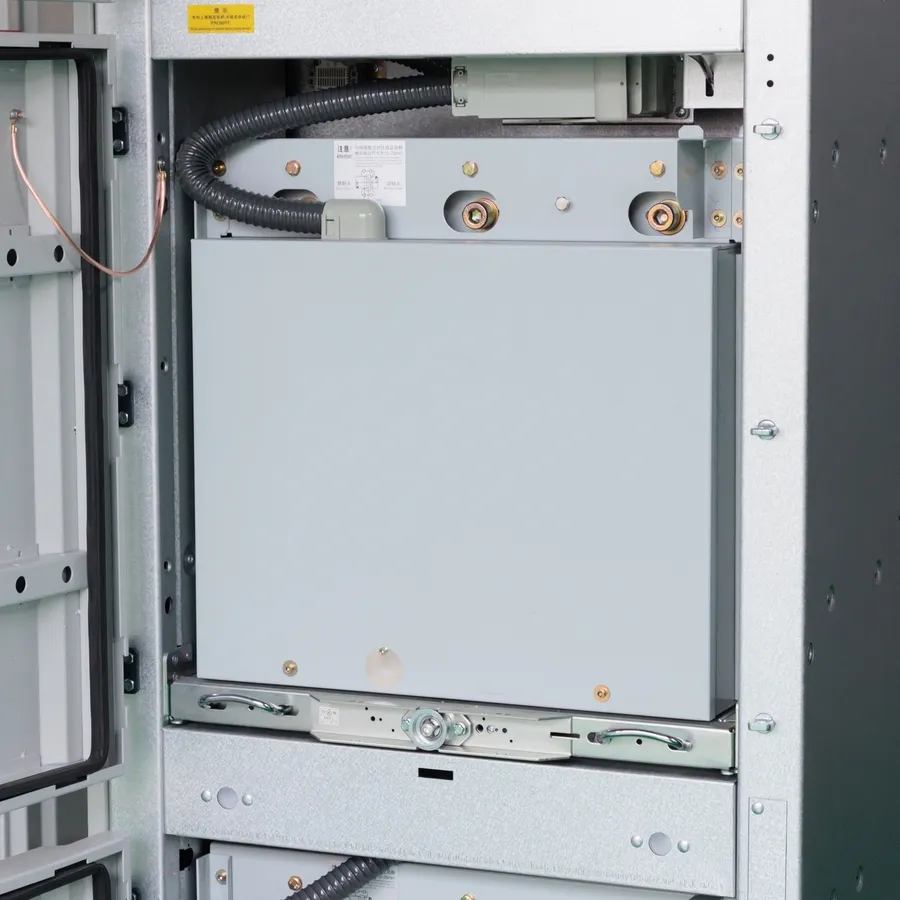

The withdrawable handcart allows PT and arrester units to be pulled out for inspection and maintenance without disconnecting main power. Its segmented compartment layout ensures effective isolation between functional units.
Built with CNC-bent, precision-welded galvanized steel sheets for exceptional anti-deformation and corrosion resistance. Internal high-purity copper busbars paired with epoxy resin insulation ensure stable conductivity.

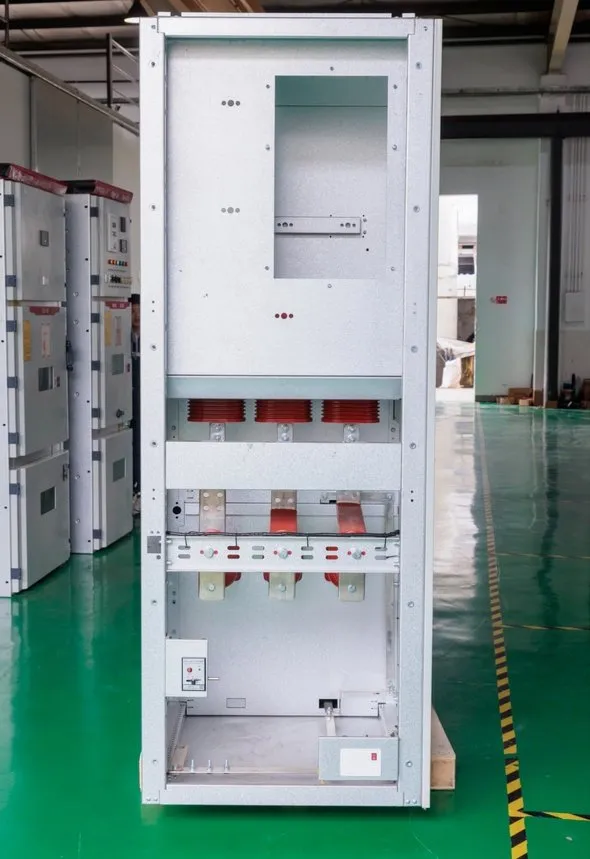

Reinforced cabinet framework and anti-vibration busbar supports maintain operational integrity during seismic events. Ideal for earthquake-prone regions to ensure critical power continuity.
