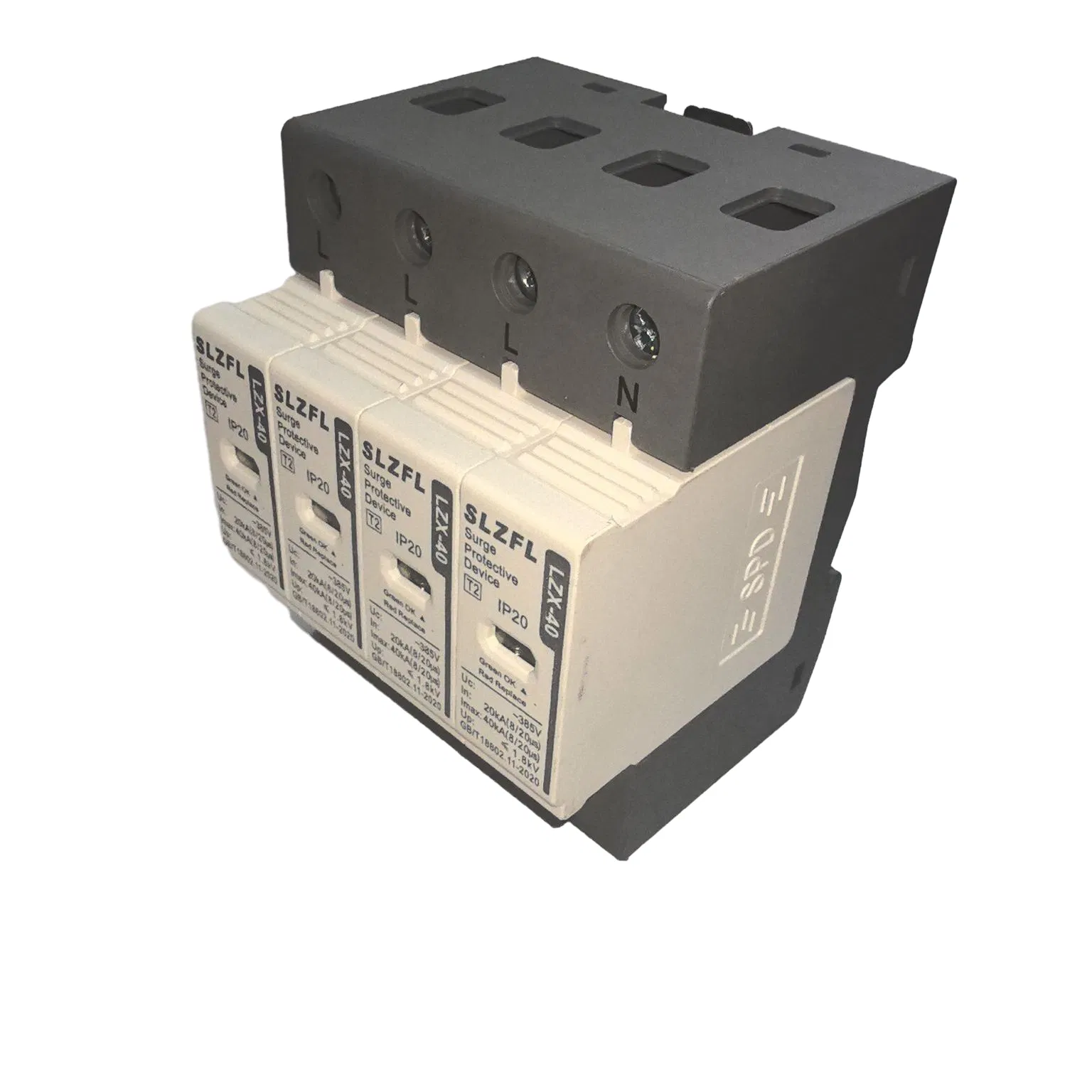

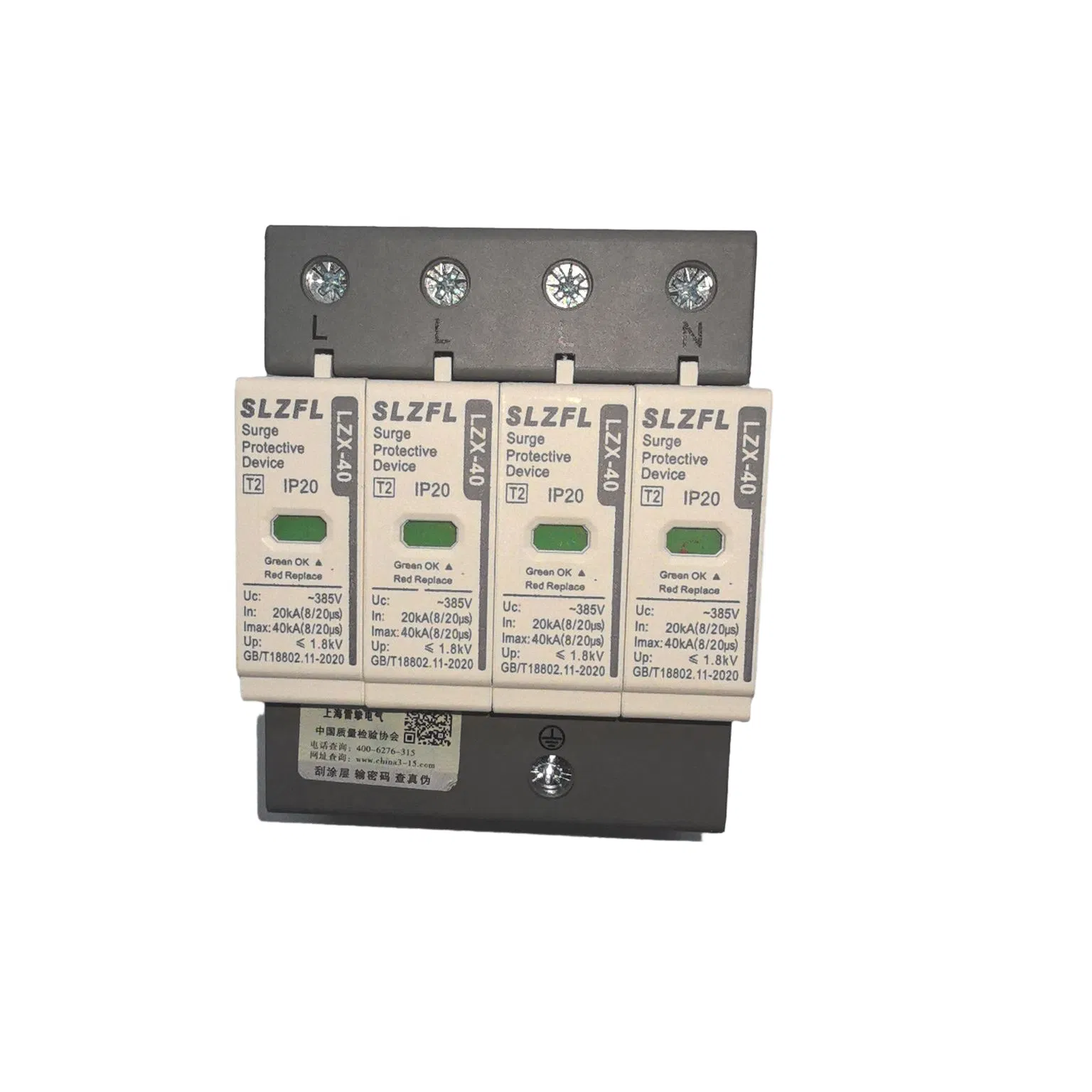

Industrial Power Surge Protection System for Reliable Performance

Product Description

Industrial Power Surge Protection System
Product Parameters

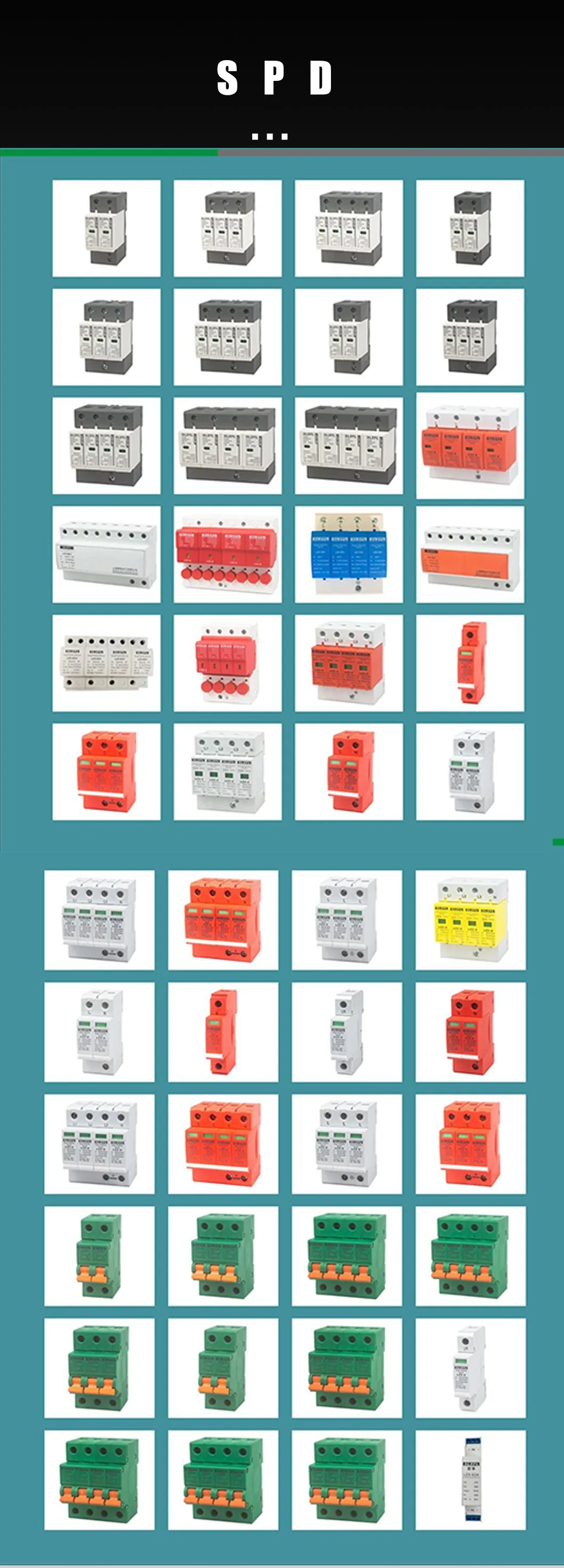

Parameters Detail 1

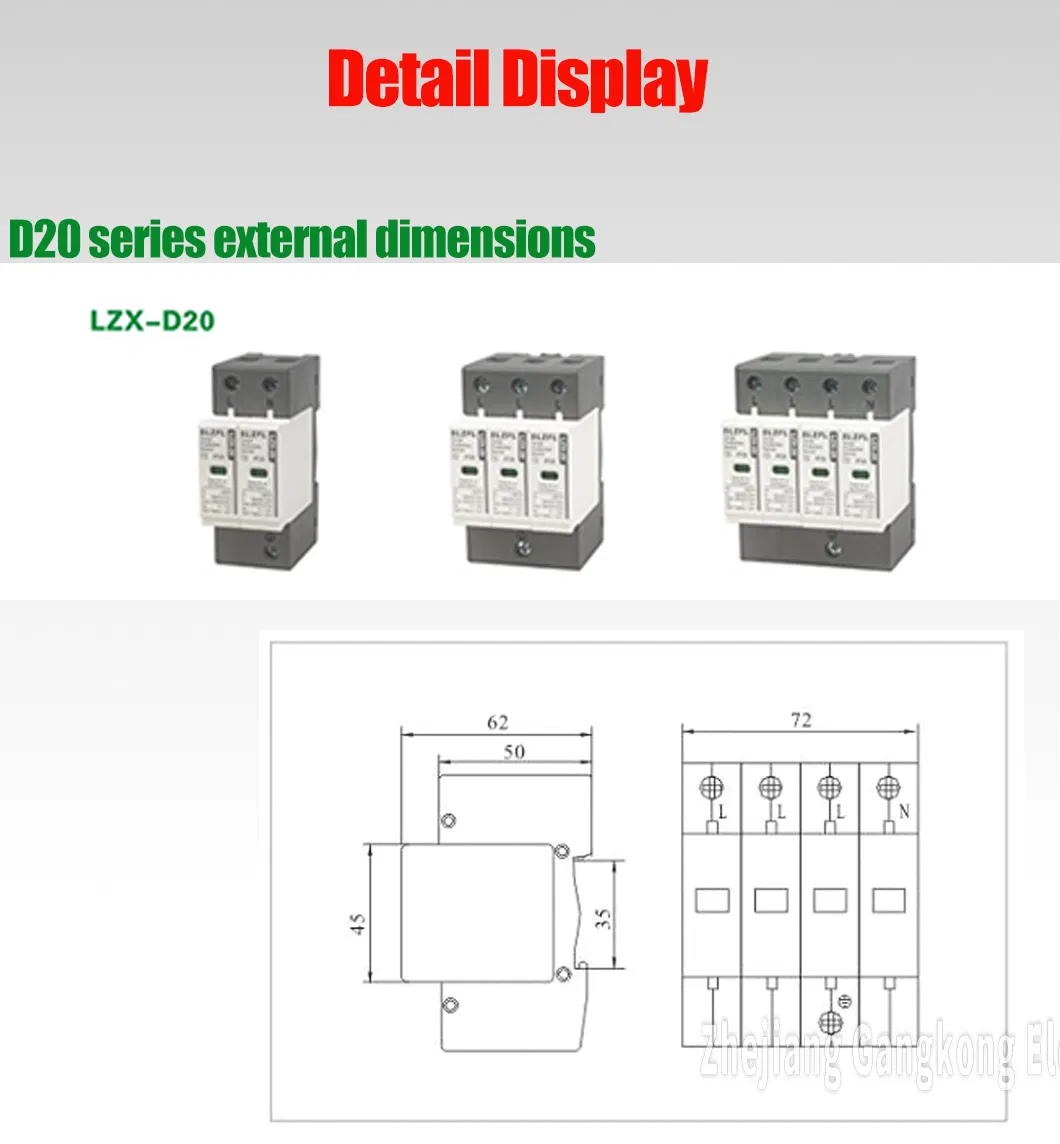

Parameters Detail 2
ModelLZX-D20
Rated working voltage Un (V)220/385
Maximum continuous operating voltage Ua (V)385
Nominal discharge current In (kA)10
Maximum discharge current Ima (kA)20
Voltage protection level Up (kV)≤1.5
Response time (ns)<25
Min cross-sectional area of wire LN (mm2)2.5
Min cross-sectional area of grounding wire PE (mm²)4
Selection of fuses or circuit breakers (A)32
Install35mm standard guide track
Shell materialUL94-VO grade flame retardant plastic

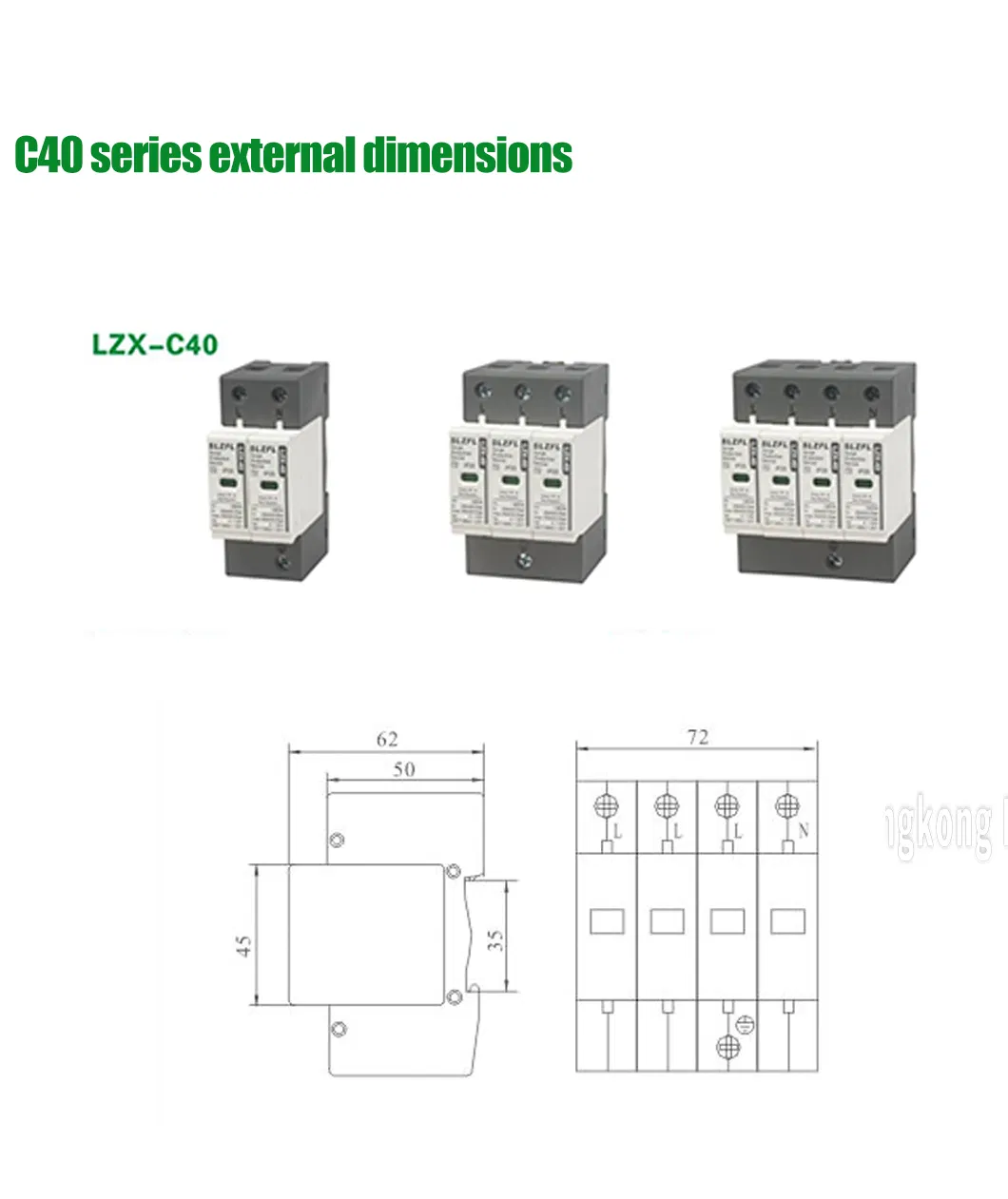

LZX-C40 Detail
ModelLZX-C40
Rated working voltage Un (V)220/385
Maximum continuous operating voltage Ue (V)385
Nominal discharge current In (kA)20
Maximum discharge current Imax (kA)40
Voltage protection level Uo (kV)≤1.8
Response time (ns)<25
Min cross-sectional area of wire L/N (mm2)4
Min cross-sectional area of grounding wire PE (mm)6
Selection of fuses or circuit breakers (A)32
Install35mm standard guide track
Shell materialUL94-VO grade flame retardant plastic

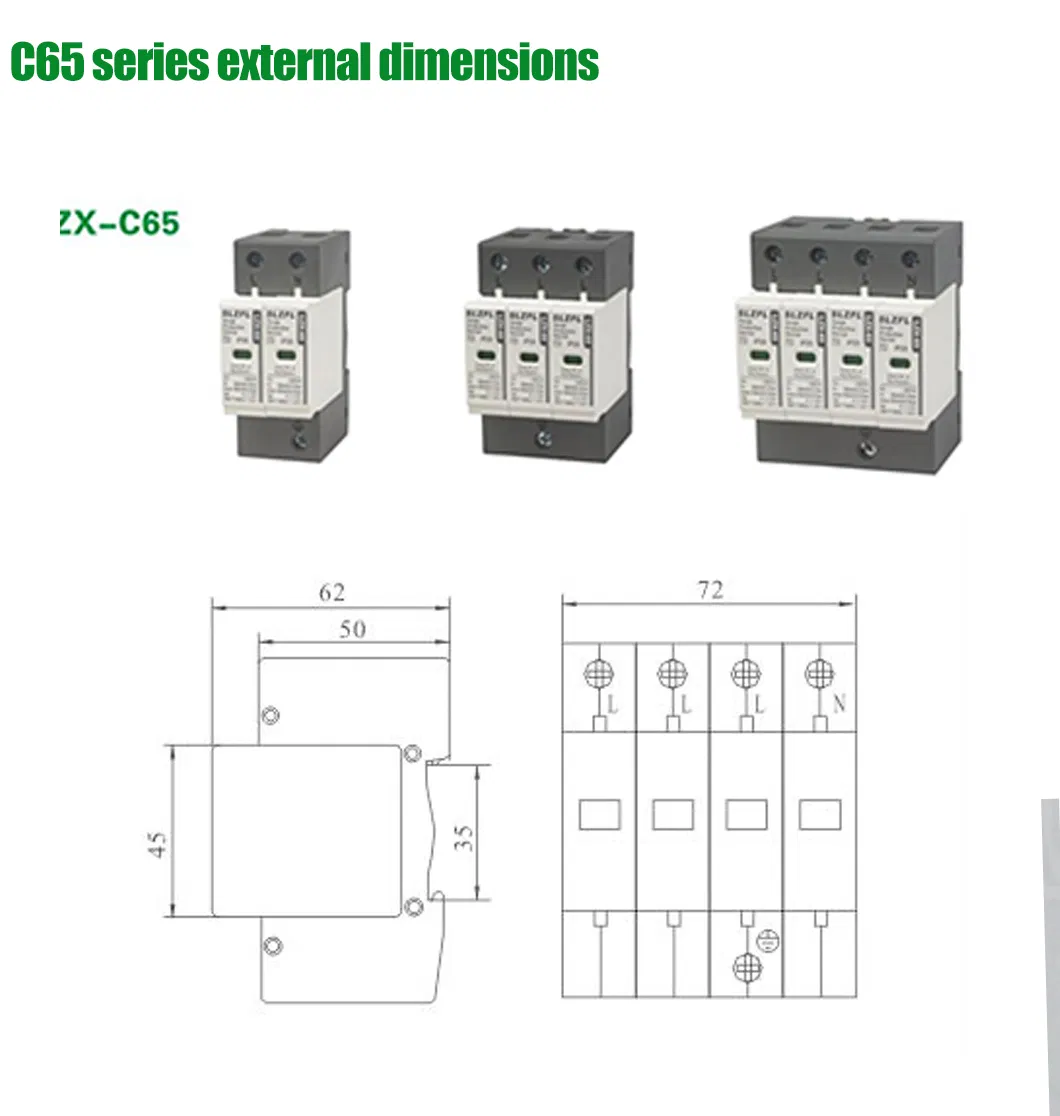

LZX-C65 Detail
ModelLZX-C65
Rated working voltage Un (V)220/385
Maximum continuous operating voltage U: (V)385
Nominal discharge current In (kA)30
Maximum discharge current Imax (kA)65
Voltage protection level Uo (kV)≤2.0
Response time (ns)<25
Min cross-sectional area of wire L/N (mm2)4
Min cross-sectional area of grounding wire PE (mm)6
Selection of fuses or circuit breakers (A)63
Install35mm standard guide track
Shell materialUL94-VO grade flame retardant plastic

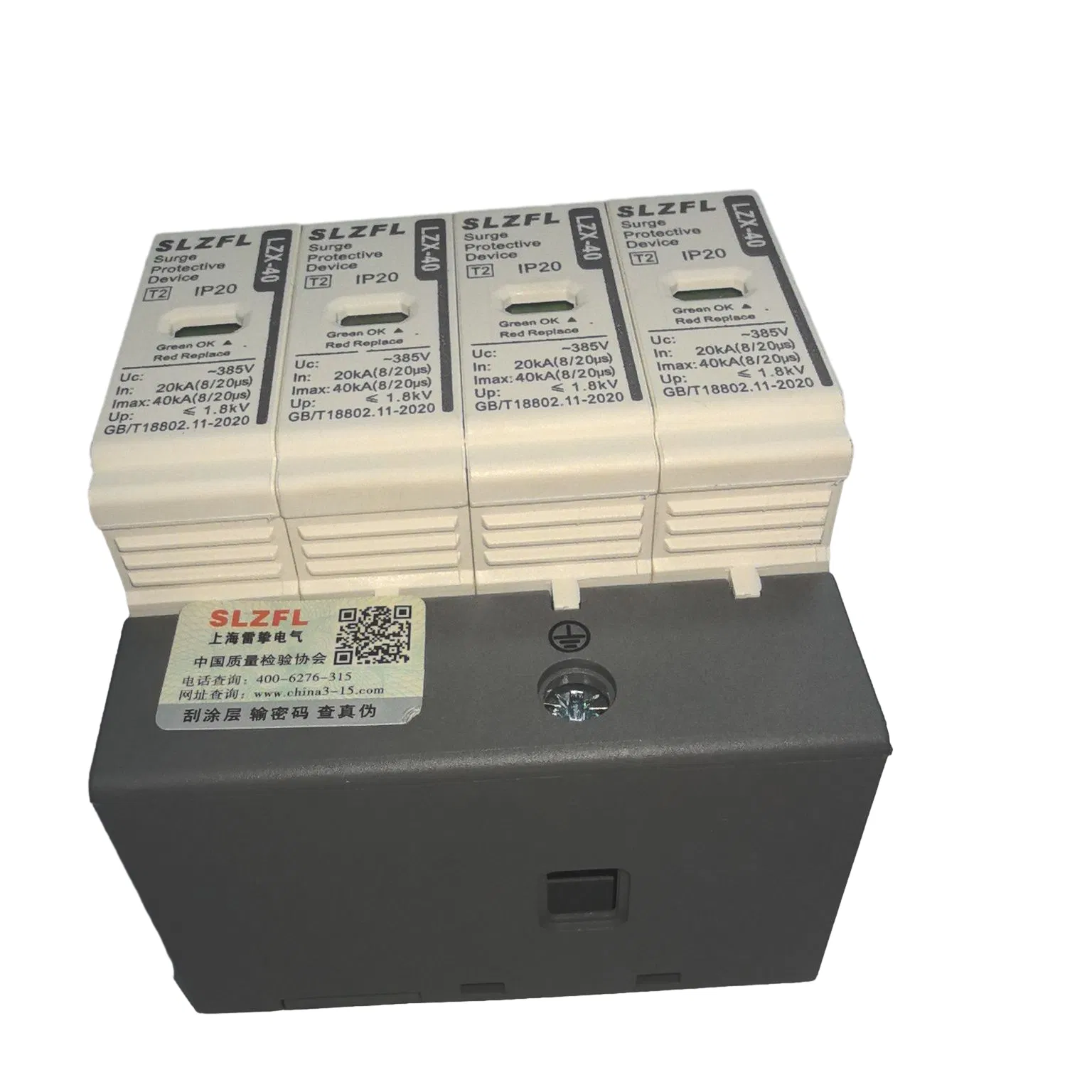

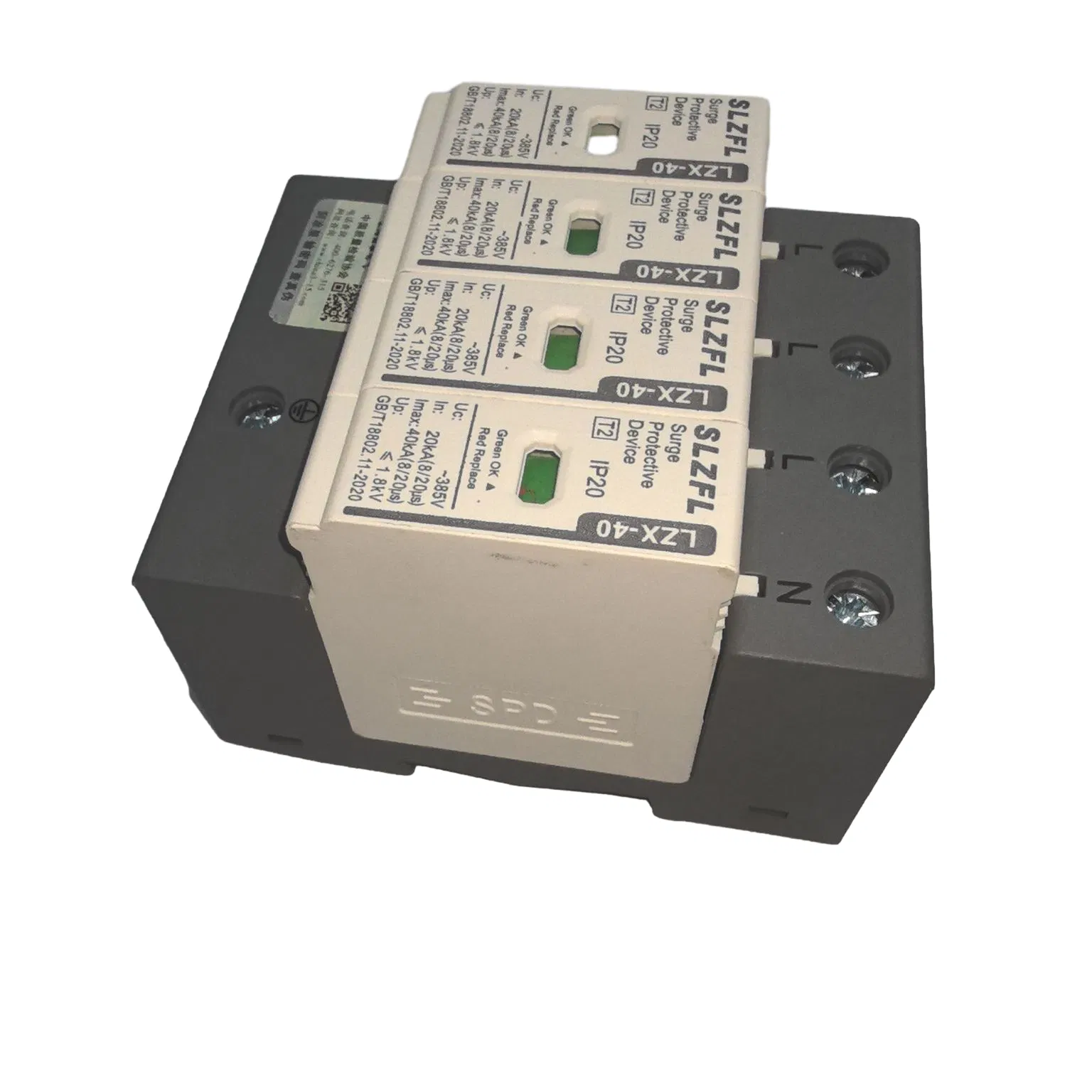

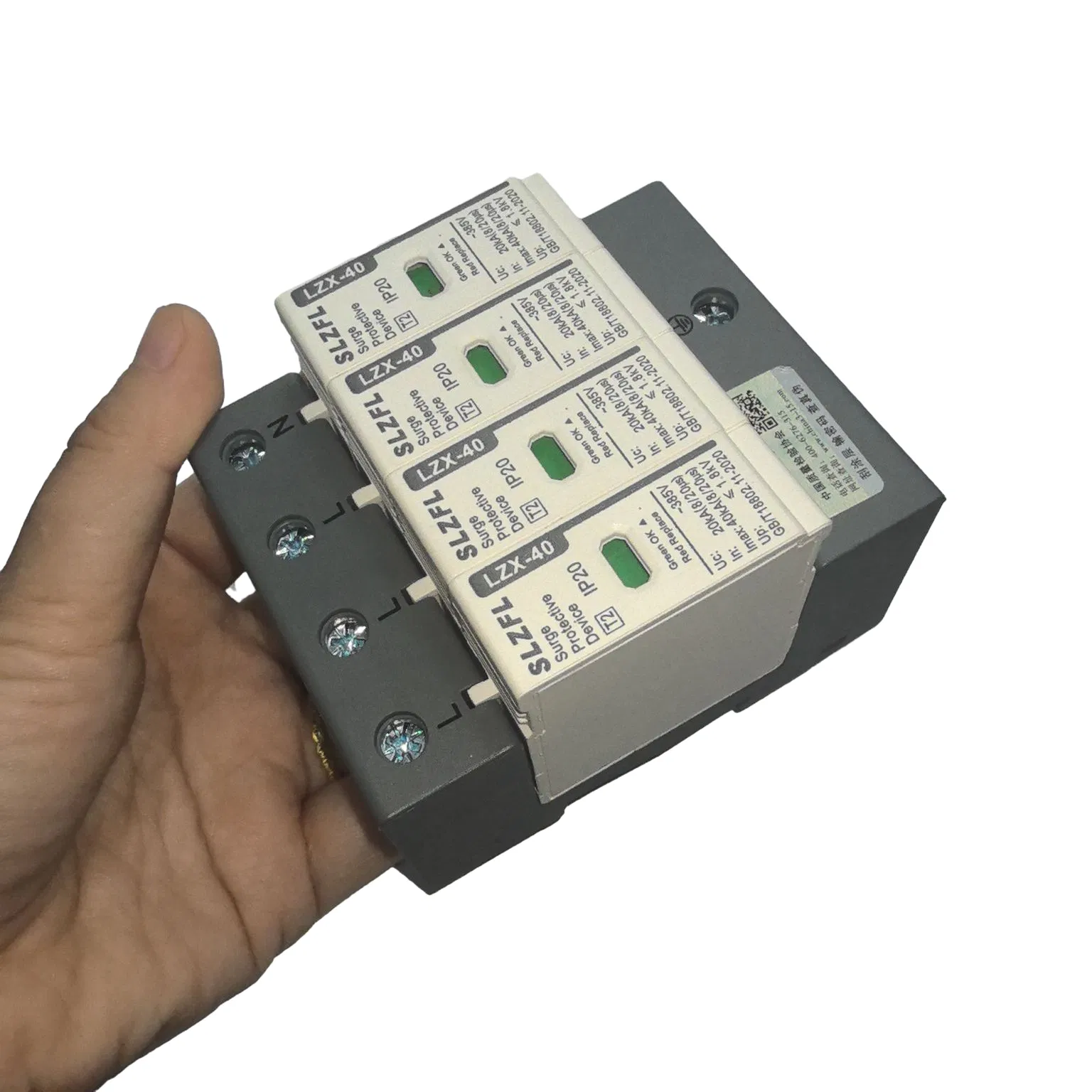

Detailed Photos

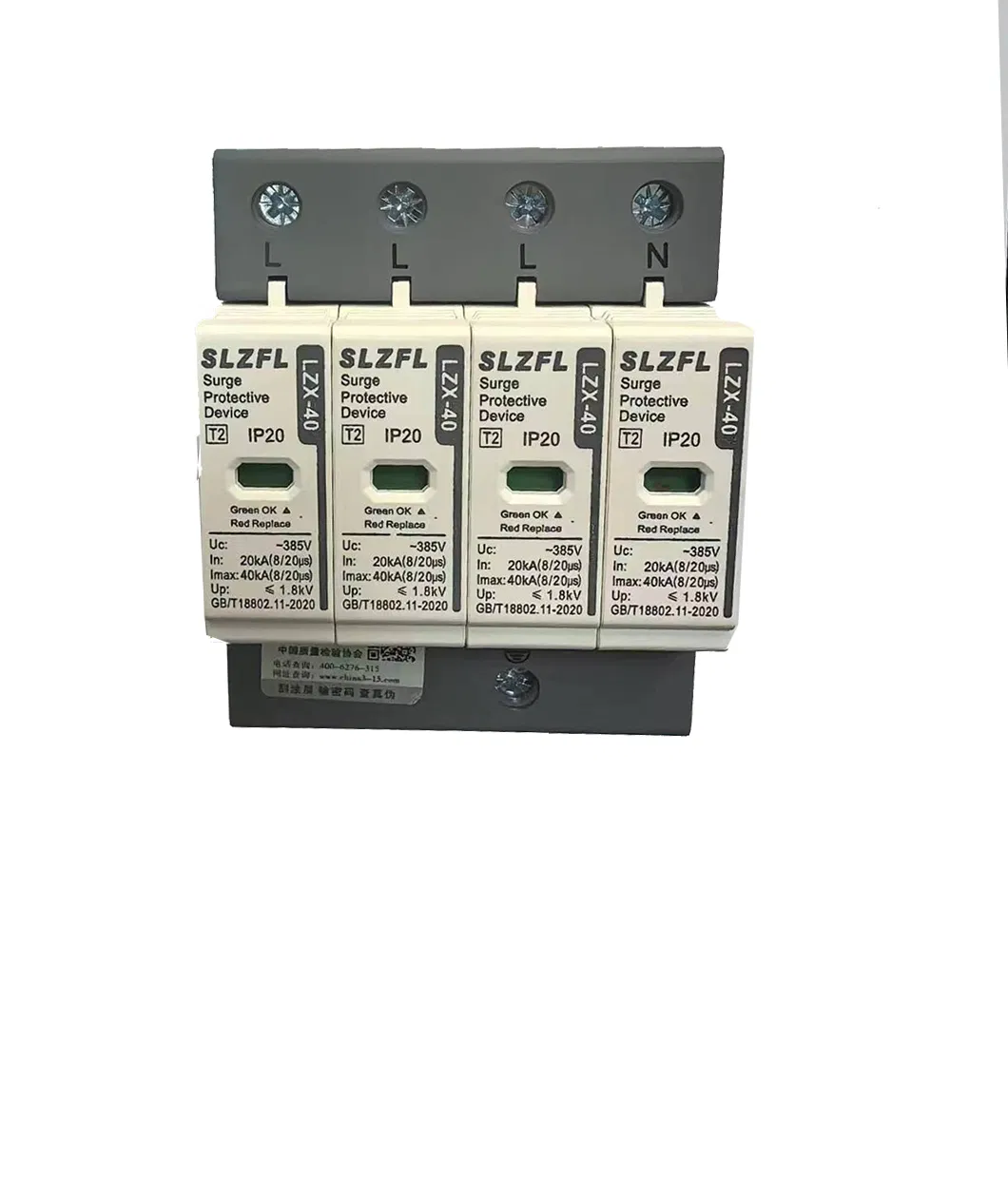

Detailed Product View
Certifications
Product Certifications
FAQ
Are you the manufacturer or trader?
We are a leading and professional manufacturer specializing in power protection products.
What are your main markets?
Our main markets include South-East Asia, the Middle East, West Africa, East-European countries, and parts of South America.
What is your delivery and after-sales service?
Delivery depends on order quantity; normally, container orders take about 1 month. We provide 24-hour response for technical support and problem-solving for all products.
Do you accept OEM and ODM?
Yes, our R&D team utilizes the latest technology to develop and produce products based on customer drawings and branding requirements.
What are your payment terms?
We accept 30% T/T in advance as a deposit, balanced against shipping documents. For orders over 100,000 USD, irrevocable L/C at sight is also accepted. Other terms can be negotiated for long-term partners.
How can I visit your facility?
We are located near major transportation hubs, approximately 40 minutes from the nearest airport and 30 minutes from the train station. We can provide invitation letters for international visitors.
