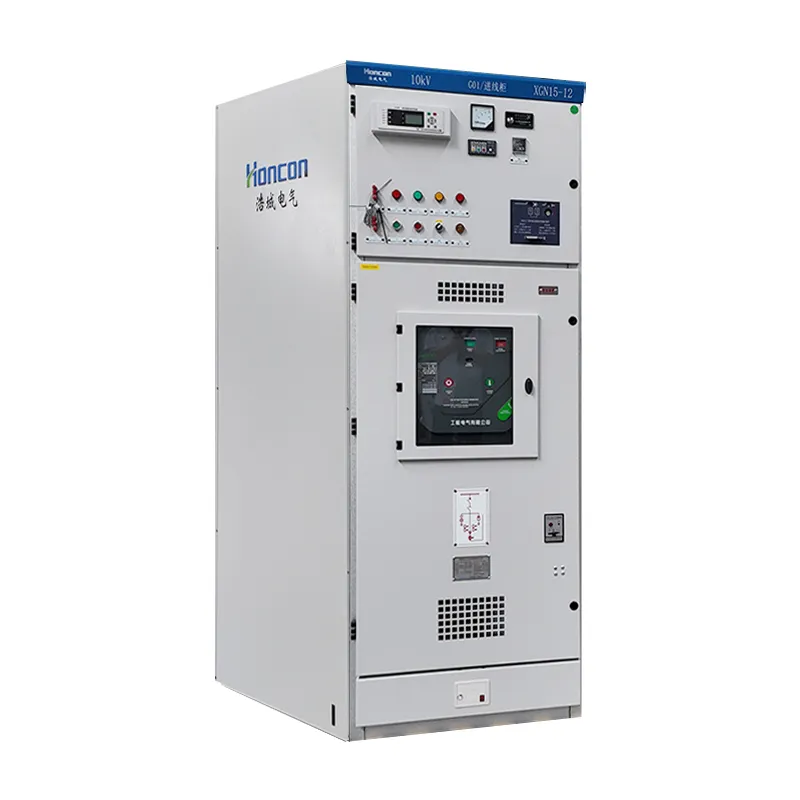

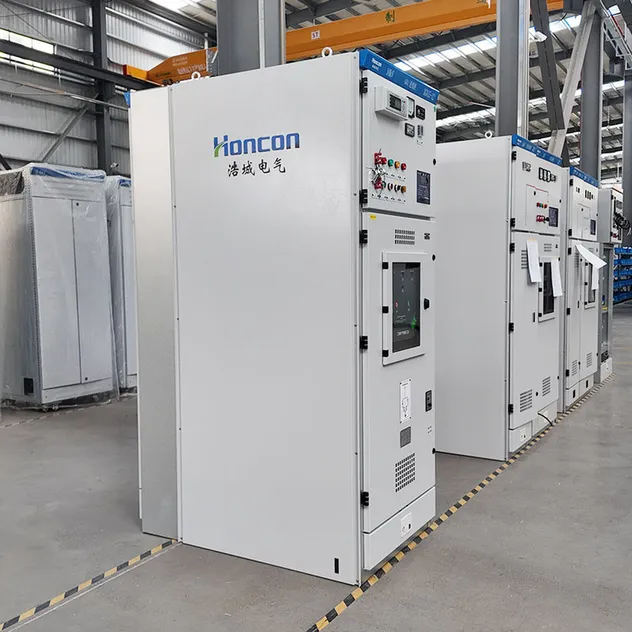

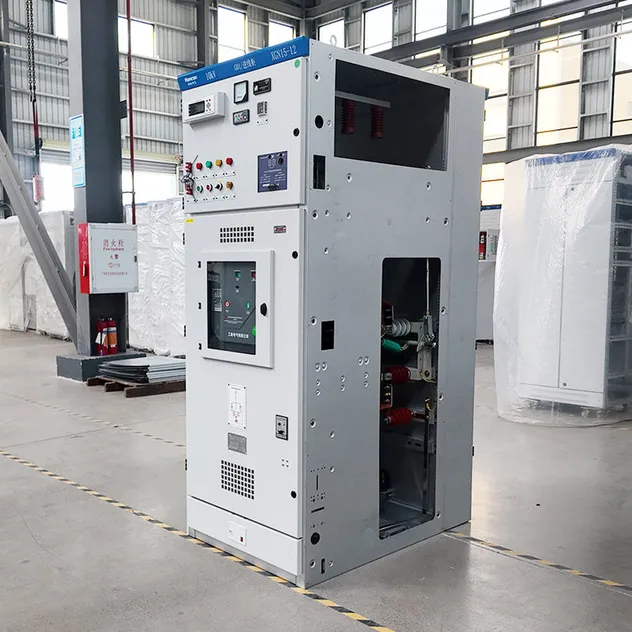

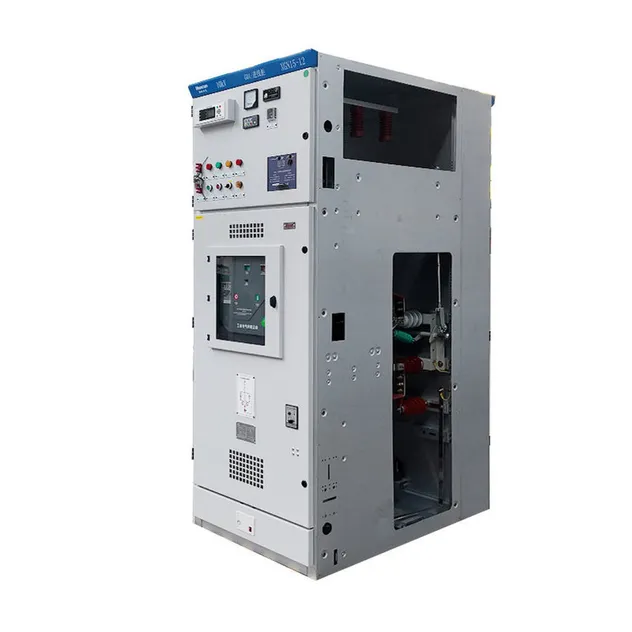

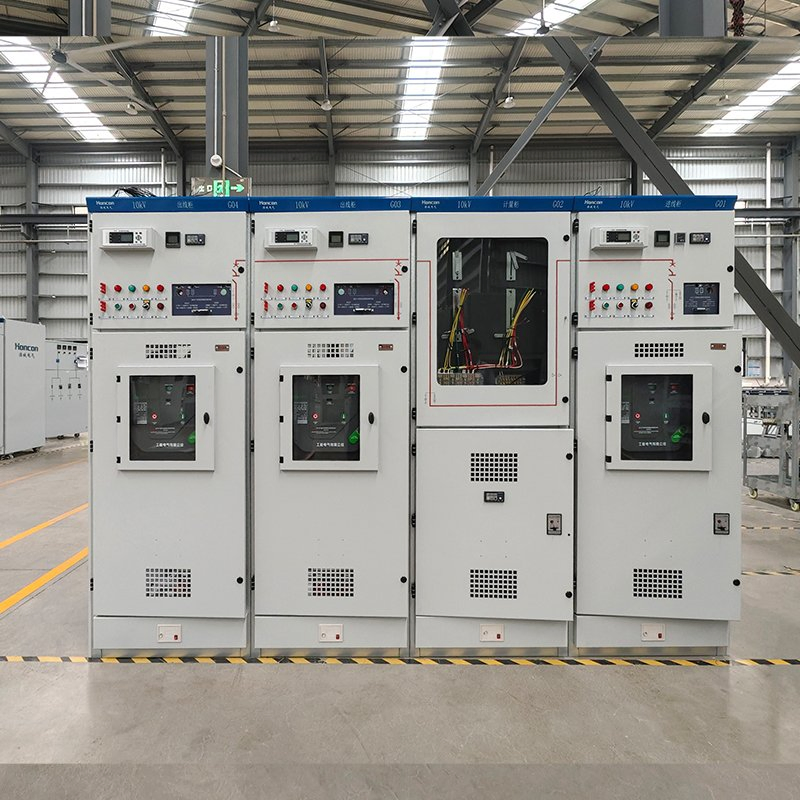

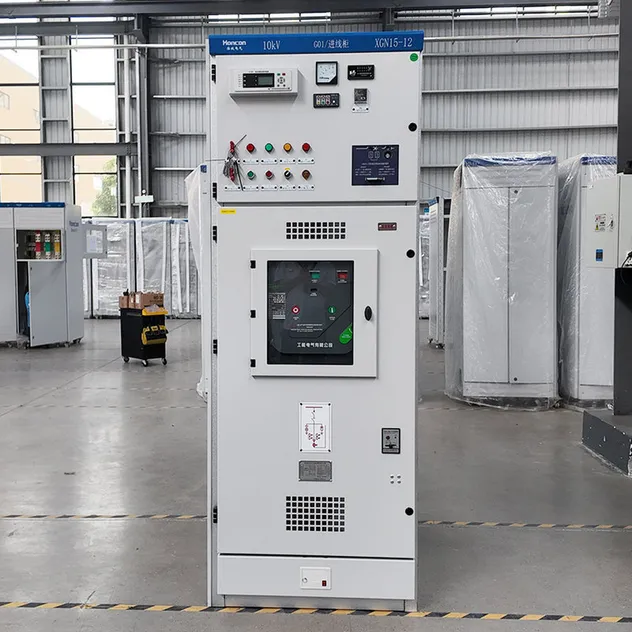

XGN15-12 is a new generation of compact and expandable metal-enclosed switchgear featuring a VCB/SF6 switch as the main switch and air insulation throughout the entire cabinet, making it suitable for power distribution automation. It has the characteristics of simple structure, flexible operation, reliable interlocking, and convenient installation.
Made of high-quality Aluzinc sheet metal with corrosion and oxidation resistance. Meets GB3906 and IEC298 (IP3X protection grade).

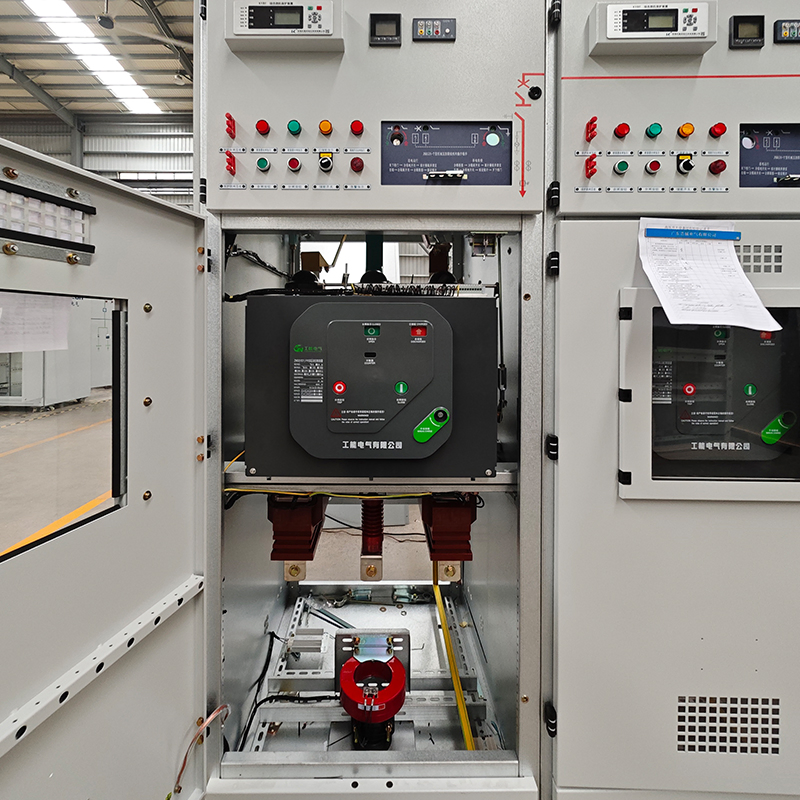

Equipped with three-position load break switches for a simple, safe, and stable structure.
Spring charging operation and five-prevention interlocking mechanism with mandatory mechanical locking for high reliability.

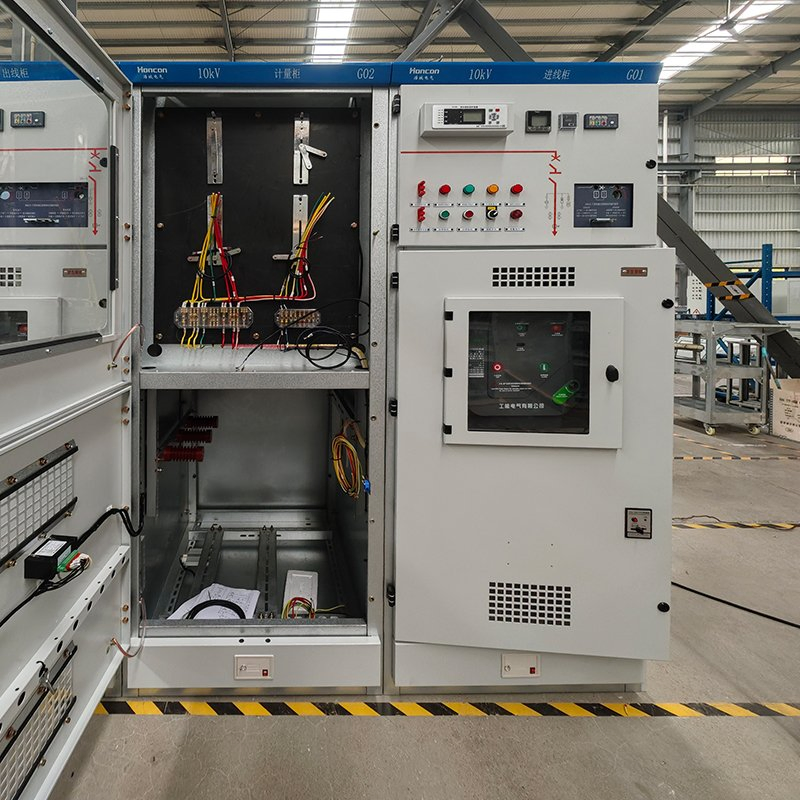

Large testing space for easy maintenance. Standardized units are designed for efficient mass production.

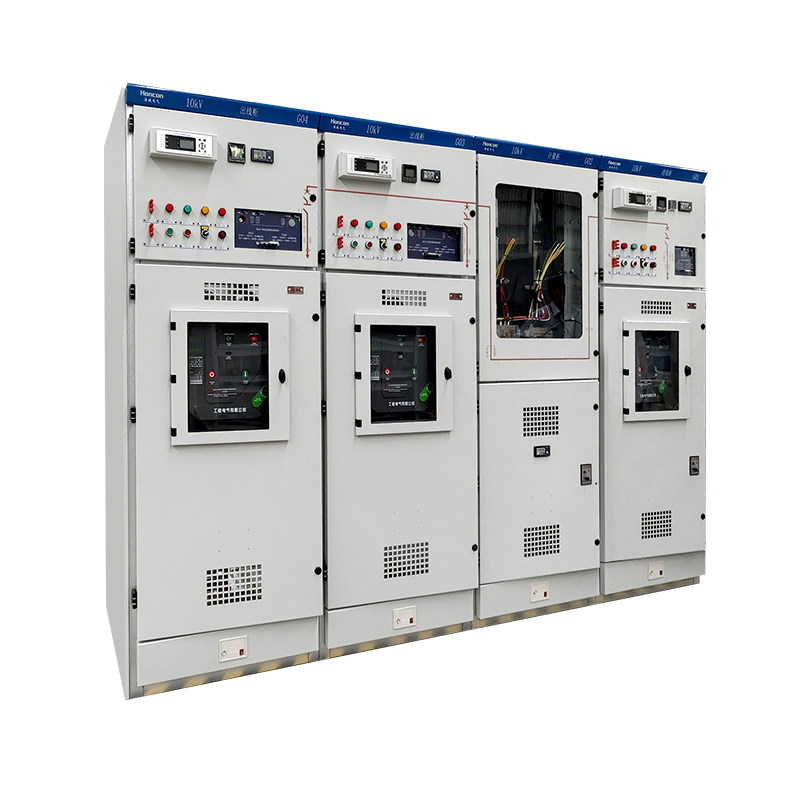

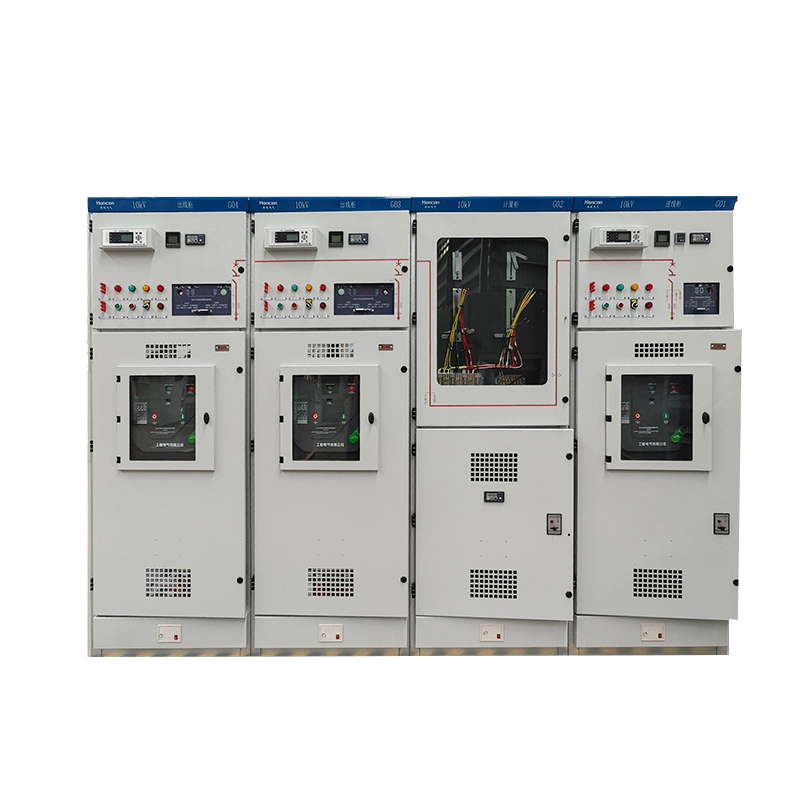

The circuit breaker cabinet can be utilized for a wide variety of incoming and outgoing circuit applications.
The main switch is housed in an epoxy resin shell filled with SF6 gas, ensuring long-term maintenance-free operation.
| Item | Unit | LBS Unit (12kV) | LBS-Fuse Unit (12kV) | VCB Unit (12kV) | LBS Unit (24kV) | LBS-Fuse Unit (24kV) | VCB Unit (24kV) |
|---|---|---|---|---|---|---|---|
| Rated Voltage | kV | 12 | 12 | 12 | 24 | 24 | 24 |
| Rated Frequency | Hz | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Main Busbar Current | A | 630 | 630 | 630 | 630 | 630 | 630 |
| Branch Busbar Current | A | 630 | 125 | 630 | 630 | 125 | 630 |
| Power Freq. Withstand | kV | 42 | 42 | 42 | 65 | 65 | 65 |
| Lightning Impulse | kV | 75 | 75 | 75 | 125 | 125 | 125 |
| Short-time Withstand | kA | 20/3S | - | 20/3S | 20/3S | - | 20/3S |
| IP Class | - | IP3X | IP3X | IP3X | IP3X | IP3X | IP3X |
Perfectly suited for automated electrical distribution networks and secondary substations.
Reliable power control for factories, malls, airports, and large-scale buildings.
Managing power in railways, ports, and urban development projects.
Designed for primary incoming and main outgoing circuits with broad flexibility.
