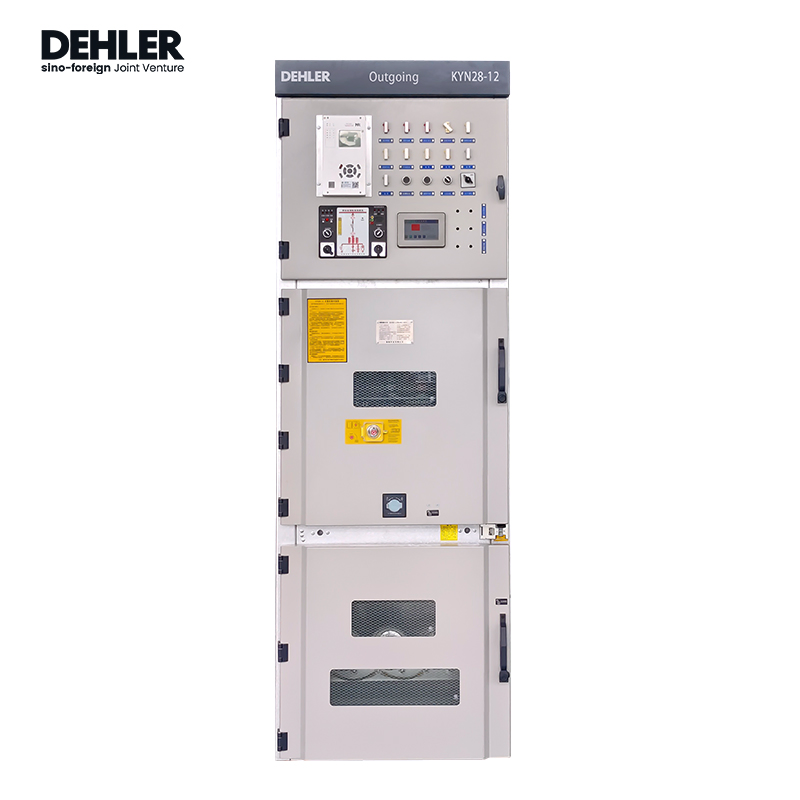

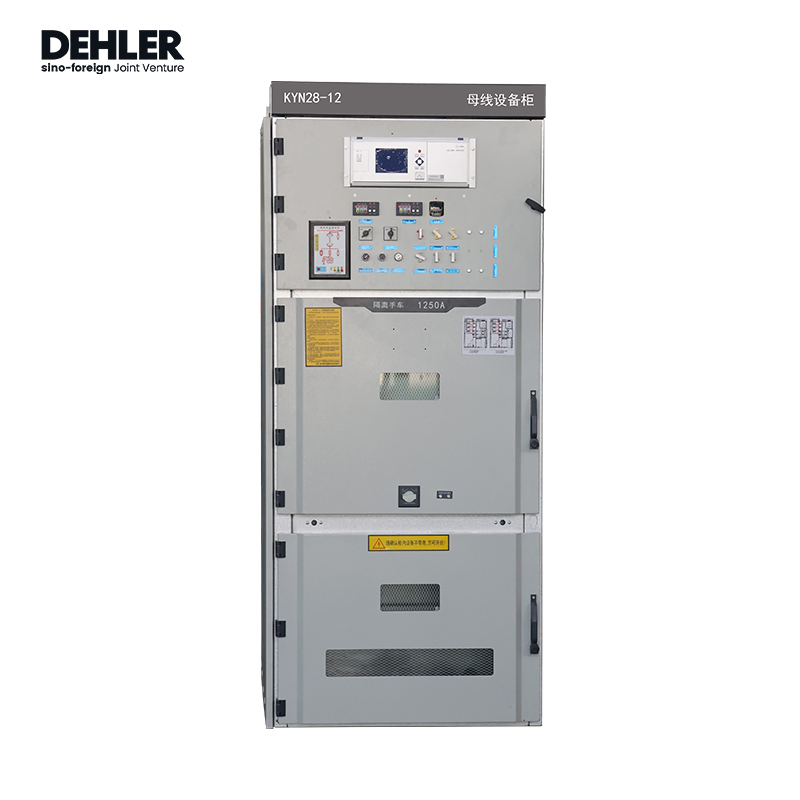

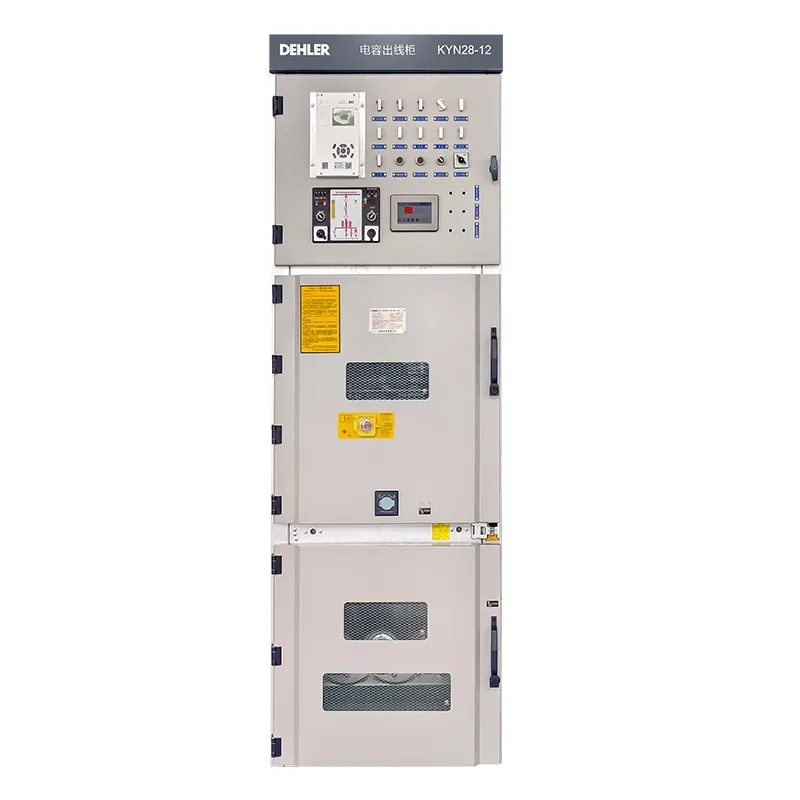

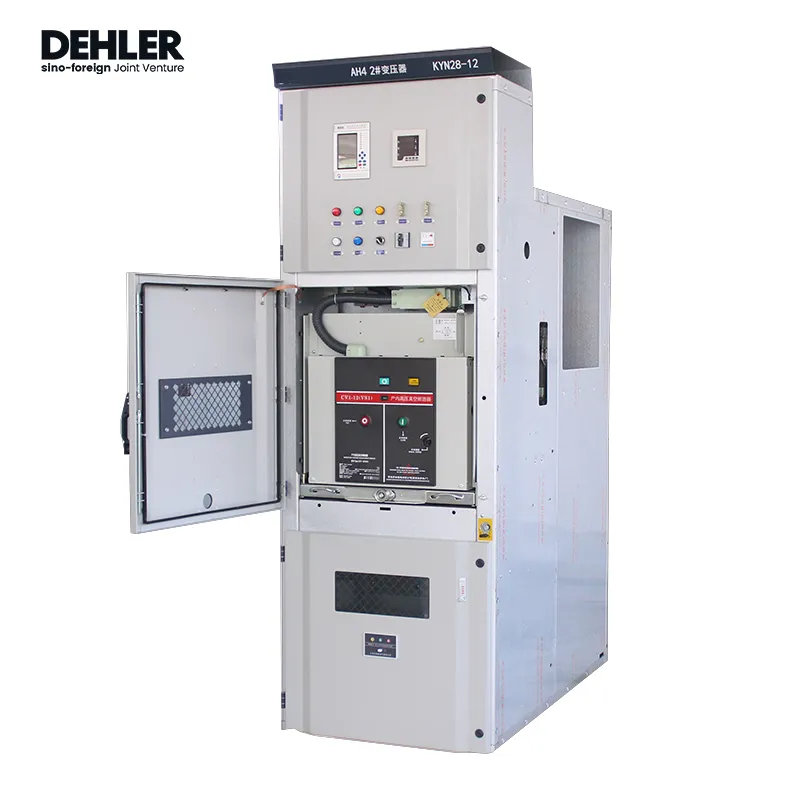

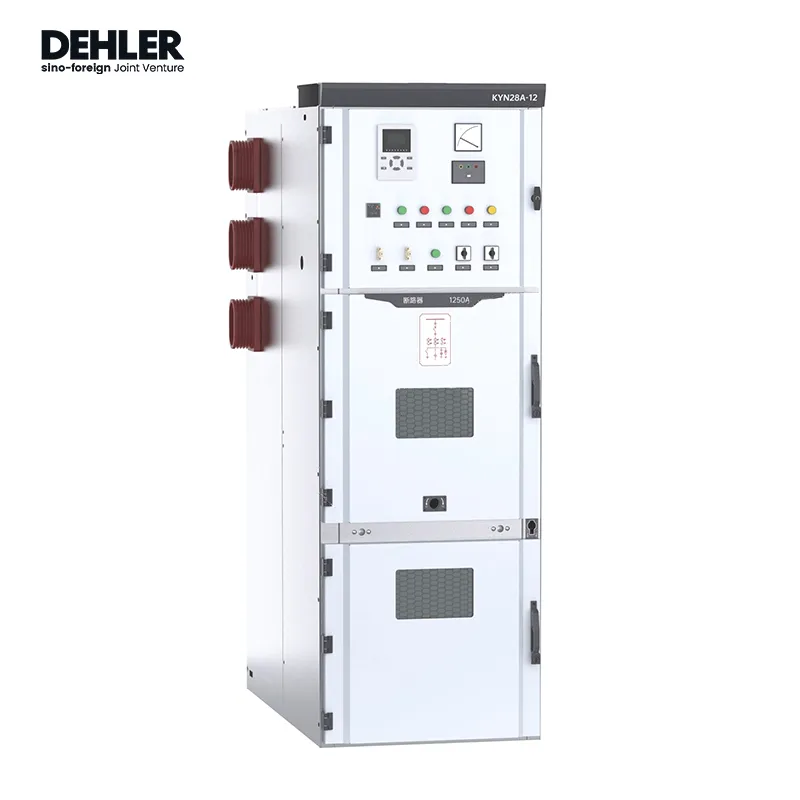

Best Selling 12kv 24kv Kyn28A-12 AC Metal Enclosed Distribution Switchgear Cabinet for Railway

1 / 5

Best Selling 12kv 24kv Kyn28A-12 AC Metal Enclosed Distribution Switchgear Cabinet for Railway

Customization:	Available
Certification:	CCC, ISO9001
Shell Material:	Steel Plate

Send Inquiry

Product Description

Basic Information

Model NO.

KYN28A-12 AC-Metal-Enclosed-Switchgear

Voltage Level

High Voltage

Installation

Removable

Structure

Cabinet

Current

Rated Voltage

3.6/7.2/12kv

Rated Frequency

50Hz

Production Capacity

50.000PCS/Year

Product Description

The KYN28A-12 is an advanced indoor switchgear designed for AC systems ranging from 3.6kV to 12kV at 50/60Hz. It is well-suited for applications in industries, mining, power plants, and substations, and it accommodates single bus configurations, which improve control, protection, and monitoring within medium voltage networks. Crucial for power transmission and distribution, it plays a vital role in electrical infrastructure.

Key Product Features

●

Enhanced Safety Measures: Complying with international standards such as IEC60298, the switchgear incorporates mechanisms to prevent accidental operations, unauthorized access to energized compartments, and incorrect grounding.

●

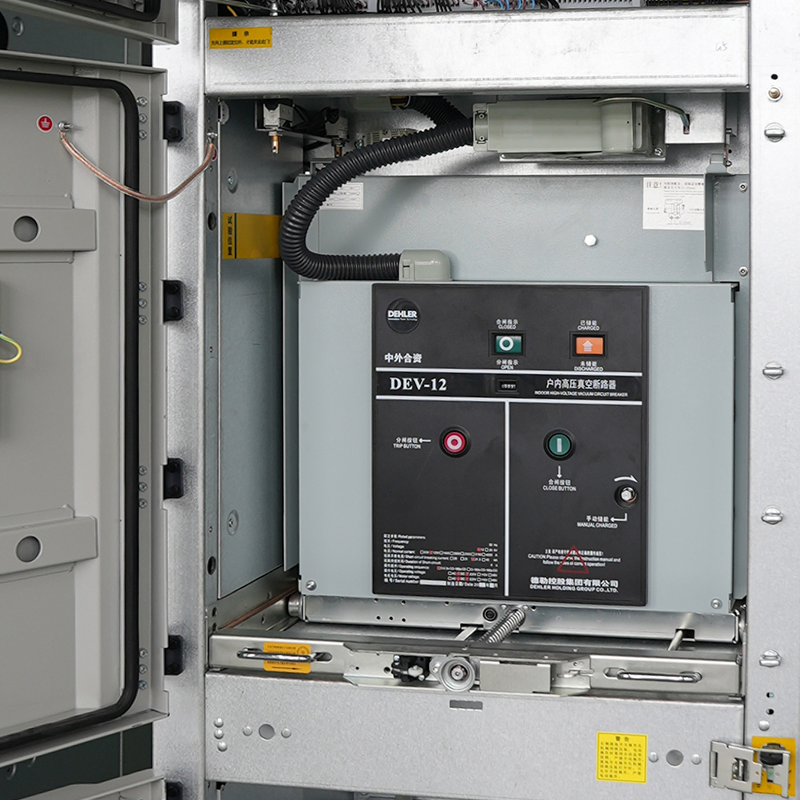

Broad Compatibility: Designed to be compatible with a wide range of vacuum circuit breakers, ensuring versatility to meet diverse industrial needs.

●

Intelligent Control: Enables seamless integration with fieldbus control networks via CAN communication interfaces for remote control, telemetry, and signaling.

●

Compact Design: Constructed with premium materials and CNC machining, the modular handcart design simplifies installation and maintenance.

●

Superior Isolation: Features isolated functional compartments, pressure relief channels, and an effective cooling system for prolonged operational reliability.

Technical Specification

Item	Unit	Value
Rated voltage	KV	3.6 / 7.2 / 12
Rated frequency	Hz	50
Circuit breaker rated current	A	630 - 3150
Rated current of switchgear	A	630 - 3150
Rated short-time withstand current (4S)	KA	20 / 25 / 31.5 / 40
Rated peak withstand current	KA	50 / 63 / 80 / 100
Class of protection	-	Enclosure IP4X, Compartment IP2X

Packaging & Shipping

Certifications

Frequently Asked Questions

Are you a trade company or a manufacturer?

We are a production and sales-oriented enterprise focusing on the production of power equipment, integrating design, R&D, manufacturing, and technical services.

What are your major products?

We specialize in producing high and low voltage switchgear, box-type substations, vacuum circuit breakers, isolating switches, and related low-voltage components.

Can your products be customized?

Yes, considering differences in voltage and frequency across different regions, our products can be customized according to your specific technical requirements.

Do you offer a guarantee for the products?

Yes, we offer at least a one-year guarantee for all of our power equipment products.

How can I place an order?

You should provide detailed technical specifications, a Single Line Diagram (SLD), or related technical drawings. Our team will then provide a formal quotation and technical consultation.

What international standards do your products comply with?

Our switchgear equipment complies with major international standards including IEC60298, ensuring safety and reliability for global applications.
